FORD FIESTA 2007 Workshop Manual
Manufacturer: FORD, Model Year: 2007, Model line: FIESTA, Model: FORD FIESTA 2007Pages: 1226, PDF Size: 61.26 MB
Page 141 of 1226

204-02-1 9 Rear Suspension 204-02-1 9
REMOVAL AND INSTALLATION
Using  the special  tool, install  a new  wheel
speed sensor  ring (brake  disc shown).
Vehicles  with rear drum brakes
4. CAUTIONS:
AAvoid impact  on the  wheel  speed sensor
ring.
AMake sure  the wheel  speed  sensor  ring
is  clean.
AAvoid any  contact  between  the wheel
, speed sensor  ring and a magnetic  surface.
' , A~otate the wheel  hub assembly 10 times
counter-clockwise when tightening  the wheel
hub  retaining  nut to prevent  damage  to the
wheel  bearing.
N0TE:lnstall a new  wheel  hub  retaining nut.
Install the  brake drum and  hub assembly.
5. Apply the  parking brake.
Vehicles with  rear disc brakes
6. CAUTIONS:
AAvoid impact  on the  wheel  speed sensor
ring.
AMake sure  the wheel  speed sensor  ring
is  clean.
AAvoid any contact  between the wheel
speed sensor  ring and a magnetic  surface.
A~otate the wheel  hub assembly 10 times
counter-clockwise when tightening the  wheel
hub  retaining  nut to prevent  damage  to the
wheel  bearing.
N0TE:lnstall a new  wheel  hub retaining  nut.
Install  the wheel  hub retaining  nut.
7.  lnstall  the brake  disc.
For additional  information,  refer  to: Brake
Disc  (206-04  Rear Disc Brake,  Removal  and
Installation).
All vehicles
8. Install  the wheel  and tire.
For additional information,  refer to: Wheel
and  Tire  (204-04  Wheels  and Tires,  Removal
and  Installation).
9. N0TE:lf the dust  cap is damaged  a new  dust
cap  must  be installed.
Using  a soft  faced  hammer  and a wooden
block,  install the dust  cap.
2006.0 Fiesta 1212006  GI 83769en
procarmanuals.com
Page 142 of 1226

204-02-20 Rear Suspension 204-02-20
REMOVAL AND INSTALLATION
Trailing Arm Bushing(l5 730 0) ,
I
Remover/lnstaller, Rear Axle
Housing  Bushings
Remover/lnstaller, Pivot
Bushing
205-297  (1 5-086)
15064
-- -
I Remover/lnstaller, Pivot
Adapter for
205-074
205-074-0 1 (1 5-064)
15110
Special Tool(s) ,
Bushing
205-342 (1 5-1 1  0)
151 1002
General Eaui~ment
Adapter for 205-342
205-342-02 (1  5-1 10-02)
I Transmission jack I
Removal
I. Raise  and support the  vehicle.
For  additional  information, refer to:  Jacking
(100-02  Jacking and Lifting, Description
and Operation)
I Lifting  (100-02  Jacking and Lifting,
Description  and Operation).
2. Disconnect the  wheel speed  sensor electrical
connector.
f
3. Detach  the parking  brake cable  from the
beam  axle on both  sides.
2006.0 Fiesta 1212006 G289770en
procarmanuals.com
Page 143 of 1226

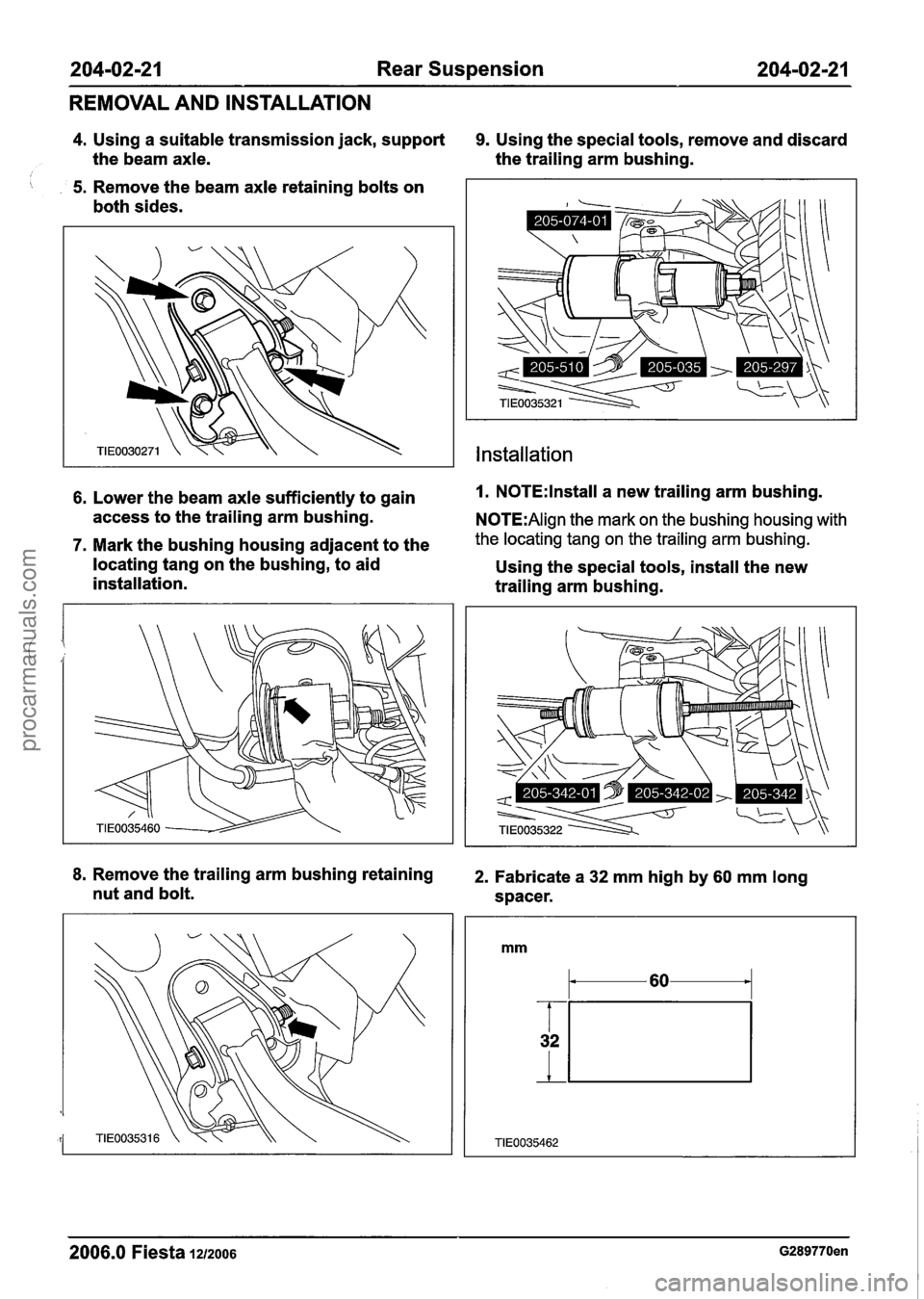

204-02-21 Rear Suspension  204-02-21
REMOVAL  AND INSTALLATION
4. Using  a suitable transmission  jack, support 9. Using  the special tools,  remove and discard
the  beam  axle.  the trailing  arm bushing.
( 5. Remove  the beam  axle retaining  bolts on
both  sides.
Installation
6. Lower  the beam  axle sufficiently  to gain 1. N0TE:lnstall a new  trailing  arm bushing.
access  to the  trailing  arm bushing.
N0TE:Align the mark  on the  bushing housing with
7. Mark the bushing housing adjacent to the the locating tang On the trailing arm bushing.
locating  tang on the bushing,  to aid
Using the special tools,  install the new
installation.  trailing arm bushing.
8. Remove  the trailing  arm bushing  retaining 2. Fabricate a 32 mm high by 60 mm long
nut and  bolt.  spacer.
2006.0 Fiesta 1212006 G289770en
procarmanuals.com
Page 144 of 1226

204-02-22 Rear Suspension 204-02-22
REMOVAL  AND INSTALLATION
3. N0TE:Final tightening  of the  trailing  arm 6. Install the beam  axle retaining  bolts on both
bushing retaining  nut and  bolt  must  be
sides.
carried  out at the  installation  setting.
N0TE:The spacer must be  positioned exactly  as
illustrated.
Using  the fabricated  spacer, set the beam
axle bracket  to the  installation  setting.
4. N0TE:Final tightening of the trailing  arm
bushing  retaining  nut and  bolt  must  be
carried  out at the  installation  setting.
Install the  trailing arm bushing  retaining  nut
and bolt.
Remove  the spacer.
5. Raise  the beam  axle.
7. Lower  and remove  the transmission  jack.
8. Attach the parking  brake cable  to the  beam
axle  on both  sides.
9. Connect  the wheel  speed sensor electrical
connector.
10. Lower  the vehicle.
(
2006.0  Fiesta 1212006 G289770en a
procarmanuals.com
Page 145 of 1226

204-04-1 Wheels and Tires  204-04-1
SECTION 204-04 Wheels and Tires
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications.. ........................................................................\
............................................ 204-04-2
DIAGNOSIS AND TESTING
Wheels and  Tires ........................................................................\
........................................ 204-04-3
Inspection and Verification
........................................................................\
..................... 204-04-3
Symptom Chart
........................................................................\
...................................... 204-04-4
REMOVAL AND  INSTALLATION
Wheel  and  Tire ........................................................................\
........................................... 204-04-8
procarmanuals.com
Page 146 of 1226

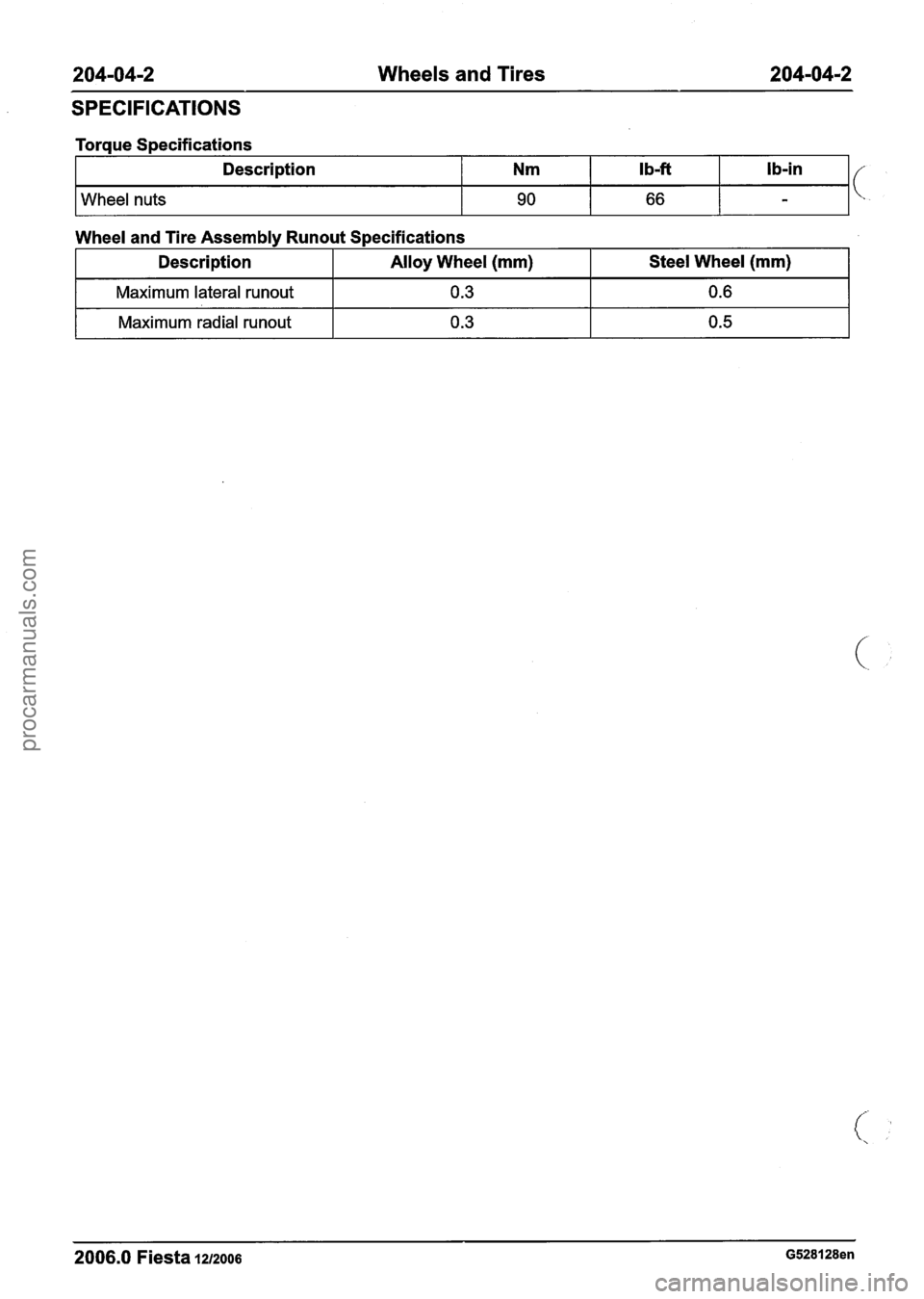

204-04-2 Wheels and Tires 204-04-2
SPECIFICATIONS
Toraue S~ecifications
Description
Wheel  nuts
I Maximum  lateral runout I 0.3 I 0.6 I
Wheel and Tire Assembly Runout Specifications
I Maximum  radial runout I 0.3 I 0.5 I
Nm
90
Description
2006.0 Fiesta 1212006 G528128en
lb-ft
66
Alloy Wheel  (mm)  Ib-in
-
Steel
Wheel  (mm)
procarmanuals.com
Page 147 of 1226

204-04-3 Wheels and Tires 204-04-3
DIAGNOSIS AND TESTING
Wheels and Tires
lnspection  and Verification
Visual Inspection Chart
I Mechanical I
I Tire pressure(s) * I
I Wheel nuts I
I Wheel studs I
* Vehicles  equipped with a  tire pressure monitoring system must  be inspected for correct operation
using the diagnostic tool.
To  maximize  tire performance, inspect the tires for
signs  of incorrect inflation and uneven wear which
may  indicate a need  for balancing, rotation  or
suspension alignment.  Tires should  also be
checked frequently for  cuts, stone bruises,
abrasions, blisters and for objects that  may have
become embedded  in the tread. More frequent
 inspections are recommended  when rapid or ( extreme temperature changes  occur or when road
surfaces are rough  or occasionally littered with
foreign material.
As  a further visible check of  tire condition, tread
wear  indicators are molded into the bottom  of the
tread  grooves. When  these indicator bands  become
visible,  new tires  must be installed.
Tire Wear  Diagnosis
Uneven wear  is usually caused by either excessive
camber or  excessive toe on tires.
Sometimes  incorrect toe settings  or worn  struts will
cause severe 'cupping'  or 'scalloped' tire  wear on
non-driven  wheels.
Severely incorrect toe settings will also cause other  unusual  wear patterns.
Tire Vibration Diagnosis
A tire vibration  diagnostic procedure always begins
with a road test.  The road test  and customer
interview (if available)  will provide  much of the
information needed  to find the source  of a vibration.  During
the road  test, drive  the vehicle on a road
that  is smooth and free  of undulations.  If vibration
is  apparent, note and record  the following:
- the  speed  at which  the vibration  occurs.
- what type  of vibration occurs  in each speed
range.
- mechanical  or audible
- how  the vibration  is affected  by changes  in the
following:
- engine torque
- vehicle speed
- engine speed
- type  of vibration - sensitivity:
- torque sensitive
- vehicle speed sensitive
- engine speed sensitive
The following explanations help isolate  the source
of  the  vibration.
Torque  Sensitive
This means  that the  condition can be improved  or
made worse  by accelerating, decelerating,
coasting, maintaining a  steady vehicle speed  or
applying engine torque.
Vehicle  Speed Sensitive
This means  that the vibration always occurs  at the
same  vehicle speed and  is not  affected  by engine
torque, engine speed  or the transmission gear
selected.
2006.0 Fiesta 1212006
procarmanuals.com
Page 148 of 1226

204-0414 Wheels and Tires 204-04-4
DIAGNOSIS AND TESTING
Engine Speed  Sensitive A thumping noise usually  means that the tire is flat
or  has soft spots making a noise  as they slap  the
This  means  that the vibration occurs  at varying
roadway. Tire whine can be distinguished  from axle
vehicle  speeds  when a different transmission  gear
noise. Tire  whine remains the  same over a range
is  selected.  It can sometimes be isolated  by
of speeds.
increasing Or decreasing engine with the A complete road test procedure is described in transmission in NEUTRAL  or by  stall testing with Section the transmission  in gear.  If the condition  is engine
speed sensitive,  the-cause is probably  not related
REFER to: Noise, Vibration and Harshness (NVH)
to the  tires.  (1
00-04  Noise, Vibration and  Harshness,
If  the  road test indicates  that there  is tire  whine,  Diagnosis and
Testing).
but no shake  or vibration, the noise originates  with
the contact between  the tire and  the road  surface.
Symptom  Chart
Symptom  Possible Sources  Action
Tire(s) show excess  wear on
edge  of tread
I Vehicle overloaded. I CORRECT as necessary. I
Tire(s) under-inflated.
lncorrect  wheel alignment. ADJUST  the tire pressure(s).
ADJUST  the wheel alignment.
REFER to:  (204-00 Suspension
System
- General Information)
Specifications (Specifications),  Front  Toe Adjustment  (General
Procedures).
Tire(s) show  excess wear  in Tire(s) over-inflated.
I  I
ADJUST the tire pressure(s).
I center of tread
Other excessive  tire wear  Incorrect  tire pressure(s).
concerns
need rotating.
ADJUST the tire pressure(s).
ROTATE  the wheel and  tire
assemblies.
lncorrect wheel alignment.  ADJUST the wheel  alignment.
REFER to:  (204-00 Suspension
System
- General Information)
Specifications (Specifications),  Front  Toe Adjustment  (General
Procedures).
I Vehicle overloaded.
Loose or  leaking front strut and
spring  assembly.  CORRECT as necessary.
I
2006.0 Fiesta 1212006 G25362en
TIGHTEN
or INSTALL new
suspension components  as
necessary.
REFER to:  Shock  Absorber
and  Spring  Assembly  (204-01
,
Front Suspension, Removal
and  Installation).
procarmanuals.com
Page 149 of 1226

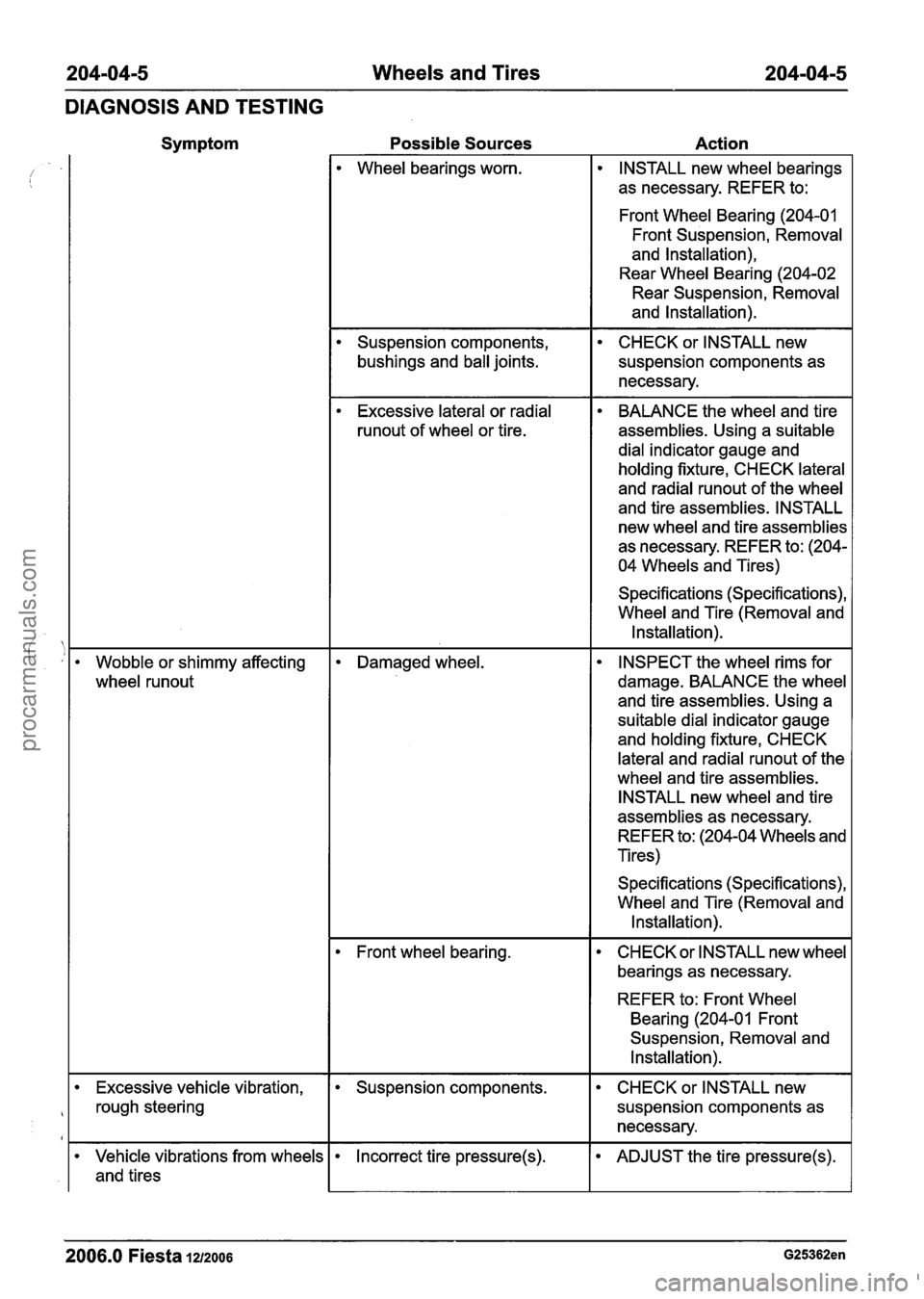

204-04-5 Wheels and Tires 204-04-5
DIAGNOSIS  AND TESTING
Symptom  Possible Sources  Action
Wheel bearings worn.
INSTALL new wheel bearings
as necessary.  REFER to:
Front Wheel Bearing
(204-01
Front Suspension, Removal
and  Installation),
Rear Wheel Bearing  (204-02
Rear Suspension, Removal
and Installation).
Suspension components,  bushings and  ball joints. CHECK  or INSTALL new
suspension components  as
necessary.
Excessive  lateral or radial
runout of wheel or tire.  BALANCE
the wheel and  tire
assemblies. Using a suitable
dial indicator gauge  and
holding fixture,  CHECK lateral
and radial
runout of  the wheel
and  tire assemblies.  INSTALL
new  wheel and  tire assemblies
as necessary. REFER  to: (204-
04 Wheels and Tires)
Specifications (Specifications),
Wheel and Tire (Removal and
Installation).
Damaged wheel. I INSPECT  the wheel rims for
damage.  BALANCE  the wheel
and  tire assemblies. Using a
suitable  dial indicator gauge
and  holding fixture,  CHECK Wobble or shimmy  affecting
wheel
runout
lateral and  radial runout of the
wheel  and tire assemblies.
INSTALL  new wheel and  tire
assemblies  as necessary.
REFER  to: (204-04  Wheels and
Tires)
Specifications (Specifications),
Wheel and Tire (Removal  and
Installation).
Front wheel bearing. CHECK  or INSTALL  new wheel
bearings  as necessary.
' REFER to: Front Wheel
Bearing (204-01 Front
Suspension, Removal and
Installation).
Excessive vehicle vibration,
rough steering Suspension  components. CHECK or INSTALL new
suspension components  as
necessary.
ADJUST  the tire
pressure(s). Vehicle vibrations from  wheels
and tires
2006.0 Fiesta 1212006 G25362en
Incorrect  tire pressure(s).
procarmanuals.com
Page 150 of 1226

204-04-6 Wheels and Tires 204-04-6
DIAGNOSIS AND TESTING
Symptom  Possible
Sources  Action
Wheel or tire  imbalance.  BALANCE the
wheel and tire
assemblies.
Uneven  tire wear.
,INSTALL a new tire(s) as
necessary.
REFER  to: Wheel  and Tire
(204-04  Wheels and Tires,
Removal and Installation).
1. Brake disc  imbalance.  CHECK
the brake disc for
foreign  material.
I . Water in tire(s). I . REMOVE  the water. I
Bent  wheel.  INSTALL
a new wheel  and tire
assembly.
REFER  to: Wheel and  Tire
(204-04  Wheels and Tires,
Removal and Installation).
Incorrectly seated  tire bead. SPIN the wheel  on the  vehicle.
EXAMINE the  area where the
tire  and  the wheel  meet. If that
section  of the tire  appears to
waver while being rotated,  the
tire  bead may not be correctly
seated on the  wheel. REMOVE
the  tire  and  CLEAN  the bead
seat  areas on  both wheel  and
tire.
Excessive lateral  or radial
runout of wheel  or tire.  BALANCE the
wheel and tire
assemblies. Using a suitable
dial indicator gauge  and
holding fixture,  CHECK the
lateral  and radial
runout of the
wheel and  tire assemblies.
INSTALL new  wheel and tire
assemblies  as necessary.
REFER  to: (204-04 Wheels and
Tires)
Specifications  (Specifications),
Wheel and  Tire (Removal and
Installation).
Foreign material between
wheel  mounting face  and hub
mounting surface.  CLEAN mounting surfaces.
Front wheel bearing.  CHECK
or INSTALL new wheel
bearings  as necessary.
REFER  to: Front Wheel
Bearing
(204-01 Front
Suspension, Removal  and
Installation).
2006.0 Fiesta 12/2006 G25362en
procarmanuals.com
