FORD FIESTA 2007 Workshop Manual

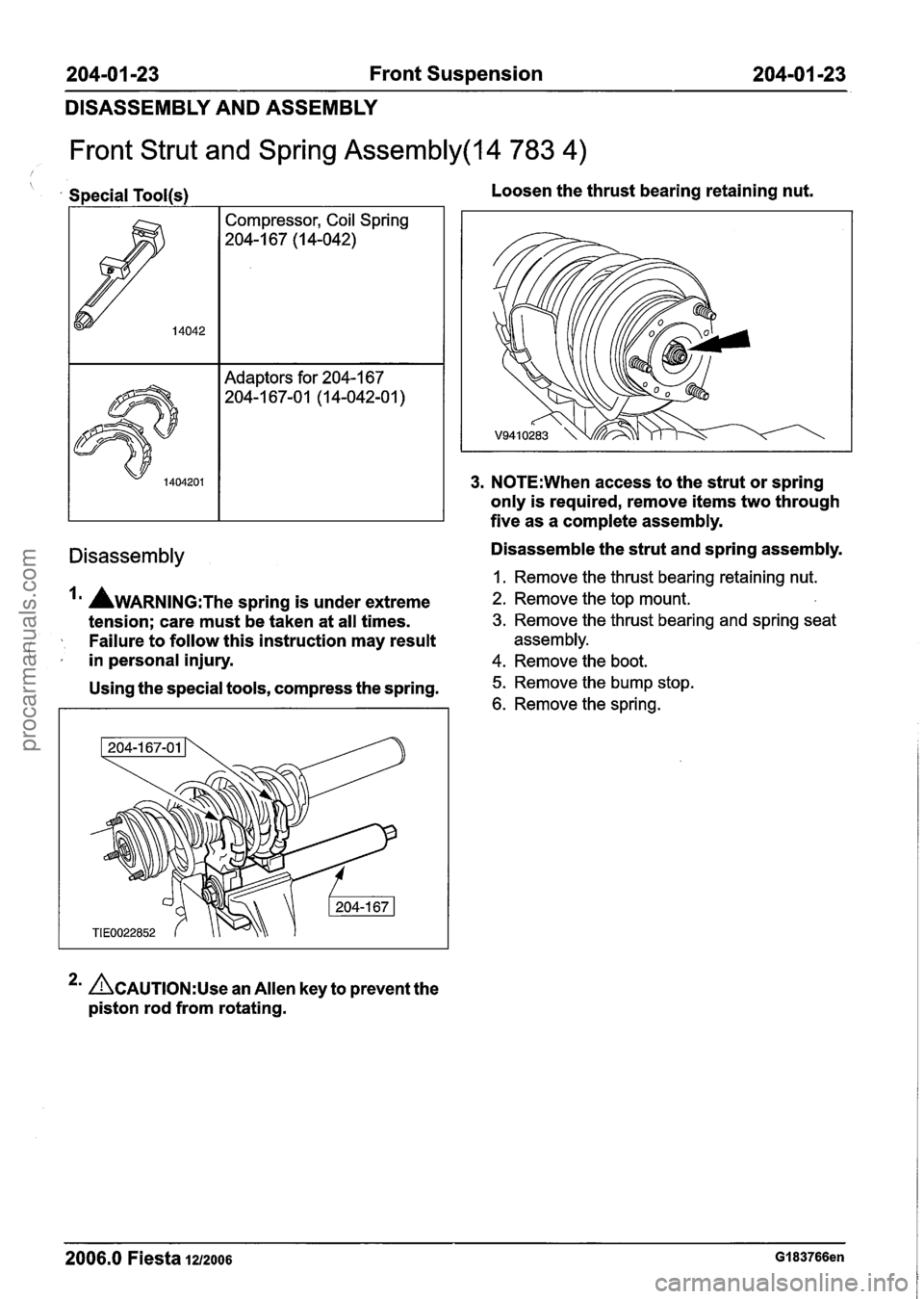

204-01 -23 Front Suspension 204-01 -23
DISASSEMBLY AND ASSEMBLY
Front Strut and Spring Assembly(l4 783 4)
Special Tool(s) I Compressor, Coil Spring
204-1 67 (I 4-042)
Adaptors for 204-1 67
204-1 67-0 1 (1 4-042-0 1
)
Loosen the thrust bearing retaining nut.
3. N0TE:When access to the strut or spring
only is required, remove items two through
five as a complete assembly.
Disassembly Disassemble the strut and spring assembly.
I. Remove the thrust bearing retaining nut.
AWARNING:T~~ spring is under extreme 2. Remove the top mount.
tension; care must be taken at all times. 3. Remove the thrust bearing and spring seat
Failure to follow this instruction may result assembly.
( ,' in personal injury. 4. Remove the boot.
Using the special tools, compress the spring. 5. Remove the bump stop.
6. Remove the spring.
2' &AUTION:U~~ an Allen key to prevent the
piston rod from rotating.
2006.0 Fiesta 1212006 GI 83766en
procarmanuals.com

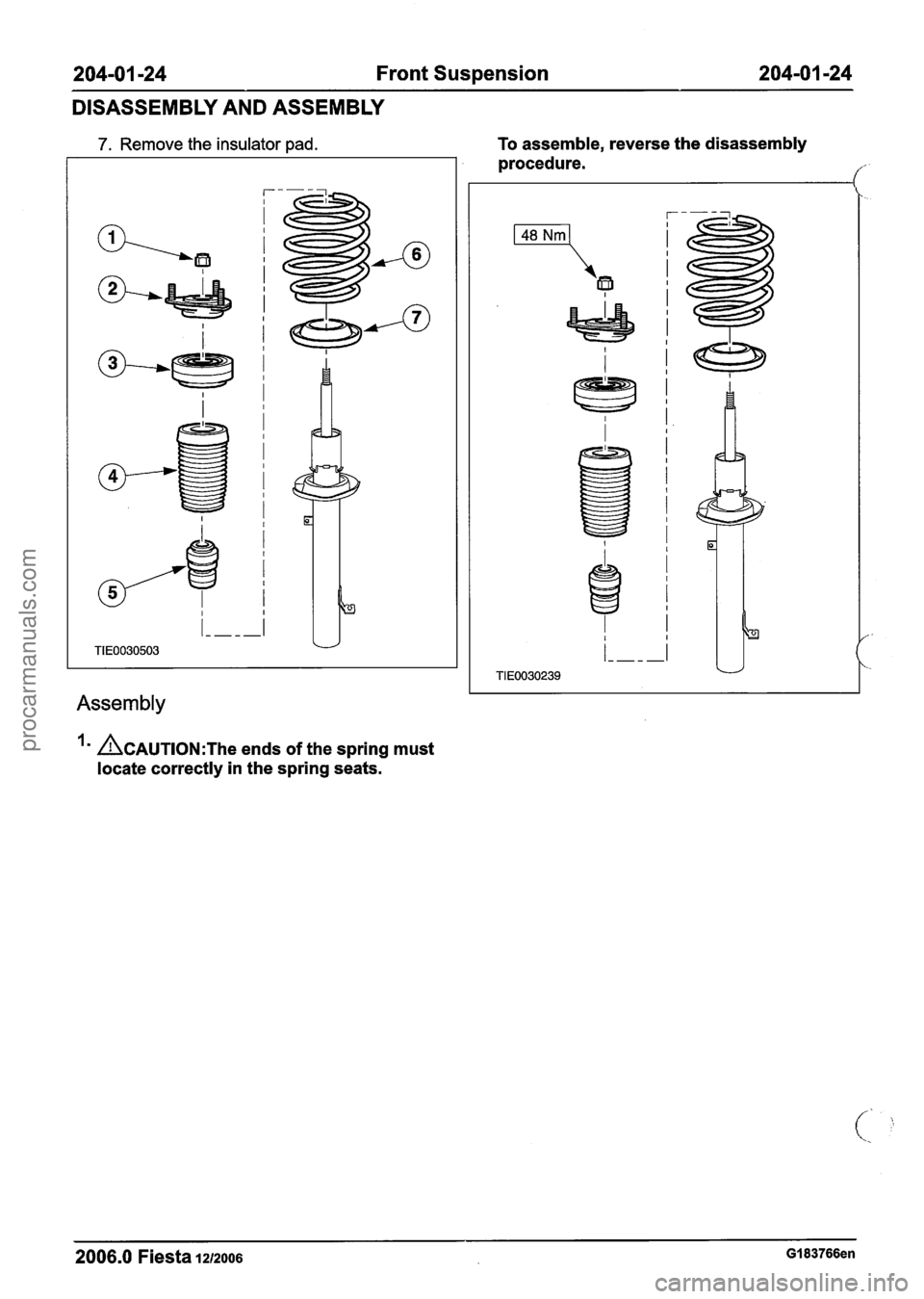

204-01 -24 Front Suspension 204-0 1 -24
DISASSEMBLY AND ASSEMBLY
7. Remove the insulator pad.
Assembly
To assemble, reverse the disassembly
procedure.
/'
~CAUTION:T~~ ends of the spring must
locate correctly in the spring seats.
2006.0 Fiesta 1212006 GI 83766en
procarmanuals.com

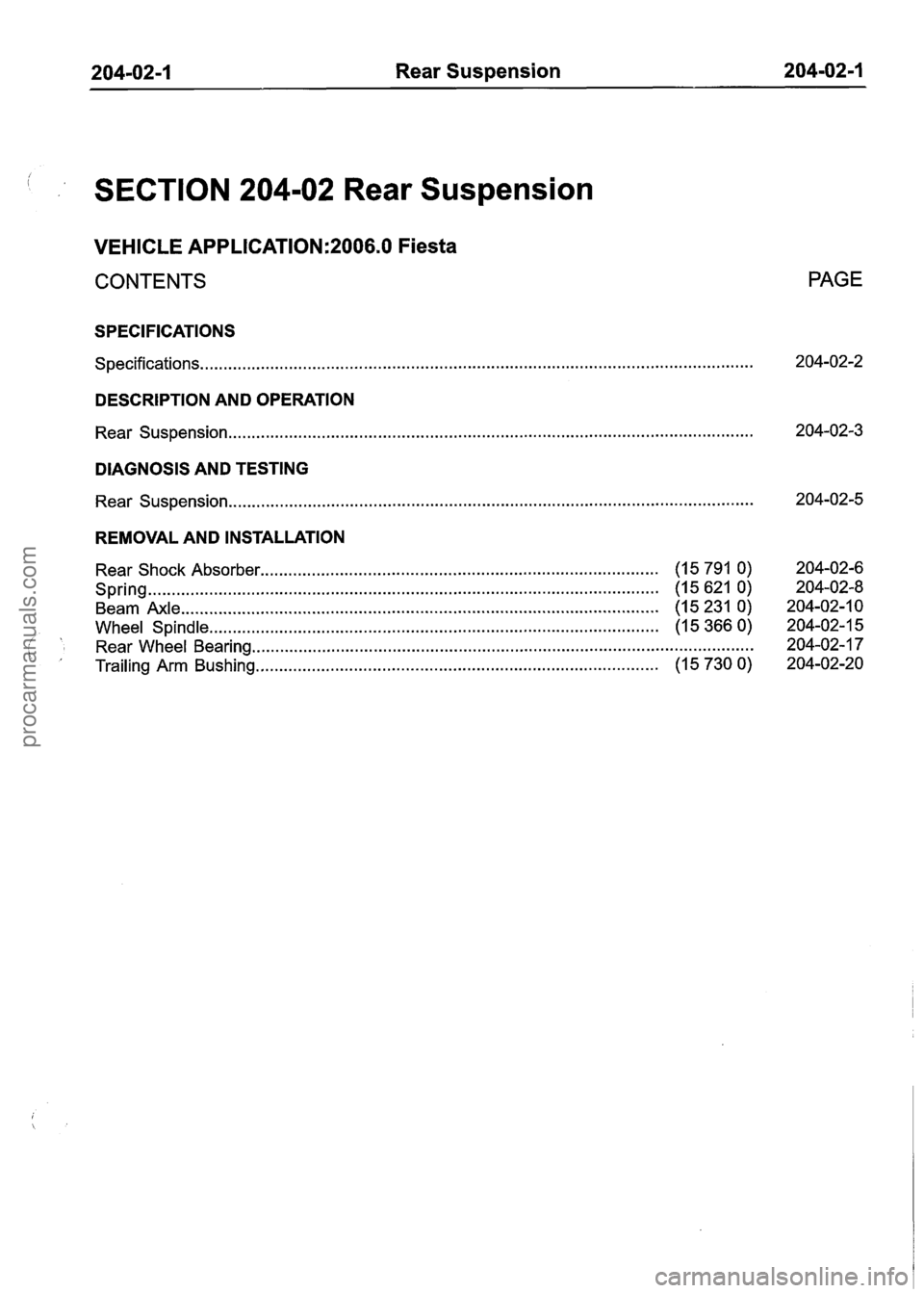

204-02-1 Rear Suspension 204-02-1
SECTION 204-02 Rear Suspension
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS
SPECIFICATIONS
Specifications.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DESCRIPTION AND OPERATION
Rear Suspension ........................................................................\
........................................
DIAGNOSIS AND TESTING
Rear Suspension ........................................................................\
........................................
REMOVAL AND INSTALLATION
Rear Shock Absorber ........................................................................\
.............
Spring ........................................................................\
.....................................
Beam Axle ........................................................................\
..............................
Wheel Spindle ........................................................................\
........................
' Rear Wheel Bearing ........................................................................\
............... '~ , Trailing Arm Bushing ........................................................................\
..............
PAGE
procarmanuals.com

204-02-2 Rear Suspension 204-02-2
SPECIFICATIONS
Torque Specifications
I Shock absorber upper mount retaining bolts I 25 I 18 I - I
Item
Shock absorber lower mount retaining bolt
I Trailing arm bushing retaining bolts I 125 1 92 I - I
Nm
115
I drum brakes I I I I
Beam axle retaining bolts
Wheel spindle retaining bolts
- Vehicles with rear
Wheel spindle retaining bolts
- Vehicles with rear
disc brakes
Ib-ft
85
I Wheel hub retaining nut 1 235 1 173 1 - I
I b-in
-
115
70
I Brake hose to brake caliper union I 15 I 11 I - I
I Brake tube to brake hose union I 15 I 11 I - I
85
52
I Wheel speed sensor retaining bolt I 9 I - I 80 I
-
-
2006.0 Fiesta 1212006 GI 52540en
procarmanuals.com

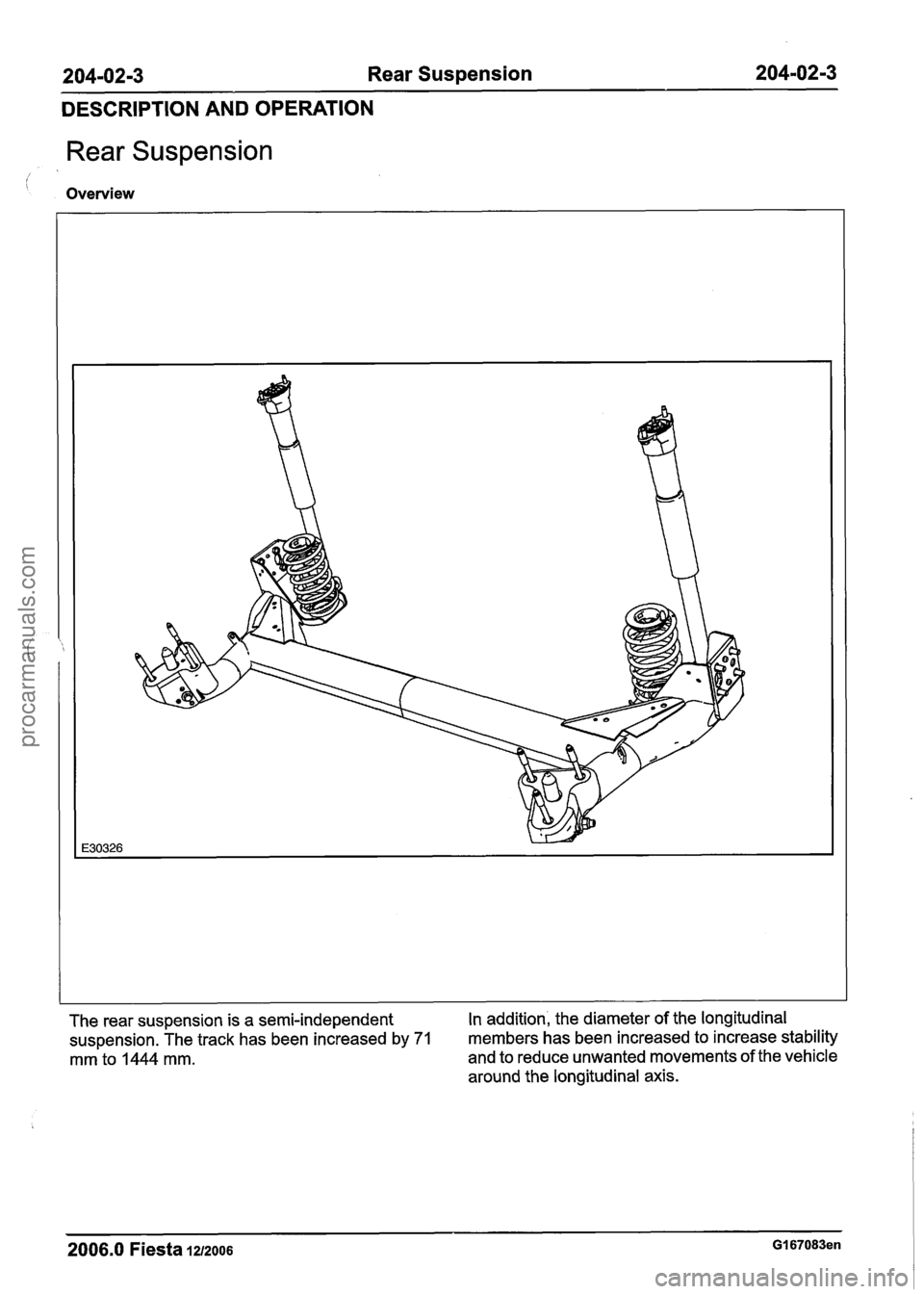

204-02-3 Rear Suspension 204-0213
DESCRIPTION AND OPERATION
Rear Suspension
Overview
The rear suspension is a semi-independent In
addition, the diameter of the longitudinal
suspension. The track has been increased by 71 members
has been increased to increase stability
mm to 1444 mm. and to reduce unwanted movements
of the vehicle
around the longitudinal axis.
2006.0 Fiesta IZIZOO~ GI 67083en
procarmanuals.com

204-0214 Rear Suspension 204-02-4
DESCRIPTION AND OPERATION
suspension will not be correct. The installation .
orientation of the support bearing is indicated with
an arrow.
sensor pick-up ring
1 3 1 stub axle I
1 4 1 Brake back plate assembly with brake I
1 5 1 Bracket I
1 6 1 Spring I
1 7 1 Shock absorber I
A significant modification is the replacement of the
previous Mc-Pherson suspension struts with
separate spring and shock absorber elements. This
results in more space in the area of the suspension
strut turrets, thus increasing the volume of the
luggage compartment. In addition, the forces from
the spring and shock absorber elements are now
dissipated separately and have been individually
optimised.
The shock absorbers are single-tube gas shock
absorbers.
It is important that the correct installation orientation
is adhered to when assembling the support
bearings, as otherwise the geometry of the rear
- -
2006.0 Fiesta 1212006 GI 67083en
procarmanuals.com

204-02-5 Rear Suspension 204-02-5
DIAGNOSIS AND TESTING
Rear Suspension
I ' . REFER to Section 204-00 [Suspension System -
General Information].
2006.0 Fiesta 1212006 GI 7411 en
procarmanuals.com

204-02-6 Rear Suspension 204-02-6
REMOVAL AND INSTALLATION
Rear Shock Absorber(l5 791 0)
General Equipment 5. Remove the shock absorber.
I Transmission jack I
Removal
1. Remove the wheel and tire. For additional
information, refer to Section
204-04 [Wheels
and Tires].
2. Detach the fender splash shield from the
fender.
3. Using a suitable transmission jack, support
the beam axle.
4. Detach the shock absorber from the beam
axle.
Installation
I. Attach the shock absorber to the body.
2. N0TE:Do not fully tighten the shock
absorber lower mounting bolt at this stage.
Install the shock absorber.
2006.0 Fiesta lu2006 G89134en
procarmanuals.com

204-02-7 Rear Suspension 204-02-7
REMOVAL AND INSTALLATION
3. Attach the fender splash shield to the fender.
4. Install the wheel and tire. For additional
information, refer to Section
204-04 [Wheels
and Tires].
5. N0TE:The final tightening of the shock
absorber lower mounting bolt should be
carried out when the vehicle weight is on the
road wheels.
Tighten the shock absorber lower mounting
bolt.
2006.0 Fiesta 12/2006 G89134en
procarmanuals.com

204-0218 Rear Suspension 204-02-8
REMOVAL AND INSTALLATION
Special Tool(s) I I 3. Detach the shock absorber from the beam t,.
axle.
I I 1 4u AWARNING:A~ the spring is under extreme
tension care must
be taken at all times.
Removal Failure to follow this instruction may result
in personal injury.
1. Raise and support the vehicle. For additional
Remove the spring.
information, refer to Section
100-02 [Jacking
and Lifting].
Installation
2mA~~~~~~~:~~the~~ringis~nderextreme ~~~~~~:~~~~~~~~t~~t~~~~~tmo~~t~n~i~ (.
tension care must be taken at all times.
Failure to follow this instruction may result installed,
and the spring ends butt correctly
against the upper and lower spring seats.
in personal injury.
Using the special tools, compress the spring. Install
the spring.
2. N0TE:Do not fully tighten the shock
absorber lower mounting bolt at this stage.
Attach the shock absorber to the beam axle.
3. Lower the vehicle.
4. N0TE:The final tightening of the shock
absorber lower mounting bolt should be
carried out when the vehicle weight is on the
road wheels.
2006.0 Fiesta 1212006 G89135en
