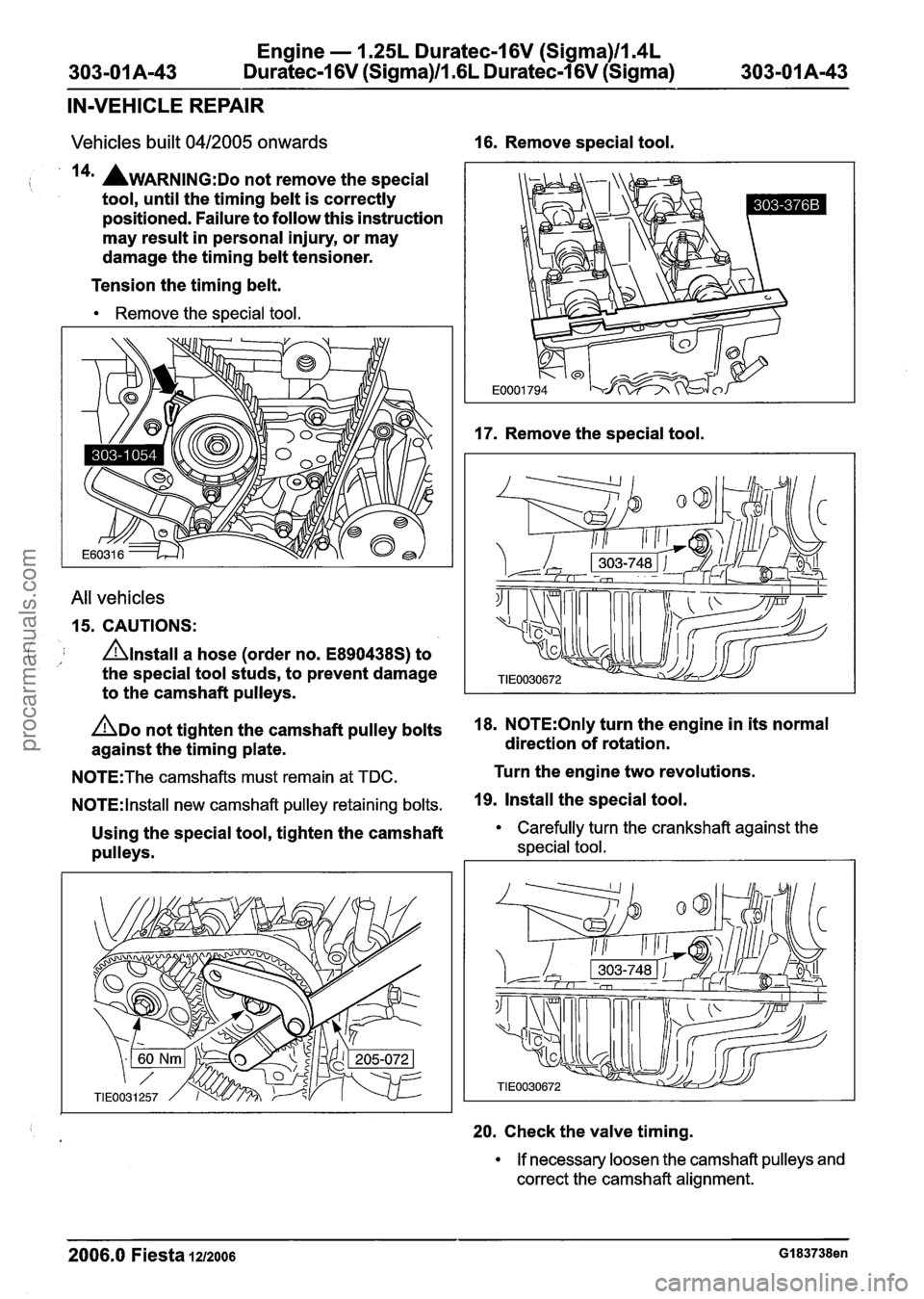

engine FORD FIESTA 2007 Workshop Manual

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-011 Am43 Duratec-1 6V (Sigma)lII6L Duratec-I 6V (Sigma) 303-01 A-43
IN-VEHICLE REPAIR
Vehicles built 0412005 onwards 16. Remove special tool.
/ 14' AWARNING:D~ not remove the special
tool, until the timing belt is correctly
positioned. Failure to follow this instruction
may result in personal injury, or may
damage the timing belt tensioner.
Tension the timing belt.
Remove the special tool.
All vehicles
15. CAUTIONS:
( , nlnstall a hose (order no. E890438S) to
the special tool studs, to prevent damage
to the camshaft pulleys. 17.
Remove the special tool.
ADO not tighten the camshaft pulley bolts 18. N0TE:Only turn the engine in its normal
against the timing plate. direction
of rotation.
N0TE:The camshafts must remain at TDC. Turn
the engine two revolutions.
N0TE:lnstall new camshaft pulley retaining bolts. 19. Install the special tool.
Using the special tool, tighten the camshaft Carefully turn the crankshaft against the
pulleys. special tool.
20. Check the valve timing.
If necessary loosen the camshaft pulleys and
correct the camshaft alignment.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-44 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-44
IN-VEHICLE REPAIR
* Remove the special tool.
21. Remove the special tool.
22. Install the blanking plug.
23. Using the special tool, install the spark
plugs.
Apply grease to the spark plug threads.
24. Install the engine front mount bracket.
Tighten the bolts in the indicated order in
three stages.
Stage 1 : Hand tighten bolt 1.
Stage 2: Tighten bolts 2 to 55 Nm.
Stage 3: Tighten bolt 3 to 55 Nm.
25. Install the timing belt upper cover.
26. N0TE:lnstall new engine front mount
retaining nuts.
2006.0 Fiesta 121zo06 GI 83738en
procarmanuals.com

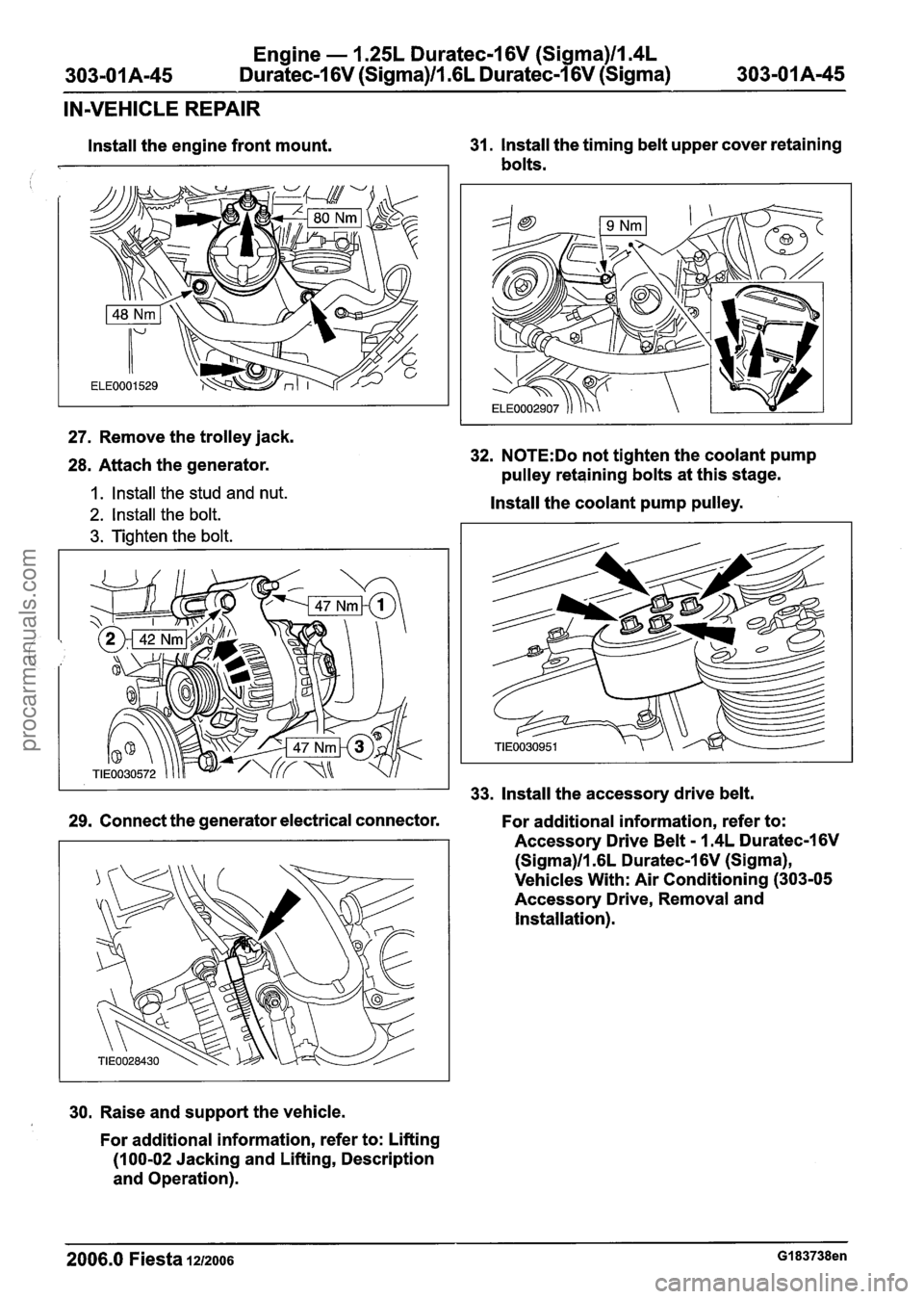

Engine - I .25L Duratec-1 6V (Sigma)llm4L
303-01A-45 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-01 A-45
IN-VEHICLE REPAIR
lnstall the engine front mount.
27. Remove the
trolley jack.
28. Attach the generator.
1. lnstall the stud and nut.
2. lnstall the bolt.
3. Tighten the bolt.
31. lnstall the timing belt upper cover retaining
bolts.
32. N0TE:Do not tighten the coolant pump
pulley retaining bolts at this stage.
lnstall the coolant pump pulley.
I 33. lnstall the accessory drive belt.
29. Connect the generator electrical connector.
For additional information, refer to:
Accessory Drive
Belt - 1.4L Duratec-1 6V
(Sigma)ll.GL Duratec-1 6V (Sigma),
Vehicles With: Air Conditioning (303-05
Accessory Drive,
Removal and
Installation).
30. Raise and support the vehicle.
For additional information, refer to: Lifting
(100-02 Jacking and Lifting, Description
and Operation).
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

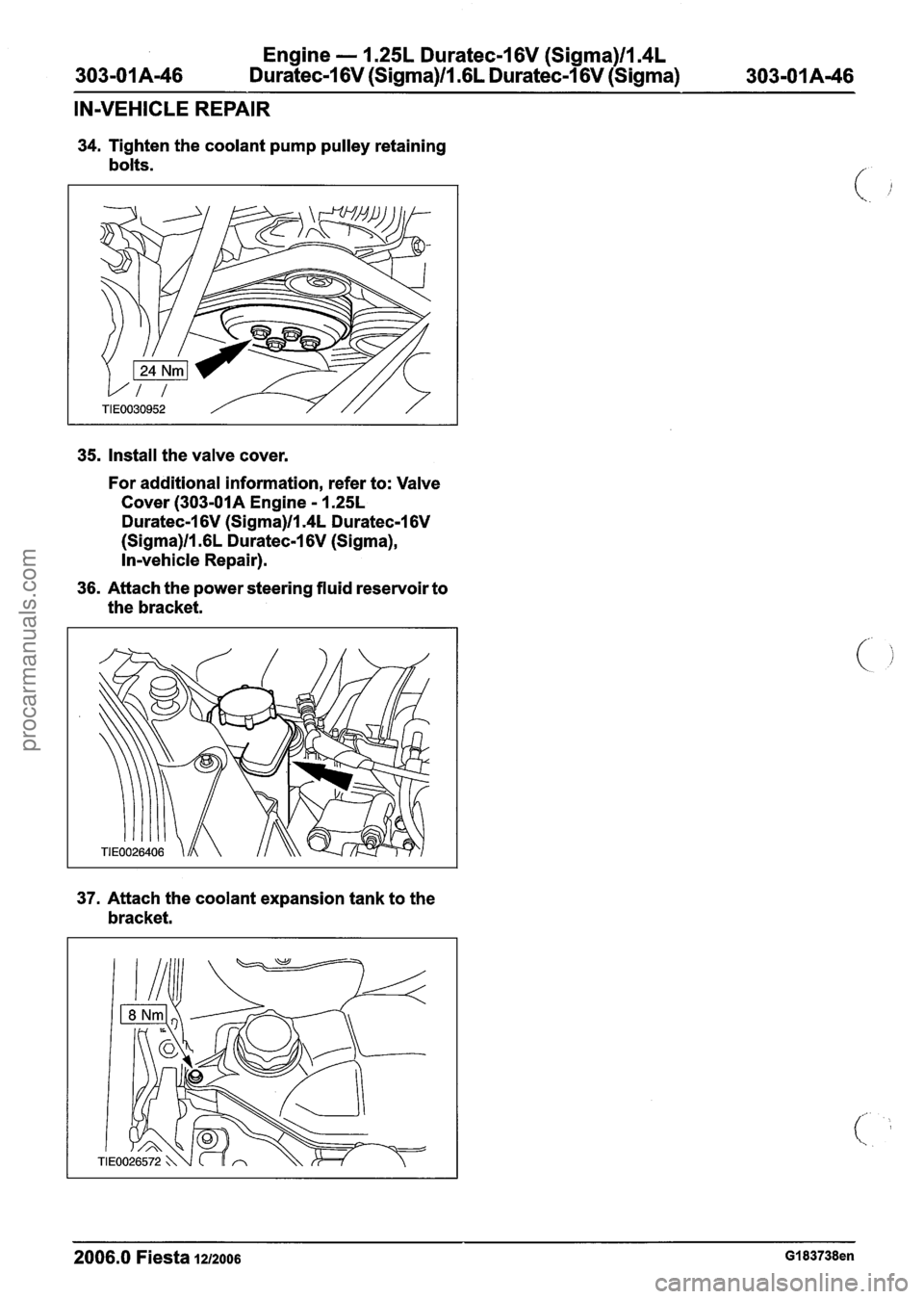

Engine - 1.25L Duratec-I 6V (Sigma)llm4L
303-01 A-46
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-01 A-46
IN-VEHICLE REPAIR
34. Tighten the coolant pump pulley retaining
bolts.
35. Install the valve cover.
For additional information, refer to: Valve
Cover
(303-01A Engine - 1.25L
Duratec-1 6V (Sigma)ll.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V (Sigma),
In-vehicle Repair).
36. Attach the power steering fluid reservoir to
the bracket.
37. Attach the coolant expansion tank to the
bracket.
2006.0 Fiesta 1212006 GI 83738en
procarmanuals.com

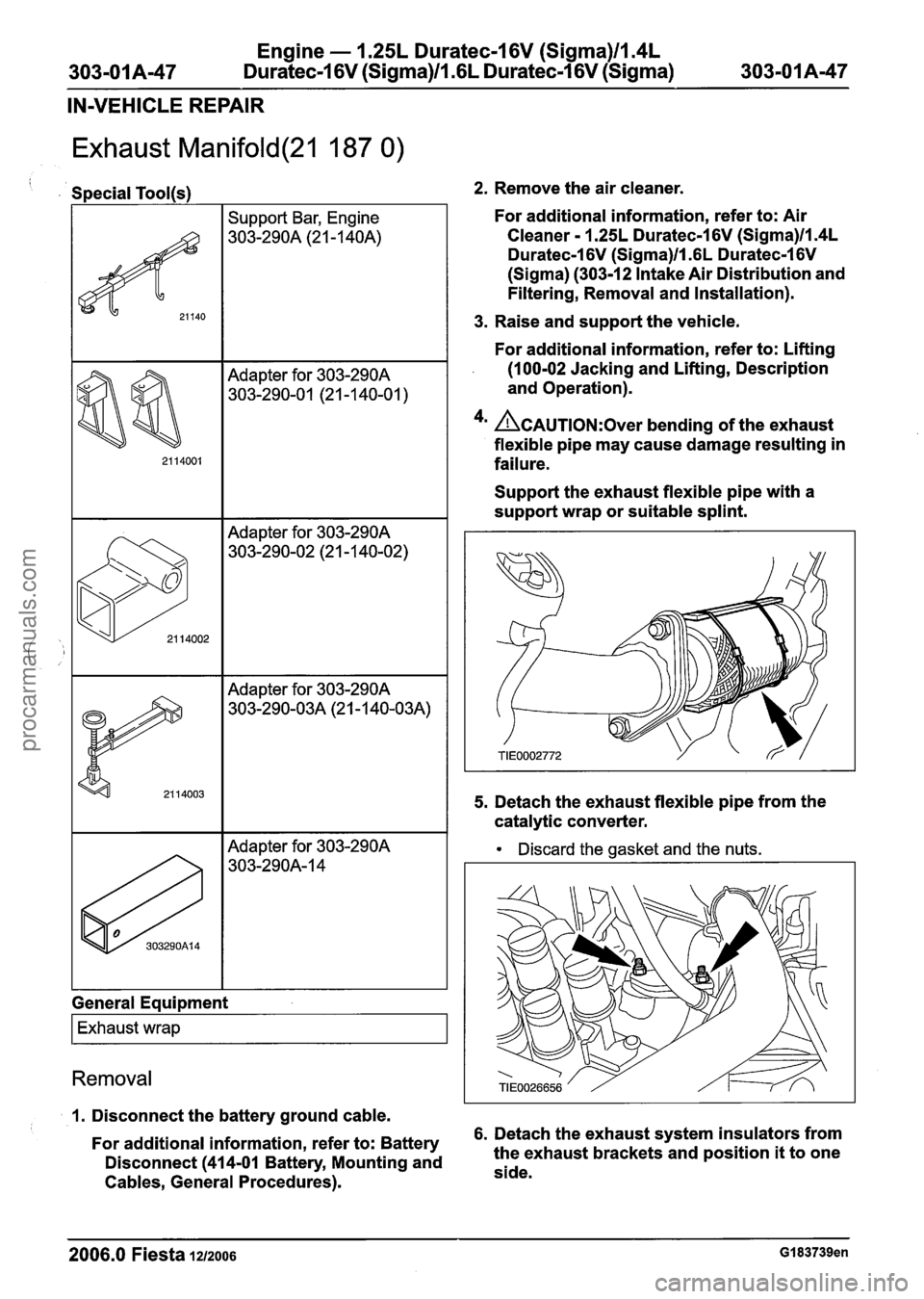

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
303-0 1 A-47 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-01 A-47
IN-VEHICLE REPAIR
Exhaust Manifold(21 187 0)
i Special Tool(s1 2. Remove the air cleaner.
--
Adapter for 303-290A
303-290-01 (21 -1 40-01
)
Adapter for 303-290A
303-290-02 (21 -1 40-02)
21 14002
General Equipment
21 14003
I Exhaust wrap I
Adapter for 303-290A
303-290-03A (21
-1 40-03A)
Removal
For additional information, refer to: Air
Cleaner - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V
(Sigma) (303-12 Intake Air Distribution and
Filtering, Removal and Installation).
3. Raise and support the vehicle.
For additional information, refer to: Lifting
(100-02 Jacking and Lifting, Description
and Operation).
4m ACAUTION:~~~~ bending of the exhaust
flexible pipe may cause damage resulting in
failure.
Support the exhaust flexible pipe with a
support wrap or
suitable splint.
5. Detach the exhaust flexible pipe from the
catalytic converter.
Discard the gasket and the nuts.
1. Disconnect the battery ground cable. - -
For additional information, refer to: Battery 6.
Detach the exhaust system insulators from
Disconnect
(414-01 Battery, Mounting and the
exhaust brackets and position it to one
Cables, General Procedures). side.
2006.0 Fiesta 12/2006 GI 83739en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-48 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-48
IN-VEHICLE REPAIR
7. Remove the engine support insulator
retaining bolt.
8. Remove the exhaust manifold lower heat
shield left-hand retaining bolts. 11.
Disconnect the heated oxygen
(H02S)
sensor electrical connector. //' '
12. Disconnect the catalyst monitor sensor
electrical connector.
9. Remove the exhaust manifold lower heat
13. Detach the power steering line support
shield right-hand retaining bolts.
bracket from the cylinder head.
Remove the lower heat shield.
10. Lower the vehicle.
2006.0 Fiesta 1212006 GI 83739en
procarmanuals.com

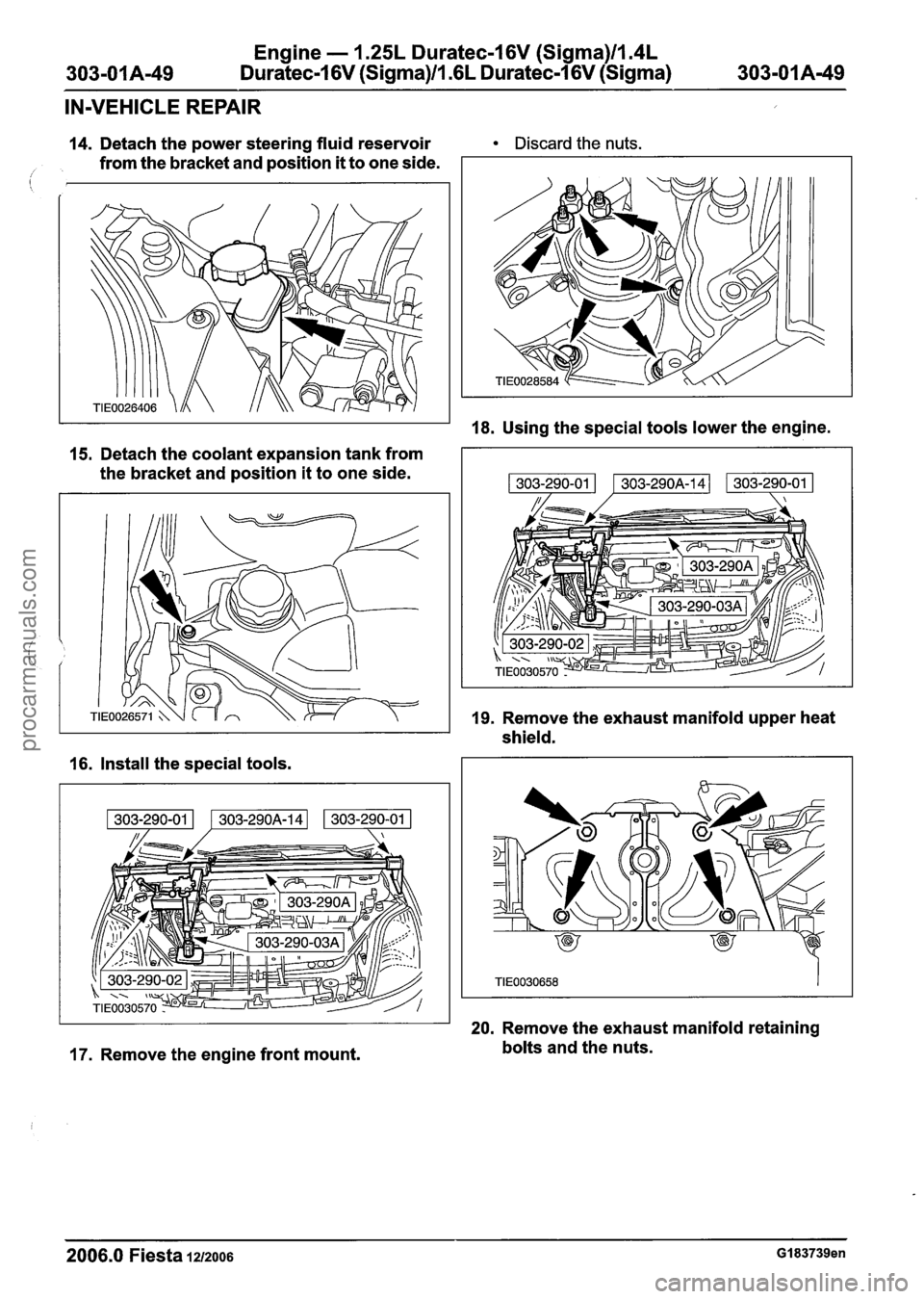

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)Il.GL Duratec-I 6V (Sigma)
IN-VEHICLE REPAIR
14. Detach the power steering fluid reservoir Discard the nuts.
from the bracket and position it to one side. /
15. Detach the coolant expansion tank from
the bracket and position it to one side.
16. Install the special tools.
17. Remove the engine front mount.
18. Using the special tools lower the engine.
19. Remove the exhaust manifold upper heat
shield.
20. Remove the exhaust manifold retaining
bolts and the nuts.
2006.0 Fiesta 1212006 GI 83739en
procarmanuals.com

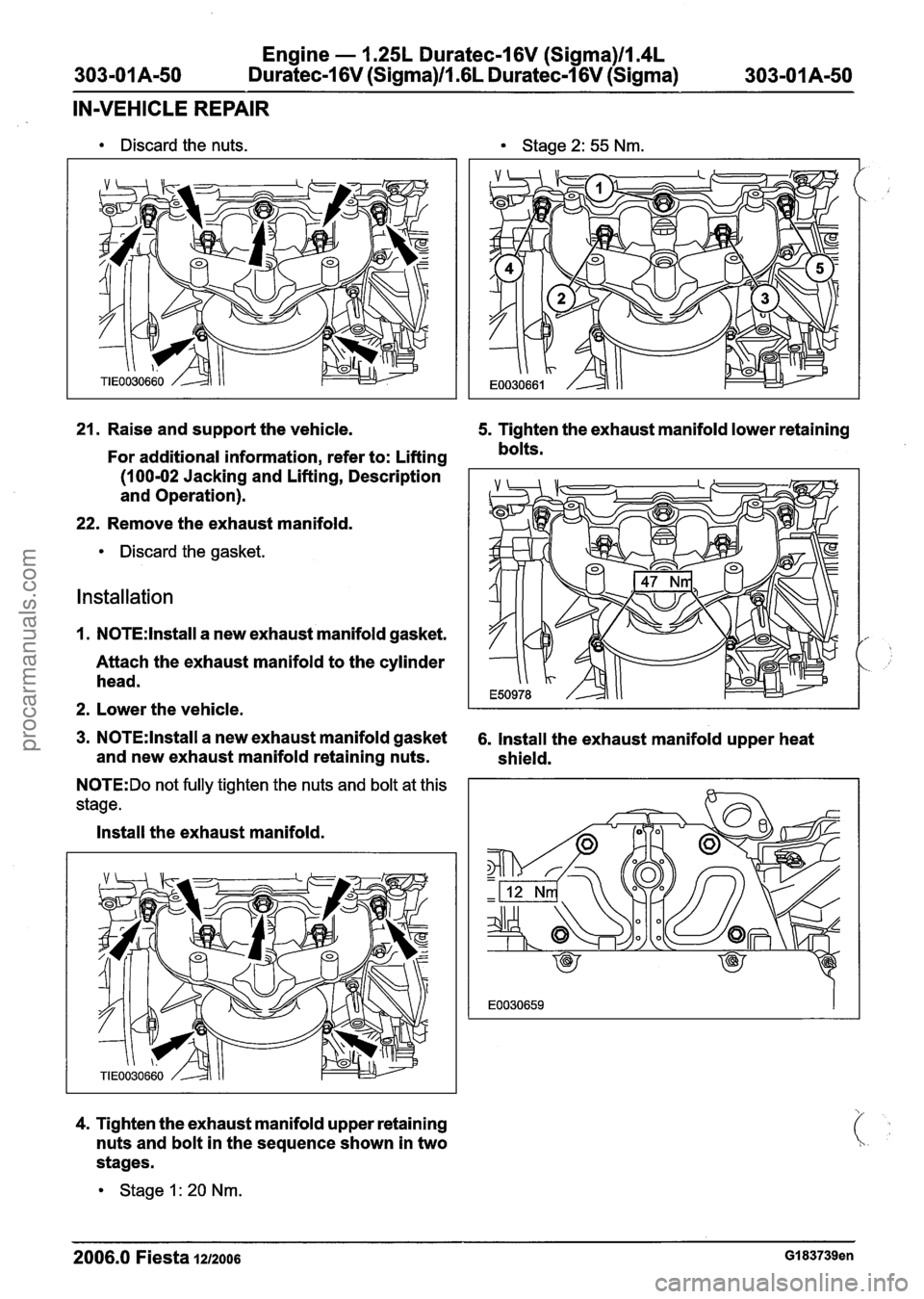

Engine - 1.25L Duratec-I 6V (Sigma)llm4L
303-01 A-50 Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
303-01 A-50
IN-VEHICLE REPAIR
Discard the nuts. Stage 2: 55 Nm.
21. Raise and support the vehicle. 5. Tighten the exhaust manifold lower retaining
For additional information, refer to: Lifting bolts.
(1 00-02 Jacking and
Lifting, Description
and Operation).
22. Remove the exhaust manifold.
Discard the gasket.
Installation
1. N0TE:lnstall a new exhaust manifold gasket.
Attach the exhaust manifold to the cylinder
head.
2. Lower the vehicle.
3. N0TE:lnstall a new exhaust manifold gasket 6. Install the exhaust manifold upper heat
and new exhaust manifold retaining nuts.
shield.
N0TE:Do not fully tighten the nuts and bolt at this
stage.
Install the exhaust manifold.
4. Tighten the exhaust manifold upper retaining
nuts and bolt in the sequence shown in two
stages.
Stage 1 : 20 Nm.
2006.0 Fiesta 1212006 GI 83739en
procarmanuals.com

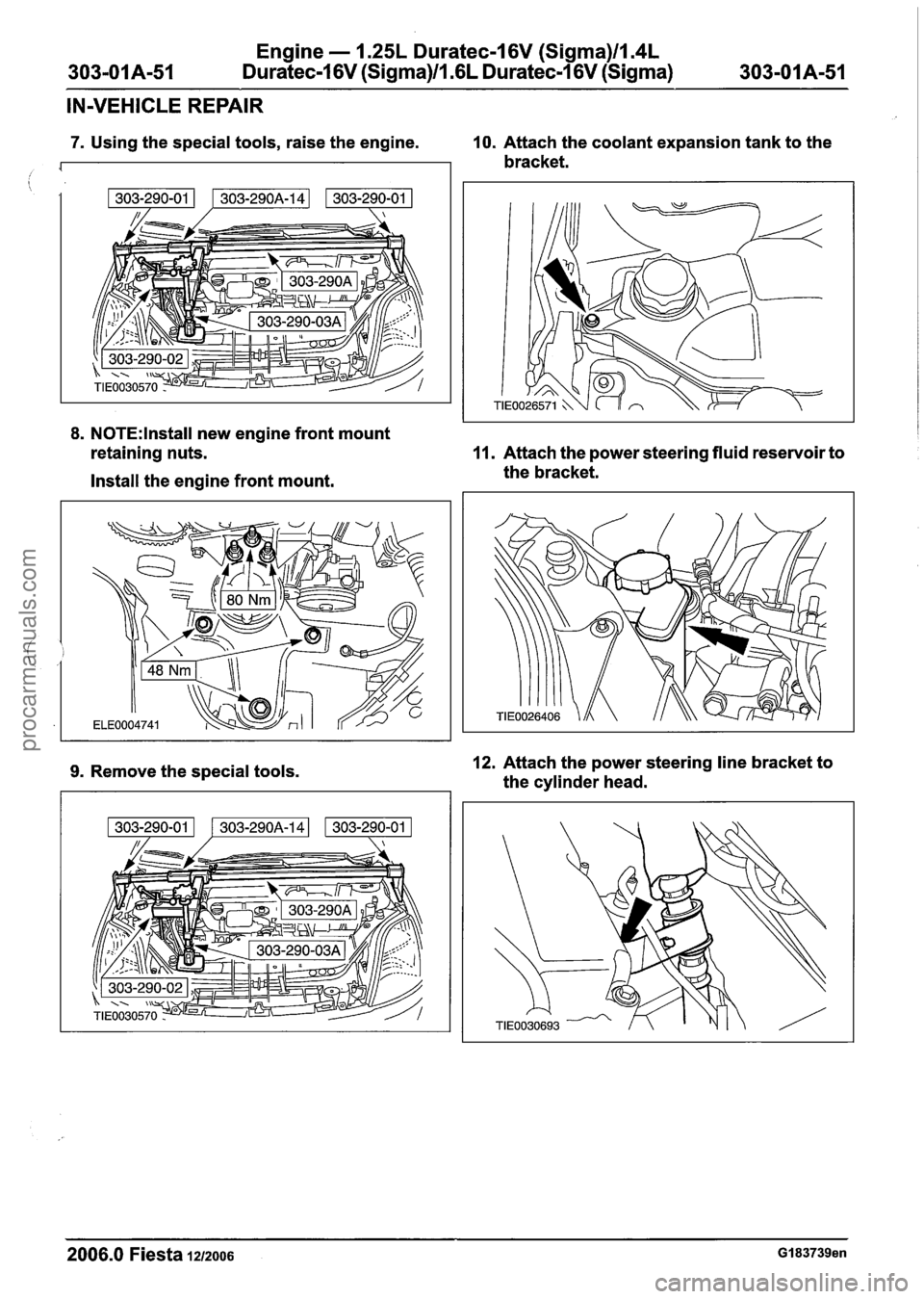

Engine - 1.25L Duratec-1 6V (Sigma)ll14L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR
7. Using the special tools, raise the engine. 10. Attach the coolant expansion tank to the
bracket.
,
8. N0TE:lnstall new engine front mount
retaining nuts.
11. Attach the power steering fluid reservoir to
Install the engine front mount. the
bracket.
9. Remove the special tools. 12. Attach the power steering line bracket to
the cylinder head.
2006.0 Fiesta 1212006 GI 83739en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-52
Duratec-1 6V (Sigma)ll.GL Duratec-1 6V (Sigma)
303-0 1 A-52
IN-VEHICLE REPAIR
13. Connect the catalyst monitor sensor
17. Install the exhaust manifold lower heat
electrical connector.
shield left-hand retaining bolts.
I I 'b -
14. Connect the heated oxygen (HO2S) sensor
18. Install the engine support insulator
electrical connector. retaining bolt.
15. Raise and support the vehicle. 19. Attach the exhaust system insulators to the
For additional information, refer to: Lifting exhaust
brackets.
(1 00-02 Jacking and Lifting, Description
20. N0TE:lnstall a new exhaust manifold gasket
and Operation). and new nuts.
16. Position the exhaust manifold lower heat
Attach the exhaust flexible pipe to the
shield and install the right-hand retaining
catalytic converter.
bolt.
21. Remove the exhaust flexible pipe support
wrap or splint.
2006.0 Fiesta 1212006 GI 83739en
