Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-53 Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma) 303-01 A-53
IN-VEHICLE REPAIR

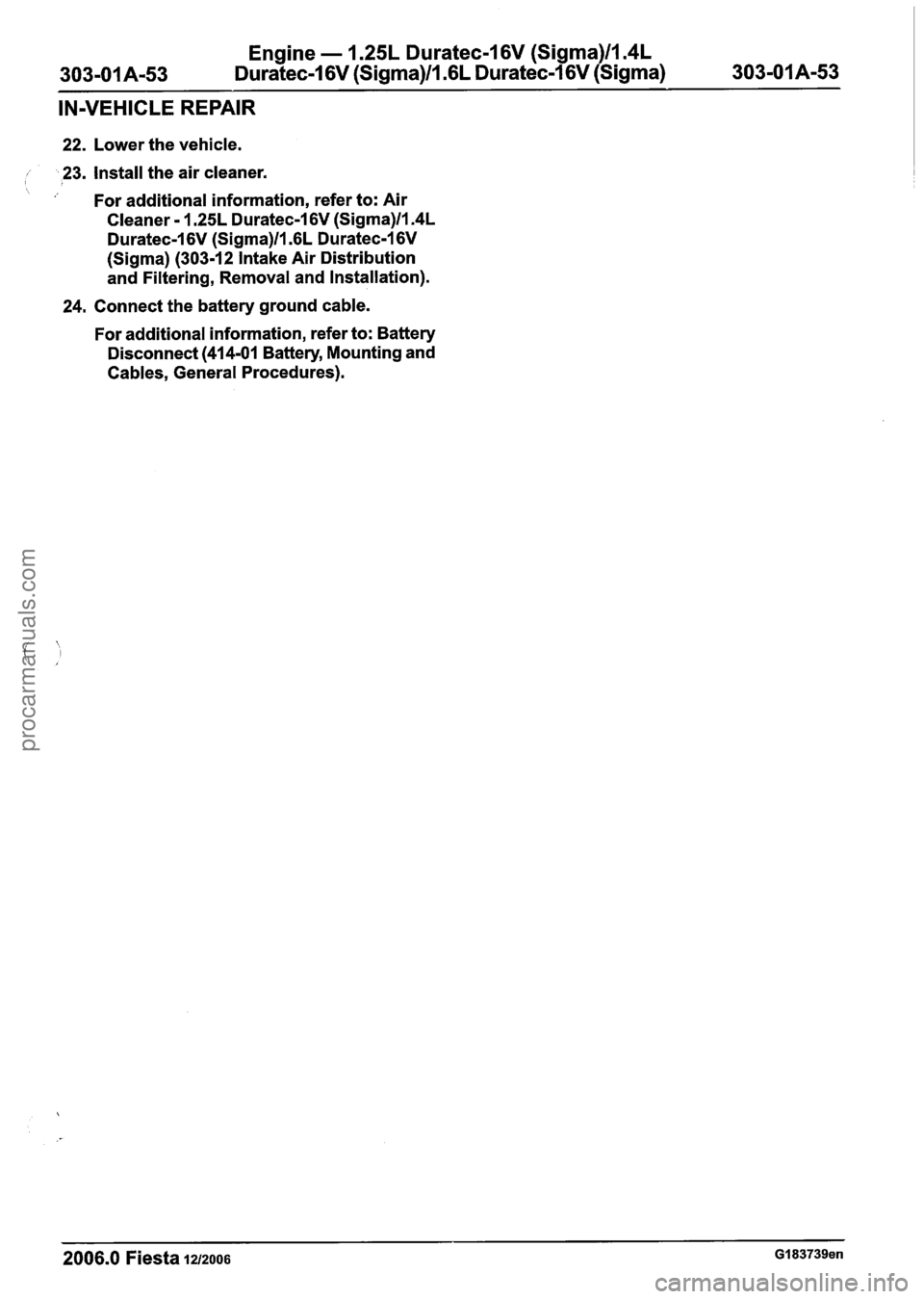

22. Lower the vehicle.
23. Install the air cleaner.
' For additional information, refer to: Air
Cleaner - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V
(Sigma) (303-1 2 Intake Air Distribution
and
Filtering, Removal and Installation).
24. Connect the battery ground cable.
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
2006.0 Fiesta 1212006 GI 83739en
procarmanuals.com

Engine - I .25L Duratec-1 6V (Sigma)llI4L
303-01 A-54 Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-54
IN-VEHICLE REPAIR

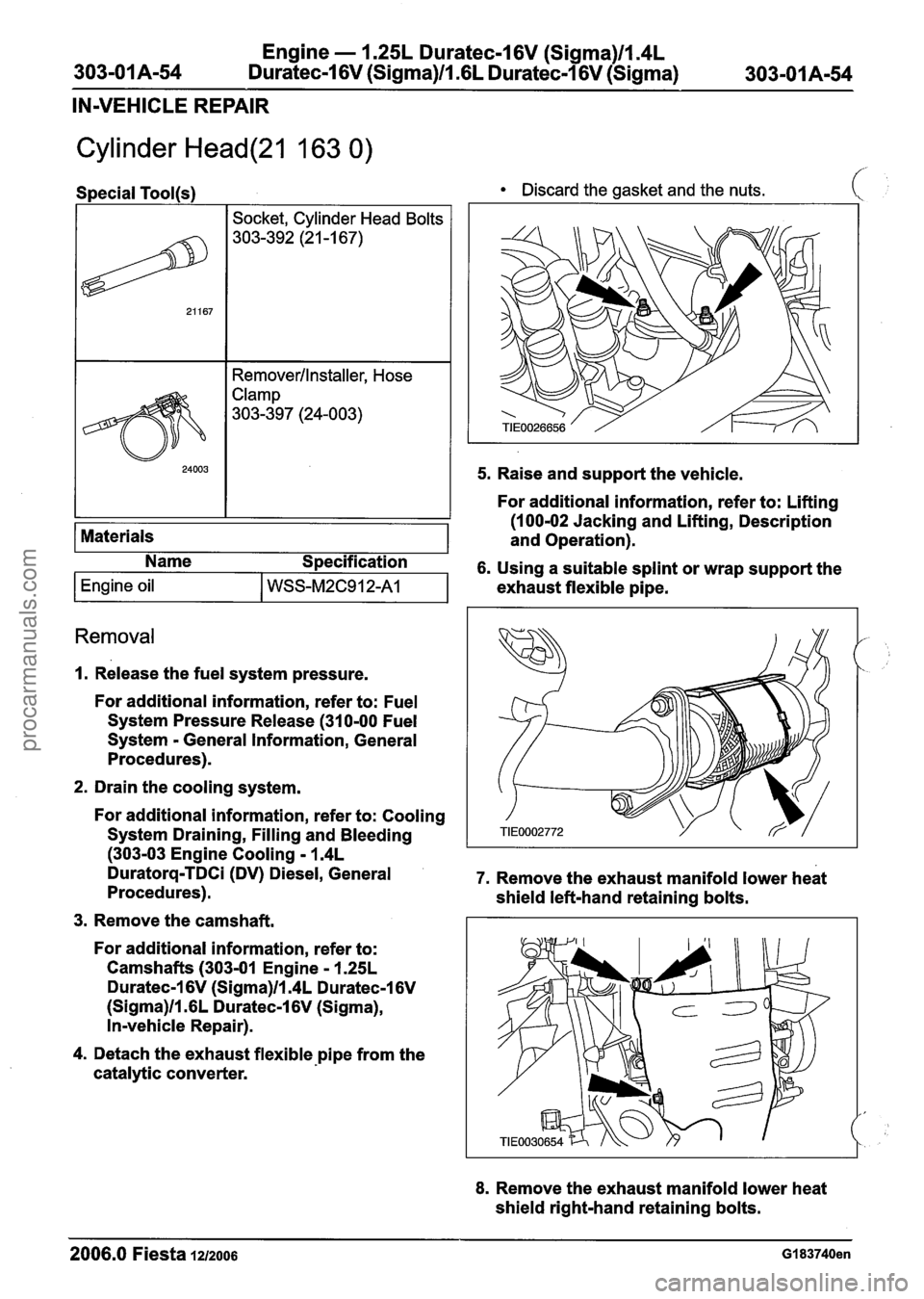

Cylinder Head(21 163 0)
1 I Socket, Cylinder Head Bolts I
Discard the gasket and the nuts. (
Removerllnstaller, Hose
Clamp
303-397 (24-003)
I 24003 1 1 5. Raise and support the vehicle.
Removal
I I 1 For additional information, refer to: Lifting
(100-02 Jacking and Lifting, Description
1. Release the fuel system pressure.
Materials
For
additional information, refer to: Fuel
System Pressure Release (31 0-00 Fuel
System - General Information, General
Procedures). and
Operation).
2. Drain the
cooling system.
For
additional information, refer to: Cooling
System Draining, Filling and Bleeding
(303-03 Engine Cooling - 1.4L
Duratorq-TDCi (DV) Diesel, General 7. Remove the exhaust manifold lower heat
Procedures). shield left-hand retaining bolts.
3. Remove the camshaft.
Name
Specification
6. Using a suitable splint or wrap support the
For
additional information, refer to:
Camshafts
(303-01 Engine - 1.25L
Duratec-1 6V (Sigma)ll.4L Duratec-1 6V
(Sigma)ll.GL Duratec-1 6V (Sigma),
In-vehicle Repair).
Engine oil I WSS-M2C912-A1
4. Detach the exhaust flexible pipe from the
catalytic converter. exhaust
flexible pipe.
8. Remove the exhaust manifold lower heat
shield right-hand retaining bolts.
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
303-01 Am55 Duratec-1 6V (Sigma)lll6L Duratec-1 6V (Sigma) 303-01 A-55
IN-VEHICLE REPAIR

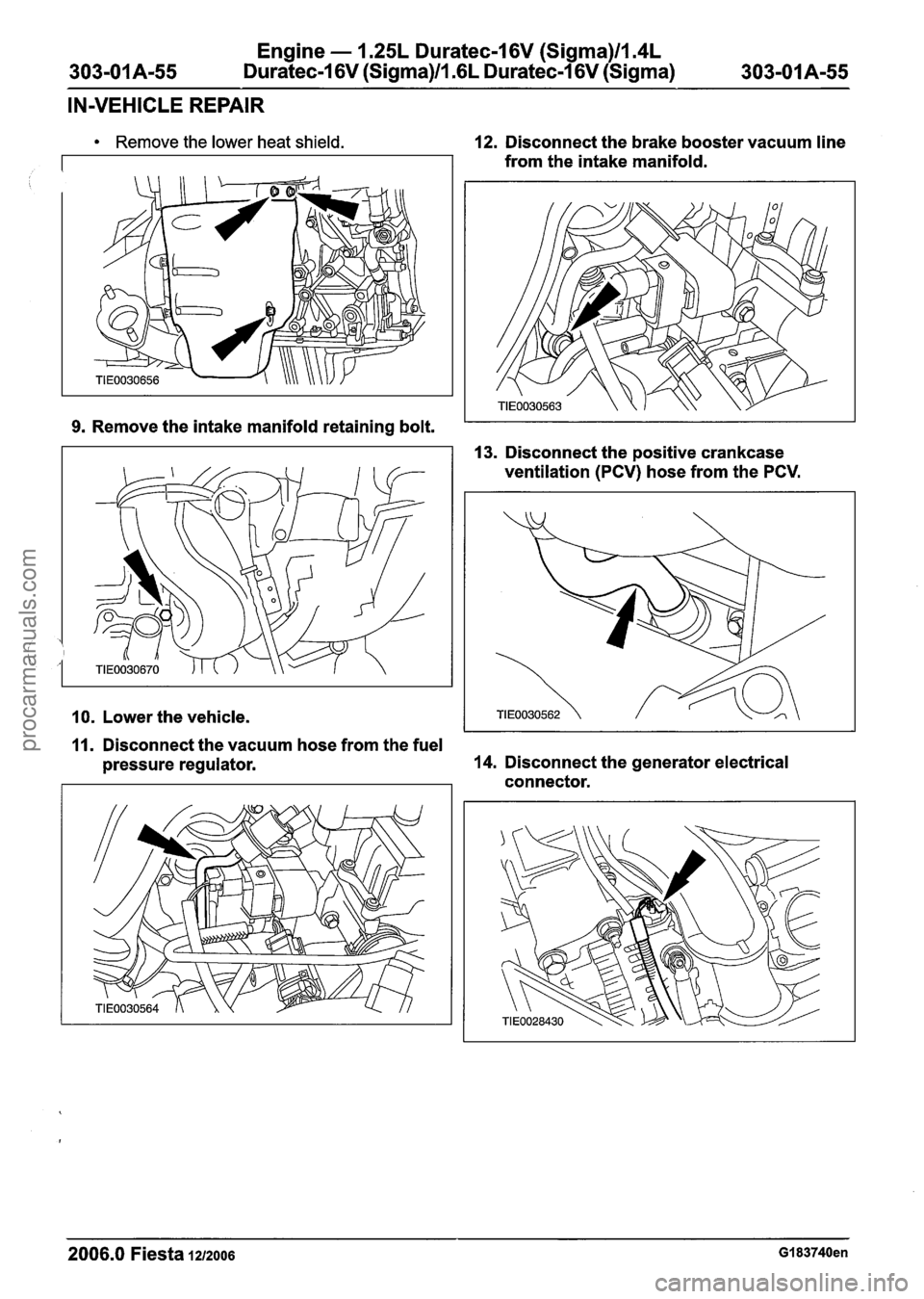

Remove the lower heat shield.
9.
Remove the intake manifold retaining bolt.
10. Lower the vehicle.
12. Disconnect the brake booster vacuum line
from the intake manifold.
13. Disconnect the positive crankcase
ventilation (PCV) hose from the PCV.
11. Disconnect the vacuum hose from the fuel
pressure regulator.
14. Disconnect the generator electrical
connector.
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-56 Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-01 A-56
IN-VEHICLE REPAIR

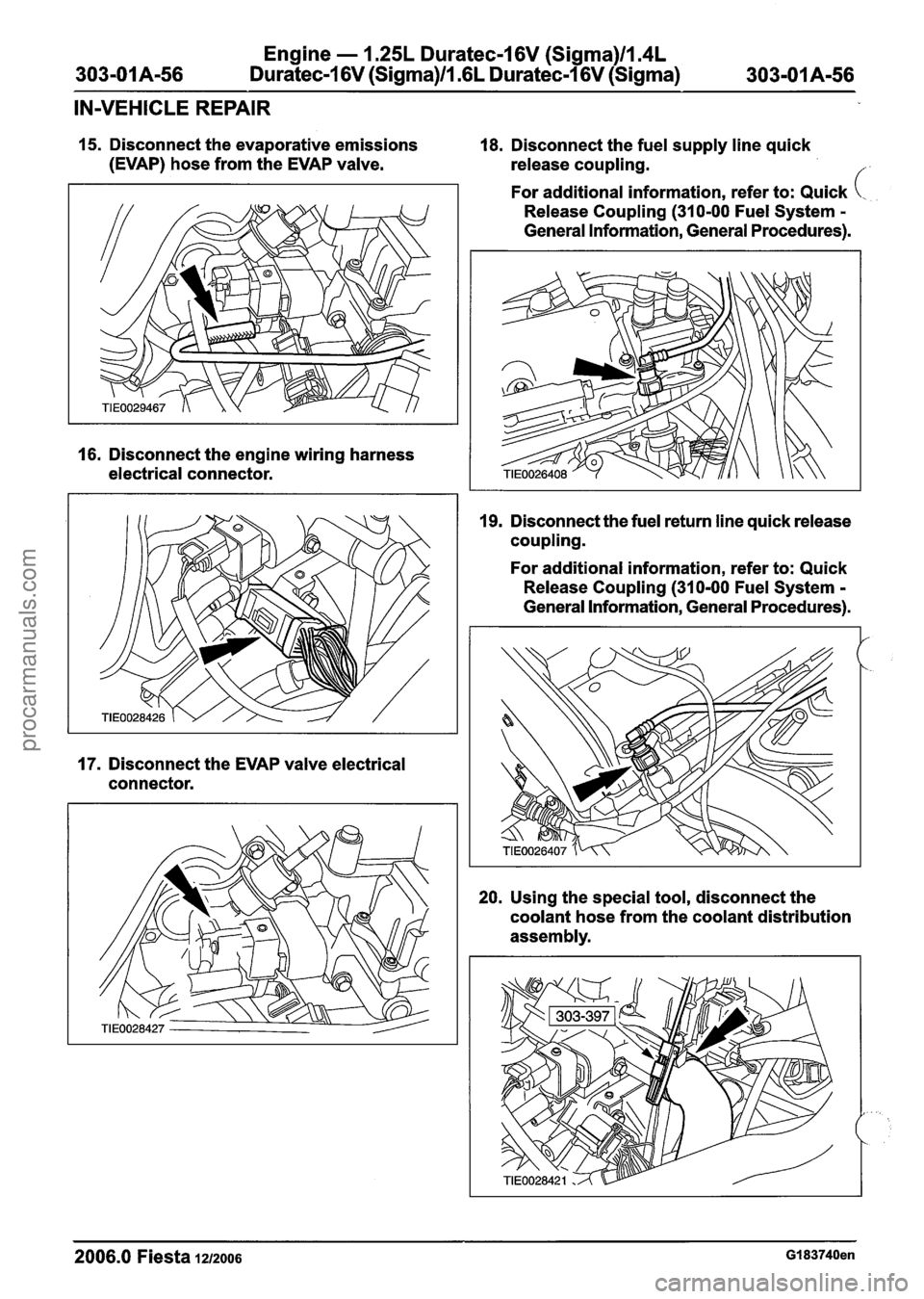

15. Disconnect the evaporative emissions 18. Disconnect the fuel supply line quick
(EVAP) hose from the EVAP valve.
release coupling.
f
16. Disconnect the engine wiring harness
electrical connector.
17. Disconnect the EVAP valve electrical
connector. For
additional information, refer to: Quick
(..
Release Coupling (310-00 Fuel System -
General Information, General Procedures).
I 9. Disconnect the fuel return line quick release
coupling.
For additional information, refer to: Quick
Release Coupling
(31 0-00 Fuel System -
General Information, General Procedures).
20. Using the special tool, disconnect the
coolant hose from the coolant distribution
assembly.
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)llm6L Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR
21. Using the special tool, disconnect the 24.
Disconnect the electronic ignition (El) coil
/ coolant hose from the coolant distribution electrical connector.
I I assembly.
25. Disconnect the heated oxygen
(H02S)
22. Using the special tool, detach the degas sensor electrical connector.
hose from the cylinder head.
Detach the electrical connector from the
Using the special tool, detach the degas hose bracket.
from the cylinder head.
26. Detach the power steering line bracket from
23. Disconnect the engine coolant temperature the
cylinder head.
(ECT) electrical connector.
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR

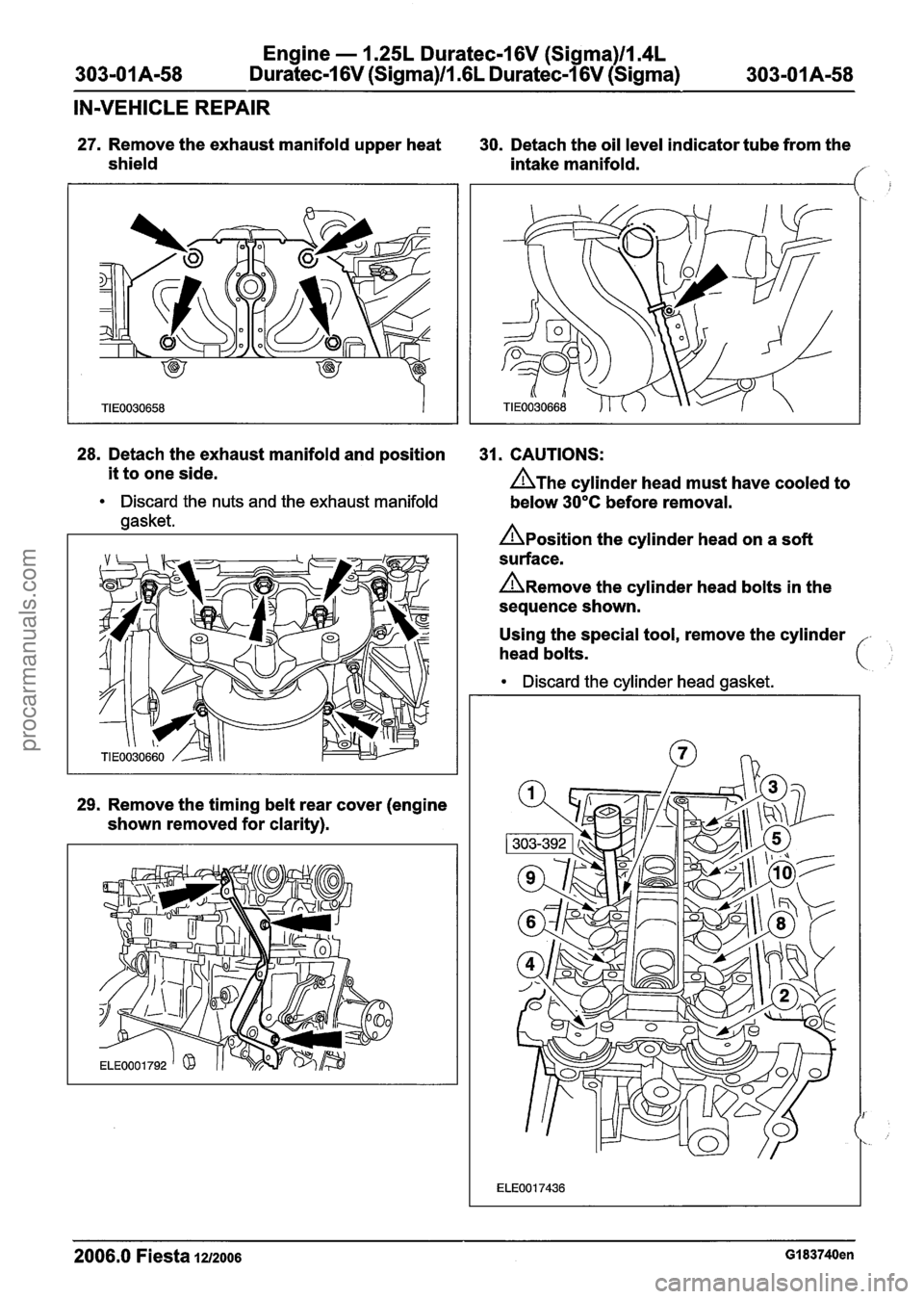

27. Remove the exhaust manifold upper heat
shield 30.
Detach the oil level indicator tube from the
intake manifold.
f
28. Detach the exhaust manifold and position
31. CAUTIONS:
it to one side. A~he cylinder head must have cooled to
Discard the nuts and the exhaust manifold below 30°C before removal.
gasket.
A~osition the cylinder head on a soft
surface.
A~emove the cylinder head bolts in the
sequence shown.
Using the special tool, remove the cylinder
-
head bolts.
Discard the cylinder head gasket.
29. Remove the timing belt rear cover (engine
shown removed for clarity).
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
303-01 A-59 Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-01 A-59
IN-VEHICLE REPAIR

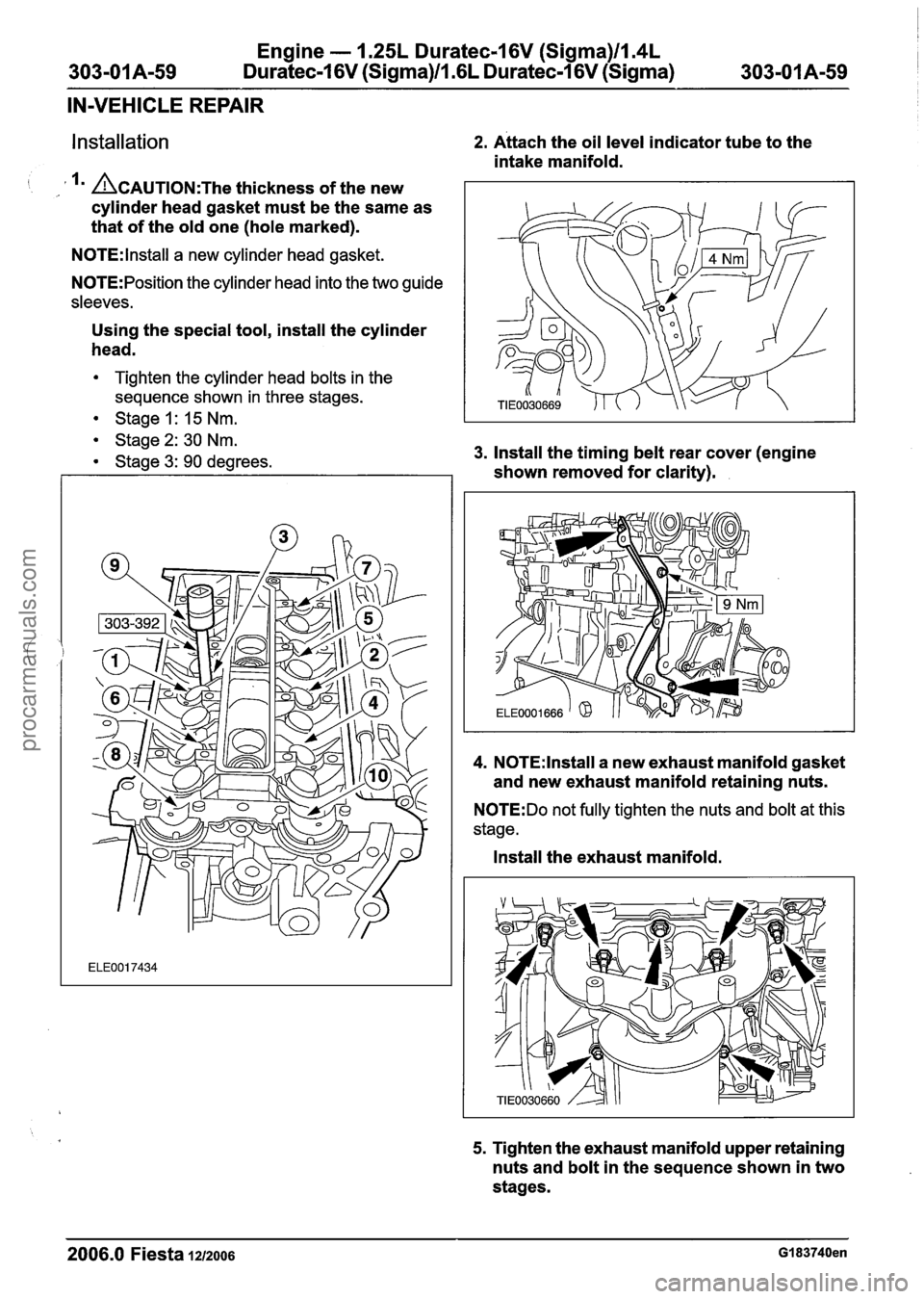

installation 2. Attach the oil level indicator tube to the
intake manifold.
! ACAUTION:T~~ thickness of the new
cylinder head gasket must be the same as
that of the old one (hole marked).
N0TE:lnstall a new cylinder head gasket.
N0TE:Position the cylinder head into the two guide
sleeves.
Using the special tool, install the cylinder
head.
Tighten the cylinder head bolts in the
sequence shown in three stages.
Stagel: 15Nm.
Stage 2: 30 Nm.
Stage 3: 90 degrees. 3. Install the timing belt rear cover (engine
shown removed for clarity).
4. N0TE:lnstall a new exhaust manifold gasket
and new exhaust manifold retaining nuts.
N0TE:Do not fully tighten the nuts and bolt at this
stage.
Install the exhaust manifold.
5. Tighten the exhaust manifold upper retaining
nuts and bolt in the sequence shown in two
stages.
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)llm4L
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR
Stage 1 : 20 Nm.
Stage2: 55 Nm.
8. Attach the power steering line bracket to the
cylinder head.
TIE0030694
6. Tighten the exhaust manifold lower retaining g, Connect the heated oxygen (H02S) sensor bolts. electrical connector.
Attach the electrical connector to the bracket.
7. Install the exhaust manifold upper heat
shield. 10. Connect the electronic ignition (El) coil
electrical connector.
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01A-61 Duratec-1 6V (Sigma)/l .6L Duratec-I 6V (Sigma) 303-OIA-61
IN-VEHICLE REPAIR
11. Connect the engine coolant temperature 14.
Using the special tool, connect the coolant
/ (ECT) sensor electrical connector.
hose to the coolant distribution assembly.
12. Using the special tool, connect the degas 15.
Connect the fuel return line quick release
hose to the cylinder head. coupling.
13. Using the special tool, connect the coolant
hose to the coolant distribution assembly. For additional
information, refer to: Quick
Release Coupling (310-00 Fuel System
-
General Information, General Procedures).
16. Connect the fuel supply line quick release
coupling.
For additional information, refer to: Quick
Release Coupling (310-00 Fuel System
-
General Information, General Procedures).
2006.0 Fiesta 1212006 GI 83740en
procarmanuals.com

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll.GL Duratec-1 6V (Sigma)
IN-VEHICLE REPAIR

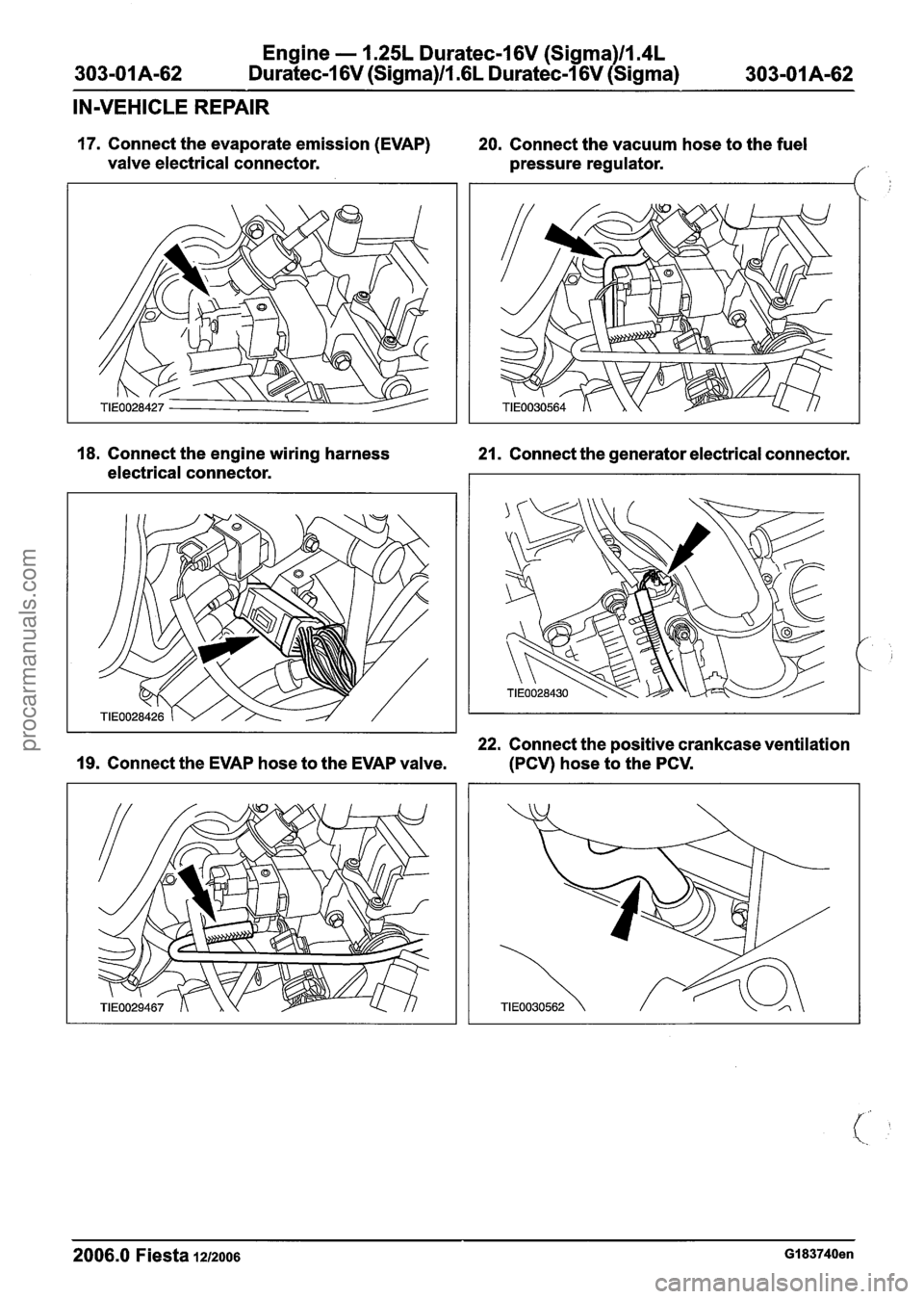

17. Connect the evaporate emission (EVAP) 20. Connect the vacuum hose to the fuel
valve electrical connector. pressure regulator.
18. Connect the engine wiring harness
21. Connect the generator electrical connector.
electrical connector.
22. Connect the positive crankcase ventilation
19. Connect the EVAP hose to the EVAP valve. (PCV) hose to the PCV.
2006.0 Fiesta 1212006 GI 83740en
