100-04-15 Noise, Vibration and Harshness 100-04-15
DIAGNOSIS AND TESTING
Power Steering Grinding Noise 1. Slowly turn the steering wheel from lock to lock.
Test Condition
Action
Certain amount of noise level
acceptable, not a safety critical
item.
Symptom
Power steering system toc-toc
noise - a metallic noise created
when changing direction of
steering wheel rotation during
parking manoeuvre or at stand-
still.
2. Tilt and extend the steering column in various
positions and slowly turn the steering wheel
Possible Sources
gear (design tolerance
in steering rack).
Listen for steering grinding noise with the engine from lock to lock.
speed at idle and the vehicle parked, automatic
transmission in "P" (PARK) or manual transmission
in neutral and the windows closed.
Power Steering Zip Noise
Symptom Possible Sources Action
Power steering system grinding
noise
- an abrasive noise (like
sand paper rubbing against wood)
occurs between moving compon-
ents such as steering wheel and
the steering column shroud.
2006.0 Fiesta 1212006 G37349en
Steering wheel to shroud interfer-
ence.
Steering column bearing.
Foreign material in contact with
the steering column
shaft.
Clockspring.
Action
Certain amount of noise level
acceptable, not a safety critical item.
BLEED the power steering
system.
REFER
to: Power Steering
System Bleeding
(21 1-00
Steering System
- General
Information, General Proced-
ures).
Symptom
Power steering system zip noise
- occurs when hydraulic fluid
does not flow freely through the
power steering pump supply hose
from steering fluid reservoir to
power steering
pump causing
cavitation
at the pump. Zip is
primarily a cold weather start-up
phenomenon (below -1 0°C). Certain amount
of noise level
acceptable, not a safety critical
item.
Certain amount of noise level
acceptable, not a safety critical
item.
CHECK if floor covering is
obstructing the steering gear
pinion.
CHECK the installation of the floor
seal.
CHECK the clockspring and
secure if necessary.
REFER to: Clockspring (501
-208,
Removal and Installation).
Possible Sources
steering
Aeration of the power steering
fluid.
procarmanuals.com
Page 97 of 1226

204-00-1 7 Suspension System - General Information 204-00-1 7
GENERAL PROCEDURES
Front Toe Adjustment(l4 11 7 0)
I
N0TE:Make sure that the vehicle is standing on a 4. Rotate the tie-rods an equal amount in either
level surface. a clockwise or a counterclockwise direction
1. Centralize the steering and lock it in position. to
adjust the toe setting.
For additional information, refer to:
Specifications
(204-00, Specifications).
2. Loosen the tie-rod end locknuts.
3. Remove the steering gear boot outer clamps.
5. Tighten the tie-rod end locknuts.
For additional information, refer to: Tie Rod
End (21
1-03 Steering Linkage, Removal and
Installation).
6. Install the steering gear boot outer clamps.
2006.0 Fiesta 1212006 GI 7387en
procarmanuals.com
Page 101 of 1226

204-01 -3 Front Suspension 204-01 -3
DESCRIPTION AND OPERATION
Front Suspension
Overview
N0TE:During installation of the front wheel bearing
it is important to adhere to the specified installation
position, as the anti-lock brake system
( ABS )
sensor ring is located in the wheel bearing. A
coloured rubber ring is provided to indicate the
correct installation position. If the wheel bearing
were to be installed incorrectly then this would
cause failure of the ABS
.
A newly developed Mc-Pherson front suspension
with L-shaped lower arms is used. These lower
suspension arms are linked via large rubber
mountings to a reinforced and extremely rigid front
axle crossmember.
The ball head between the lower suspension arm
and the suspension strut is secured with three
rivets. Toe-in is adjusted via adjustable track rods.
The lower suspension arms can only be replaced as a complete unit.
2006.0 Fiesta IZIZOO~ GI 67080en
procarmanuals.com
Page 107 of 1226

204-01 -9 Front Suspension 204-0 I -9
REMOVAL AND INSTALLATION
Front Stabilizer Bar(l4 752 0)
i , Special Tool(s1
General Equipment
205524
I Transmission jack 1
Alignment Pins, Subframe
205-524 (1 5-1 22)
I Wooden block I
Removal
1. N0TE:Make sure the road wheels are in the
straight ahead position.
Centralize the steering and lock
it in position.
2. Detach the steering column shaft from the
steering gear pinion.
Discard the retaining bolt.
3. Raise and support the vehicle.
For additional information, refer to: Jacking
(100-02 Jacking and Lifting, Description
and Operation)
I Lifting (1 00-02 Jacking and Lifting,
Description and Operation).
4. N0TE:Use a 5 mm Allen key to prevent the
ball joint from rotating.
Detach the stabilizer bar connecting link from
the stabilizer bar on both sides.
5. Remove the engine support insulator.
2006.0 Fiesta 1212006 GI 83758en
procarmanuals.com
Page 108 of 1226

204-01 -1 0 Front Suspension 204-01 -1 0
REMOVAL AND INSTALLATION

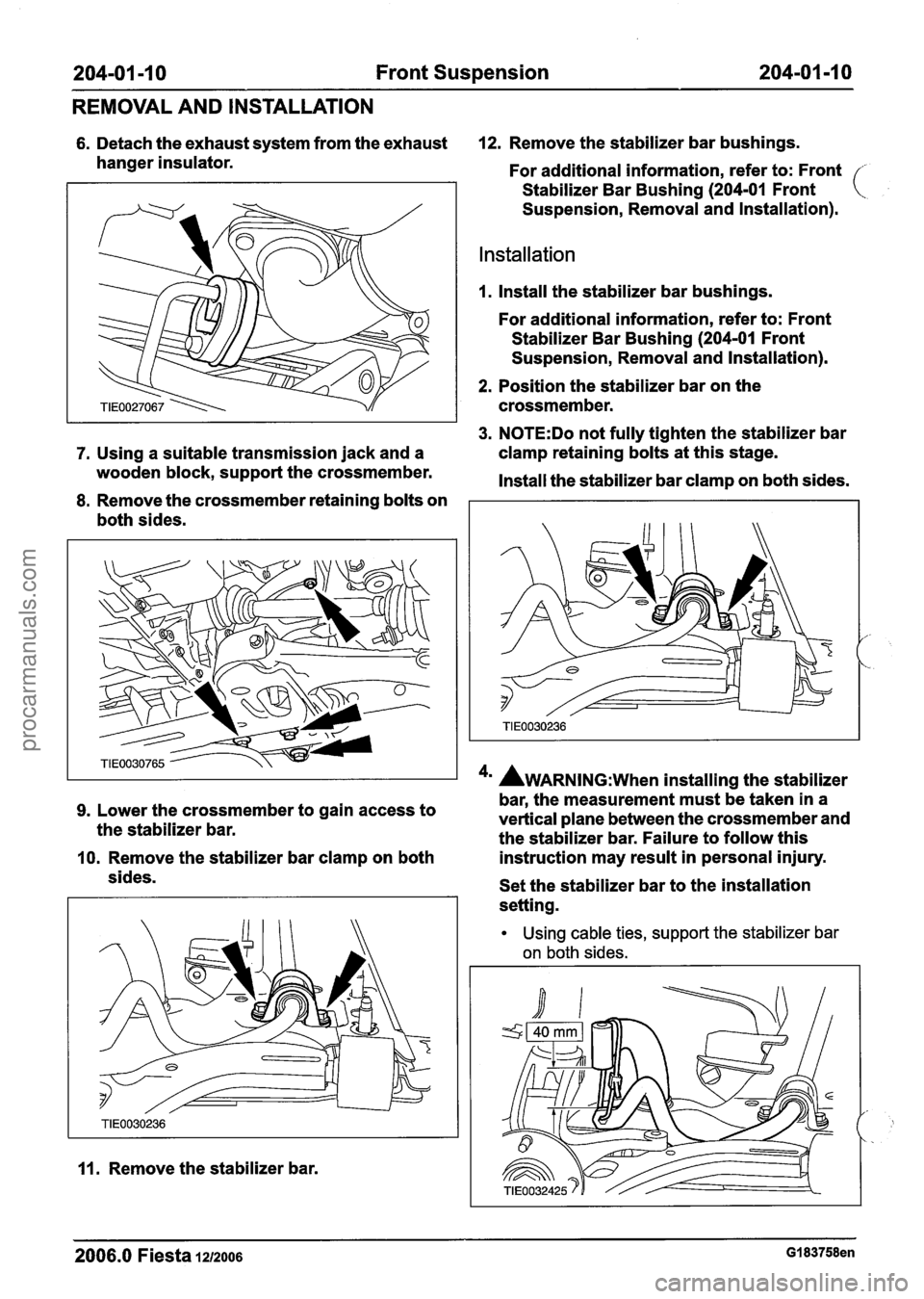

6. Detach the exhaust system from the exhaust 12. Remove the stabilizer bar bushings.
hanger insulator. For additional information, refer to: Front
Stabilizer Bar Bushing
(204-01 Front
Suspension, Removal and lnstallation).
Installation
1. Install the stabilizer bar bushings.
For additional information, refer to: Front
Stabilizer Bar Bushing
(204-01 Front
Suspension, Removal and lnstallation).
2. Position the stabilizer bar on the
crossmember.
3. N0TE:Do not fully tighten the stabilizer bar
7. Using a suitable transmission jack and a clamp
retaining bolts at this stage.
wooden block, support the crossmember.
Install the stabilizer bar clamp on both sides.
8. Remove the crossmember retaining bolts on
both sides.
4' AWARNING:~~~~ installing the stabilizer
bar, the measurement must be taken in a
9. Lower the crossmember to gain access to
the stabilizer bar. vertical plane
between the crossmember and
the stabilizer bar. Failure to follow this
10. Remove the stabilizer bar clamp on both instruction
may result in personal injury.
sides. Set the stabilizer bar to the installation
setting.
11. Remove the stabilizer bar.
Using cable ties, support the stabilizer bar
on both sides.
2006.0 Fiesta 1212006 GI 83758en
procarmanuals.com
Page 109 of 1226

204-01 -1 I Front Suspension 204-01 -1 1
REMOVAL AND INSTALLATION

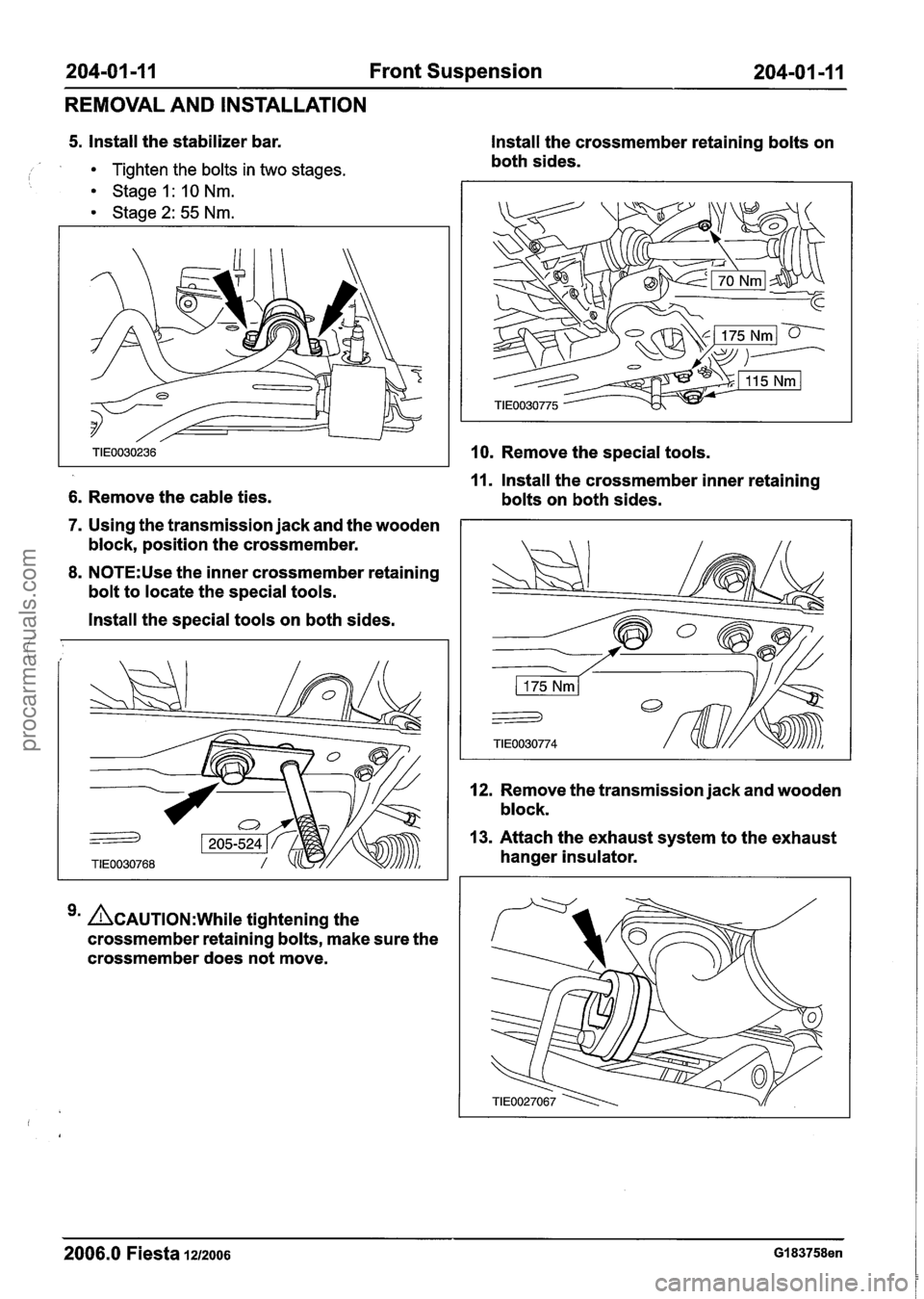

5. Install the stabilizer bar.
i Tighten the bolts in two stages. Stage 1 : 10 Nm.
Stage 2: 55 Nm.
6. Remove the cable ties.
7. Using the transmission jack and the wooden
block, position the crossmember.
8. N0TE:Use the inner crossmember retaining
bolt to locate the special tools.
Install the special tools on both sides.
&AUTION:W~~I~ tightening the
crossmember retaining bolts, make sure the
crossmember does not move. Install the
crossmember retaining bolts on
both sides.
10. Remove the special tools.
11. Install the crossmember inner retaining
bolts on both sides.
12. Remove the transmission jack and wooden
block.
13. Attach the exhaust system to the exhaust
hanger insulator.
2006.0 Fiesta 12/2006 GI 83758en
procarmanuals.com
Page 112 of 1226

204-01 -1 4 Front Suspension 204-01 -1 4
REMOVAL AND INSTALLATION
Detach the brake caliper and anchor plate N0TE:Use a 5 mm Allen key to prevent the ball
from the wheel knuckle. joint stud from rotating. f
6. Remove the brake disc.
Remove and discard the retaining washer (if
equipped).
Vehicles with anti-lock brakes
7. Detach the wheel speed sensor from the
wheel knuckle.
All vehicles
*= &AUTION:L~~~~ the tie-rod end retaining
nut in place to protect the ball joint stud. Loosen
the tie-rod end retaining nut.
k
&AuTl~N:~rotect the ball joint seal using
a soft cloth to prevent damage.
Using the special tool, detach the tie-rod end
from the wheel knuckle.
1. Release the tie-rod end.
2. Remove and discard the tie rod end retaining
nut.
/'-
lorn A~AuT10N:~rotect the ball joint seal
using a soft cloth to prevent damage.
Detach the lower arm ball joint from the
wheel knuckle.
2006.0 Fiesta 1212006 GI 83759en
procarmanuals.com
Page 114 of 1226

204-01 -1 6 Front Suspension 204-01 -1 6
REMOVAL AND INSTALLATION
Using the special tool, attach the wheel hub 5. AWARNING:lnstall a new tie-rod end to the halfshaft.
retaining nut. Failure to follow this f
3m ACAUTION:M~~~ sure the heat shield is
installed to prevent damage to the ball joint.
Install the heat shield.
4m &AUTION:T~~ lower arm pinch bolt must
be installed from the rear of the wheel
knuckle. instruction
may result in personal injury.
N0TE:Use a 5 mm Allen key to prevent the ball
joint stud from rotating.
Attach the tie-rod end to the wheel knuckle.
Vehicles with anti-lock brakes
6. Attach the wheel speed sensor to the wheel
knuckle.
Attach the lower arm ball joint to the wheel
knuckle.
All vehicles
7. Install the brake disc.
8m &AUTION:DO not twist the brake hose
when attaching the brake caliper to prevent
damage to the brake hose.
2006.0 Fiesta 1212006 GI 83759en
procarmanuals.com
Page 133 of 1226

204-02-1 1 Rear Suspension 204-02-1 1
REMOVAL AND INSTALLATION
Using a suitable electric hand drill, remove
the rivets.
Vehicles with rear disc brakes
8. Remove the brake disc shield.
For additional information, refer to: Brake
Disc Shield
(206-04 Rear Disc Brake,
Removal and Installation).
9. Detach the parking brake cable from the
beam axle bracket on both sides.
All vehicles
10. Detach the parking brake cable from the
beam axle on both sides.
11. Remove the rear wheel speed sensor.
For additional information, refer to: Rear
Wheel Speed Sensor
(206-09 Anti-Lock
Control, Removal and Installation).
I*' AWARNING:M~~~ sure that the beam axle
is secured to the transmission jack. Failure
to follow this instruction may result in
personal injury.
Using a suitable securing strap, secure the
beam axle to a transmission jack.
13. Detach the shock absorber from the beam
axle on both sides.
14. Detach the spring from the lower spring
seat on both sides.
15. Remove the beam axle.
2006.0 Fiesta 1212006 GI 83767en
procarmanuals.com
Page 134 of 1226

204-02-1 2 Rear Suspension 204-02-1 2
REMOVAL AND INSTALLATION
Remove the beam axle retaining bolts on 3. Attach the spring to the lower spring seat on
both sides. both sides. /'
installation 4. N0TE:Do not fully tighten the shock
absorber retaining bolts at this stage.
All vehicles Attach the shock absorber to the beam axle
N0TE:Final tightening of the beam axle on both sides.
components should be carried out when the vehicle I I
weight is on the road wheels.
1. Using a suitable transmission jack, locate
the beam axle.
2. N0TE:Do not fully tighten the beam axle
retaining bolts at this stage.
Install the beam axle.
Install the beam axle retaining bolts on both
sides.
5. Remove the securing strap.
6. Lower and remove the transmission jack.
7. Install the rear wheel speed sensor.
For additional information, refer to: Rear
Wheel Speed Sensor
(206-09 Anti-Lock
Control, Removal and Installation).
2006.0 Fiesta 1212006 Gl83767en
procarmanuals.com
