FORD FIESTA 2007 Workshop Manual

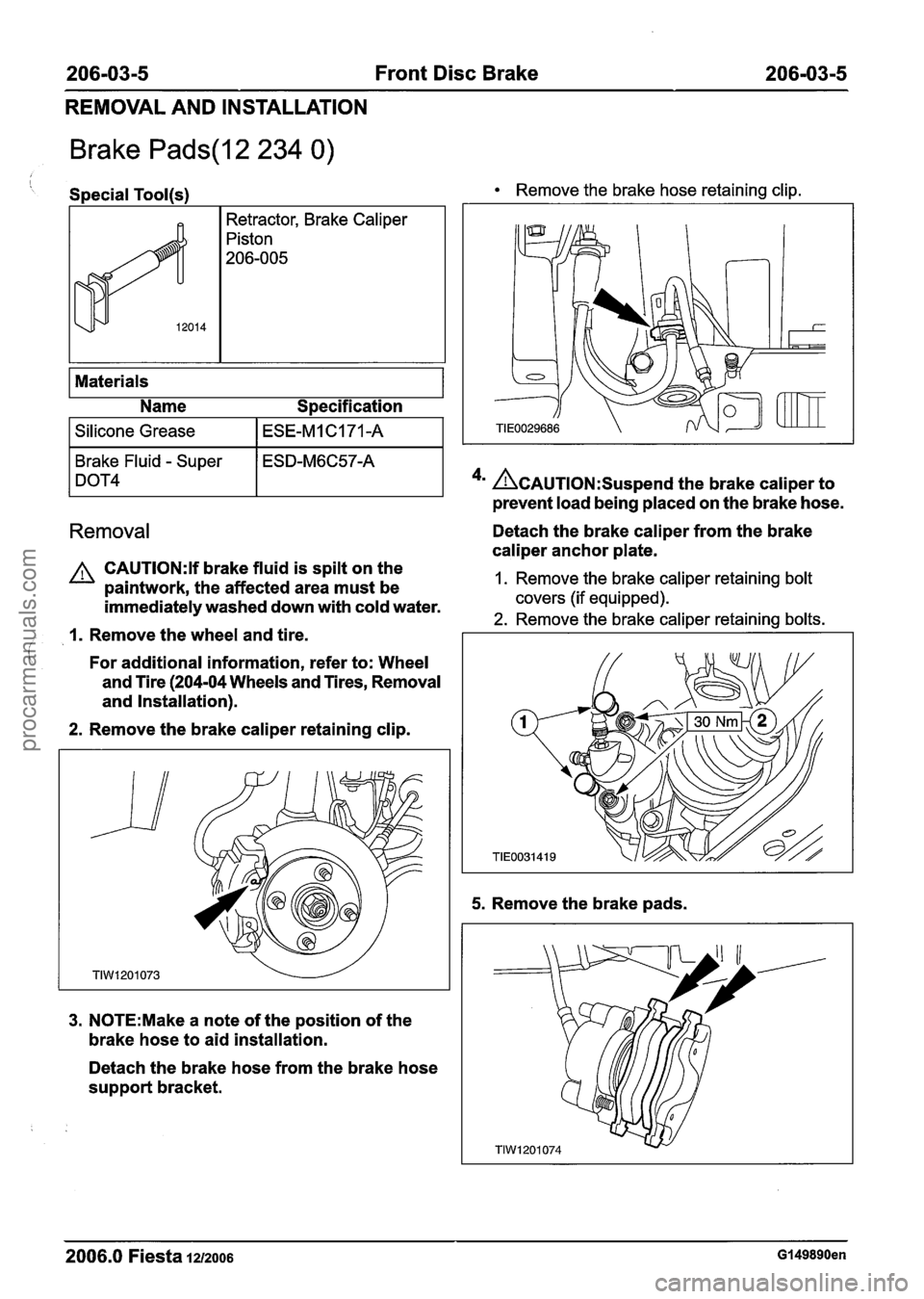

206-03-5 Front Disc Brake 206-03-5 - - --- -- -
REMOVAL AND INSTALLATION
Brake Pads(l2 234 0)
i Special Tool(s) Remove the brake hose retaining clip.
Retractor, Brake Caliper
Piston
206-005
Materials
Name Specification
I Silicone Grease I ESE-MlC171-A I
Removal
Brake Fluid - Super
I DOT4 4m &AUTION:S~~~~~~ the brake caliper to
prevent load being placed on the brake hose.
ESD-M6C57-A
Detach the brake caliper from the brake
caliper anchor plate.
A CAUTI0N:If brake fluid is spilt on the
paintwork, the affected area must be 1. Remove the brake caliper retaining bolt
immediately washed down with cold water. covers (if equipped).
2. Remove the brake caliper retaining bolts.
I. Remove the wheel and tire. I i For additional information, refer to: Wheel
and Tire
(204-04 Wheels and Tires, Removal
and Installation).
2. Remove the brake caliper retaining clip.
3. N0TE:Make a note of the position of the
brake hose to aid installation.
Detach the brake hose from the brake hose
support bracket.
5. Remove the brake pads.
2006.0 Fiesta 1212006 G149890en
procarmanuals.com

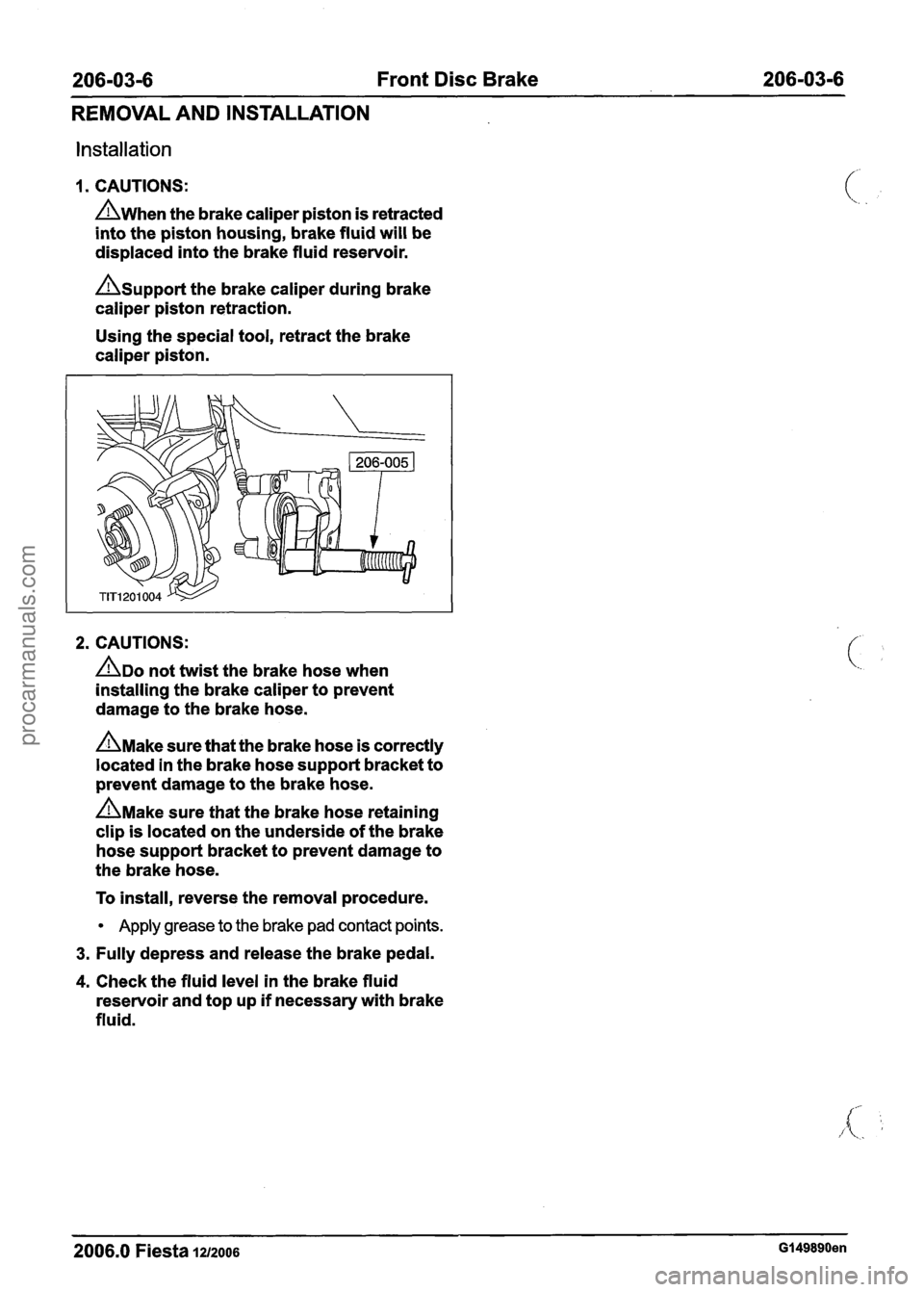

206-03-6 Front Disc Brake 206-03-6
REMOVAL AND INSTALLATION
Installation
1. CAUTIONS:
A~hen the brake caliper piston is retracted
into the piston housing, brake fluid will be
displaced into the brake fluid reservoir.
Asupport the brake caliper during brake
caliper piston retraction.
Using the special tool, retract the brake
caliper piston.
2. CAUTIONS:
ADO not twist the brake hose when
installing the brake caliper to prevent
damage to the brake hose.
A~ake sure that the brake hose is correctly
located in the brake hose support bracket to
prevent damage to the brake hose.
A~ake sure that the brake hose retaining
clip is located on the underside of the brake
hose support bracket to prevent damage to
the brake hose.
To install, reverse the removal procedure.
Apply grease to the brake pad contact points.
3. Fully depress and release the brake pedal.
4. Check the fluid level in the brake fluid
reservoir and top up if necessary with brake
fluid.
2006.0 Fiesta 1212006 GI 49890en
procarmanuals.com

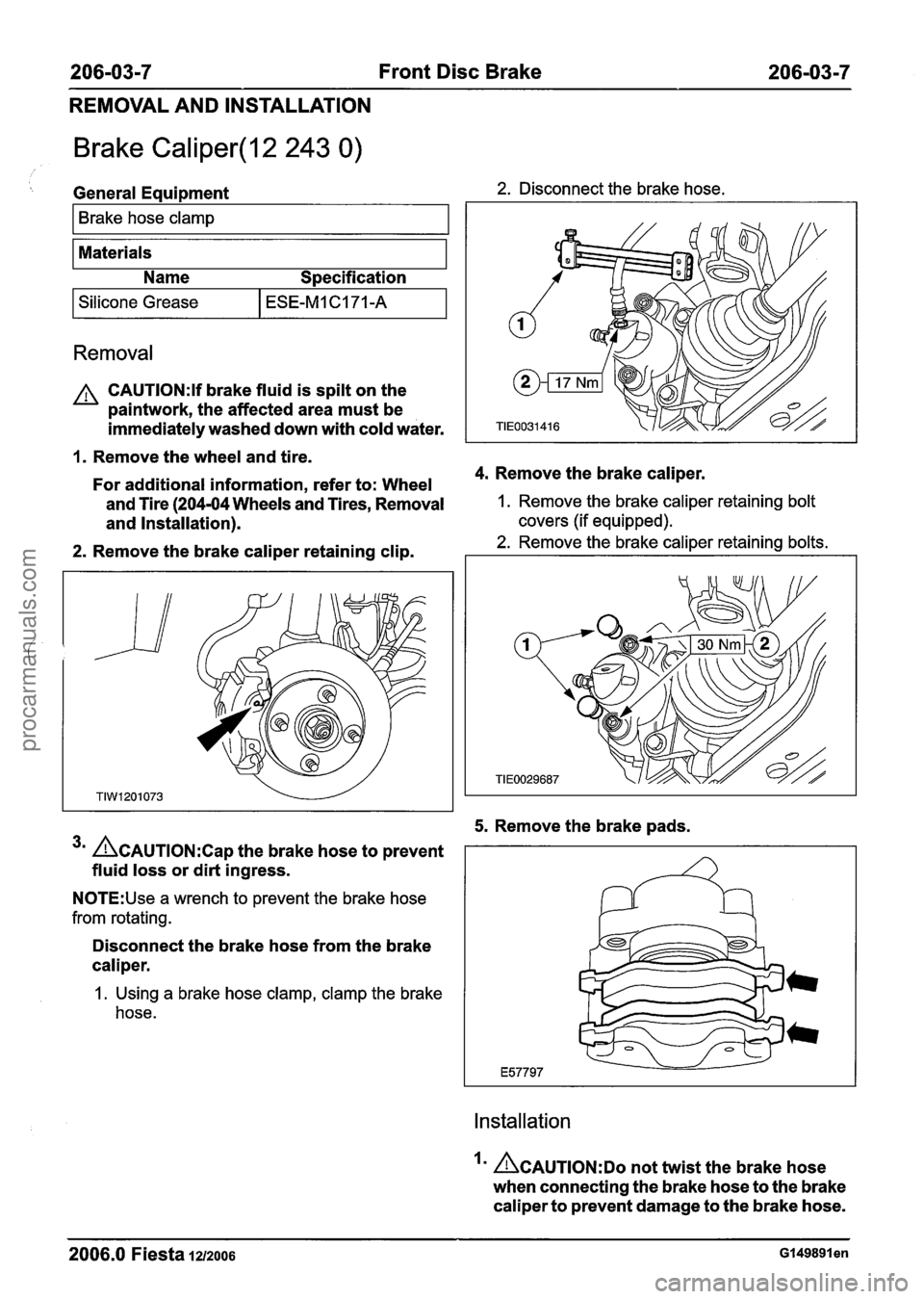

206-03-7 Front Disc Brake 206-03-7
REMOVAL AND INSTALLATION
Brake Caliper(l2 243 0) /
' General Equipment 2. Disconnect the brake hose.
Brake hose
clamp
Materials
Name Specification
I Silicone Grease I ESE-MlC171-A I
Removal
A CAUTI0N:If brake fluid is spilt on the
paintwork, the affected area must be
immediately washed down with cold water.
1. Remove the wheel and tire.
4. Remove the brake caliper.
For additional information, refer to: Wheel
and Tire
(204-04 Wheels and Tires, Removal I. Remove the brake caliper retaining bolt
and Installation). covers (if equipped).
2. Remove the brake caliper retaining clip. 2. Remove the brake caliper retaining bolts.
5. Remove the brake pads.
3' ACAUTION:C~~ the brake hose to prevent
fluid loss or dirt ingress.
N0TE:Use a wrench to prevent the brake hose
from rotating.
Disconnect the brake hose from the brake
caliper.
I. Using a brake hose clamp, clamp the brake
hose.
Installation
ACAUTION:D~ not twist the brake hose
when connecting the brake hose to the brake
caliper to prevent damage to the brake hose.
- -
2006.0 Fiesta 1212006 G149891en
procarmanuals.com

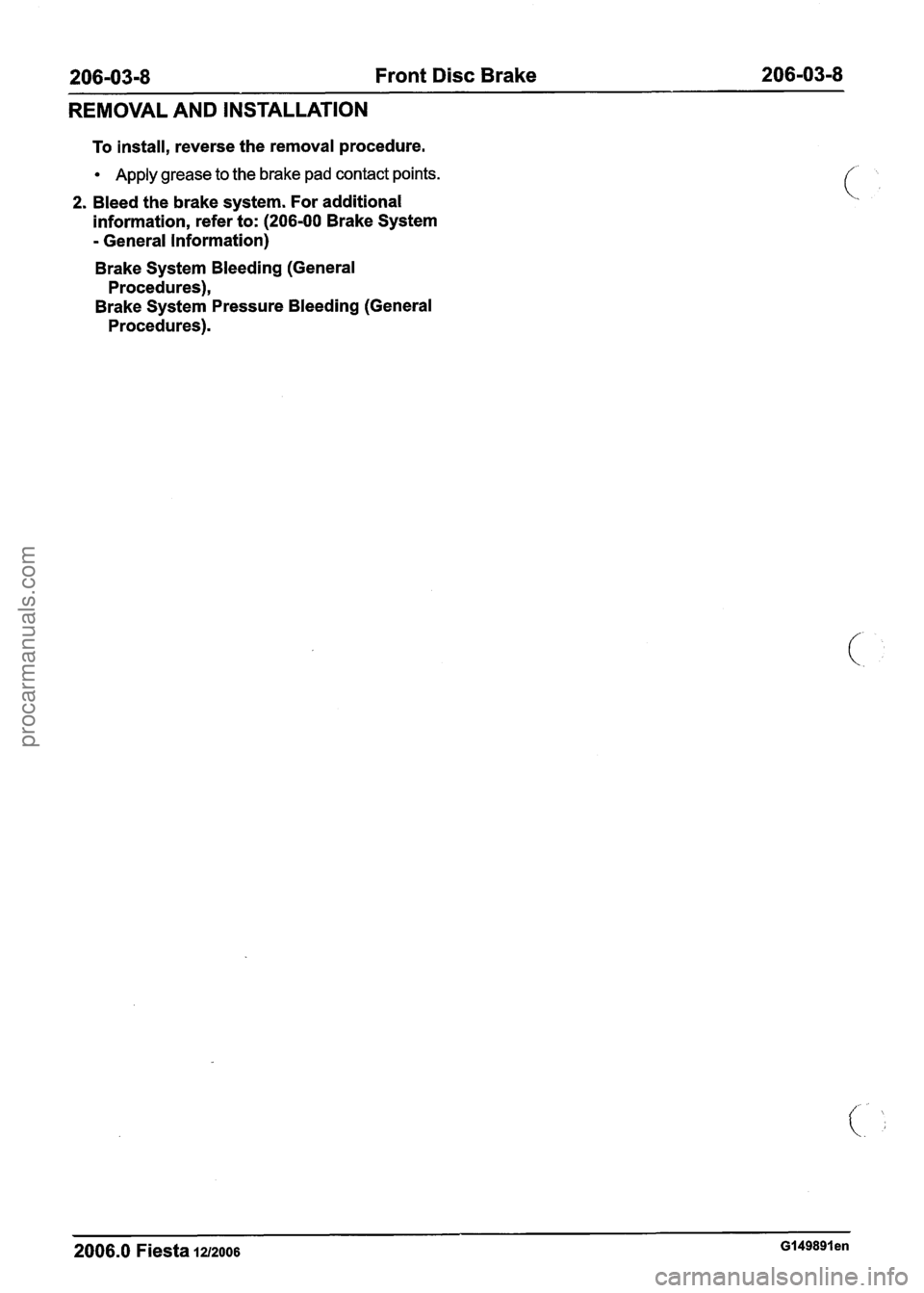

206-03-8 Front Disc Brake 206-03-8
REMOVAL AND INSTALLATION
To install, reverse the removal procedure.
Apply grease to the brake pad contact points.
2. Bleed the brake system. For additional
information, refer to: (206-00 Brake System
- General Information)
Brake System Bleeding (General
Procedures),
Brake System Pressure Bleeding (General
Procedures).
2006.0 Fiesta 1212006 GI49891 en
procarmanuals.com

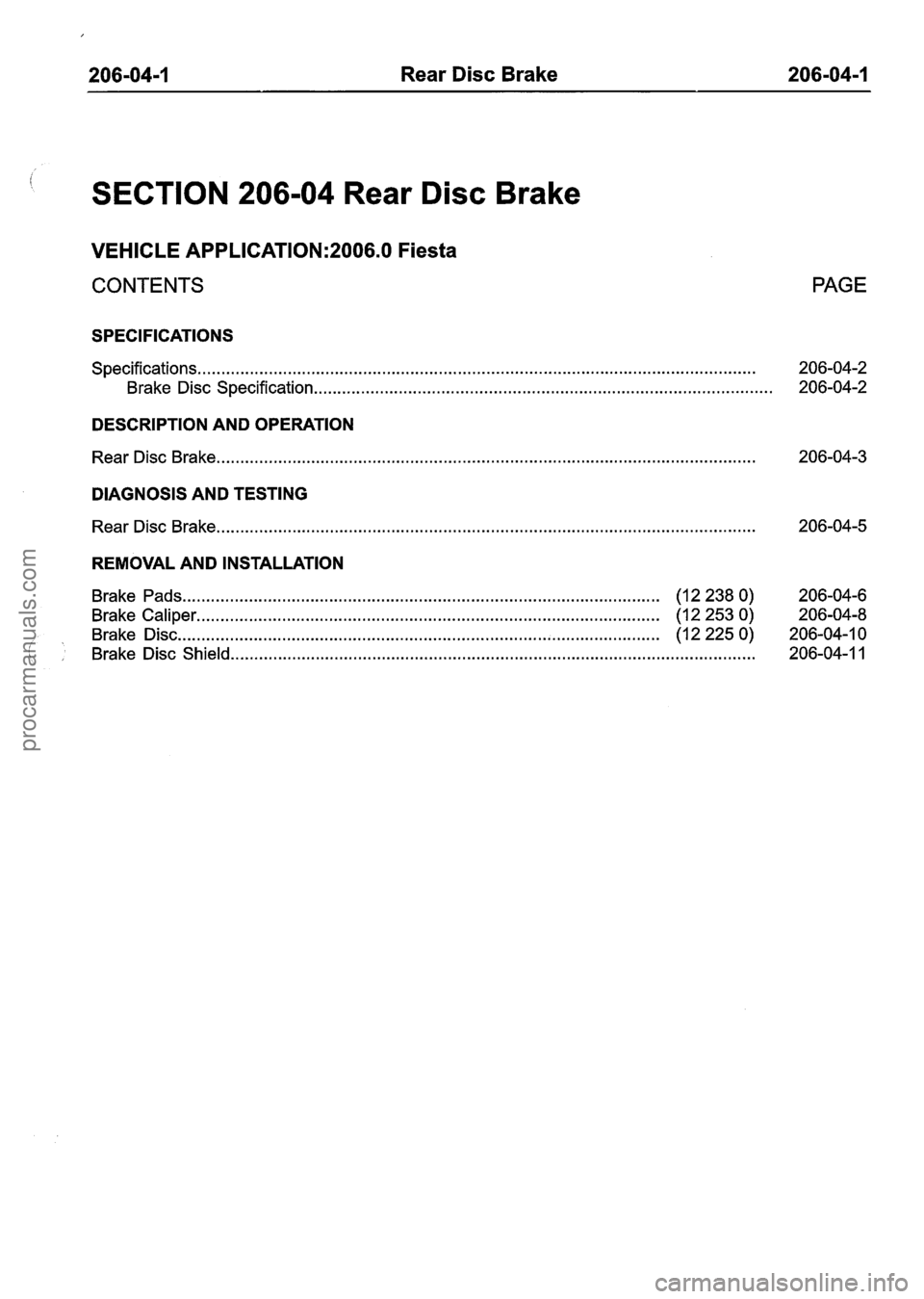

206-04-1 Rear Disc Brake 206-04-1
SECTION 206-04 Rear Disc Brake
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206-04-2
Brake Disc Specification ........................................................................\
......................... 206-04-2
DESCRIPTION AND OPERATION
Rear Disc Brake
........................................................................\
.......................................... 206-04-3
DIAGNOSIS AND TESTING
Rear Disc Brake
........................................................................\
.......................................... 206-04-5
REMOVAL AND INSTALLATION
Brake Pads
... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1 2 238 0) 206-04-6
Brake Caliper ..... .. . . . . .. .... .. ...... .. . . .. .. . . . . .. . . .. . . .. . . . . .. .. .. . . .. .. . . .. .. .. .. .. ...... .. . . .. .. .... ... .. (1 2 253 0) 206-04-8
Brake
Disc.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (1 2
225 0) 206-04-1
0
( Brake Disc Shield ........................................................................\
....................................... 206-04-1 1
procarmanuals.com

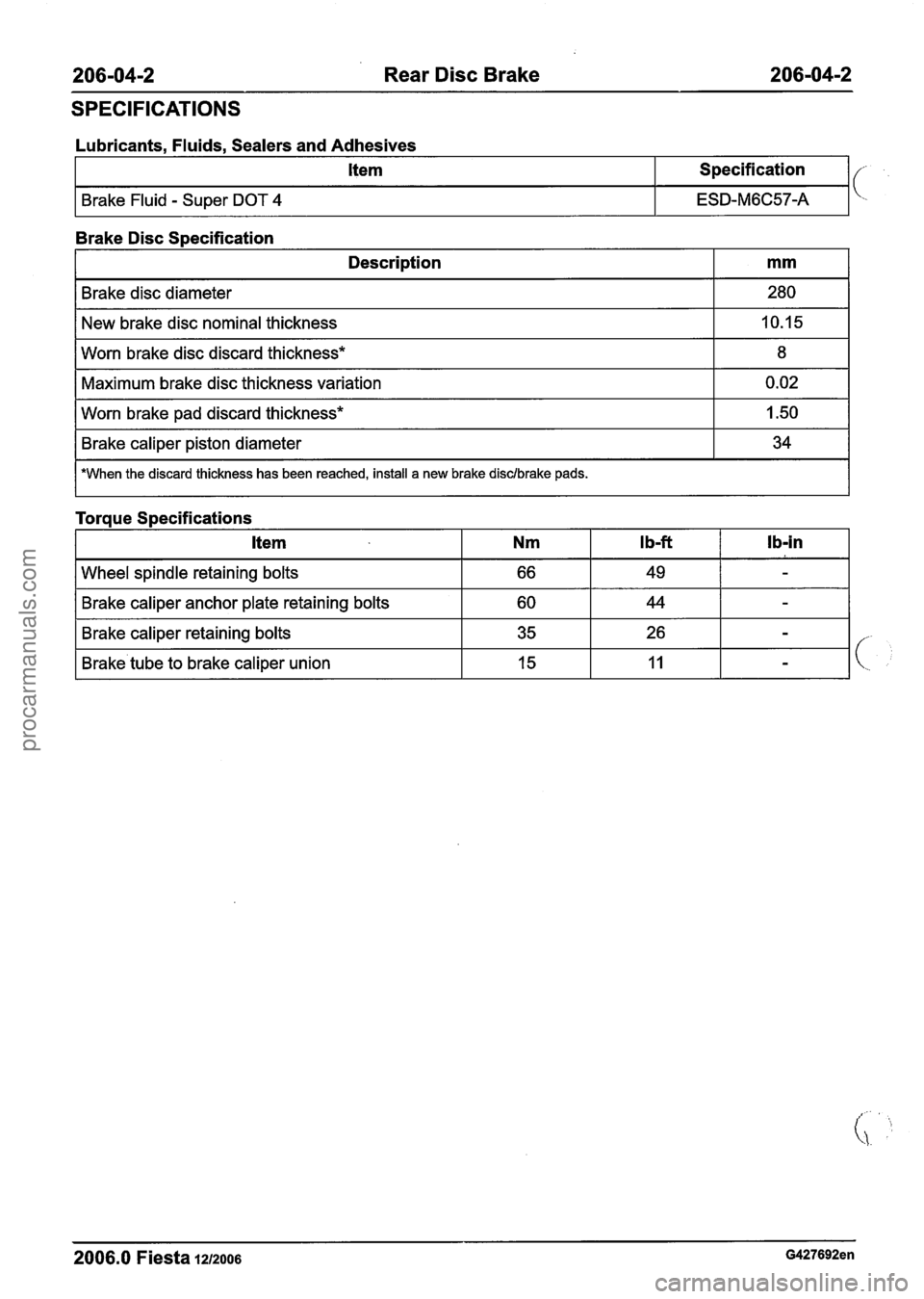

206-04-2 Rear Disc Brake 206-04-2
SPECIFICATIONS
Lubricants, Fluids, Sealers and Adhesives
Item Specification
ESD-M6C57-A
Brake Disc S~ecification
I Description I mm I
Brake disc diameter
New brake disc nominal thickness
I Worn brake pad discard thickness* I 1.50 1
280
10.15
Worn brake disc discard thickness*
Maximum brake disc thickness variation
I Brake caliper piston diameter I 34 I
8
0.02
I *When the discard thickness has been reached, install a new brake disdbrake pads.
-spindle retaining bolts I 66 I 49 I - I
Torque Specifications
I Brake caliper anchor plate retaining bolts I 60 I 44 I - I
I Brake caliper retaining bolts I 35 I 26 I - I
Ib-in Item
I Brake.tube to brake caliper union I 15 I 11 I - I
2006.0 Fiesta 1u2oo6 G427692en
Nm Ib-ft
procarmanuals.com

206-04-3 Rear Disc Brake 206-04-3
DESCRIPTION AND OPERATION
Rear Disc Brake
Rear Wheel Hub and Disc Brake Assembly
Item Description Item Description
I 1 I Beam axle
2
3
I plate assembly
2006.0 Fiesta 1212006 G427693en
5
Brakediscshield
Brake caliper and brake caliper anchor
4
Wheel hub retaining nut
8
Dust cap
6
7
Wheel speed sensor ring
Brake disc
Wheelhub
9 Wheel
spindle
procarmanuals.com

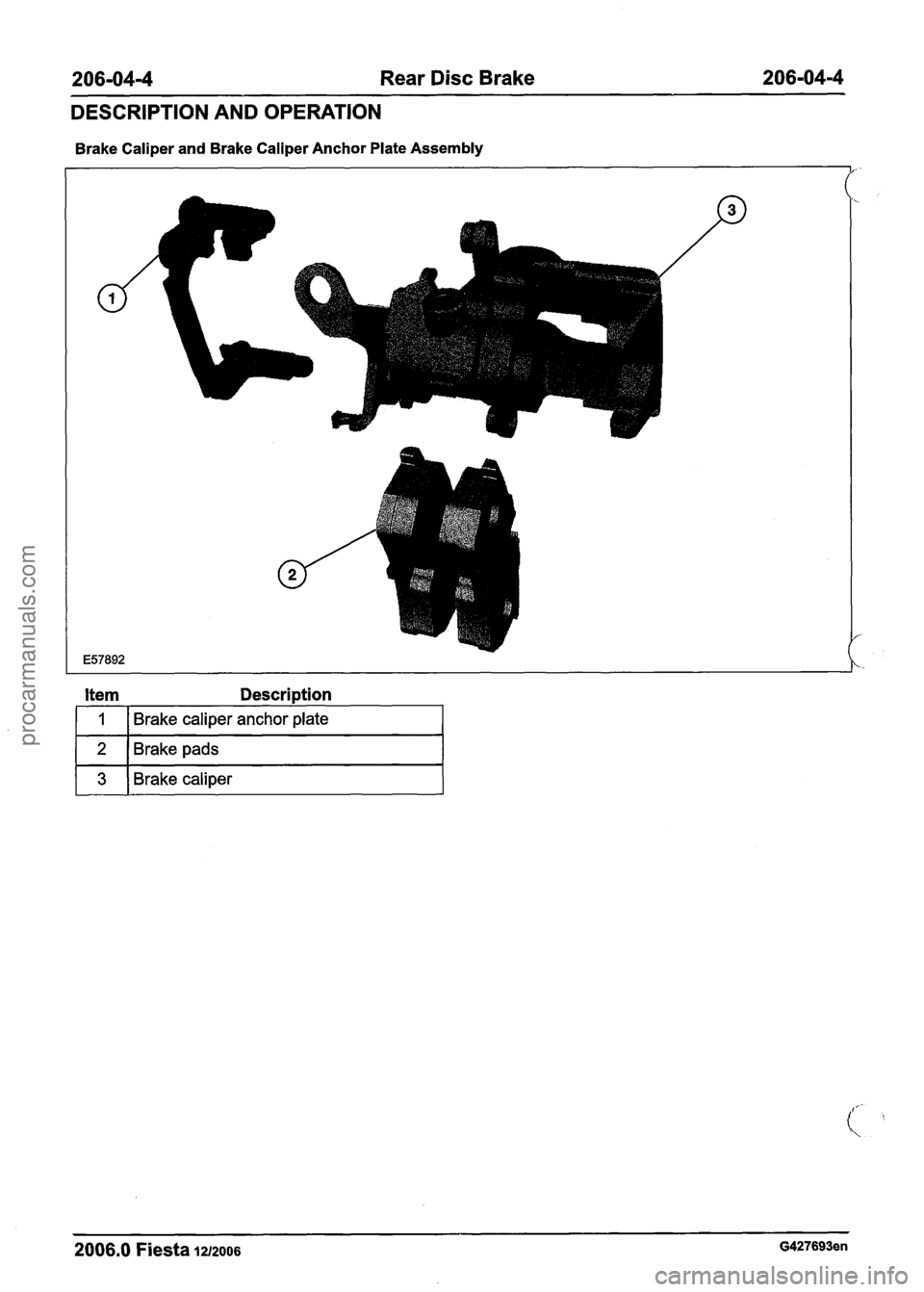

206-04-4 Rear Disc Brake 206-04-4
DESCRIPTION AND OPERATION
Brake Caliper and Brake Caliper Anchor Plate Assembly
r 3 1 Brake caliper I
Item Description
2006.0 Fiesta 1~2006 G427693en
1
2
Brake caliper anchor plate
Brake pads
procarmanuals.com

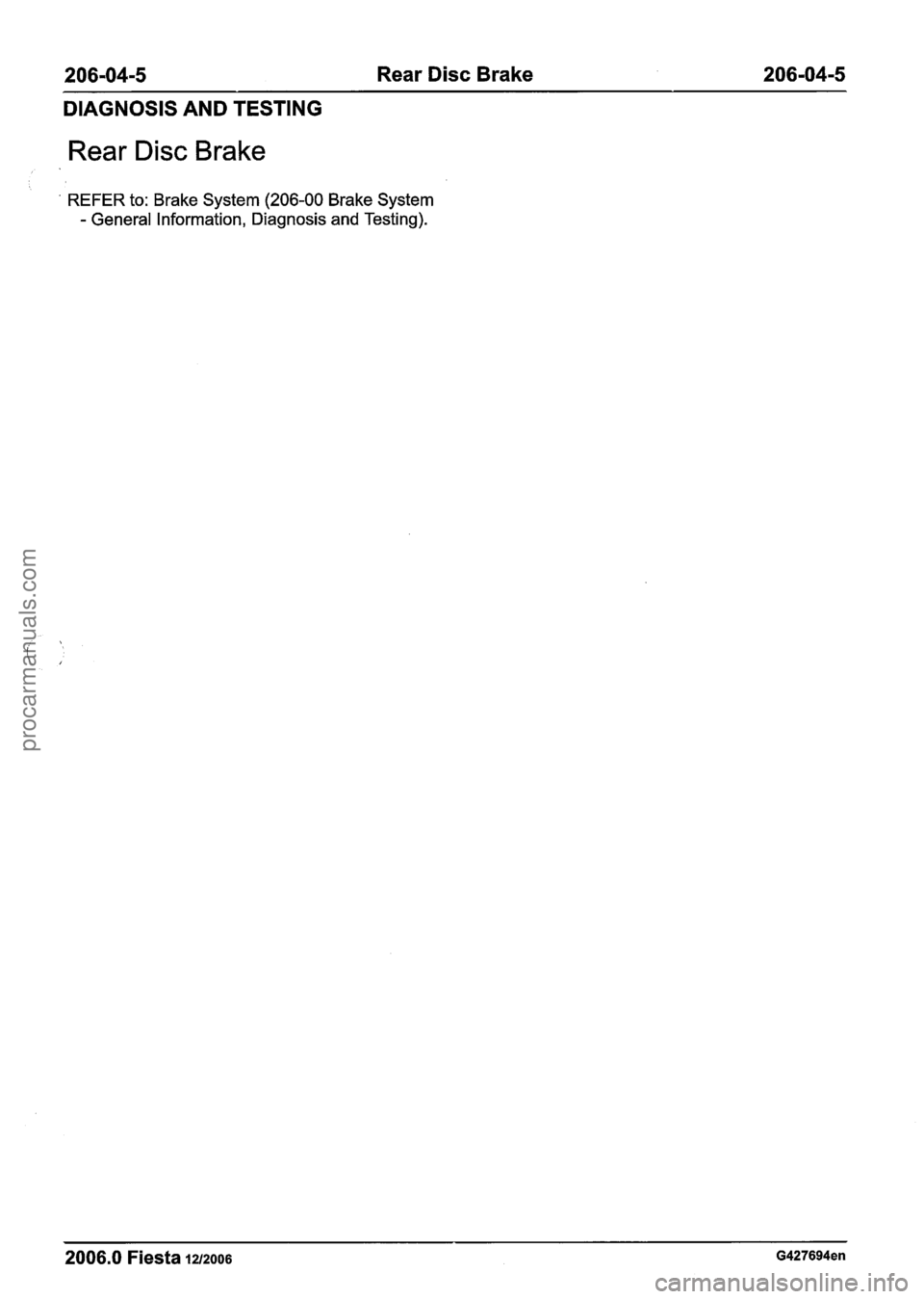

206-04-5 Rear Disc Brake 206-04-5
DIAGNOSIS AND TESTING
Rear Disc Brake
' REFER to: Brake System (206-00 Brake System
- General Information, Diagnosis and Testing).
2006.0 Fiesta 1212006 G427694en
procarmanuals.com

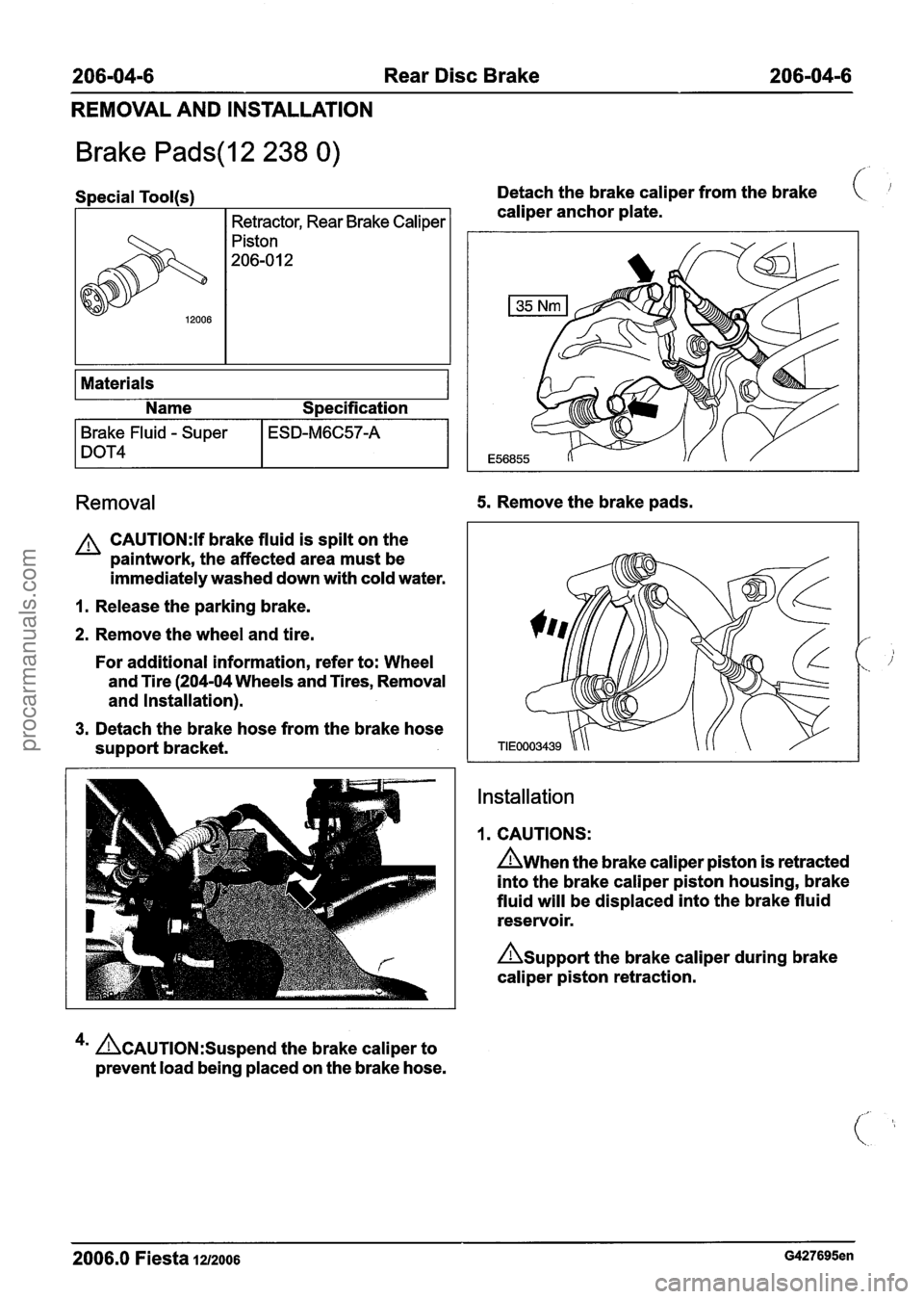

206-04-6 Rear Disc Brake 206-04-6
REMOVAL AND INSTALLATION
Brake Pads(l2 238 0)
Special Tool(s) Detach the brake caliper from the brake (
I Retractor, Rear Brake Caliper I caliper anchor plate.
Piston
206-0
1 2
Materials
Name Specification
Removal 5. Remove the brake pads.
Brake Fluid - Super
I DOT4
A CAUTI0N:lf brake fluid is spilt on the
paintwork, the affected area must be
immediately washed down with cold water.
ESD-M6C57-A
1. Release the parking brake.
2. Remove the wheel and tire.
For additional information, refer to: Wheel
and Tire (204-04 Wheels and Tires, Removal
and Installation).
3. Detach the brake hose from the brake hose
support bracket.
Installation
1. CAUTIONS:
n~hen the brake caliper piston is retracted
into the brake caliper piston housing, brake
fluid will be displaced into the brake fluid
reservoir.
Asupport the brake caliper during brake
caliper piston retraction.
4m ACAUTION:S~~~~~~ the brake caliper to
prevent load being placed on the brake hose.
2006.0 Fiesta 1212006 G427695en
