206-09C-5 Anti-Lock Control - Stability Assist 206-096-5
REMOVAL AND INSTALLATION

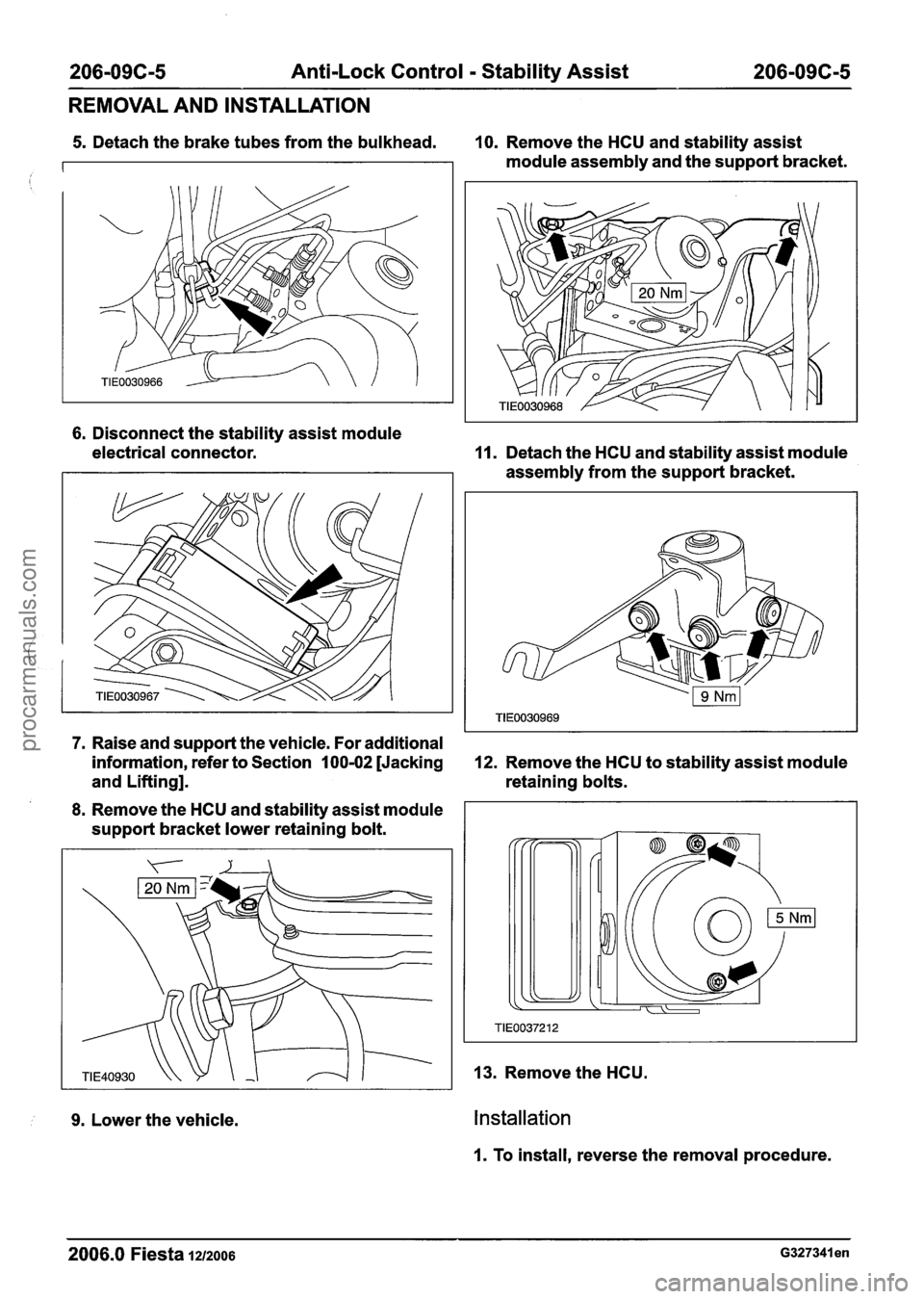

6. Disconnect the stability assist module
electrical connector.
11. Detach the HCU and stability assist module
assembly from the support bracket.
5. Detach the brake tubes from the bulkhead. 10. Remove the HCU and stability assist
7. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking 12. Remove the HCU to stability assist module
and Lifting]. retaining bolts.
i
8. Remove the HCU and stability assist module
support bracket lower retaining bolt. module
assembly and the support bracket.
9. Lower the vehicle.
13. Remove the HCU.
Installation
I. To install, reverse the removal procedure.
--- -- - --
2006.0 Fiesta 1212006 ~327341 en
procarmanuals.com

206-09C-6 Anti-Lock Control - Stability Assist 206-09C-6
REMOVAL AND INSTALLATION

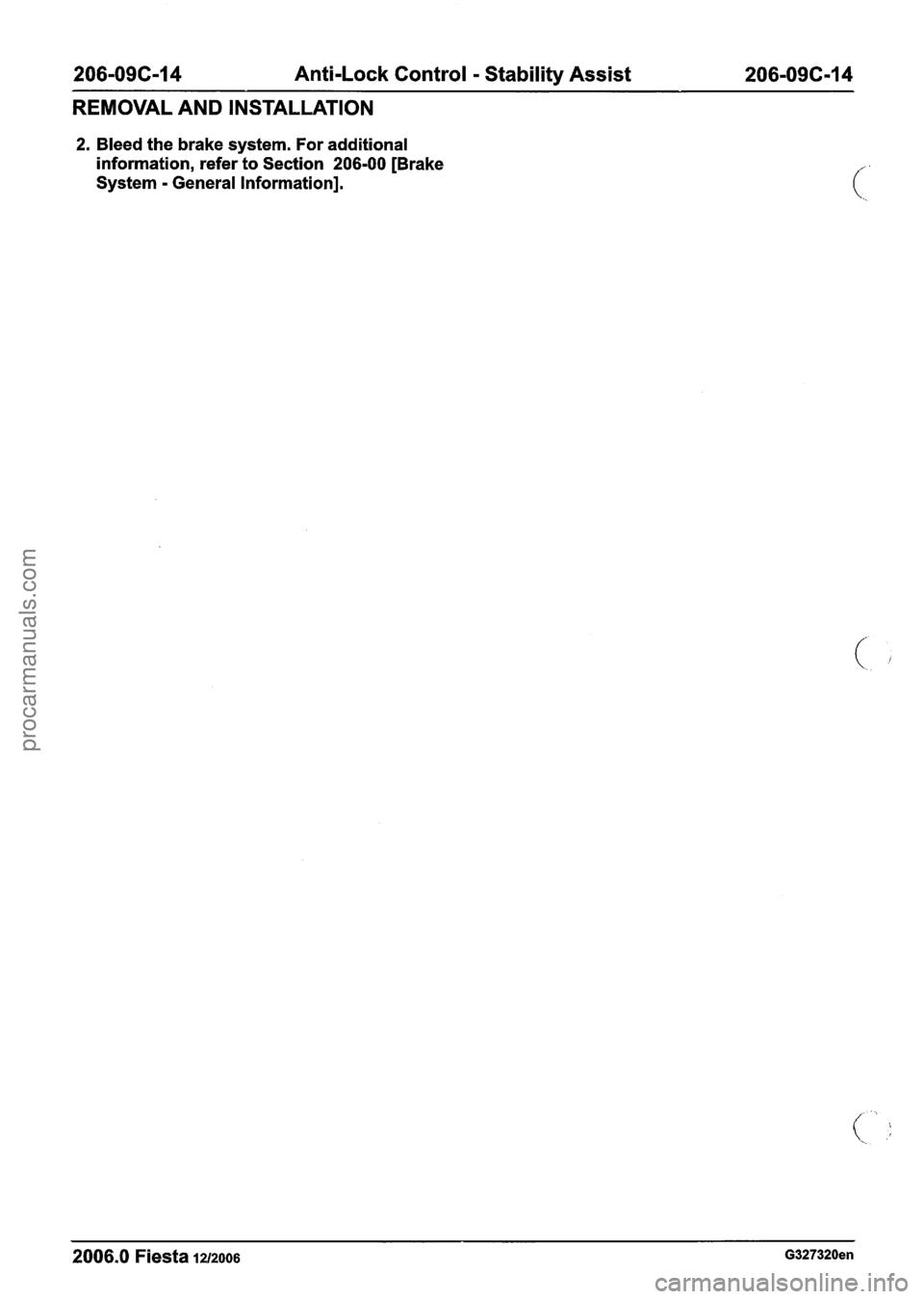

2. Bleed the brake system. For additional
information, refer to Section 206-00 [Brake
System
- General Information].
2006.0 Fiesta 1212006 ~327341 en
procarmanuals.com

206-096-7 Anti-Lock Control - Stability Assist 206-09C-7
REMOVAL AND INSTALLATION

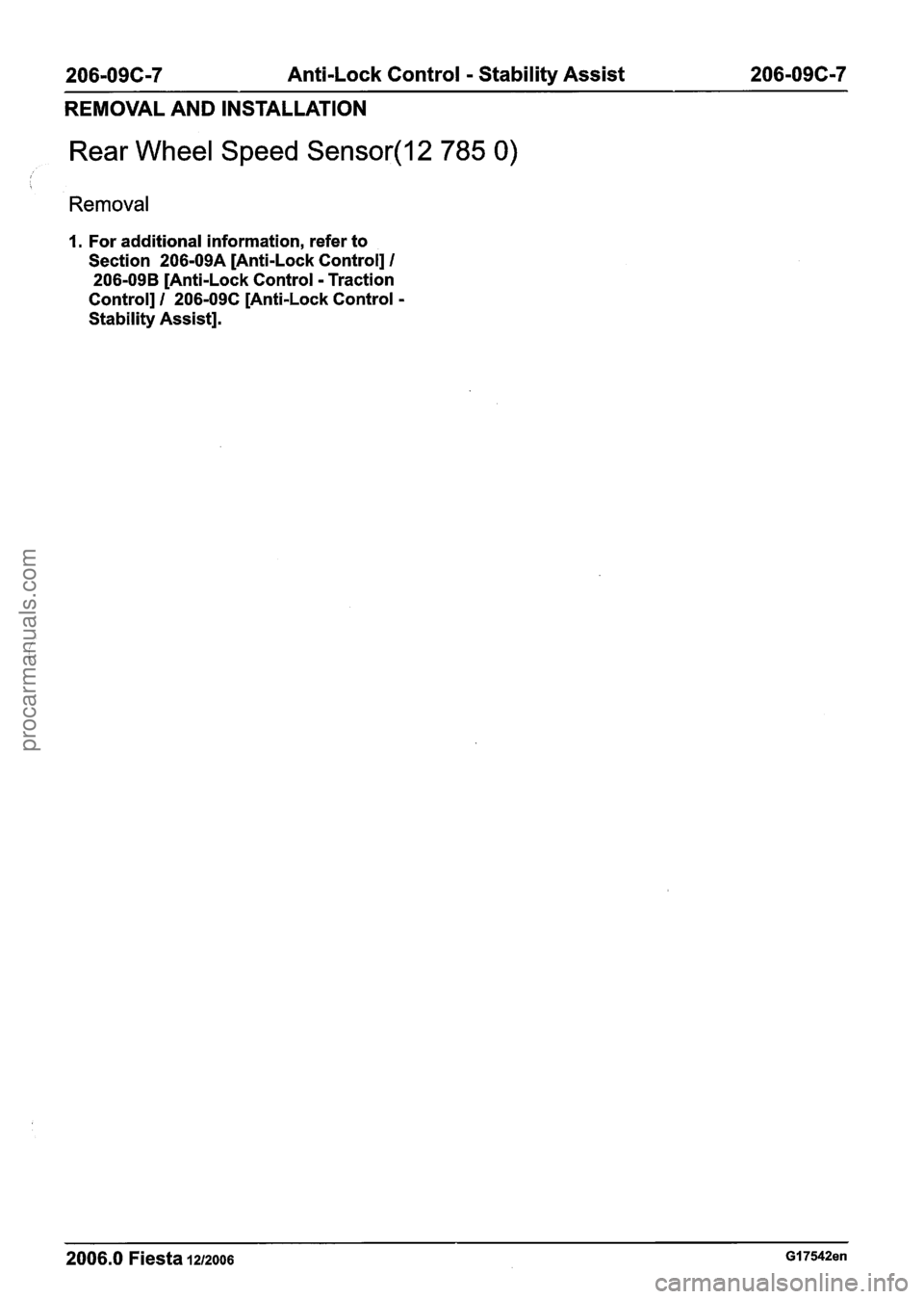

Rear Wheel Speed Sensor(l2 785 0)

Removal
1. For additional information, refer to
Section 206-09A [Anti-Lock Control]
1
206-09B [Anti-Lock Control - Traction
Control]
1 206-09C [Anti-Lock Control -
Stability Assist].
2006.0 Fiesta 1212006 GI 7542en
procarmanuals.com

206-096-8 Anti-Lock Control - Stability Assist 206-096-8
REMOVAL AND INSTALLATION
Yaw Rate Sensor and Accelerometer
Removal
N0TE:The yaw rate sensor and accelerometer are Remove the yaw rate sensor and
one assembly and cannot be seperated. accelerometer assembly cover.
1. Remove the left-hand front seat. For
additional information, refer to
Section
501 -1 0 [Seating].
2. Remove the scuff plate trim panels.
6. N0TE:Make a note of the position of the
bolts, to aid installation.
Remove the yaw rate sensor and
accelerometer assembly.
3. Remove the B-pillar trim panel. For additional 1 . Disconnect the electrical connector.
information, refer to Section 501 -05 [Interior 2. Remove the bracket retaining bolts.
Trim and Ornamentation].
4. Locally detach the carpet.
Installation
5. N0TE:Make a note of the position of the 1. WARNINGS:
bolts, to aid installation.
ADO not use a damaged yaw rate sensor
and accelerometer assembly. Failure to
follow this instruction may result in personal
injury.
A~ake sure the yaw rate sensor and
accelerometer assembly is correctly
positioned. Failure to follow this instruction
may result in personal injury.
2006.0 Fiesta 1212006 G327319en
procarmanuals.com

206-09C-9 Anti-Lock Control - Stability Assist 206-09C-9
REMOVAL AND INSTALLATION
CAUTIONS:
A The yaw rate sensor and accelerometer
assembly will be damaged if dropped.
A Make sure the correct bolts are used for
the yaw rate sensor and accelerometer
assembly. Failure to follow this instruction
will result in damaged threads.
A Make sure the correct bolts are used for
the yaw rate sensor and accelerometer
assembly cover. Failure to follow this
instruction will result in damaged threads.
To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G327319en
procarmanuals.com

206-096-1 0 Anti-Lock Control - Stability Assist 206-096-1 0
REMOVAL AND INSTALLATION
Steering Wheel Rotation Sensor
Removal
1. N0TE:The steering wheel rotation sensor
and the clockspring cannot be separated.
Remove the clockspring. For additional
information, refer to Section
501-20A [Safety
Belt System]
I 501-20B [Supplemental
Restraint System].
Installation
AWARNING:T~~ stability assist program
must be re-configured following installation.
Failure to follow this instruction may result
in personal injury.
Install the clockspring. For additional
information, refer to Section
501 -20A [Safety
Belt System]
1 501-208 [Supplemental
Restraint System].
2006.0 Fiesta 1212006 G289888en
procarmanuals.com

206-09C-11 Anti-Lock Control - Stability Assist 206-09C-1 I
REMOVAL AND INSTALLATION
Rear Wheel Speed Sensor Ring(l2 788 0)
Removal
1. For additional information, refer to
Section 206-09A [Anti-Lock Control]
I
206-098 [Anti-Lock Control - Traction
Control]
1 206-09C [Anti-Lock Control -
Stability Assist].
2006.0 Fiesta 1212006 G314570en
procarmanuals.com

206-09C-12 Anti-Lock Control - Stability Assist 206-096-1 2
REMOVAL AND INSTALLATION

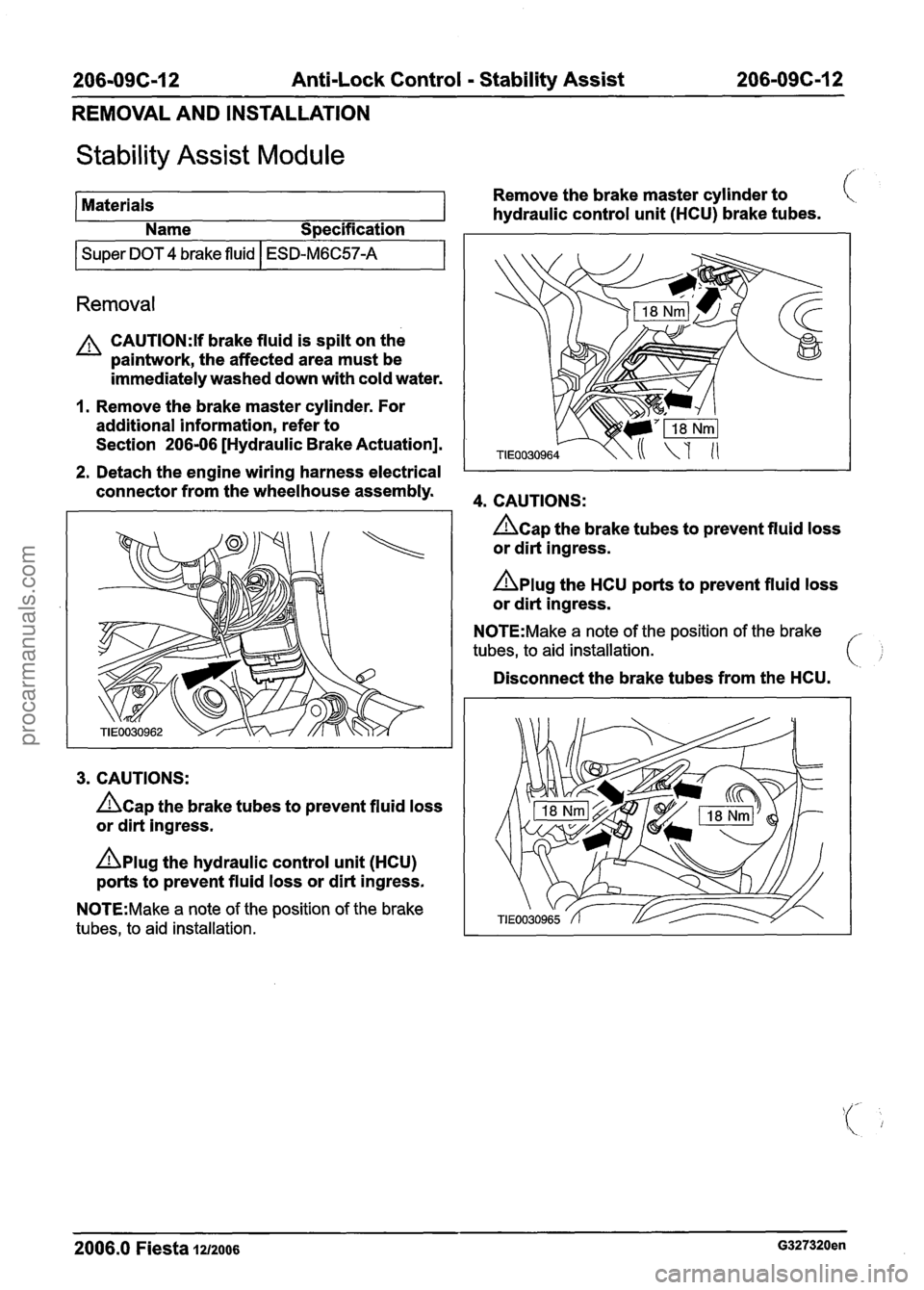

Stability Assist Module ,/.. ,
Materials Remove
the brake master cylinder to
hydraulic control unit (HCU) brake tubes. C
Name Specification I I
I Super DOT 4 brake fluid I ESD-M6C57-A I
Removal
CAUTI0N:If brake fluid is spilt on the
paintwork, the affected area must be
immediately washed down with cold water.
I. Remove the brake master cylinder. For
additional information, refer to
Section
206-06 [Hydraulic Brake Actuation].
2. Detach the engine wiring harness electrical I
connector from the wheelhouse assembly. 4. CAUTIONS:
3. CAUTIONS:
hap the brake tubes to prevent fluid loss
or dirt ingress.
Dplug the hydraulic control unit (HCU)
ports to prevent fluid loss or dirt ingress.
N0TE:Make a note of the position of the brake
tubes, to aid installation.
hap the brake tubes to prevent fluid loss
or dirt ingress.
nplug the HCU ports to prevent fluid loss
or dirt ingress.
N0TE:Make a note of the position of the brake
tubes, to aid installation.
Disconnect the brake tubes from the HCU.
2006.0 Fiesta 1~12006 G327320en
procarmanuals.com

206-096-1 3 Anti-Lock Control - Stability Assist 206-09C-13
REMOVAL AND INSTALLATION

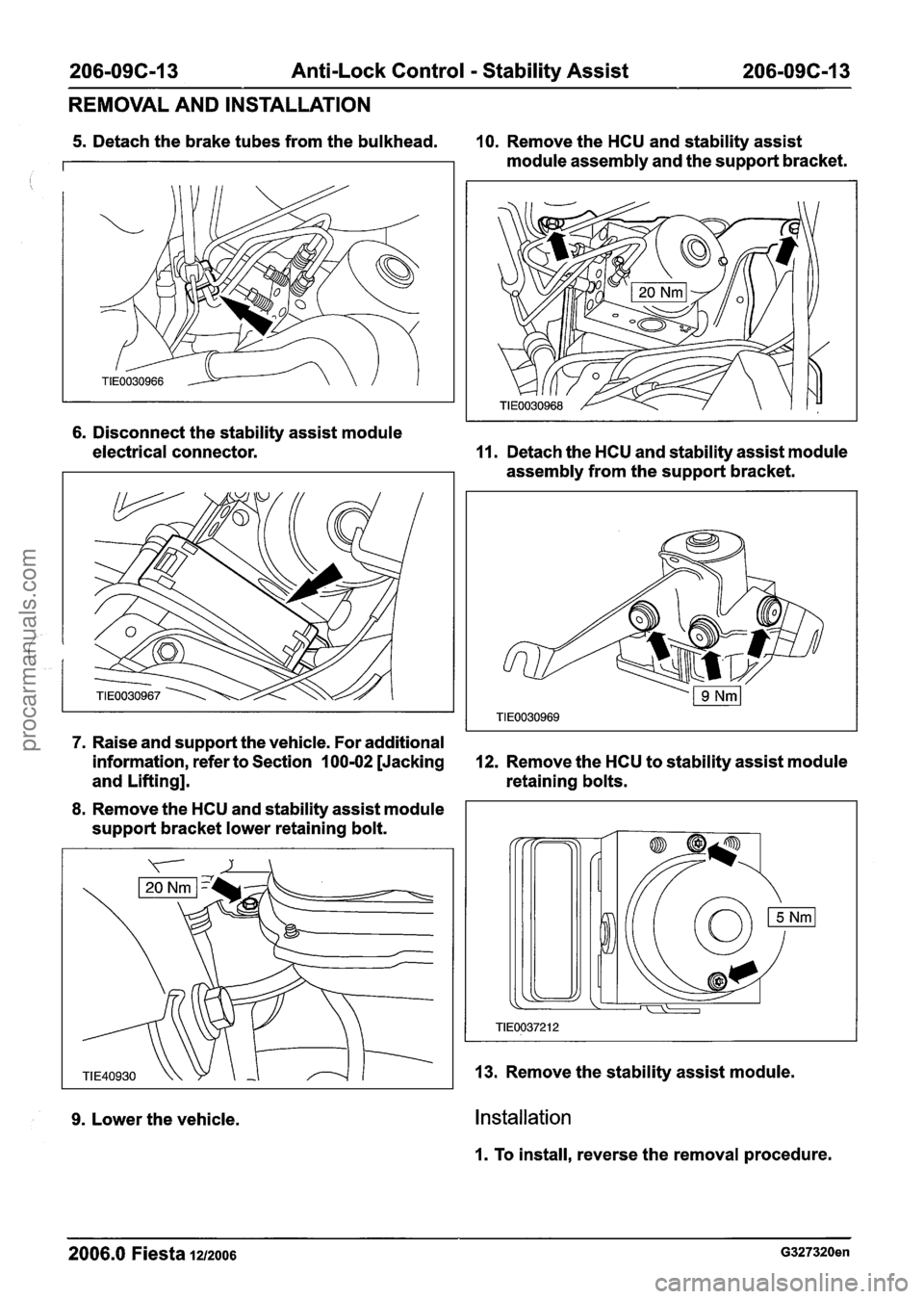

5. Detach the brake tubes from the bulkhead. 10. Remove the HCU and stability assist
