FORD FIESTA 2007 Workshop Manual

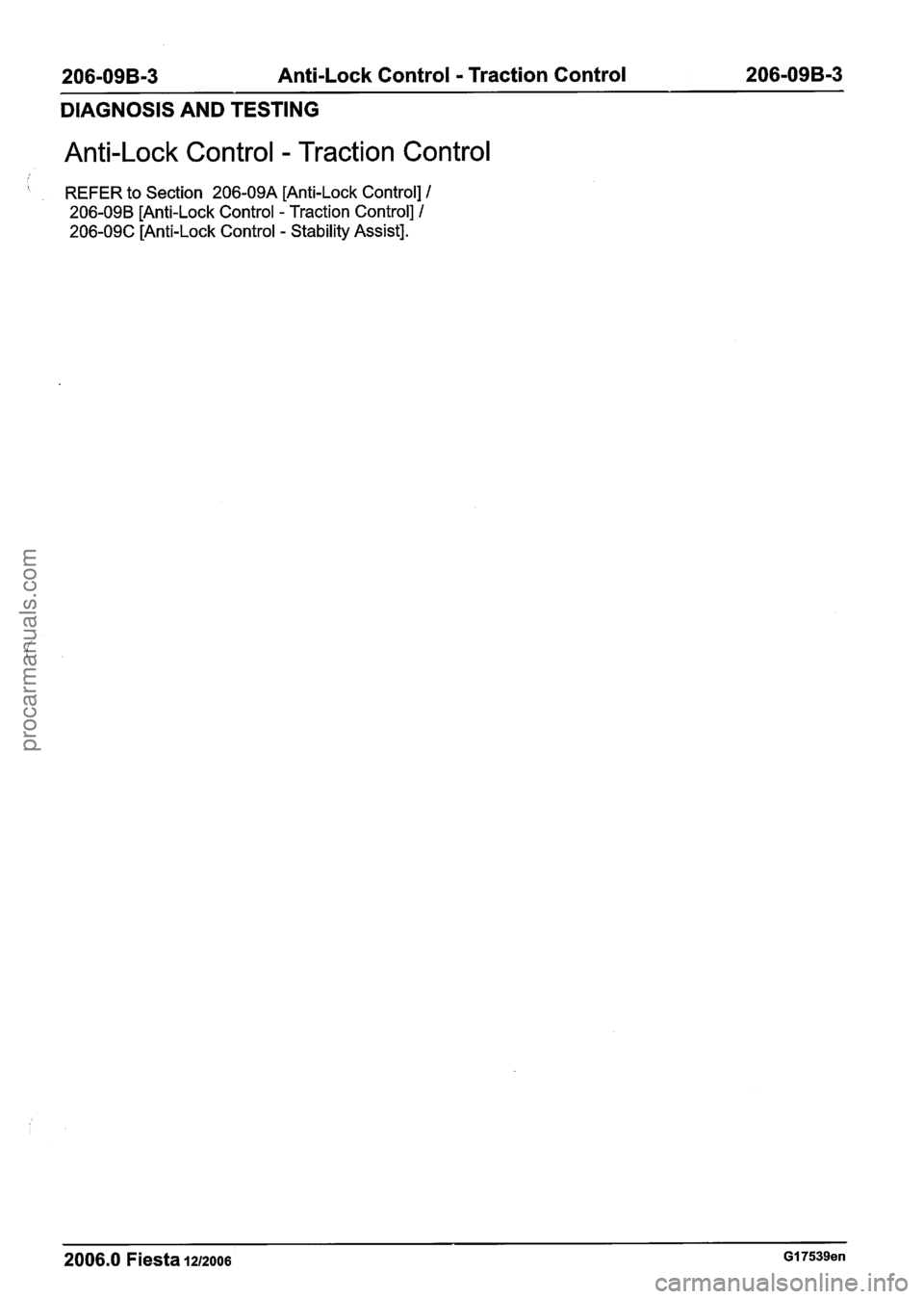

206-09B-3 Anti-Lock Control - Traction Control 206-09B-3
DIAGNOSIS AND TESTING
Anti-Lock Control - Traction Control
' REFER to Section 206-09A [Anti-Lock Control] I
206-09B [Anti-Lock Control - Traction Control] I
206-09C [Anti-Lock Control - Stability Assist].
2006.0 Fiesta 1212006 GI 7539en
procarmanuals.com

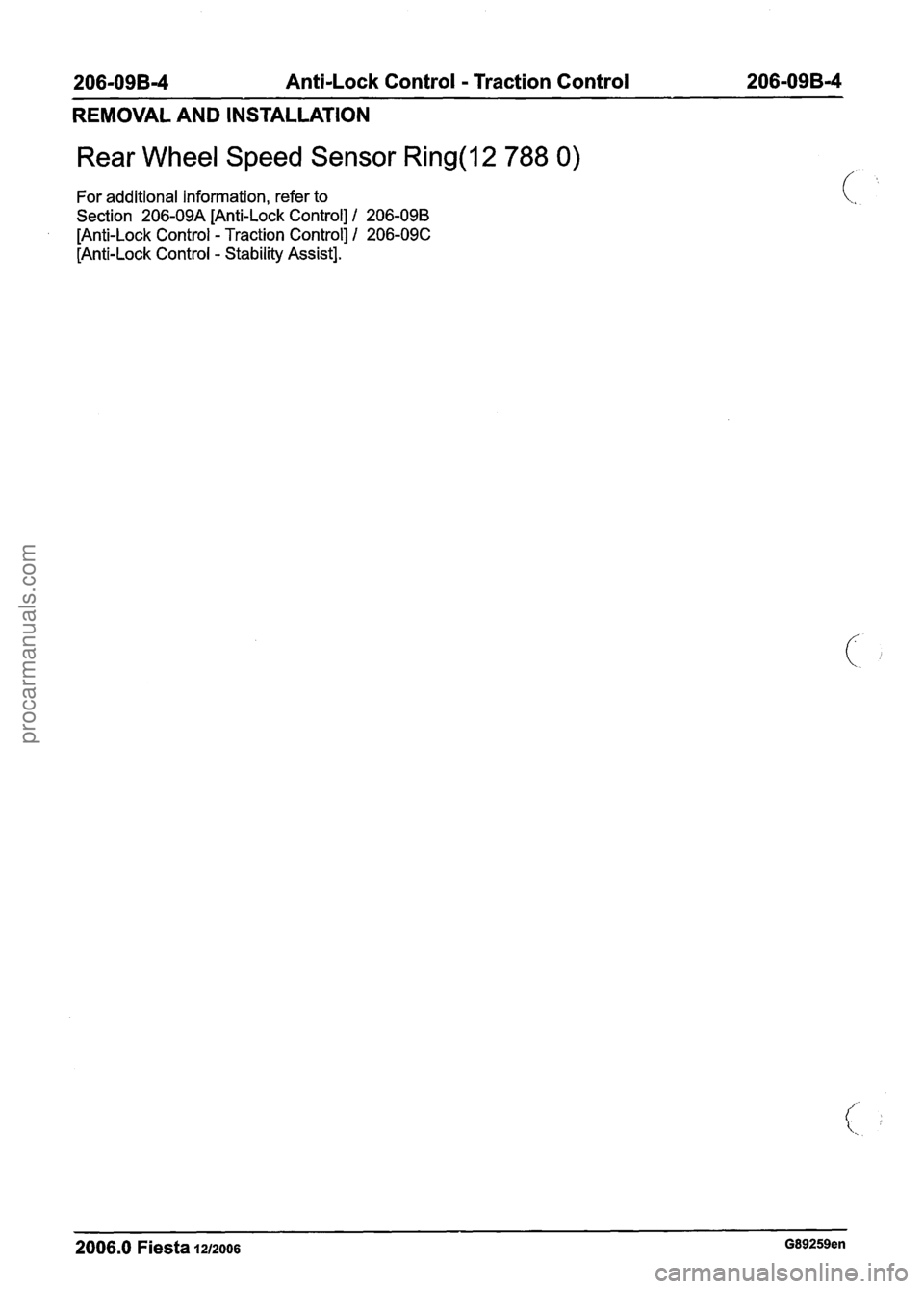

206-09B-4 Anti-Lock Control - Traction
Control
206-09B-4
REMOVAL AND INSTALLATION
Rear Wheel Speed Sensor Ring(l2 788 0)
For additional information, refer to
Section 206-09A [Anti-Lock Control]
I 206-098
[Anti-Lock Control - Traction Control] 1 206-09C
[Anti-Lock Control
- Stability Assist].
--
2006.0 Fiesta 1212006 G89259en
procarmanuals.com

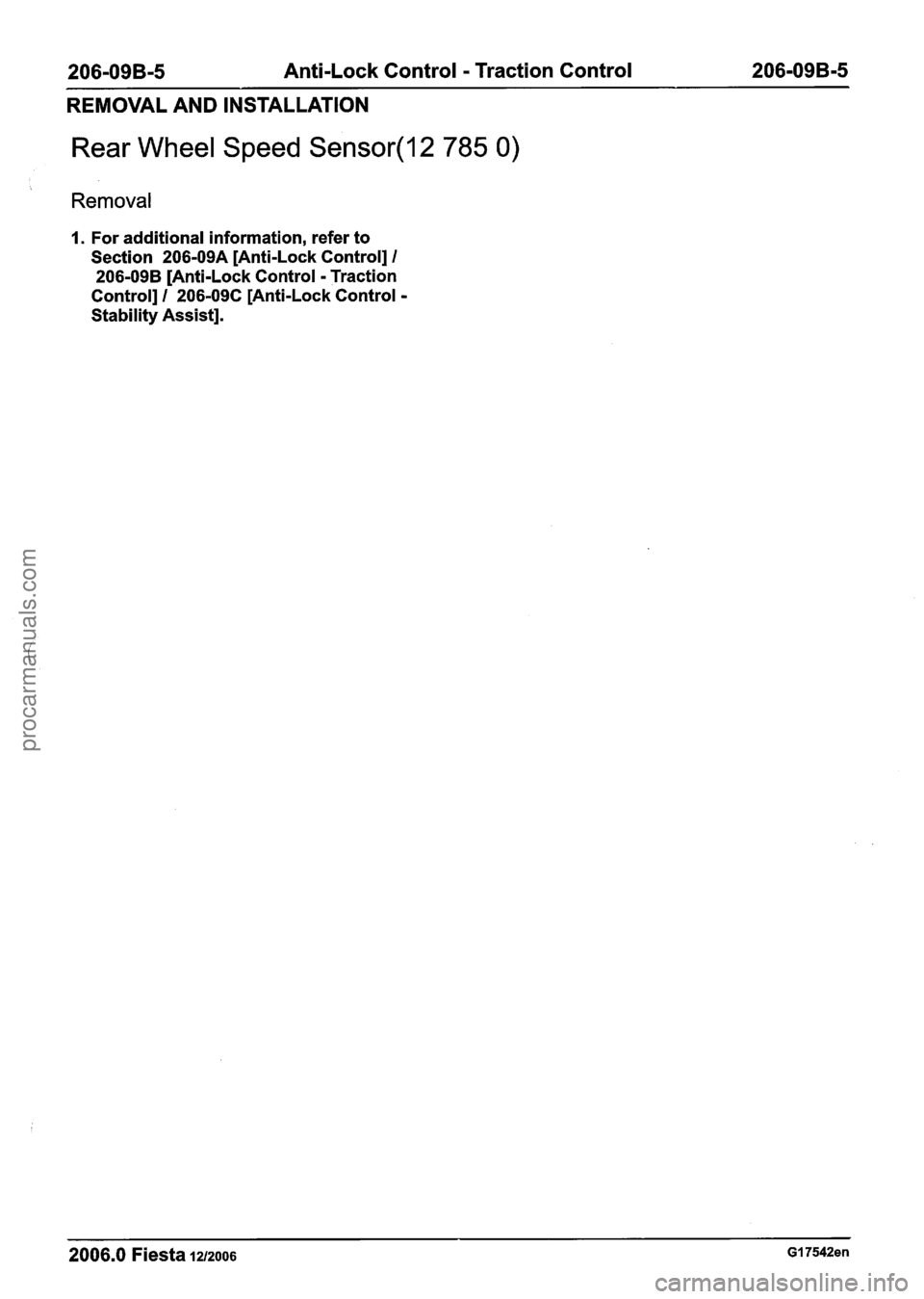

206-09B-5 Anti-Lock Control - Traction Control 206-09B-5
REMOVAL AND INSTALLATION
Rear Wheel Speed Sensor(l2 785 0)
Removal
I. For additional information, refer to
Section 206-09A [Anti-Lock Control]
I
206-09B [Anti-Lock Control - Traction
Control]
1 206-09C [Anti-Lock Control -
Stability Assist].
2006.0 Fiesta 1212006 GI 7542en
procarmanuals.com

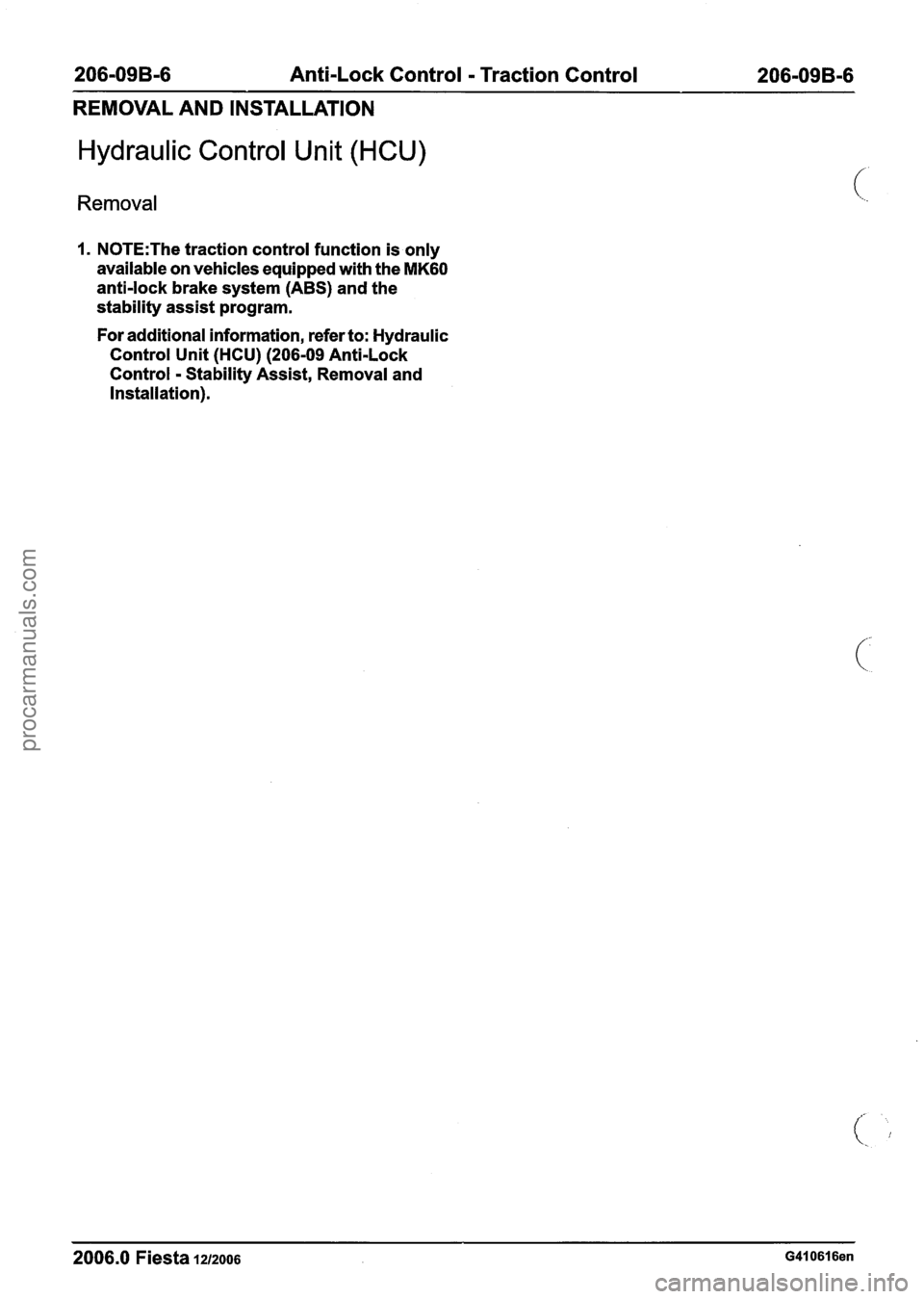

206-09B-6 Anti-Lock Control - Traction Control 206-09B-6
REMOVAL AND INSTALLATION
Hydraulic Control Unit (HCU)
Removal
1. N0TE:The traction control function is only
available on vehicles equipped with the MK60
anti-lock brake system (ABS) and the
stability assist program.
For additional information, refer to: Hydraulic
Control Unit (HCU) (206-09 Anti-Lock
Control
- Stability Assist, Removal and
Installation).
2006.0 Fiesta 1212006 G410616en
procarmanuals.com

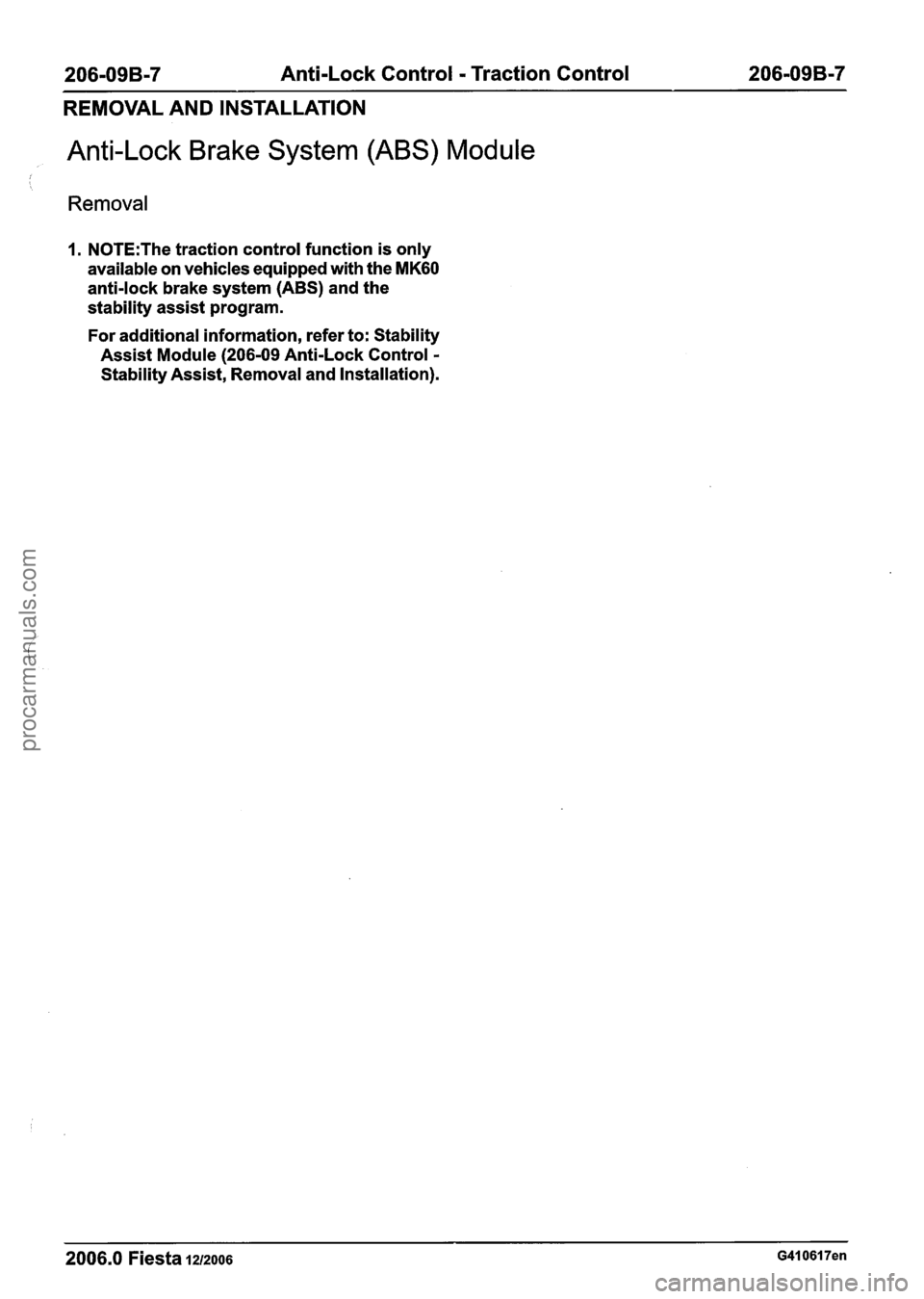

206-09B-7 Anti-Lock Control - Traction Control 206-09B-7
REMOVAL AND INSTALLATION
Anti-Lock Brake System (ABS) Module
Removal
1. N0TE:The traction control function is only
available on vehicles equipped with the MK60
anti-lock brake system (ABS) and the
stability assist program.
For additional information, refer to: Stability Assist Module
(206-09 Anti-Lock Control -
Stability Assist, Removal and Installation).
2006.0 Fiesta 1212006 G410617en
procarmanuals.com

procarmanuals.com

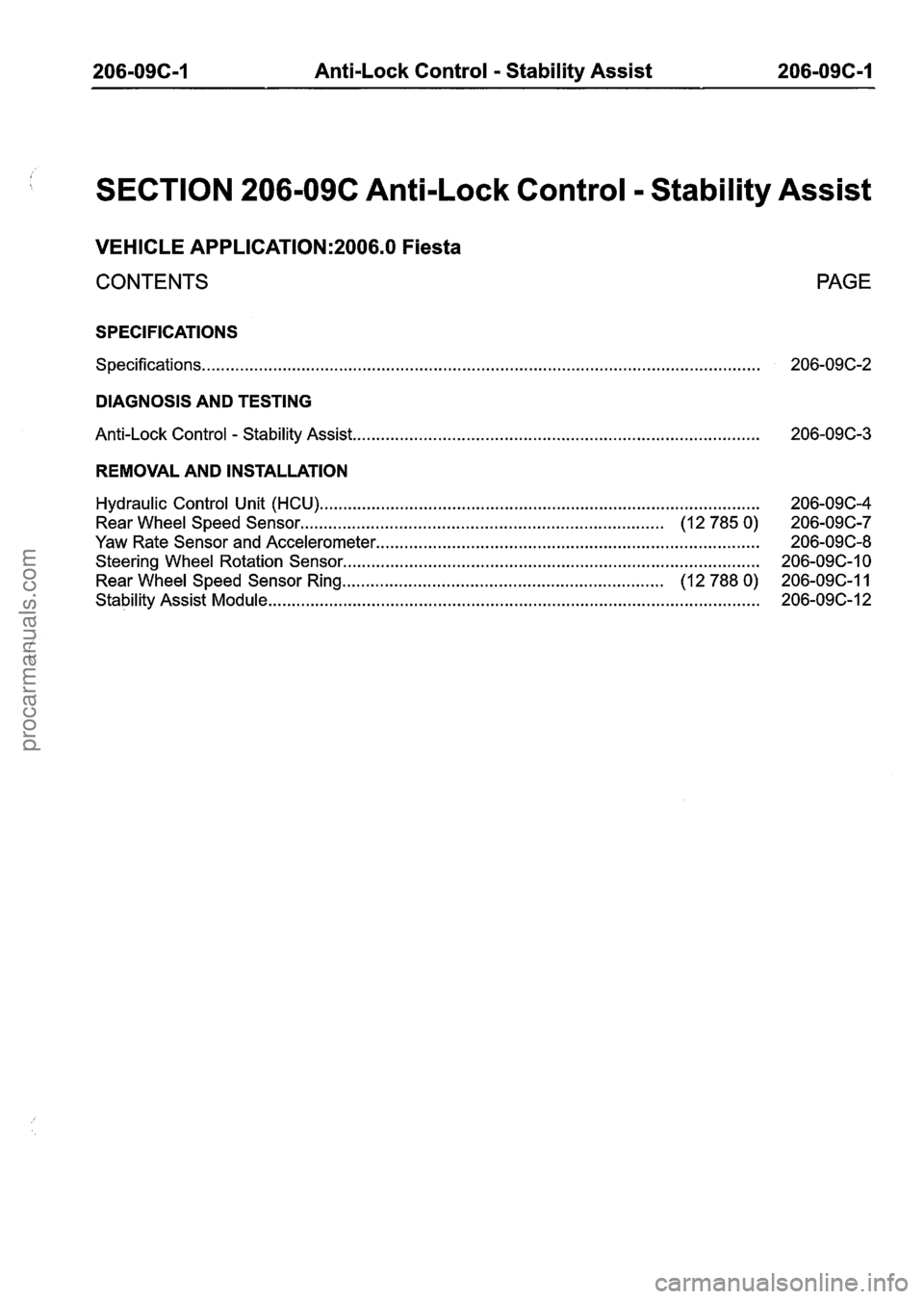

206-096-1 Anti-Lock Control - Stability Assist 206-09C-1
SECTION 206-09C Anti-Lock Control - Stability Assist
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications
........................................................................\
.......................................... 206-09C-2
DIAGNOSIS AND TESTING
Anti-Lock Control
- Stability Assist ........................................................................\
............. 206-096-3
REMOVAL AND INSTALLATION
Hydraulic Control Unit (HCU)
........................................................................\
..................... 206-09C-4
Rear Wheel Speed Sensor
........................................................................\
..... (12 785 0) 206-09C-7
Yaw Rate Sensor and Accelerometer
........................................................................\
....... 206-096-8
Steering Wheel Rotation Sensor. ........................................................................\
............... 206-096-1 0
Rear Wheel Speed Sensor Ring
.................................................................... (1 2 788 0) 206-09C-11
Stability Assist Module
........................................................................\
........................... 206-09C-I 2
procarmanuals.com

206-09C-2 Anti-Lock Control - Stability Assist 206-096-2
SPECIFICATIONS
Lubricants, Fluids, Sealers and Adhesives
Specificat
I ions 1
/ Super DOT 4 brake fluid
Torque Specifications
Description
I Nm I Ib-ft I Ib-in I
HCU support bracket retaining bolts I 20 I 15 I - I
Hydraulic control unit (HCU) to support bracket
retaining bolts
Brake tube to HCU unions
I 18 I 13 I - I
9
Wheel speed sensor retaining bolts I 9 I - I 80 I
Stability assist module to HCU retaining bolts I 5 I - I 44 I
2006.0 Fiesta 12/2006 G314562en
Yaw rate sensor and accelerometer assembly
retaining bolts
Yaw rate sensor and accelerometer assembly cover
retaining bolts 5
4
-
-
44
35
procarmanuals.com

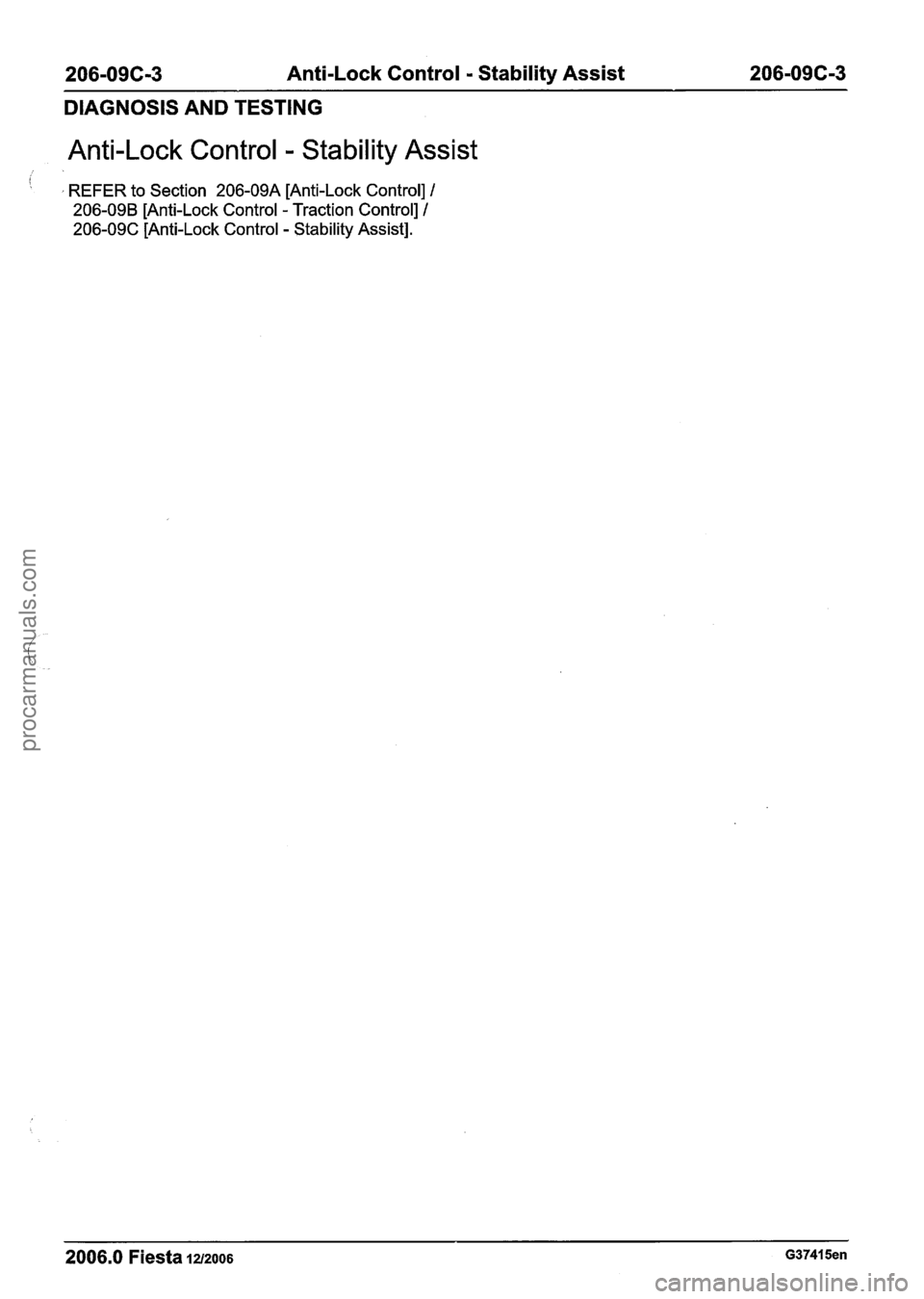

206-09C-3 Anti-Lock Control - Stability Assist 206-096-3
DIAGNOSIS AND TESTING
Anti-Lock Control - Stability Assist
I
, REFER to Section 206-09A [Anti-Lock Control] I
206-09B [Anti-Lock Control - Traction Control] 1
206-09C [Anti-Lock Control - Stability Assist].
2006.0 Fiesta 1212006 G37415en
procarmanuals.com

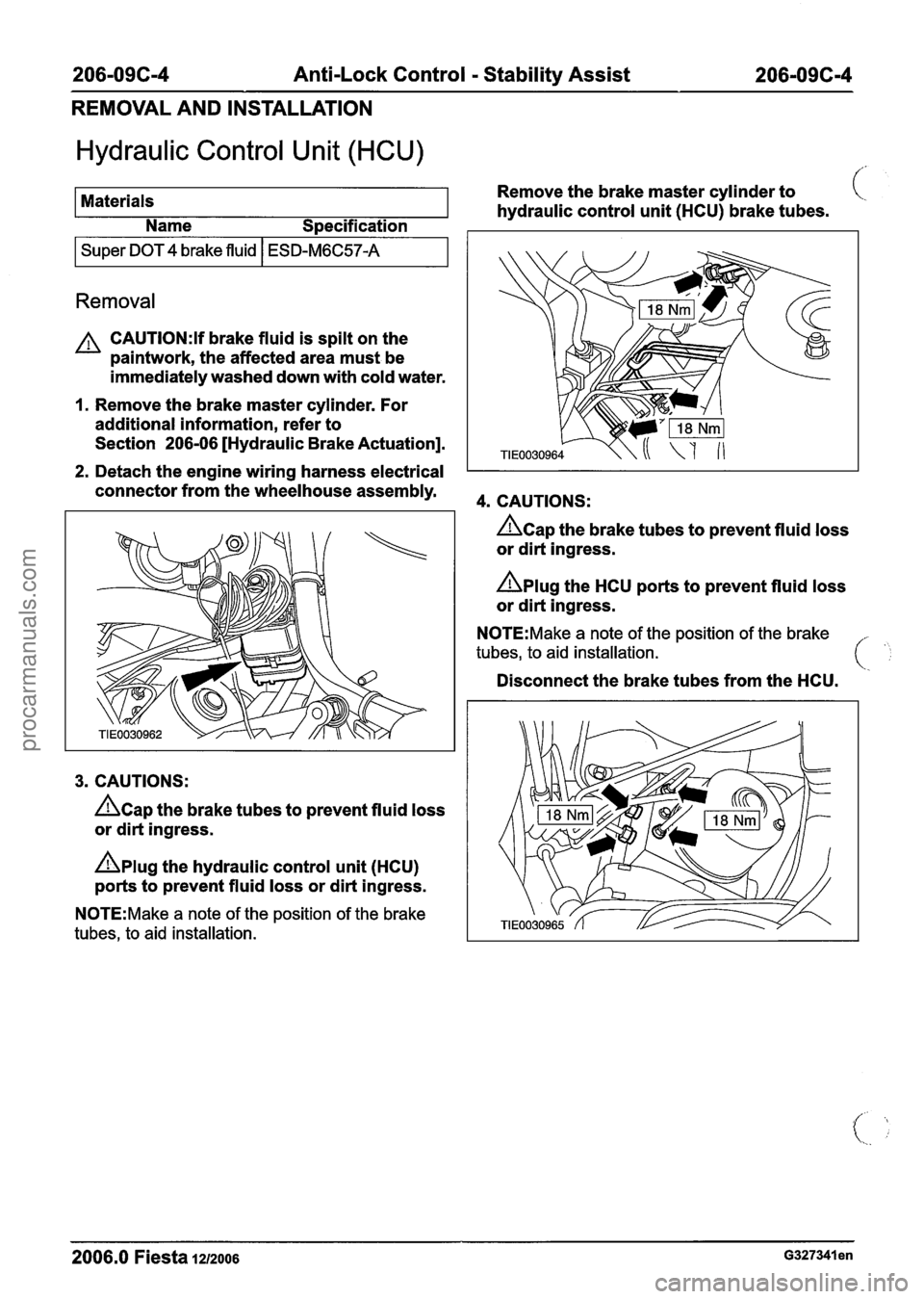

206-096-4 Anti-Lock Control - Stability Assist 206-096-4
REMOVAL AND INSTALLATION
Hydraulic Control Unit (HCU)
Materials Remove
the brake master cylinder to
hydraulic control unit (HCU) brake tubes.
Name Specification
I Super DOT4 brake fluid I ESD-M6C57-A 7
Removal
A CAUTI0N:lf brake fluid is spilt on the
paintwork, the affected area must be
immediately washed down with cold water.
1. Remove the brake master cylinder. For
additional information, refer to
Section
206-06 [Hydraulic Brake Actuation].
2. Detach the engine wiring harness electrical
connector from the wheelhouse assembly.
3. CAUTIONS:
hap the brake tubes to prevent fluid loss
or dirt ingress.
nplug the hydraulic control unit (HCU)
ports to prevent fluid loss or dirt ingress.
N0TE:Make a note of the position of the brake
tubes, to aid installation.
4. CAUTIONS:
&ap the brake tubes to prevent fluid loss
or dirt ingress.
Aplug the HCU ports to prevent fluid loss
or dirt ingress.
N0TE:Make a note of the position of the brake
tubes, to aid installation.
Disconnect the brake tubes from the HCU.
2006.0 Fiesta 1212006 ~327341 en
