FORD FIESTA 2007 Workshop Manual

211 -00-21 Steering System - General Information 211 -00-21
GENERAL PROCEDURES
Power Steering System Bleeding(l3 41 6 I )
Adapter, Power Steering
Bleeding
211-189 (13-016)
I I Hand Vacuum
PumpIPressure Pump
41 6-DO01 (23-036A)
Bleeding
1. N0TE:When filling the power steering fluid
reservoir, make sure that the power steering
fluid is clean and not agitated prior to use.
The power steering fluid should be poured , slowly into the reservoir to minimize the
possibility of aeration. The power steering
fluid level should be checked with the power
steering fluid cold.
Fill the power steering fluid reservoir to the
MAX mark with the appropriate power
steering fluid.
For additional information, refer to:
Specifications (211-00 Steering System
-
General Information, Specifications).
2. Raise and support the vehicle making sure
that the road wheels are just clear of the
floor. For additional information, refer to:
(1 00-02 Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
3. N0TE:Do not start the engine at this stage.
N0TE:Make sure that the power steering fluid in
the power steering fluid reservoir does not fall
below the MIN mark, as air could enter the system.
Slowly turn the steering wheel from lock to
lock and add power steering fluid until the
power steering fluid in the power steering
fluid reservoir stops dropping.
4. Check the power steering fluid level. Fill the
power steering fluid reservoir to the MAX
mark with the appropriate power steering
fluid.
For additional information, refer to:
Specifications (211 -00 Steering System
-
General Information, Specifications).
5.
N0TE:When bleeding the power steering
system the vacuum will decrease. Using the
special tools, maintain a sufficient vacuum
of
38cm-Hg. If the vacuum decreases by
more than
5cm-Hg in 5 minutes, the system
should be checked for leaks.
Using the special tools, bleed the power
steering system in the following sequence.
1. Slowly turn the steering wheel from lock to
lock once; then turn the steering wheel to the
right, just off the stop.
2. Using the special tools, create a vacuum of
38cm-Hg. Maintain the vacuum until the air
is evacuated from the system (minimum of
five minutes).
3. Release the vacuum.
4. Repeat the power steering bleeding
procedure, turning the steering wheel to the
left, just off the stop.
6. Remove the special tools. Fill the power
steering fluid reservoir to the MAX mark with
the appropriate power steering fluid as
necessary.
For additional information, refer to:
Specifications (21 1-00 Steering System
-
General Information, Specifications).
7. N0TE:Make sure that the power steering fluid
in the power steering fluid reservoir does
not fall below the MIN mark, as air could
enter the system.
2006.0 Fiesta 1212006 GI 7560en
procarmanuals.com

21 1-00-22 Steering System - General Information 21 1-00-22
GENERAL PROCEDURES
Start the engine and slowly turn the steering
wheel from lock to lock and add power
steering fluid until the power steering fluid
in the power steering fluid reservoir does
not drop.
8. Switch OFF the engine and examine the
power steering hose connections, steering
gear boots, power steering valve body and
power steering pump for external leaks.
9. Check the power steering fluid level. Fill the
power steering fluid reservoir to the MAX
mark with the appropriate power steering
fluid.
For additional information, refer to:
Specifications (211
-00 Steering System -
General Information, Specifications).
10.
N0TE:When bleeding the power steering
system the vacuum will decrease. Using
the special tools, maintain a sufficient
vacuum of
38cm-Hg. If the vacuum
decreases by more than
5cm-Hg in 5
minutes, the system should be checked for
leaks.
Using the special tools, bleed the power
steering system in the following sequence.
1. Start the engine and slowly turn the steering
wheel from lock to lock once; then turn the
steering wheel to the right, just off the stop.
2. Switch OFF the engine.
3. Using the special tools, create a vacuum of
38cm-Hg. Maintain the vacuum until the air
is evacuated from the system (minimum of
five minutes).
4. Release the vacuum.
5. Repeat the power steering bleeding
procedure, turning the steering wheel to the
left, just off the stop.
11. Remove the special tools. Fill the power
steering fluid reservoir to the MAX mark
.
with the appropriate power steering fluid (
as necessary.
For additional information, refer to:
Specifications (211
-00 Steering System -
General Information, Specifications).
12. Start the engine, turn the steering wheel
from lock to lock. If excessive noise is
apparent, repeat the power steering
bleeding procedure.
13. Lower the vehicle.
14.
If the noise level is still unacceptable, leave
the vehicle standing overnight then repeat
the power steering system bleeding
procedure.
- -
2006.0 Fiesta 121zo06 GI 7560en
procarmanuals.com

21 1 -00-23 Steering System - General Information 21 1 -00-23
GENERAL PROCEDURES
Power Steering System Flushing - 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V (Sigma)/lm6L Duratec-1 6V
(Sigma)(l3 001 0)
I. Raise and support the vehicle. For additional
information, refer to: (1
00-02 Jacking and
Lifting)
ES21202
Jacking (Description and Operation),
Lifting (Description and Operation).
Socket, Spark Plug
303-499 (2
1 -202) Allow
the fluid to drain into a suitable
container.
2. Disconnect the crankshaft position (CKP) 4. Place the end of the power steering fluid
sensor electrical connector.
reservoir return hose into a suitable
container.
5. Lower the vehicle until the wheels are clear
of the floor to allow the steering wheel to be
rotated from lock to lock.
6. Remove the air cleaner.
3. N0TE:Using a suitable blanking cap, cap the
end of the hose from the power steering fluid
reservoir.
Disconnect the power steering fluid reservoir
return hose quick release coupling.
1. Press the power steering fluid reservoir return
hose quick release coupling locking tangs.
2. Disconnect the power steering fluid reservoir
return hose quick release coupling.
1. Disconnect the air cleanei- outlet pipe.
2. Disconnect the air cleaner inlet pipe.
3. Remove the retaining bolts.
2006.0 Fiesta 1212006 G91886en
procarmanuals.com

21 1-00-24 Steering System - General Information 21 1-00-24
GENERAL PROCEDURES
7. Disconnect the spark plug wires. With the aid of another technician add 1 liter
of clean power steering fluid.
11. Wait 60 seconds to allow the starter motor
to cool.
*' ACAUTION:DO not continuously crank
the engine for more than
30 seconds, as
damage to the starter motor may result.
N0TE:When flushing the power steering system,
make sure that the power steering fluid in the
reservoir does not fall below the minimum mark.
While cranking the engine for a further 30
seconds turn the steering wheel from lock
to lock.
8. Using the special tool, remove the spark
plugs. With the aid of another technician add a
further
1 liter of clean power steering fluid.
13. When all the fluid has been used, turn the
ignition switch to the OFF position.
14. Using the special tool, install the spark
plugs.
9. N0TE:When filling the power steering fluid
reservoir, make sure that the power steering
fluid is clean and not agitated prior to use.
The fluid should be poured slowly into the
reservoir to minimize the possibility of
aeration. The fluid level should be checked
with the fluid cold.
15. Connect the spark plug wires.
Fill the power steering reservoir to the
MAX
mark with the appropriate fluid.
For additional information, refer to:
Specifications
(211 -00 Steering System -
General Information, Specifications).
lo' ACAUTION:D~ not continuously crank
the engine for more than
30 seconds, as
damage to the starter motor may result.
N0TE:When flushing the power steering system,
make sure that the power steering fluid in the
reservoir does not fall below the minimum mark.
While cranking the engine for no more than
30 seconds turn the steering wheel from lock
to lock.
16. Install the air cleaner.
I. Install the retaining bolts.
2. Connect the air cleaner inlet pipe.
2006.0 Fiesta la2006 G91886en
procarmanuals.com

21 1 -00-25 Steering System - General Information 21 1-00-25
GENERAL PROCEDURES
3. Connect the air cleaner outlet pipe. 20. Lower the vehicle.
21. Fill and bleed the power steering system.
For additional information, refer to: (211 -00
Steering System
- General Information)
Power Steering System Filling (General
Procedures),
Power Steering System Bleeding (General
Procedures).
17. Raise and support the vehicle. For
additional information, refer to: (1 00-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
18.
N0TE:Make sure that the collar on the hose
is inserted fully into the quick release
coupling.
Remove the blanking cap and connect the
power steering fluid reservoir return hose
( ' quick release coupling.
19. Connect the CKP sensor electrical
connector.
2006.0 Fiesta 1212006 G91886en
procarmanuals.com

21 1-00-26 Steering System - General Information 21 1 -00-26
GENERAL PROCEDURES
Power Steering System Flushing - 2.OL Duratec-HE
Special Tool(s) 3. Disconnect the crankshaft position (CKP)
sensor electrical connector.
I I Remover/lnstaller, Hose
Clamp
303-397
4. Using the special tool, disconnect the spark
plug wires.
ES21202
I. N0TE:Cap the power steering fluid reservoir
to prevent fluid loss or dirt ingress.
Socket, Spark Plug
303-499
Using the special tool, disconnect the
steering gear to power steering fluid
reservoir return line from the power steering
fluid reservoir.
5. Using the special tool, remove the spark
Allow the fluid to drain into a container. plugs.
2. Place the end of the steering gear to power
steering fluid reservoir return line into a
container.
2006.0 Fiesta 1212006 G458163en
procarmanuals.com

211 -00-27 Steering System - General Information 21 1 -00-27
GENERAL PROCEDURES
6. Raise the vehicle until the road wheels are
clear of the floor. Support the vehicle. For
/ j additional information, refer to: (1 00-02
Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
7.
N0TE:When filling the power steering fluid
reservoir, make sure that the steering fluid
is clean and not agitated prior to use. The
steering fluid must be poured slowly into the
power steering fluid reservoir to minimize
the possibility of aeration. The steering fluid
level must be checked with the steering fluid
cold.
Fill the power steering fluid reservoir to the
MAX mark with the appropriate steering fluid.
For additional information, refer to:
Specifications (21 1-00 Steering System
-
General Information, Specifications).
8. CAUTIONS:
ADO not continuously crank the engine for
more than 30 seconds.
A~hen flushing the power steering system,
( make sure that the steering fluid in the power
steering fluid reservoir does not fall below
the MIN mark.
N0TE:When filling the power steering fluid
reservoir, make sure that the steering fluid is clean
and not agitated prior to use. The steering fluid
must be poured slowly into the power steering fluid
reservoir to minimize the possibility of aeration.
While cranking the engine turn the steering
wheel from lock to lock.
With the aid of another technician, add a
further
1 liter of clean steering fluid to the
power steering fluid reservoir.
11. When the clean steering fluid has been
added to the power steering fluid reservoir,
turn the ignition switch to the OFF position.
12. Lower the vehicle.
13. Using the special tool, connect the steering
gear to power steering fluid reservoir return
line to the power steering fluid reservoir.
N0TE:When filling the power steering fluid
reservoir, make sure that the steering fluid is clean
and not agitated prior to use. The
steering fluid
must be poured slowly into the power steering fluid 14. Using the special tool, install the spark reservoir to minimize the possibility of aeration. plugs.
While cranking the engine turn the steering
wheel from lock to lock.
With the aid of another technician, add 1 liter
of clean steering fluid to the power steering
fluid reservoir.
9. Wait 60 seconds to allow the starter motor
to cool.
10. CAUTIONS:
ADO not continuously crank the engine
for more than 30 seconds.
Awhen flushing the power steering system,
make sure that the steering fluid in the power
- steering fluid reservoir does not fall below
I, the MIN mark.
- -- - -
2006.0 Fiesta 1212006 G458163en
procarmanuals.com

21 1-00-28 Steering System - General Information 21 ImOO-28
GENERALPROCEDURES
15. Using the special tool, connect the spark
minimize the possibility of aeration. The
plug wires.
steering fluid level must be checked with
the steering fluid cold.
Check the steering fluid level. Fill the power
steering fluid reservoir to the
MAX mark with
the appropriate steering fluid as necessary.
For additional information, refer to:
Specifications
(211 -00 Steering System -
General Information, Specifications).
16. Connect the CKP sensor electrical
connector.
17. N0TE:When filling the power steering fluid
reservoir, make sure that the steering fluid
is clean and not agitated prior to use. The
steering fluid must be poured slowly into
the power steering fluid reservoir to
minimize the possibility of aeration. The
steering fluid level must be checked with
the steering fluid cold.
Fill the power steering fluid reservoir to the
MAX mark with the appropriate steering fluid.
For additional information, refer to:
Specifications
(211 -00 Steering System -
General Information, Specifications).
18. Start the engine and slowly turn the
steering wheel from lock to lock.
19. Switch OFF the engine.
20. N0TE:When filling the power steering fluid
reservoir, make sure that the steering fluid
is clean and not agitated prior to use. The
steering fluid must be poured slowly into
the power steering fluid reservoir to
-- - - --
2006.0 Fiesta 12/2006 G458163en
procarmanuals.com

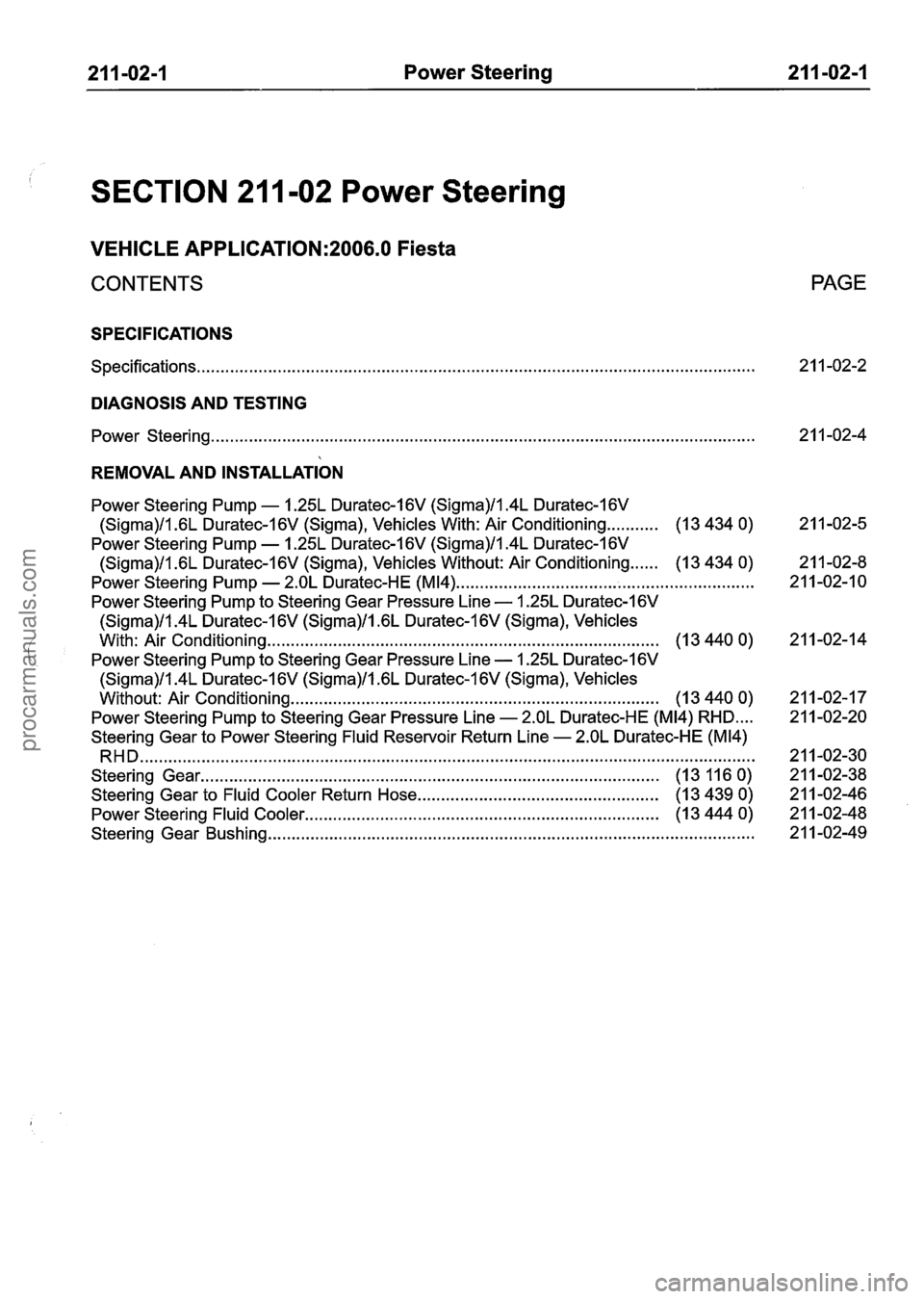

21 1-02-1 Power Steering 21 I -02-1
SECTION 21 1-02 Power Steering
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS
SPECIFICATIONS
Specifications..
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIAGNOSIS AND TESTING
Power Steering
........................................................................\
...........................................

REMOVAL AND INSTALLATION
Power Steering Pump
- 1.25L Duratec-1 6V (Sigma)/l.4L Duratec-1 6V
(Sigma)/l .6L Duratec-1 6V (Sigma), Vehicles With: Air Conditioning ........... (1 3 434 0)
Power Steering Pump
- 1.25L Duratec-1 6V (Sigma)/l.4L Duratec-1 6V
(Sigma)ll .6L Duratec-1 6V (Sigma), Vehicles Without: Air Conditioning ...... (1 3 434 0)
Power Steering Pump
- 2.OL Duratec-HE (M14) ...............................................................
Power Steering Pump to Steering Gear Pressure Line - 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma), Vehicles
With: Air Conditioning
........................................................................\
.......... (1 3 440 0)
Power Steering Pump to Steering Gear Pressure Line
- 1.25L Duratec-1 6V
(Sigma)/l.4L Duratec-1 6V (Sigma)ll.GL Duratec-1 6V (Sigma), Vehicles
Without: Air Conditioning
........................................................................\
...... (1 3 440 0)
Power Steering Pump to Steering Gear Pressure Line
- 2.OL Duratec-HE (M14) RHD ....
Steering Gear to Power Steering Fluid Reservoir Return Line - 2.OL Duratec-HE (M14)
RHD ........................................................................\
..........................................................
Steering Gear .......... ........................................................................\
............... (1 3 11 6 0)
Steering Gear to Fluid Cooler Return Hose
................................................. (1 3 439 0)
Power Steering Fluid Cooler
........................................................................\
... (1 3 444 0)
Steering Gear Bushing
........................................................................\
...............................
PAGE
procarmanuals.com

21 1-02-2 Power Steering 21 1-02-2
SPECIFICATIONS
Toraue S~ecifications
Description
Steering gear mounting bolts
Power steering line to steering gear valve body
clamp retaining bolt
Power steering line bracket to steering gear
retaining bolt
Power steering line to cylinder head support bracket
retaining bolt (Duratec)
Power steering line to accessory drive belt support 25
bracket retaining bolt (Duratec)
Power steering lines to transaxle bracket retaining
bolt
- vehicles with 1.6L Duratorq-TDCi (DV) Diesel
I Power steering supply hose to engine block (rear) I 25 I 18 I - I
Power steering line to transmission housing
retaining bolt
Power steering line to engine block (front)
- vehicles
with
1.4L Duratorq-TDCi (DV) Diesel without air
conditioning
Power steering line to power steering pump union
- vehicles with 1.3L Duratec-8V (Rocam)
Power steering line to power steering pump union
- vehicles with 1.4L Duratec-I 6V (Sigma), 1.6L
Duratec-1 6V (Sigma) or 2.OL Duratec-HE (M14)
Power steering line to power steering pump union
- vehicles with 1.4L Duratorq-TDCi (DV) Diesel
Power steering line to power steering pump union
- vehicles with 1.6L Duratorq-TDCi (DV) Diesel
Power steering pump to steering gear pressure line
support bracket to inlet manifold retaining nut
-
vehicles with 2.OL Duratec-HE (M14)
Power steering pump retaining bolts - vehicles with
1.3L Duratec-8V (Rocam)
Power steering pump retaining bolts - vehicles with
1.4L Duratec-1 6V (Sigma), 1.6L Duratec-1 6V
(Sigma) or 2.OL Duratec-HE (M14)
Power steering pump retaining bolts - vehicles with
1.4L Duratorq-TDCi (DV) Diesel
Power steering pump retaining nuts
- vehicles with
1.6L Duratorq-TDCi (DV) Diesel
Power steering fluid cooler line to front bumper left-
hand retaining bolt
Power steering fluid cooler line to front bumper
right-hand retaining bolt
2006.0 Fiesta 1212006 GI 05647en
procarmanuals.com
