FORD FIESTA 2007 Workshop Manual

21 1 -02-33 Power Steering 21 1-02-33
REMOVAL AND INSTALLATION
Ifem 5 Cable ties Remove
the exhaust hanger insulator.
I I CAUTION:^^^^ bending of the exhaust
flexible pipe may cause damage resulting in
failure.
Support the exhaust flexible pipe with a
support wrap or splint.
*' n~A~T10~:Twistin~ the exhaust flexible
pipe more than two degrees may cause
damage resulting in failure.
, N0TE:Use a pry-bar to prevent the exhaust flexible
( , pipe from twisting when removing the catalytic
converter to muffler and tailpipe assembly retaining
nuts.
Remove the exhaust flexible pipe to catalytic
converter retaining nuts.
4. N0TE:Use a 5 mm Allen key to prevent the
stabilizer bar link ball joint from rotating.
Detach the stabilizer bar link from the
stabilizer bar on both sides.
Discard the exhaust flexible pipe to catalytic
converter gasket and retaining nuts.
5. Remove the engine support insulator.
3m ~CAUTION:T~~~ care when removing the 6. Using a transmission jack and a wooden
exhaust hanger insulator to prevent damage.
block, support the front axle crossmember.
2006.0 Fiesta 1212006 G458167en
procarmanuals.com

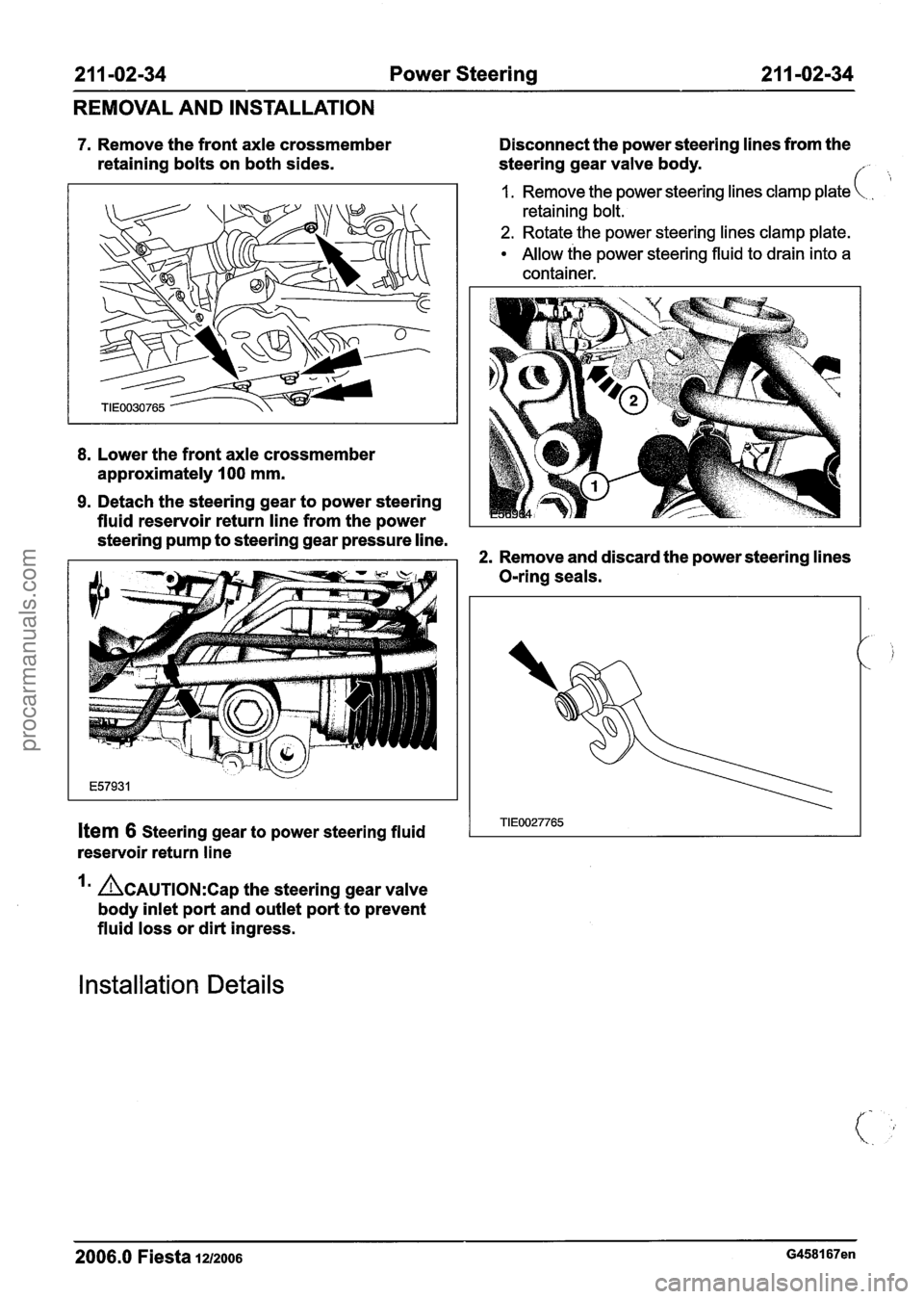

21 1 -02-34 Power Steering 2 1 1 -02-34
REMOVAL AND INSTALLATION
7. Remove the front axle crossmember
retaining bolts on both sides.
8. Lower the front axle crossmember
approximately
I00 mm. Disconnect
the power steering lines from the
steering gear valve body.
1 . Remove the power steering lines clamp plate
retaining bolt.
2. Rotate the power steering lines clamp plate.
Allow the power steering fluid to drain into a
container.
9. Detach the steering gear to power steering
fluid reservoir return line from the power
steering pump to steering gear pressure line.
2. Remove and discard the power steering lines
O-ring seals.
Item 6 steering gear to power steering fluid
reservoir return line
&AUTION:C~~ the steering gear valve
body inlet port and outlet port to prevent
fluid loss or dirt ingress.
Installation Details
-- ----
2006.0 Fiesta 12/2006 G458167en
procarmanuals.com

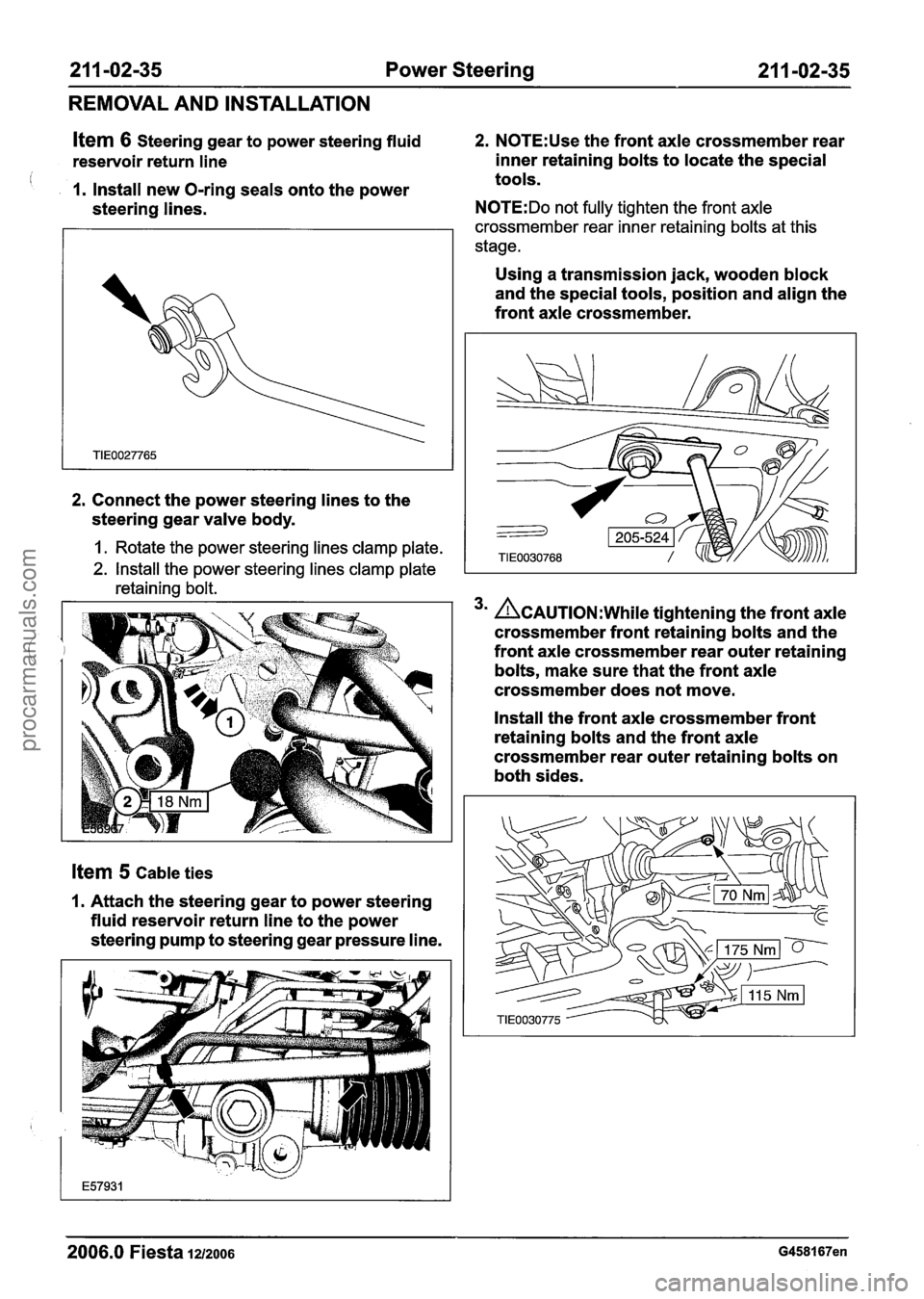

21 1-02-35 Power Steering 21 1-02-35
REMOVAL AND INSTALLATION
Item 6 Steering gear to power steering fluid 2. N0TE:Use the front axle crossmember rear
reservoir return line inner
retaining bolts to locate the special
I tools. I, Install new O-ring seals onto the power
steering lines.
N0TE:Do not fully tighten the front axle
crossmember rear inner retaining bolts at this
stage.
Using a transmission jack, wooden block
and the special tools, position and align the
front axle crossmember.
2. Connect the power steering lines to the
steering gear valve body.
1. Rotate the power steering lines clamp plate.
2. Install the power steering lines clamp plate
retaining bolt.
3a &AUTION:W~~I~ tightening the front axle
crossmember front retaining bolts and the
i front axle crossmem ber rear outer retaining
bolts, make sure that the front axle
crossmember does not move.
Ifem 5 Cable ties
1. Attach the steering gear to power steering
fluid reservoir return line to the power
steering pump to steering gear pressure line. Install
the front axle crossmember front
retaining bolts and the front axle
crossmember rear outer retaining bolts on
both sides.
2006.0 Fiesta 1212006 G458167en
procarmanuals.com

21 1 -02-36 Power Steering 21 1 -02-36
REMOVAL AND INSTALLATION
4. Remove the front axle crossmember rear Attach the stabilizer bar link to the stabilizer
inner retaining bolt and the special tool on
bar on both sides.
both sides.
9m &~uTl~~:Twistin~ the exhaust flexible 5. Install the front axle crossmember rear inner pipe more than two degrees may cause retaining bolts on both sides.
damage resulting in failure.
N0TE:Use a pry-bar to prevent the exhaust flexible
pipe from twisting when installing the exhaust
flexible pipe to catalytic converter retaining nuts.
N0TE:lnstall a new exhaust flexible pipe to
catalytic converter gasket and retaining nuts.
Install the exhaust flexible pipe to catalytic
converter retaining nuts.
6. Lower and remove the transmission jack and
wooden block.
7. Install the engine support insulator.
8. N0TE:Use a 5 mm Allen key to prevent the
stabilizer bar link ball joint from rotating.
lo' ~CAUTION:T~~~ care when installing the
exhaust hanger insulator to prevent
damage.
N0TE:Check the exhaust hanger insulator for
damage. lnstall a new exhaust hanger insulator if
required.
2006.0 Fiesta 12/2006 G458167en
procarmanuals.com

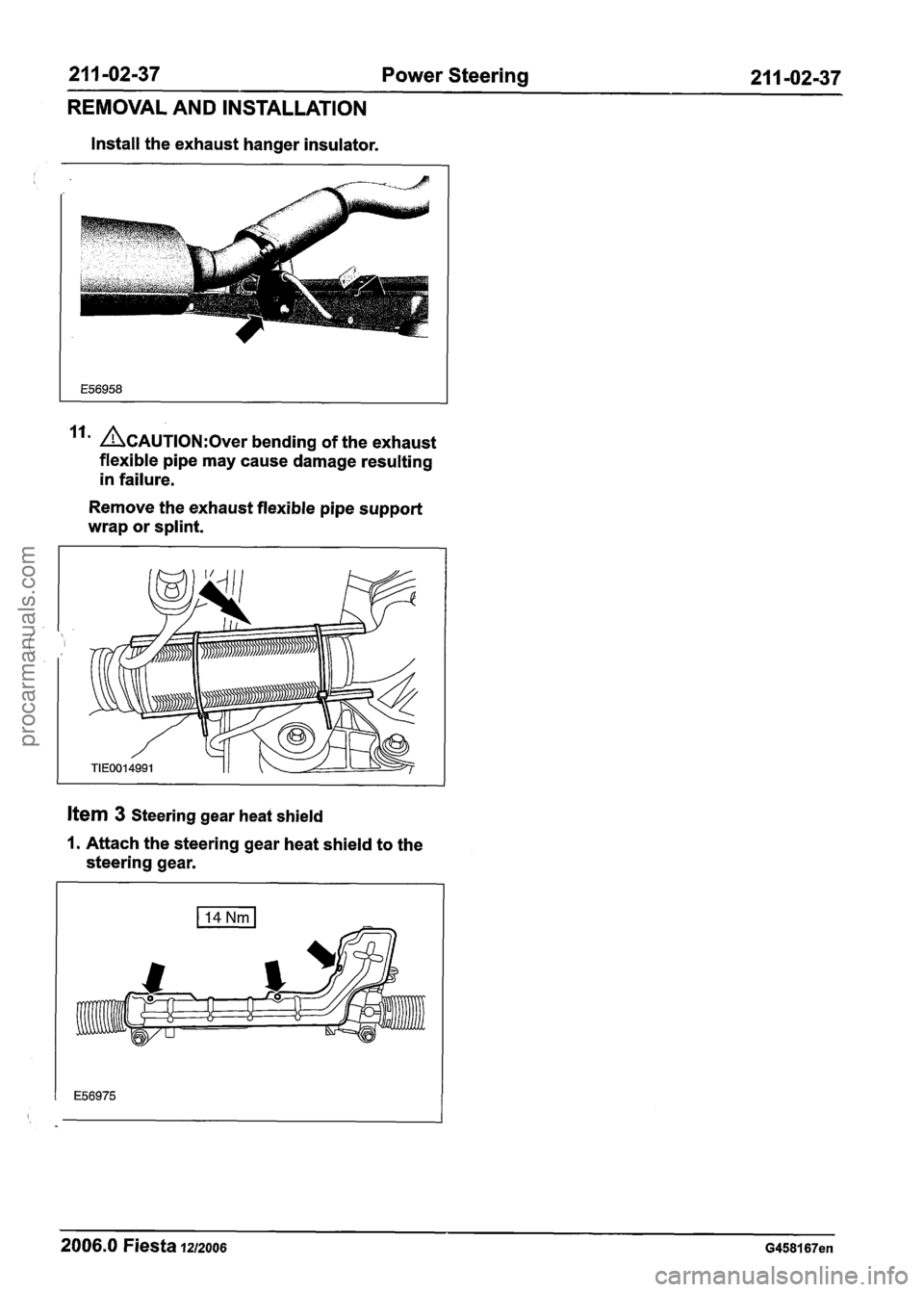

21 1 -02-37 Power Steering 21 1 -02-37
REMOVAL AND INSTALLATION
Install the exhaust hanger insulator.
&AUTION:O~~~ bending of the exhaust
flexible pipe may cause damage resulting
in failure.
Remove the exhaust flexible pipe support
wrap or splint.
Ifem 3 Steering gear heat shield
1. Attach the steering gear heat shield to the
steering gear.
2006.0 Fiesta 12/2006 G458167en
procarmanuals.com

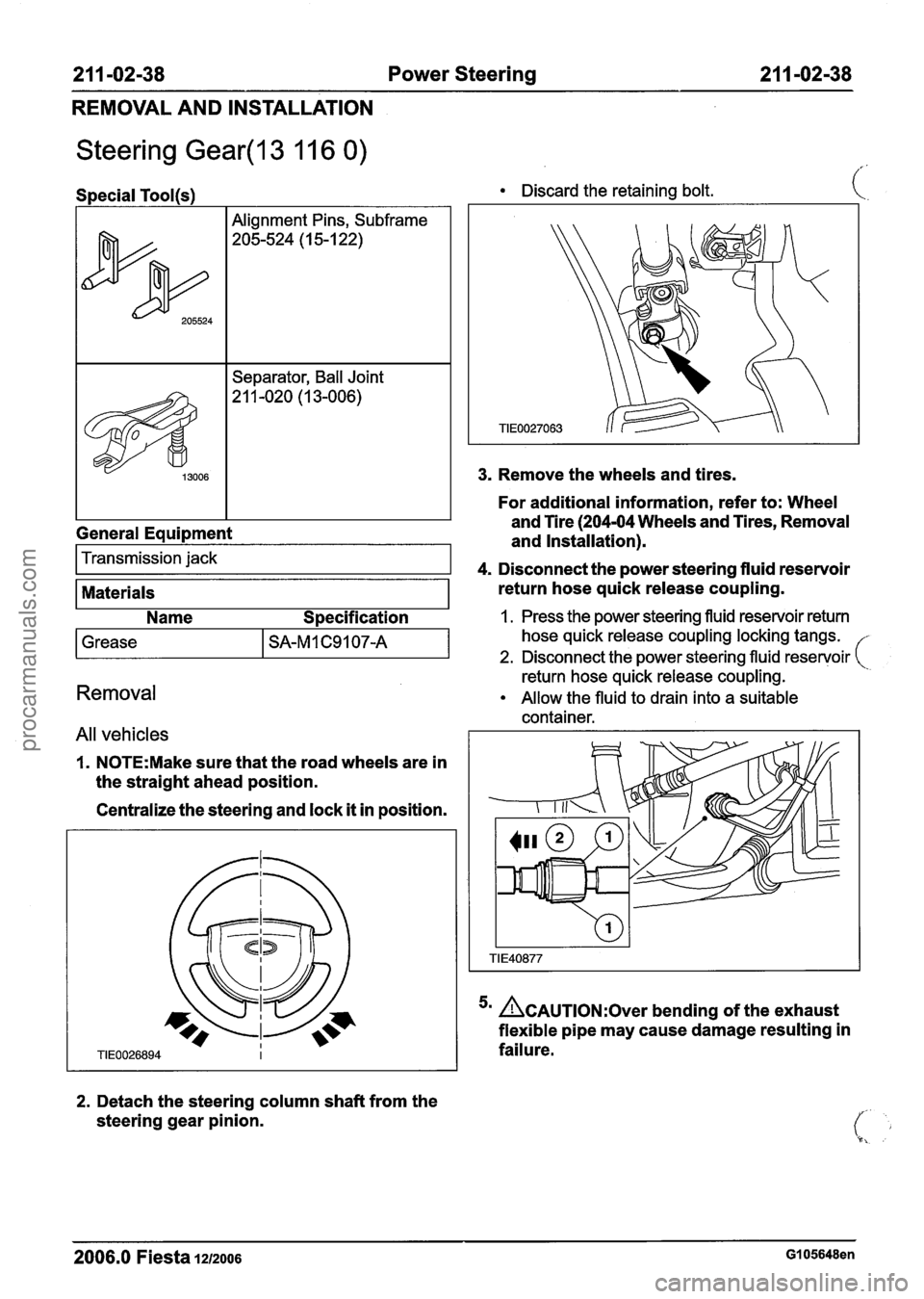

21 1 -02-38 Power Steering 21 1 -02-38
REMOVAL AND INSTALLATION
Steering Gear(l3 11 6 0)
I I Separator, Ball Joint Discard
the retaining bolt.

3. Remove the wheels and tires.
I I I For additional information, refer to: Wheel I I I
General Equipment I I
and Tire (204-04 Wheels and Tires, Removal
and Installation).
Removal
All vehicles
Transmission jack 1 4. Disconnect the power steering fluid reservoir
I. N0TE:Make sure that the road wheels are in
the straight ahead position.
Materials
Centralize the steering and lock
it in position. return
hose quick release coupling.
2. Detach the steering column shaft from the
steering gear pinion.
return hose quick release coupling.
Allow the fluid to drain into a suitable
container.
Name Specification 1. Press the power steering fluid reservoir return
5m &AUTION:O~~~ bending of the exhaust
flexible pipe may cause damage resulting in
failure.
2006.0 Fiesta 1212006 GI 05648en
hose quick release coupling locking tangs.
Grease
2. Disconnect the power steering fluid reservoir ( SA-M 1 C9107-A
procarmanuals.com

2 1 1 -02-39 Power Steering 21 1-02-39
REMOVAL AND INSTALLATION
Support the exhaust flexible pipe with a Vehicles with diesel engine
support wrap or splint.
i 8. Detach the exhaust flexible pipe from the
muffler and tailpipe assembly.
&AUTION:T~~~ care when removing the
exhaust hanger insulator to prevent damage.
Discard the exhaust flexible pipe to muffler
and tail pipe assembly retaining nuts.
Remove the exhaust hanger insulator. Vehicles with 2.OL engine
9. Detach the exhaust flexible pipe from the
catalytic converter.
Discard the exhaust flexible pipe to catalytic
converter gasket and retaining nuts.
Vehicles with 1.25L, 1.4L or 1.6L engine
7. Detach the exhaust flexible pipe from the
catalytic converter.
Discard the exhaust flexible pipe to catalytic
converter gasket and retaining nuts.
All vehicles
On &AUTION:L~~~~ the tie-rod end retaining
nuts in place to protect the ball joint studs.
N0TE:Use a 5 mm Allen key to prevent the ball
joint stud from rotating.
2006.0 Fiesta 1212006 GI 05648en
procarmanuals.com

21 1 -02-40 Power Steering 211=02-40
REMOVAL AND INSTALLATION
Loosen the tie-rod end retaining nut on both Detach the stabilizer bar connecting link from
sides. the stabilizer bar on both sides.
//
'Irn &AUTION:P~~~~~~ the ball joint seal 13.
Remove the engine support insulator.
using a soft cloth to prevent damage.
Using the special tool, detach the tie-rod end
from the wheel knuckle on both sides.
1 . Release the tie-rod end.
2. Remove and discard the tie-rod end retaining
nut.
12. N0TE:Use a 5 mm Allen key to prevent the
stabilizer bar connecting link ball joint stud
from rotating.
14. Detach the power steering line from the
steering gear (left-hand drive shown).
2006.0 Fiesta 1212006 GI 05648en
procarmanuals.com

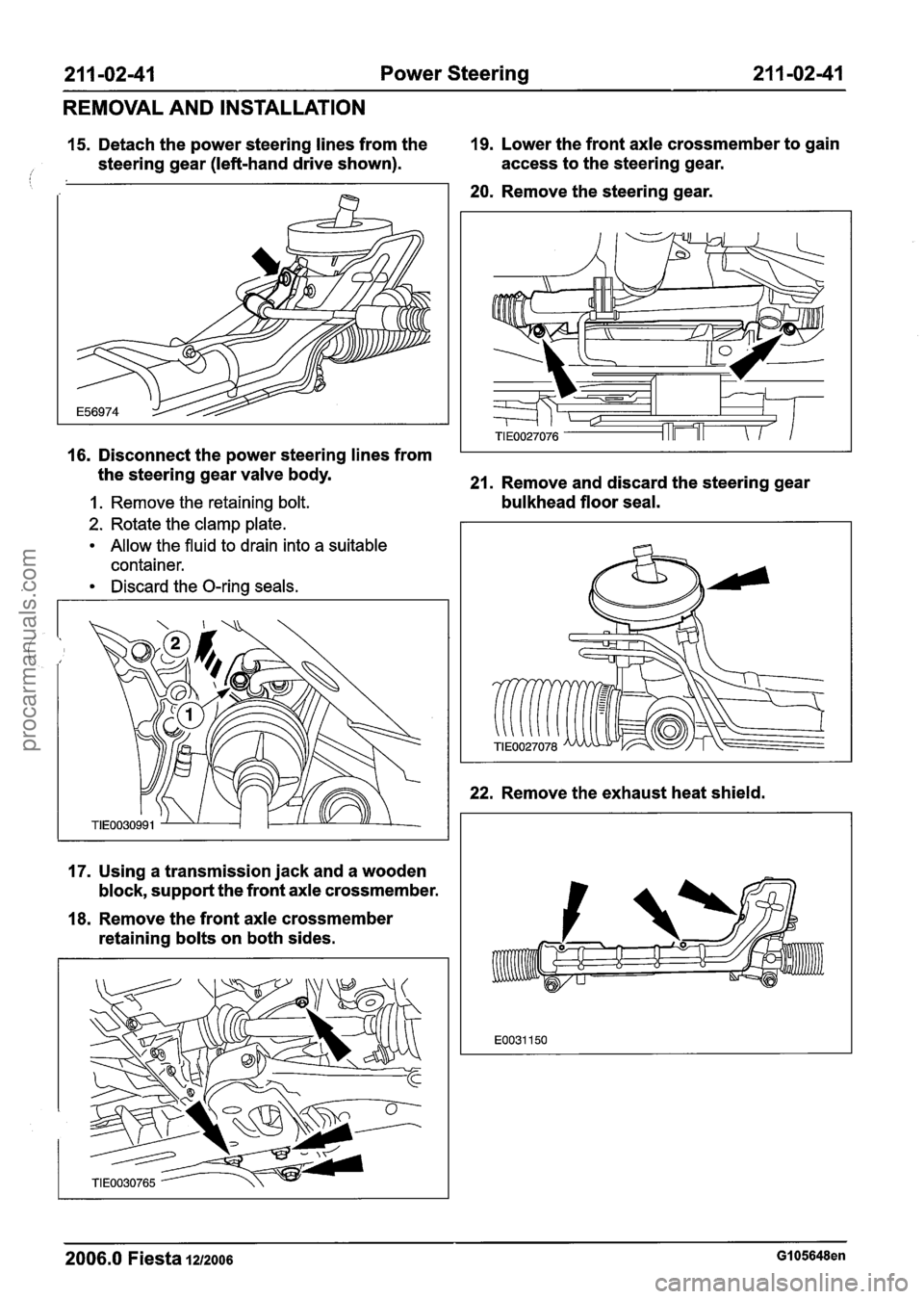

211 -02-41 Power Steering 21 1-02-41
REMOVAL AND INSTALLATION
15. Detach the power steering lines from the 19. Lower the front axle crossmember to gain
steering gear (left-hand drive shown). access
to the steering gear.
i 20. Remove the steering gear.
16. Disconnect the power steering lines from
the steering gear valve body.
1. Remove the retaining bolt.
2. Rotate the clamp plate.
Allow the fluid to drain into a suitable
container.
Discard the O-ring seals.
17.
Using a transmission jack and a wooden
block, support the front axle crossmember.
18. Remove the front axle crossmember
retaining bolts on both sides.
21. Remove and discard the steering gear
bulkhead floor seal.
22. Remove the exhaust heat shield.
2006.0 Fiesta 1212006 GI 05648en
procarmanuals.com

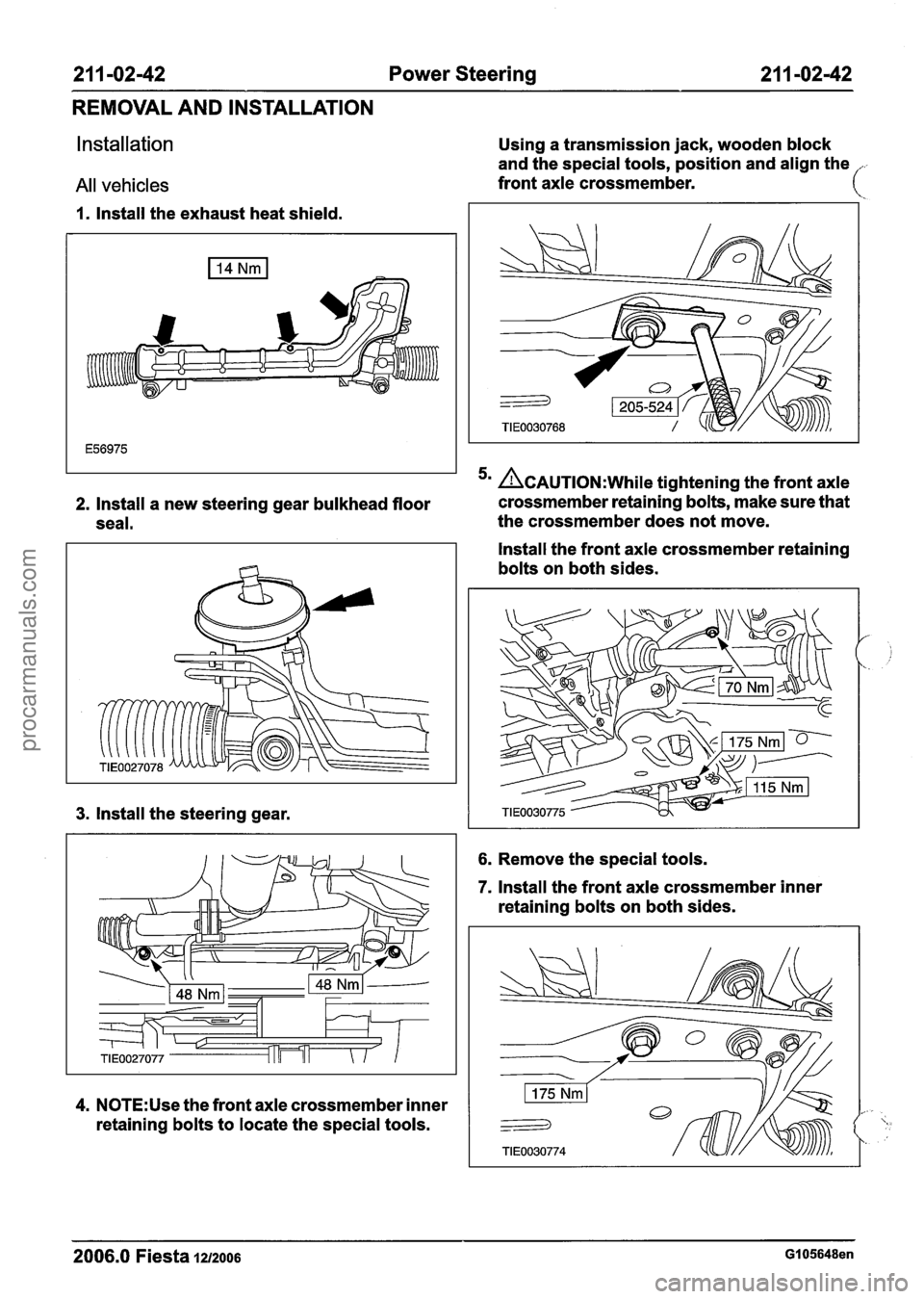

21 1-02-42 Power Steering 21 1 -02-42
REMOVAL AND INSTALLATION
Installation
All vehicles
1, Install the exhaust heat shield. Using
a transmission jack, wooden block
and the special tools, position and align the
front axle crossmember.
'' &AUTION:W~~I~ tightening the front axle
2. Install a new steering gear bulkhead floor crossmember
retaining bolts, make sure that
seal. the
crossmember does not move.
3. Install the steering gear. Install the
front axle crossmember retaining
bolts on both sides.
6. Remove the special tools.
7. lnstall the front axle crossmember inner
retaining bolts on both sides.
4. N0TE:Use the front axle crossmember inner
retaining bolts to locate the special tools.
a
TI E0030774
2006.0 Fiesta 1~2006 GI 05648en
