Automatic Transmission/Transaxle External
Controls -Vehicles With: 4-Speed Automatic
307-05-5 Transmission (AW81-40) 307-05-5
GENERAL PROCEDURES
Selector Lever Cable Adjustment
Adjustment Move the transaxle selector lever to the "D"
1. Shift the selector lever to the "D" (DRIVE) (DRIVE) position.
position.
2. Raise and support the vehicle.
5. N0TE:Ensure that the selector lever cable
adjustment mechanism is locked.
- -
For additional information, refer to: Lifting Press
in the selector lever cable adjustment
(1 00-02 Jacking and Lifting, Description mechanism
locking clip fully.
and Operation).
3. Release the selector lever cable adjustment
1, ' mechanism locking clip.
6. Lower the vehicle.
7. Start the engine and move the selector lever
through all the gear positions. Wait until each
4. N0TE:ln the "D" (DRIVE) position the gear engages
when moving through the gear
transmission range (TR) sensor locking positions.
washer pointer will be aligned with the line
8. Check that the selector lever position
scribed on the TR sensor body. indicator corresponds to the position of the
selector lever, repeat the adjustment
procedure if necessary.
9. Move the selector lever into the "P" (PARK)
position and switch off the engine.
2006.0 Fiesta 1212006 G388012en
procarmanuals.com

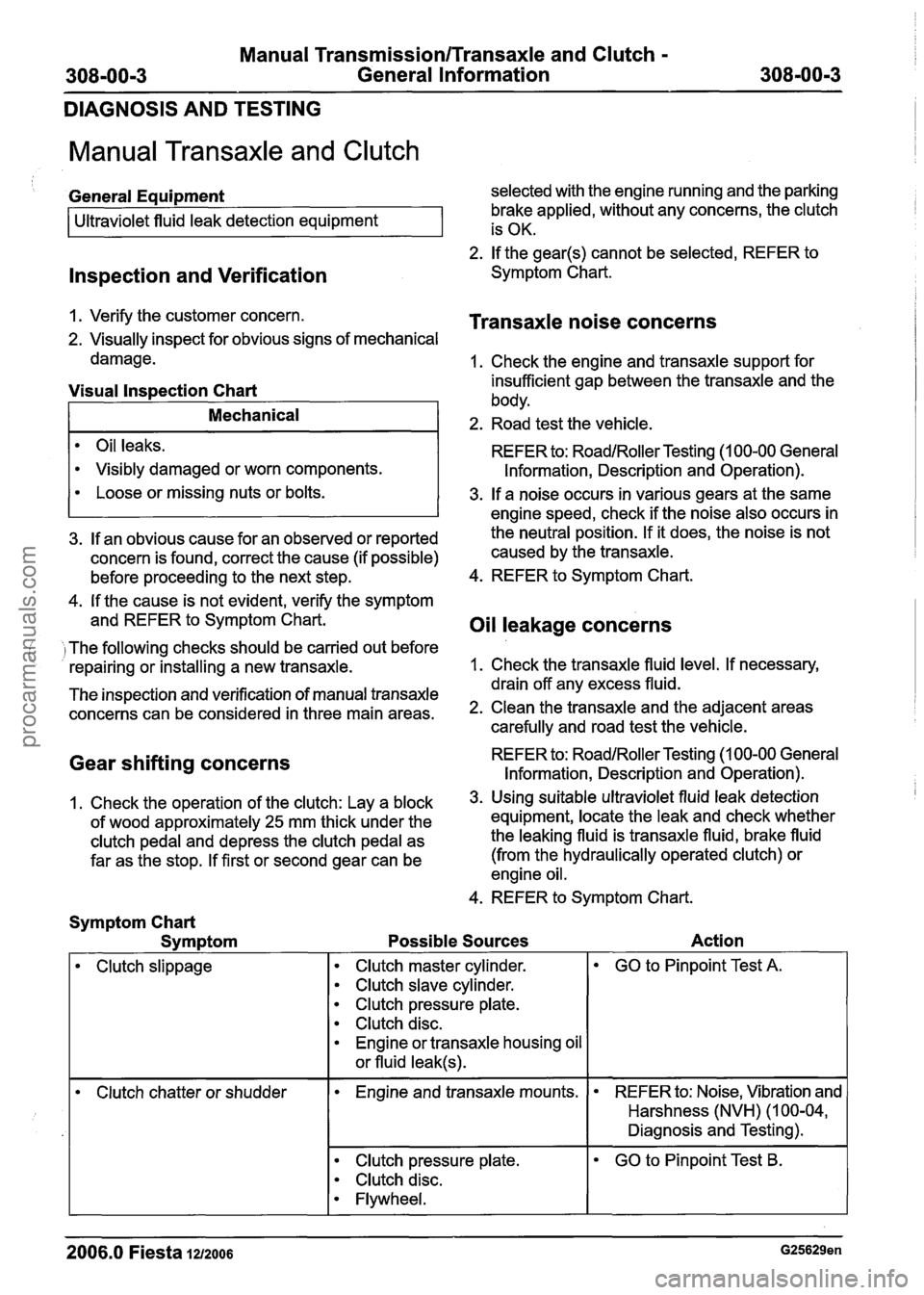

Manual Transmission/Transaxle and Clutch -
308-00-3 General Information 308-00-3
DIAGNOSIS AND TESTING
Manual Transaxle and Clutch
lnspection and Verification
General Equipment selected with the engine running and the parking
brake applied, without any concerns, the clutch
2. If the gear@) cannot be selected, REFER to
Symptom Chart.
Ultraviolet
fluid leak detection equipment
1. Verify the customer concern.
Transaxle noise concerns
2. Visually inspect for obvious signs of mechanical is
OK.
damage. 1. Check the engine and transaxle support for
Oil leaks.
Visibly damaged or worn components.
Visual lnspection Chart insufficient gap between the transaxle and the
body.
REFER to:
RoadlRoller Testing (1 00-00 General
Information, Description and Operation).
Mechanical 2. Road test the vehicle.
4. If the cause is not evident, verify the symptom
and REFER to Symptom Chart.
Oil leakage concerns
Loose or missing nuts or bolts.
( I The following checks should be carried out before
repairing or installing a new transaxle. 1.
Check the transaxle fluid level. If necessary,
3. If a noise occurs in various gears at the same
- - drain off any excess fluid.
The inspection and verification of manual transaxle
concerns can be considered in three main areas. 2. Clean the transaxle and the adjacent areas
carefully and road test the vehicle.
engine speed,
check if the noise also occurs in
3. If an obvious cause for an observed or reported the neutral position.
If it does, the noise is not
concern is found, correct the cause (if possible) caused
by the transaxle.
before proceeding to the next step. 4.
REFER to Symptom Chart.
Gear shifting concerns REFER to: RoadlRoller Testing (1 00-00 General
Information, Description and Operation).
1, Check the operation of the clutch: Lay a block 3. U~ing suitable ultraviolet fluid leak detection
of wood approximately
25 mm thick under the equipment, locate
the leak and check whether
clutch pedal and depress the clutch pedal as the leaking fluid
is transaxle fluid, brake fluid
far as the stop. If first or second gear can be (from the hydraulically operated clutch)
or
engine oil.
4. REFER to Symptom Chart.
Symptom Chart
Symptom Possible Sources Action
I
Clutch slippage Clutch master
cylinder.
Clutch slave cylinder.
Clutch pressure plate.
Clutch disc.
Engine or transaxle housing oil
or fluid
leak@).
GO to Pinpoint Test A.
Clutch chatter or shudder Engine and transaxle
mounts. REFER to:
Noise, Vibration and
Harshness (NVH) (1 00-04,
Diagnosis and Testing).
Clutch pressure plate.
Clutch disc.
Flywheel.
--
GO to Pinpoint Test B.
- -
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

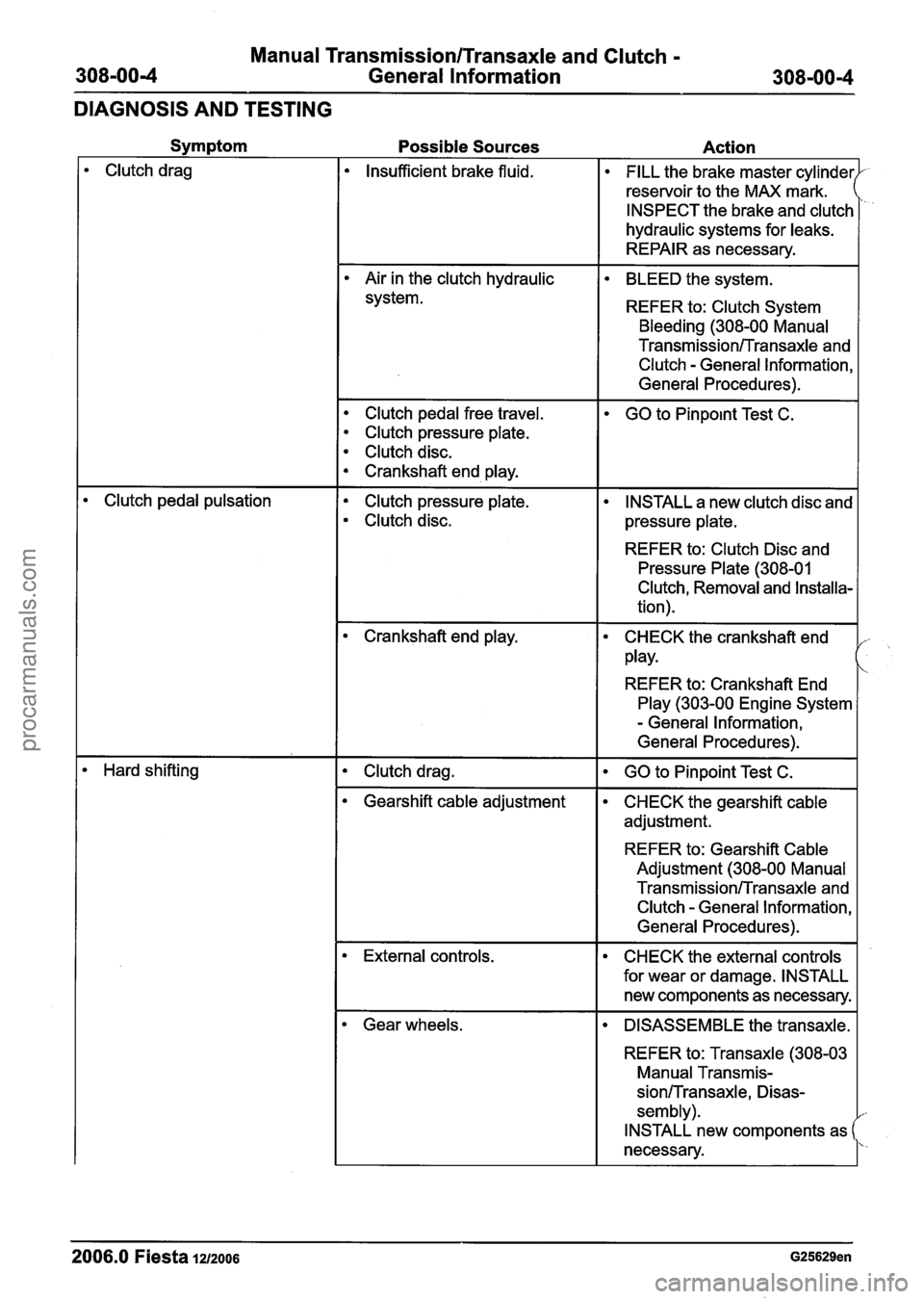

Manual Transmission/Transaxle and Clutch -
308-0014 General Information 308-00-4
DIAGNOSIS AND TESTING
Symptom
Possible Sources Action
Insufficient brake fluid. FILL the brake master cylinder
reservoir to the MAX mark.
INSPECT the brake and clutch
hydraulic systems for leaks.
REPAIR as necessary. I
Air in the clutch hydraulic
system.
Clutch pedal free travel.
Clutch pressure plate.
Clutch disc.
Crankshaft end play.
Clutch pressure plate.
Clutch disc.
Crankshaft end play.
Clutch drag.
BLEED the system.
REFER to: Clutch System
Bleeding (308-00 Manual
Transmission/Transaxle and
Clutch
- General Information,
General Procedures).
GO to Pinpoint Test C.
INSTALL a new clutch disc and
pressure plate.
REFER to: Clutch Disc and
Pressure Plate (308-01
Clutch, Removal and Installa-
tion).
CHECK the crankshaft end
play.
REFER to: Crankshaft End
Play (303-00 Engine System
- General Information,
General Procedures).
GO to Pinpoint Test C.
Gearshift cable adjustment CHECK the gearshift cable
adjustment.
REFER to: Gearshift Cable
Adjustment (308-00 Manual
Transmission/Transaxle and
Clutch
- General Information,
General Procedures).
External controls. CHECK the external controls
for wear or damage. INSTALL
new components as necessary.
Gear wheels. DISASSEMBLE the transaxle. I
REFER to: Transaxle (308-03
Manual Transmis-
sion/Transaxle, Disas-
sem bly).
INSTALL new components as
necessary.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

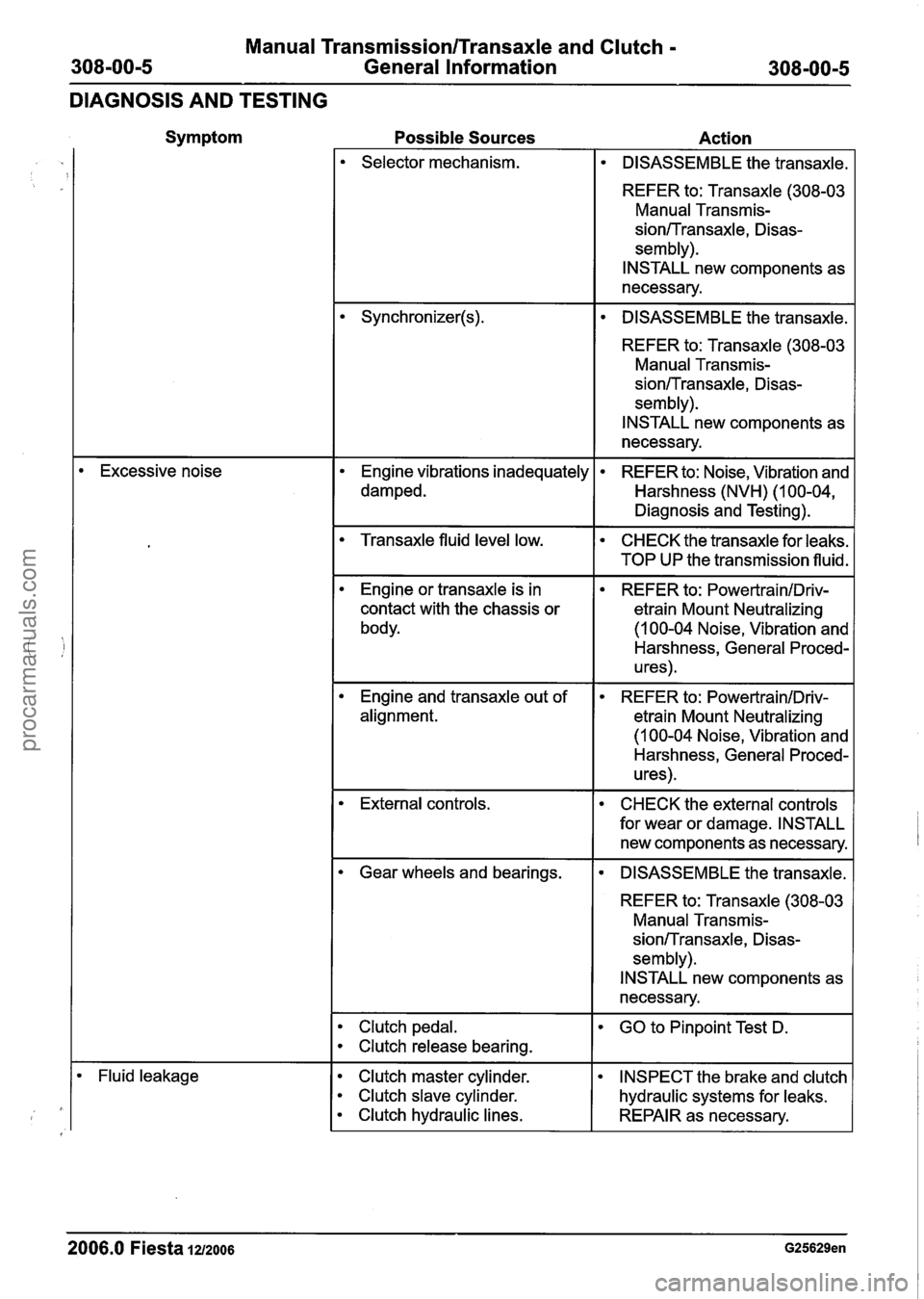

Manual Transmission/Transaxle and Clutch -
308-00-5 General Information 308-00-5
DIAGNOSIS AND TESTING
Symptom
Excessive noise Possible Sources
Action
Selector mechanism.
DISASSEMBLE the transaxle.
REFER to: Transaxle (308-03 Manual Transmis-
sionITransaxle, Disas-
sem bly).
INSTALL new components as
necessary.
DISASSEMBLE the transaxle.
REFER to: Transaxle (308-03 Manual Transmis-
sionITransaxle, Disas-
sem bly).
INSTALL new components as
necessary.
Engine vibrations inadequately
damped.
REFER to: Noise, Vibration and
Harshness (NVH) (1 00-04,
Diagnosis and Testing).
Transaxle fluid level low. CHECK the transaxle for leaks.
I TOP UP the transmission fluid.
Engine or transaxle is in
contact with the chassis or
body. REFER
to:
PowertrainIDriv-
etrain Mount Neutralizing
(1 00-04 Noise, Vibration and
Harshness, General Proced-
u res)
.
Engine and transaxle out of
alignment. REFER
to: PowertrainIDriv-
etrain Mount Neutralizing
(I 00-04 Noise, Vibration and
Harshness, General Proced-
u res)
.
External controls. CHECK the external controls
for wear or damage. INSTALL
new components as necessary.
Gear wheels and bearings.
DISASSEMBLE the transaxle.
REFER to: Transaxle (308-03
Manual Transmis-
sion/-rransaxle, Disas-
sem bly).
INSTALL new components as
necessary.
Clutch pedal. I GO to Pinpoint Test D.
Clutch release bearing.
Fluid leakage Clutch master cylinder.
Clutch slave cylinder.
Clutch hydraulic lines.
INSPECT the brake and clutch
hydraulic systems for leaks.
REPAIR as necessary.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
308-00-6 General Information 308-00-6
DIAGNOSIS AND TESTING
Symptom Possible Sources
Action
Halfshaft seal. INSTALL
a new halfshaft seal.
REFER to: (308-03 Manual
Transmission/Transaxle)
Halfshaft Seal LH (In-vehicle
Repair),
Halfshaft Seal RH (In-vehicle
Repair).
Fluid leak between the
transaxle housing sections. DISASSEMBLE the transaxle
and clean the mating faces.
CHECK the mating faces for
damage. SEAL the transaxle
with sealant.
REFER to: Transaxle (308-03
Manual Transmis-
sion/-rransaxle, Assembly).

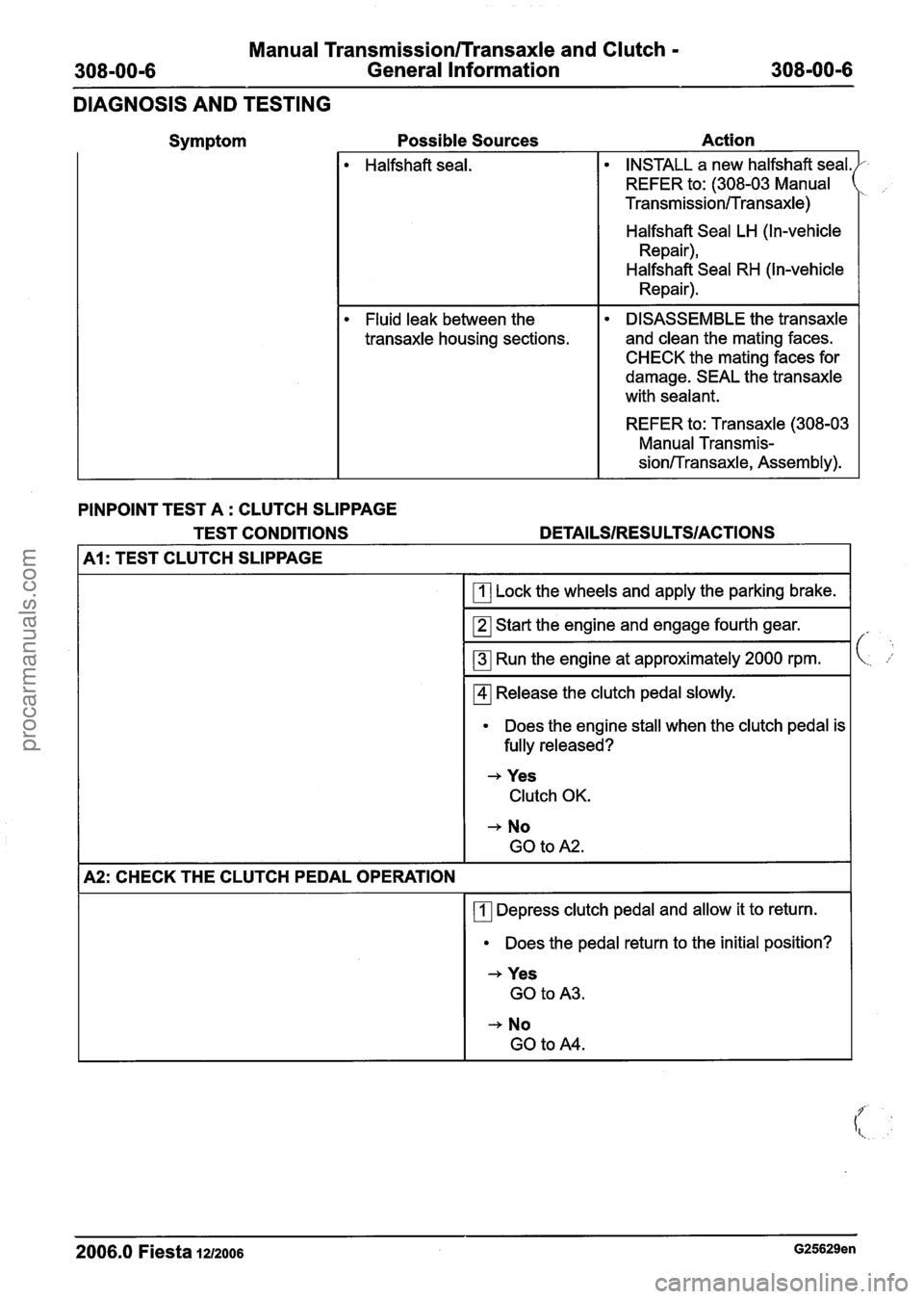

PINPOINT TEST A
: CLUTCH SLIPPAGE
TEST CONDITIONS
DETAILSIRESU LTSIACTIONS
Al: TEST CLUTCH SLIPPAGE
Lock the wheels and apply the parking brake.
Start the engine and engage fourth gear.
Run the engine at approximately 2000 rpm.
Release the clutch pedal slowly.
Does the engine stall when the clutch pedal is
fully released?
+ Yes Clutch OK.
+ No
GO to
A2.
A2: CHECK THE CLUTCH PEDAL OPERATION
Depress clutch pedal and allow it to return.
Does the pedal return to the initial position?
+ Yes
GO to A3.
-, No
GO to A4.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual TransmissionlTransaxle and Clutch -
308-00-7 General Information 308-00-7
DIAGNOSIS AND TESTING
TEST CONDITIONS DETAl LSIRESU LTSIACTIONS
PINPOINT TEST
B : CLUTCH CHATTER OR SHUDDER
TEST CONDITIONS
DETAILSIRESU LTSIACTIONS

B1: TEST FOR CLUTCH SHUDDER
Start the engine.
Engage the clutch and select fourth gear.
Run the engine at approximately 2000 rpm.
A3: CHECK THE CLUTCH DISC AND PRESSURE PLATE
rn Remove the clutch disc and pressure plate.
REFER to: Clutch Disc and Pressure Plate
(308-
01 Clutch, Removal and lnstallation).
Is the clutch disc or pressure plate contamin-
ated with oil or hydraulic fluid?
-+ Yes
CHECK the engine and transaxle for leaks.
INSTALL new components as necessary.
TEST the system for normal operation.
-+ No
INSTALL a new clutch disc and pressure
plate.
REFER to: Clutch Disc and Pressure Plate
(308-01 Clutch, Removal and lnstallation).
TEST the system for normal operation.
A4: CHECK THE CLUTCH HYDRAULIC SYSTEM
rn Release the clutch slave cylinder bleed nipple.
Does the pedal return to the initial position?
--+ Yes
INSTALL a new clutch slave cylinder.
REFER to: Clutch Slave Cylinder (308-02
Clutch Controls, Removal and Installation).
TEST the system for normal operation.
--+ No
INSTALL a new clutch master cylinder.
REFER to: Clutch Master Cylinder (308-02
Clutch Controls, Removal and lnstallation).
TEST the system for normal operation.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
General Information
DIAGNOSIS AND TESTING
TEST CONDITIONS
Release the clutch pedal slowly.
Does the clutch take up the drive smoothly?
-+ Yes
Clutch is OK.
-+ No
GO to
B2.
B2: CHECK THE CLUTCH DlSC AND PRESSURE PLATE FOR OIL OR HYDRAULIC FLUID
CONTAMINATION
rn Remove the clutch disc and pressure plate.
REFER to: Clutch Disc and Pressure Plate (308-
01 Clutch, Removal and Installation).
Is the clutch disc and pressure plate contamin-
ated with oil or hydraulic fluid?
-+ Yes
CHECK the engine and transaxle for leaks.
INSTALL new components as necessary.
TEST the system for normal operation.
-+ No
GO to B3.
B3: CHECK THE CLUTCH
DlSC AND PRESSURE PLATE
rn Visually check the clutch disc and pressure
plate.
Is the clutch disc and pressure plate worn or
damaged?
-+ Yes INSTALL a new clutch disc and pressure
plate.
REFER to: Clutch Disc and Pressure Plate
(308-01 Clutch, Removal and Installation).
TEST the system for normal operation.
-+ No
CARRY OUT the flywheel clutch surface
inspection.
REFER to: Flywheel Inspection (303-00
Engine System
- General Information,
General Procedures).
TEST the system for normal operation.
2006.0 Fiesta 12/2006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
General Information
DIAGNOSIS AND TESTING
PINPOINT TEST C : CLUTCH DRAG
TEST CONDITIONS
Cl: CHECK THE OPERATION OF THE CLUTCH PEDAL
rn Bleed the clutch system.
REFER to: Clutch System Bleeding (308-00,
General Procedures).
Does the clutch properly disengage after
bleeding?
-, Yes
Clutch system is OK.
+ No
GO to C2.
C2: CHECK THE CLUTCH DlSC AND PRESSURE PLATE FOR OIL OR HYDRAULIC FLUID
CONTAMINATION
rn Remove the clutch disc and pressure plate.
REFER to: Clutch Disc and Pressure Plate
(308-
01 Clutch, Removal and Installation).
Is the clutch disc and pressure plate contamin-
ated with oil or hydraulic fluid?
+ Yes
CHECK the engine and transaxle for leaks.
INSTALL new components as necessary.
TEST the system for normal operation.
+ No
GO to C3.
C3: CHECK THE CLUTCH DlSC AND PRESSURE PLATE
Visually check the clutch disc and pressure
plate.
Is the clutch disc and pressure plate worn or
damaged?
-, Yes
INSTALL a new clutch disc and pressure
plate.
REFER to: Clutch Disc and Pressure Plate
(308-01 Clutch, Removal and Installation).
TEST the system for normal operation.
-, No
GO to C4.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
308-00-1 0 General Information 308-00-1 0
DIAGNOSIS
AND TESTING
TEST CONDITIONS DETAILSIRESU LTSIACTIONS
C4: CHECK THE INPUT SHAFT SPLINES
Check that the clutch disc slides freely on the
input shaft splines.
Does the clutch disc stick on the input shaft?
+ Yes
CHECK the clutch disc and input shaft splines
for damage. INSTALL new components as
necessary. TEST the system for normal
operation.
+ No
MEASURE the crankshaft end play.
REFER to: Crankshaft End Play (303-00
Engine System
- General Information,
General Procedures).
PINPOINT TEST D
: EXCESSIVE NOISE
TEST CONDITIONS
I Dl: STATIC CHECK I
Depress and release the clutch pedal.
Is the noise apparent when the clutch is oper-
ated?
+ Yes
LUBRICATE the clutch and brake pedal shaft.
TEST the system for normal operation.
I D2: DYNAMIC CHECK I
Start the engine.
Depress the clutch pedal.
Is the noise apparent when the clutch pedal is
depressed?
-+ Yes
REFER to: Engine (303-00 Engine System -
General Information, Diagnosis and Testing).
-, No
INSTALL a new clutch slave cylinder and
release bearing assembly. REFER to:
Clutch Disc and Pressure Plate (308-01 Clutch,
Removal and Installation),
Clutch Slave Cylinder (308-02 Clutch Controls,
Removal and Installation).
TEST the system for normal operation.
2006.0 Fiesta 1212006 G25629en
procarmanuals.com

Manual Transmission/Transaxle and Clutch -
308-00-1 3 General Information 308-00-1 3

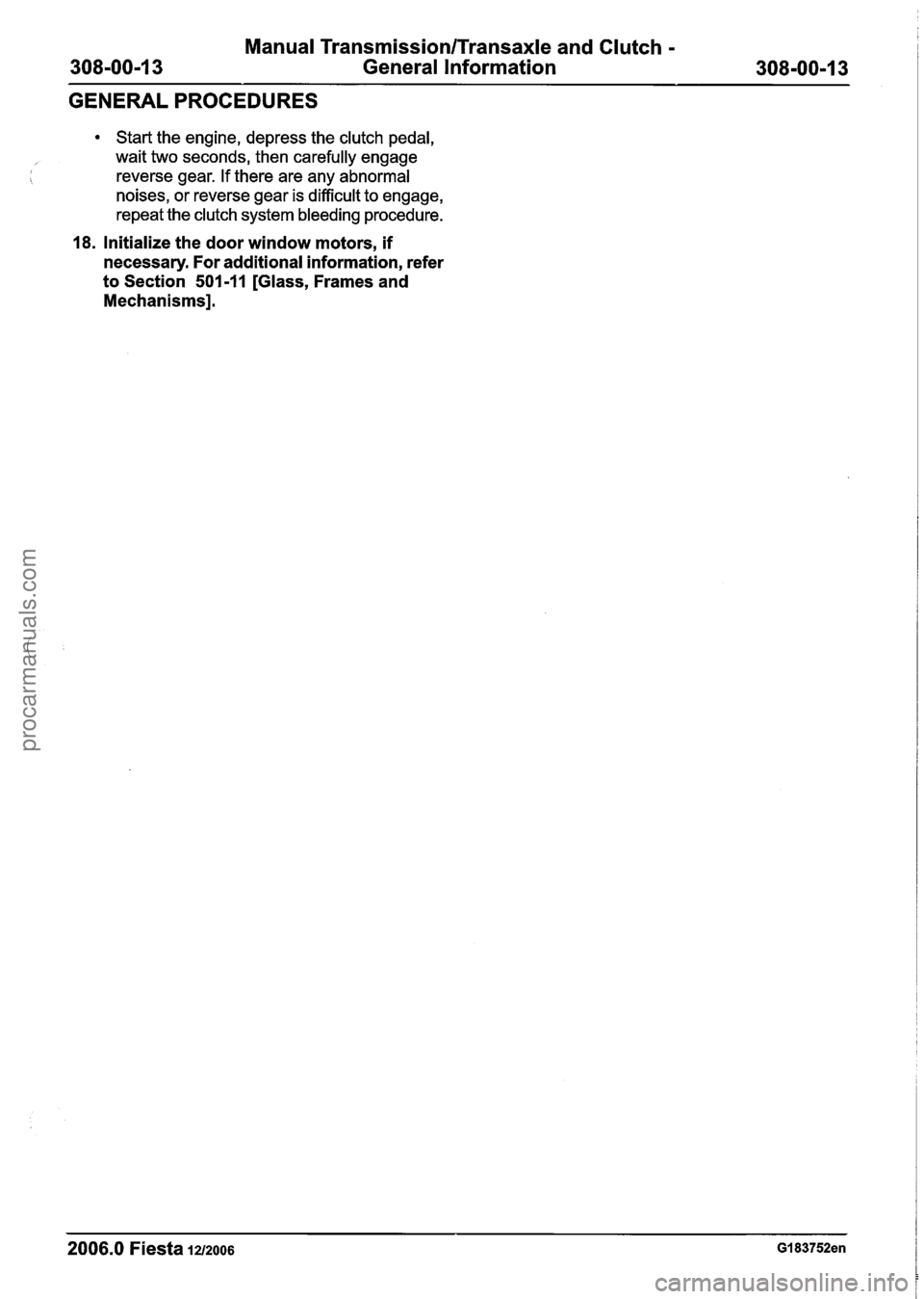

GENERAL PROCEDURES
Start the engine, depress the clutch pedal,
wait two seconds, then carefully engage
reverse gear. If there are any abnormal
noises, or reverse gear is difficult to engage,
repeat the clutch system bleeding procedure.
18. Initialize the door window motors, if
necessary. For additional information, refer
to Section 501-11 [Glass, Frames and
Mechanisms].
2006.0 Fiesta 1212006 GI 83752en
procarmanuals.com
