Index FORD KUGA 2011 1.G Workshop Manual

E122198
x12
x12x5
29. CAUTION: Note the position of thecomponents before removal.
G543498en2008.50 Kuga8/2011
303-01- 90
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
90
DISASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E122294
x5
30.
E122227
31. CAUTION: Note the position of thecomponents before removal.
G543498en2008.50 Kuga8/2011
303-01- 91
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
91
DISASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

E122293
x5
G543498en2008.50 Kuga8/2011
303-01-92
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
92
DISASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Cylinder Head(21 165 6)
Special Tool(s)303-361B
Compressor, Valve Spring
E62757
303-361B-06
Adapter for 303-361B
E62041
303-508
Pliers, Valve Stem Seal
21211
Disassembly
1.Special Tool(s): 303-361B, 303-361B-06
E66326
303-361B
303-361B-06
2.Special Tool(s): 303-508
E66114
303-508
Assembly
3.To install, reverse the assembly procedure.
G543499en2008.50 Kuga8/2011
303-01- 93
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
93
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

Engine(21 134 8)
Assembly
Special Tool(s) / General Equipment303-1054
Locking Tool, Timing Belt
Tensioner
3031054
303-1178
Timing Tool Camshaft
E62051
303-1179
Holding Wrench, Crankshaft
E62035
303-1180
Installer, Crankshaft Front
Seal
E62050
Special Tool(s) / General Equipment303-1181
Installer, Crankshaft Rear
Seal
E62048
303-1182
Timing Tool, Crankshaft
E62027
303-318
Aligner/Installer, Crankshaft
Front Seal
21148
Piston Ring Compressor
Round-Ended Steel Rule
Materials
Specification
Name
WSS-M2C913-C
Engine Oil - 5W-30
WSK-M2G348-A7 /
5U7J-M2G348-BA
Flange Sealant - Anaer-
obic LP
1. NOTE: This step is only necessary when
installing a new component.
Refer to: Specifications (303-01 Engine - 2.5L
Duratec (147kW/200PS) - VI5, Specifications).
G543500en2008.50 Kuga8/2011
303-01- 94
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
94
ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

6
1
2
3
4
5
6
E122606
1
2
3
4
5
6
123456
2. CAUTION: Make sure that thecomponents are installed to the position
noted before removal.Apply a thin coating.
Material: Engine Oil - 5W-30 (WSS-M2C913-C)engine oil
G543500en2008.50 Kuga8/2011
303-01- 95
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
95
ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

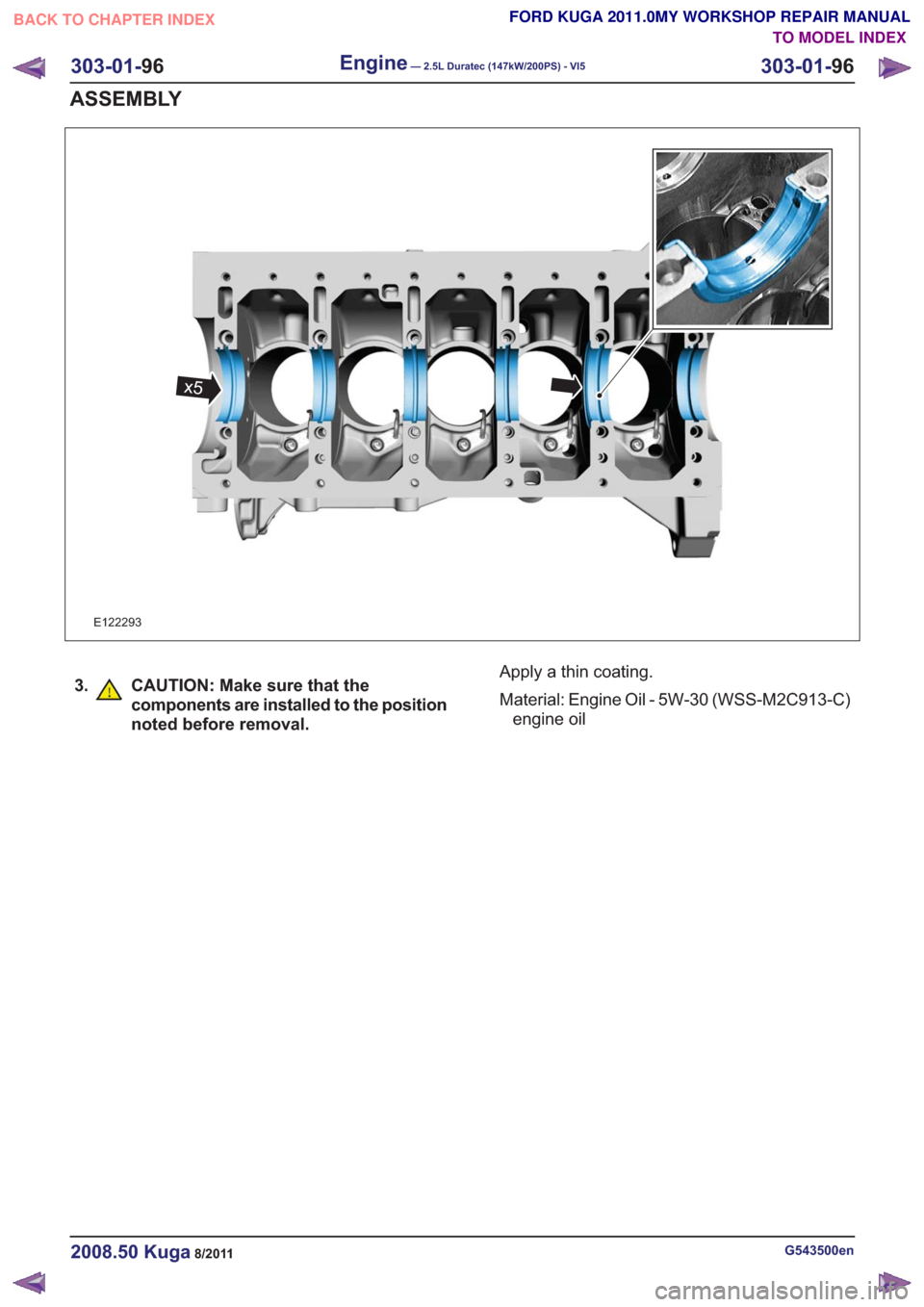

E122293
x5
3. CAUTION: Make sure that thecomponents are installed to the position
noted before removal.Apply a thin coating.
Material: Engine Oil - 5W-30 (WSS-M2C913-C)engine oil
G543500en2008.50 Kuga8/2011
303-01- 96
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
96
ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

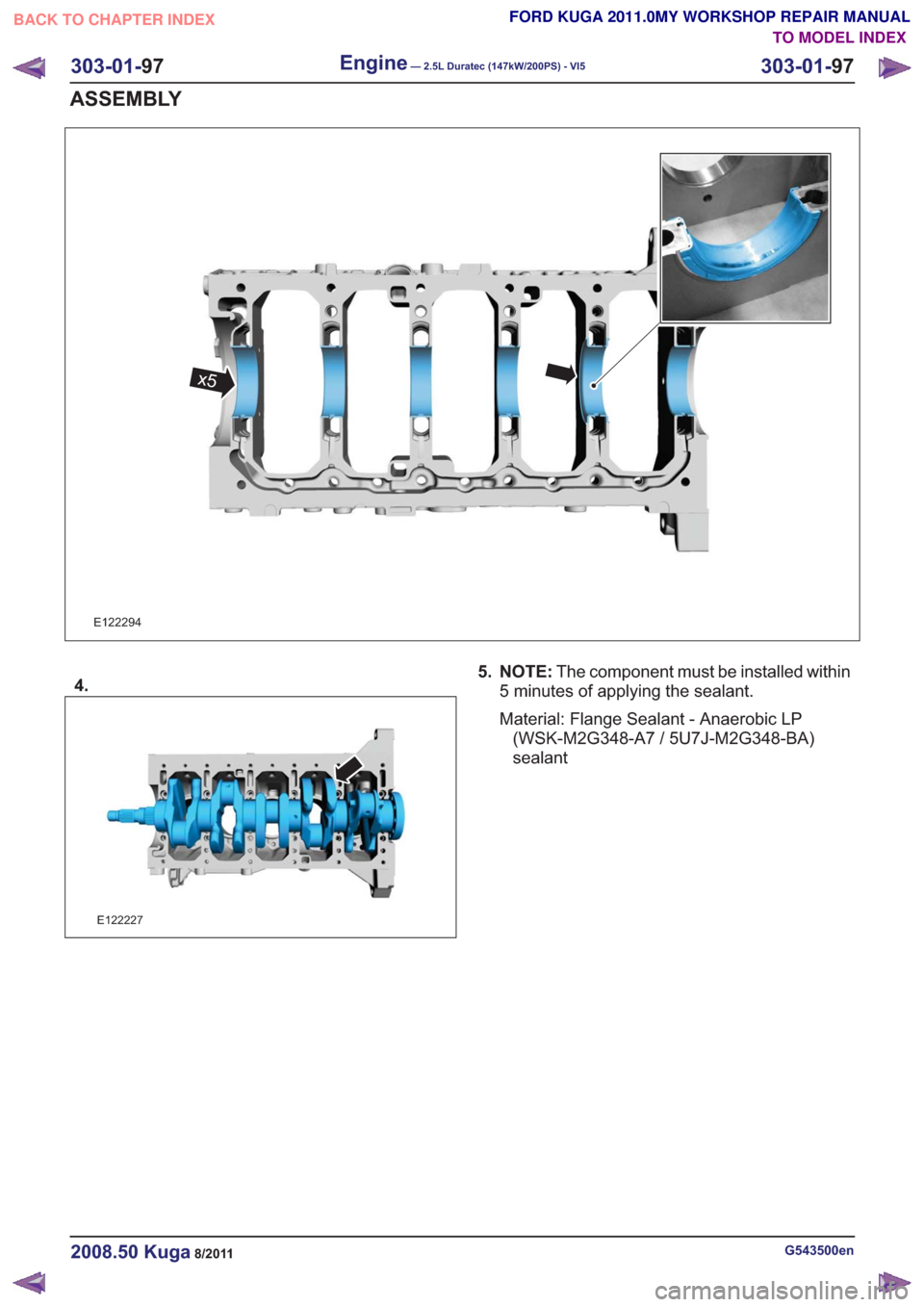

E122294
x5
4.
E122227
5. NOTE:The component must be installed within
5 minutes of applying the sealant.
Material: Flange Sealant - Anaerobic LP (WSK-M2G348-A7 / 5U7J-M2G348-BA)
sealant
G543500en2008.50 Kuga8/2011
303-01- 97
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
97
ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

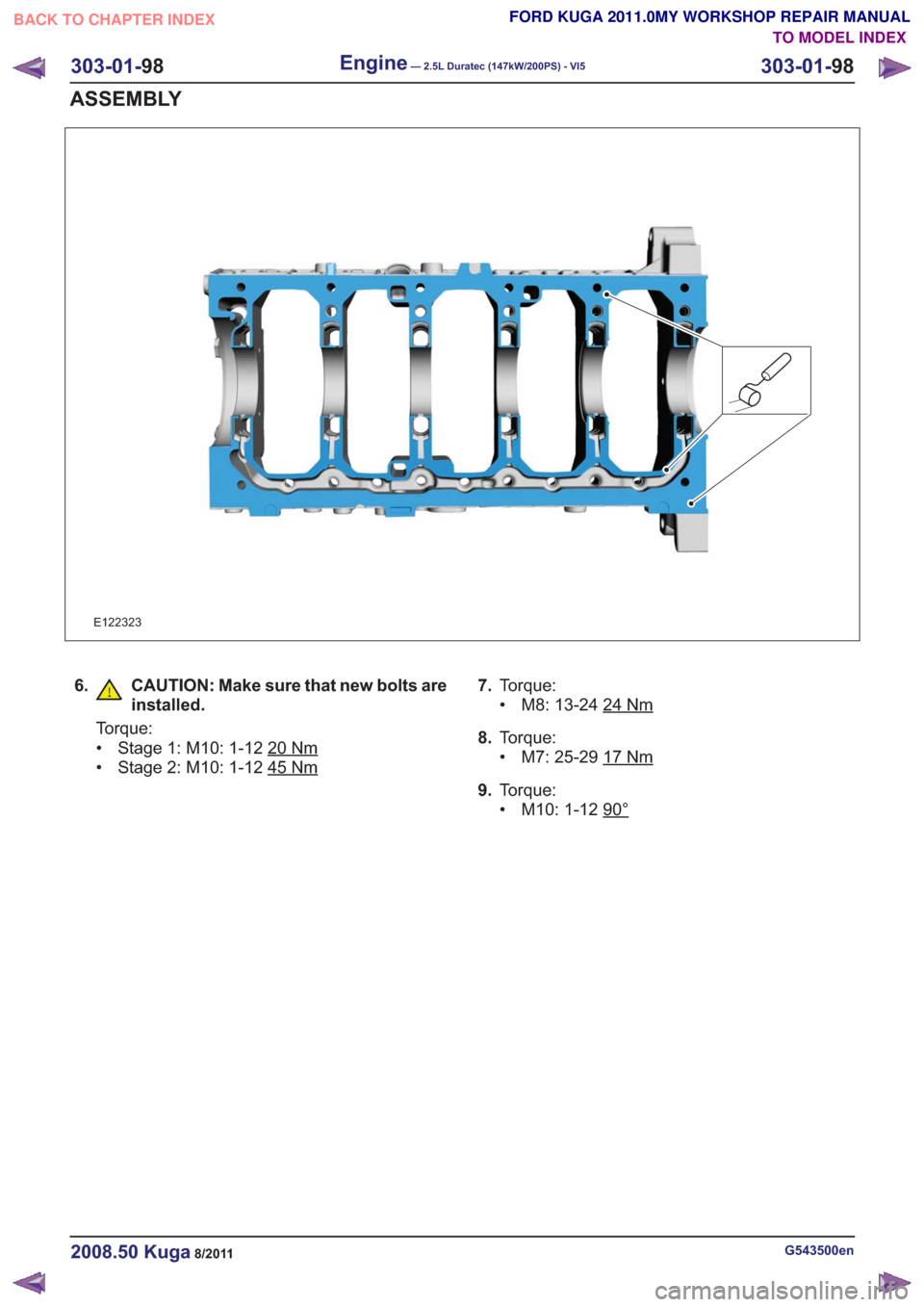

E122323
6. CAUTION: Make sure that new bolts areinstalled.
Torque:
• Stage 1: M10: 1-12 20
Nm
• Stage 2: M10: 1-12 45Nm
7.Torque:
• M8: 13-24 24
Nm
8.Torque:
• M7: 25-29 17
Nm
9.Torque:
• M10: 1-12 90°
G543500en2008.50 Kuga8/2011
303-01- 98
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
98
ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL

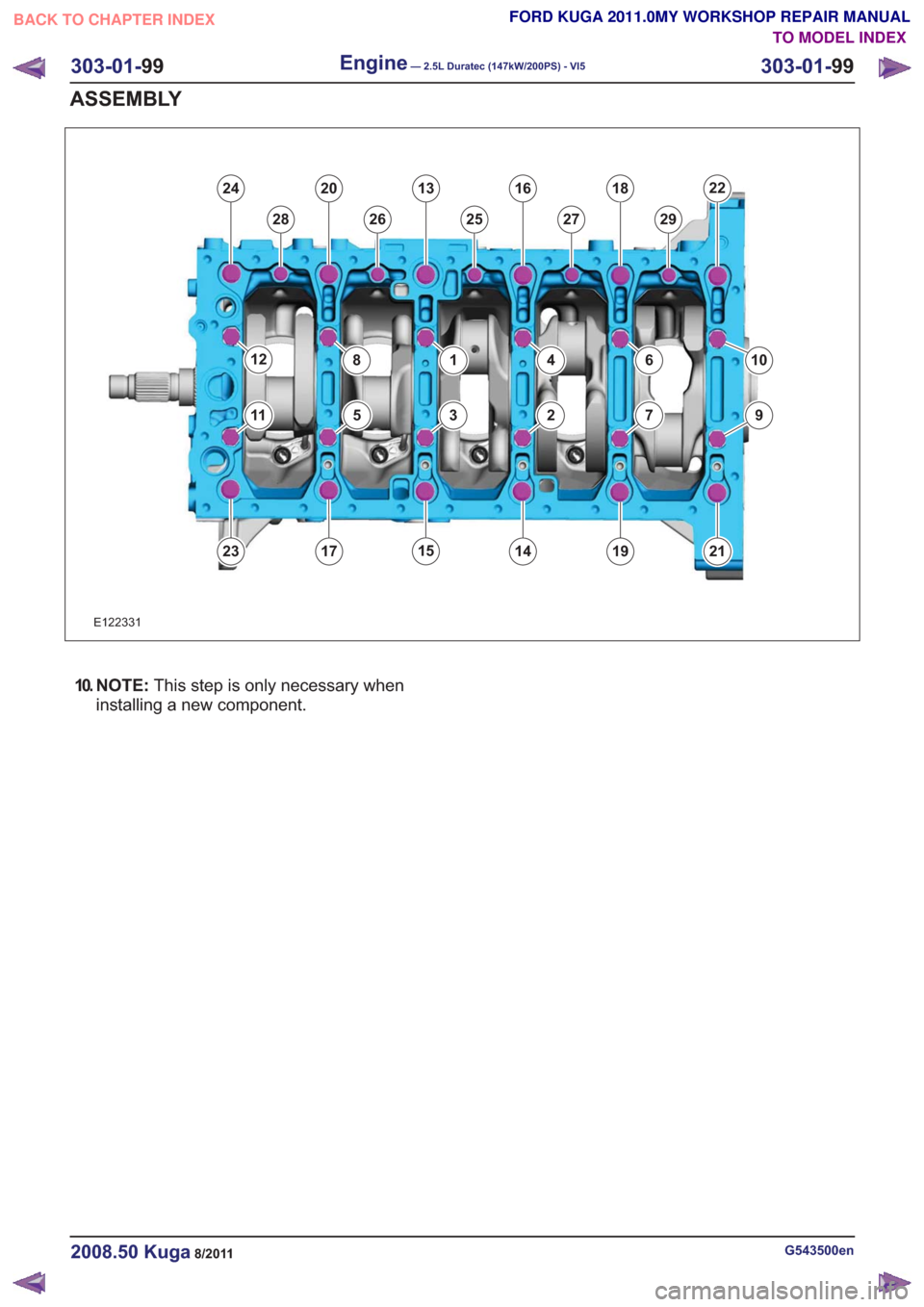

E122331
1
23
4
5
6
7
8
9
10
11
12
13
1415
16
17
18
19
20
21
22
23
24
2526272928
10. N O T E :This step is only necessary when
installing a new component.
G543500en2008.50 Kuga8/2011
303-01- 99
Engine— 2.5L Duratec (147kW/200PS) - VI5303-01-
99
ASSEMBLY
TO MODEL INDEX
BACK TO CHAPTER INDEX
FORD KUGA 2011.0MY WORKSHOP REPAIR MANUAL
