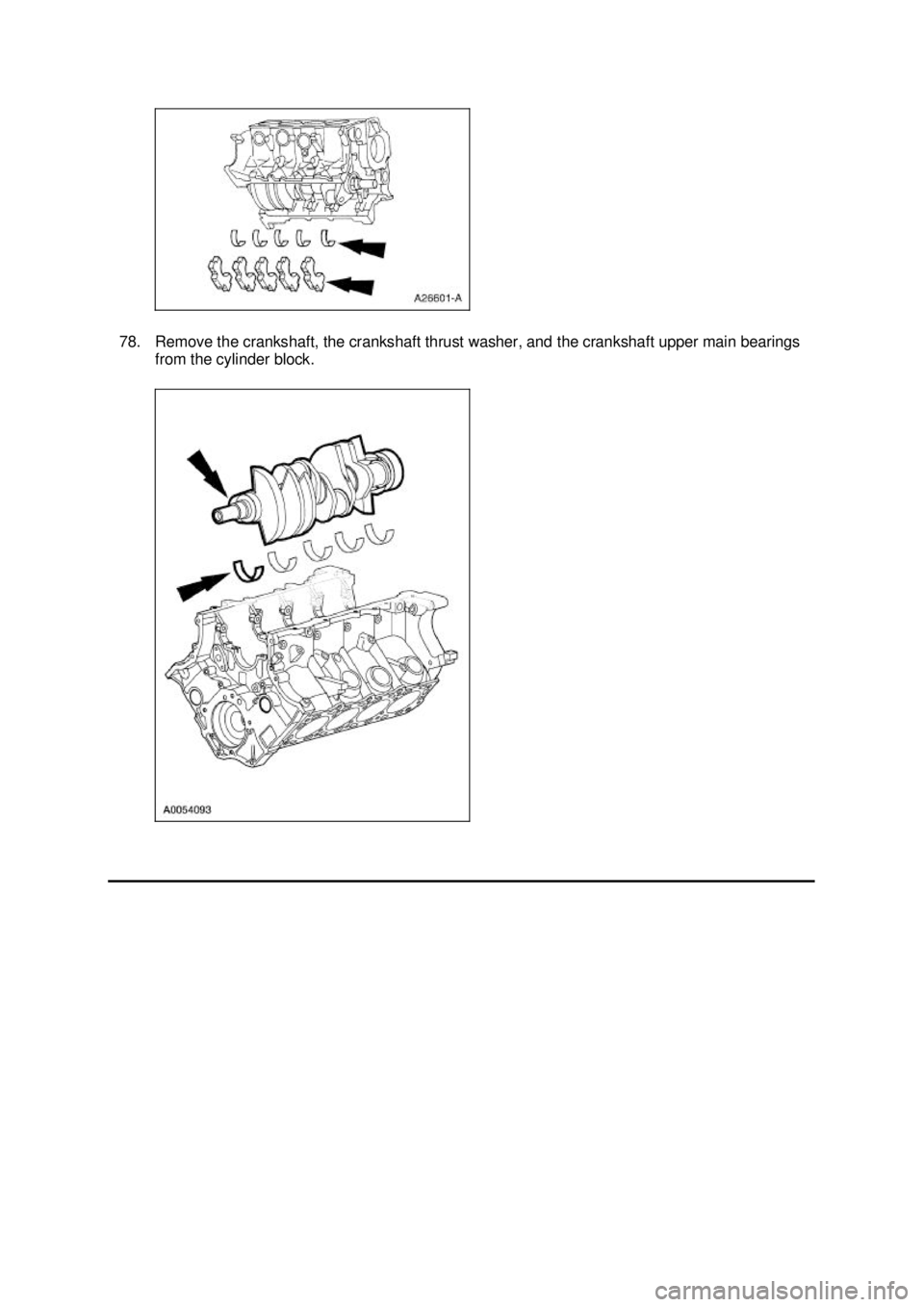

78. Remove the crankshaft, the crankshaft thrust washer, and the crankshaft upper main bearings
from the cylinder block. Klj . 22 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 23 ba
232003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Cylinder Head
Disassembly
1. CAUTION: Do not place the cylinder head (6049) flat on the bench; the valves will
bend. CAUTION: Before disassembly begins, mark the valve position on the face of each SECTION 303-
01C: Engine — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Compressor, Valve Spring
(Exhaust Side)
303-
567 (T97P-6565- AH) Compressor, Valve Spring
(Intake Side)
303-
452 (T93P-6565- AR) Holding Tool, Camshaft
303-
446 (T93P-6256- AHR) Air Operated Valve Spring
Holder
134-
R0207 or equivalent Installer, Valve Stem Oil Seal
303-
383 (T91P-6571- A)
Material Item Specification
Super Premium SAE 5W-20
Engine Oil
XO- 5W20- QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

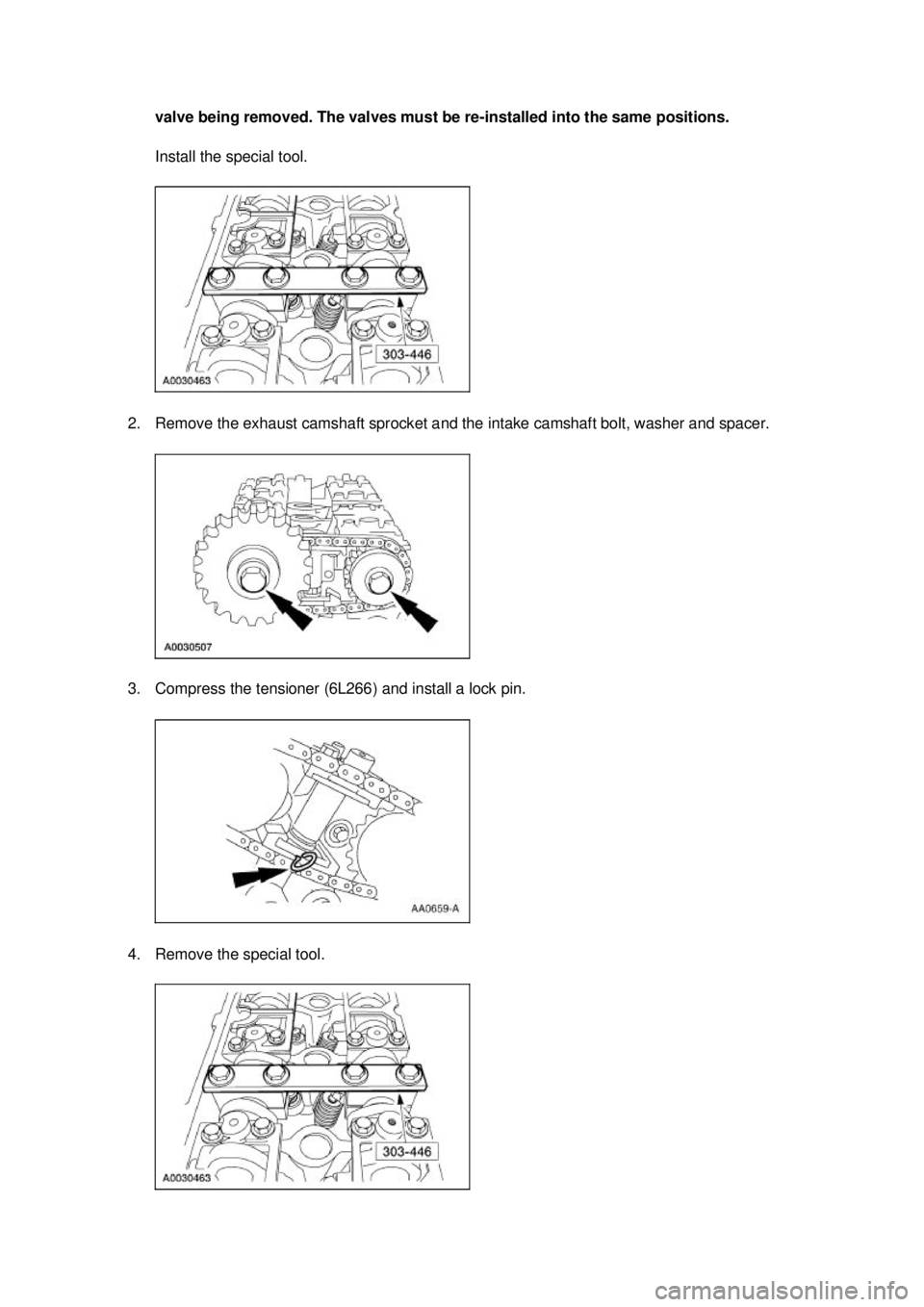

valve being removed. The valves must be re-
installed into the same positions.
Install the special tool.
2. Remove the exhaust camshaft sprocket and the intake camshaft bolt, washer and spacer.
3. Compress the tensioner (6L266) and install a lock pin.
4. Remove the special tool. Klj . 2 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5. Remove the timing chain (6268) and the camshaft sprocket (6256).
6.
NOTE: LH tensioner is shown, RH tensioner is similar.
Remove the tensioner.
7. Remove the roller followers on the base circle. 1. Install the special tool on the valve spring.
2. Compress the tool and remove the roller follower.
8. Repeat the previous step for the remaining roller followers.
9. Remove the hydraulic lash adjusters. Klj . 3 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

10.
CAUTION: Make sure the tool is seated correctly on the valve spring. Apply a small
amount of air at a time. This will prevent the tool from shifting and causing damage to
the cylinder head.
Install the air- operated spring compressor on the cylinder head.
11. Compress the valve spring compressor and remove the key from the valves.
12. Remove the intake valves and the valve springs. 1. Release the pressure and remove the valve spring compressor. 2. Remove the intake valves and the valve springs from the cylinder head. Klj . 4 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

13. Remove the valve stem seals.
14.
CAUTION: The outer bolts on the outer cam bearing cap (exhaust) are longer and
must be returned to the same location or engine damage may occur.
NOTE: Identify the camshaft- to-cylinder head location. Caps are not interchangeable.
Remove the bolts and the camshaft bearing cap assemblies. Klj . 5 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

15. Remove the camshafts (6250).
Assembly 1. Install the valve stem seals.
2. Install the valves and the valve springs.
3. CAUTION: Make sure the tool is seated correctly on the valve spring. Apply a small
amount of air at a time. This will prevent the tool from shifting and causing damage to
the cylinder head.
Install the air- operated spring compressor on the cylinder head. Klj . 6 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. Compress the valve spring compressor and install the key on the valves.
5.
NOTE: LH is shown, RH is similar.
Install the camshafts. zLubricate the camshafts with clean engine oil.

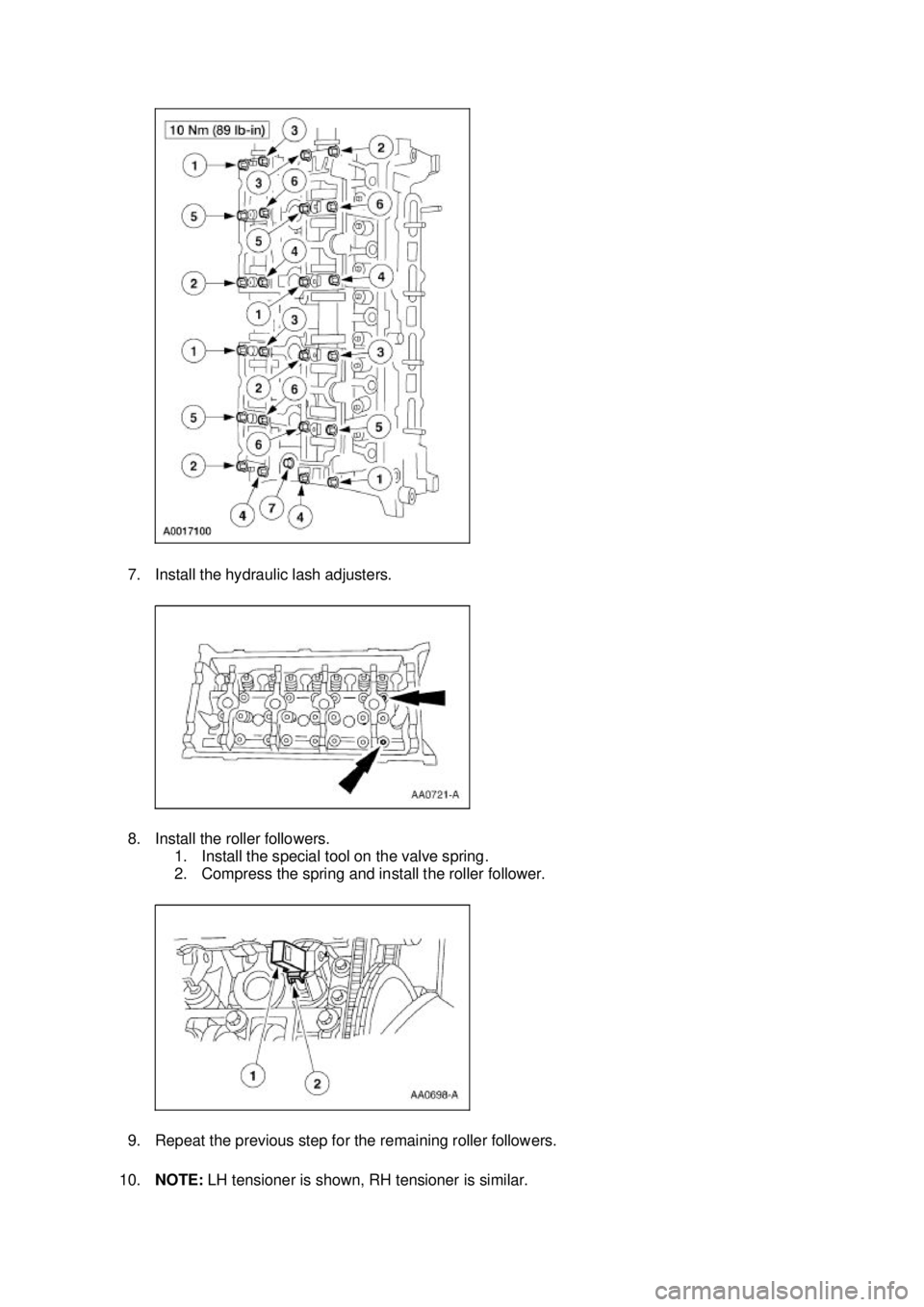

6. Install the camshaft bearing cap assemblies. Klj . 7 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

7. Install the hydraulic lash adjusters.
8. Install the roller followers.
1. Install the special tool on the valve spring.
2. Compress the spring and install the roller follower.
9. Repeat the previous step for the remaining roller followers.
10. NOTE: LH tensioner is shown, RH tensioner is similar. Klj . 8 ba
