FORD MUSTANG 2003 Workshop Manual

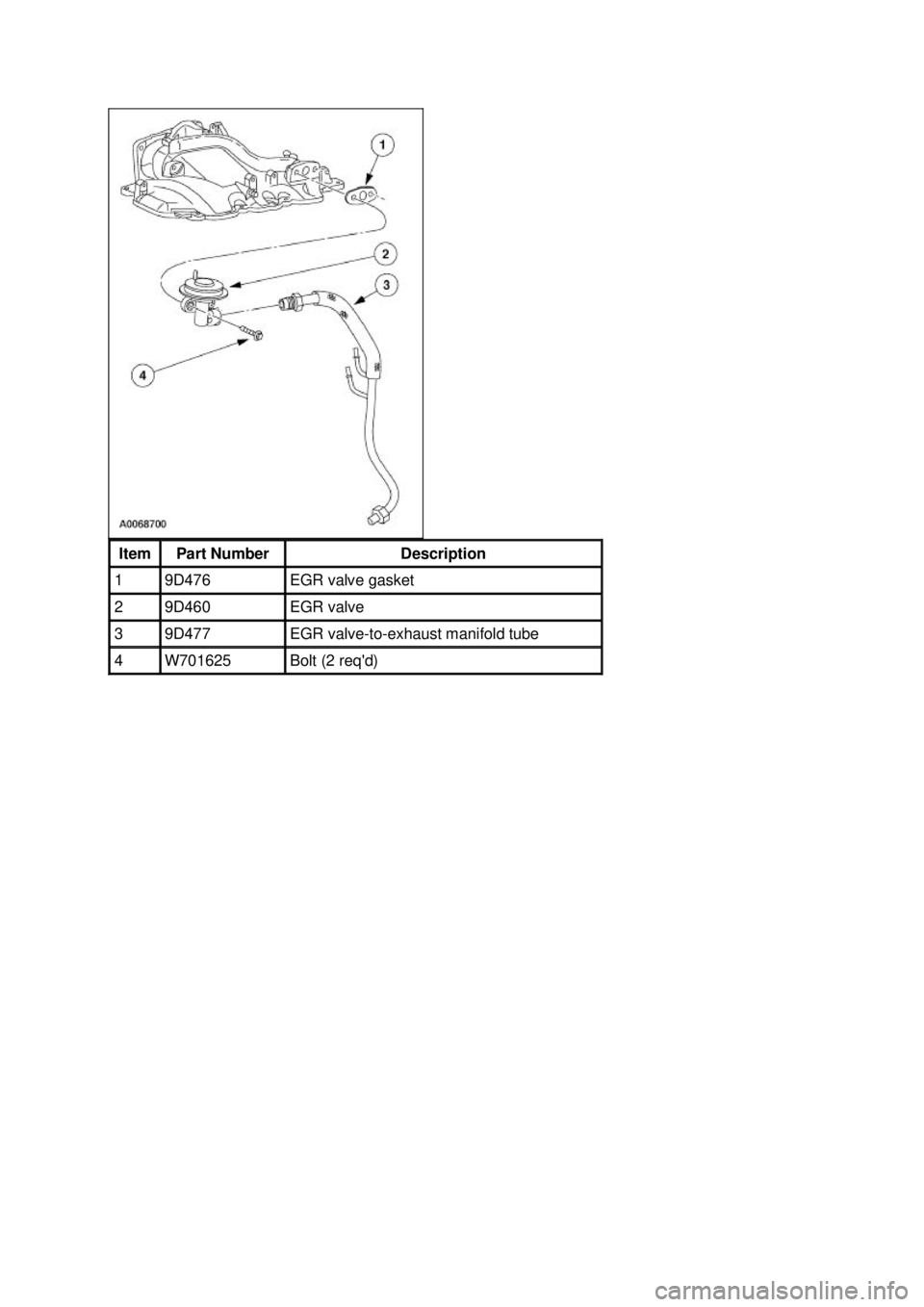

Item Part Number Description
1 9D476 EGR valve gasket
2 9D460 EGR valve
3 9D477 EGR valve-to-
exhaust manifold tube 4 W701625 Bolt (2 req'd) Klj . 4 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Item Part Number Description
1 N806154 Bolt (4 req'd)
2 N705654 Bolt
3 9F670 Idle air control valve gasket
4 9F715 Idle air control valve
5 N806154 Bolt (2 req'd)
6 N806154 Bolt (5 req'd)
7 9J433 Differential pressure feedback EGR
8 W701557 Screw (2 req'd) Klj . 5 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9 9D476 EGR valve gasket
10 9J459 EGR vacuum regulator solenoid
11 W701557 Bolt (2 req'd)
12 9F792 Fuel injection supply manifold
13 N811449 Stud (4 req'd)
14 9E498 Vacuum harness
15 W704682 Bolt (10 req'd)
16 9J447 Intake manifold (lower)
17 8548 Coolant crossover
18 9F593 Fuel Injector (8 req'd)
19 N605892 Bolt (2 req'd)
20 9728 Bracket
21 9424 Intake manifold (upper)
22 9E936 Throttle body gasket
23 9E926 Throttle body Klj . 6 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Item Part Number Description
1 6083 Cylinder head gasket
2 — Bolt (2 req'd)
3 — Washer (2 req'd)
4 6255 Spacer
5 — Secondary timing chain (2 req'd)
6 — Screw and washer
7 6C271 Timing chain vibration damper
8 6B277 Camshaft bearing cap Klj . 7 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

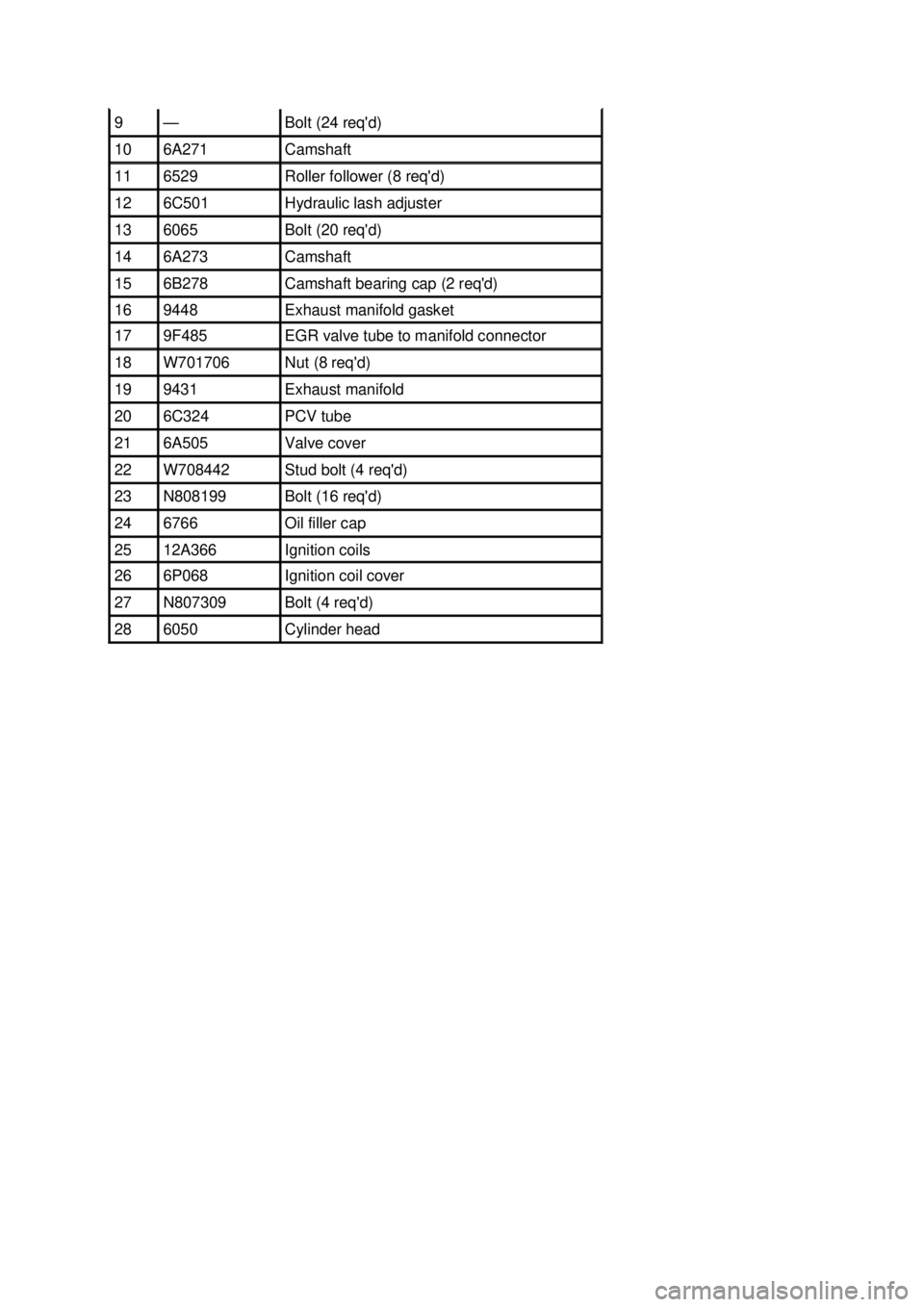

9 — Bolt (24 req'd)
10 6A271 Camshaft
11 6529 Roller follower (8 req'd)
12 6C501 Hydraulic lash adjuster
13 6065 Bolt (20 req'd)
14 6A273 Camshaft
15 6B278 Camshaft bearing cap (2 req'd)
16 9448 Exhaust manifold gasket
17 9F485 EGR valve tube to manifold connector
18 W701706 Nut (8 req'd)
19 9431 Exhaust manifold
20 6C324 PCV tube
21 6A505 Valve cover
22 W708442 Stud bolt (4 req'd)
23 N808199 Bolt (16 req'd)
24 6766 Oil filler cap
25 12A366 Ignition coils
26 6P068 Ignition coil cover
27 N807309 Bolt (4 req'd)
28 6050 Cylinder head Klj . 8 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Item Part Number Description
1 N808102 Bolt
2 N808102 Bolt
3 19A216 Belt idler pulley
4 N806155 Bolt
5 6B288 Camshaft position sensor
6 N606543 Bolt (4 req'd)
7 6L266 Timing chain tensioner
8 W705803 Stud Klj . 9 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9 6268 Timing chain (2 req'd)
10 6K297 Timing chain guide
11 6268 Timing chain (2 req'd)
12 6M269 Timing chain tensioner
13 6L253 Timing chain tensioner arm
14 N605893 Bolt (4 req'd)
15 6K297 Timing chain guide
16 N804958 Bolt (2 req'd)
17 6L253 Timing chain tensioner arm
18 6306 Crankshaft sprocket
19 12A227 Ignition pulse ring
20 3A696 Power steering pump
21 N806176 Bolt (4 req'd)
22 3R801 Gasket
23 3A696 Power steering pump pulley
24 W706508 Stud
25 N806177 Bolt (8 req'd)
26 N808586 Stud
27 N806300 Stud (4 req'd)
28 6700 Crankshaft front seal
29 N806155 Bolt
30 6C315 Crankshaft position sensor
31 W706560 Stud
32 6C086 Engine front cover
33 N806165 Washer
34 N806139 Bolt
35 19A216 Belt Idler Pulley
36 6316 Crankshaft pulley Klj . 10 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

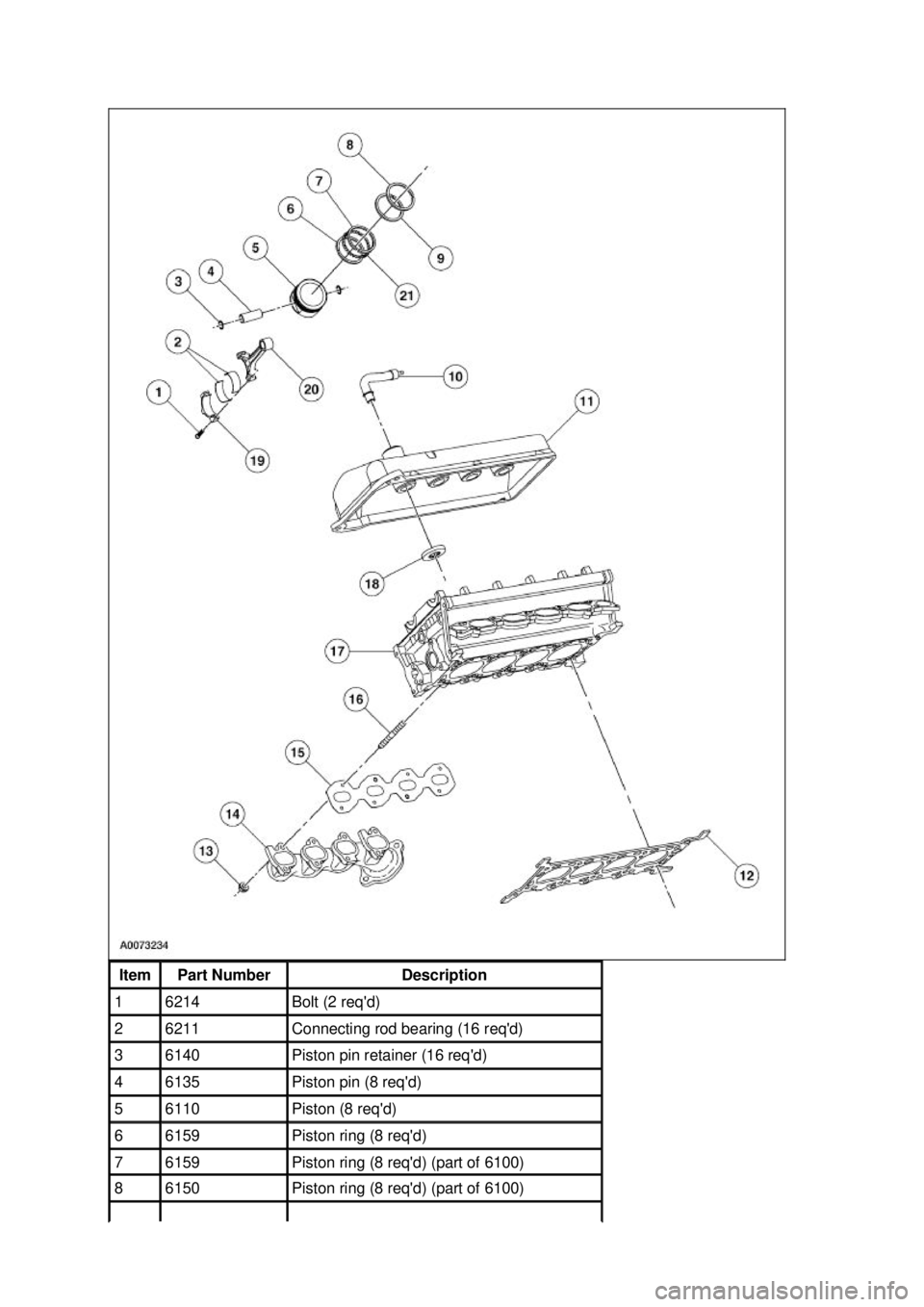

Item Part Number Description
1 6214 Bolt (2 req'd)
2 6211 Connecting rod bearing (16 req'd)
3 6140 Piston pin retainer (16 req'd)
4 6135 Piston pin (8 req'd)
5 6110 Piston (8 req'd)
6 6159 Piston ring (8 req'd)
7 6159 Piston ring (8 req'd) (part of 6100)
8 6150 Piston ring (8 req'd) (part of 6100) Klj . 11 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

9 6152 Piston ring (8 req'd)
10 6758 Crankcase vent tube and connector
11 6582 Valve cover
12 6051 Cylinder head gasket
13 W701706 Nut (8 req'd)
14 9430 Exhaust manifold
15 9448 Exhaust manifold gasket
16 W701681 Stud (8 req'd)
17 6049 Cylinder head
18 6C527 Spark plug gasket (8 req'd)
19 6200 Connecting rod (8 req'd)
20 6200 Connecting rod (8 req'd)
21 6161 Piston ring (8 req'd)
Item Part Number Description
1 8555 Coolant bypass tube
2 6750 Oil level indicator
3 6754 Oil level indicator tube
4 N806155 Bolt
5 6C358 Bolt (10 req'd)
6 6714 Oil bypass filter
7 N806156 Bolt (4 req'd)
8 9278 Oil pressure sender
9 6881 Oil filter adapter
10 6A636 Oil filter adapter gasket Klj . 12 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11 N620482 Dowel
12 87836 Plug
Item Part Number Description
1 N807198 Dowel pin (2 req'd)
2 N807309 Bolt
3 N807959 Bolt
4 18663 Heater water hose
5 W500110 Bolt (2 req'd)
6 12A699 Knock sensor (2 req'd)
7 N807309 Bolt (2 req'd)
8 18696 Heater water hose
9 7120 Pilot bearing
10 6K318 Crankshaft rear retainer
11 N806155 Bolt (6 req'd)
12 6310 Crankshaft oil slinger
13 6375 Flexplate
14 N806168 Bolt (6 req'd)
15 — Flywheel
16 N808139 Bolt (8 req'd)
17 7550 Clutch disc
18 7563 Clutch pressure plate
19 N808969 Bolt (6 req'd)
20 6701 Crankshaft rear oil seal
21 N806007 Dowel pin (2 req'd) Klj . 13 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
