Page 1701 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Exhaust Manifold RH
Removal and Installation  1. Disconnect the battery ground cable. For additional information, refer to  Section 414 - 01  .
2. Raise the vehicle. For addition

Page 1702 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1703 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Exhaust Manifold LH
Removal and Installation  1. Position the steering wheel straight ahead and lock the column.
2. Disconnect the battery ground cable. For additional informatio

Page 1704 of 4378

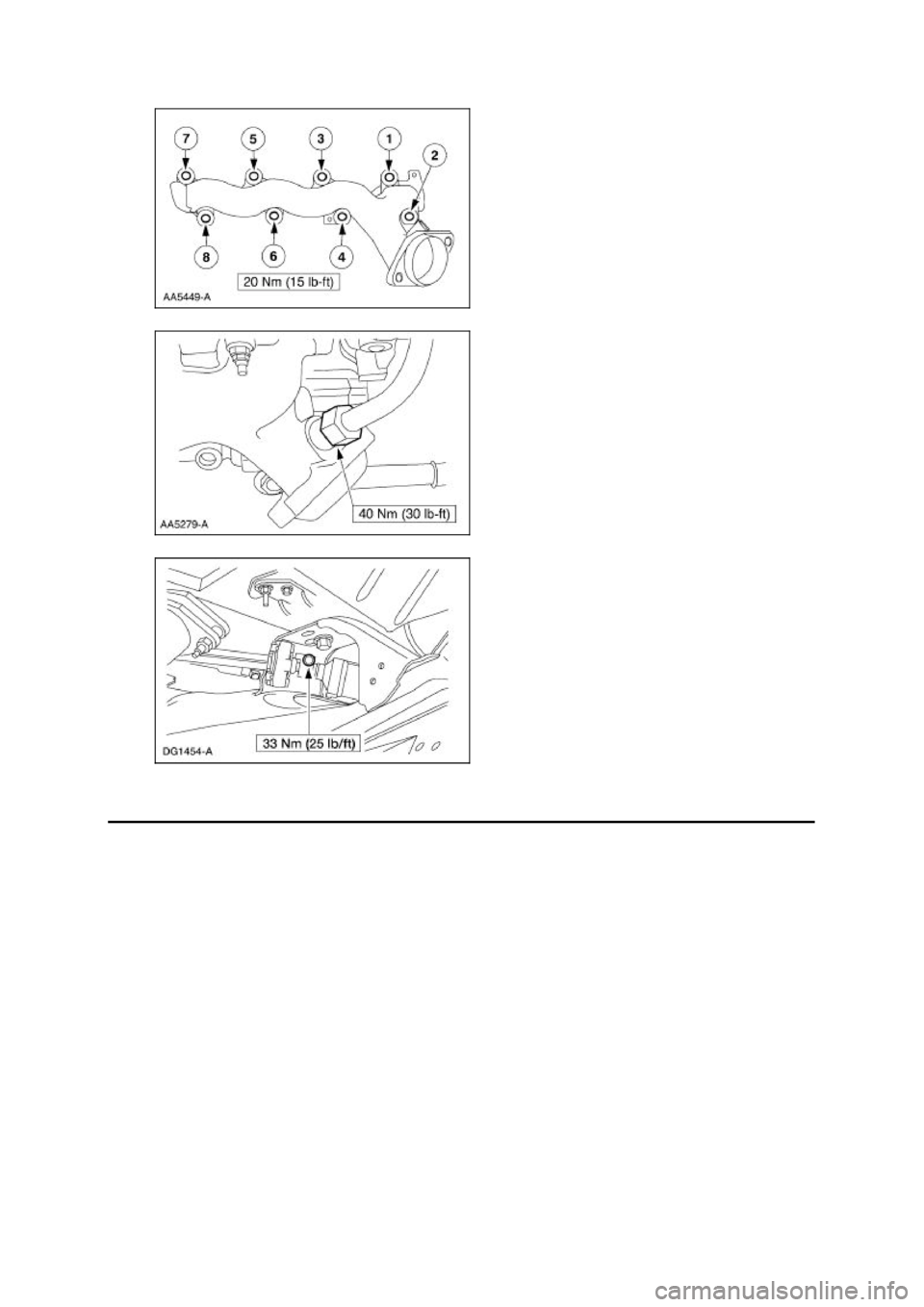

FORD MUSTANG 2003  Workshop Manual 8. Remove the exhaust manifold.
1. Remove the nuts.
2. Remove the exhaust manifold.
3. Remove and discard the gasket.
9. Remove the oil level indicator tube.
10. Remove and discard the exhaust ma

Page 1705 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  3 ba
  32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1706 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Oil Filter Adapter
Removal  1. Drain the cooling system. For additional information, refer to  Section 303 - 03A  .
2. Disconnect the lower radiator hose.
3. Raise the vehicle.

Page 1707 of 4378

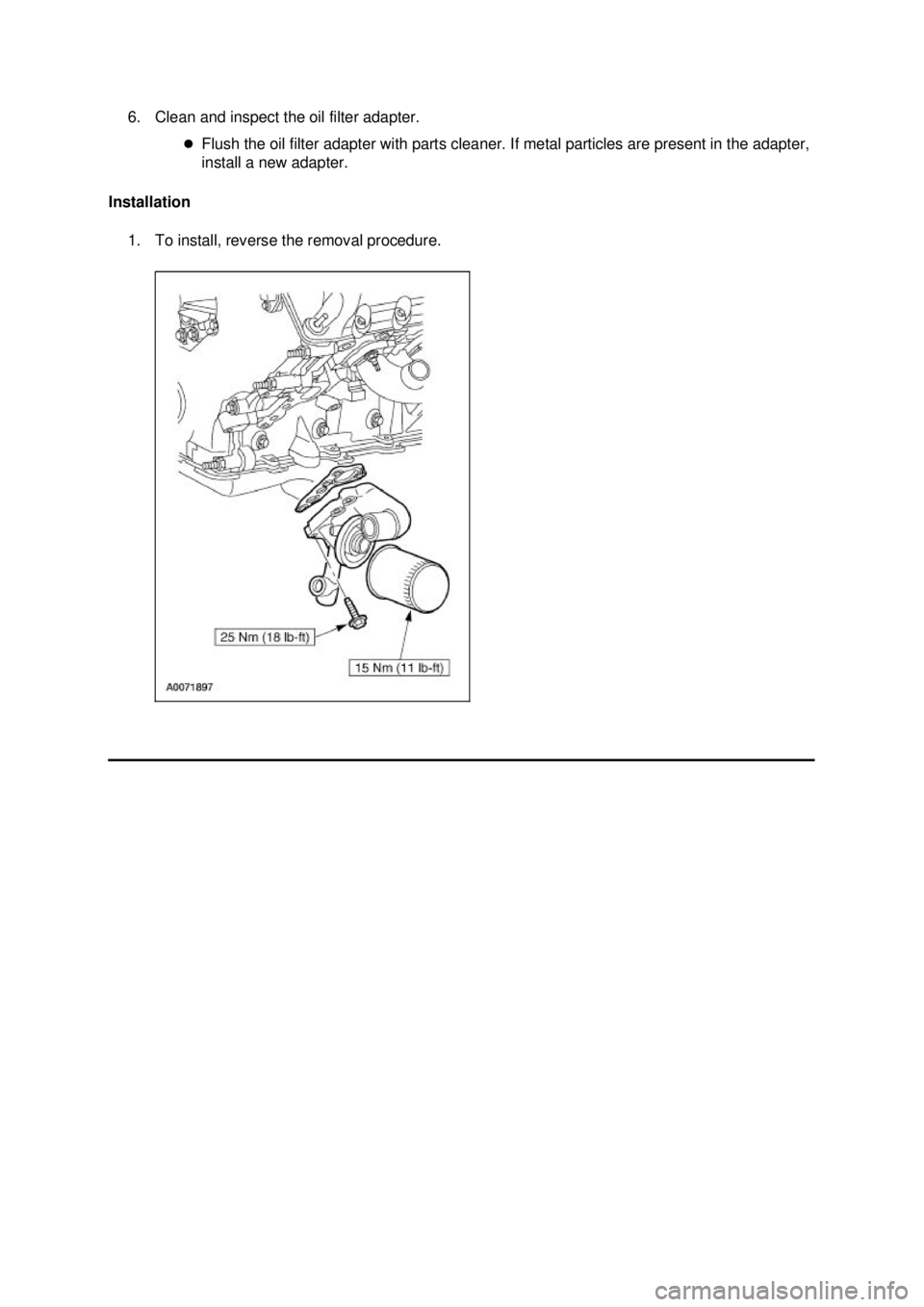

FORD MUSTANG 2003  Workshop Manual 6. Clean and inspect the oil filter adapter.
�zFlush the oil filter adapter with parts cleaner. If metal particles are present in the adapter,
install a new adapter.
Installation  1. To install, re

Page 1708 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR

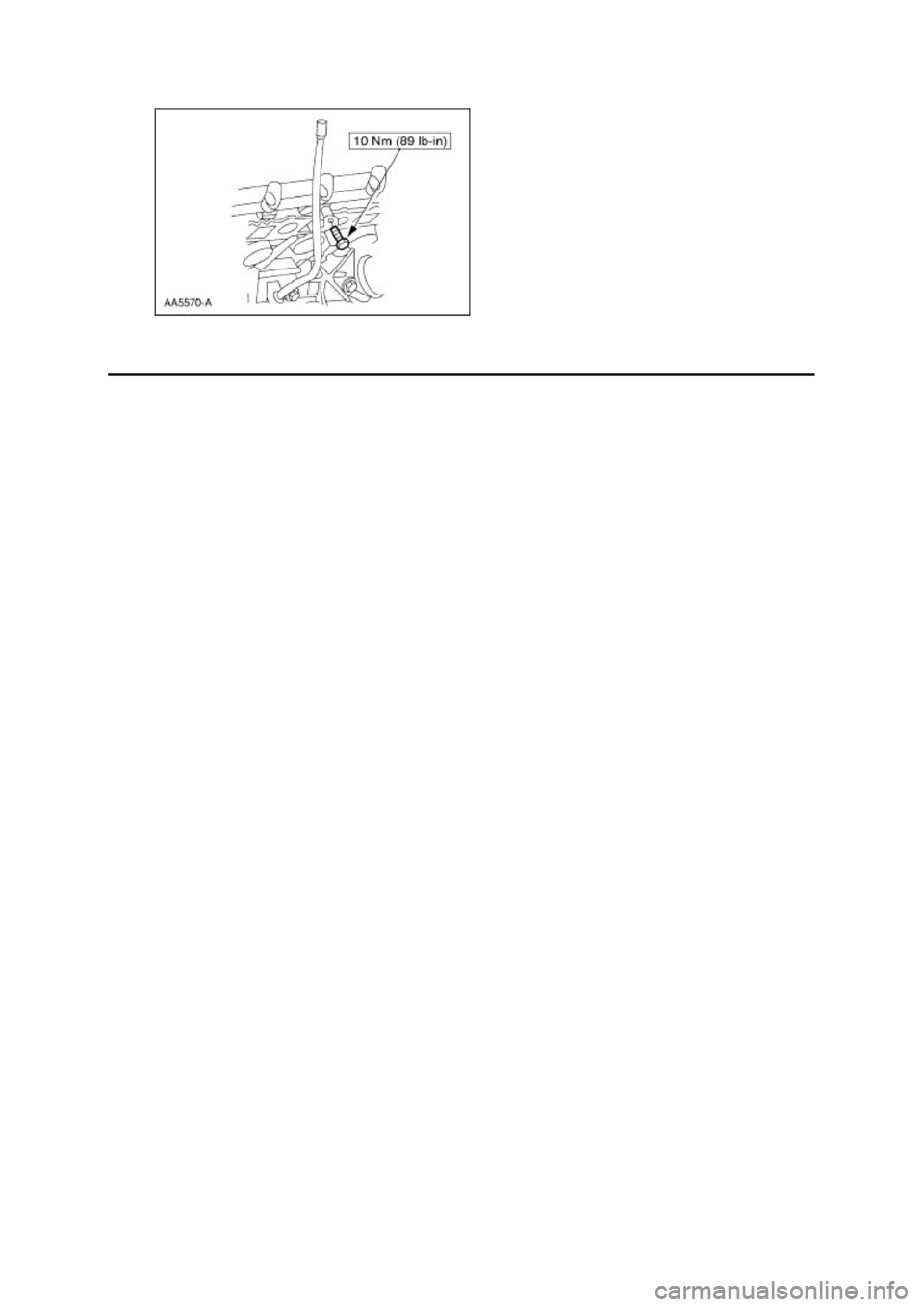

Oil Level Indicator and Tube
Removal  1. Remove the oil level indicator.
2. Remove the LH exhaust manifold. For additional information, refer to  Exhaust Manifold LH  in
this se

Page 1709 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1710 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Oil Pan
Removal  1. Disconnect the battery ground cable. For additional information, refer to  Section 414 - 01  .
2. Remove the transmission. For additional information, refer t
