FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Hydraulic Lash Adjusters
Removal  1. Remove the roller followers. For additional information, refer to  Roller Followers  in this section.
2. Remove the 16 hydraulic lash adjuste

Page 1692 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Roller Followers
Removal and Installation  1. Remove the LH and RH valve cover. For additional information, refer to  Valve Cover LH  and
Valve Cover RH  in this section.
2. Pos

Page 1693 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 1694 of 4378

FORD MUSTANG 2003  Workshop Manual IN-
VEHICLE REPAIR
Camshaft
Removal  1. Remove the roller followers. For additional information, refer to  Roller Followers  in this section.
2. Remove the LH timing chain for the LH side and both

Page 1695 of 4378

FORD MUSTANG 2003  Workshop Manual 5. Remove the special tool.
6. Compress the tensioner and install a lock pin.
7. Remove the timing chain, the sprocket, and intake camshaft sprocket spacer.
8.
NOTE:  LH shown; RH similar.
Remove

Page 1696 of 4378

FORD MUSTANG 2003  Workshop Manual 9.
 CAUTION: The outer bolts on the outer cam bearing cap (exhaust) are longer and
must be returned to the same location or engine damage may occur.
NOTE:  Identify the camshaft to cylinder head loc

Page 1697 of 4378

FORD MUSTANG 2003  Workshop Manual Installation
1. NOTE:  LH shown; RH similar.
Install the camshafts.  �zLubricate the camshafts with clean engine oil.
2. Install the camshaft bearing cap assemblies and tighten the bolts in the seq

Page 1698 of 4378

FORD MUSTANG 2003  Workshop Manual 3. Install the bolts.
4.
 CAUTION: Timing marks must be at 12 oclock and indexed at 6 oclock.
Install the camshaft sprockets and the chain as an assembly.
5. Remove the lockpin from the chain ten

Page 1699 of 4378

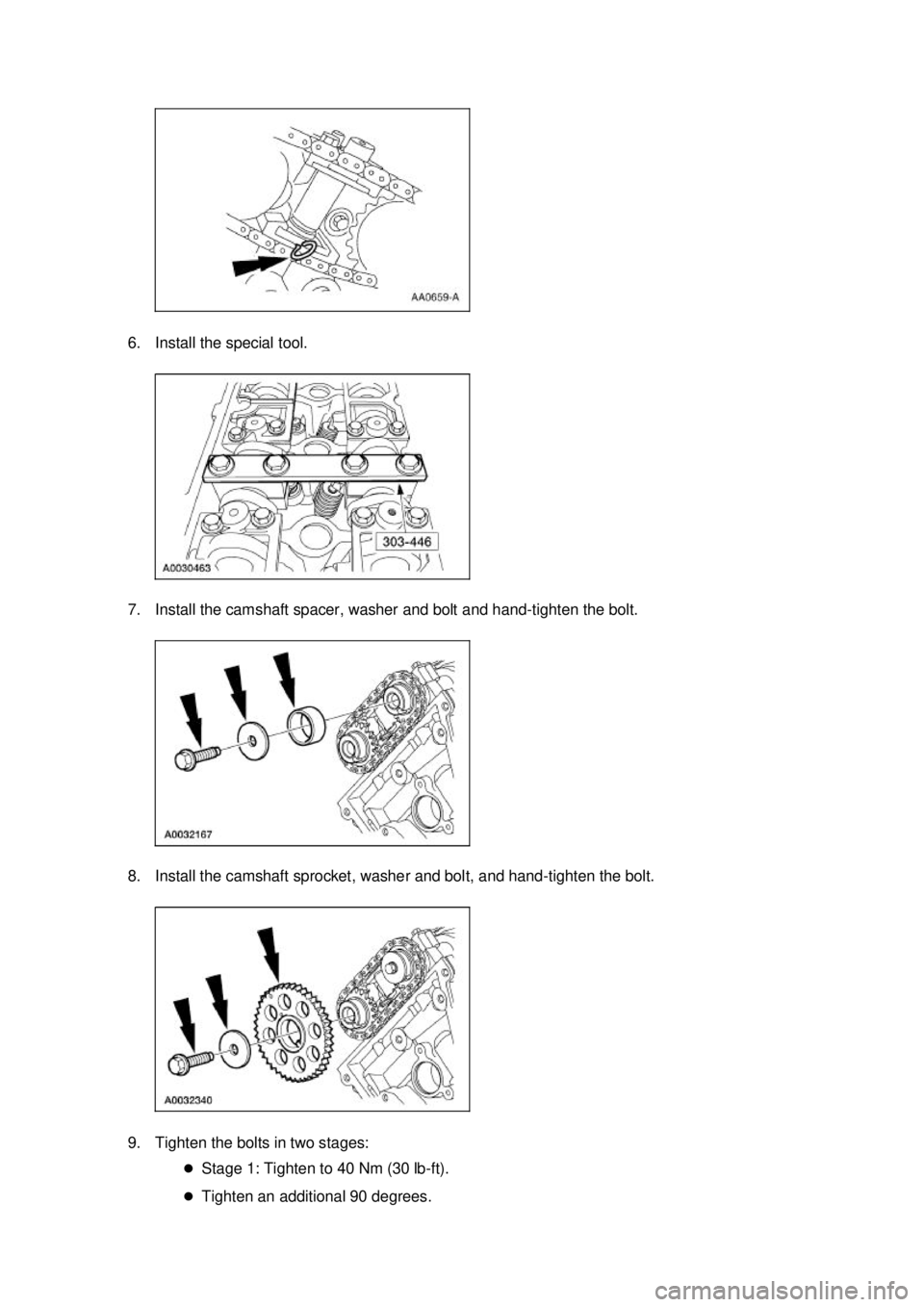

FORD MUSTANG 2003  Workshop Manual 6. Install the special tool.
7. Install the camshaft spacer, washer and bolt and hand-
tighten the bolt.
8. Install the camshaft sprocket, washer and bolt, and hand- tighten the bolt.
9. Tighten th

Page 1700 of 4378

FORD MUSTANG 2003  Workshop Manual 10. Remove the special tool.
11. Install the left timing chain for the left side or both timing chains for the right side. For additional
information, refer to  Timing Drive Components  in this sect
