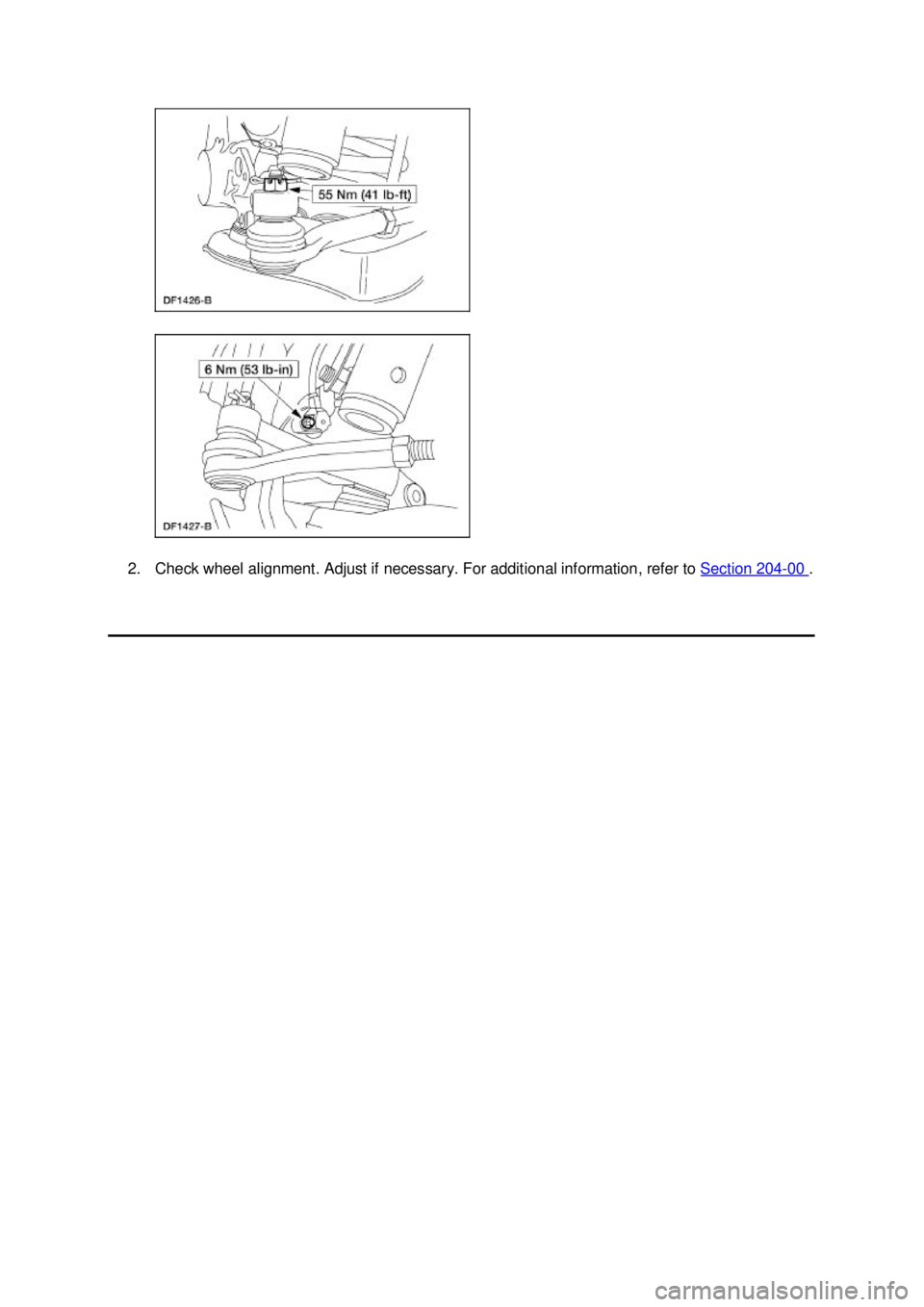

2. Check wheel alignment. Adjust if necessary. For additional information, refer to Section 204 - 00 . Klj . 5 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

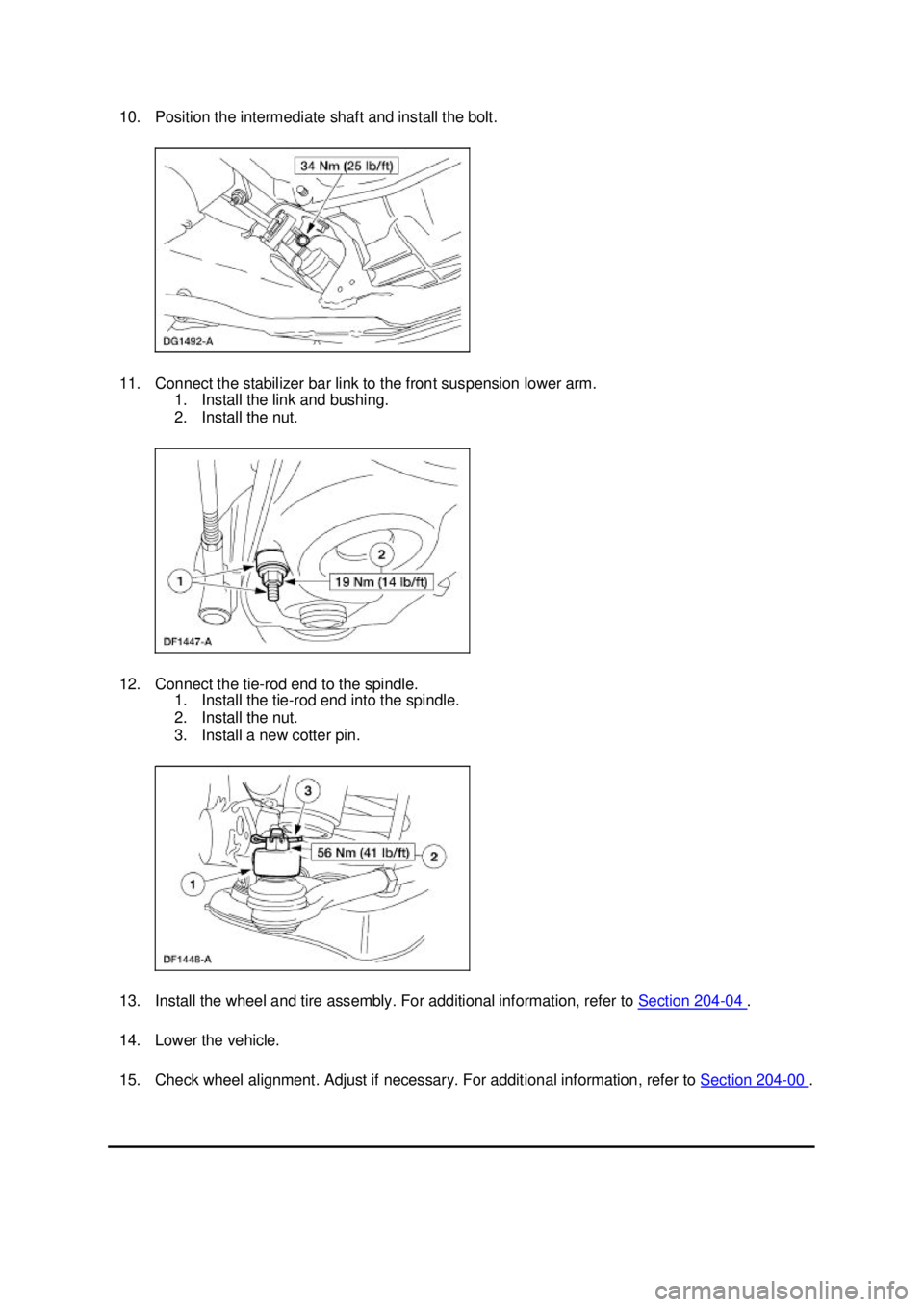

10. Position the intermediate shaft and install the bolt.
11. Connect the stabilizer bar link to the front suspension lower arm.
1. Install the link and bushing.
2. Install the nut.
12. Connect the tie- rod end to the spindle.
1. Install the tie- rod end into the spindle.
2. Install the nut.
3. Install a new cotter pin.
13. Install the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
14. Lower the vehicle.
15. Check wheel alignment. Adjust if necessary. For additional information, refer to Section 204 - 00 . Klj . 7 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

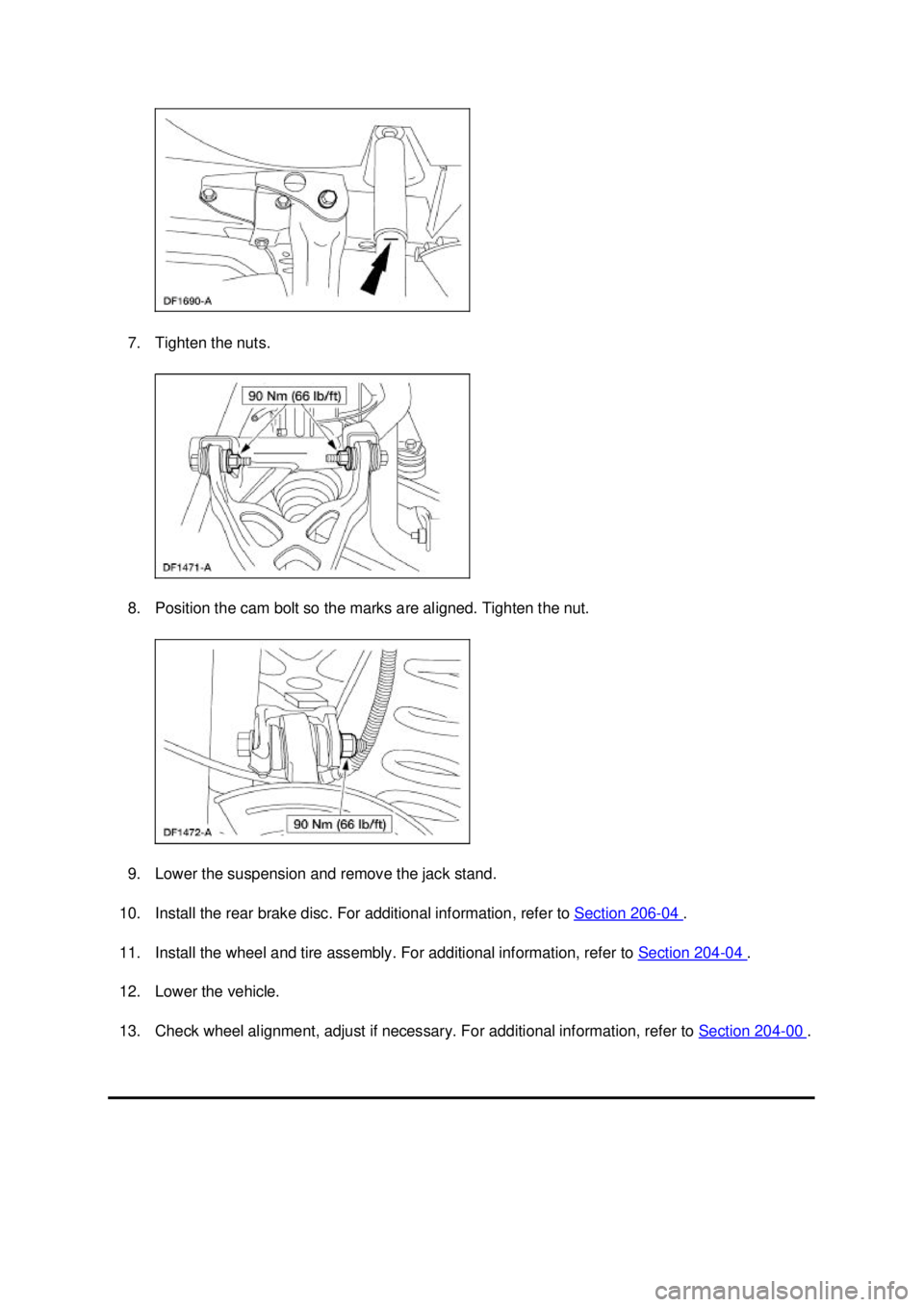

7. Tighten the nuts.
8. Position the cam bolt so the marks are aligned. Tighten the nut.
9. Lower the suspension and remove the jack stand.
10. Install the rear brake disc. For additional information, refer to Section 206 - 04 .
11. Install the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
12. Lower the vehicle.
13. Check wheel alignment, adjust if necessary. For additional information, refer to Section 204 - 00 . Klj . 4 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

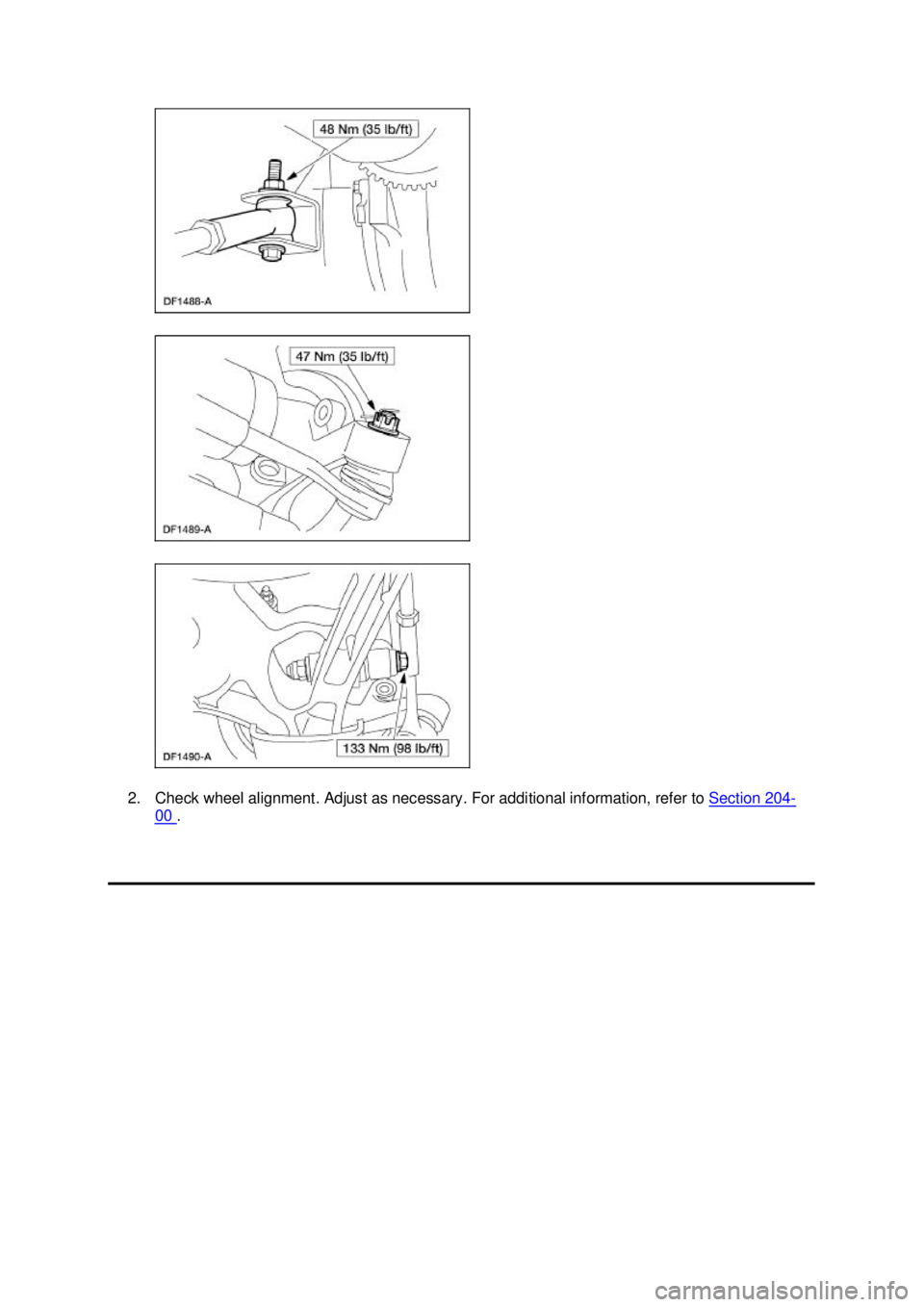

2. Check wheel alignment. Adjust as necessary. For additional information, refer to
Section 204 -
00 . Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

13. Connect the parking brake cable and conduit to the rear brake caliper and install the clip.
14. Connect the parking brake cable and conduit to the parking brake lever.
15.
CAUTION: The axle retainer must be tightened with the brakes applied and the
wheels off the ground to make sure of correct bearing seating. Failure to do so can
cause the retainer to loosen, causing extensive vehicle damage and loss of vehicle
control.
Lower the vehicle and apply the parking brake or service brakes.
16. Tighten the retainer.
17. Install the wheel and tire assembly. For additional information, refer to Section 204 - 04
18. Lower the vehicle.
19. Check the wheel alignment. Adjust as necessary. For additional information, refer to
Section 204 - 00 . Klj . 8 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

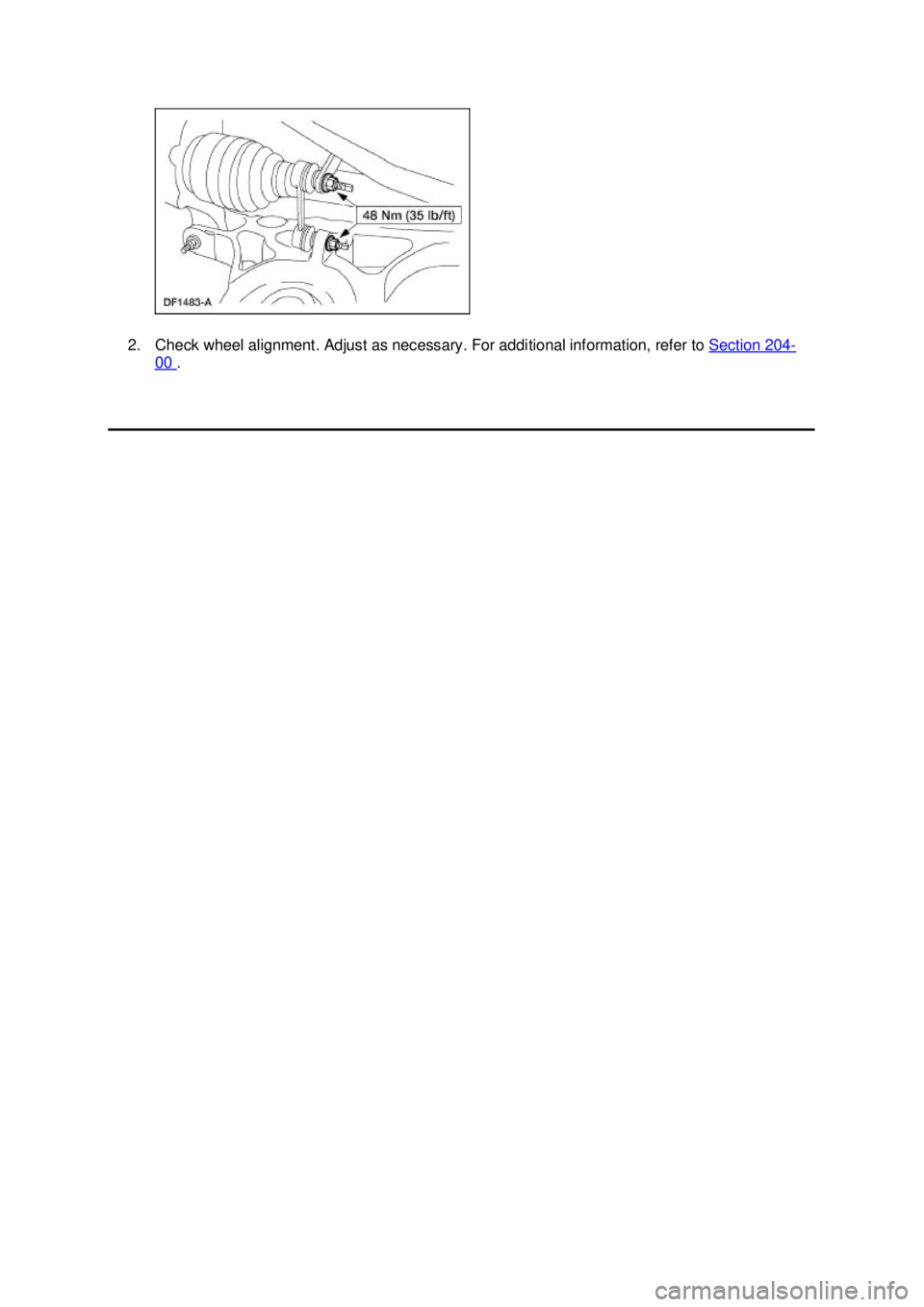

2. Check wheel alignment. Adjust as necessary. For additional information, refer to
Section 204 -
00 . Klj . 3 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

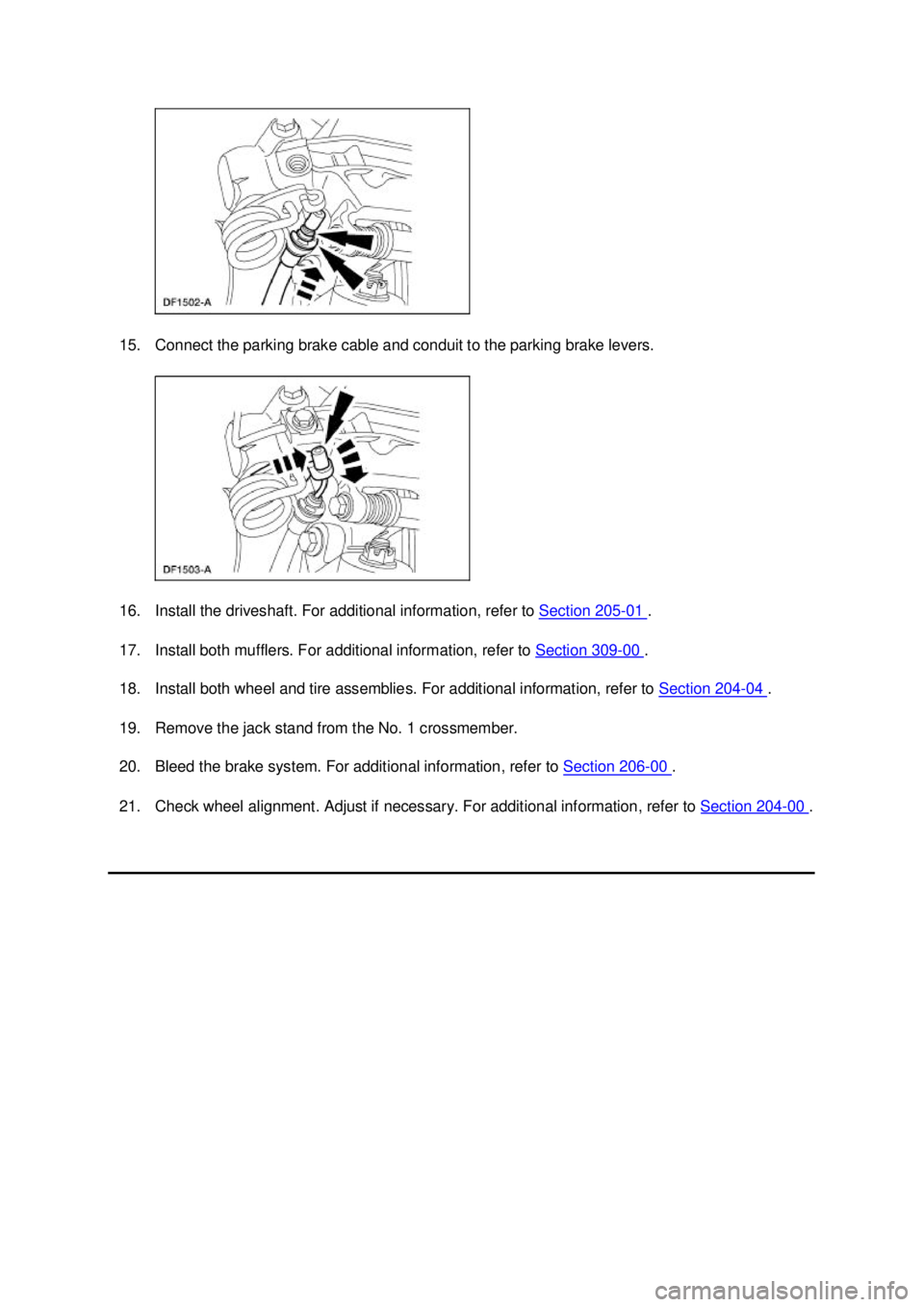

15. Connect the parking brake cable and conduit to the parking brake levers.
16. Install the driveshaft. For additional information, refer to
Section 205 - 01 .
17. Install both mufflers. For additional information, refer to Section 309 - 00 .
18. Install both wheel and tire assemblies. For additional information, refer to Section 204 - 04 .
19. Remove the jack stand from the No. 1 crossmember.
20. Bleed the brake system. For additional information, refer to Section 206 - 00 .
21. Check wheel alignment. Adjust if necessary. For additional information, refer to Section 204 - 00 . Klj . 8 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Wheels And Tires
Inspection and Verification
WARNING: A vehicle equipped with a Traction- Lok® differential will always have both
wheels driving. If, while the vehicle is being serviced, only one wheel is raised off the ground
and the rear axle is driven by the engine, the wheel on the ground could drive the vehicle off
the stand or jack. Be sure both rear wheels are off the ground.
WARNING: Never run the engine with one wheel off the ground, for example, when
changing a tire. The wheel(s) resting on the ground could cause the vehicle to move.
WARNING: Do not balance the wheels and tires while they are mounted on the vehicle.
Possible tire disintegration or differential failure could result, causing personal injury and
extensive component damage. Use off- vehicle wheel and tire balancer only.
Be sure to follow the warnings when carrying out inspection and verification.
Road Test
Verify the customer concern by carrying out a road test on a smooth road. If any vibrations are
apparent, refer to Section 100 - 04 .
To maximize tire performance, inspect for signs of incorrect inflation and uneven wear, which may
indicate a need for balancing, rotation, or front suspension alignment.
Correct tire pressure and driving techniques have an important influence on tire life. Heavy cornering,
excessively rapid acceleration and unnecessary sharp braking increases tire wear.
Replacement tires must follow the recommended:
ztire sizes.
z speed rating.
z load range.
z tire construction type.
Use of any other tire size or type can seriously affect:
zride.
z handling.
z speedometer/odometer calibration.
z vehicle ground clearance.
z tire clearance between the body and chassis.
SECTION 204-
04: Wheels and Tires 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
wheel bearing life.
z brake cooling.
New wheels need to be installed when vehicle's wheels:
zare bent.
z are cracked.
z are dented.
z are heavily corroded.
z are leaking.
z have elongated wheel hub bolt holes.
z have excessive lateral or radial runout.
Wheel and tire assemblies are attached by six wheel nuts.
It is mandatory to use only the tire sizes recommended on the tire chart attached to the vehicle. Larger
or smaller tires can damage the vehicle, affect durability, and require changing the speedometer
calibration. Make sure wheel size and offsets match those recommended for the tire in use. 1. Inspect for signs of uneven wear that may indicate a need for balancing, rotation, front suspension alignment, damaged tie- rod, or steering components.
2. Check tires for: zcuts.
z stone bruises.
z abrasions
z blisters.
z embedded objects.
3. Tread wear indicators are molded into the bottom of the tread grooves. Install a new tire when the indicator bands become visible.
Symptom Chart Symptom Chart Condition
Possible Sources Action
z Tires show
excess wear on
edge of tread z
Underinflated tires. zADJUST air pressure
in tires.
z Vehicle overloaded. zRETURN vehicle.
NOTIFY customer of
overload condition.
z High- speed cornering. zRETURN vehicle.
NOTIFY customer of
cause of condition.
z Incorrect ride height. zSET ride height.
z Incorrect wheel alignment. zSET alignment to
specification. REFER Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

to
Section 204 - 00 .
z Incorrect tire rotation
intervals. z
ADVISE customer of
condition. ROTATE
tires.
z Tires show
excess wear in
center of tread z
Tires overinflated. zADJUST air pressure.
z Other excessive
tire wear
problems z
Incorrect tire rotation
intervals. z
ADVISE customer of
condition. ROTATE
tires.
z Incorrect tire pressure. zADJUST pressure.
z Loose or leaking shock
absorbers. z
TIGHTEN or INSTALL
new shock absorbers
as necessary.
z Incorrect wheel alignment. zSET alignment to
specification. REFER
to Section 204 - 00 .
z Loose, worn or damaged
suspension components. z
REFER to Section 204 - 00 .
z Wheel and tire assembly
out of balance. z
BALANCE wheel and
tire assembly.
z Excessive lateral or radial
runout of wheel. z
REFER to Section 100 - 04 .
z Wobble or
shimmy z
Damaged wheel bearings. zREFER to Section 204 - 00 .
z Loose or damaged
suspension components. z
REFER to Section 204 - 00 .
z Bent wheel. zINSTALL a new wheel
as necessary.
z Damaged tire. zINSTALL a new tire as
necessary.
z Loose wheel nuts. zTIGHTEN to
specification.
z High- speed
shake z
Wheel hub face/pilot/bolt
circle runout.
z Tires/wheels.
z Wheel bearings.
z Suspension/steering
linkage.
z Engine.
z Transmission.
z Brake discs/imbalance. z
REFER to Section 100 - 04 .
z Vehicle vibration zDriveline — engine.
z Tires. z
REFER to Section 100 - 04 . Klj . 3 ba
