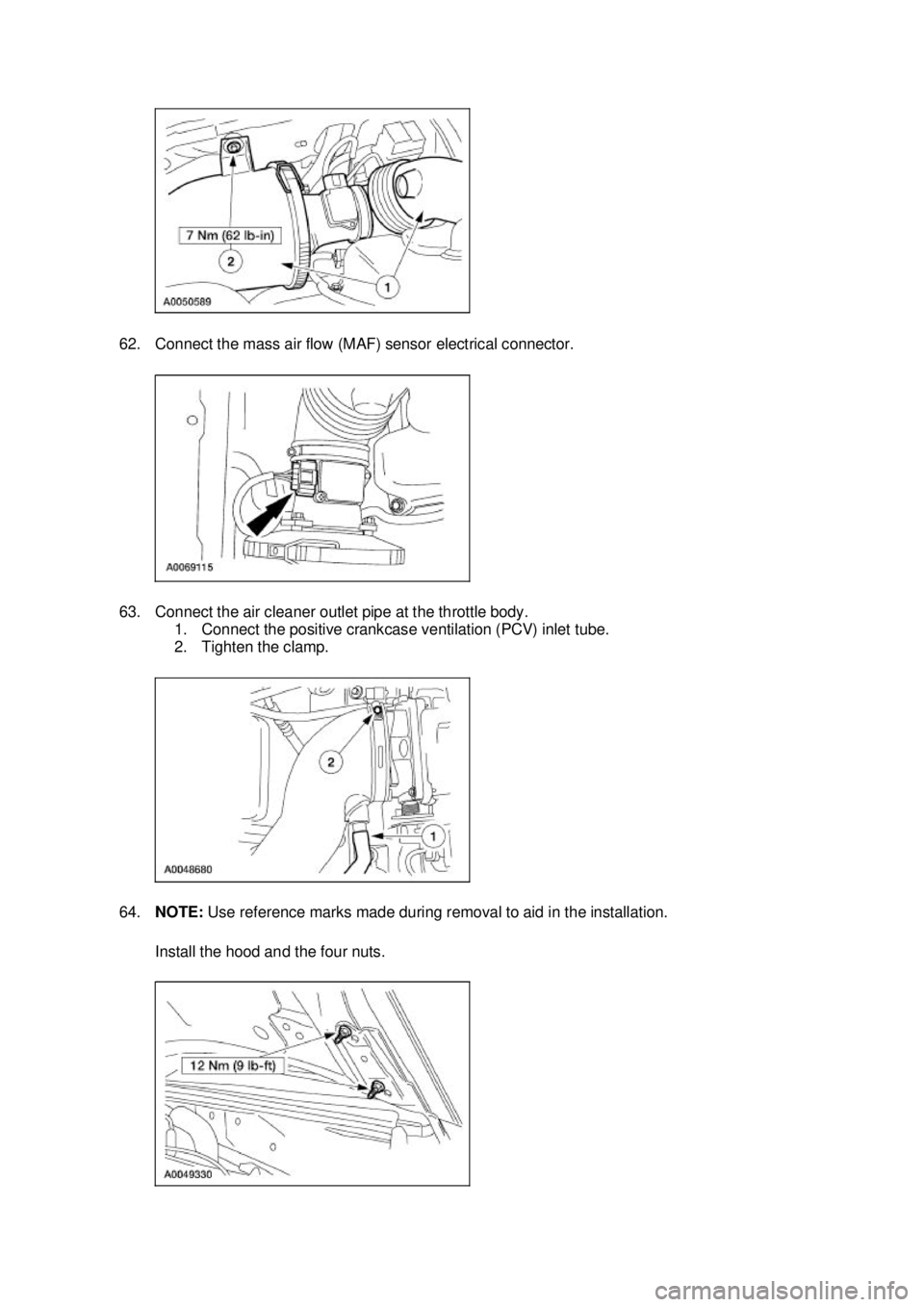

62. Connect the mass air flow (MAF) sensor electrical connector.
63. Connect the air cleaner outlet pipe at the throttle body.
1. Connect the positive crankcase ventilation (PCV) inlet tube.
2. Tighten the clamp.
64. NOTE: Use reference marks made during removal to aid in the installation.
Install the hood and the four nuts. Klj . 17 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Cooling
CAUTION: Vehicle cooling systems are filled with Motorcraft Premium Gold Engine
Coolant VC -7-A (in Oregon VC -7-B) or equivalent meeting Ford specification WSS- M97B51-A1
(yellow color). Always fill the cooling system with the same coolant that is present in the
system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC- 6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
The 4.6L cooling system components include the:
zblock heater
z engine coolant temperature (ECT) sensor
z fan blade, fan motor and fan shroud assembly
z radiator
z pressure relief cap
z radiator draincock
z coolant pump
z coolant thermostat
z oil filter adapter
z radiator overflow hose
z upper radiator hose
z lower radiator hose
The radiator overflow hose circulates the coolant.
The coolant thermostat:
zcontrols the engine coolant temperature.
z allows for quicker engine warm- up.
The degas bottle/coolant expansion tank:
zprovides a location for service fill.
z contains coolant expansion and system pressurization.
z provides air separation during operation.
z replenishes the engine coolant to the system.
The engine coolant flows:
zfrom the lower radiator hose to the coolant pump.
z from the coolant pump to the engine block and the cylinder heads.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

The 3.8L cooling system components include the:
zblock heater
z engine coolant temperature (ECT) sensor
z fan blade, fan motor and fan shroud assembly
z radiator
z radiator cap
z radiator draincock
z coolant pump
z coolant thermostat
z oil filter adapter
z radiator overflow hose
z coolant expansion tank
z upper radiator hose
z lower radiator hose
The fan blade draws air through the radiator to help cool the engine coolant.
The fan motor:
zoperates only when the ignition switch is in the RUN position.
z will not operate with the switch in the OFF position.
The engine coolant:
zflows through the radiator tubes and is cooled by passing air over the cooling fins.
z is then circulated from the radiator outlet tank through the coolant pump and into the cylinder
block to complete the circuit.
A closed coolant thermostat returns the engine coolant to the coolant pump. An open coolant
thermostat allows the engine coolant to flow to the radiator.
CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency,
and corrosion protection to the engine and cooling components. In order to obtain these
protections, the engine coolant must be maintained at the correct concentration and fluid level
in the degas bottle (4.6L) or coolant expansion tank (3.8L).
When adding engine coolant, use a 50/50 mixture of engine coolant and deionized water.
To maintain the integrity of the coolant and the cooling system:
zNOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
Add Motorcraft Premium Gold Engine Coolant VC-7- A (in Oregon VC-7-B) or equivalent
meeting Ford specification WSS- M97B51-A1 (yellow color). Use the same coolant that is
present in the cooling system. Do not mix coolant types.
z Do not add/mix orange-colored Motorcraft Speciality Orange Engine Coolant VC- 2 or equivalent Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

meeting Ford specification WSS-
M97B44-D. Mixing coolants may degrade the coolant's
corrosion protection.
z Do not add alcohol, methanol, or brine, or any engine coolants mixed with alcohol or methanol
antifreeze. These can cause engine damage from overheating or freezing.
z Do not mix with recycled coolant unless it meets the requirements of Ford specification WSS-
M97B51- A1. Not all coolant recycling processes meet these Ford specifications. Use of such
coolants can harm the engine and cooling system components.
The coolant temperature sensor (4.6L) or cylinder head temperature sensor (3.8L) provides a signal to
the temperature gauge.
The optional block heater:
zelectrical heating element is installed in the core plug opening.
„uses a standard 110V electrical supply
z keeps the engine coolant warm during cold weather. Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

3. If the inspection reveals an obvious concern that can be readily identified, repair as necessary.
4.
CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium Gold
Engine Coolant VC -7-A (in Oregon VC -7-B) or equivalent meeting Ford specification
WSS- M97B51- A1 (yellow color). Always fill the cooling system with the same coolant that
is present in the system. Do not mix coolant types.
NOTE: The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft
Premium Gold Engine Coolant from yellow to golden tan.
Inspect the coolant condition. 1. Inspect the coolant color.
„If Motorcraft Premium Gold Engine Coolant (yellow color) VC-7- A (in Oregon VC-
7- B) or equivalent meeting Ford specification WSS-M97B51- A1 has a clear or
pale yellow color, this indicates higher water content than required.
„ Dark brown can indicate unauthorized stop leak may have been used. Use
Motorcraft Cooling System Stop Leak Pellets VC- 6 or equivalent meeting Ford
specification ESE-M99B37- 5 except as noted in ES-F6SE-19A511- AA only.
„ A light or reddish brown color indicates that rust may be present in the cooling
system. Flush the system and refill with the correct mixture of water and engine
coolant.
„ An iridescent sheen on top of the coolant can indicate a trace of oil is entering the
system. For additional information on engine diagnosis, refer to Section 303 - 00 .
„ A milky brown color may indicate that either engine oil or transmission fluid is
entering the cooling system. If transmission fluid is suspected, the cause may be a
leaky radiator. Pressure test the cooling system. For additional information, refer
to component tests in this section. If engine oil is suspected the cause of the leak
may be internal to the engine. For additional information, refer to Section 303 - 00 .
2. If the engine coolant appearance is acceptable, test the engine coolant freezing point
range with the battery and anti- freeze tester. The freezing point should be in the range -
40°C to - 20°C (-50°F to - 10°F). If the vehicle is driven in cold climates less than - 32°C (-
34°F), it may be necessary to increase the coolant concentration to get adequate freeze
protection.
„Maximum coolant concentration is 60% coolant/40% water.
„ Minimum coolant concentration is 40% coolant/60% water. 3. Adjust coolant range and level, if necessary: Visual Inspection Chart
Mechanical
z
Leaks
z Hoses
z Hose clamps
z Water gasket
z Head gaskets
z Intake manifold gasket
z Coolant pump
z Radiator
z Degas bottle/coolant expansion tank
z Heater core
z Fan/fan clutch
z Engine coolant temperature sensor (4.6L)
z Cylinder head temperature sensor (3.8L)
z Circuitry Klj . 2 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

pressure reading. Release pressure and repeat the test. Install a new radiator cap if the
pressure is not 99.3-
121.4 kPa (14.4-17.6 psi).
Cap — 4.6L
WARNING: Never remove the pressure relief cap while the engine is operating or when the
cooling system is hot. Failure to follow these instructions can result in damage to the cooling
system or engine or personal injury. To avoid having scalding hot coolant or steam blow out of
the degas bottle when removing the pressure relief cap, wait until the engine is cooled, then
wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the
pressure is released from the cooling system. When you are sure all the pressure has been
released, turn and remove the pressure relief cap (still with a cloth).
1. Remove the pressure relief cap from the degas bottle.
2. Follow the instructions from the pressure tester.
3. NOTE: If the plunger of the pump is depressed too quickly, an erroneous pressure reading will
result.
Slowly depress the plunger of the pressure test pump until the pressure gauge reading stops
increasing and note the highest pressure reading obtained.
4. If the pressure test gauge readings are not within specifications, install a new pressure relief cap. If the pressure test gauge readings are within specifications, carry out the cooling system
Pressure Test.
Thermostat — Water
A new water thermostat should be installed only after the following electrical and mechanical tests
have been carried out.
Thermostat — Electrical Test
CAUTION: Always vent the exhaust to the outside when carrying out this test.
NOTE: The electrical thermostat test is most accurate if carried out at less than 37.8°C (100°F)
ambient air. This test may be carried out with or without the hood open and with the engine warm or
cold.
1. Check the engine coolant level. Fill as needed.
2. With the ignition OFF, remove the engine coolant temperature (ECT) (4.6L) or cylinder head temperature (CHT) (3.8L) sensor harness connector and attach ECT (4.6L) or CHT (3.8L)
Sensor "T" Cable as a jumper between the powertrain control module (PCM) (12A650) and the
ECT (4.6L) or CHT (3.8L) sensor. Attach the 73III Automotive Meter to the ECT (4.6L) or CHT
(3.8L) Sensor "T" Cable. Voltage values (0- 5 V) may now be monitored while the sensor retains
its connection to the wiring harness.
An appropriate diagnostic tool may be used to monitor the ECT on vehicles equipped with data link connector (DLC). Klj . 8 ba
102003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

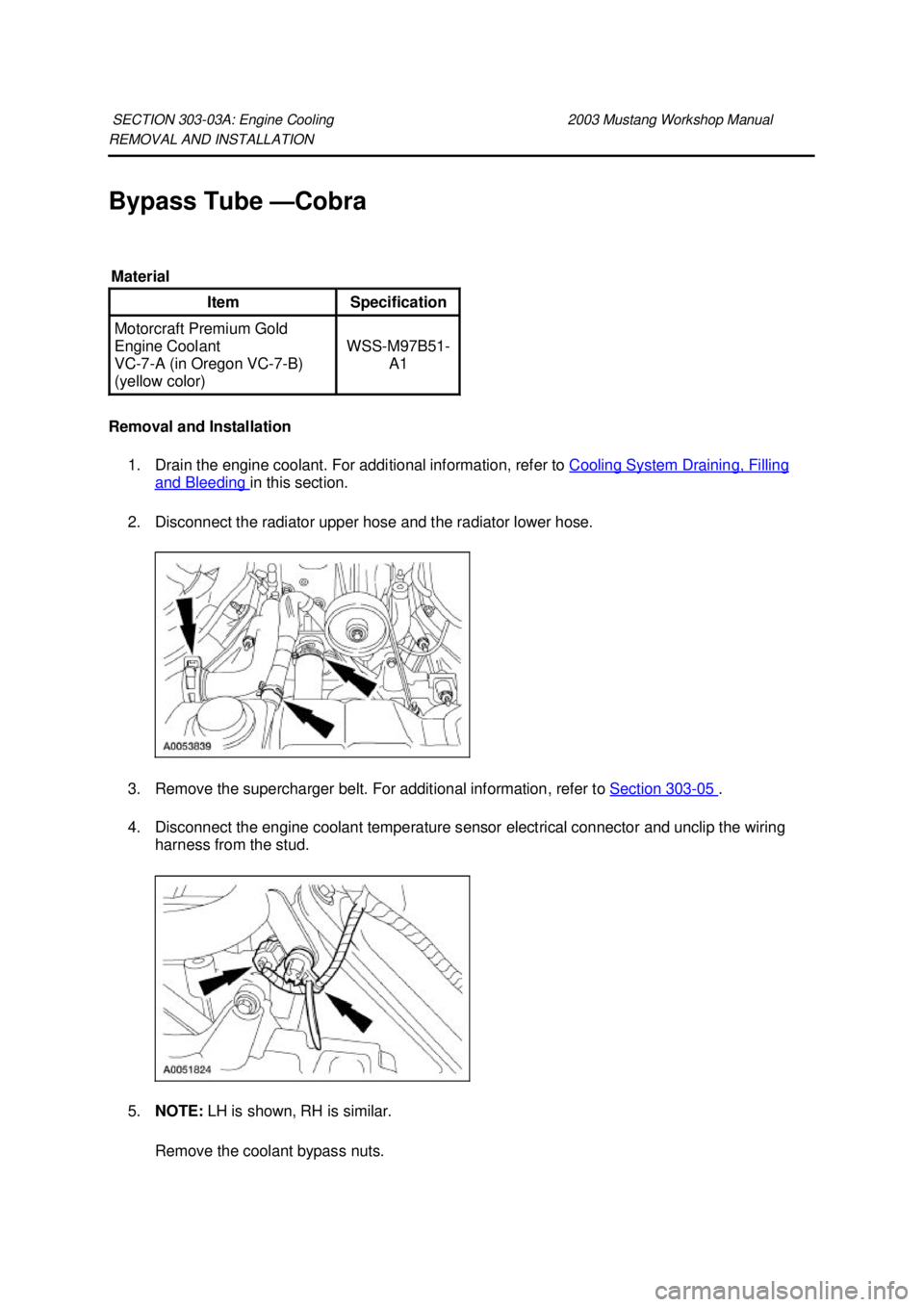

REMOVAL AND INSTALLATION
Bypass Tube —
Cobra
Removal and Installation 1. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
2. Disconnect the radiator upper hose and the radiator lower hose.
3. Remove the supercharger belt. For additional information, refer to Section 303 - 05 .
4. Disconnect the engine coolant temperature sensor electrical connector and unclip the wiring harness from the stud.
5. NOTE: LH is shown, RH is similar.
Remove the coolant bypass nuts.
SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

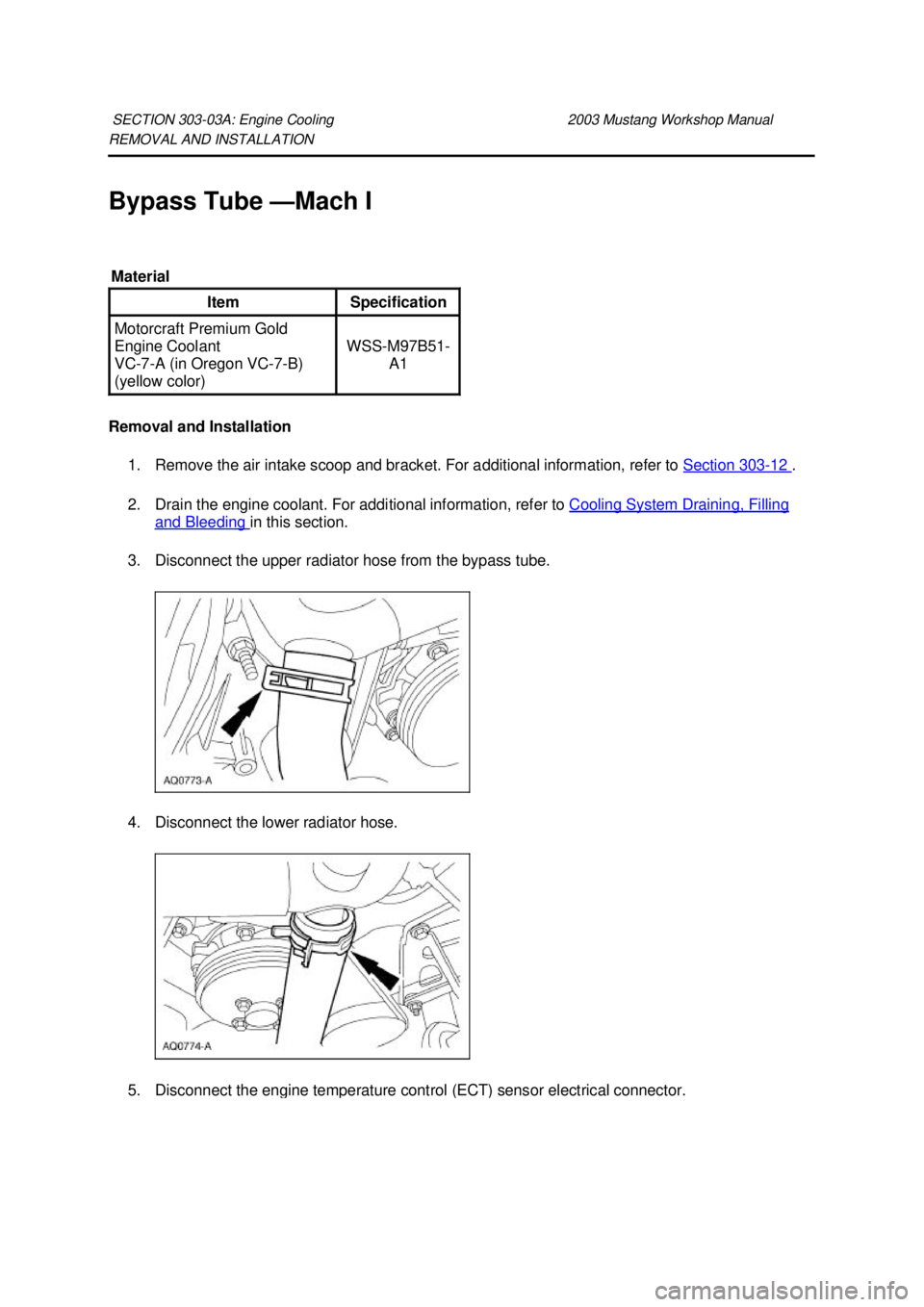

REMOVAL AND INSTALLATION
Bypass Tube —
Mach I
Removal and Installation 1. Remove the air intake scoop and bracket. For additional information, refer to Section 303 - 12 .
2. Drain the engine coolant. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
3. Disconnect the upper radiator hose from the bypass tube.
4. Disconnect the lower radiator hose. 5. Disconnect the engine temperature control (ECT) sensor electrical connector. SECTION 303-
03A: Engine Cooling 2003 Mustang Workshop Manual Material
Item Specification
Motorcraft Premium Gold
Engine Coolant
VC
-7-A (in Oregon VC-7- B)
(yellow color) WSS-
M97B51-
A1 Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Throttle Body
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Disconnect the accelerator cable (9A758) and (if equipped) the speed control actuator cable (9A825).
4. NOTE: Discard the throttle body gasket after removing the throttle body.
Remove the throttle body. zRemove the nuts.
z Remove the bolts.
SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

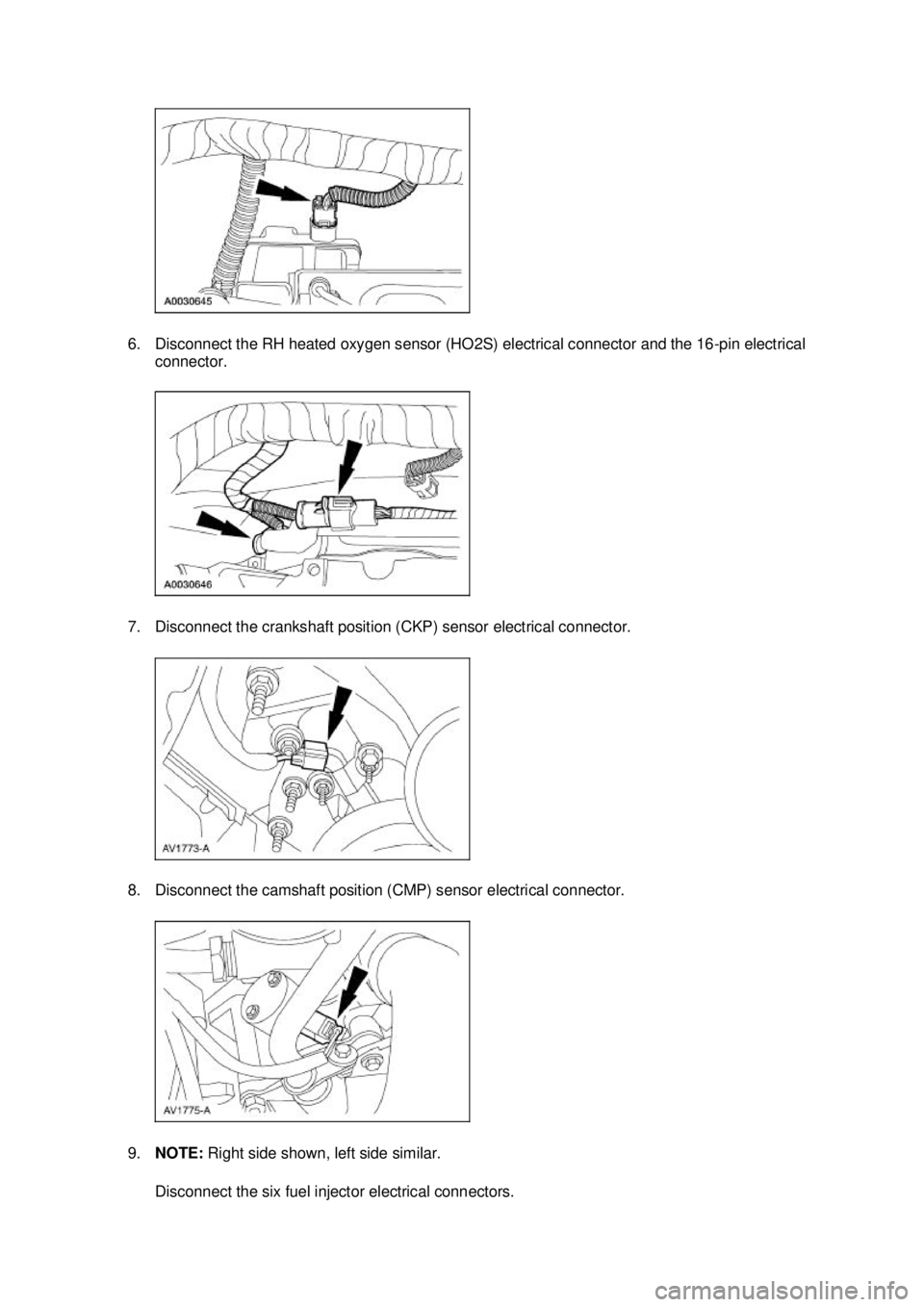

6. Disconnect the RH heated oxygen sensor (HO2S) electrical connector and the 16-
pin electrical
connector.
7. Disconnect the crankshaft position (CKP) sensor electrical connector.
8. Disconnect the camshaft position (CMP) sensor electrical connector.
9. NOTE: Right side shown, left side similar.
Disconnect the six fuel injector electrical connectors. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
