15. Connect the parking brake cable and conduit to the parking brake levers.
16. Install the driveshaft. For additional information, refer to
Section 205 - 01 .
17. Install both mufflers. For additional information, refer to Section 309 - 00 .
18. Install both wheel and tire assemblies. For additional information, refer to Section 204 - 04 .
19. Remove the jack stand from the No. 1 crossmember.
20. Bleed the brake system. For additional information, refer to Section 206 - 00 .
21. Check wheel alignment. Adjust if necessary. For additional information, refer to Section 204 - 00 . Klj . 8 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 9 ba
92003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Shock Absorber
Removal
WARNING: All vehicles are equipped with gas pressurized shock absorbers which will
extend unassisted. Do not apply heat or flame to the shock absorbers during removal or
component servicing. Failure to follow these instructions can result in personal injury.
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number must be installed if installation becomes necessary. If substitution is
necessary, the part must be of the same finish and property class. Torque values must be used
as specified during reassembly to make sure of correct retention of these parts.
CAUTION: When using a hoist that lifts the vehicle by the frame, install new shock
absorbers one at a time.
1. Open the luggage compartment lid. Position the carpet out of the way.
2. Remove and discard the retaining nut, washer and insulator assembly.
3. Raise the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the shock absorber (18125). 1. Remove and discard the bolt and nut.
2. Remove the shock absorber.
Installation SECTION 204-
02: Rear Suspension 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

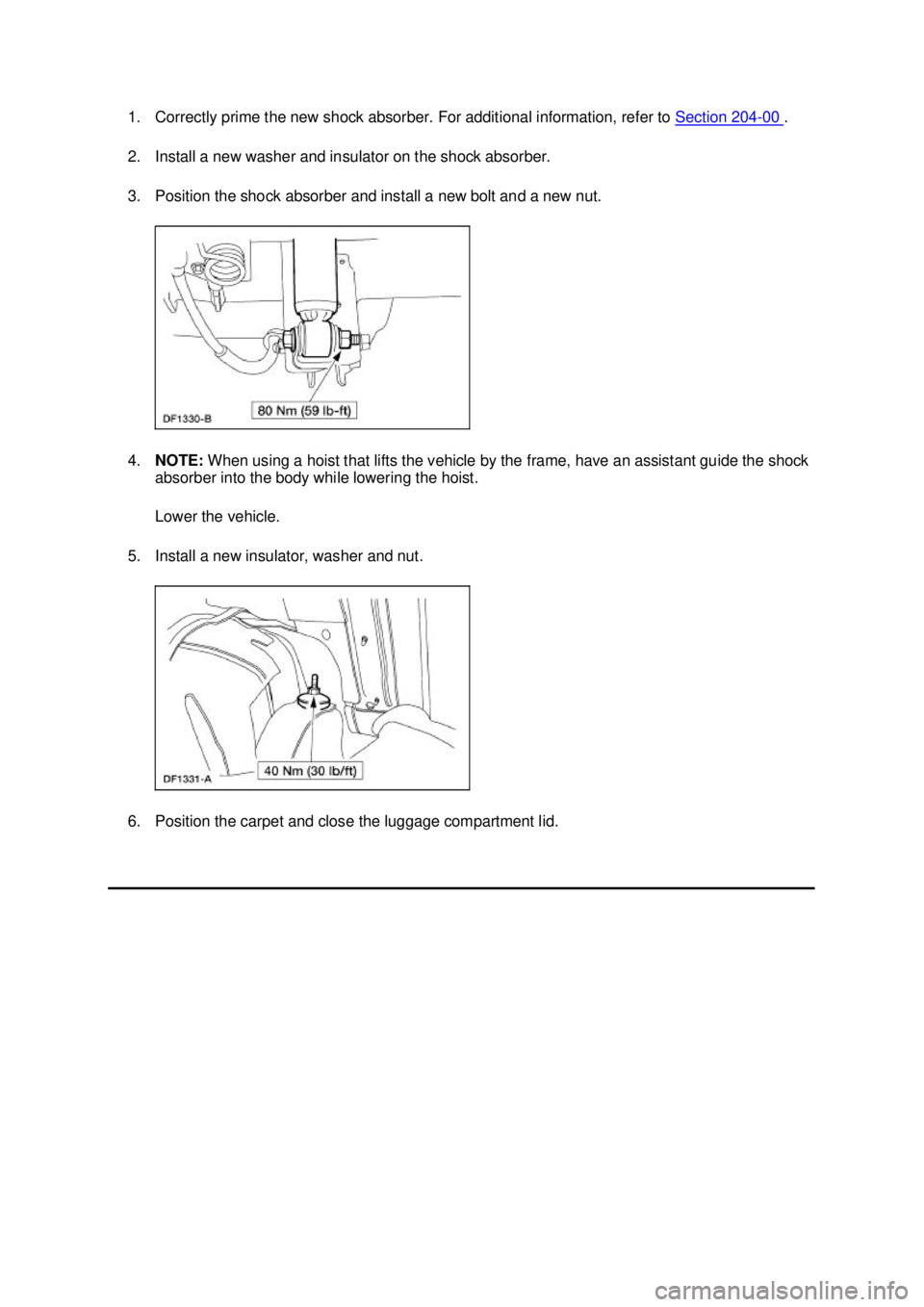

1. Correctly prime the new shock absorber. For additional information, refer to
Section 204 - 00 .
2. Install a new washer and insulator on the shock absorber.
3. Position the shock absorber and install a new bolt and a new nut.
4. NOTE: When using a hoist that lifts the vehicle by the frame, have an assistant guide the shock
absorber into the body while lowering the hoist.
Lower the vehicle.
5. Install a new insulator, washer and nut.
6. Position the carpet and close the luggage compartment lid. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Damper
Removal
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number must be installed if installation becomes necessary. If substitution is
necessary, the part must be of the same finish and property class. Torque values must be used
as specified during reassembly to make sure of correct retention of these parts.
1. Raise the vehicle. For additional information, refer to Section 100 - 02 .
2. Remove the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
3. Disconnect the damper from the axle. 1. Remove the bolt.
2. Disconnect the damper.
4. Remove the damper. 1. Remove the nut.
2. Remove the outer washer.
3. Remove the damper.
Installation 1. Make sure the inner washer is positioned on the stud. SECTION 204-
02: Rear Suspension 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

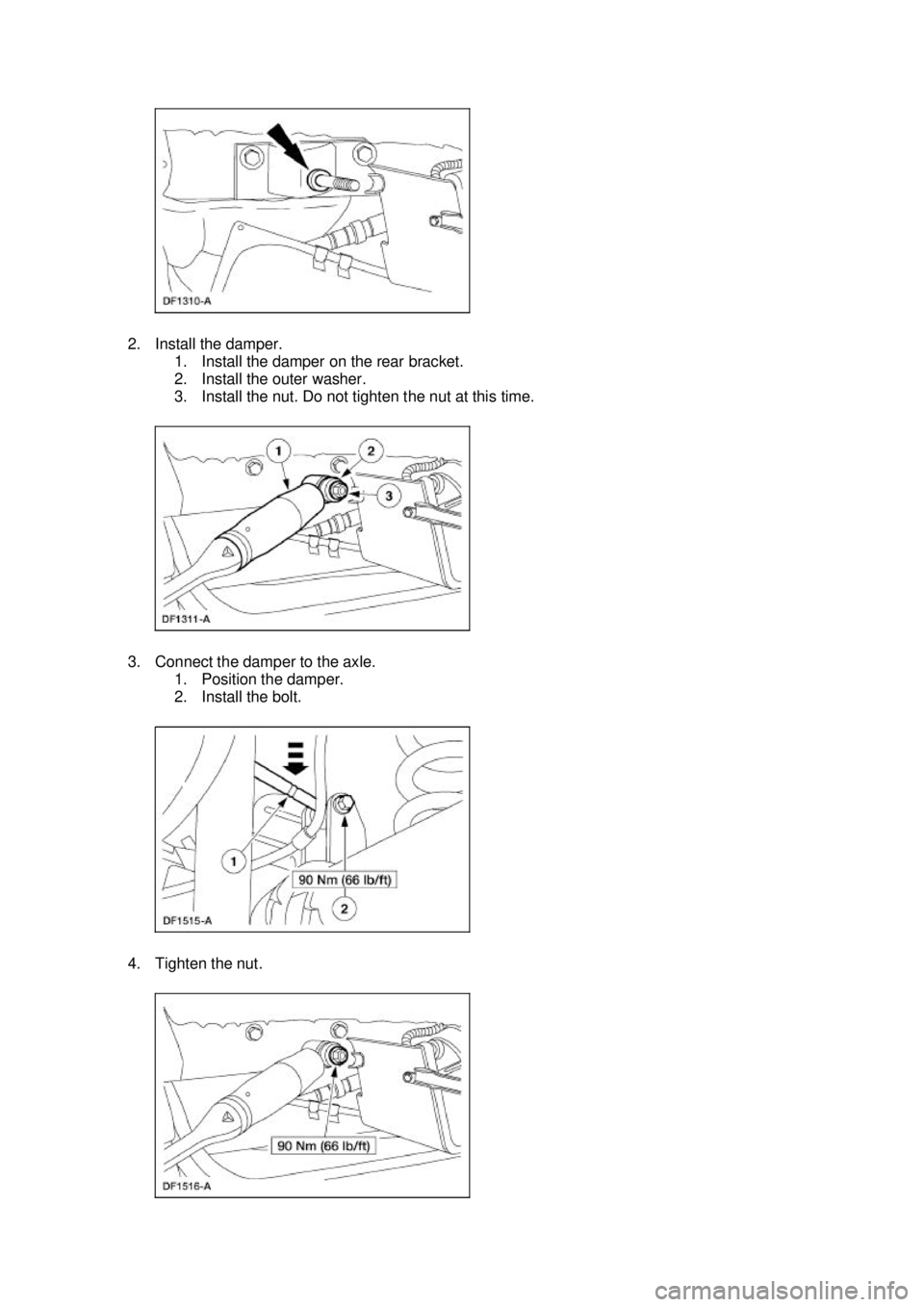

2. Install the damper.
1. Install the damper on the rear bracket.
2. Install the outer washer.
3. Install the nut. Do not tighten the nut at this time.
3. Connect the damper to the axle. 1. Position the damper.
2. Install the bolt.
4. Tighten the nut. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

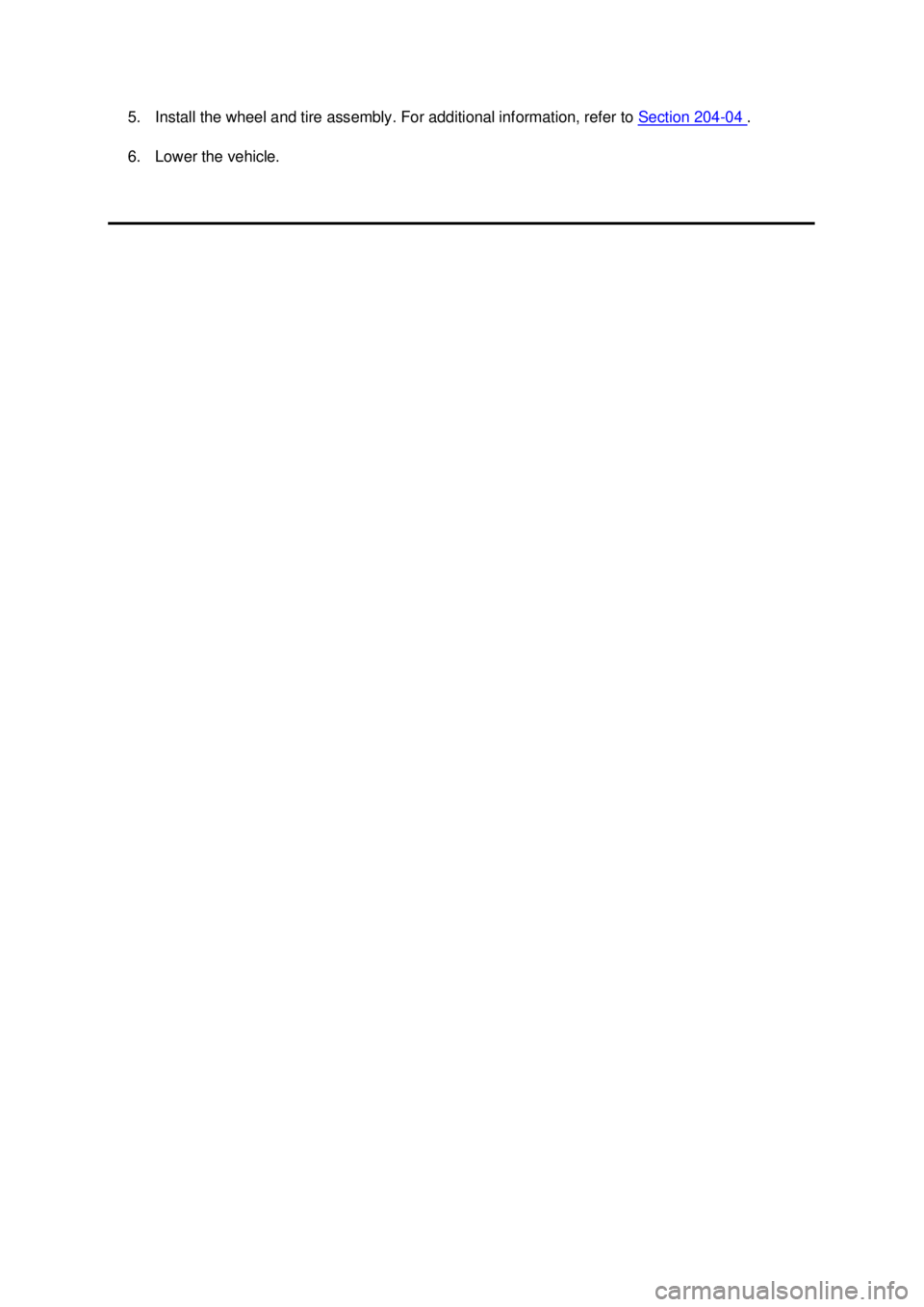

5. Install the wheel and tire assembly. For additional information, refer to
Section 204 - 04 .
6. Lower the vehicle. Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 204-
04: Wheels and Tires 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants
Silicone Dielectric Compound D7AZ-
19A331-
A ESE-
M1C171- A Cleaners
Liquid Soap ESR-
M99B135- A Professional Choke and Linkage Cleaner
E8AZ-
19A501- AA ESR-
M14P10- A Custom Bright Metal Cleaner
8A-19522-
A ESR-
M5B194- B Aluminum Wheel Repair Compound E7AZ-
19554-
A ESA-
M4G280- A Tire Balance Weight
Max tire balance weight 140g (5 oz) per wheel
70g (2.5 oz) per flange Tire inflation
Tires See safety certification sticker located inside glove
compartment door
Torque Specifications Description Nm lb-
ft Wheel nuts 129 95 Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
