FORD MUSTANG 2003 Workshop Manual

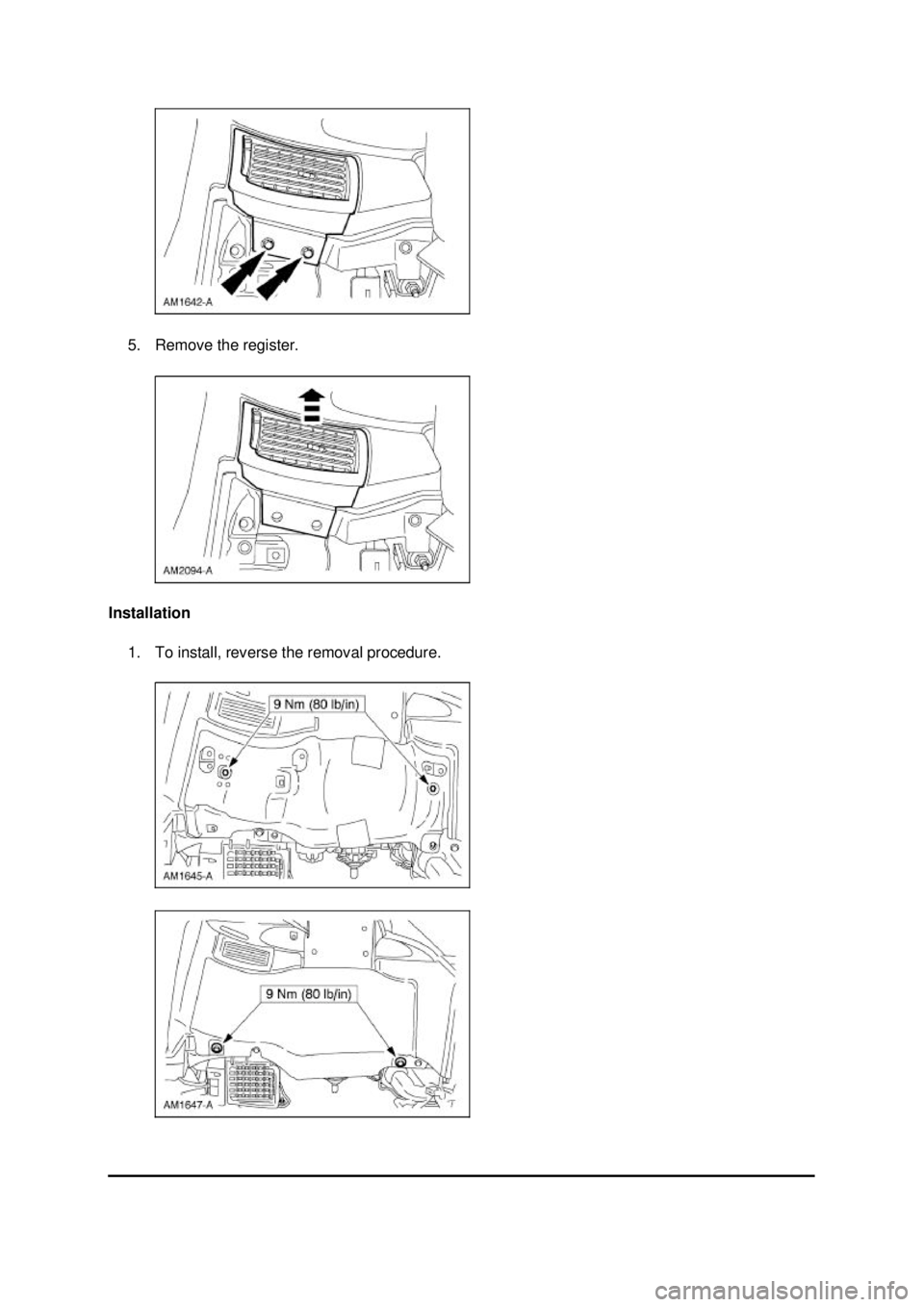

5. Remove the register.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Register —
Center
Removal and Installation
NOTE: The center register is incorporated into the instrument panel center finish panel.
For additional information, refer to Section 501 - 12 .
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Nozzle —
LH Demister and Hose
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws.
3. Remove the hose and the nozzle from the instrument panel.
Installation
1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Nozzle —
RH Demister and Hose
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws.
3. Remove the hose and the nozzle from the instrument panel.
Installation
1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Duct —
Floor
Removal 1. Remove the evaporator core housing. For additional information, refer to Section 412 - 02 .
2. Remove the screws and remove the heater outlet floor duct.
Installation 1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Duct —
Defroster
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws and remove the defroster duct.
Installation 1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Duct —
RH Instrument Panel Register
Removal 1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the screws and remove the duct.
Installation 1. To install, reverse the removal procedure.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Plenum Chamber
Removal
1. Remove the instrument panel. For additional information, refer to Section 501 - 12 .
2. Remove the audio unit. For additional information, refer to Section 415 - 01 .
3. If equipped, remove the CD player. For additional information, refer to Section 415 - 01 .
4. Remove the instrument panel center finish panel screws.
5. Remove the instrument panel center finish panel screw.
6. Unsnap and remove the instrument panel center finish panel.
7. Remove the screws and remove the defroster duct.
SECTION 412-
01: Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
