22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

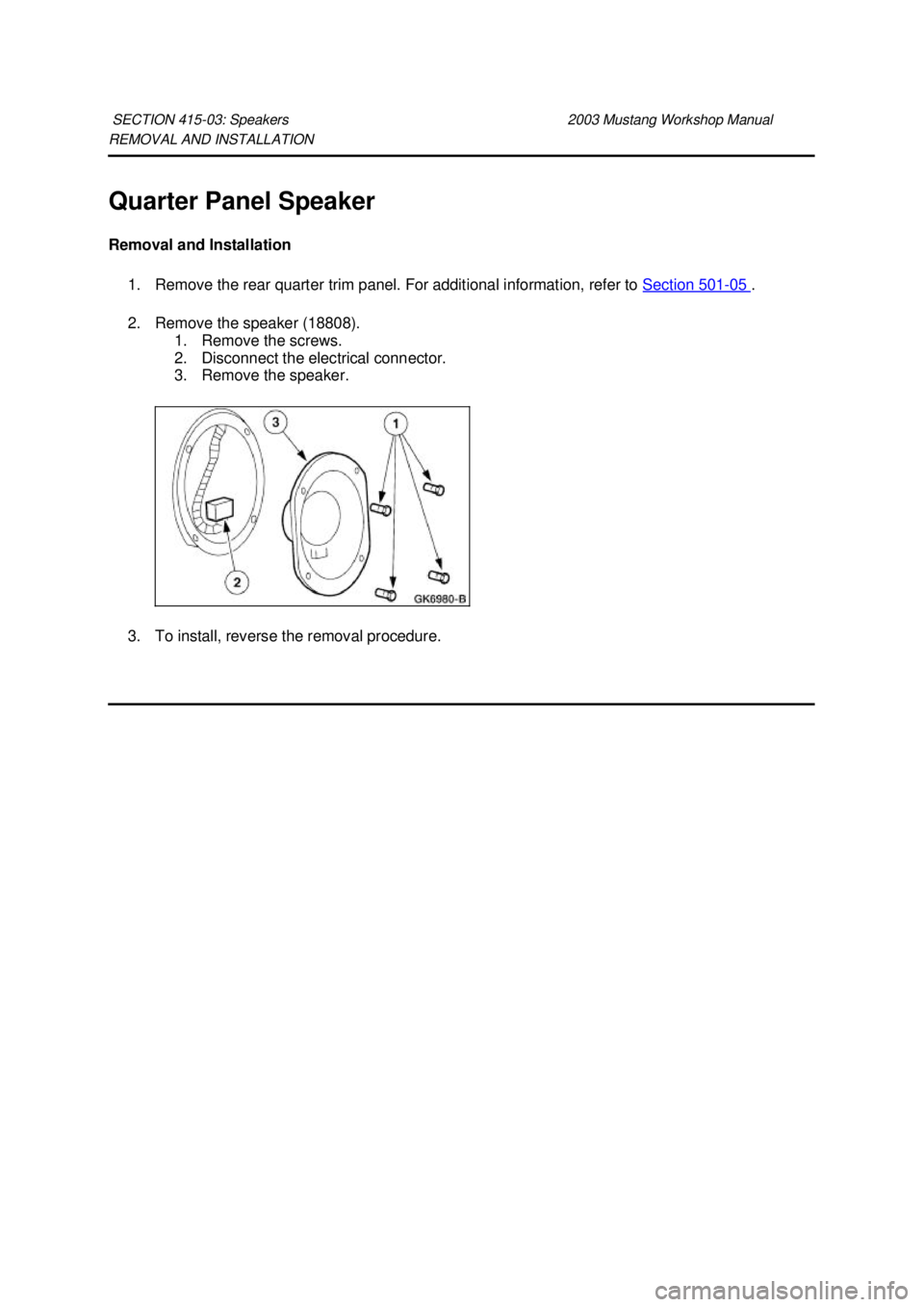

Quarter Panel Speaker
Removal and Installation
1. Remove the rear quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the speaker (18808). 1. Remove the screws.
2. Disconnect the electrical connector.
3. Remove the speaker.
3. To install, reverse the removal procedure.
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Battery ground cable bolt 10 89
Rear lamp nuts 6 53 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Exterior Lighting
The exterior lighting system consists of the following components:
zheadlamps (13008)
z parking lamps
z rear lamps (13404)
z high mounted stoplamp
z license lamps
z front turn lamps
z reversing lamps
z fog lamps (if equipped)
z headlamp switch (11654)
z fog lamp switch (if equipped)
z brake pedal position (BPP) switch (13480)
z multifunction switch (13K359)
z digital transmission range (DTR) sensor (A/T)
z reversing lamp switch (M/T)
z electronic flasher
z fog lamp relays (if equipped)
SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Headlamps
Refer to Wiring Diagrams Cell
85 , Headlamps for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the headlamps.
2. Visually inspect for the following obvious signs of mechanical and electrical damage.
3. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart.
Symptom Chart SECTION 417-
01: Exterior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73III Automotive Meter or
equivalent
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Damaged headlamp switch (11654)
z Damaged multifunction switch (13K359) z
Battery junction box (BJB) fuse 2 (30A)
z Central junction box (CJB) fuse(s):
„38 (20A)
„ 4 (7.5A) (RH)
„ 10 (7.5A) (LH)
z Damaged wiring harness
z Loose or corroded connections
z Headlamp bulb
Symptom Chart Condition
Possible Sources Action
z Both
headlamps are
inoperative z
Battery junction
box (BJB) fuse 2
(30A).
z Headlamp
switch.
z Circuitry.
z Multifunction
switch. z
Go To Pinpoint Test A .
z The low beams
are inoperative z
Circuitry.
z Multifunction
switch. z
Go To Pinpoint Test B . Klj . 1 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
PINPOINT TEST A: BOTH HEADLAMPS ARE INOPERATIVE z
The high beams
are inoperative z
Central junction
box (CJB) fuse
38 (20A).
z Circuitry.
z Multifunction
switch. z
Go To Pinpoint Test C .
z One low beam
headlamp is
inoperative z
Central junction
box (CJB) fuse
(s):
„10 (7.5A)
(LH).
„ 4 (7.5A)
(RH).
z Headlamp bulb.
z Circuitry. z
Go To Pinpoint Test D .
z One high beam
headlamp is
inoperative z
Headlamp bulb.
z Circuitry. z
Go To Pinpoint Test E .
z The headlamps
are on
continuously z
Headlamp
switch.
z Circuitry.
z Multifunction
switch. z
Go To Pinpoint Test F .
z The flash- to-
pass feature is
inoperative z
Circuitry.
z Multifunction
switch. z
CHECK Circuit 196 (DB/OG) for
an open. REPAIR if necessary. IF
OK, INSTALL a new multifunction
switch; REFER to Section 211 -
05 . TEST the system for normal
operation. Test Step Result / Action to Take
A1 CHECK THE VOLTAGE TO THE HEADLAMP SWITCH
z
Disconnect: Headlamp Switch C205.
z Measure the voltage between headlamp switch C205 Pin
B1, Circuit 196 (DB/OG), harness side and ground.
z Is the voltage greater than 10 volts? Yes
GO to
A2 .
No
REPAIR the circuit. TEST
the system for normal
operation. A2 CHECK CIRCUIT 15 (RD/YE) FOR OPEN
z
Disconnect: Multifunction Switch C202a. Yes Klj . 2 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST B: THE LOW BEAMS ARE INOPERATIVE z
Measure the resistance between headlamp switch C205 Pin
H, Circuit 15 (RD/YE), harness side and multifunction switch
C202a Pin 15, Circuit 15 (RD/YE), harness side.
z Is the resistance less than 5 ohms? RECONNECT headlamp
switch C205. GO to
A3 .
No
REPAIR the circuit. TEST
the system for normal
operation. A3 CHECK THE VOLTAGE TO THE MULTIFUNCTION SWITCH
z
Place the headlamp switch in the ON position.
z Measure the voltage between multifunction switch C202a
Pin 15, Circuit 15 (RD/YE), harness side and ground.
z Is the voltage greater than 10 volts? Yes
INSTALL a new
multifunction switch;
REFER to
Section 211 - 05 .
TEST the system for
normal operation.
No
INSTALL a new headlamp
switch; REFER to Lamp Switch — Headlamp in this
section. TEST the system
for normal operation. Test Step Result / Action to Take
B1 CHECK THE VOLTAGE TO CJB FUSE 4 (7.5A) AND CJB
FUSE 10 (7.5A) z
Key in OFF position.
z Place the multifunction switch in the low beam position.
z Remove Fuse 4 (7.5A) and Fuse 10 (7.5A) from the CJB.
z Place the headlamp switch in the ON position.
z Measure the voltage between the following CJB fuse
terminals and ground:
„Fuse 4 connector.
„ Fuse 10 connector. Yes
Go To Pinpoint Test D
.
No
GO to B2 . Klj . 3 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST C: THE HIGH BEAMS ARE INOPERATIVE z
Are the voltages greater than 10 volts? B2 CHECK CIRCUIT 13 (RD/BK) FOR OPEN
z
Disconnect: Multifunction Switch C202a.
z Measure the resistance between multifunction switch C202a
Pin 13, Circuit 13 (RD/BK), harness side and CJB Fuse 4
and Fuse 10.
z Are the resistances less than 5 ohms? Yes
INSTALL a new
multifunction switch;
REFER to
Section 211 - 05 .
TEST the system for normal
operation.
No
REPAIR the circuit. TEST
the system for normal
operation. Test Step Result / Action to Take
C1 CHECK THE CIRCUIT 12 (LG/BK)
z
Disconnect: LH Headlamp C1021.
z Measure the resistance between LH headlamp C1021 Pin
2, Circuit 12 (LG/BK), harness side and CJB Fuse 38 (20A).
z Is the resistance less than 5 ohms? Yes
RECONNECT the LH
headlamp (13008). GO to
C2
.
No
REPAIR the circuit. TEST
the system for normal
operation. C2 CHECK THE VOLTAGE TO CJB FUSE 38 (20A)
z
Place the headlamp switch in the ON position.
z Place the multifunction switch in the high beam position.
z Measure the voltage between CJB Fuse 38 (20A) and
ground. Yes
Go To Pinpoint Test E
.
No Klj . 4 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST D: ONE LOW BEAM HEADLAMP IS INOPERATIVE z
Is the voltage greater than 10 volts? GO to
C3 .
C3 CHECK CIRCUIT 632 (GY/OG) FOR OPEN
z
Disconnect: Multifunction Switch C202a.
z Measure the resistance between the CJB Fuse 38 (20A),
and multifunction switch C202a Pin 12, Circuit 632
(GY/OG), harness side.
z Is the resistance less than 5 ohms? Yes
INSTALL a new
multifunction switch; REFER
to
Section 211 - 05 . TEST
the system for normal
operation.
No
REPAIR the circuit. TEST
the system for normal
operation. Test Step Result / Action to Take
D1 CHECK THE VOLTAGE TO THE INOPERATIVE HEADLAMP
BULB z
Disconnect: Inoperative Headlamp.
z Place the headlamp switch in the ON position.
z Place the multifunction switch in the low beam position.
z Measure the voltage between RH headlamp C1041 Pin 3,
Circuit 1056 (DB/LG), or LH headlamp C1021 Pin 3, Circuit
1055 (WH/LG), harness side and ground.
z Is the voltage greater than 10 volts? Yes
INSTALL a new
headlamp bulb; REFER
to
Bulb — Headlamp in
this section. TEST the
system for normal
operation.
No
REPAIR the circuit. TEST
the system for normal
operation. Klj . 5 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST E: ONE HIGH BEAM HEADLAMP IS INOPERATIVE
PINPOINT TEST F: THE HEADLAMPS ARE ON CONTINUOUSLY
Test Step Result / Action to Take
E1 CHECK THE VOLTAGE TO THE INOPERATIVE HEADLAMP
BULB z
Key in OFF position.
z Disconnect: Inoperative Headlamp.
z Place the headlamp switch in the ON position.
z Place the multifunction switch in the high beam position.
z Measure the voltage between LH headlamp C1021 Pin 2,
Circuit 12 (LG/BK), or RH headlamp C1041 Pin 2, Circuit 12
(LG/BK), harness side and ground.
z Is the voltage greater than 10 volts? Yes
INSTALL a new headlamp
bulb; REFER to
Bulb —
Headlamp in this section.
TEST the system for
normal operation.
No
REPAIR the circuit. TEST
the system for normal
operation. Test Step Result / Action to Take
F1 CHECK THE HEADLAMP SWITCH
z
Key in OFF position.
z Disconnect: Headlamp Switch C205.
z Are the headlamps on? Yes
GO to
F2 .
No
INSTALL a new headlamp
switch; REFER to Lamp Switch — Headlamp in this
section. TEST the system for
normal operation. F2 CHECK THE MULTIFUNCTION SWITCH
z
Disconnect: Multifunction Switch C202a.
z Are the headlamps on? Yes
GO to
F4 .
No
GO to F3 .
F3 CHECK CIRCUIT 15 (RD/YE) FOR SHORT TO POWER
z
Measure the voltage between multifunction switch
C202a Pin 15, Circuit 15 (RD/YE), harness side and
ground. Yes
REPAIR the circuit. TEST the
system for normal operation.
No
INSTALL a new multifunction
switch; REFER to
Section 211 -
05 . TEST the system for
normal operation. Klj . 6 ba
82003 Mustang Workshop Manual
