FORD MUSTANG 2003 Workshop Manual

SPECIFICATIONS
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Subwoofer nut (coupe) 10 — 89
Subwoofer nut (Mach 1000) 25 18 — Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Speakers
NOTE:
Premium sound speakers (18808) are labeled with either 6 OHMS or 8 OHMS.
z The coupe has a four-speaker system, with two door- mounted speakers and two in the package
tray panel (46506).
z On the convertible, the two rear speakers are located behind the quarter trim panel. (31012)
z The MACH 460 subwoofer system has eight speakers. On the coupe, two are located in each
door and four are in the subwoofer assembly. On the convertible, two speakers are in each door
and two are mounted in each subwoofer assembly behind the rear quarter trim panels. Both the
coupe and convertible subwoofer assemblies are not repairable.
z The MACH 1000 has all the components of the MACH 460 system plus two additional
subwoofers located on each side of the trunk and four additional amplifiers. These subwoofers
can be serviced independently.
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Speakers
Refer to
Section 415 - 00 .
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Door Speaker —
Upper
Removal and Installation 1. Remove the front door trim panels (239420). For additional information, refer to Section 501 -
05 .
2. Remove the upper speaker access cover.
3. Remove the upper speaker housing. 1. Remove the screw.
2. Remove the upper speaker housing.
3. Disconnect the electrical connector.
4. To install, reverse the removal procedure.
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Door Speaker —
Lower
Removal and Installation 1. Remove the front door trim panel (239420). For additional information, refer to Section 501 - 05 .
2. Remove the speaker (18808). 1. Remove the screws.
2. Disconnect the electrical connector.
3. Remove the speaker.
3. To install, reverse the removal procedure.
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

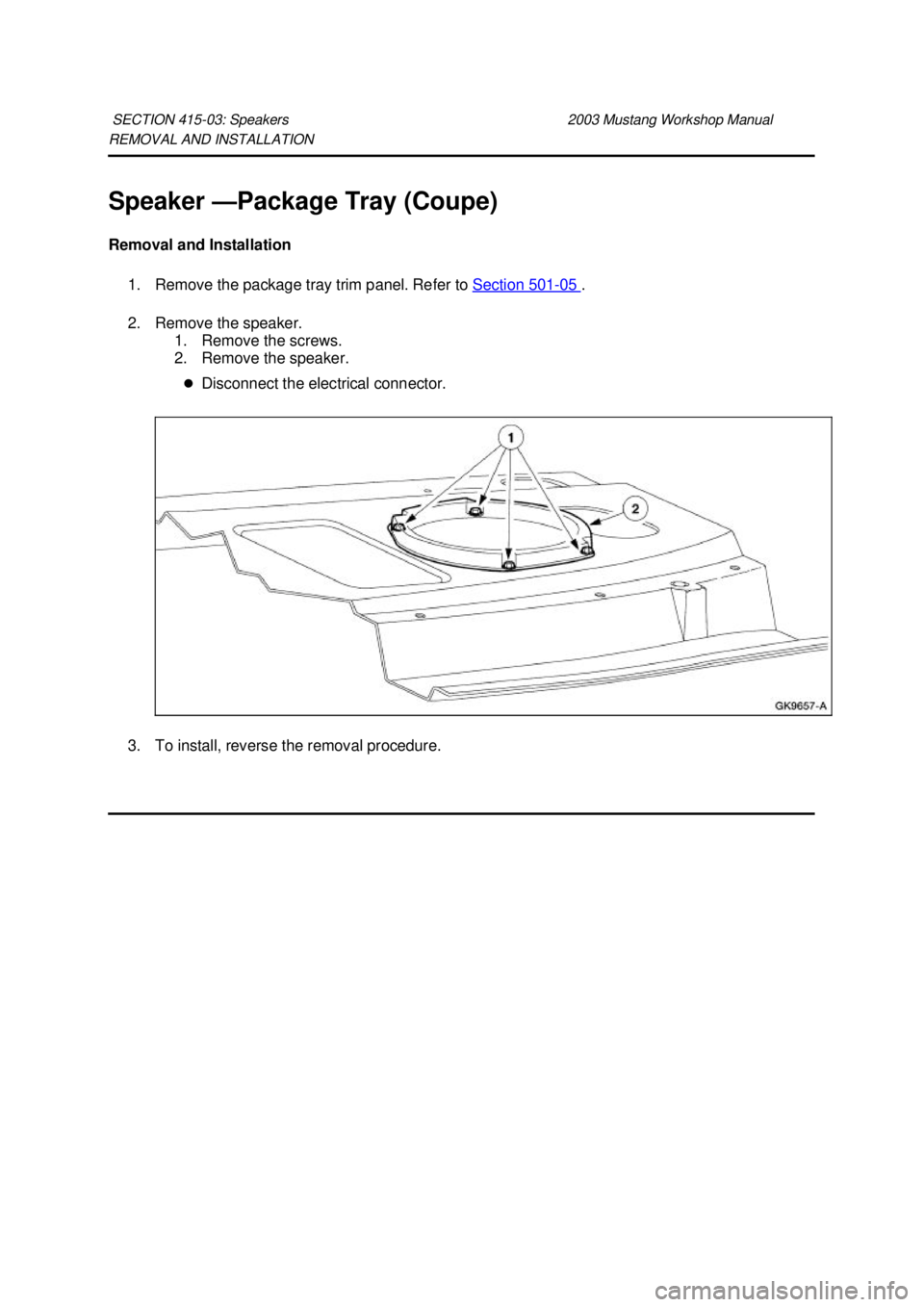

Speaker —
Package Tray (Coupe)
Removal and Installation 1. Remove the package tray trim panel. Refer to Section 501 - 05 .
2. Remove the speaker. 1. Remove the screws.
2. Remove the speaker.
z Disconnect the electrical connector.
3. To install, reverse the removal procedure.
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

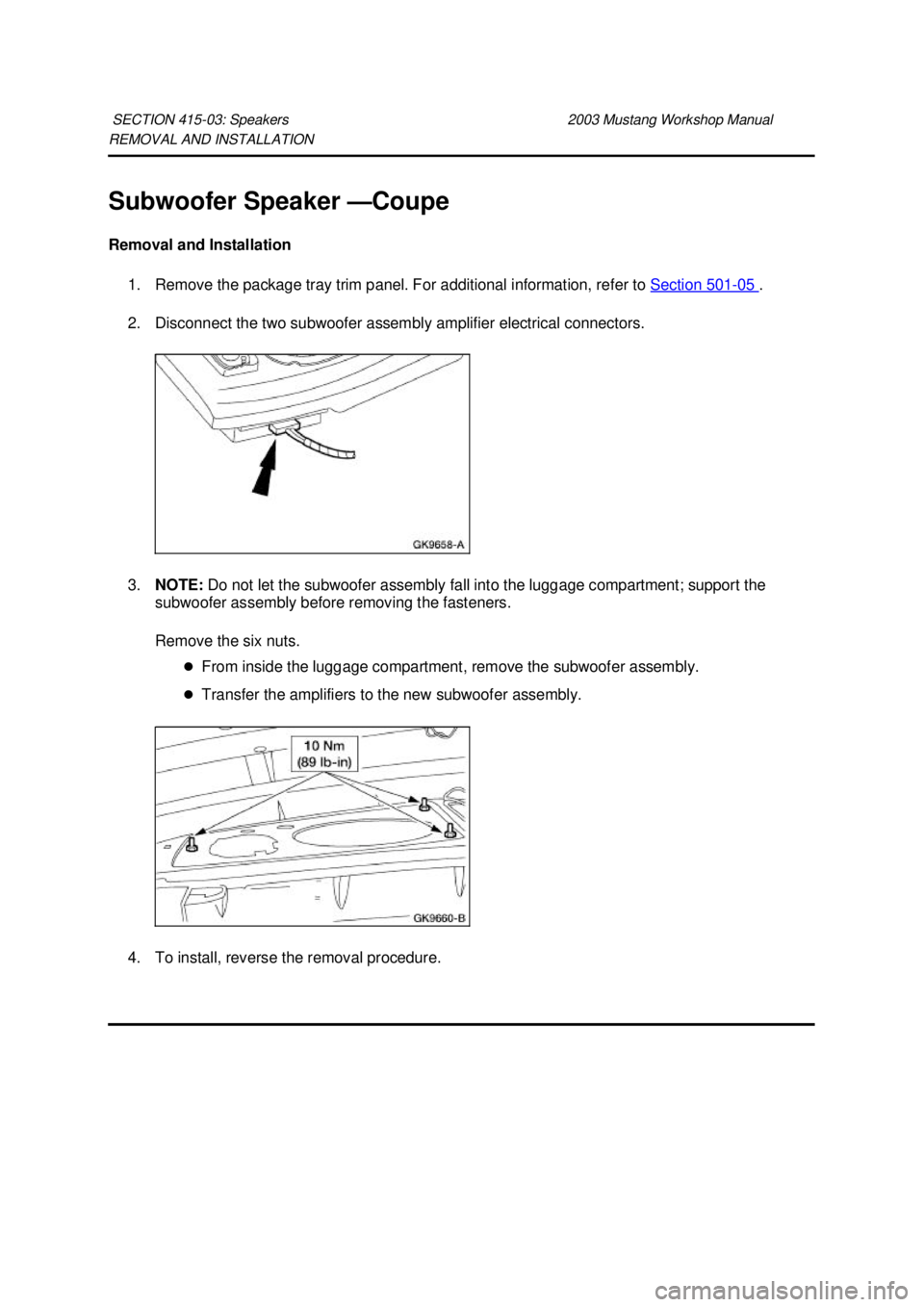

Subwoofer Speaker —
Coupe
Removal and Installation 1. Remove the package tray trim panel. For additional information, refer to Section 501 - 05 .
2. Disconnect the two subwoofer assembly amplifier electrical connectors.
3. NOTE: Do not let the subwoofer assembly fall into the luggage compartment; support the
subwoofer assembly before removing the fasteners.
Remove the six nuts.
zFrom inside the luggage compartment, remove the subwoofer assembly.
z Transfer the amplifiers to the new subwoofer assembly.
4. To install, reverse the removal procedure.
SECTION 415-
03: Speakers 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

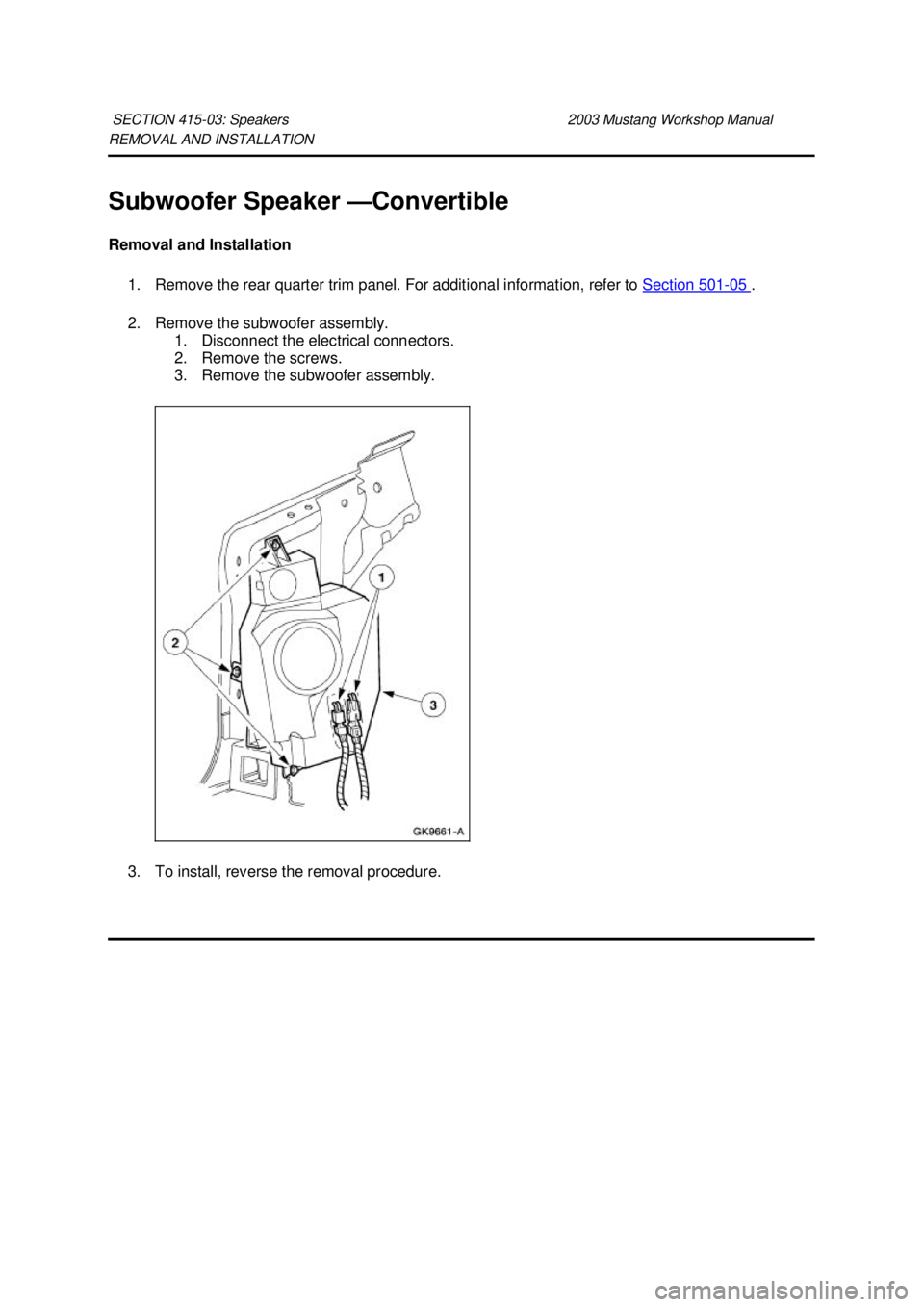

Subwoofer Speaker —
Convertible
Removal and Installation 1. Remove the rear quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the subwoofer assembly. 1. Disconnect the electrical connectors.
2. Remove the screws.
3. Remove the subwoofer assembly.
3. To install, reverse the removal procedure.
