FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Subwoofer Amplifier —
Coupe
Removal and Installation 1. Remove the subwoofer amplifier. 1. Remove the screws.
2. Remove the subwoofer amplifier.
2. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Subwoofer Amplifier —
Mach 1000
Removal and Installation 1. Remove the subwoofer assembly. 1. Remove the two attaching nuts.
2. Remove the screw.
3. Disconnect the electrical connectors.
2. Remove the subwoofer amplifiers. zRemove the bracket- to-body attaching nuts.
z Disconnect the electrical connectors.
3. To install, reverse the removal procedure.
SECTION 415-
01: Audio Unit 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Battery ground cable 10 89 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Antenna
The antenna system consists of:
zantenna mast
z antenna base and cable
z antenna lead- in cable
The radio antenna uses a two- piece coaxial cable to connect the audio unit to the antenna. The front
antenna lead- in cable is connected to the audio unit and has an in- line connector at the RH cowl side.
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

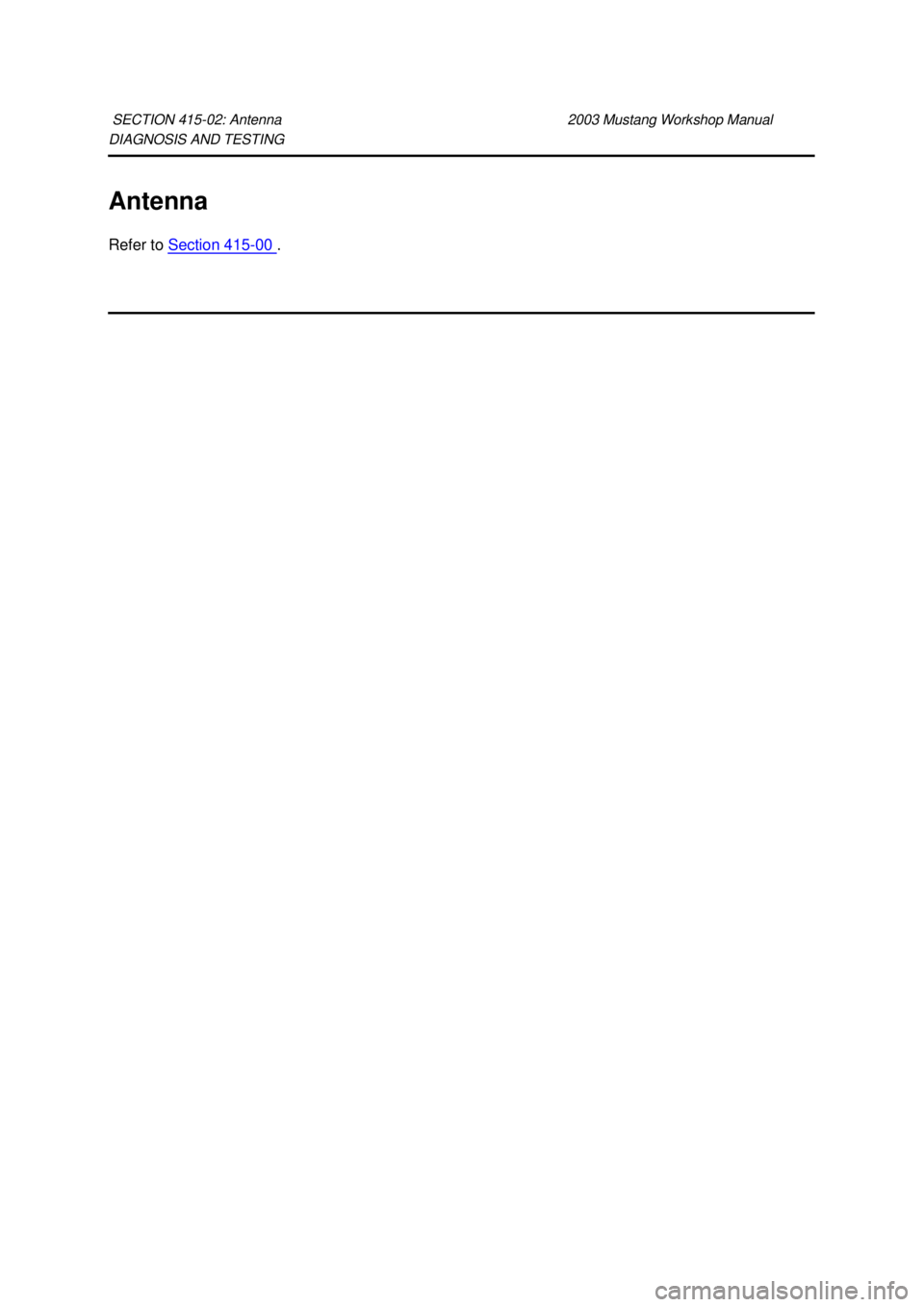

DIAGNOSIS AND TESTING
Antenna
Refer to
Section 415 - 00 .
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Antenna
Removal
1. Lower the glove compartment by releasing the stops from the instrument panel.
2. Disconnect the antenna in- line connector.
3. Remove the antenna base and cable. 1. Remove the radio antenna base cap.
2. Remove the screws.
3. Remove the antenna base and cable.
z Disconnect the antenna cable grommet.
Installation 1. To install, reverse the removal procedure.
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Cable —
Antenna Lead In
Removal 1. Remove the audio unit. Refer to Section 415 - 01 .
2. Lower the glove compartment by releasing the stops from the instrument panel.
3. Disconnect the antenna in- line connector.
4. Remove the antenna lead in cable. 1. Disconnect the pin- type retainers.
2. Remove the antenna lead in cable.
Installation 1. To install, reverse the removal procedure.
SECTION 415-
02: Antenna 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
