GENERAL PROCEDURES
Striker Adjustment
NOTE:
After adjusting the door latch striker plate, verify that the door can be closed easily and fits
tightly.
1. Loosen the door latch striker plate bolts.
2. Reposition the door latch striker plate from side to side or up and down as necessary.
3. Tighten the door latch striker plate bolts.
4. Check the adjustment. Repeat the procedure as necessary.
SECTION 501-
03: Body Closures 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Door
Removal
1. Remove the door trim panel. For additional information, refer to Section 501 - 05 .
2. Disconnect the necessary electrical connectors to remove the harness and grommet from the door.
3. NOTE: This procedure requires an assistant.
NOTE: Mark the location of the door hinge on the door.

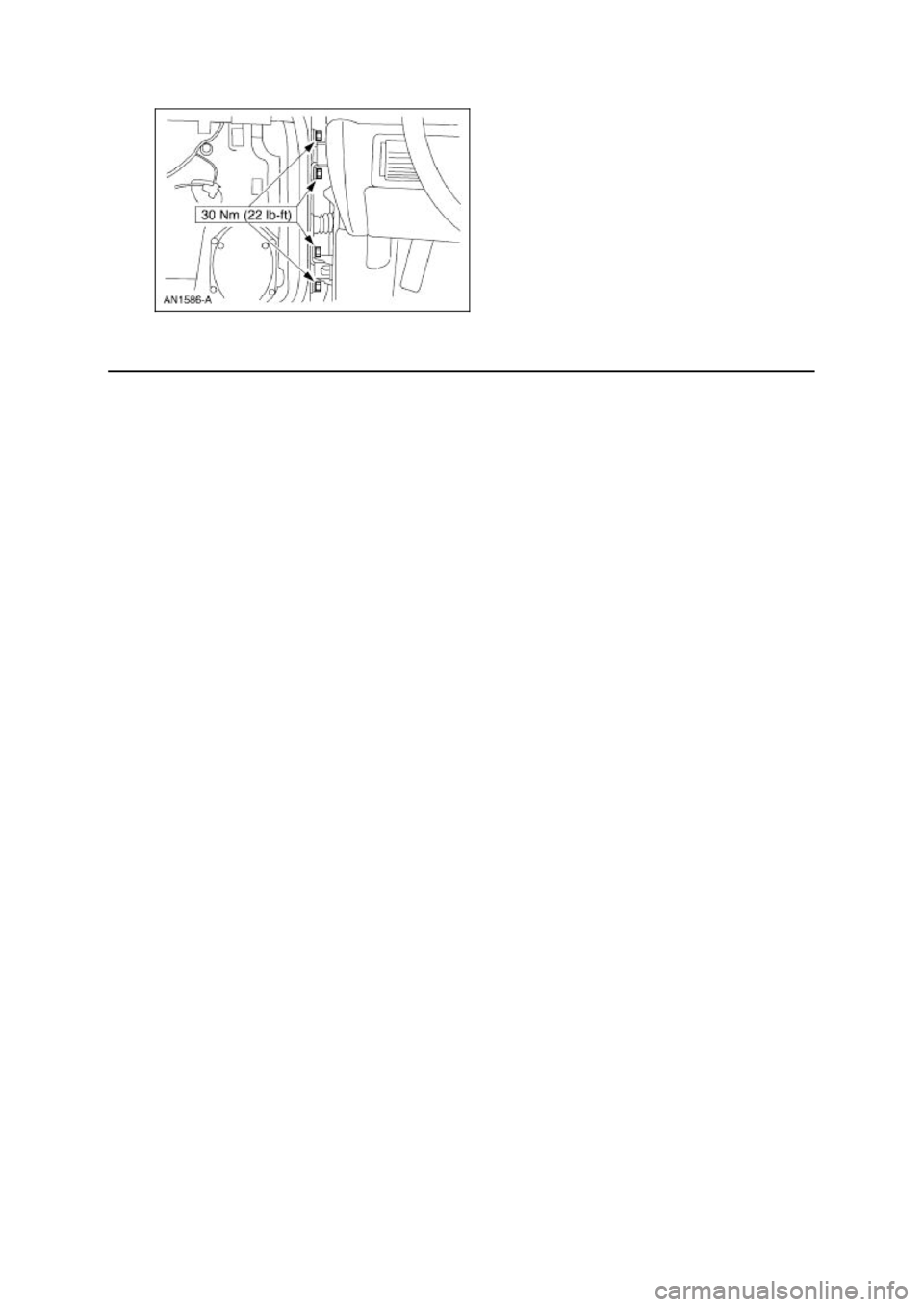

Remove bolts and the door.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
03: Body Closures 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

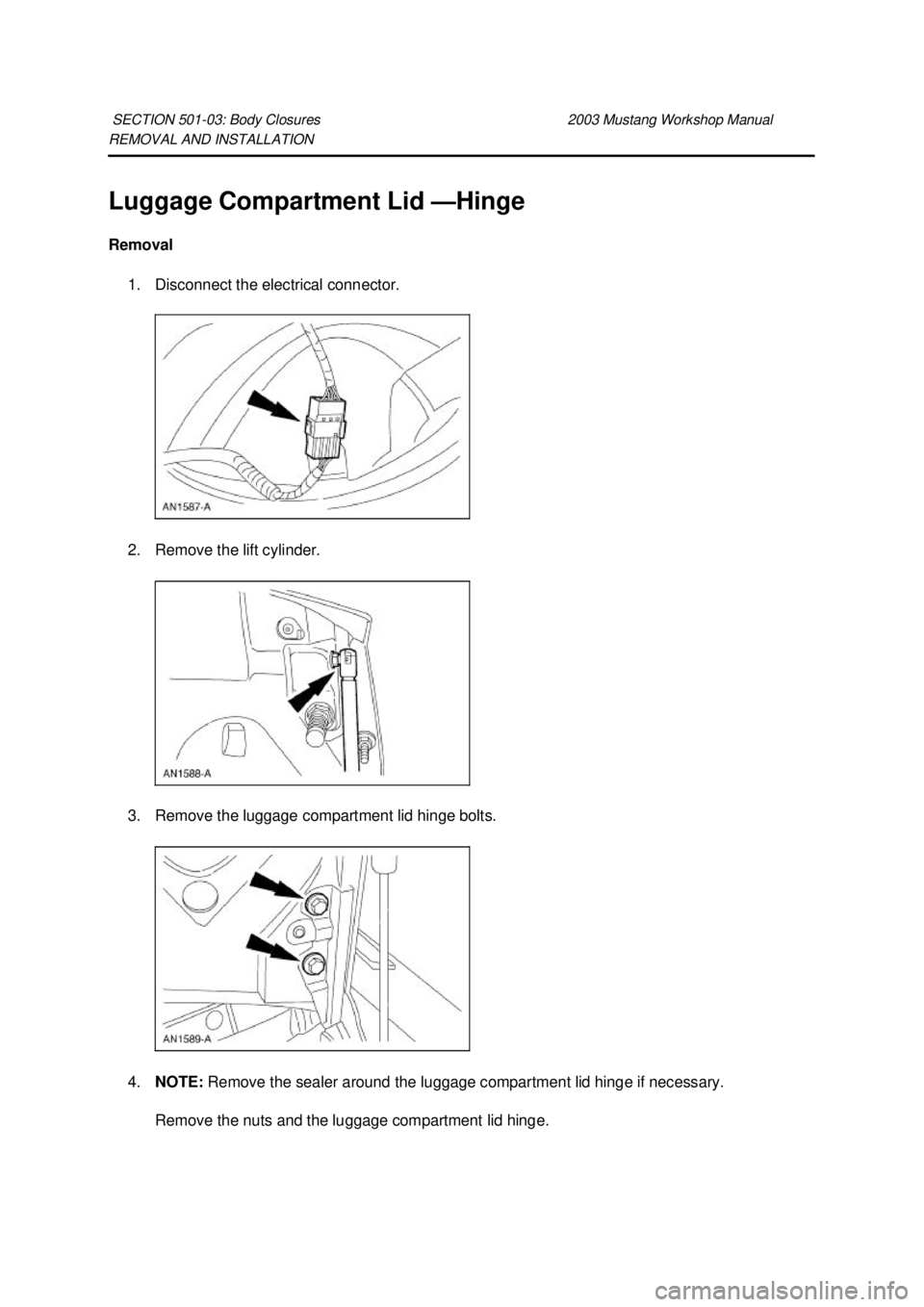

Luggage Compartment Lid —
Hinge
Removal 1. Disconnect the electrical connector.
2. Remove the lift cylinder.
3. Remove the luggage compartment lid hinge bolts.
4. NOTE: Remove the sealer around the luggage compartment lid hinge if necessary.
Remove the nuts and the luggage compartment lid hinge.
SECTION 501-
03: Body Closures 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

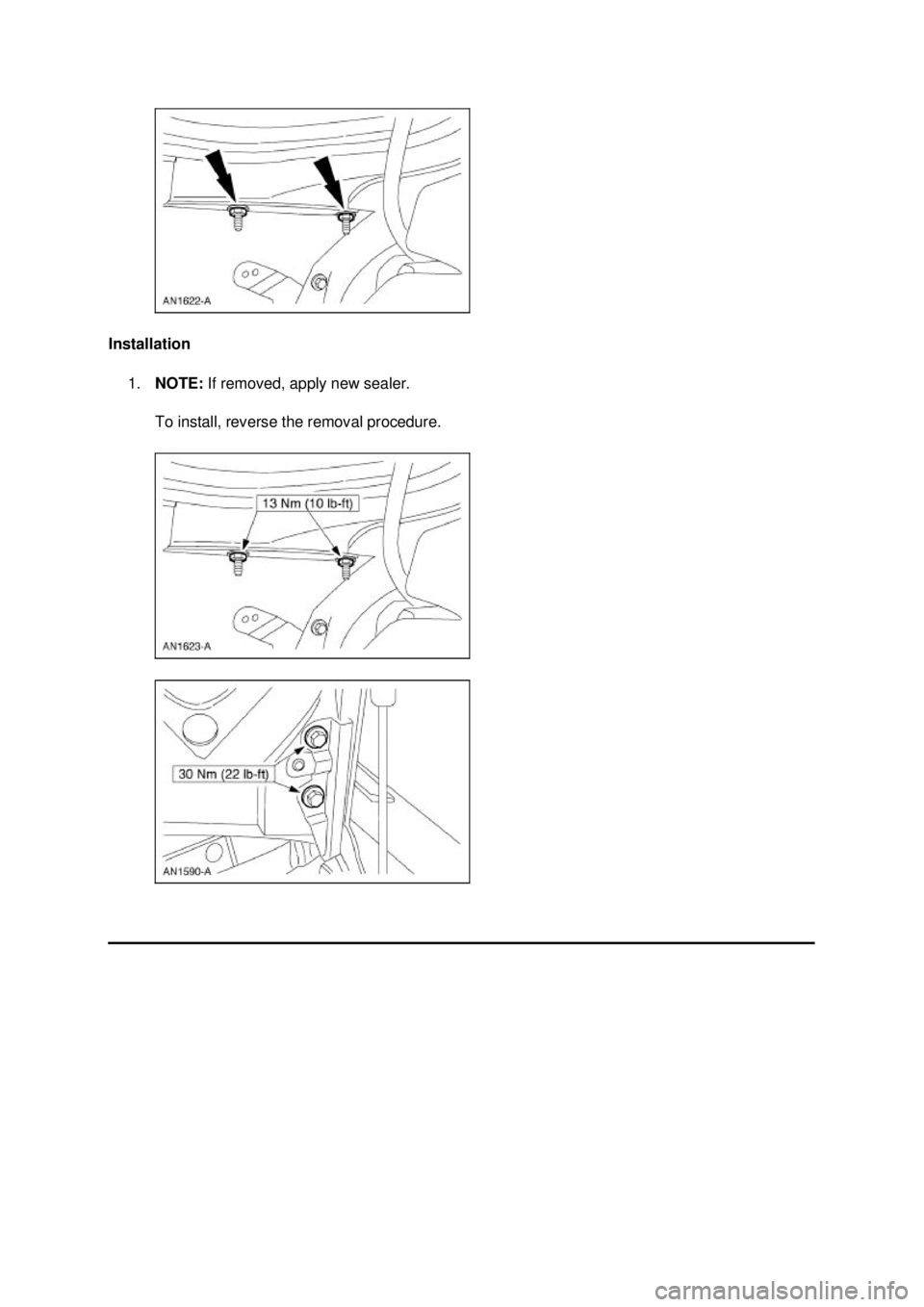

Installation
1. NOTE: If removed, apply new sealer.
To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual General Specifications
Item Specification
Adhesives
Headliner Adhesive
F1VY-
19562- A WSS-
M2G355- B
Torque Specifications Description Nm lb-
ft Safety belt guide bolt 40 30
Safety belt anchor bolt 40 30
Rear seat backrest bolster bolts 11 8
Rear seat backrest bolts 11 8 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
