FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Trim Panel —
Door
Removal
All vehicles
1. CAUTION: Use a shop towel or similar material between the tool and the front door
trim panel or damage to the front door trim panel may occur.
Position the window regulator switch plate (14527) aside. 1. Pull at the service notch.
2. Lift to release the clip at the rear edge.
2. Remove the window regulator switch plate. 1. Disconnect the power mirror electrical connector.
2. Remove the screws and the window regulator switch plate.
3. Remove the door latch release handle cup (22634).
SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

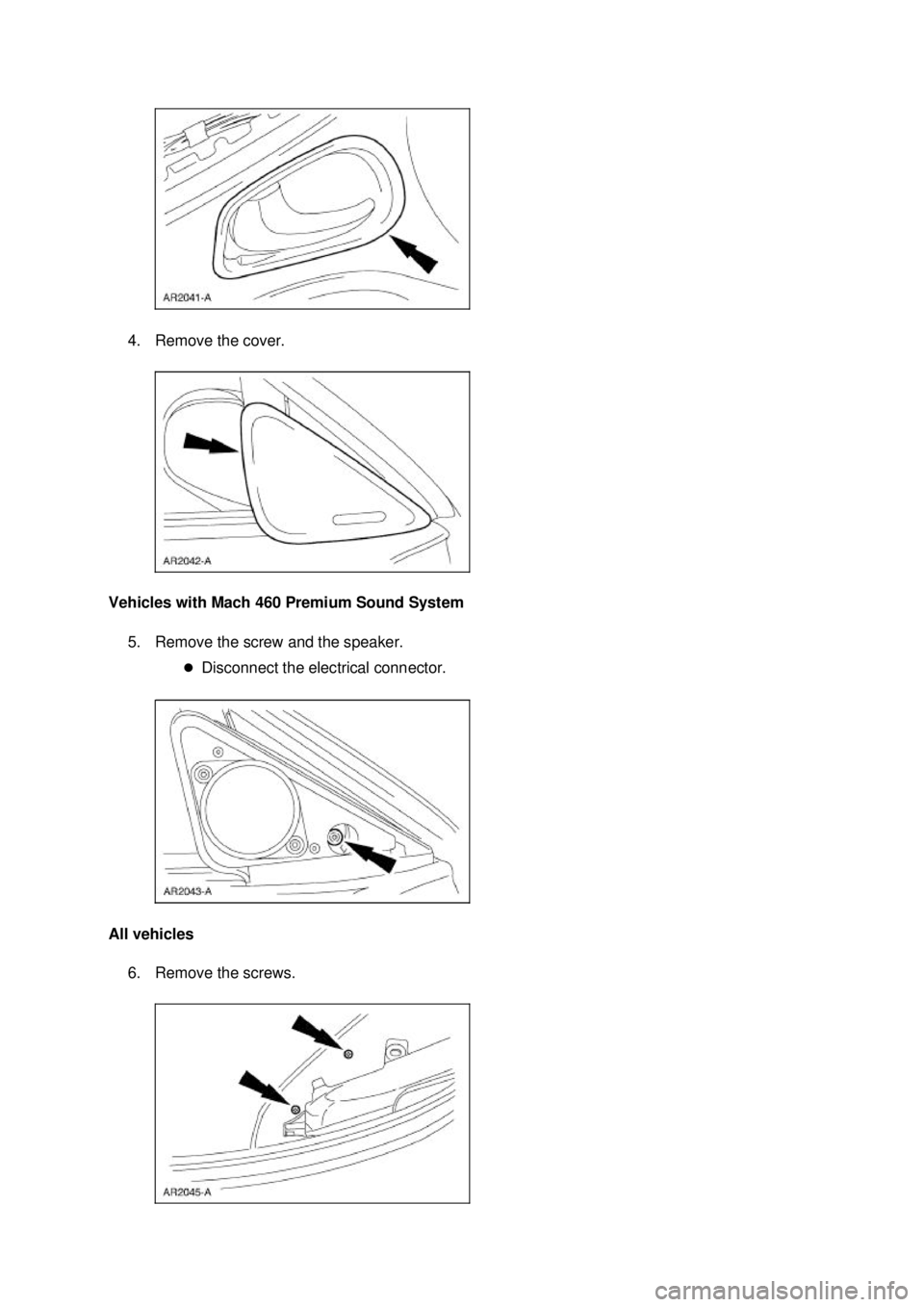

4. Remove the cover.
Vehicles with Mach 460 Premium Sound System 5. Remove the screw and the speaker. zDisconnect the electrical connector.
All vehicles 6. Remove the screws. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

7. Remove the door trim panel (23942).
1. Remove the pin- type retainer.
2. Lift up the door trim panel to remove.
Installation 1. To install, reverse the removal procedure. Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Trim Panel —
Quarter, Coupe

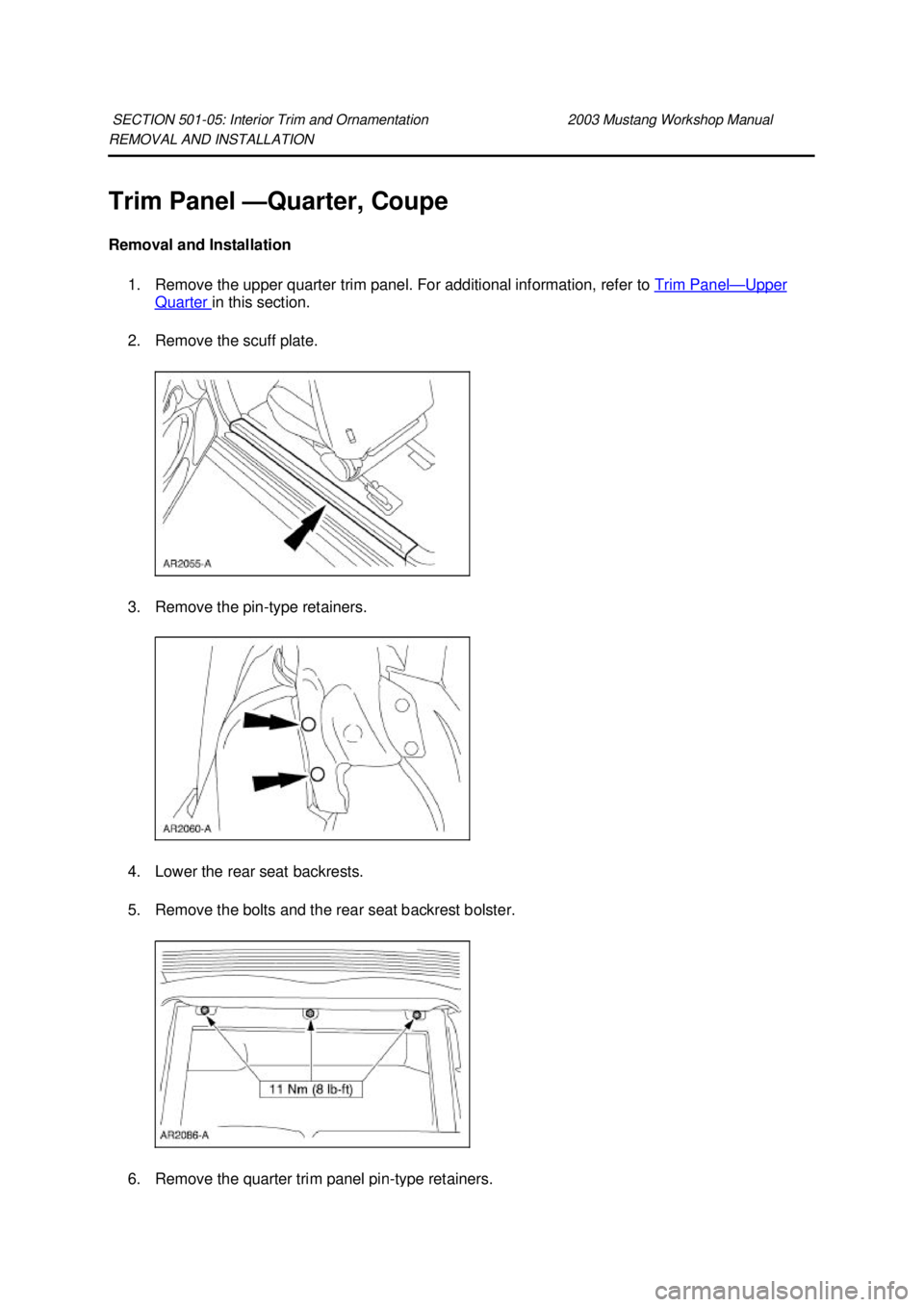

Removal and Installation 1. Remove the upper quarter trim panel. For additional information, refer to Trim Panel — Upper
Quarter in this section.
2. Remove the scuff plate.
3. Remove the pin- type retainers.
4. Lower the rear seat backrests.
5. Remove the bolts and the rear seat backrest bolster. 6. Remove the quarter trim panel pin - type retainers. SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

7. Remove the lower quarter trim panel.
8. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Trim Panel —
Quarter, Convertible

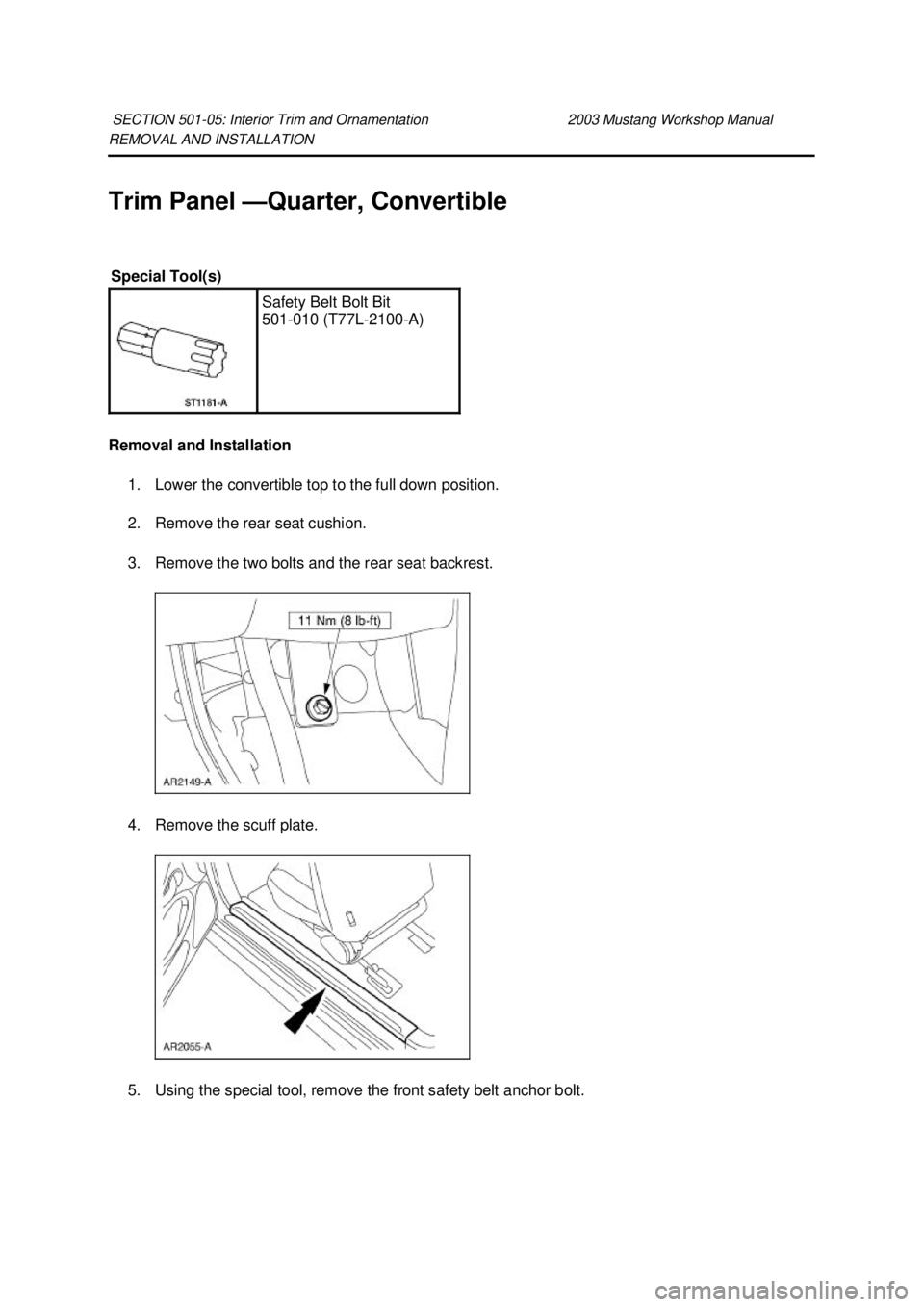

Removal and Installation 1. Lower the convertible top to the full down position.
2. Remove the rear seat cushion.
3. Remove the two bolts and the rear seat backrest.
4. Remove the scuff plate.
5. Using the special tool, remove the front safety belt anchor bolt.
SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual Special Tool(s)
Safety Belt Bolt Bit
501-
010 (T77L-2100- A) Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

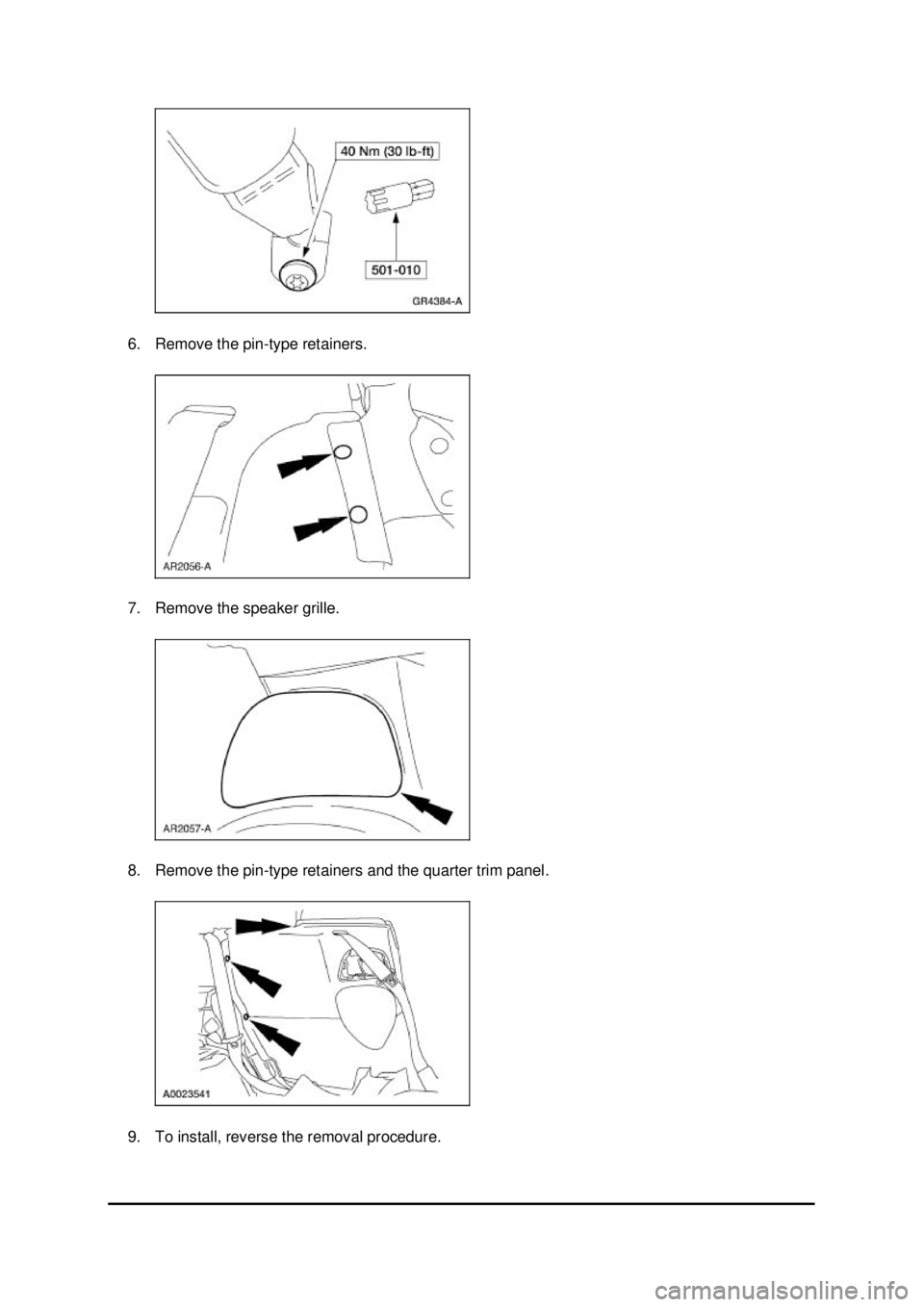

6. Remove the pin-
type retainers.
7. Remove the speaker grille.
8. Remove the pin- type retainers and the quarter trim panel.
9. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Trim Panel —
Upper Quarter

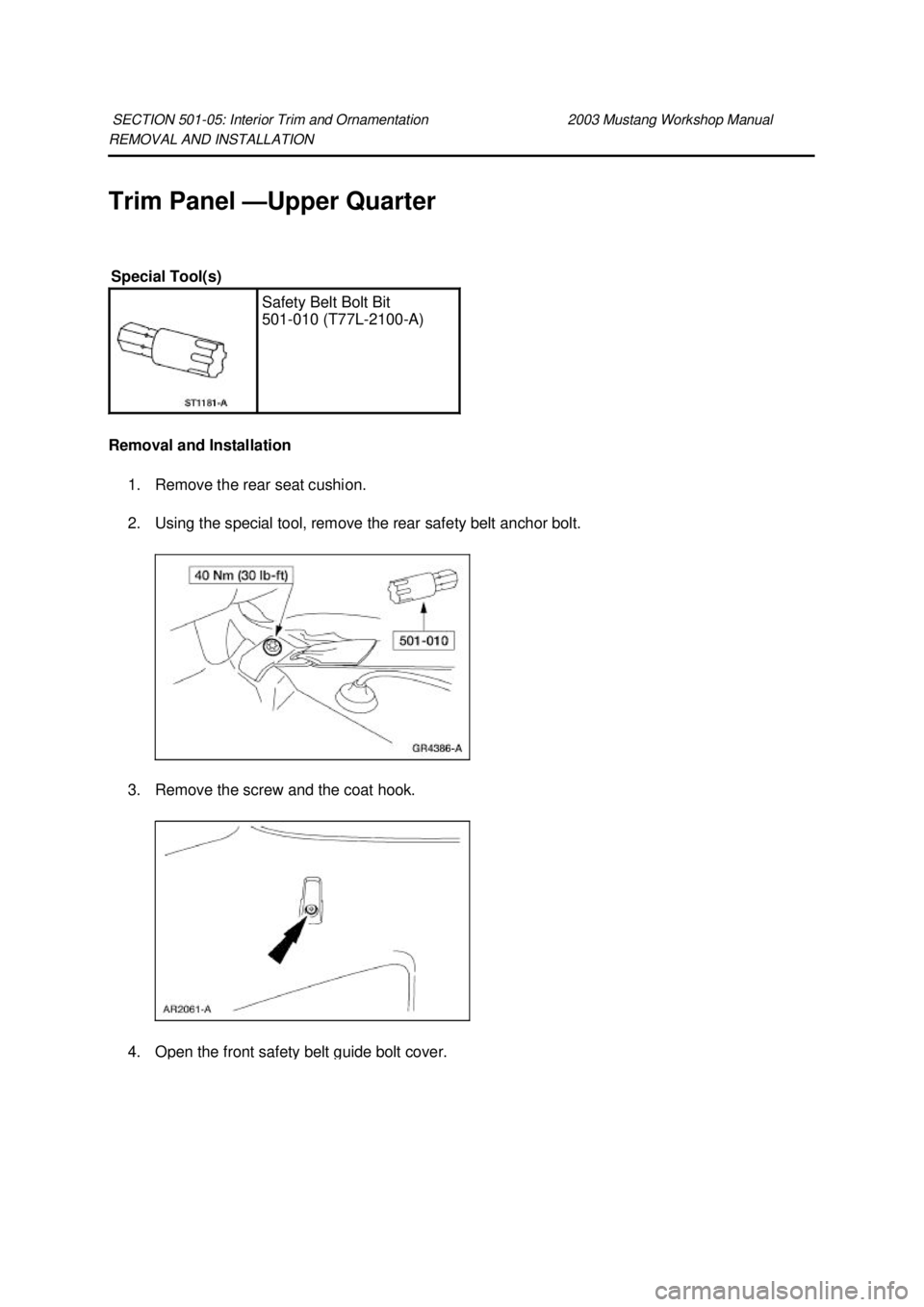

Removal and Installation 1. Remove the rear seat cushion.
2. Using the special tool, remove the rear safety belt anchor bolt.
3. Remove the screw and the coat hook. 4. Open the front safety belt guide bolt cover. SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual Special Tool(s)
Safety Belt Bolt Bit
501-
010 (T77L-2100- A) Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

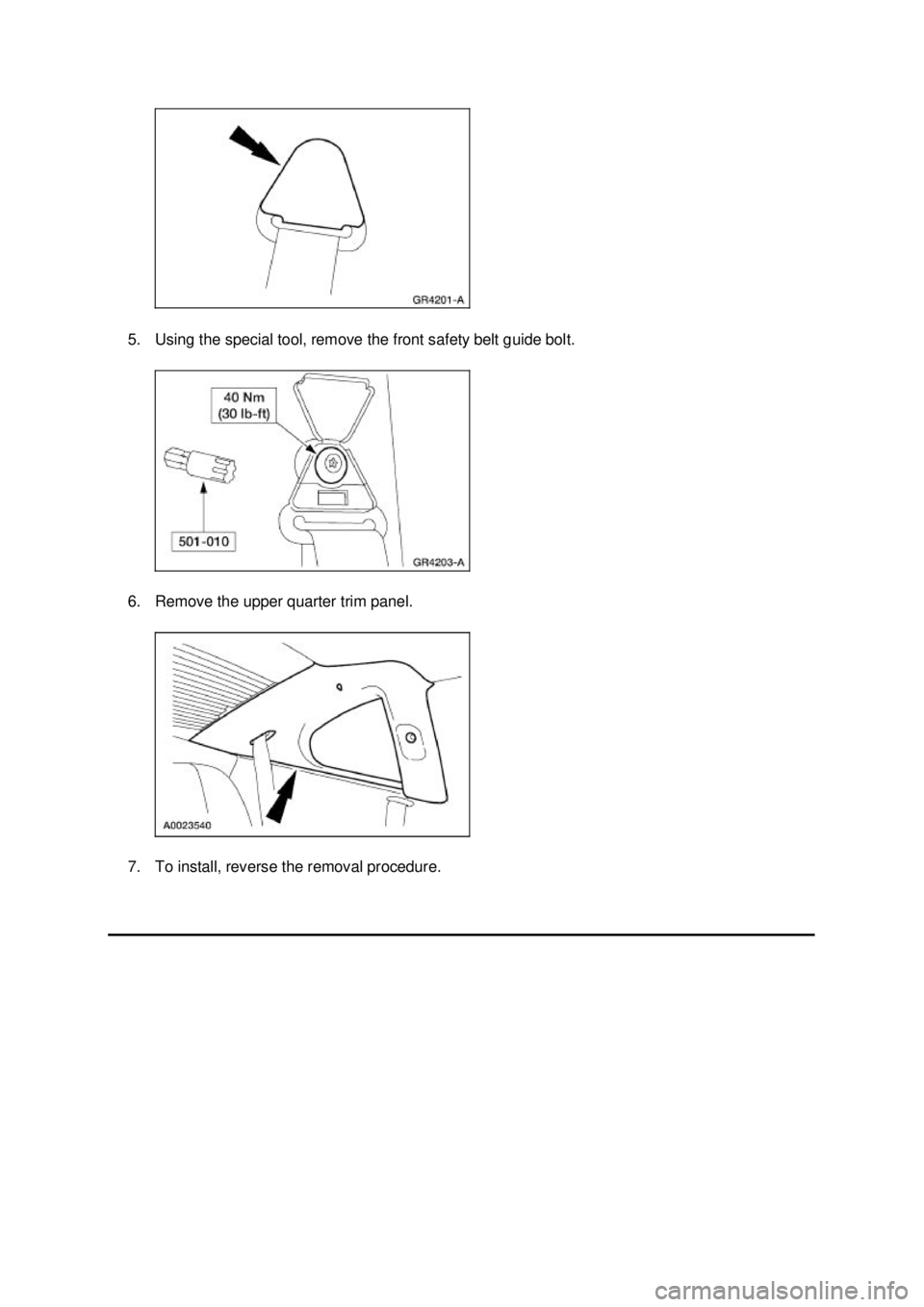

5. Using the special tool, remove the front safety belt guide bolt.
6. Remove the upper quarter trim panel.
7. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
