REMOVAL AND INSTALLATION

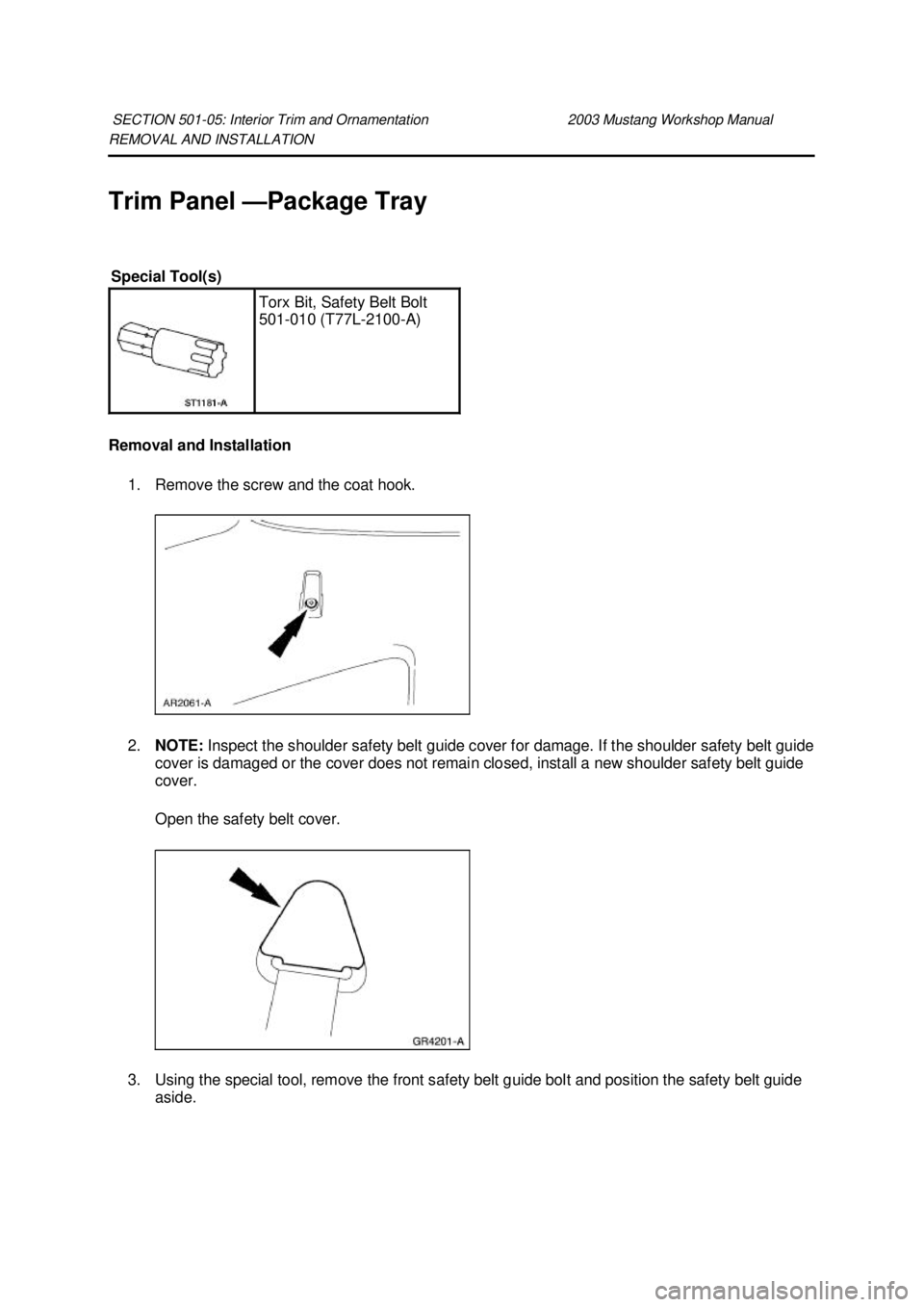

Trim Panel —
Package Tray
Removal and Installation 1. Remove the screw and the coat hook.
2. NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide
cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide
cover.
Open the safety belt cover.
3. Using the special tool, remove the front safety belt guide bolt and position the safety belt guide aside.
SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual Special Tool(s)
Torx Bit, Safety Belt Bolt
501-
010 (T77L-2100- A) Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

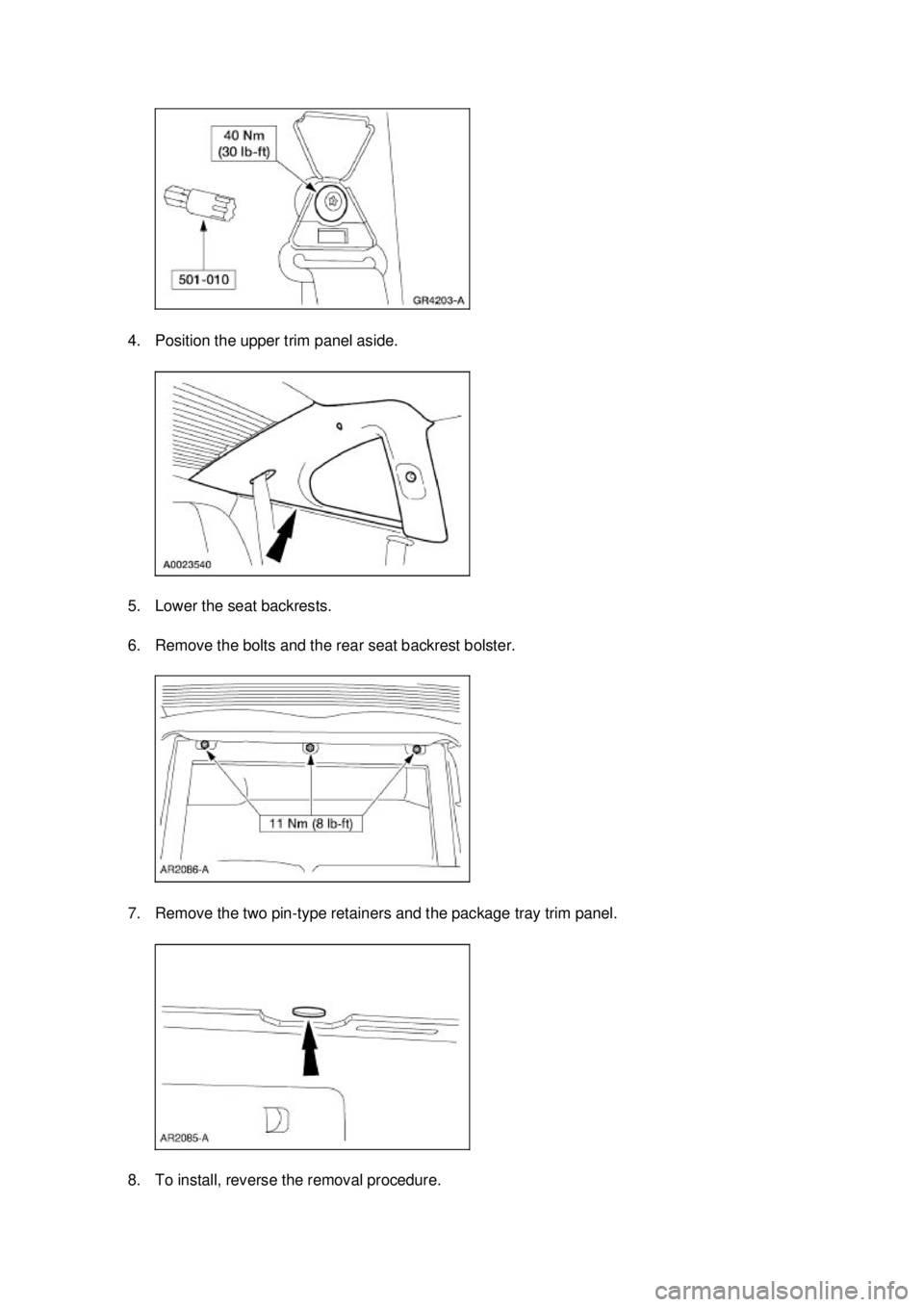

4. Position the upper trim panel aside.
5. Lower the seat backrests.
6. Remove the bolts and the rear seat backrest bolster.
7. Remove the two pin-
type retainers and the package tray trim panel.
8. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

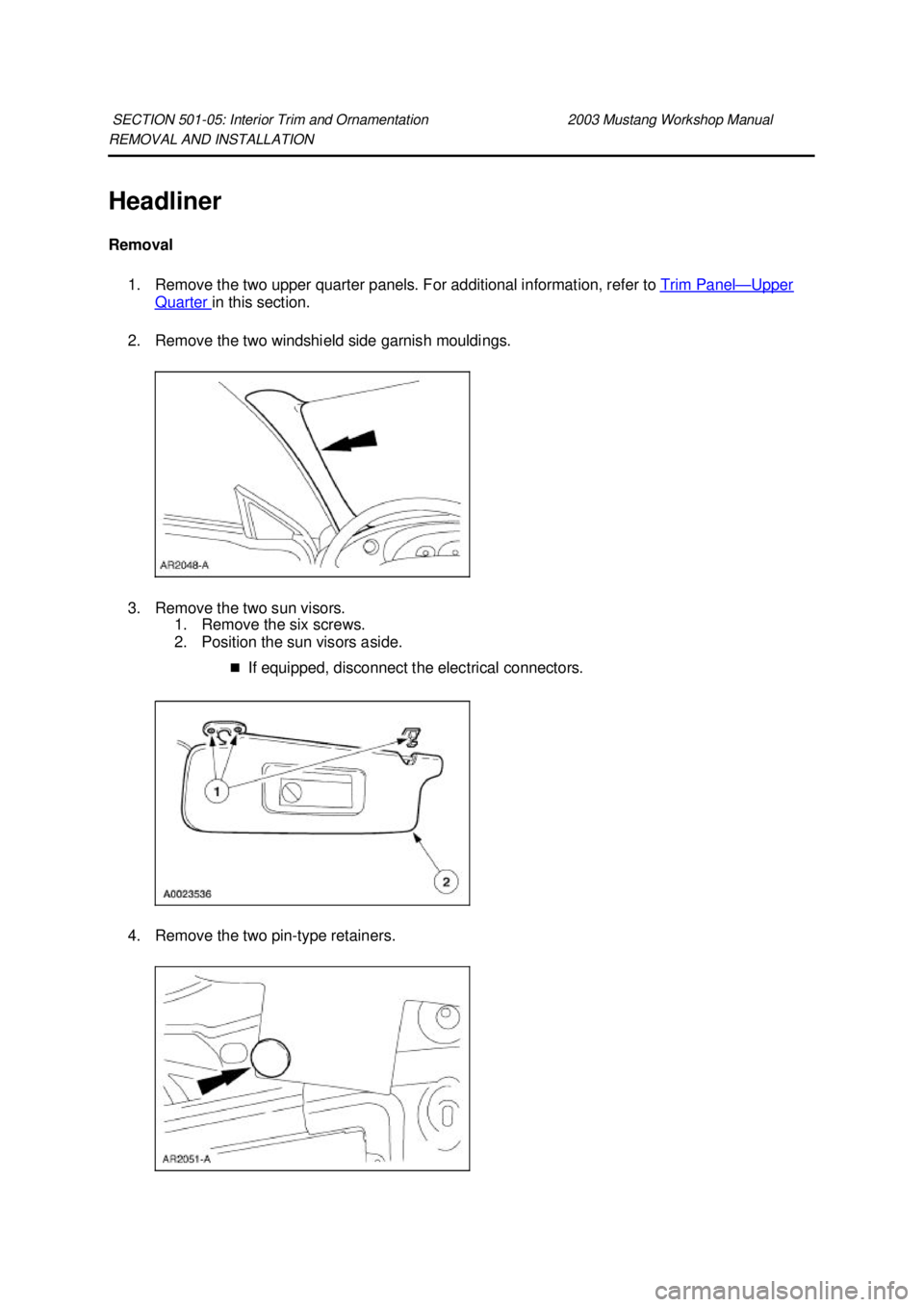

Headliner
Removal
1. Remove the two upper quarter panels. For additional information, refer to Trim Panel — Upper
Quarter in this section.
2. Remove the two windshield side garnish mouldings.
3. Remove the two sun visors. 1. Remove the six screws.
2. Position the sun visors aside.
„If equipped, disconnect the electrical connectors.
4. Remove the two pin- type retainers.
SECTION 501-
05: Interior Trim and Ornamentation 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

5.

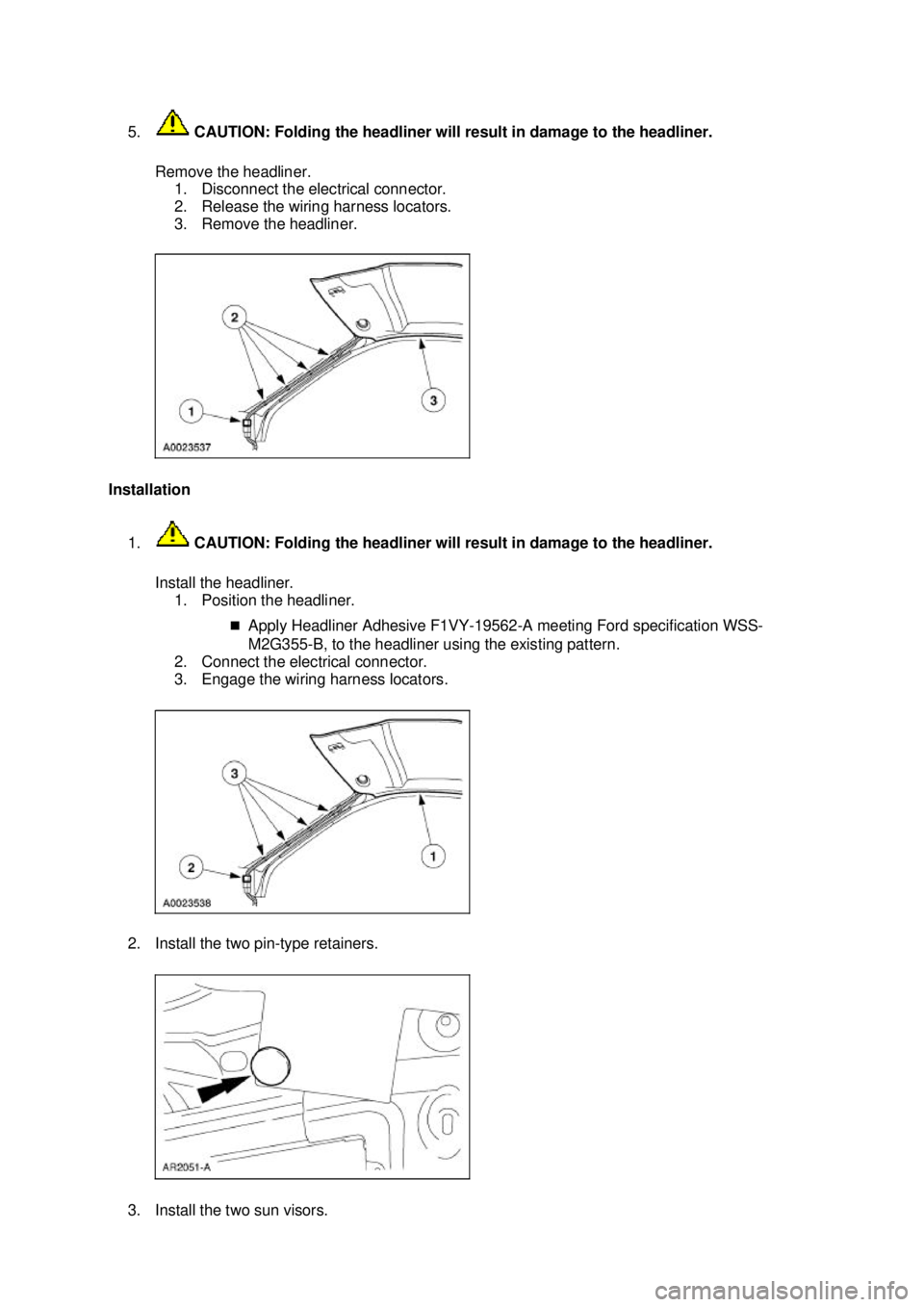

CAUTION: Folding the headliner will result in damage to the headliner.
Remove the headliner. 1. Disconnect the electrical connector.
2. Release the wiring harness locators.
3. Remove the headliner.
Installation 1. CAUTION: Folding the headliner will result in damage to the headliner.
Install the headliner. 1. Position the headliner.
„Apply Headliner Adhesive F1VY-19562-A meeting Ford specification WSS-
M2G355- B, to the headliner using the existing pattern.
2. Connect the electrical connector.
3. Engage the wiring harness locators.
2. Install the two pin- type retainers. 3. Install the two sun visors. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

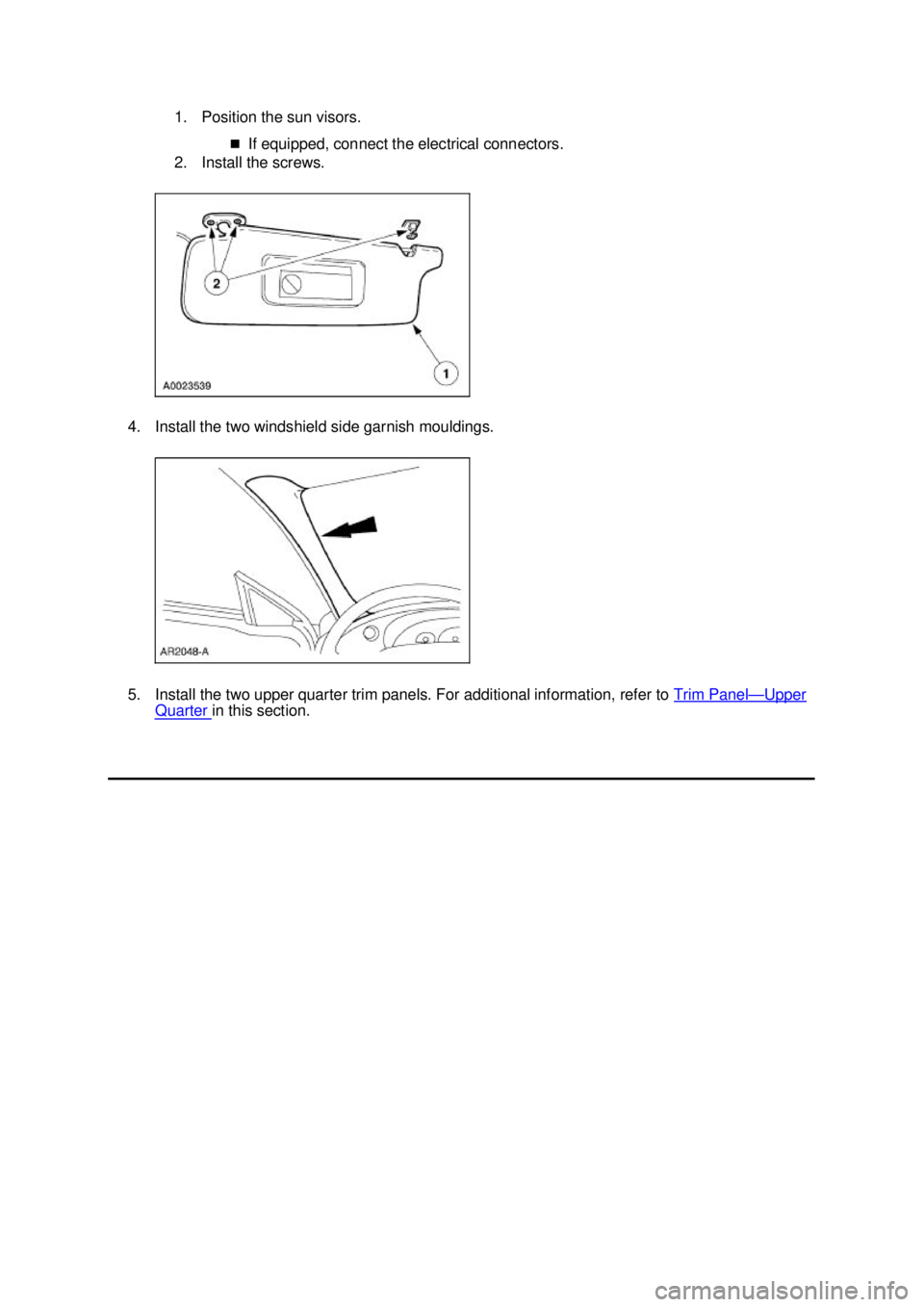

1. Position the sun visors.
„If equipped, connect the electrical connectors.
2. Install the screws.
4. Install the two windshield side garnish mouldings.
5. Install the two upper quarter trim panels. For additional information, refer to Trim Panel — Upper
Quarter in this section. Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 501-
08: Exterior Trim and Ornamentation 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Hood scoop 3 27
Radiator grille screws 6 53
Rear spoiler nuts/screws 9 80
Roof side moulding screws 3 27
Roof side moulding nuts 3 27 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION

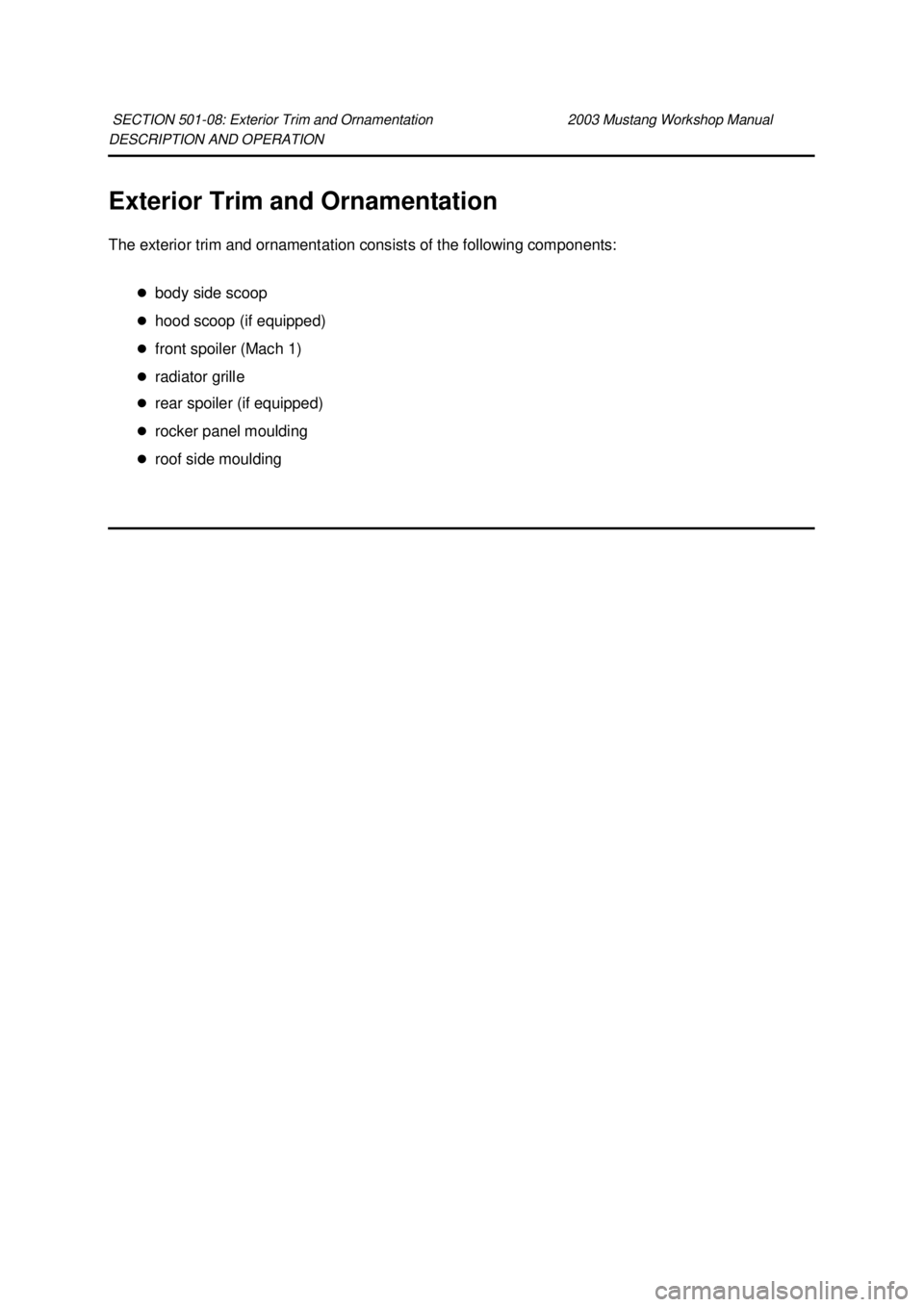

Exterior Trim and Ornamentation
The exterior trim and ornamentation consists of the following components:
zbody side scoop
z hood scoop (if equipped)
z front spoiler (Mach 1)
z radiator grille
z rear spoiler (if equipped)
z rocker panel moulding
z roof side moulding
SECTION 501-
08: Exterior Trim and Ornamentation 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

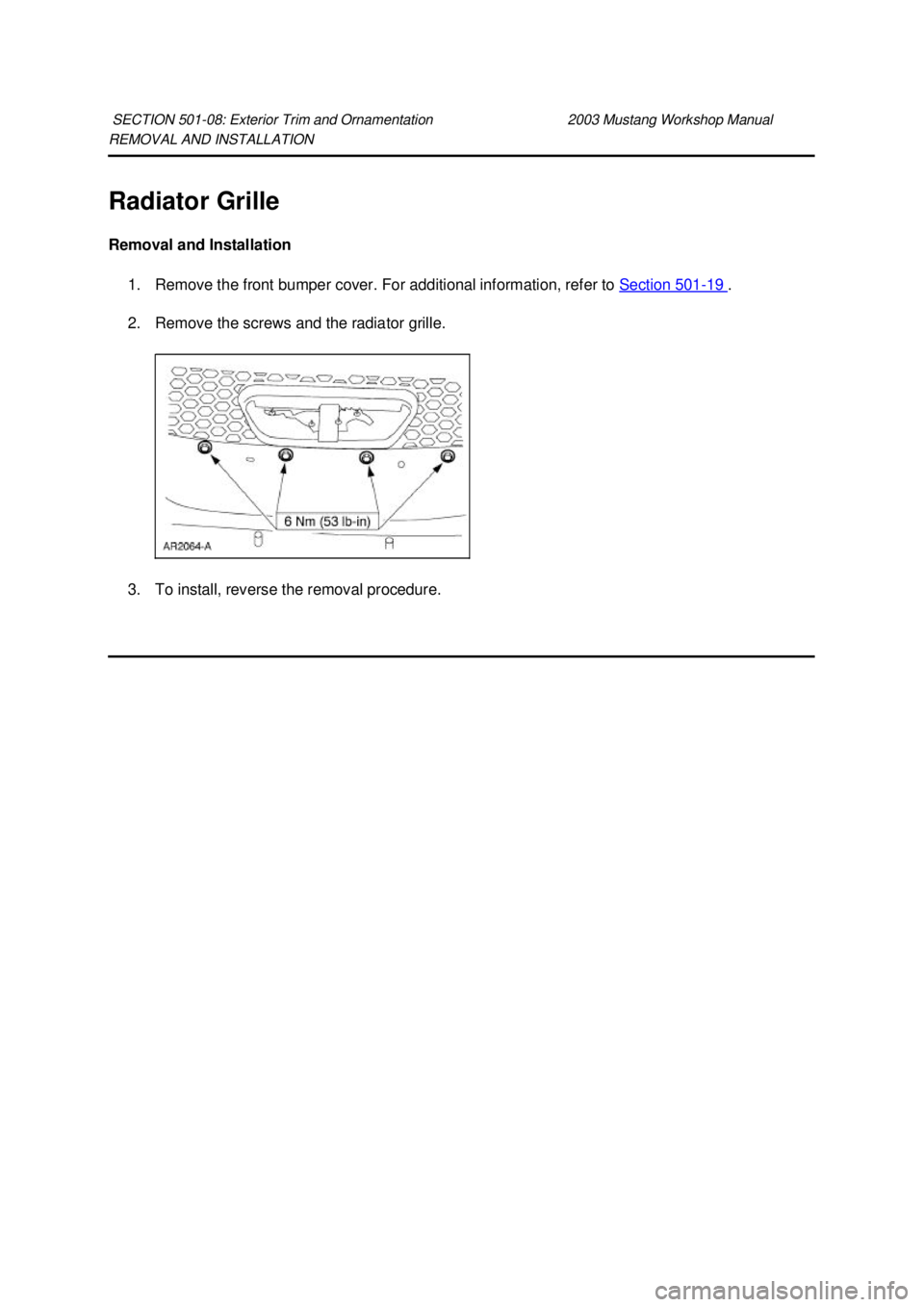

Radiator Grille
Removal and Installation
1. Remove the front bumper cover. For additional information, refer to Section 501 - 19 .
2. Remove the screws and the radiator grille.
3. To install, reverse the removal procedure.
SECTION 501-
08: Exterior Trim and Ornamentation 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
