FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Switch —
Exterior Rear View Mirror Control
Removal
1. CAUTION: Use a shop towel or similar material between the tool and the front door
trim panel or damage to the front door trim panel may occur.
Position the window regulator switch plate aside. 1. Pull at service notch.
2. Lift to release the clip at the rear edge.
2. Remove the power exterior rear view mirror control switch. zDisconnect the electrical connector.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
09: Rear View Mirrors 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 501-
10: Seating 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Front seat track to floorpan bolts and nuts 35 26 —
Front seat track to cushion bolts 20 15 —
Seat latch bolts 27 20 —
Seat backrest latch bolts 55 41 —
Front seat backrest pivot bolt 23 17 —
Rear seat backrest to body bolt 11 8 —
Safety belt guide screws 4 — 35 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Seats
Seats —
Front Power
The front power seat features:
za six- way seat regulator control switch (14A701) located on the front of the seat.
z a seat track (61705) mounted under the seat.
z a seat regulator motor (14547) and gear housing mounted on the seat track (61705).
z an optional power lumbar switch located on the outboard side of the seat (14C715).
z a manual seat backrest release handle on the outboard rear corner of the seat.
z an optional power bolster and lumbar switches located on the inboard side of the seat (Cobra
only)
Seats — Power Lumbar Support
NOTE: The pump and solenoid module are serviced as an assembly with the front seat cushion frame
(Cobra only). The backrest bolster/lumbar adjusting pads are serviced together and the cushion
bolsters are serviced separately.
The power lumbar support system consists of: SECTION 501-
10: Seating 2003 Mustang Workshop Manual Item Part Number Description
1 611A08 Front seat backrest head restraint
2 65500 Front seat backrest pad adjuster
3 14C715 Seat control switch
4 14A701 Lumbar control switch
5 — Bolster and lumbar control switches (Cobra only) Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
seat control switch (14C715)
z front seat backrest pad adjusting pump (65530)
z front seat adjusting motor drive tube (618B62)
z system wiring and circuit protection
z front seat backrest adjusting hose (65528)
z driver backrest and cushion bolster (Cobra)
z driver bolster and lumbar adjusting pad pump motor and solenoid module (Cobra)
z driver bolster and lumbar control switch (Cobra)
z driver seat cushion adjusting hose (Cobra)
Seats — Front Seat Backrest Latch
NOTE: Under no circumstances are the front seat backrest latch components to be repaired as
individual components. If a front seat backrest latch (62648) or component is non- functional or
damaged, a new front seat backrest latch must be installed.
A release handle on the outboard rear corner of the seat backrest is manually operated to unlock the
front seat backrest latch.
Rear Seat
The rear seat cushion pad and frame (600A88) is retained in the following manner:
zPins are located on the bottom front of the rear seat cushion pad and frame which secure the
rear seat cushion pad and frame to the front floor pan (11135).
z The pins are inserted into locking plates on the floor crossmember with a push button release.
z The bottom of the rear seatback frame is retained with screws to the front floor pan. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Seats
Refer to Wiring Diagrams Cell
120 , Power Seats for schematic and connector information.
Refer to Wiring Diagrams Cell 122 , Power Lumbar Seats for schematic and connector information.
Inspection and Verification 1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom. GO to Symptom Chart .
Symptom Chart
Refer to the Wiring Diagram manual for the connector numbers cited in the pinpoint tests. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Special Tool(s)
73 III Automotive Meter
105-
R0057
Visual Inspection Chart Mechanical Electrical
z
Front seat track.
z Seat at limit(s) of travel. z
Battery junction box (BJB) Fuse Power Seat (25A).
z Loose, corroded or damaged connectors.
z Seat regulator control switch.
z Lumbar seat control switch.
z Lumbar motor.
z Bolster and lumbar control switches (cobra)
SYMPTOM CHART Condition
Possible Sources Action
z The power seat is
inoperative z
BJB Fuse Power Seat
(25A).
z Seat regulator control
switch.
z Circuitry. z
Go To Pinpoint Test
A . Klj . 1 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

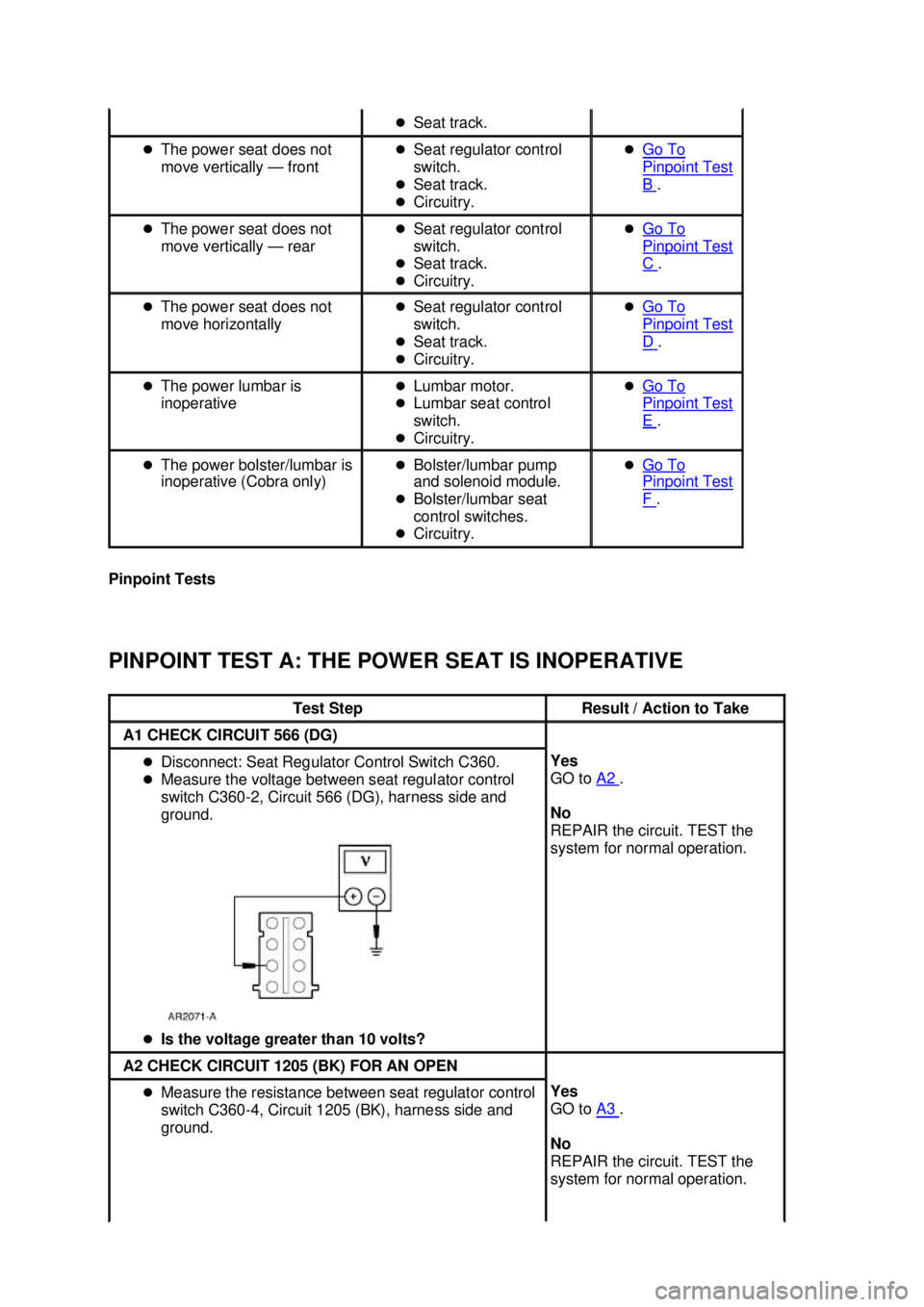

Pinpoint Tests
PINPOINT TEST A: THE POWER SEAT IS INOPERATIVE z
Seat track.
z The power seat does not
move vertically — front z
Seat regulator control
switch.
z Seat track.
z Circuitry. z
Go To Pinpoint Test
B .
z The power seat does not
move vertically — rear z
Seat regulator control
switch.
z Seat track.
z Circuitry. z
Go To Pinpoint Test
C .
z The power seat does not
move horizontally z
Seat regulator control
switch.
z Seat track.
z Circuitry. z
Go To Pinpoint Test
D .
z The power lumbar is
inoperative z
Lumbar motor.
z Lumbar seat control
switch.
z Circuitry. z
Go To Pinpoint Test
E .
z The power bolster/lumbar is
inoperative (Cobra only) z
Bolster/lumbar pump
and solenoid module.
z Bolster/lumbar seat
control switches.
z Circuitry. z
Go To Pinpoint Test
F .
Test Step Result / Action to Take
A1 CHECK CIRCUIT 566 (DG)
z
Disconnect: Seat Regulator Control Switch C360.
z Measure the voltage between seat regulator control
switch C360- 2, Circuit 566 (DG), harness side and
ground.
z Is the voltage greater than 10 volts? Yes
GO to
A2 .
No
REPAIR the circuit. TEST the
system for normal operation. A2 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
z
Measure the resistance between seat regulator control
switch C360- 4, Circuit 1205 (BK), harness side and
ground. Yes
GO to
A3 .
No
REPAIR the circuit. TEST the
system for normal operation. Klj . 2 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

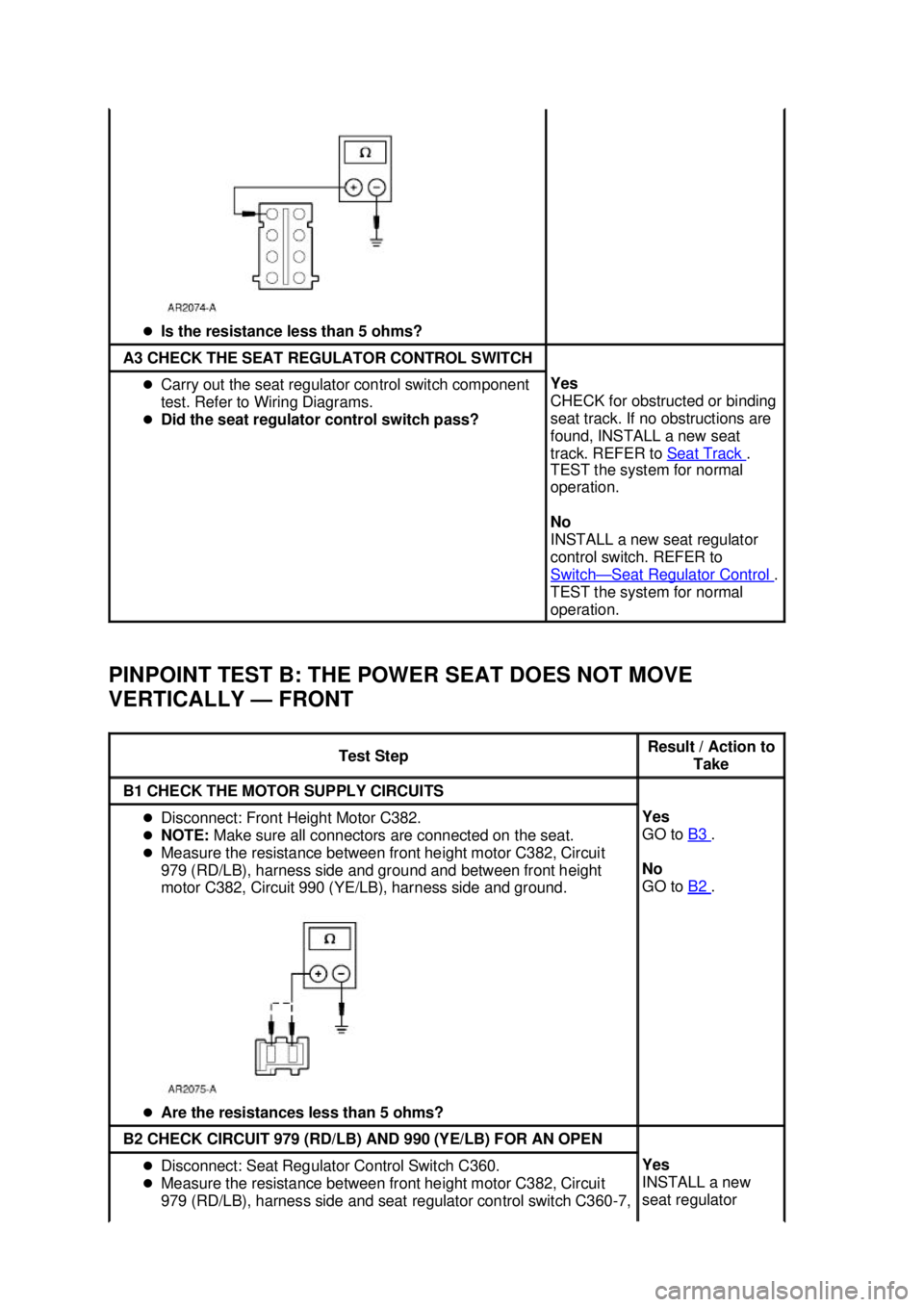

PINPOINT TEST B: THE POWER SEAT DOES NOT MOVE
VERTICALLY —
FRONT z
Is the resistance less than 5 ohms? A3 CHECK THE SEAT REGULATOR CONTROL SWITCH
z
Carry out the seat regulator control switch component
test. Refer to Wiring Diagrams.
z Did the seat regulator control switch pass? Yes
CHECK for obstructed or binding
seat track. If no obstructions are
found, INSTALL a new seat
track. REFER to
Seat Track .
TEST the system for normal
operation.
No
INSTALL a new seat regulator
control switch. REFER to
Switch — Seat Regulator Control .
TEST the system for normal
operation. Test Step Result / Action to
Take B1 CHECK THE MOTOR SUPPLY CIRCUITS
z
Disconnect: Front Height Motor C382.
z NOTE: Make sure all connectors are connected on the seat.
z Measure the resistance between front height motor C382, Circuit
979 (RD/LB), harness side and ground and between front height
motor C382, Circuit 990 (YE/LB), harness side and ground.
z Are the resistances less than 5 ohms? Yes
GO to
B3 .
No
GO to B2 .
B2 CHECK CIRCUIT 979 (RD/LB) AND 990 (YE/LB) FOR AN OPEN
z
Disconnect: Seat Regulator Control Switch C360.
z Measure the resistance between front height motor C382, Circuit
979 (RD/LB), harness side and seat regulator control switch C360- 7, Yes
INSTALL a new
seat regulator Klj . 3 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

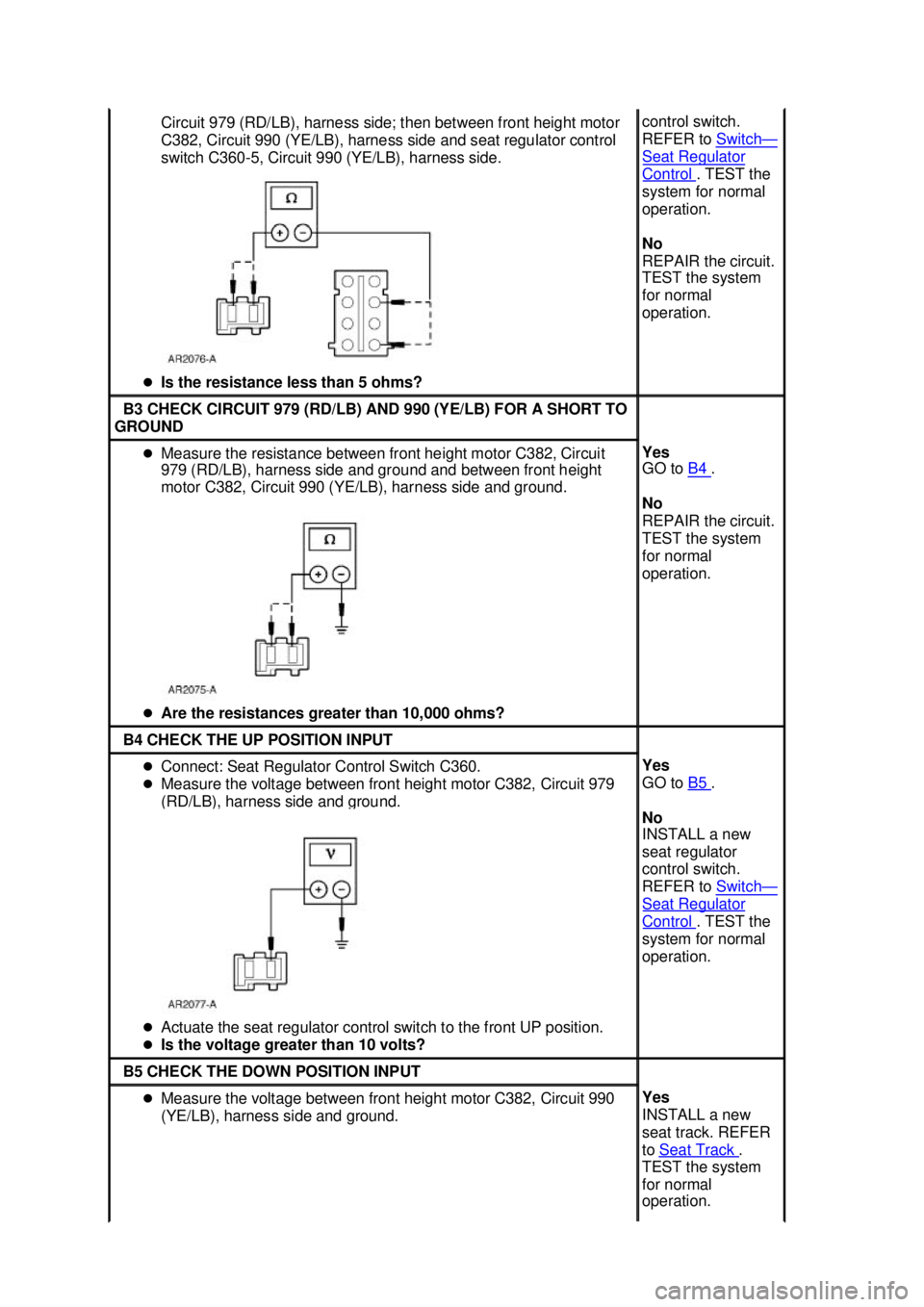

Circuit 979 (RD/LB), harness side; then between front height motor
C382, Circuit 990 (YE/LB), harness side and seat regulator control
switch C360-
5, Circuit 990 (YE/LB), harness side.
z Is the resistance less than 5 ohms? control switch.
REFER to
Switch —
Seat Regulator
Control . TEST the
system for normal
operation.
No
REPAIR the circuit.
TEST the system
for normal
operation. B3 CHECK CIRCUIT 979 (RD/LB) AND 990 (YE/LB) FOR A SHORT TO
GROUND z
Measure the resistance between front height motor C382, Circuit
979 (RD/LB), harness side and ground and between front height
motor C382, Circuit 990 (YE/LB), harness side and ground.
z Are the resistances greater than 10,000 ohms? Yes
GO to
B4 .
No
REPAIR the circuit.
TEST the system
for normal
operation. B4 CHECK THE UP POSITION INPUT
z
Connect: Seat Regulator Control Switch C360.
z Measure the voltage between front height motor C382, Circuit 979
(RD/LB), harness side and ground.
z Actuate the seat regulator control switch to the front UP position.
z Is the voltage greater than 10 volts? Yes
GO to
B5 .
No
INSTALL a new
seat regulator
control switch.
REFER to Switch —
Seat Regulator
Control . TEST the
system for normal
operation. B5 CHECK THE DOWN POSITION INPUT
z
Measure the voltage between front height motor C382, Circuit 990
(YE/LB), harness side and ground. Yes
INSTALL a new
seat track. REFER
to
Seat Track .
TEST the system
for normal
operation. Klj . 4 ba
152003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
