Page 3681 of 4378

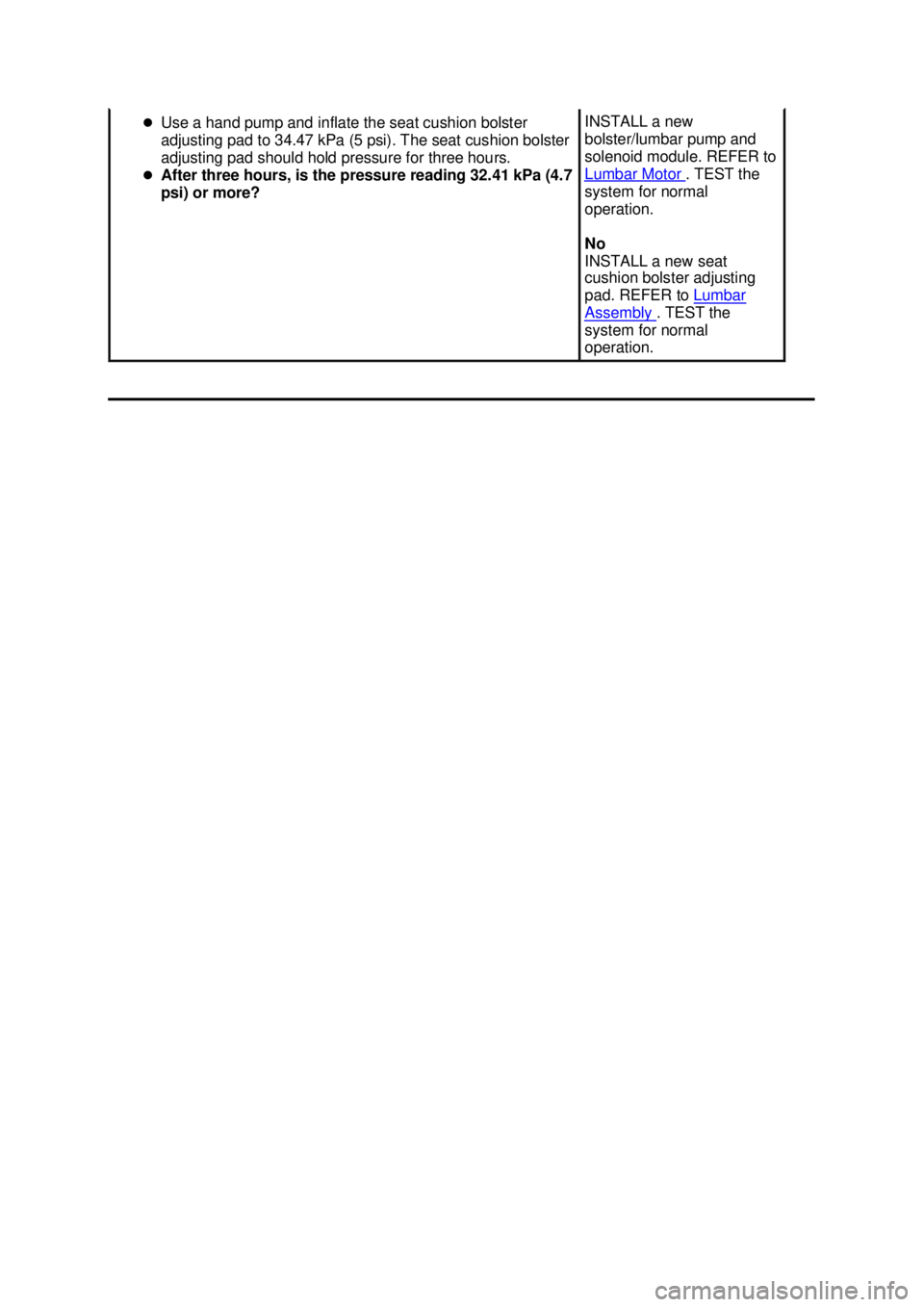

FORD MUSTANG 2003  Workshop Manual �z
Use a hand pump and inflate the seat cushion bolster
adjusting pad to 34.47 kPa (5 psi). The seat cushion bolster
adjusting pad should hold pressure for three hours.
�z After three hours, is the

Page 3682 of 4378

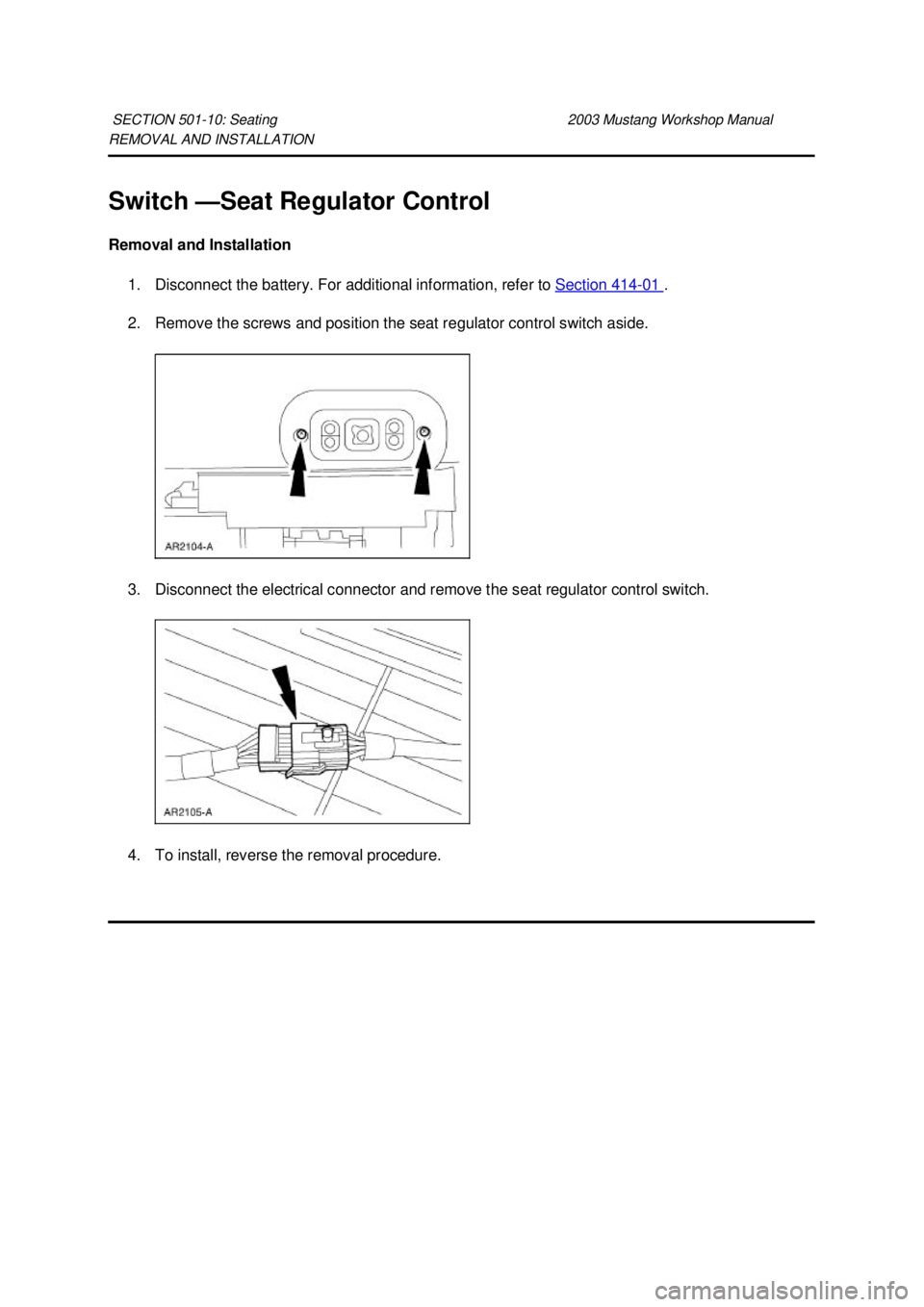

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Switch —
Seat Regulator Control
Removal and Installation  1. Disconnect the battery. For additional information, refer to  Section 414 - 01  .
2. Remove the screws and po

Page 3683 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3684 of 4378

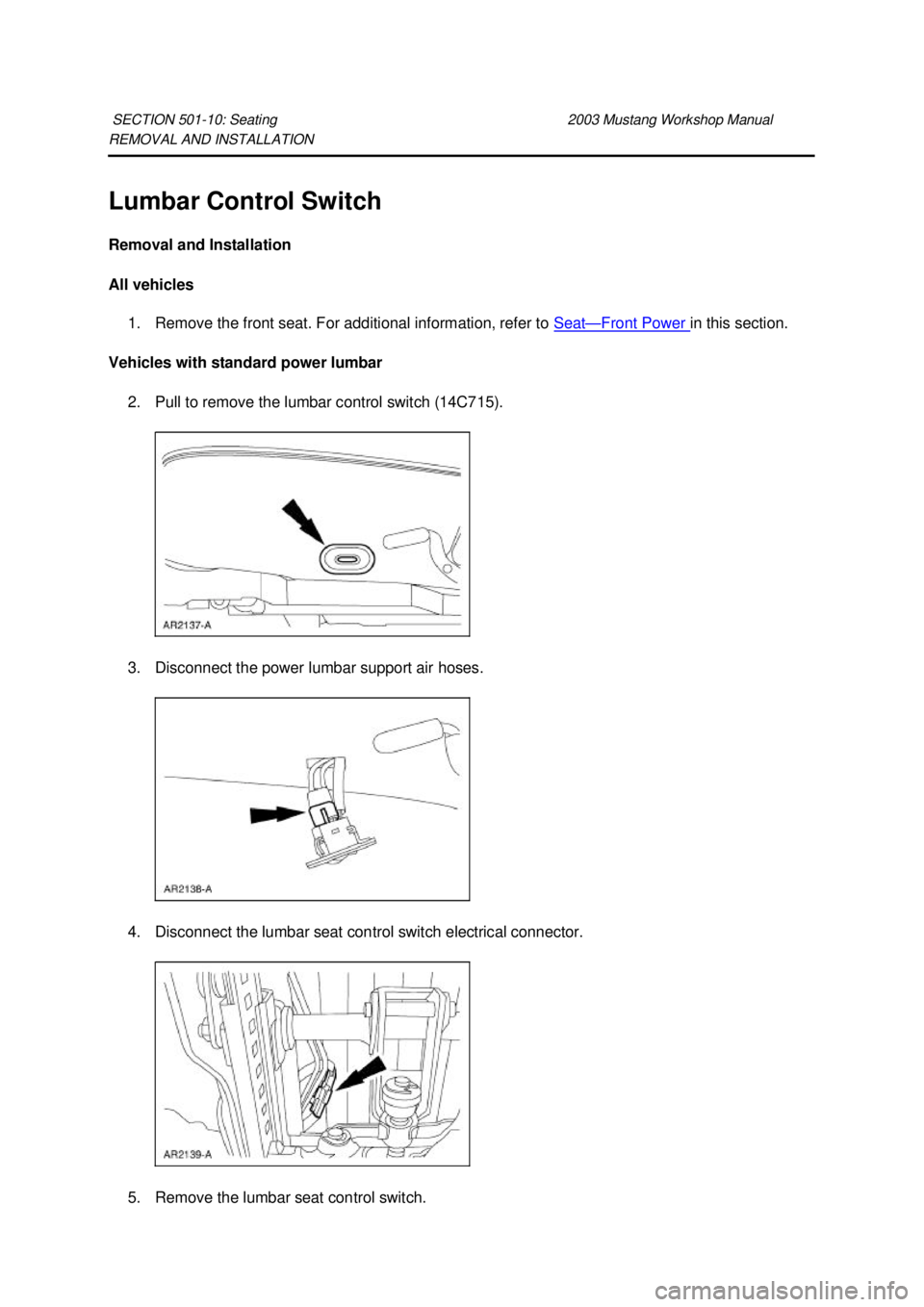

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Lumbar Control Switch
Removal and Installation
All vehicles
1. Remove the front seat. For additional information, refer to  Seat — Front Power  in this section.
Vehicle

Page 3685 of 4378

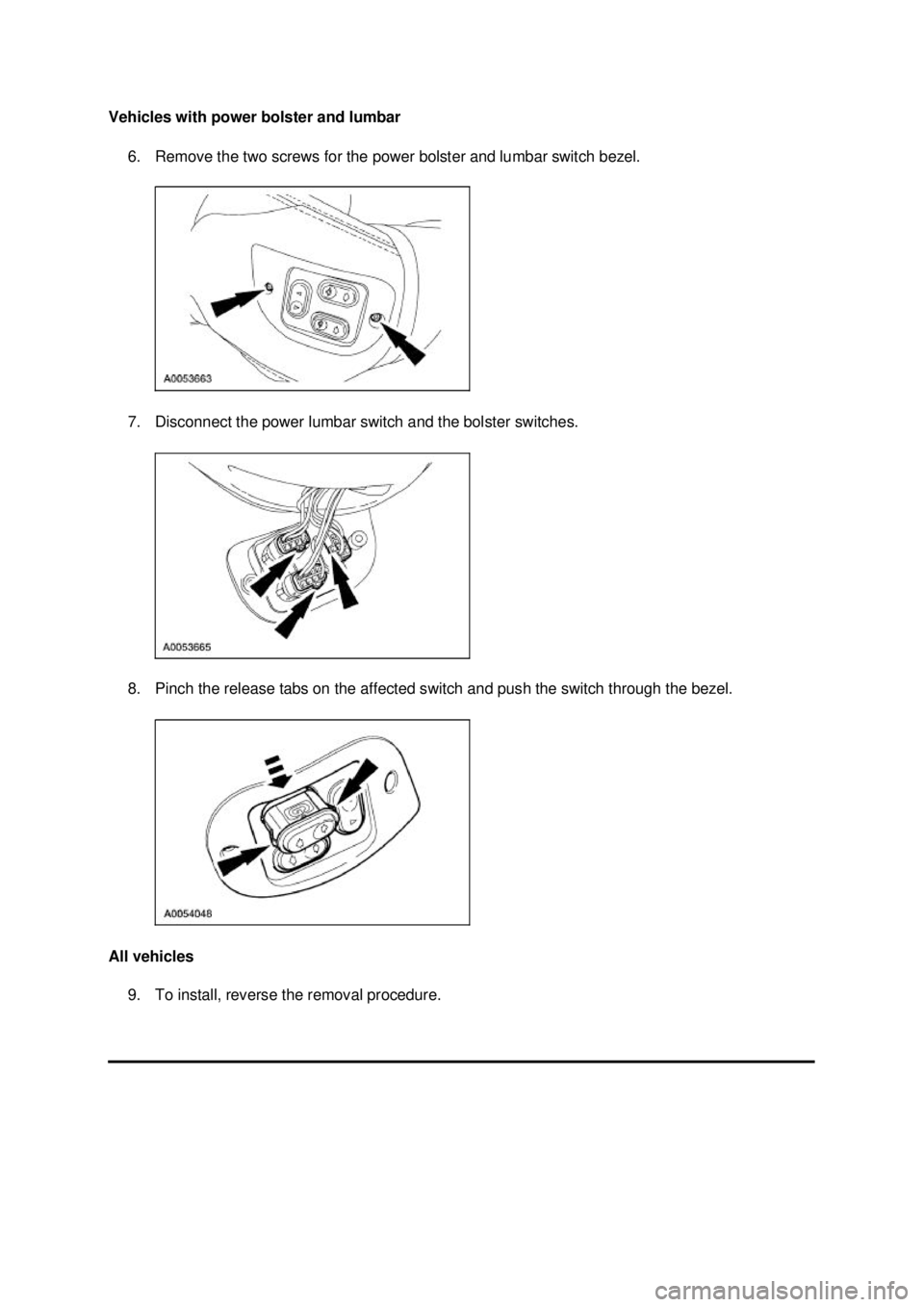

FORD MUSTANG 2003  Workshop Manual Vehicles with power bolster and lumbar
6. Remove the two screws for the power bolster and lumbar switch bezel.
7. Disconnect the power lumbar switch and the bolster switches.
8. Pinch the release t

Page 3686 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  3 ba
  32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3687 of 4378

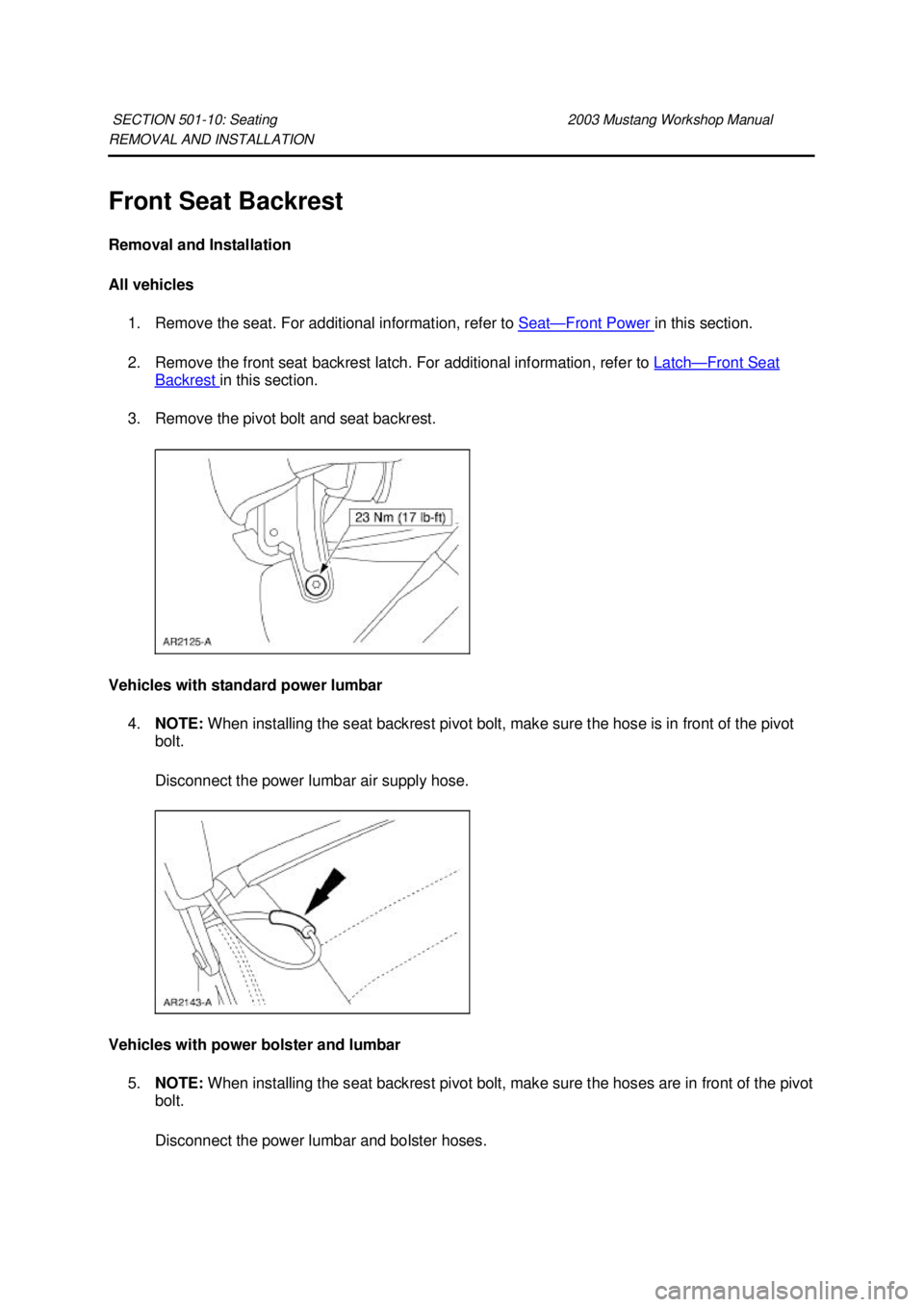

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Front Seat Backrest
Removal and Installation
All vehicles
1. Remove the seat. For additional information, refer to  Seat — Front Power  in this section.
2. Remove the f

Page 3688 of 4378

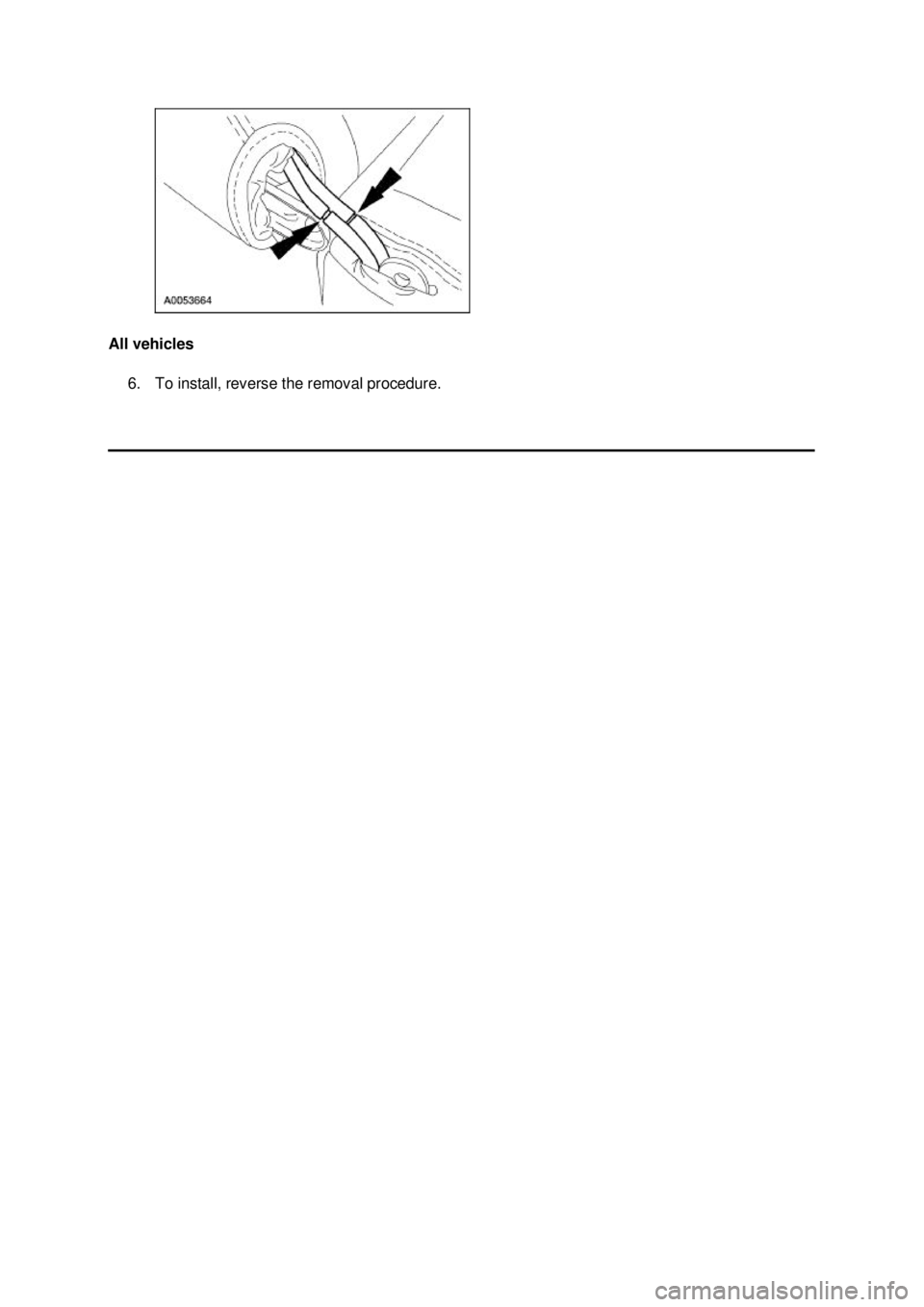

FORD MUSTANG 2003  Workshop Manual All vehicles
6. To install, reverse the removal procedure.  Klj .  2 ba
  22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Page 3689 of 4378

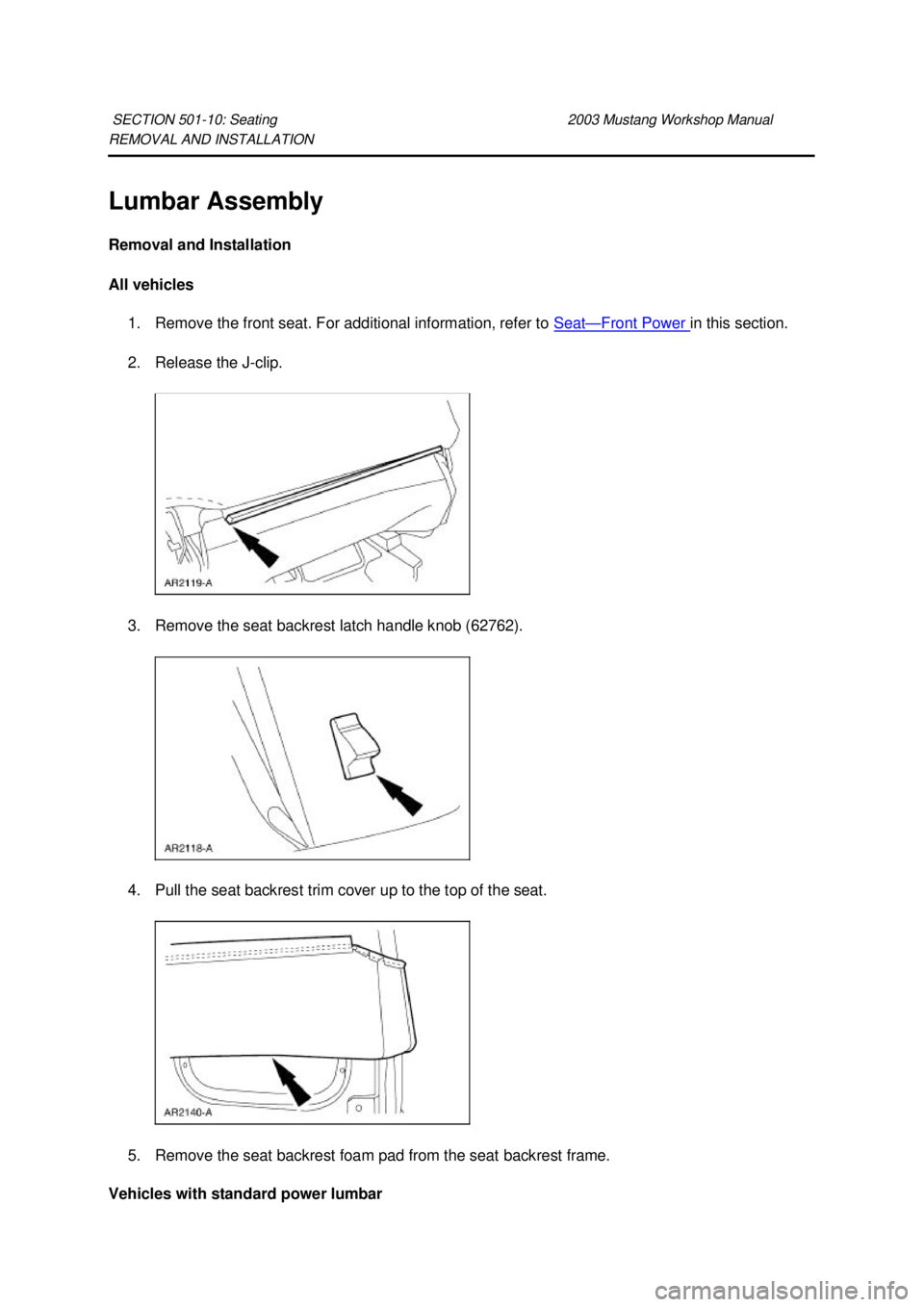

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Lumbar Assembly
Removal and Installation
All vehicles
1. Remove the front seat. For additional information, refer to  Seat — Front Power  in this section.
2. Release th

Page 3690 of 4378

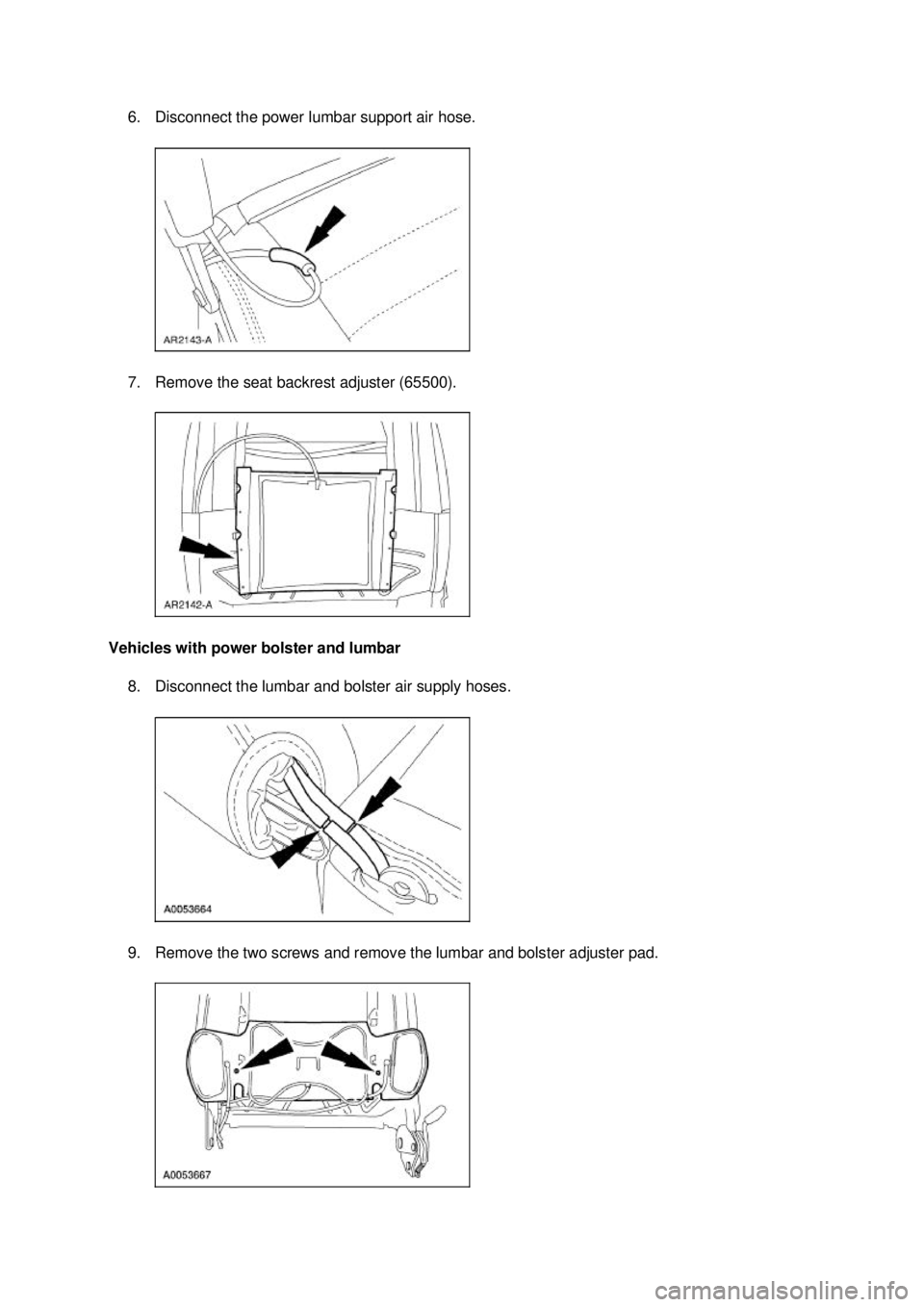

FORD MUSTANG 2003  Workshop Manual 6. Disconnect the power lumbar support air hose.
7. Remove the seat backrest adjuster (65500).
Vehicles with power bolster and lumbar  8. Disconnect the lumbar and bolster air supply hoses.
9. Remo
