DISASSEMBLY AND ASSEMBLY
Front Seat Cushion
Disassembly and Assembly
All vehicles

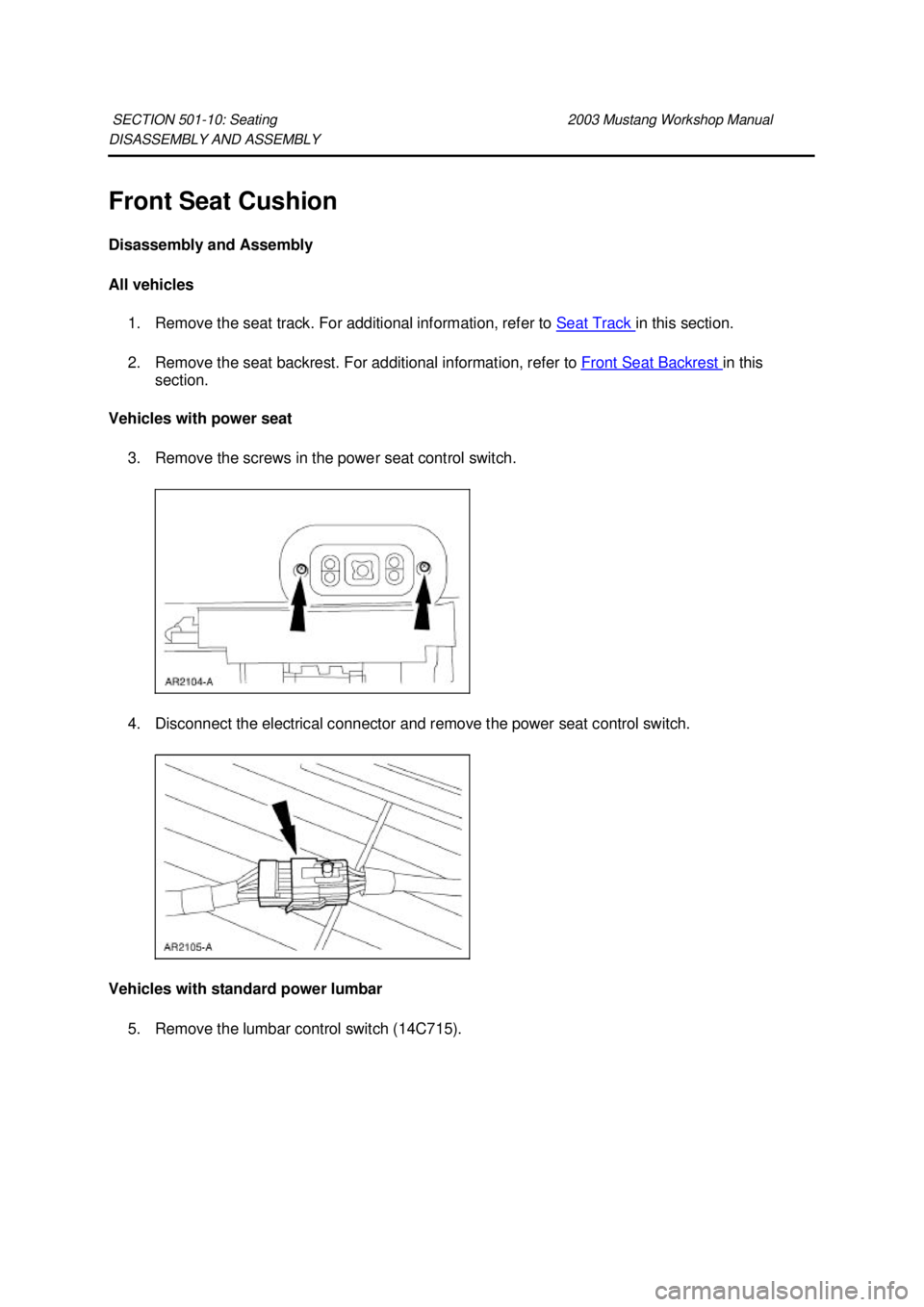

1. Remove the seat track. For additional information, refer to Seat Track in this section.
2. Remove the seat backrest. For additional information, refer to Front Seat Backrest in this
section.
Vehicles with power seat
3. Remove the screws in the power seat control switch.
4. Disconnect the electrical connector and remove the power seat control switch.
Vehicles with standard power lumbar 5. Remove the lumbar control switch (14C715).
SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

6. Disconnect the power lumbar support air hoses.
7. Disconnect the lumbar seat control switch electrical connector and remove the lumbar control
switch.
Vehicles with power bolster and lumbar
NOTE: For vehicles with lumbar and bolster, the pump and solenoid module are serviced as part of the
seat cushion frame.
8. Remove the power lumbar and bolster seat switch screws. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

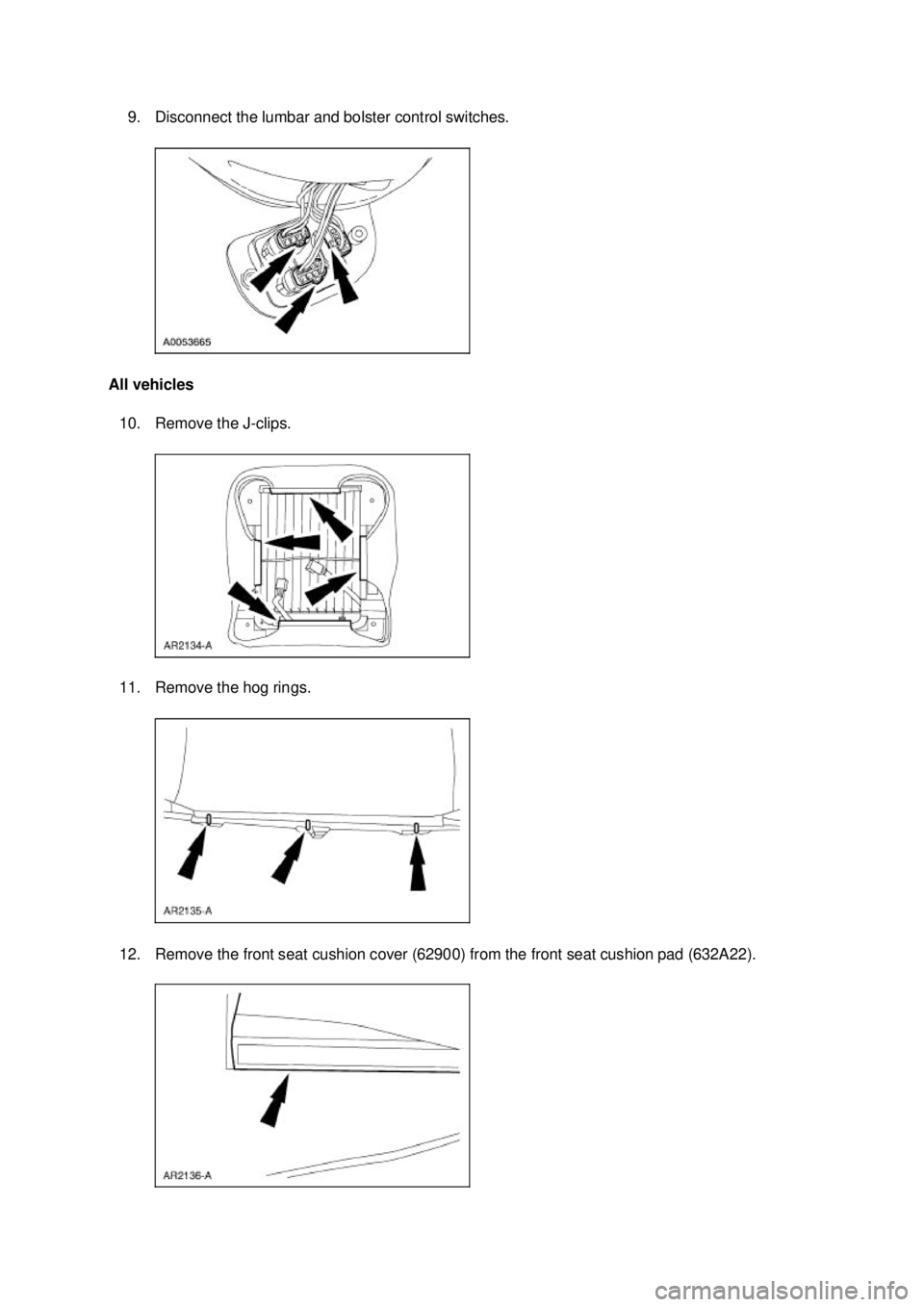

9. Disconnect the lumbar and bolster control switches.
All vehicles 10. Remove the J- clips.
11. Remove the hog rings.
12. Remove the front seat cushion cover (62900) from the front seat cushion pad (632A22). Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

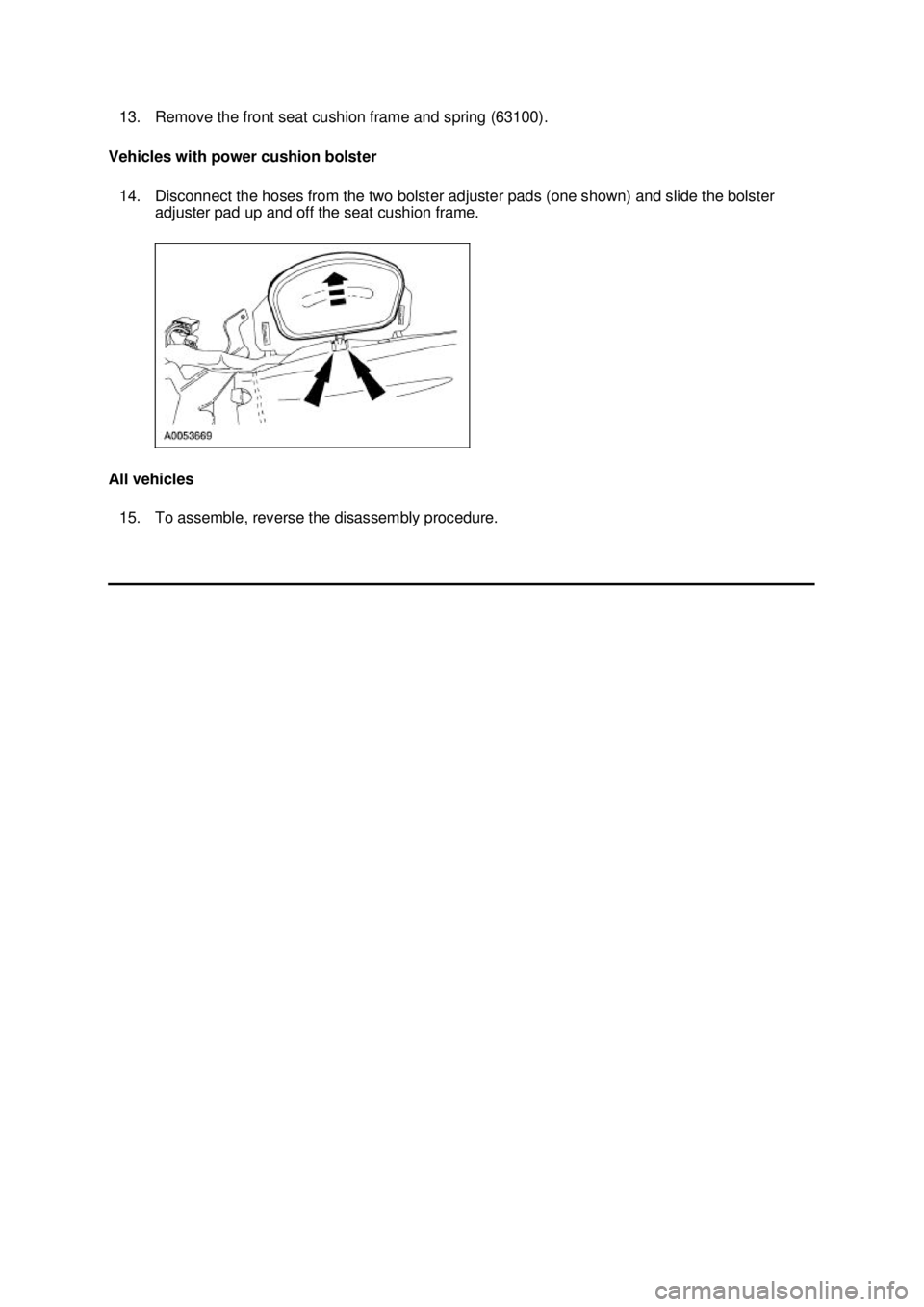

13. Remove the front seat cushion frame and spring (63100).
Vehicles with power cushion bolster 14. Disconnect the hoses from the two bolster adjuster pads (one shown) and slide the bolster adjuster pad up and off the seat cushion frame.
All vehicles 15. To assemble, reverse the disassembly procedure. Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY
Front Seat Backrest
Disassembly and Assembly
All vehicles
1. Remove the front seat backrest. For additional information, refer to Front Seat Backrest in this
section.
2. Remove the front seat backrest head restraint (611A08).
3. Remove the screws and the safety belt guide.
4. Remove the front seat headrest guide rod sleeve (610A16). 5. Release the J - clip. SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

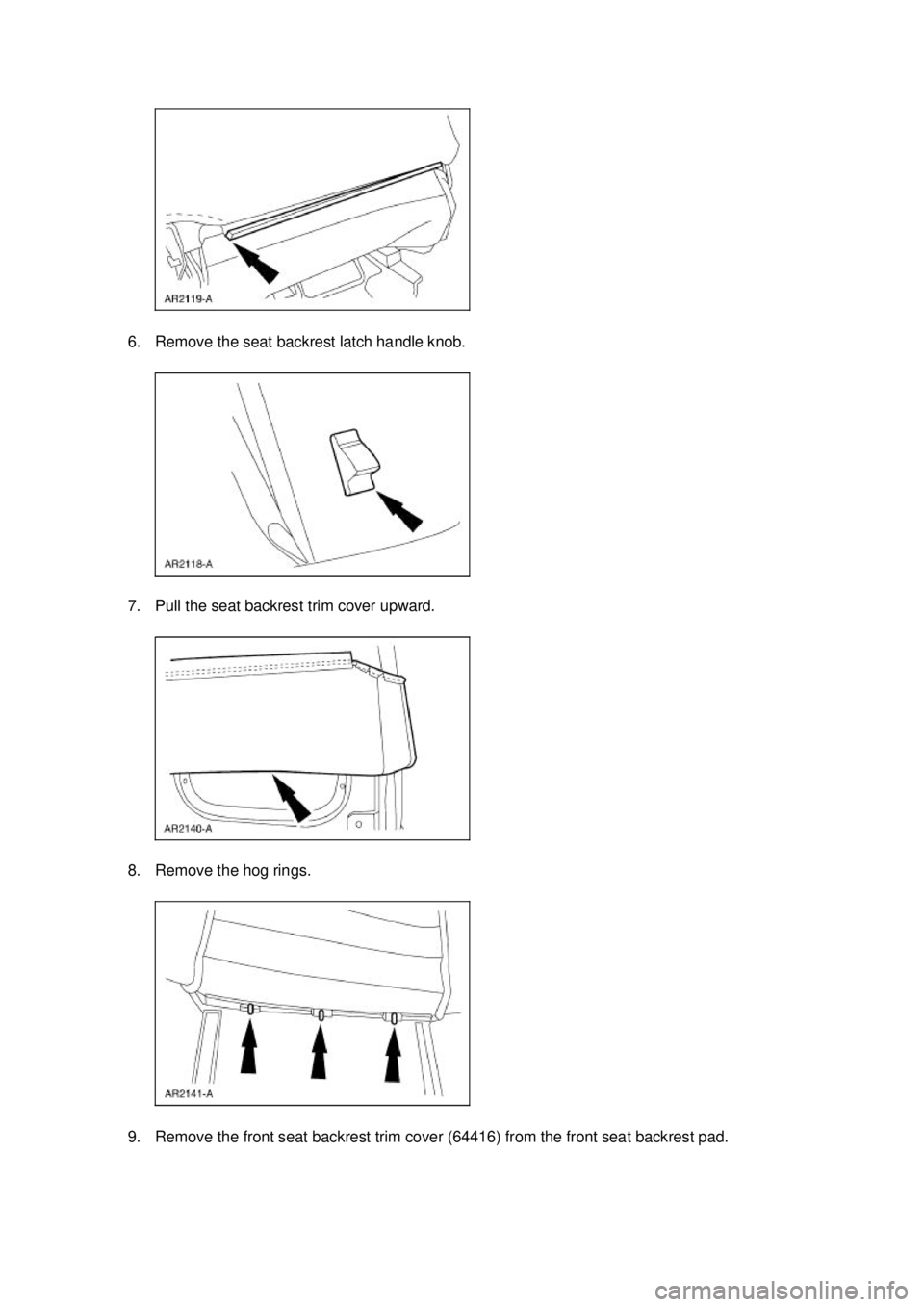

6. Remove the seat backrest latch handle knob.
7. Pull the seat backrest trim cover upward.
8. Remove the hog rings.
9. Remove the front seat backrest trim cover (64416) from the front seat backrest pad. Klj . 2 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

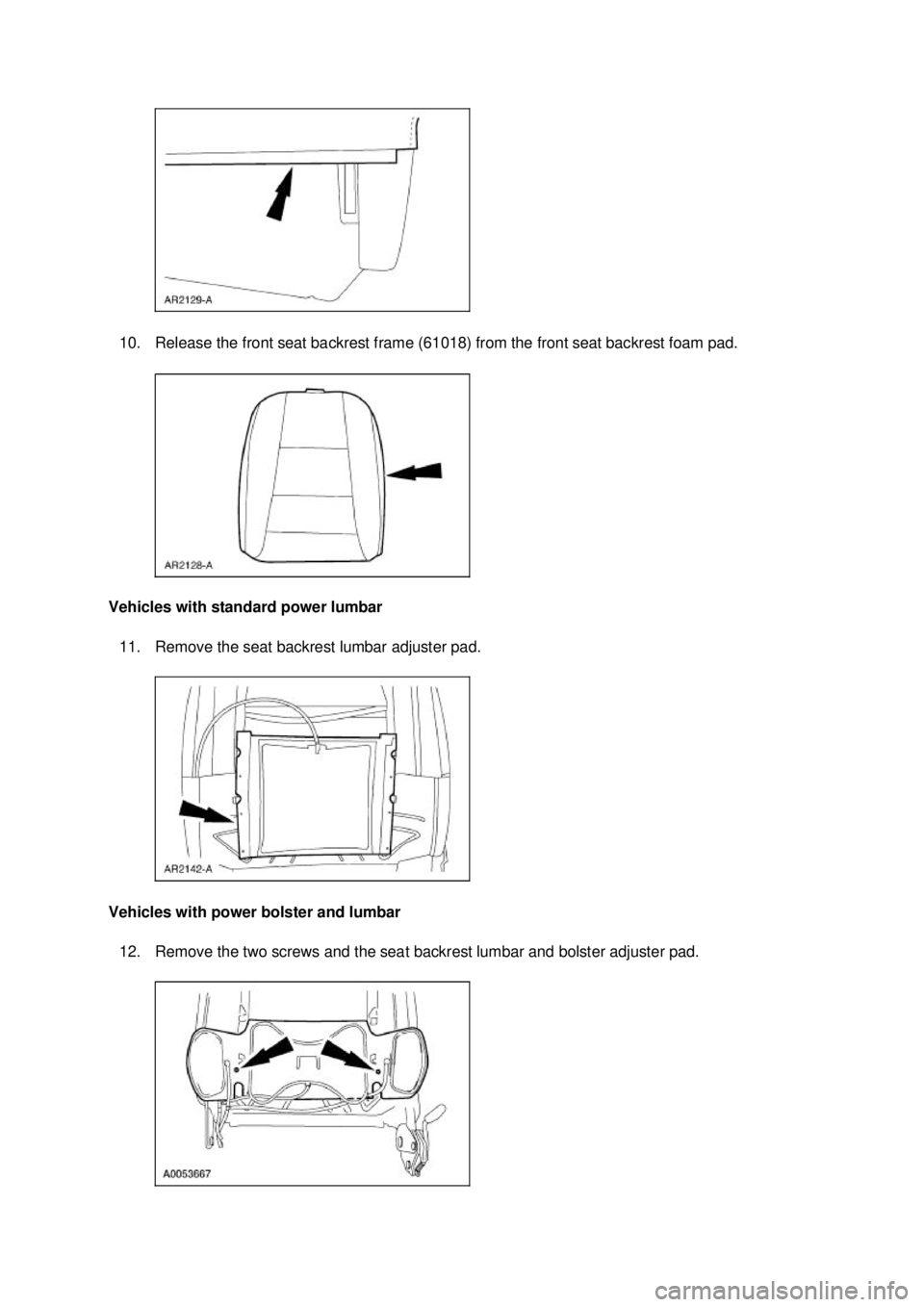

10. Release the front seat backrest frame (61018) from the front seat backrest foam pad.
Vehicles with standard power lumbar 11. Remove the seat backrest lumbar adjuster pad.
Vehicles with power bolster and lumbar 12. Remove the two screws and the seat backrest lumbar and bolster adjuster pad. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

All vehicles

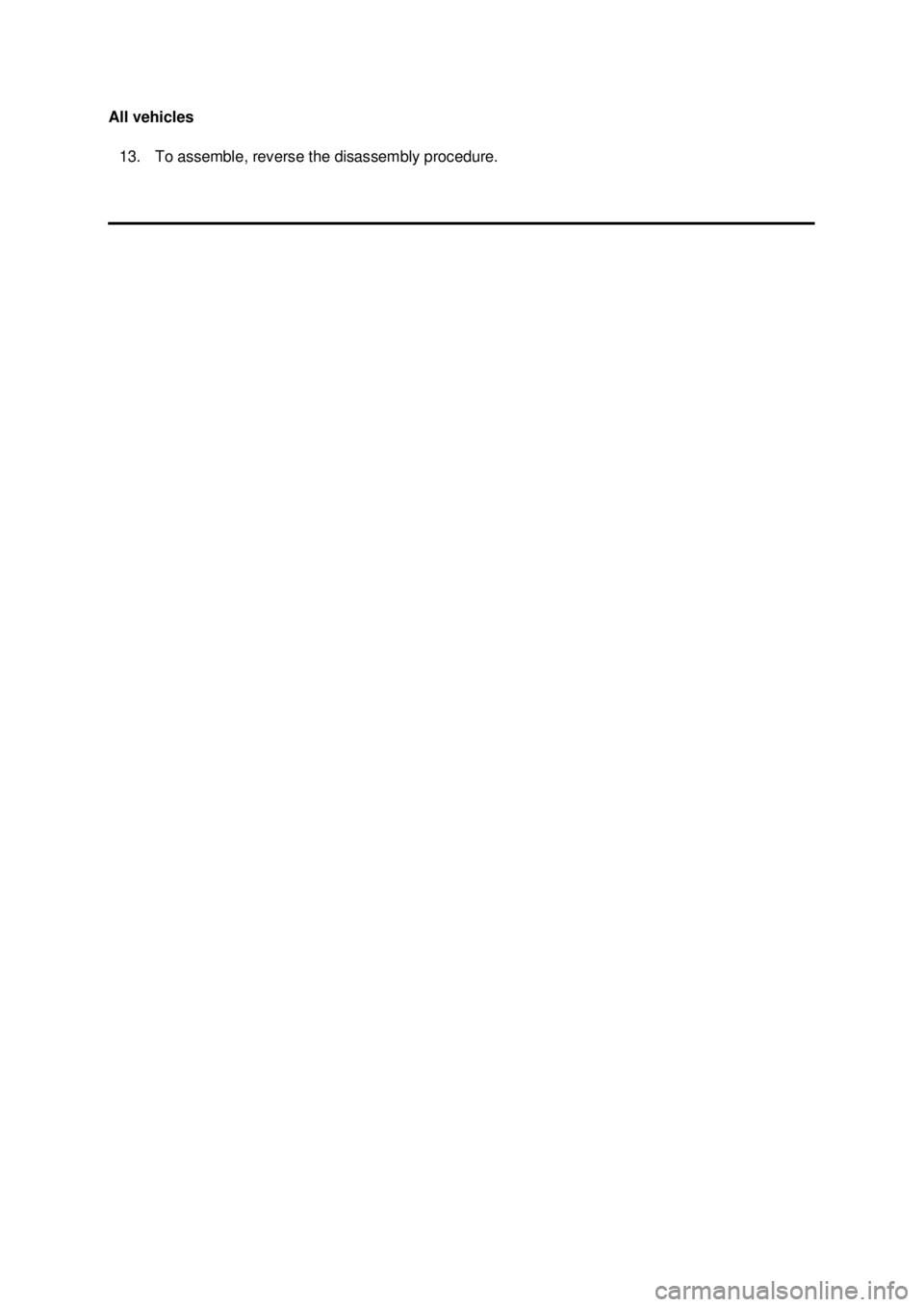

13. To assemble, reverse the disassembly procedure. Klj . 4 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual WINDOW REGULATOR ELECTRIC DRIVE
CURRENT DRAW
Description Specification
No Load 5 amperes or less at 12.8 volts
General Specifications Item Specification
Silicone Lubricant F7AZ-19G208-
BA ESR-
M13P4-A Multi-
Purpose Grease Spray F5AZ-19G209- BA ESR-
M1C159- A Multi-
Purpose Grease DOAZ-19584- AA ESB-
M1C93- B Rear Window Defroster Repair D8AZ-
19562-AA or equivalent WSB-
M4J58- B Urethane Glass Prep Essex U-401 WSB-
M2G314- B Dark Walnut Metallic Acrylic Lacquer Touch Up Paint
ALBZ-
19500- 5858A or equivalent ESR-
M2-P100- C Urethane Metal Primer Essex U-413 WSB-
M2G234- C Urethane Adhesive Essex U-
216 WSB-
M2G316- B Urethane Adhesive Essex 400 HV WSB-
M2G316- B Urethane Glass Primer Essex U-402 WSB-
M5B280- C
Torque Specifications Description Nm lb-
ft lb-
in Exterior weatherstrip screw 2 — 18
Window run screws 13 10 —
Window regulator motor screws 10 — 89
Upper regulator mounting nuts 13 10 —
Rear door window regulator motor screws 6 — 53
Quarter window regulator nuts 9 — 80
Door window stop bracket screws 12 9 —
Door window glass inner stabilizer bolts 12 9 —
Quarter window glass nuts 3 — 27
Convertible quarter glass retaining bolts/nut 9 — 80
Window regulator equalizer arm nuts 9 — 80
Window regulator nuts 9 — 80
Quarter window regulator nuts 9 — 80 Klj . 1 ba
