REMOVAL AND INSTALLATION

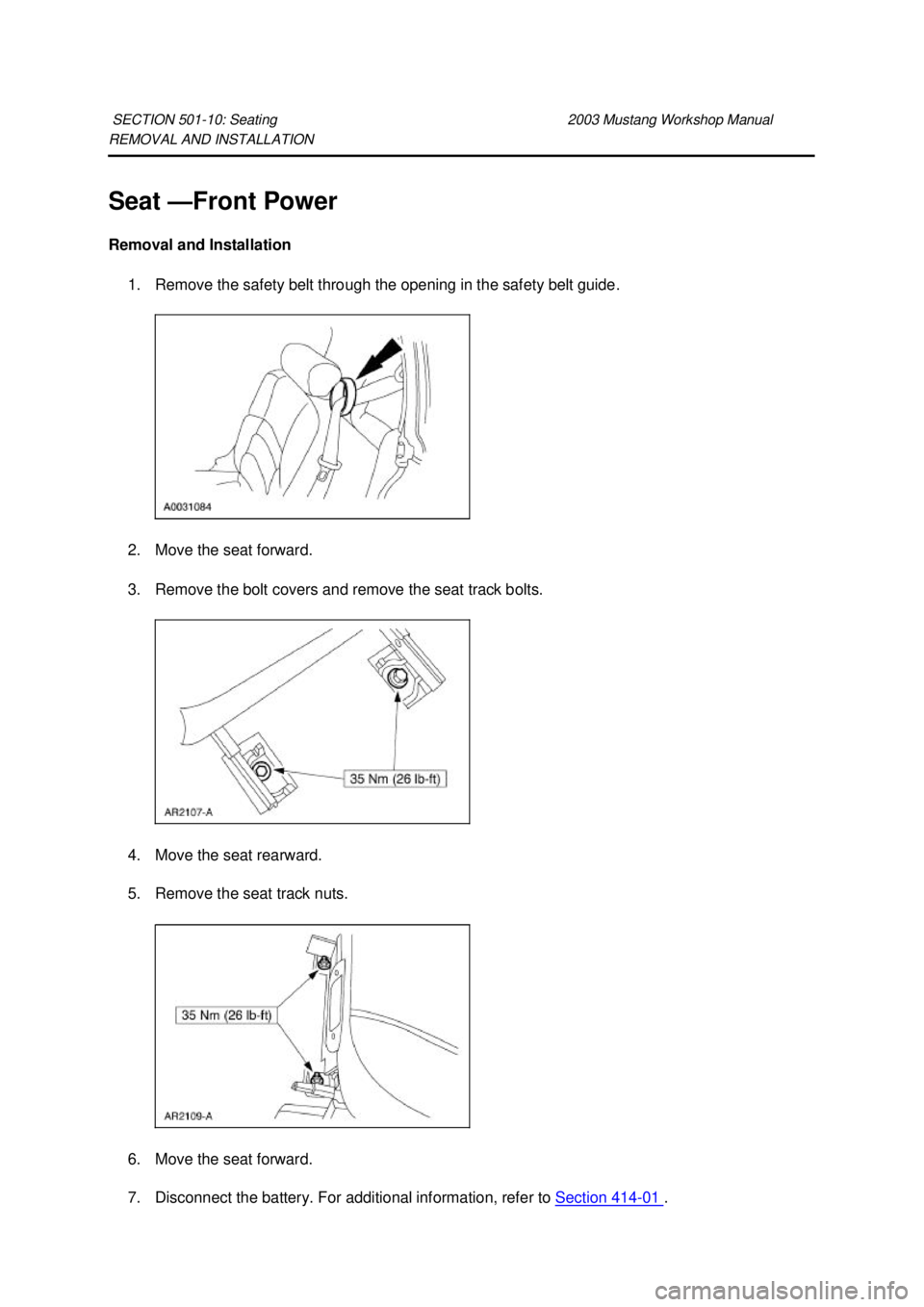

Seat —
Front Power
Removal and Installation 1. Remove the safety belt through the opening in the safety belt guide.
2. Move the seat forward.
3. Remove the bolt covers and remove the seat track bolts.
4. Move the seat rearward.
5. Remove the seat track nuts.
6. Move the seat forward.
7. Disconnect the battery. For additional information, refer to Section 414 - 01 .
SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

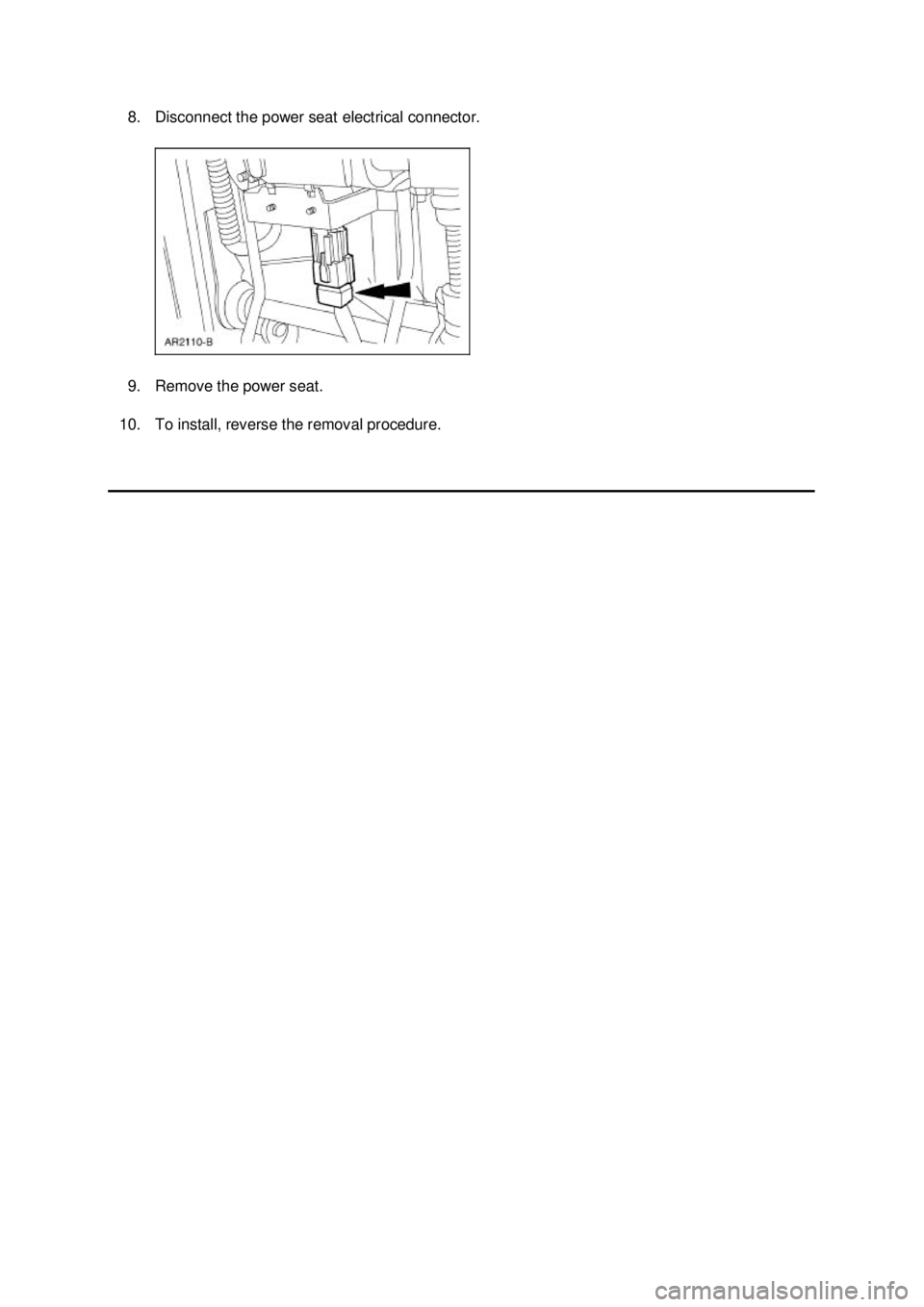

8. Disconnect the power seat electrical connector.
9. Remove the power seat.
10. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

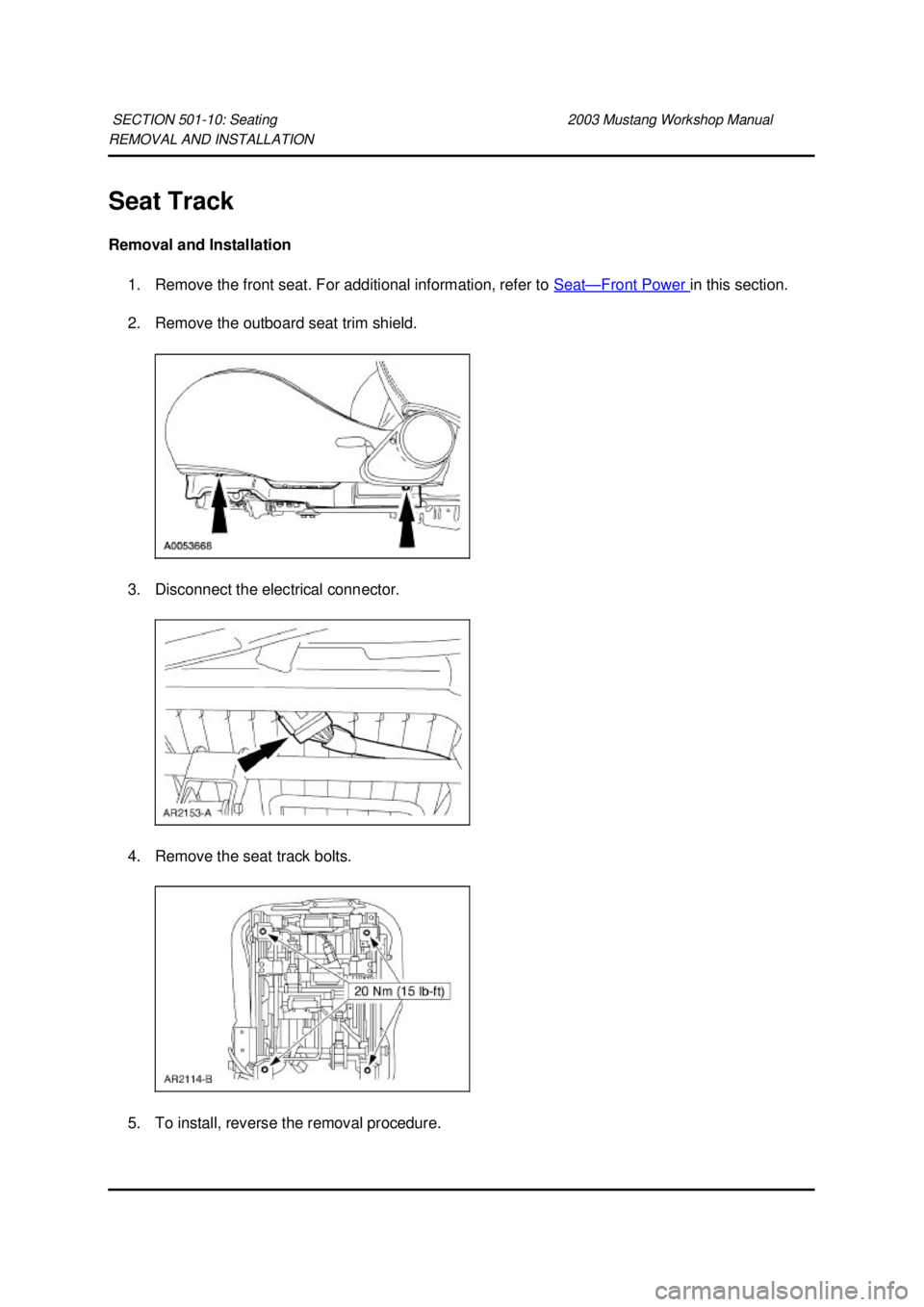

Seat Track
Removal and Installation
1. Remove the front seat. For additional information, refer to Seat — Front Power in this section.
2. Remove the outboard seat trim shield.
3. Disconnect the electrical connector.
4. Remove the seat track bolts.
5. To install, reverse the removal procedure.
SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

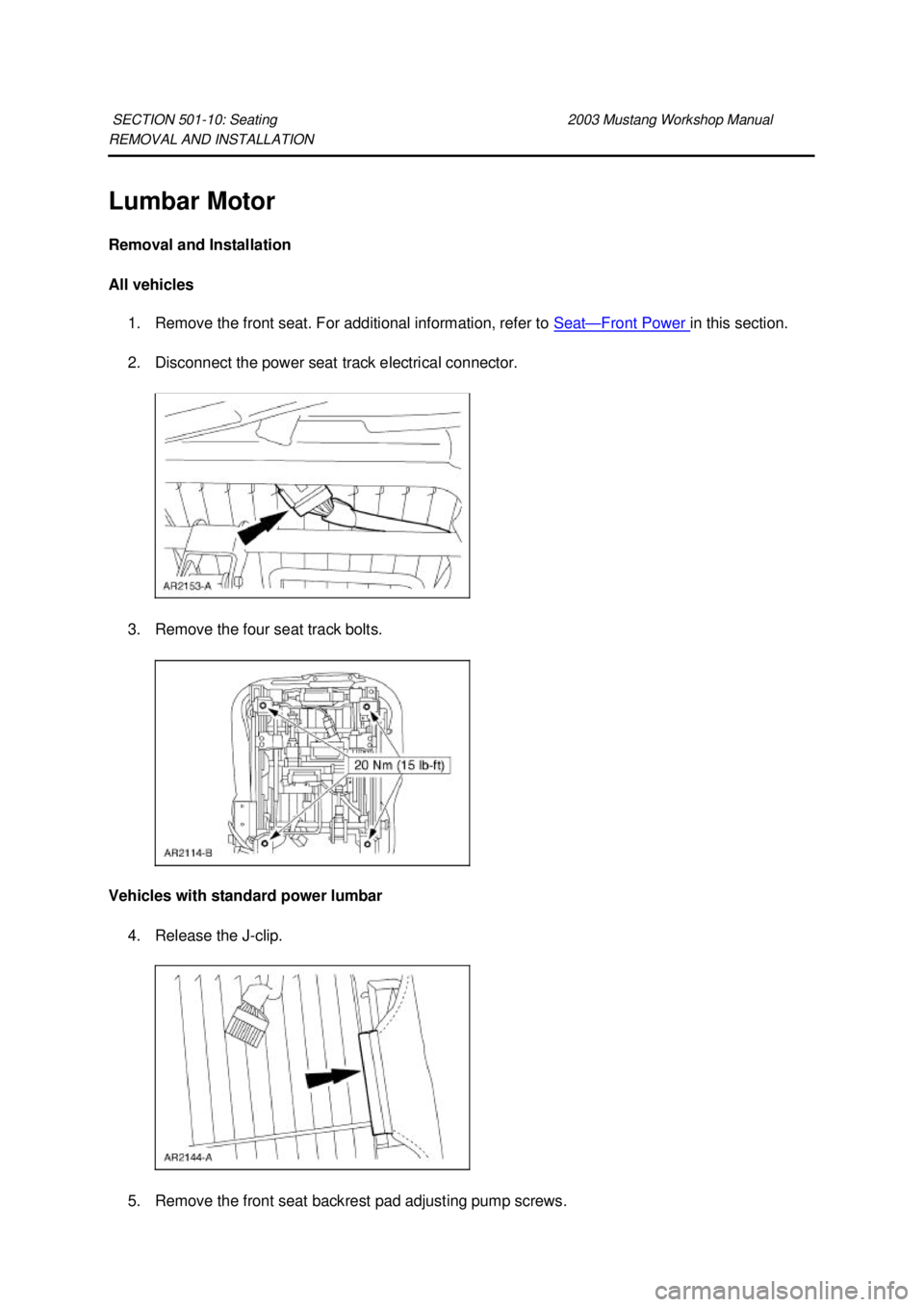

Lumbar Motor
Removal and Installation
All vehicles
1. Remove the front seat. For additional information, refer to Seat — Front Power in this section.
2. Disconnect the power seat track electrical connector.
3. Remove the four seat track bolts.
Vehicles with standard power lumbar 4. Release the J- clip.
5. Remove the front seat backrest pad adjusting pump screws.
SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

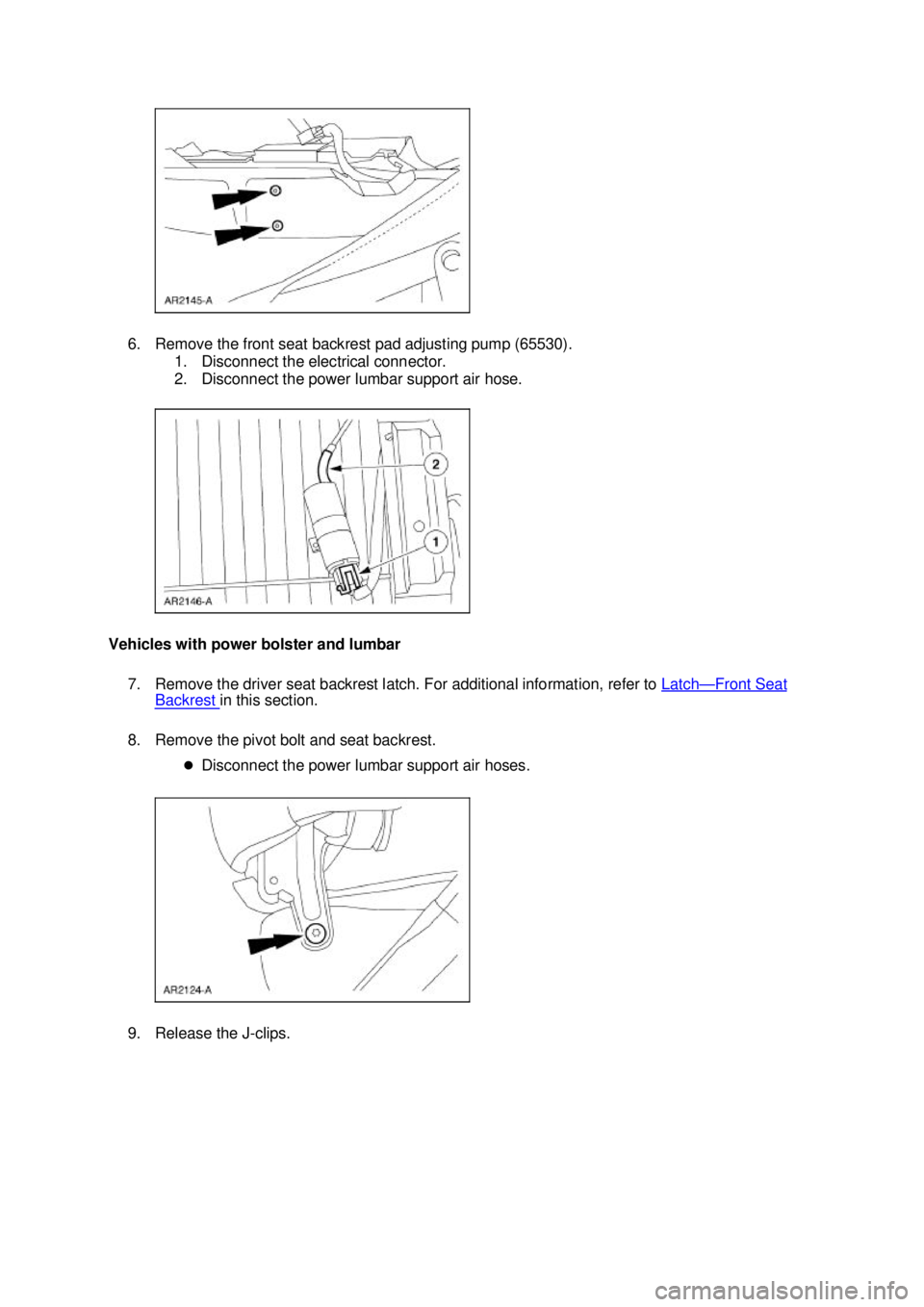

6. Remove the front seat backrest pad adjusting pump (65530).
1. Disconnect the electrical connector.
2. Disconnect the power lumbar support air hose.
Vehicles with power bolster and lumbar 7. Remove the driver seat backrest latch. For additional information, refer to Latch — Front Seat
Backrest in this section.
8. Remove the pivot bolt and seat backrest. zDisconnect the power lumbar support air hoses.
9. Release the J- clips. Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

10.
NOTE: When removing the cushion from the frame, it is not necessary to remove the trim cover
from the cushion foam pad.
Remove the cushion foam pad from the frame.
11. NOTE: The lumbar and bolster pump and solenoid module is serviced as part of the cushion
frame assembly.
Install a new seat cushion frame assembly.

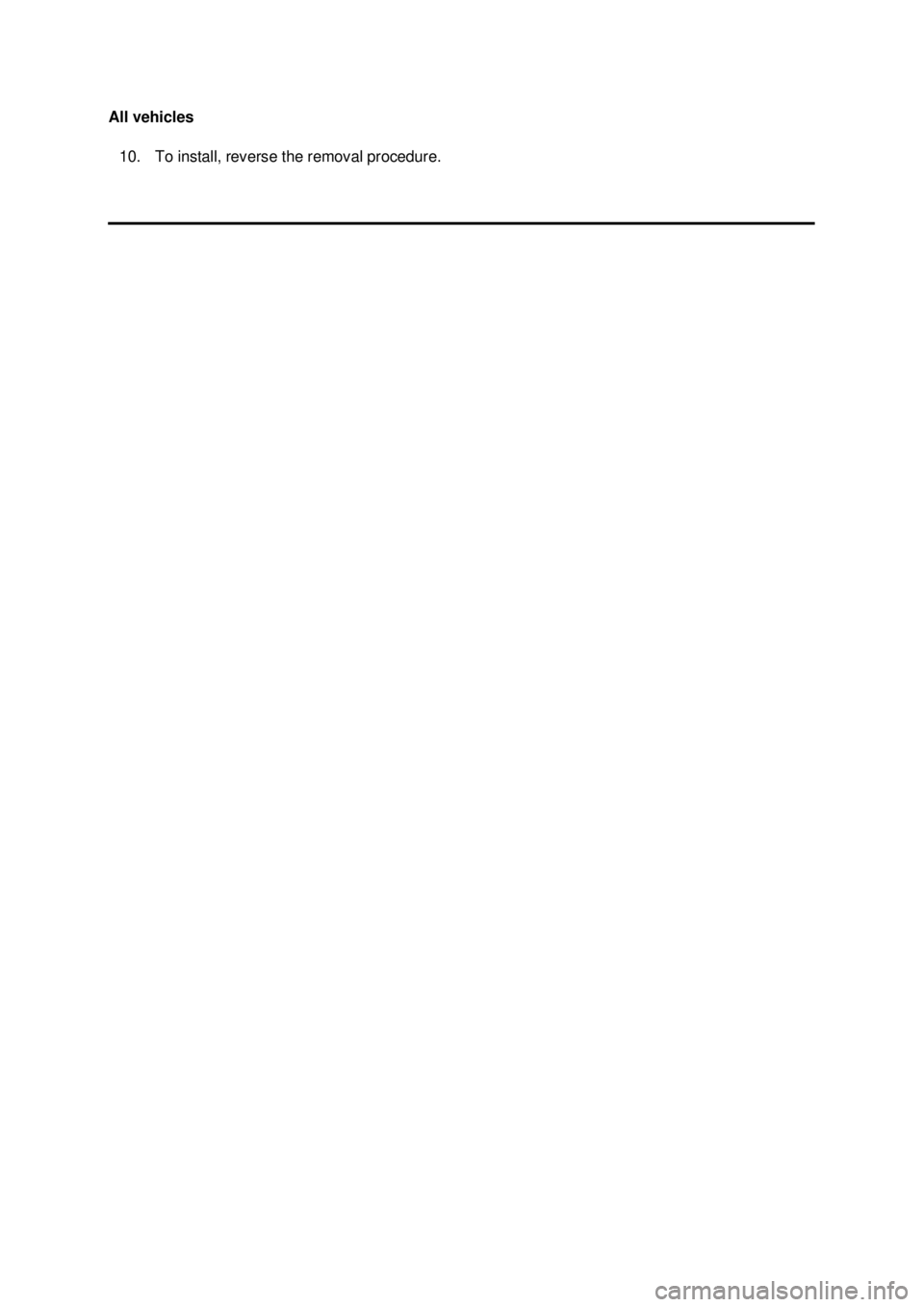

All vehicles
12. To install, reverse the removal procedure. Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

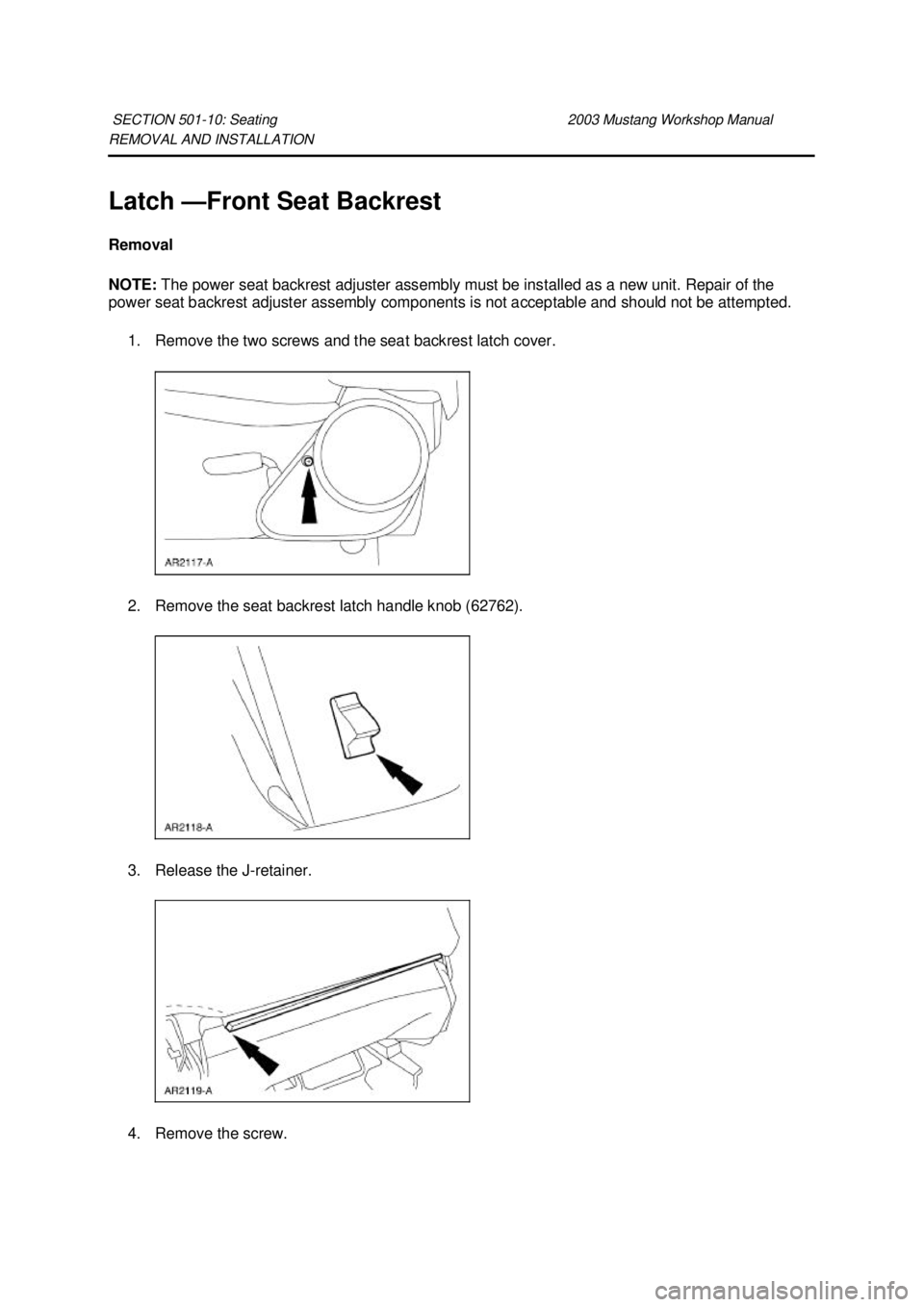

Latch —
Front Seat Backrest
Removal
NOTE: The power seat backrest adjuster assembly must be installed as a new unit. Repair of the
power seat backrest adjuster assembly components is not acceptable and should not be attempted.
1. Remove the two screws and the seat backrest latch cover.
2. Remove the seat backrest latch handle knob (62762).
3. Release the J- retainer.
4. Remove the screw.
SECTION 501-
10: Seating 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

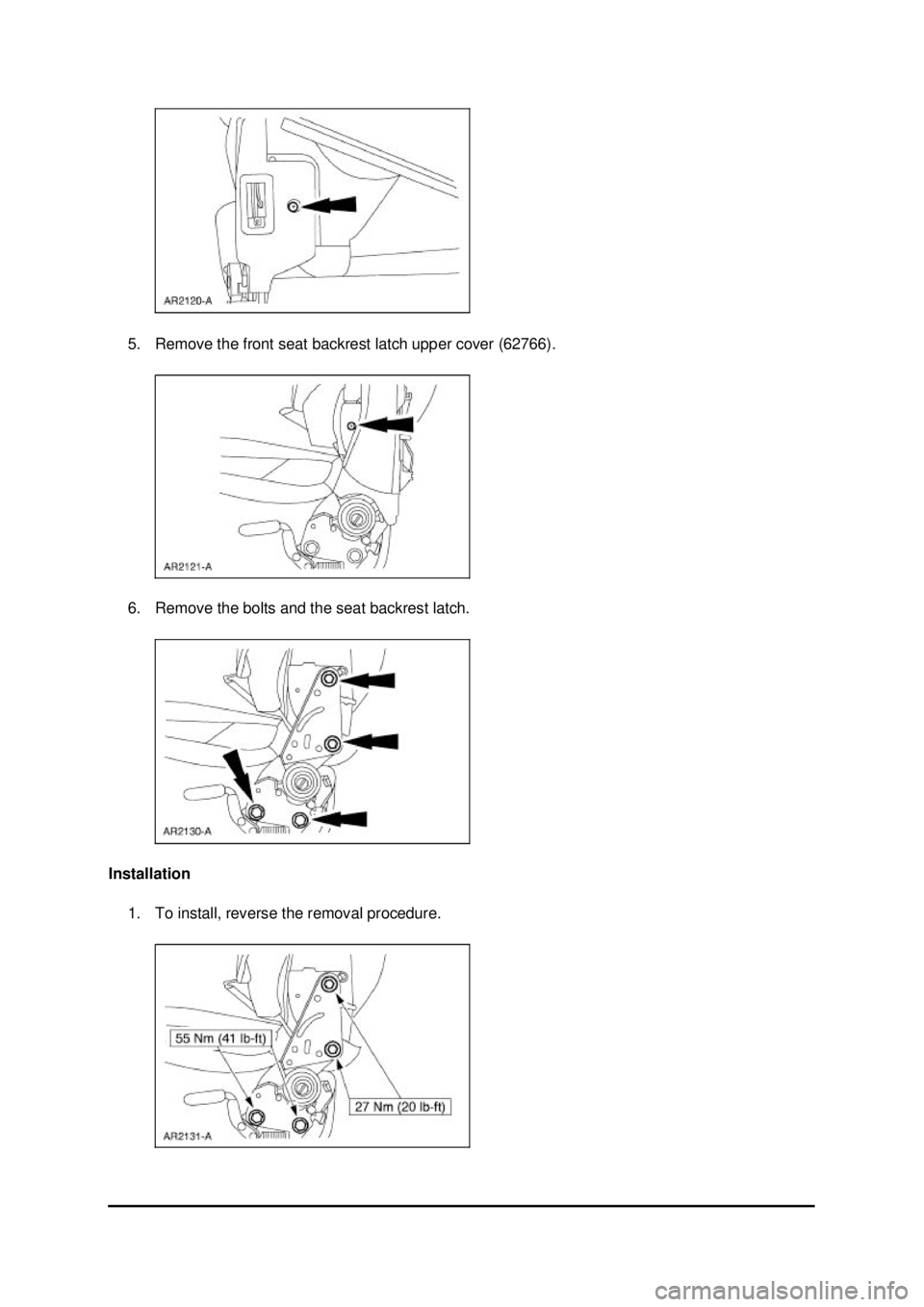

5. Remove the front seat backrest latch upper cover (62766).
6. Remove the bolts and the seat backrest latch.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
