FORD TRANSIT 2016 5.G Owners Manual

Passenger Compartment Fuse Panel
Circuits protected
Fuse rating
Fuse
Airbag module.
10A
F1
Anti-lock brake system with electronic stability
control.
4A
F2
Parking brake.
Not used.
-
F3
Trailer tow back-up lamp relay.
10A
F4
Cutaway body connectors.
20A
F5
Not used.
-
F6
Not used.
-
F7
AC power outlet socket.
40A
F8
Trailer brake module.
30A
F9
Driver power seat.
30A
F10
Passenger power seat.
30A
F11
Trailer tow park lamp relay.
30A
F12
198
Transit (TTH) Canada/United States of America, enUSA, First Printing FusesE148827

Circuits protected
Fuse rating
Fuse
Anti-lock brake system with electronic stability
control valves.
25A
F13
Powertrain control module B+ relay.
5A
F14
Powertrain control module power relay.
40A
F15
Body control module power feed.
40A
F16
Anti-lock brake system.
40A
F17
Modified vehicle connections.
40A
F18
Not used.
-
F19
Heated exterior mirror relay.
5A
F20
Heated rear window.
Modified vehicle ignition connections.
10A
F21
Passenger compartment fuse panel (Body control
module).
15A
F22
Air conditioning control module.
7.5A
F23
Cutaway body connectors.
10A
F24
Interior lighting.
7.5A
F25
Power point relay control.
Heated exterior mirrors.
10A
F26
Heated rear window.
20A
F27
Heated rear window.
20A
F28
Rear parking aid camera.
10A
F29 Lane keeping system.
Electro mirror.
Not used.
-
F30
Trailer brake ignition feed.
10A
F31
Interior lighting.
10A
F32
Not used.
-
F33
Not used.
-
F34
Mirror switch.
5A
F35
Driver's power window switch.
199
Transit (TTH) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse rating
Fuse
Horn.
20A
F36
SYNC module.
7.5A
F37
GPS module.
Blower motor relay.
5A
F38 Horn relay.
Windshield wiper relay.
Remote keyless entry.
7.5A
F39 Rear heating, ventilation and air conditioning.
Trailer tow backup relay coil.
Park lamp relay coil.
Front blower motor.
40A
F40
Rear blower motor.
40A
F41
Heated rear window.
40A
F42
Trailer socket.
30A
F43
Trailer tow module.
Auxiliary power points.
60A
F44
Trailer connectors B+ supply.
40A
F45
Trailer tow module.
Power windows.
30A
F46
Cigar lighter socket.
20A
F47
Rear auxiliary power points.
20A
F48
Front auxiliary power points.
20A
F49
Ignition relay 1.
60A
F50
Not used.
-
F51
Modified vehicle connections.
40A
F52
Modified vehicle connections.
40A
F53
200
Transit (TTH) Canada/United States of America, enUSA, First Printing Fuses

Circuits switched
Relay
Not used (spare).
R1
Auxiliary power points.
R2
Trailer tow parking lamp.
R3
Not used.
R4
Power windows.
R5
Ignition 1.
R6
Horn.
R7
Trailer tow back-up lamp.
R8
Front blower motor.
R9
Rear blower motor.
R10
Heated rear window.
R11 Heated exterior mirrors.
Not used.
R12
Modified vehicle connections.
R13
201
Transit (TTH) Canada/United States of America, enUSA, First Printing Fuses

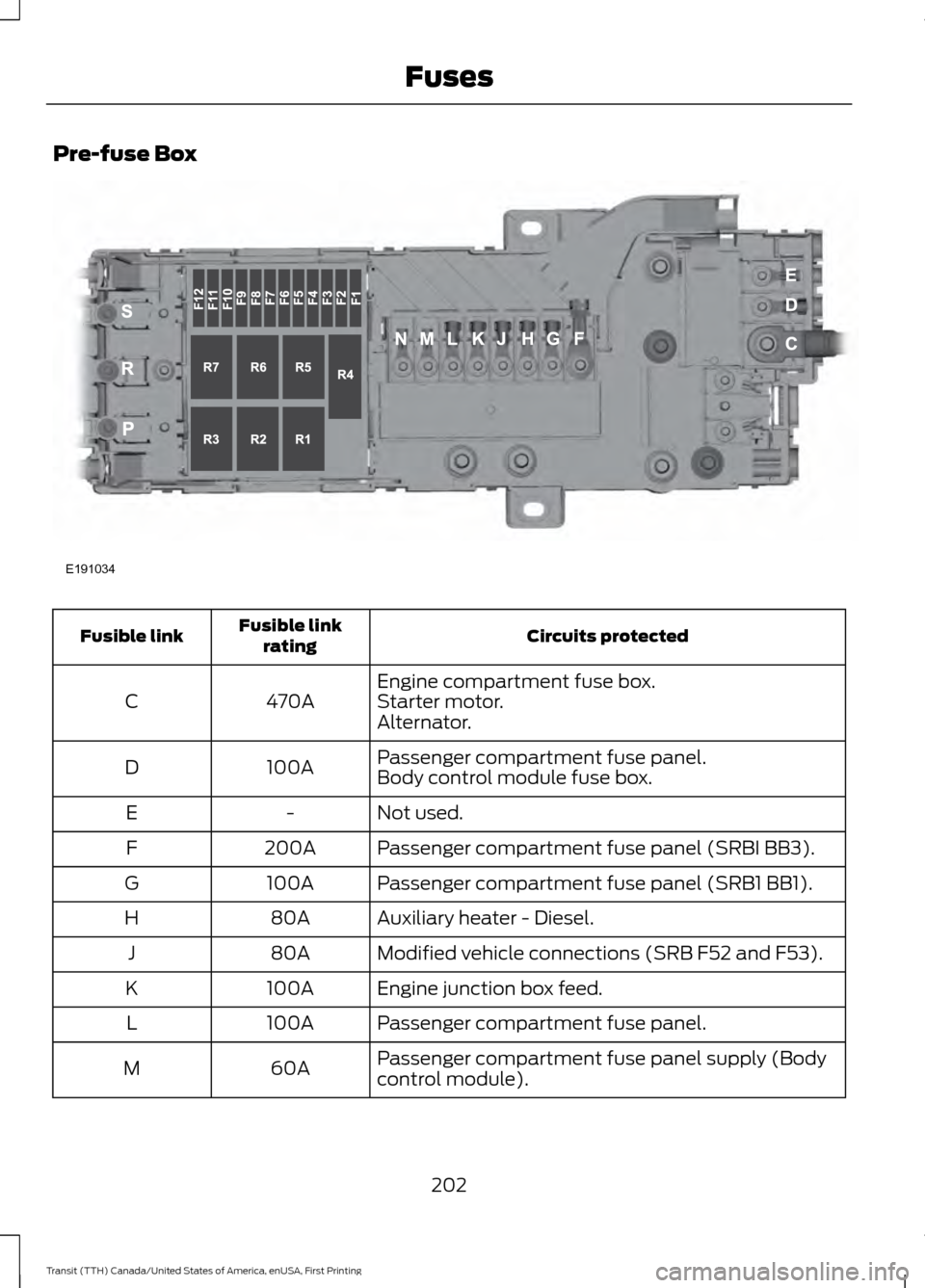

Pre-fuse Box
Circuits protected
Fusible link
rating
Fusible link
Engine compartment fuse box.
470A
C Starter motor.
Alternator.
Passenger compartment fuse panel.
100A
D
Body control module fuse box.
Not used.
-
E
Passenger compartment fuse panel (SRBI BB3).
200A
F
Passenger compartment fuse panel (SRB1 BB1).
100A
G
Auxiliary heater - Diesel.
80A
H
Modified vehicle connections (SRB F52 and F53).
80A
J
Engine junction box feed.
100A
K
Passenger compartment fuse panel.
100A
L
Passenger compartment fuse panel supply (Body
control module).
60A
M
202
Transit (TTH) Canada/United States of America, enUSA, First Printing FusesE191034

Circuits protected
Fusible link
rating
Fusible link
Passenger compartment fuse panel supply (Body
control module).
60A
N
Auxiliary power point 1 (Customer connection point).
60A
P
Auxiliary power point 2 (Customer connection point).
60A
R
Auxiliary power point 3 (Customer connection point).
60A
S
Auxiliary Fuse Panel (Upfitters) Circuits protected
Fuse rating
Fuse
Not used.
-
F1
Not used.
-
F2
Not used.
-
F3
Not used.
-
F4
R4 relay power.
20A
F5
R3 relay power.
20A
F6
R2 relay power.
20A
F7
R1 relay power.
20A
F8
Not used.
-
F9
Not used.
-
F10
Not used.
-
F11
Switch power.
3A
F12 Circuits switched
Relay
Upfitter 1.
R1
Upfitter 2.
R2
Upfitter 3.
R3
Upfitter 4.
R4
203
Transit (TTH) Canada/United States of America, enUSA, First Printing Fuses

Circuits switched
Relay
Not used.
R5
Not used.
R6
Not used.
R7
Body Control Module 204
Transit (TTH) Canada/United States of America, enUSA, First Printing FusesE148830

Circuits protected
Fuse rating
Fuse
Central locking system 2.
15A
F1
Central locking system 1.
15A
F2
Ignition switch.
15A
F3
Parking assist control module.
5A
F4
Brake transmission shift interlock.
Rain sensor module.
5A
F5
Windshield washer pump.
15A
F6
Not used.
-
F7
Not used.
-
F8
Right-hand high beam.
10A
F9
Left-hand high beam.
10A
F10
Right-hand exterior lamps.
25A
F11
Left-hand position lamps.
Not used.
-
F12
On-board diagnostic.
15A
F13
Battery saver.
Turn signal indicator.
25A
F14 Power windows delayed accessory.
Lane departure sensor heated windshield pad.
Left-hand exterior lamps.
25A
F15 Right-hand position lamps.
High mounted stoplamp.
Audio unit.
20A
F16
Navigation unit.
Instrument panel cluster.
7.5A
F17
Heater control.
Headlamp switch module.
10A
F18 Steering wheel module.
Stoplamp switch supply.
205
Transit (TTH) Canada/United States of America, enUSA, First Printing Fuses

Circuits protected
Fuse rating
Fuse
Front control/display interface module.
5A
F19
Ignition passive anti-theft system.
5A
F20
Accessory relay, customer access feed.
3A
F21
CHANGING A FUSE WARNINGS
Do not modify the electrical system
of your vehicle in any way. Have
repairs to the electrical system and
the replacement of relays and high current
fuses carried out by an authorized dealer. Switch the ignition and all electrical
equipment off before attempting to
change a fuse.
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in your vehicle are
not working, a fuse may have blown. A
break in the fuse wire will indicate a blown
fuse. Check the appropriate fuses before
replacing any electrical components.
206
Transit (TTH) Canada/United States of America, enUSA, First Printing FusesE142430

GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.
Precautions
•
Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.
Working with the Engine Off
1. Set the parking brake and shift to park
(P).
2. Switch off the engine.
3. Block the wheels. Working with the Engine On WARNING
To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner
removed and do not remove it while the
engine is running. 1.
Set the parking brake and shift to park
(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
Opening the Hood 1. Pull the hood release lever.
