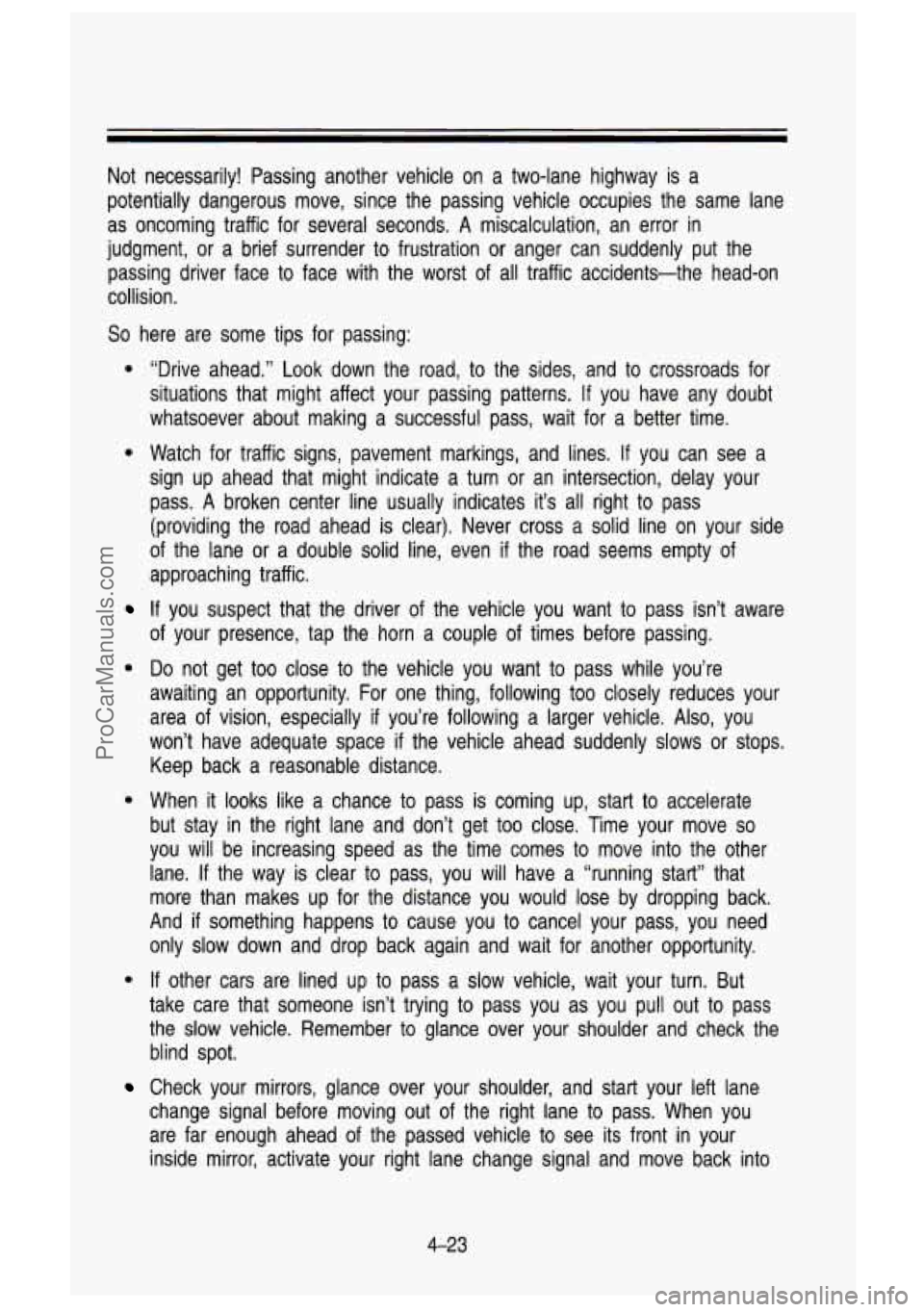

Not necessarily! Passing another vehicle on a two-lane highway is a
potentially dangerous move, since the passing vehicle occupies t\
he same lane
as oncoming traffic for several seconds.
A miscalculation, an error in
judgment, or a brief surrender to frustration or anger can suddenly put the
passing driver face to face with the worst of all traffic accidents-the head-on
collision.
So here are some tips for passing:
e
e
e
e
e
“Drive ahead.” Look down the road, to the sides, and to crossroads for
situations that might affect your passing patterns.
If you have any doubt
whatsoever about making a successful pass, wait for a better t\
ime.
Watch for traffic signs, pavement markings, and lines. If you \
can see a
sign up ahead that might indicate a turn or an intersection, delay your
pass.
A broken center line usually indicates it’s all right to pass
(providing the road ahead is clear). Never cross a solid line on your side
of the lane or a double solid line, even
if the road seems empty of
approaching traffic.
If you suspect that the driver of the vehicle you want to pass isn’t aware
of your presence, tap the horn a couple of times before passing.
Do not get too close to the vehicle you want to pass while you’re
awaiting an opportunity. For one thing, following too closely r\
educes your
area of vision, especially
if you’re following a larger vehicle. Also, you
won’t have adequate space
if the vehicle ahead suddenly slows or stops.
Keep back a reasonable distance.
When it looks like a chance to pass is coming up, start
to accelerate
but stay in the right lane and don’t get too close. Time your move
so
you will be increasing speed as the time comes to move into the other
lane.
If the way is clear to pass, you will have a “running start” that
more than makes up for the distance you would lose by droppin\
g back.
And
if something happens to cause you to cancel your pass, you need
only slow down and drop back again and wait for another oppor\
tunity.
If other cars are lined up to pass a slow vehicle, wait your turn. But
take care that someone isn’t trying to pass you as you pull out to pass
the slow vehicle. Remember to glance over your shoulder and check the
blind spot.
Check your mirrors, glance over your shoulder, and start your \
left lane
change signal before moving out of the right lane
to pass. When you
are far enough ahead of the passed vehicle to see its front in your
inside mirror, activate your right lane change signal and move \
back into
4-23
ProCarManuals.com

Your Driving and the Road

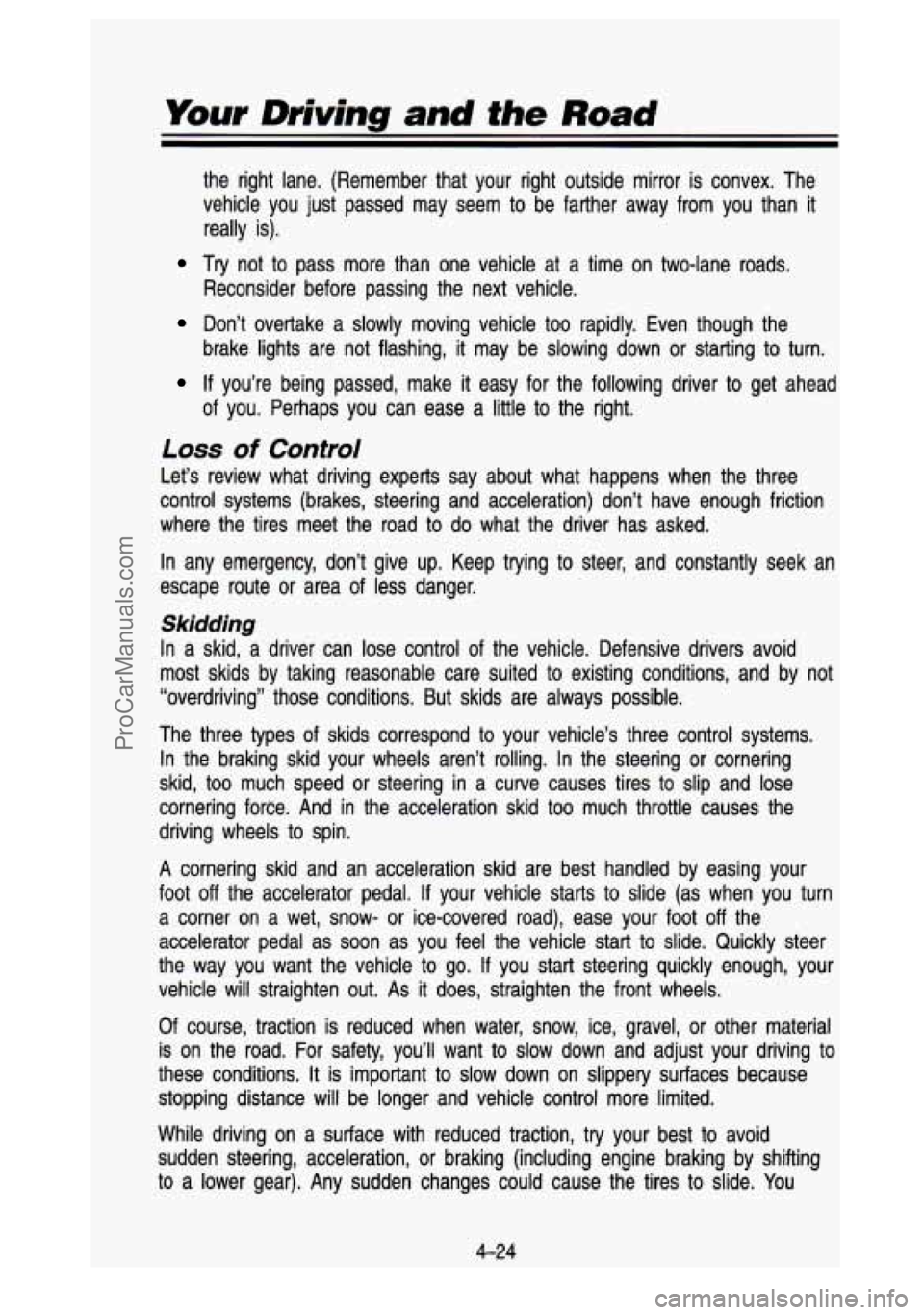

the right lane. (Remember that your right outside mirror is c\
onvex. The
vehicle you just passed may seem to be farther away from you \
than
it
really is).
Try not to pass more than one vehicle at a time on two-lane roads.
Don’t overtake a slowly moving vehicle too rapidly. Even though the
Reconsider before passing the next vehicle.
brake lights are not flashing, it may be slowing down
or starting to turn.
If you’re being passed, make it easy for the following driver to get ahead
of you. Perhaps you can ease a little
to the right.
Loss of Control
Let’s review what driving experts say about what happens whe\
n the three
control systems (brakes, steering and acceleration) don’t ha\
ve enough friction
where the tires meet the road to do what the driver has asked.
In any emergency, don’t give up. Keep trying to steel+-, arid constantly seek an
escape route
or area of less danger.
Skidding
In a skid, a driver can lose control of the vehicle. Defensive drivers avoid
most skids by taking reasonable care suited
to existing conditions, and by not
“overdriving” those conditions. But skids are always possib\
le.
The three types
of skids correspond to your vehicle’s three control systems.
In the braking skid your wheels aren’t rolling. In the steering
or cornering
skid, too much speed
or steering in a curve causes tires to slip and lose
cornering force. And in the acceleration skid too much throttle\
causes the
driving wheels to spin.
A cornering skid and an acceleration skid are best handled by ea\
sing your
foot
off the accelerator pedal. If your vehicle starts to slide (as when you turn
a corner on a wet, snow-
or ice-covered road), ease your foot off the
accelerator pedal as soon as you feel the vehicle start to sl\
ide. Quickly steer
the way you want the vehicle
to go. If you start steering quickly enough, your
vehicle
will straighten out. As it does, straighten the front wheels.
Of course, traction is reduced when water, snow, ice, gravel, or other material
is on the road.
For safety, you’ll want to slow down and adjust your driving to
these conditions. It is important to slow down on slippery surfaces because
stopping distance will be longer and vehicle control more limit\
ed.
While driving on a surface with reduced traction,
try your best to avoid
sudden steering, acceleration,
or braking (including engine braking by shifting
to a lower gear). Any sudden changes could cause the tires to slid\
e. You
4-24
ProCarManuals.com

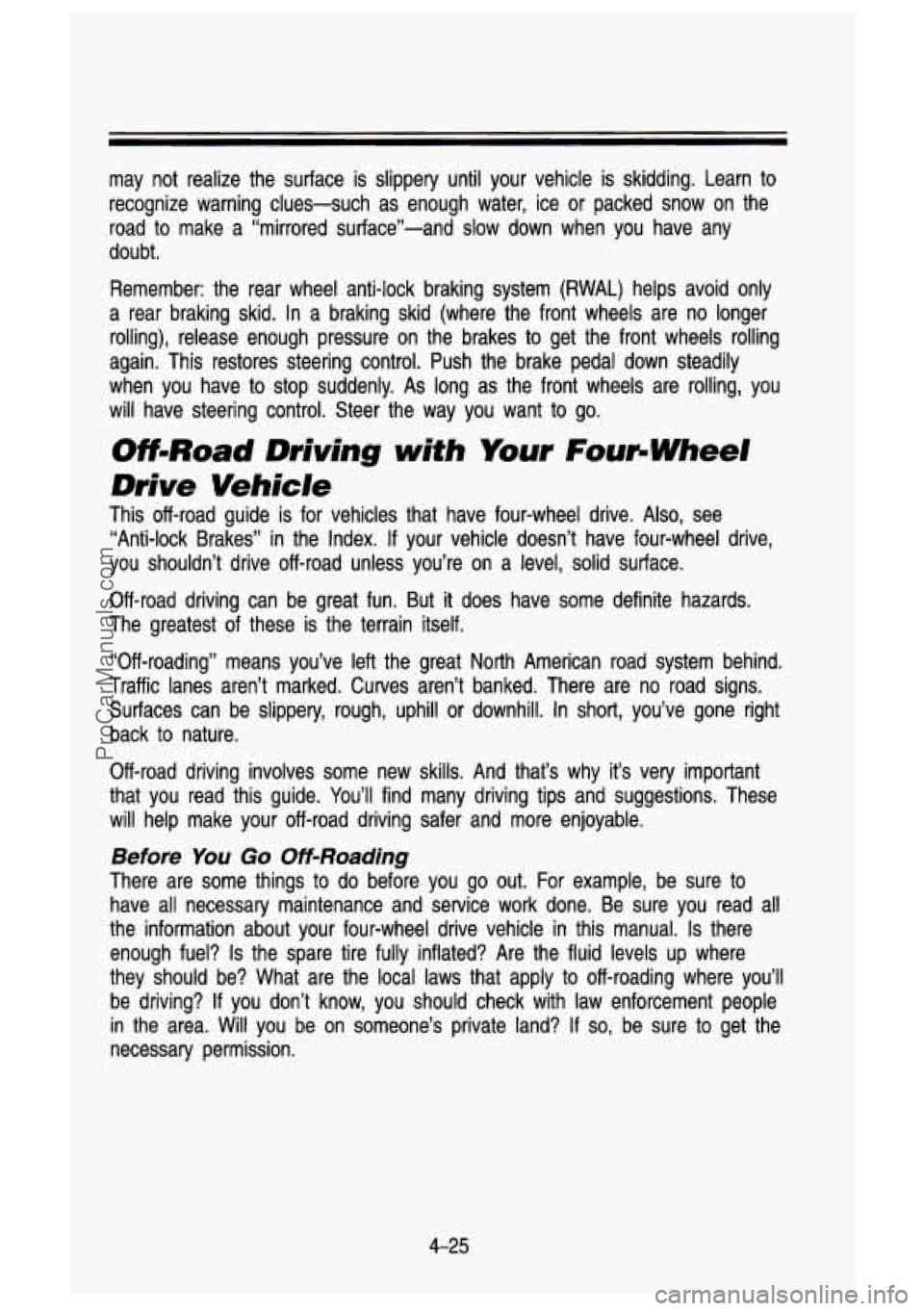

may not realize the surface is slippery until your vehicle is skidding. Learn to
recognize warning clues-such as enough water, ice
or packed snow on the
road to make a “mirrored surface’’-and slow down when you have \
any
doubt.
Remember: the rear wheel anti-lock braking system (RWAL) helps\
avoid only
a rear braking skid. In a braking skid (where the front wheels are no longer
rolling), release enough pressure on the brakes to get the front wheels rolling
again. This restores steering control. Push the brake pedal dow\
n steadily
when you have to stop suddenly.
As long as the front wheels are rolling, you
will have steering control. Steer the way you want to go.
Off-Road Driving with Your FourcWheel
Drive Vehicle
This off-road guide is for vehicles that have four-wheel drive. Also, see
“Anti-lock Brakes” in the Index.
If your vehicle doesn’t have four-wheel drive,
you shouldn’t drive off-road unless you’re on a level, so\
lid surface.
Off-road driving can be great fun. But it does have some defi\
nite hazards.
The greatest
of these is the terrain itself.
“Off-roading” means you’ve left the great North American\
road system behind.
Traffic lanes aren’t marked. Curves aren’t banked. There a\
re no road signs.
Surfaces can be slippery, rough, uphill
or downhill. In short, you’ve gone right
back
to nature.
Off-road driving involves some new skills. And that’s why it’s very important
that you read this guide. You’ll find many driving tips and suggestions. These
will help make your off-road driving safer and more enjoyable. \
Before You Go Off-Roading
There are some things to do before you go out. For example, be sure to
have all necessary maintenance and service work done. Be sure \
you read all
the information about your four-wheel drive vehicle in this manual.
Is there
enough fuel?
Is the spare tire fully inflated? Are the fluid levels up where
they should be? What are the local laws that apply to off-roa\
ding where you’ll be driving?
If you don’t know, you should check with law enforcement people\

in the area. Will you be on someone’s private land?
If so, be sure to get the
necessary permission.
4-25
ProCarManuals.com

Your Driving and the Road

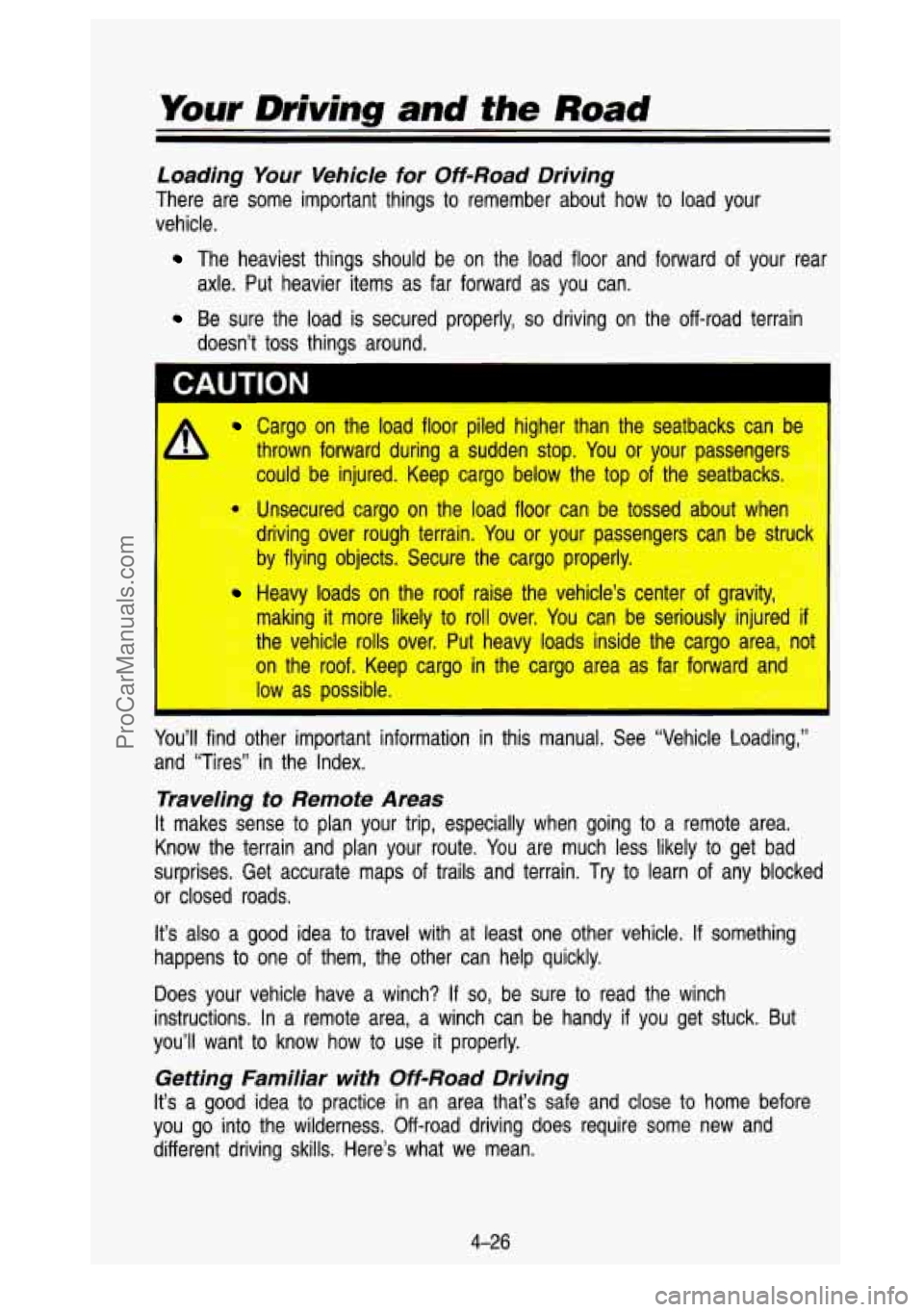

Loading Your Vehicle for Off-Road Driving
There are some important things to remember about how to load your
vehicle.
The heaviest things should be on the load floor and forward of your rear
Be sure the load is secured properly, so driving on the off-road terrain
axle. Put heavier items as far forward as you can.
doesn’t toss things around.
CAUTION
Cargo on the load floor piled higher than the seatbacks can be
3 thrown forward during a sudden stop. You or your passengers
could be injured. Keep cargo below the top
01 le seatbacks.
- Unsecured cargo on the load floor ca- >e tossecl about when
3-7 driving over rough terrain. You or your passengers can be strum
& by flying objects. Secure the cargo properly*
Heavy loads on the roof raise the vehicle’s center of gravi\
ty.
making it more likely
to roll over. You can be seriously injured
the vehicle rolls over. Put heavy loads inside the cargo area, not
on the roof. Keep in the cargo area as far forward and
low as Dossible.
I
You’ll find other important information in this manual. See “Vehicle Loading,’’
and “Tires” in the Index.
Traveling to Remote Areas
It makes sense to plan your trip, especially when going to a remote area.
Know the terrain and plan your route. You are much less likely to get bad
surprises. Get accurate maps of trails and terrain.
Try to learn of any blocked
or closed roads.
It’s also a good idea to travel with at least one other v\
ehicle. If something
happens to one of them, the other can help quickly.
Does your vehicle have a winch?
If so, be sure to read the winch
instructions. In a remote area,
a winch can be handy if you get stuck. But
you’ll want to know how to use
it properly.
Getting Familiar with Off-Road Driving
It’s a good idea to practice in an area that’s safe and close to home before
you
go into the wilderness. Off-road driving does require some new and\

different driving skills. Here’s what we mean.
4-26
ProCarManuals.com

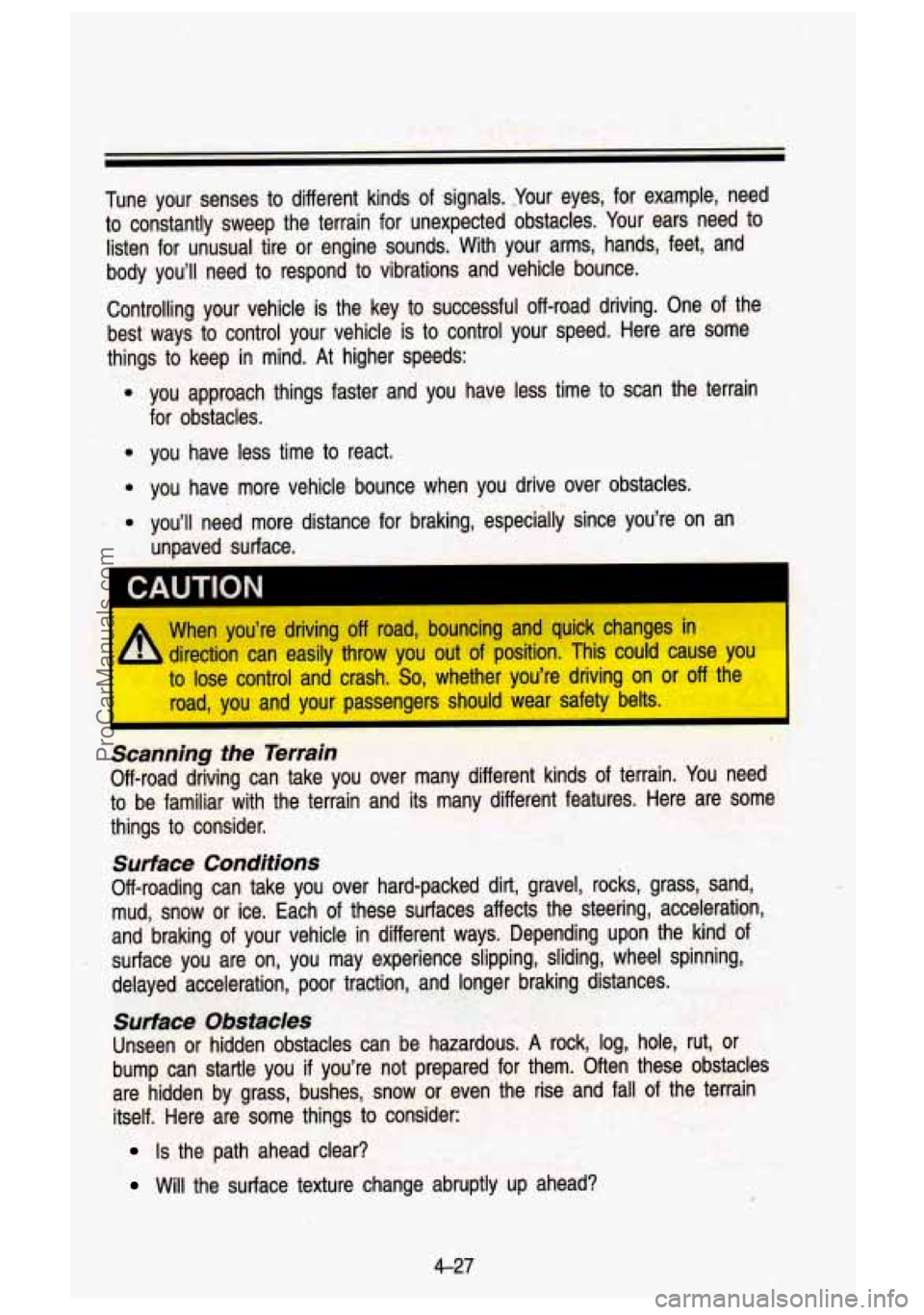

Tune your senses to different kinds of signals. -Your eyes, for example, meed
to constantly sweep the terrain for unexpected obstacles. Your .ears need
to
listen for unusual tire or engine sounds. With your arms, hands, feet, and
body you’ll need to respond
to vibrations and vehicle bounce.
Controlling your vehicle is the key
to successful off-road driving. One of the
best ways
to control your vehicle is to control your speed. Here .are some
things
to keep in mind. At higher speeds:
e you approach things fastar and you have less time to scan the terrain
for obstacles.
you have less time
to react. ‘I , ’C _. ’.
you have more vehicle bounce when you drive over obstacles.
you’ll need more distance for braking, especially since you’\
re on an unpaved surface.
CAUTION
When you’re driving off road, bouncing and quick changes in
direction can easily throw you out of position. This could cause you
to lose control and crash. So, whether you’re driving on or off the
road, you and your passengers should wear safety belts.
Scanning the Terrain
Off-road driving can take you over many different kinds of terrain. You need
to be familiar with the terrain and its many different features. Here are some
things
to consider.
Surface Conditions
Off-roading can ta.ke you. over hard-packed dirt, gravel, rocks,\
grass, sand, mud, snow or ice. Each of these sutfaces affects the steering, acceleration,
and braking of your vehicle in different ways. Depending upon the kind of
. surface you are on, you may experience slipping, sliding, wheel\
spinning,
delayed acceleration, poor traction, and longer braking distances\
.
Surface Obstacles
Unseen or hidden obstacles can be hazardous. A rock, log, hole, rut, or
bump can startle you if you’re not prepared for them. Often these obstacles
are hidden by grass, bushes, snow or even the rise and fall of the terrain
itself. -.Here are some things
to consider:
Is the path ahead clear?
Will the surface texture change abruptly up ahead?
4-27
ProCarManuals.com

Your Driving and the Road

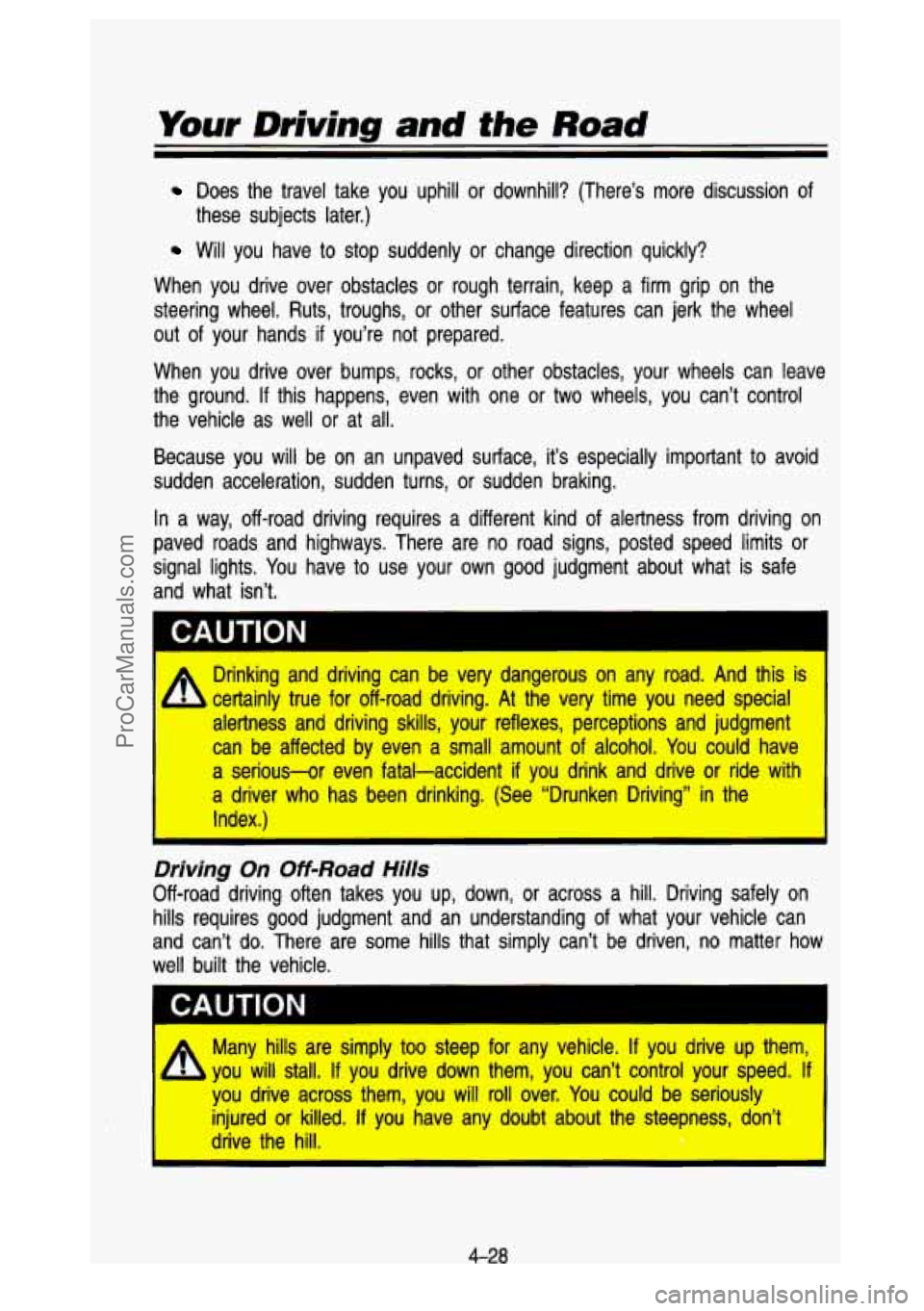

Does the travel take you uphill or downhill? (There’s more \
discussion of
Will you have to stop suddenly or change direction quickly? these subjects later.)
When you drive over obstacles
or rough terrain, keep a firm grip on the
steering wheel. Ruts, troughs, or other surface features can jerk the wheel
out of your hands
if you’re not prepared.
When you drive over bumps, rocks, or other obstacles, your whe\
els can leave
the ground.
If this happens, even with one or two wheels, you can’t contro\
l
the vehicle as well
or at all.
Because you will be on an unpaved surface, it’s especially \
important
to avoid
sudden acceleration, sudden turns,
or sudden braking.
In a way, off-road driving requires a different kind of alertness from driving on
paved roads and highways. There are no road signs, posted spee\
d limits
or
signal lights. You have to use your own good judgment about what is safe
and what isn’t.
* Drinking and driving can be very dangerous on any road. And this is I
1 certainly true for off-road driving. At the very time you need special
alertness and driving skills, your reflexes, perceptions and jud\
gment
can be affected by even a small amount of alcohol. You could have
a serious-or even fatal-accident
if you drink and drive or ride with
a driver who has been drinking. (See “Drunken Driving”
in the
Index.)
Driving On Off-Road Hills
Off-road driving often takes you up, down, or across a hill. Driving safely on
hills requires good judgment and an understanding of what your vehicle can
and can’t do. There are some hills that simply can’t be \
driven, no matter how
well built the vehicle.
A, Many hills are simply too steep for any vehicle. If you drive up them,
- IOU will stall. If you drive down them, you can’t control your speed. If
you drive across them, you will roll over. You could be seriously
injured or killed.
If you have any doubt about the steepness, don’t
drive the hill.
I I
4-28
ProCarManuals.com

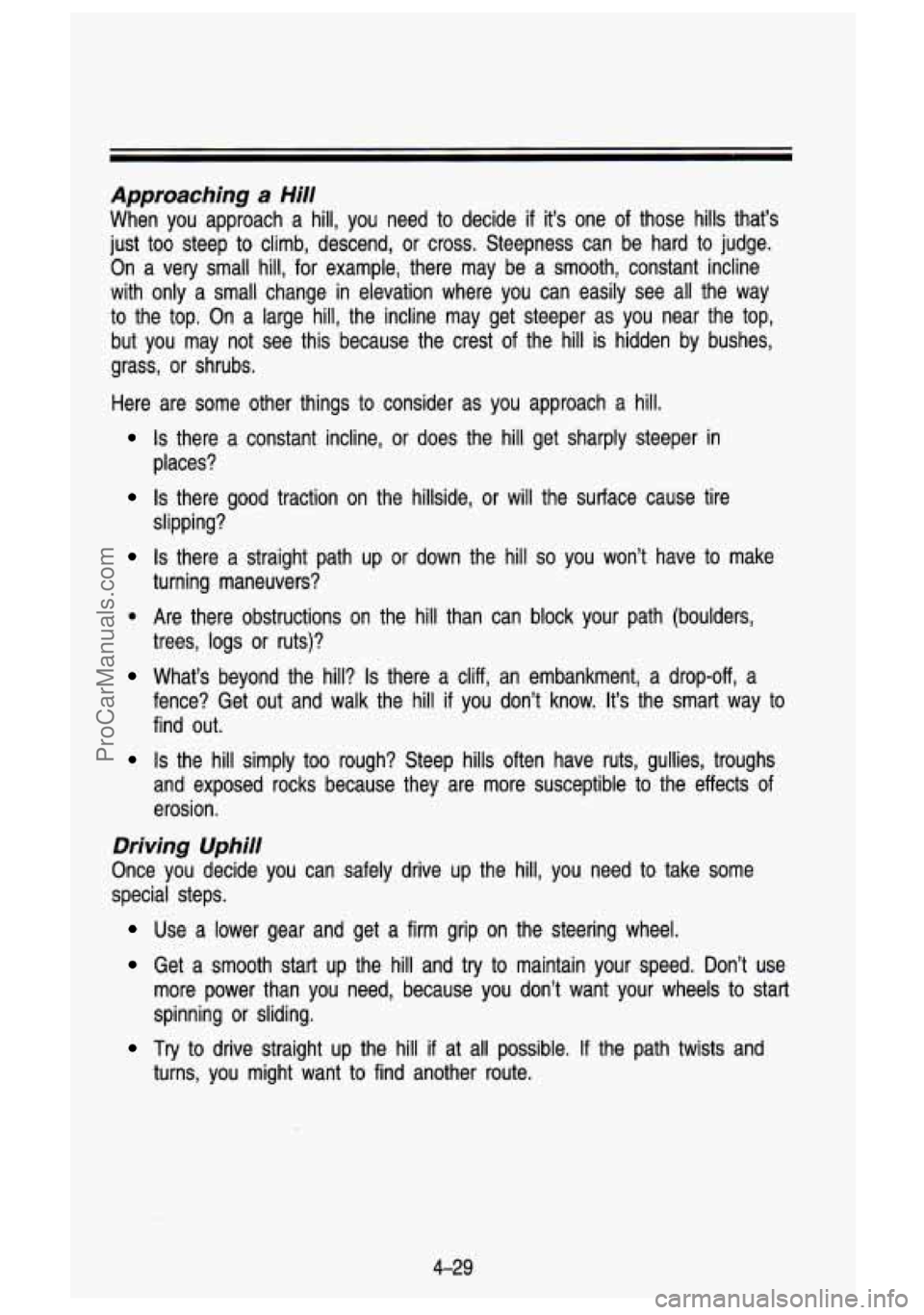

Approaching a Hill
When you approach a hill, you need to decide if it’s one of those hills that’s
just too steep to climb, descend,
or cross. Steepness can be hard to judge.
On a very small hill, for example, there may be a smooth, constant incline
with only a small change in elevation where you can easily see all the way
to the top. On a large hill, the incline may get steeper as you near the top, \
but you may not see this because the crest of the hill is hidden by bushes,
grass,
or shrubs.
Here are some other things to consider as you approach a hill.
Is there a constant incline, or does the hill get sharply steeper in
Is there good traction on the hillside, or will the surface cause tire
Is there a straight path up or down the hill so you won’t have to make
0 Are there obstructions on the hill than can block your path (boulders,
What’s beyond the hill? Is there a cliff, an embankment, a drop-off, a
places?
slipping?
turning maneuvers?
trees, logs
or ruts)?
fence? Get out and walk the hill
if you don’t know. It’s the smart way to
find out.
Is the hill simply too rough? Steep hills often have ruts, gullies, troughs
and exposed rocks because they are more susceptible to the eff\
ects
of
erosion.
Driving Uphill
Once you decide you can safely drive up the hill, you need to take some
special steps.
Use a lower gear and get a firm grip on the steering wheel.
Get a smooth start up the hill and try to maintain your speed. Don’t use
more power than you need, because you don’t want your wheel\
s to start
spinning
or sliding.
turns, you might want
to find another route.
Try to drive straight up the hill if at all possible. If the path twists and
4-29
ProCarManuals.com

Your Driving and the Road

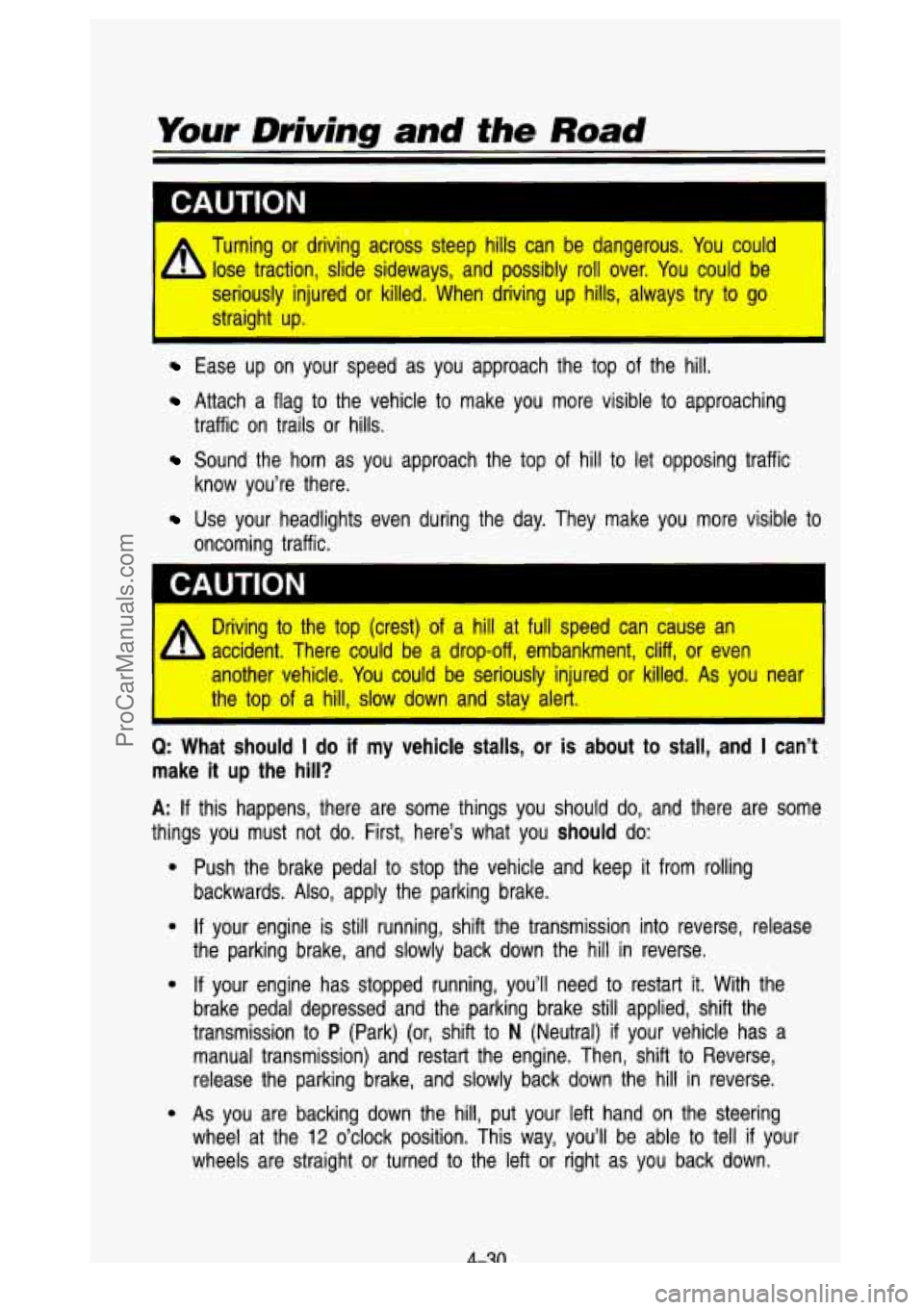

A Turning or driving across steep hills can be dangerous. You could
lose traction, slide sideways, and possibly roll over. You could be
seriously injured or
I 'I' ?d. When driving up hills, always try to go
I straight up.
Ease up on your speed as you approach the top of the hill.
Attach a flag to the vehicle to make you more visible to approaching
traffic on trails or hills.
Sound the horn as you approach the top of hill to let opposing traffic
know you're there.
Use your headlights even during the day. They make you more visible to
oncoming traffic.
I A Driving to the top (crest) of a hill at full speed can muse an
accident.
There could be a drop-off, embankment, cliff, or even
another vehicle. You buld be seriously injured or killed. .As you near
the
top of a hill, slow down and stay alert. I
Q: What should I do if my vehicle stalls, or is about to stall, and I can't
make it
up the hill?
A: If this happens, there are some things you should do, and there are some
things
you must not do. First, here's what you should do:
0
0
0
0
Push the brake pedal to stop the vehicle and keep it from rolling
backwards.
Also, apply the parking brake.
If your engine is still running, shift the transmission into reverse, release
the parking brake, and slowly back down the hill in reverse.
If your engine has stopped running, you'll need to restart it. With the
brake pedal depressed and the parking brake still applied, shift the
transmission to
P (Park) (or, shift to N (Neutral) if your vehicle has a
manual transmission) and restart the engine. Then, shift to Reverse,
release the parking brake, and slowly back down the hill in reverse.
As you are backing down the hill, put your left hand on the ste\
ering
wheel at the
12 o'clock position. This way, you'll be able to tell if your
wheels are straight or turned to the left or right as you back down.
4-30
ProCarManuals.com

Here are some things you must not do if you stall, or are about to stall,
when going up a hill.
Never attempt to prevent a stall by shifting into N (Neutral) (or
depressing the clutch,
if you have a manual transmission) to “rev-up” the
engine and regain forward momentum. This won’t work. Your vehicle will
roll backwards very quickly and you could go out of control.
Instead, apply the regular brake to stop the vehicle. Then apply the parking
brake. Shift into reverse, release the parking brake, and slowl\
y back down.
Never attempt to turn around if you are about to stall when going up a
hill. If the hill is steep enough to stall your vehicle, it’s steep enough to
cause you. to roll over
if you turn around. If you can’t make it up the
hill, you must back down the hill.
Q: Suppose, after stalling, I try to back down the hill and decide I just
can’t
do it. What should I do?
A: Set the parking brake, put your transmission in P (Park) (or the manual
transmission in first gear), and turn off the engine. Leave the vehicle and \
go
get some help. Exit on the uphill side and stay clear of the\
path the vehicle
would take
if it rolled downhill. Do not shift the transfer case to N (Neutral)
when you leave the vehicle. Leave it in some gear.
Shifting the transfer case to
N (Neutral) can cause your vehicle to
roll even
if the transmission is in P (Park) (or, if you have the
manual transmission, even
if you’re in gear). This is because the N
(Neutral) position on the transfer case overrides the transmis\
sion. If
you are going to leave your vehicle, set the parking brake and shi”
the transmission to
P (Park) (or, put your manual transmission in f
gear). But do not shift the transfer case to the N (Neutral) positior
Leave the transfer case in the
2 Wheel, 4 High or 4 Low position.
1
Lriving Downhill
When off-roading takes you downhill, you’ll want to consider a number of
things:
How steep is the downhill? Will
I be able to maintain vehicle control?
What’s the surface like? Smooth? Rough? Slippery? Hard-packed \
dirt? Grave
I?
Are there hidden surface obstacles? Ruts? Logs? Boulders?
What’s at the bottom
of the hill? Is there a hidden creek bank or even a
river bottom with large rocks?
4-31
ProCarManuals.com

Your Driving and the Road

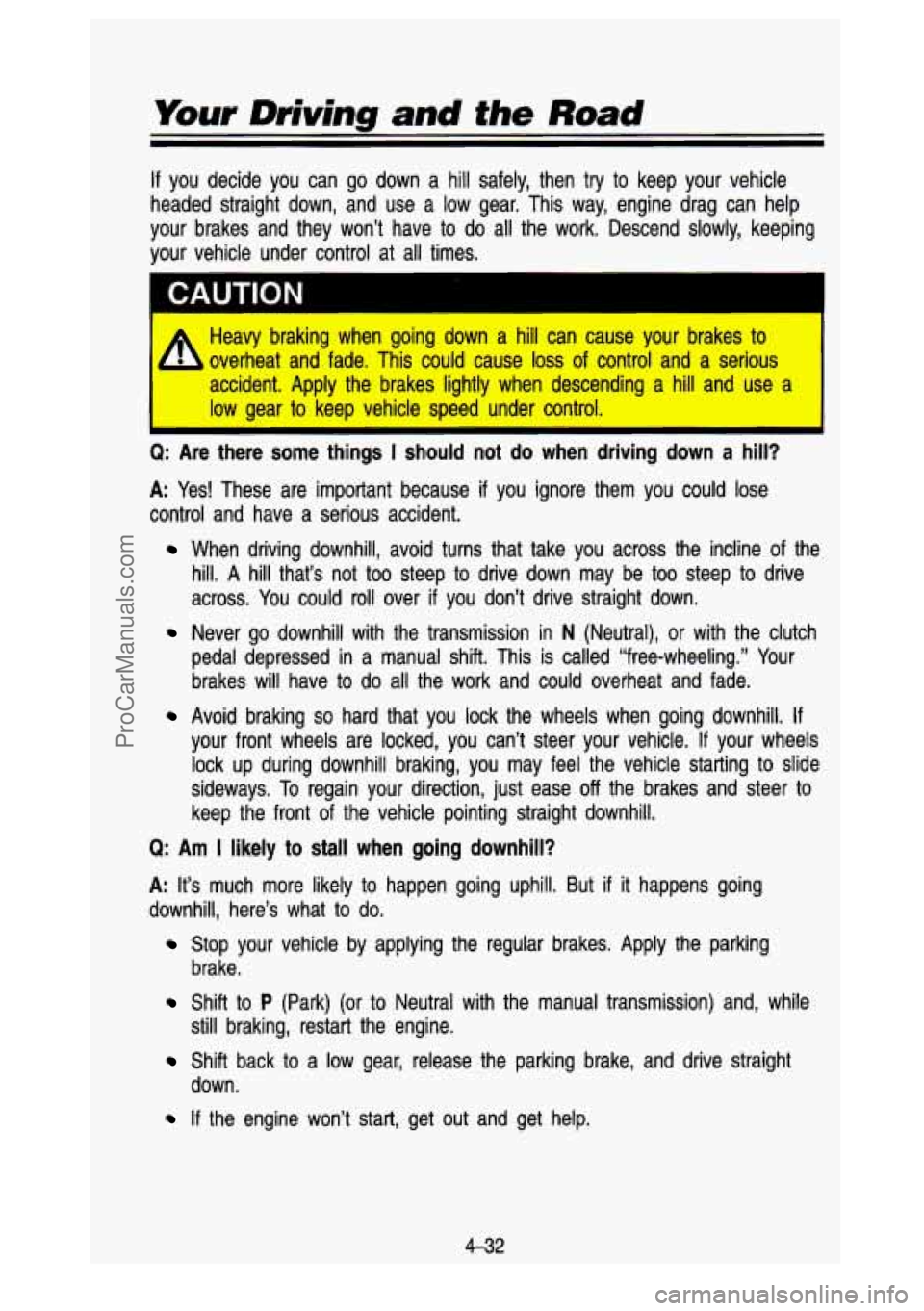

If you decide you can go down a hill safely, then try to keep your vehicle
headed straight down, and use a low gear. This way, engine dr\
ag can help
your brakes and they won’t have to do
all the work. Descend slowly, keeping
your vehicle under control at all times.
CAUTION
A Heavy braking when going down a hill can cause your brakes to
overheat and fade. This could cause
loss of control and a serious ‘
accident. Apply the brakes lightly when descending a hill and use a
low gear to keep vehicle speed under
control.
Q: Are there some things I should not do when driving down a hili?
A: Yes! These are important because if you ignore them you could lose
control and have a serious accident.
When driving downhill, avoid turns that take you across the in\
cline of the
hill.
A hill that’s not too steep to drive down may be too steep to drive
across. You could
roll over if you don’t drive straight down.
Never go downhill with the transmission in N (Neutral), or with the clutch
pedal depressed in a manual shift. This is called “free-whee\
ling,” Your
brakes will have
to do all the work and could overheat and fade.
Avoid braking so hard that you lock the wheels when going downhill. If
your front wheels are locked, you can’t steer your vehicle. \
If your wheels
lock up during downhill braking, you may feel the vehicle star\
ting to slide
sideways.
To regain your direction, just ease off the brakes and steer to
keep the front of the vehicle pointing straight downhill.
Q: Am I likely to stall when going downhill?
A: It’s much more likely to happen going uphill. But if it happens going
downhill, here’s what to do.
Stop your vehicle by applying the regular brakes. Apply the pa\
rking
brake.
Shift to P (Park) (or to Neutral with the manual transmission) and, while
still braking, restart the engine.
Shift back to a low gear, release the parking brake, and drive straight
down.
If the engine won’t start, get out and get help.
4-32
ProCarManuals.com
