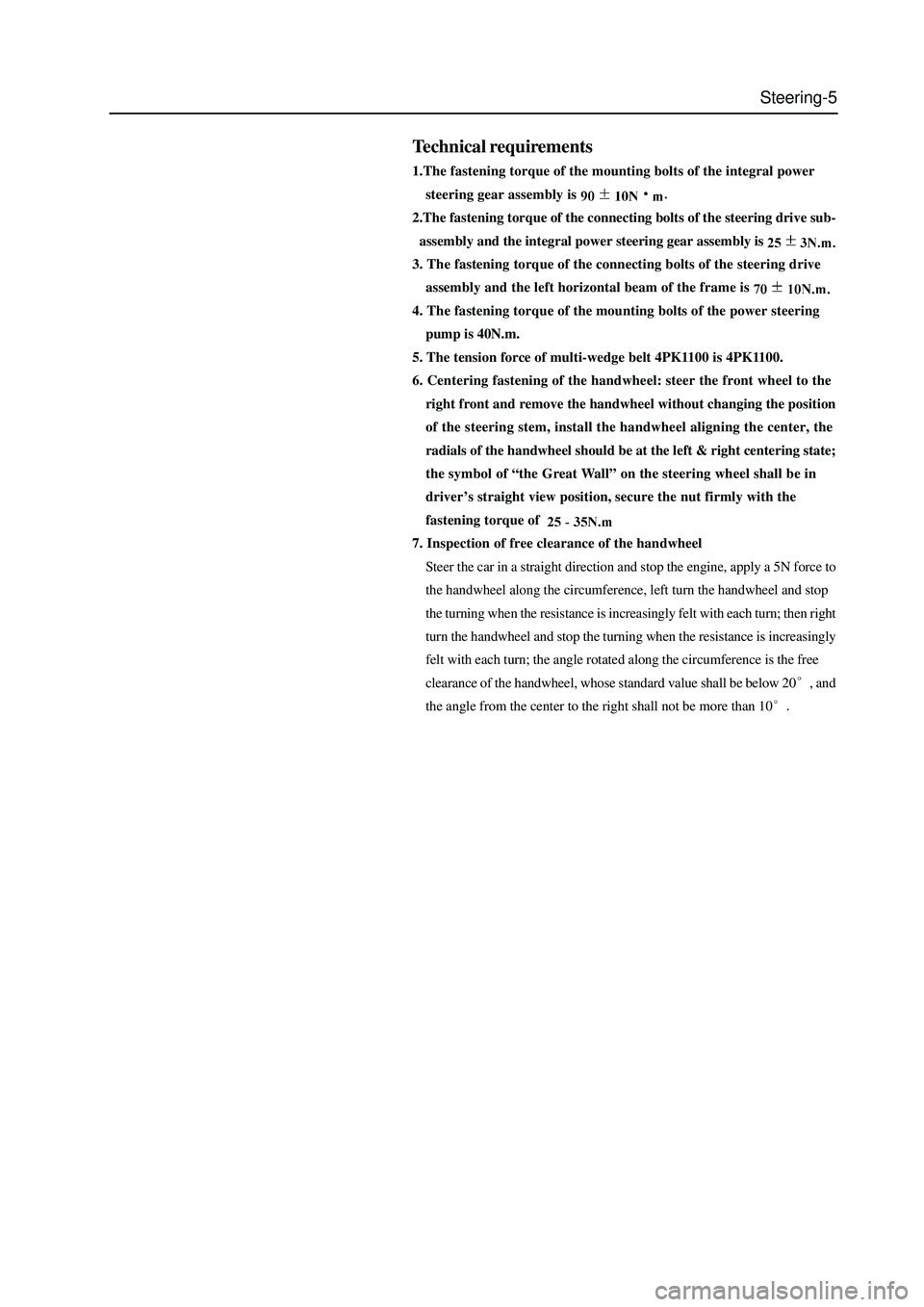

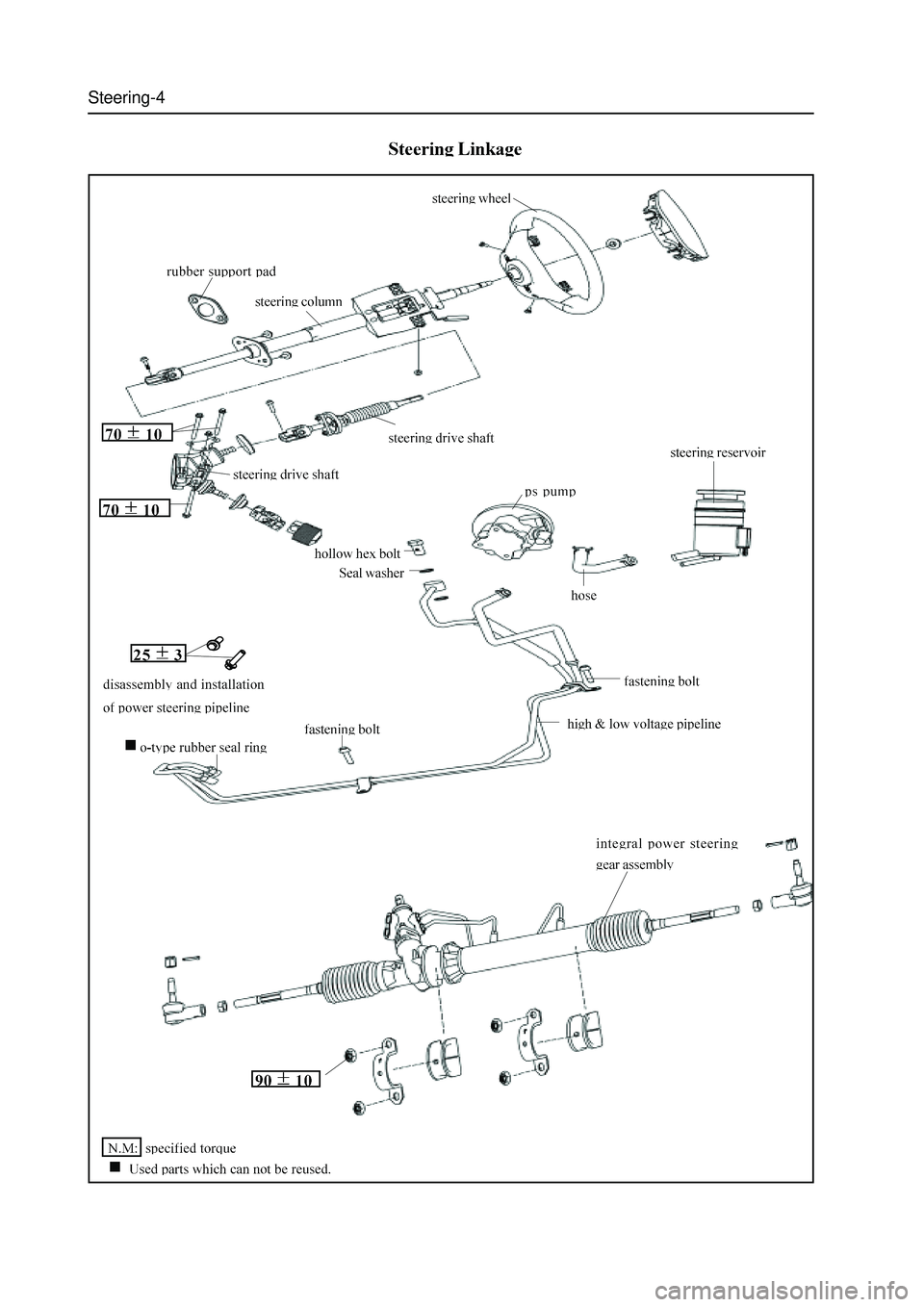

Technical requirements
1.The fastening torque of the mounting bolts of the integral power
steering gear assembly is
2.The fastening torque of the connecting bolts of the steering drive sub-
assembly and the integral power steering gear assembly is
3. The fastening torque of the connecting bolts of the steering drive
assembly and the left horizontal beam of the frame is
4. The fastening torque of the mounting bolts of the power steering
pump is 40N.m.
5. The tension force of multi-wedge belt 4PK1100 is 4PK1100.
6. Centering fastening of the handwheel: steer the front wheel to the
right front and remove the handwheel without changing the position
of the steering stem, install the handwheel aligning the center, the
radials of the handwheel should be at the left & right centering state;
the symbol of “the Great Wall” on the steering wheel shall be in
driver’s straight view position, secure the nut firmly with the
fastening torque of

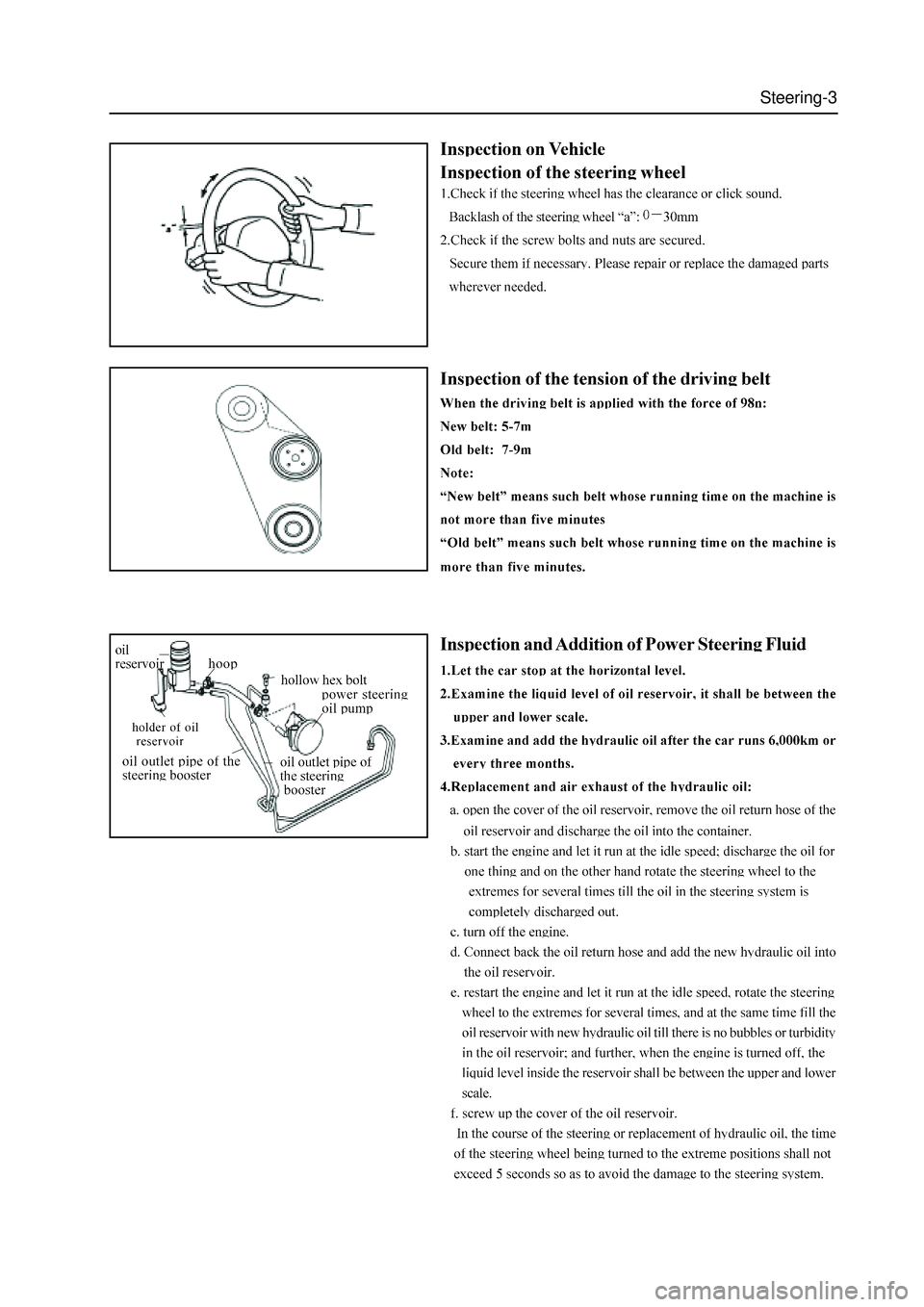

7. Inspection of free clearance of the handwheel
Steer the car in a straight direction and stop the engine, apply a 5N force to
the handwheel along the circumference, left turn the handwheel and stop
the turning when the resistance is increasingly felt with each turn; then right
turn the handwheel and stop the turning when the resistance is increasingly
felt with each turn; the angle rotated along the circumference is the free
clearance of the handwheel, whose standard value shall be below 20
, and
the angle from the center to the right shall not be more than 10

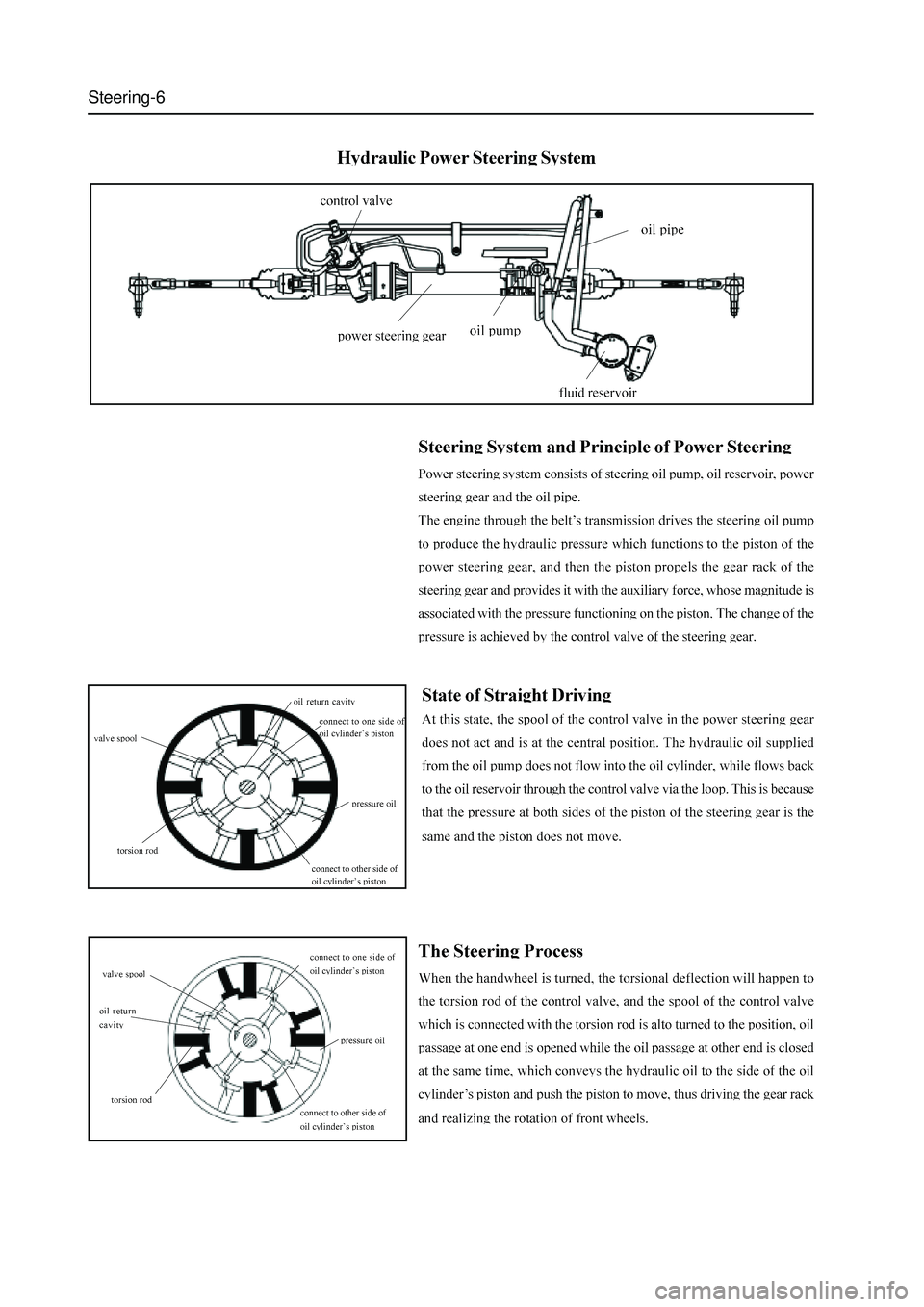

Steering-6

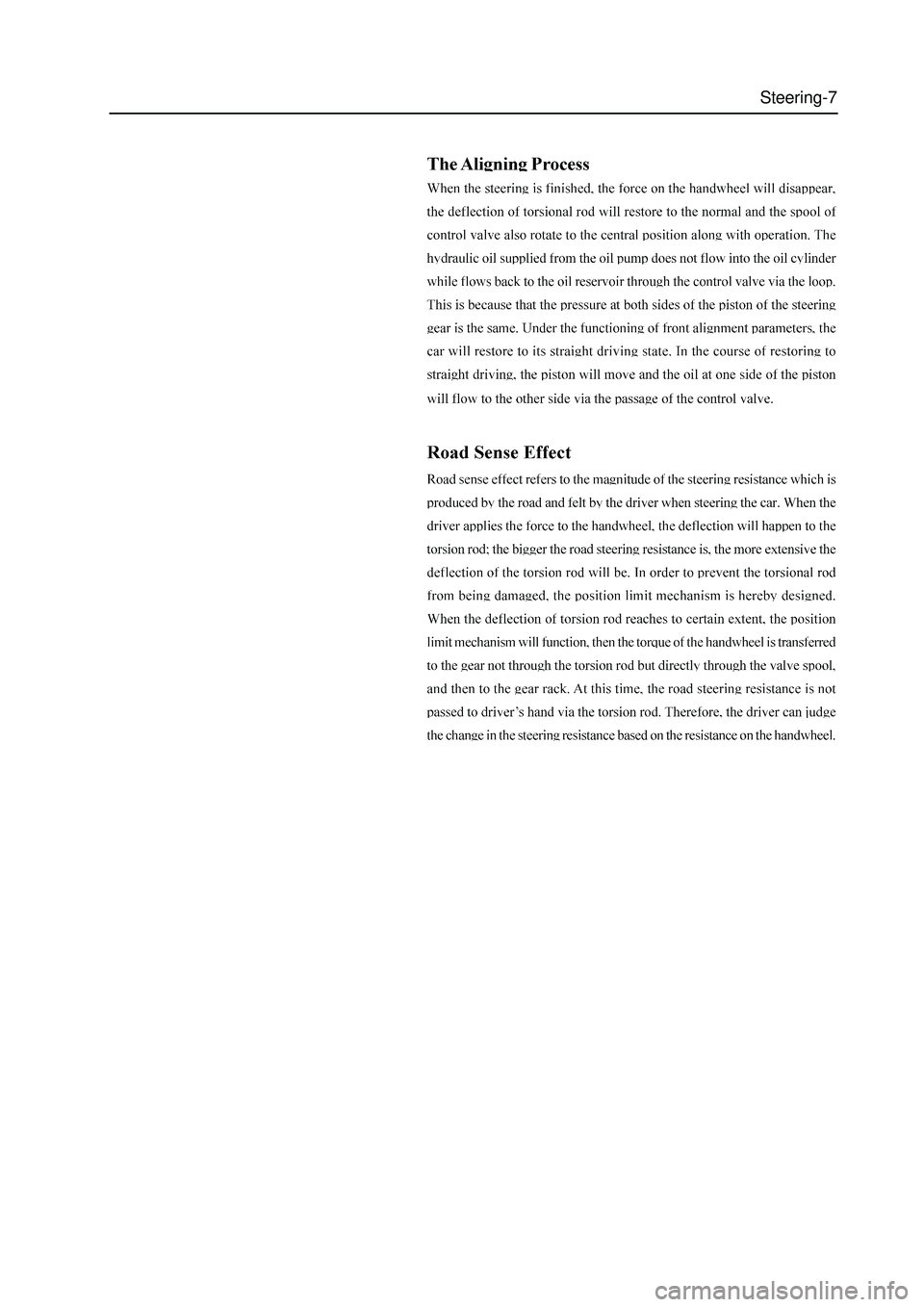

Steering-7

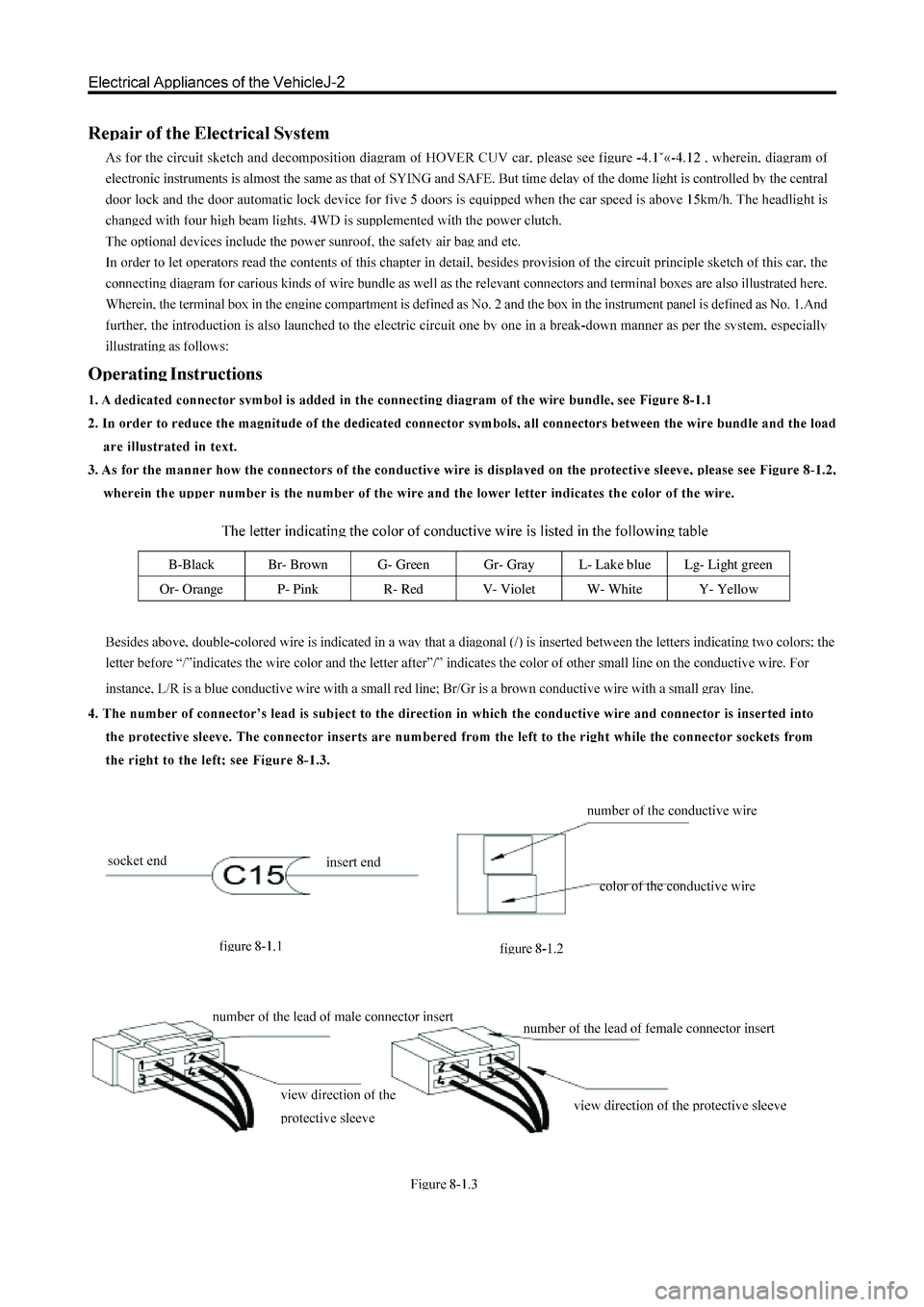

B-Black Br- Brown G- Green Gr- Gray L- Lake blue Lg- Light green
Or- Orange P- Pink R- Red V- Violet W- White Y- Yellow

Figure VIII 2.2-1

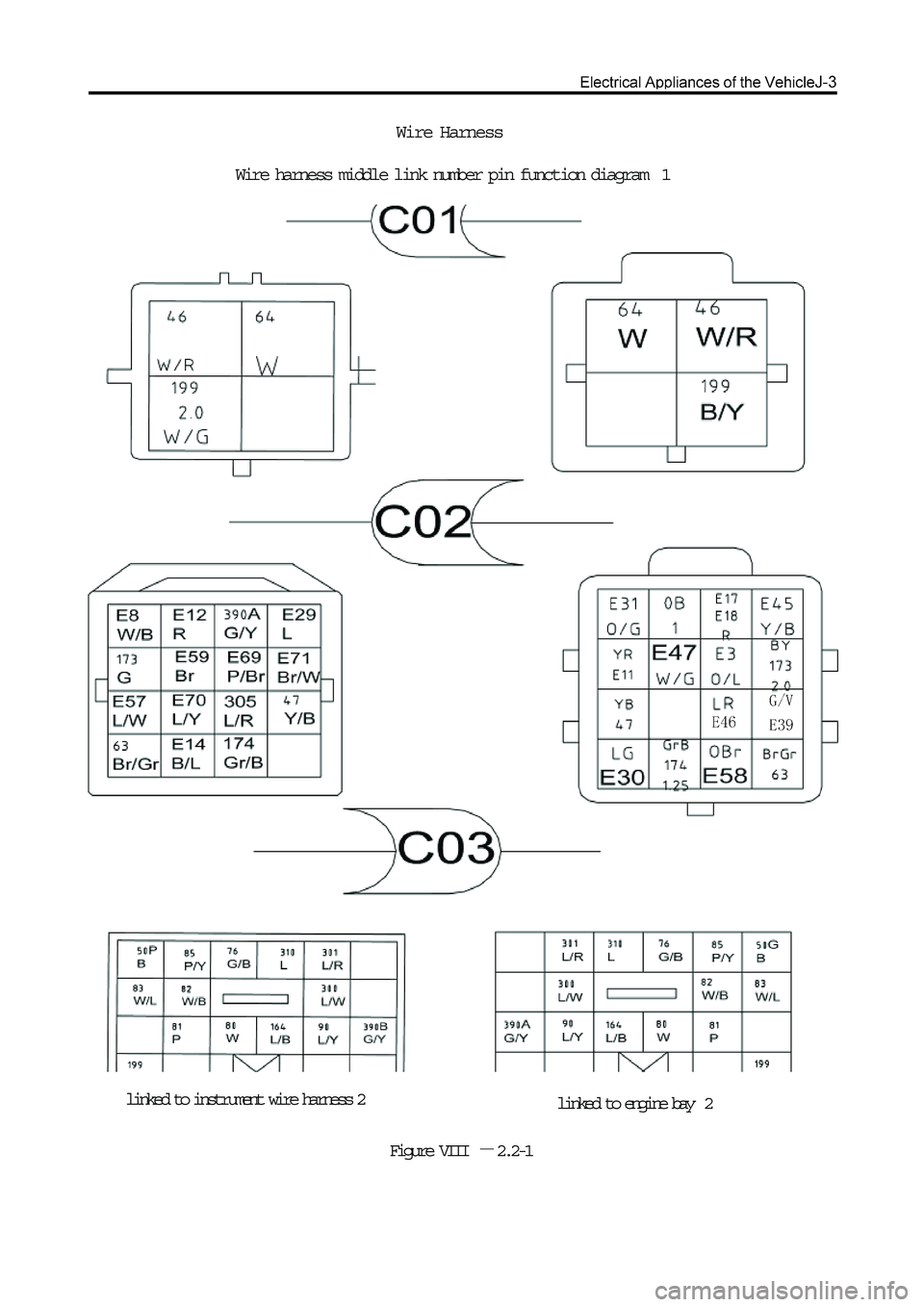

Wire Harness

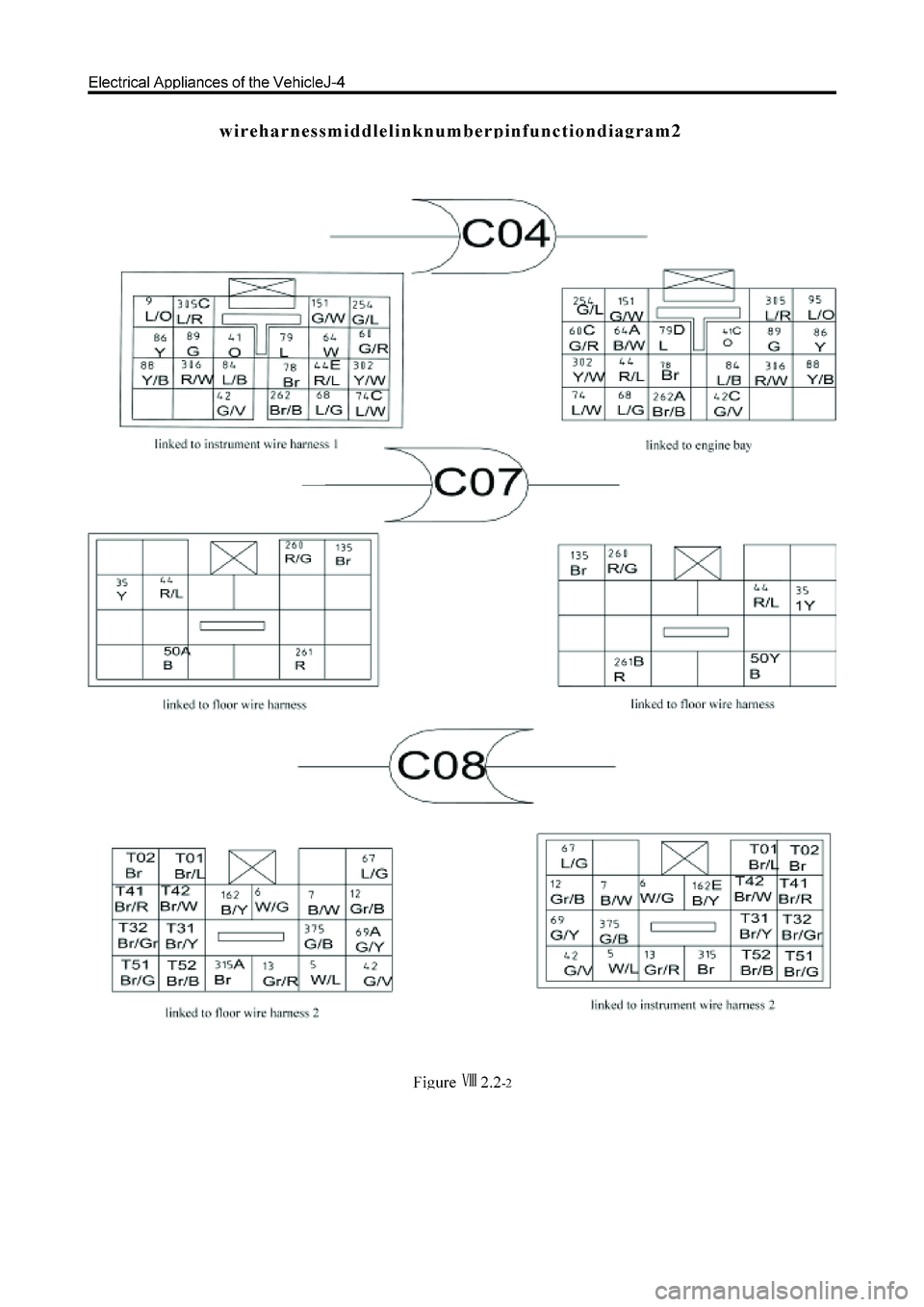

Wire harness middle link number pin function diagram 1
linked to instrument wire harness 2
linked to engine bay 2
