HONDA ACCORD HYBRID 2019 Owners Manual

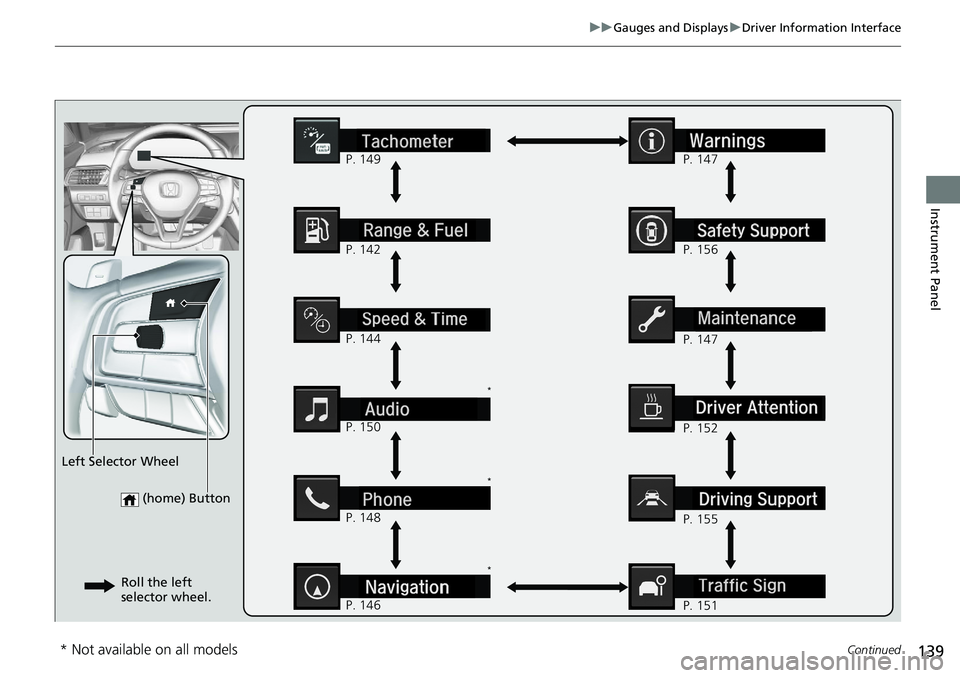

139uu Gauges and Displays u Driver Information Interface
Continued
Instrument Panel
(home) Button *
* P. 149
P. 142
P. 144
P. 146
P. 151 P. 148 P. 150 P. 156
P. 147 P. 147
Left Selector Wheel
Roll the left
selector wheel. P. 155 P. 152
*
* Not available on all models

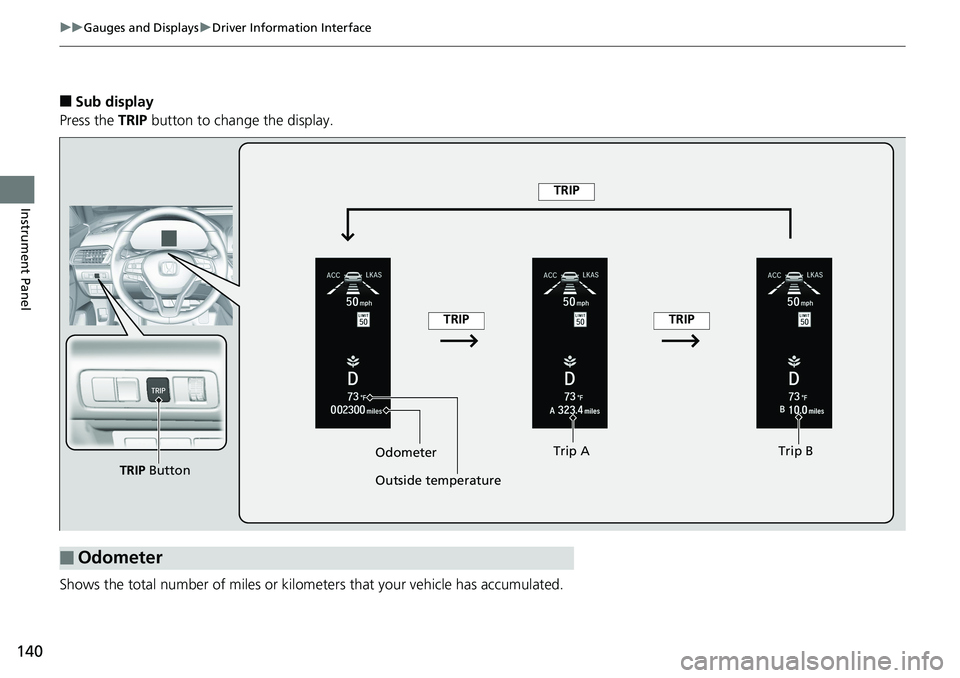

140 uu Gauges and Displays u Driver Information Interface
Instrument Panel ■ Sub display
Press the TRIP button to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■ Odometer Odometer
Outside temperature Trip A Trip B
TRIP Button TRIP
TRIP TRIP

Continued
141uu Gauges and Displays u Driver Information Interface
Instrument Panel
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■ Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP Button. The trip meter
is reset to 0.0 .
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■ Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the au dio/information screen to correct the
temperature. 2 Customized Features P. 370, 381■ Trip Meter
■ Outside Temperature 1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP Button.
1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.

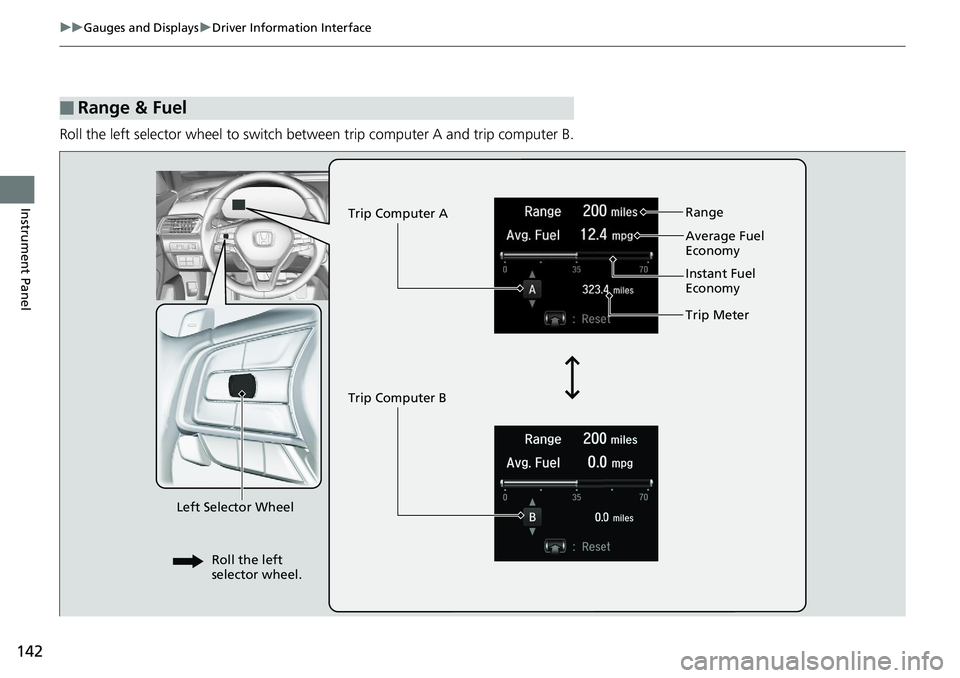

142 uu Gauges and Displays u Driver Information Interface
Instrument Panel Roll the left selector wheel to switch be tween trip computer A and trip computer B.
■ Range & Fuel
Left Selector Wheel Trip Computer A
Trip Computer B Trip MeterRange
Average Fuel
Economy
Instant Fuel
Economy
Roll the left
selector wheel.

Continued

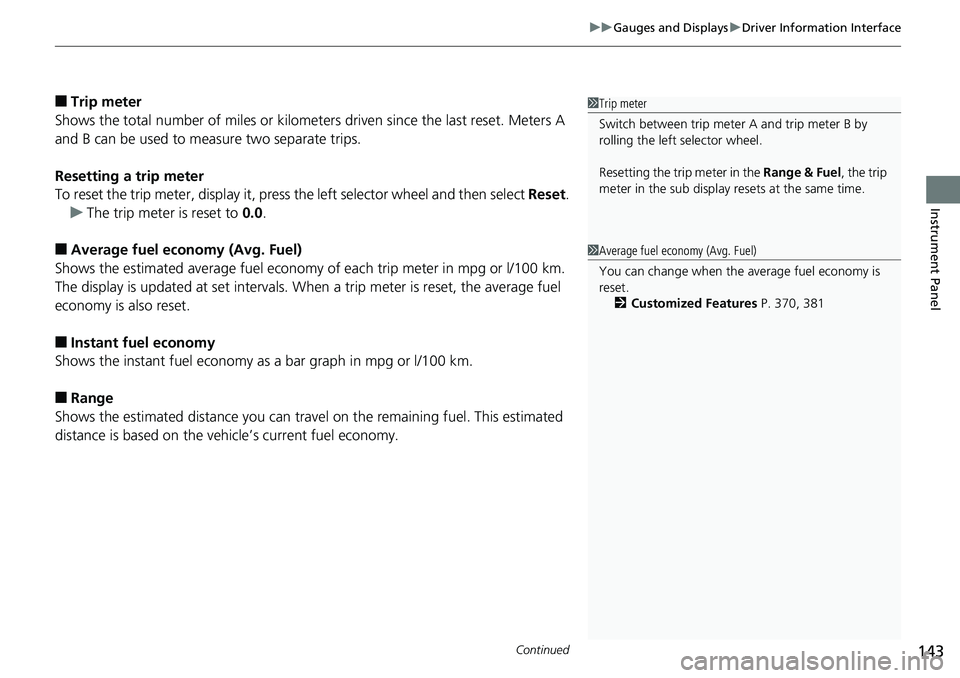

143uu Gauges and Displays u Driver Information Interface
Instrument Panel
■ Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset .
u The trip meter is reset to 0.0 .
■ Average fuel economy (Avg. Fuel)
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
■ Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■ Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy. 1 Trip meter
Switch between trip meter A and trip meter B by
rolling the left selector wheel.
Resetting the trip meter in the Range & Fuel , the trip
meter in the sub display resets at the same time.
1 Average fuel economy (Avg. Fuel)
You can change when the average fuel economy is
reset.
2 Customized Features P. 370, 381

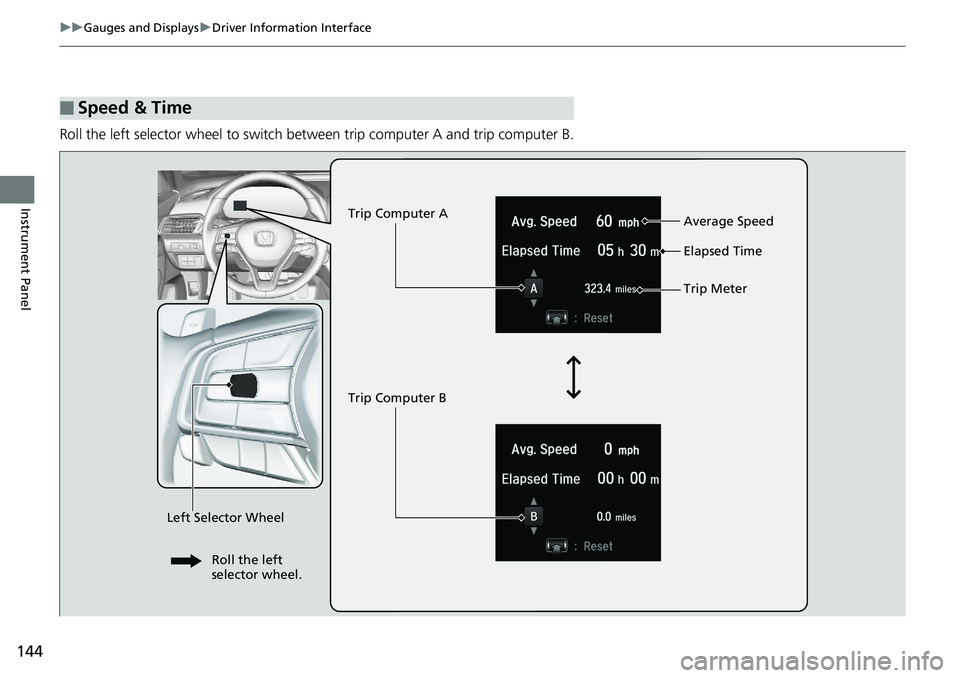

144 uu Gauges and Displays u Driver Information Interface
Instrument Panel Roll the left selector wheel to switch be tween trip computer A and trip computer B.
■ Speed & Time Trip Computer A
Trip Computer B Trip MeterAverage Speed
Elapsed Time
Left Selector Wheel
Roll the left
selector wheel.

Continued

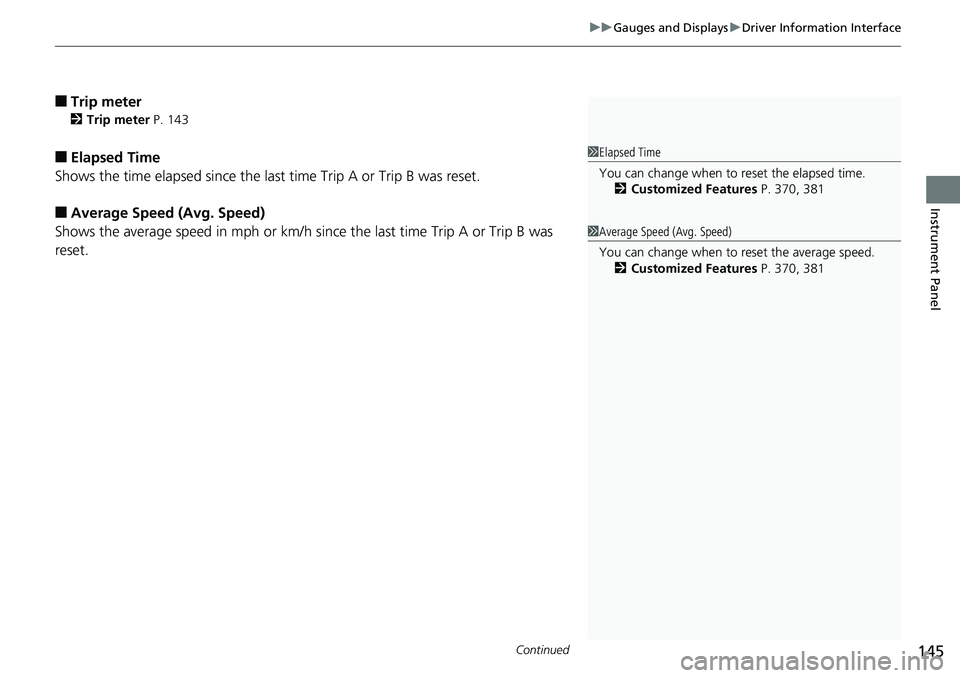

145uu Gauges and Displays u Driver Information Interface
Instrument Panel
■ Trip meter 2 Trip meter P. 143
■ Elapsed Time
Shows the time elapsed since the last time Trip A or Trip B was reset.
■ Average Speed (Avg. Speed)
Shows the average speed in mph or km/h si nce the last time Trip A or Trip B was
reset. 1 Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 370, 381
1 Average Speed (Avg. Speed)
You can change when to reset the average speed.
2 Customized Features P. 370, 381

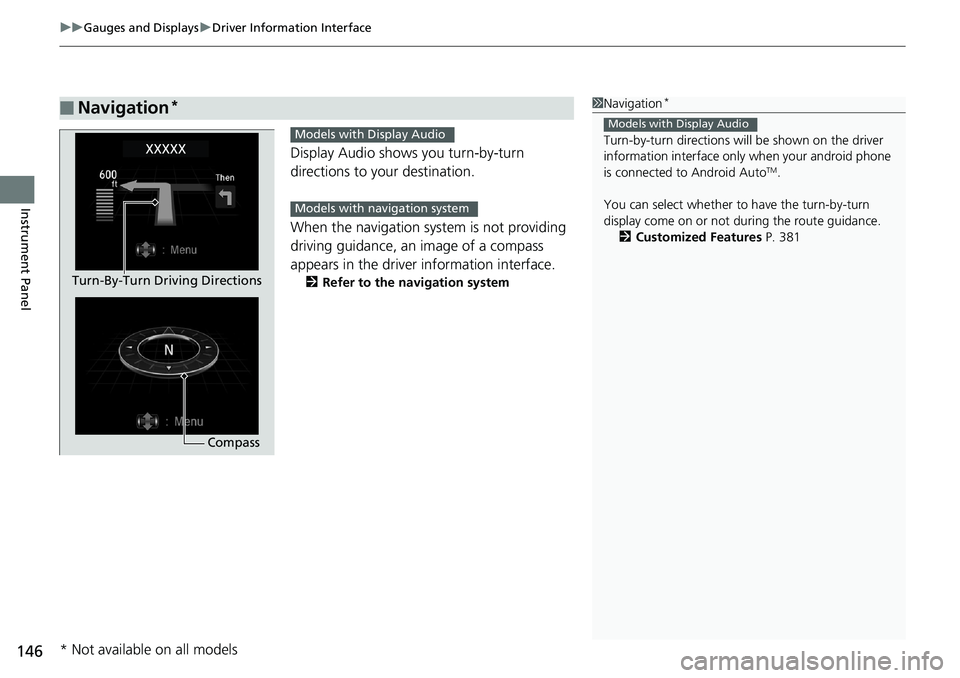

uu Gauges and Displays u Driver Information Interface
146
Instrument Panel Display Audio shows you turn-by-turn
directions to your destination.
When the navigation system is not providing
driving guidance, an image of a compass
appears in the driver information interface. 2 Refer to the navigation system
■ Navigation * 1 Navigation *
Turn-by-turn directions wi ll be shown on the driver
information interface only when your android phone
is connected to Android Auto TM
.
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 381Models with Display Audio
CompassTurn-By-Turn Driving Directions Models with Display Audio
Models with navigation system
* Not available on all models

Continued

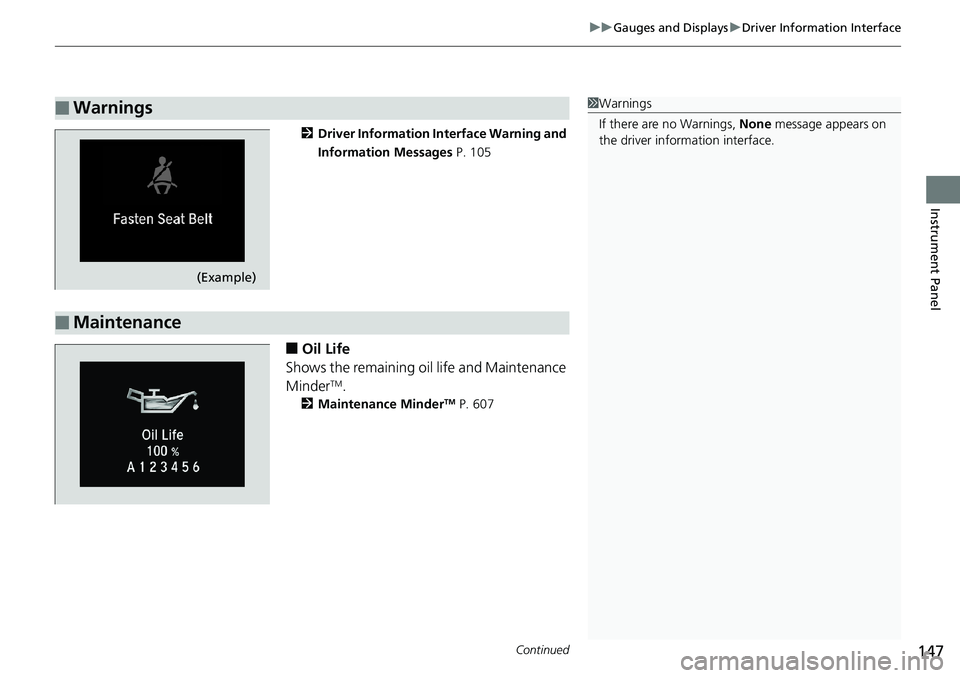

147uu Gauges and Displays u Driver Information Interface
Instrument Panel
2 Driver Information Interface Warning and
Information Messages P. 105
■ Oil Life
Shows the remaining oil life and Maintenance
Minder TM
.2 Maintenance Minder TM
P. 607■ Warnings 1 Warnings
If there are no Warnings, None message appears on
the driver information interface.
(Example)
■ Maintenance

148 uu Gauges and Displays u Driver Information Interface
Instrument Panel Shows the current phone information. 2 Bluetooth ® HandsFreeLink ® P. 427
■ Phone *
* Not available on all models
