HONDA CIVIC COUPE 2016 10.G Owners Manual

uuClimate Control SystemuUsing Automatic Climate Control
180
Controls

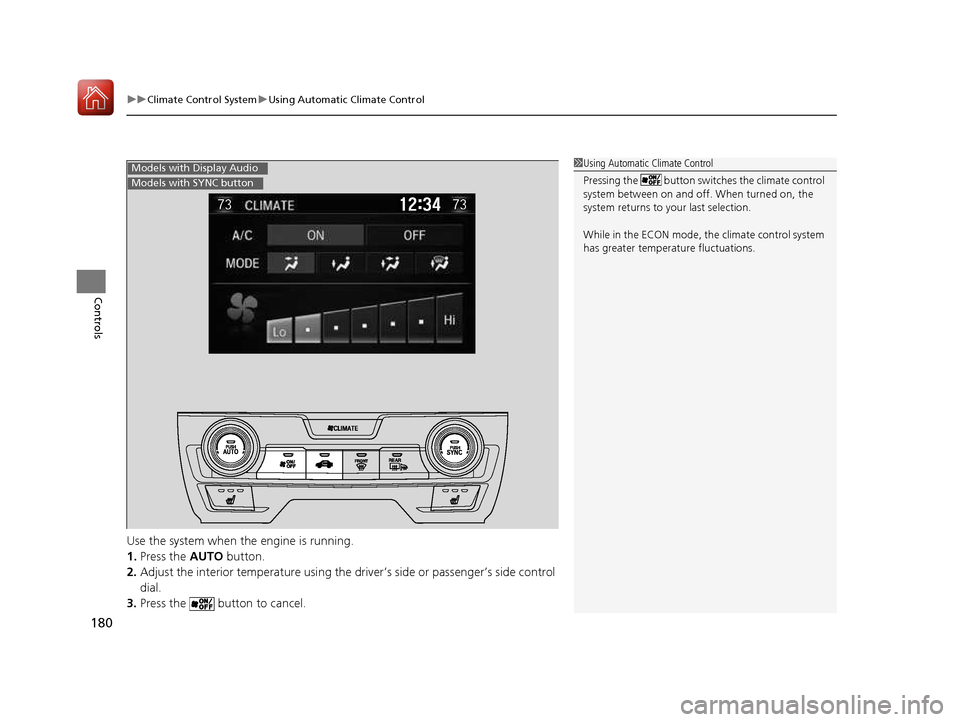

Use the system when the engine is running. 1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the butto n to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While in the ECON mode, the climate control system
has greater temperature fluctuations.Models with Display Audio
Models with SYNC button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 180 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

181
uuClimate Control SystemuUsing Automatic Climate Control
Continued
Controls

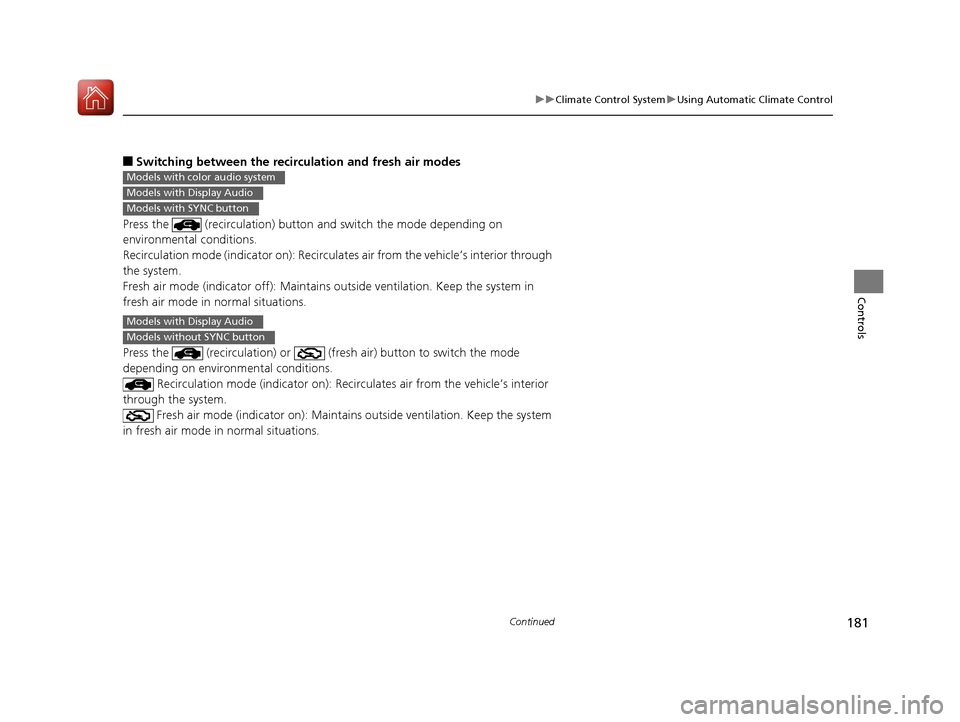

■Switching between the recirc ulation and fresh air modes
Press the (recirculation) button a nd switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Press the (recirculation) or (fre sh air) button to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Reci rculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintain s outside ventilation. Keep the system
in fresh air mode in normal situations.
Models with color audio system
Models with Display Audio
Models with SYNC button
Models with Display Audio
Models without SYNC button
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 181 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuClimate Control SystemuUsing Automatic Climate Control
182
Controls

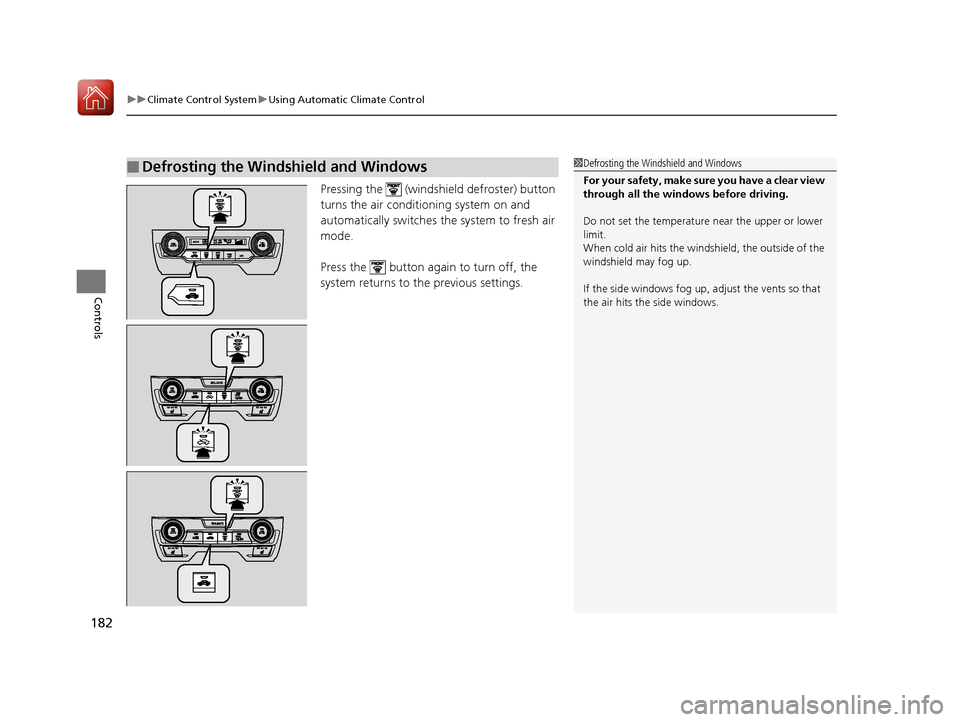

Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 182 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

183
uuClimate Control SystemuUsing Automatic Climate Control
Controls

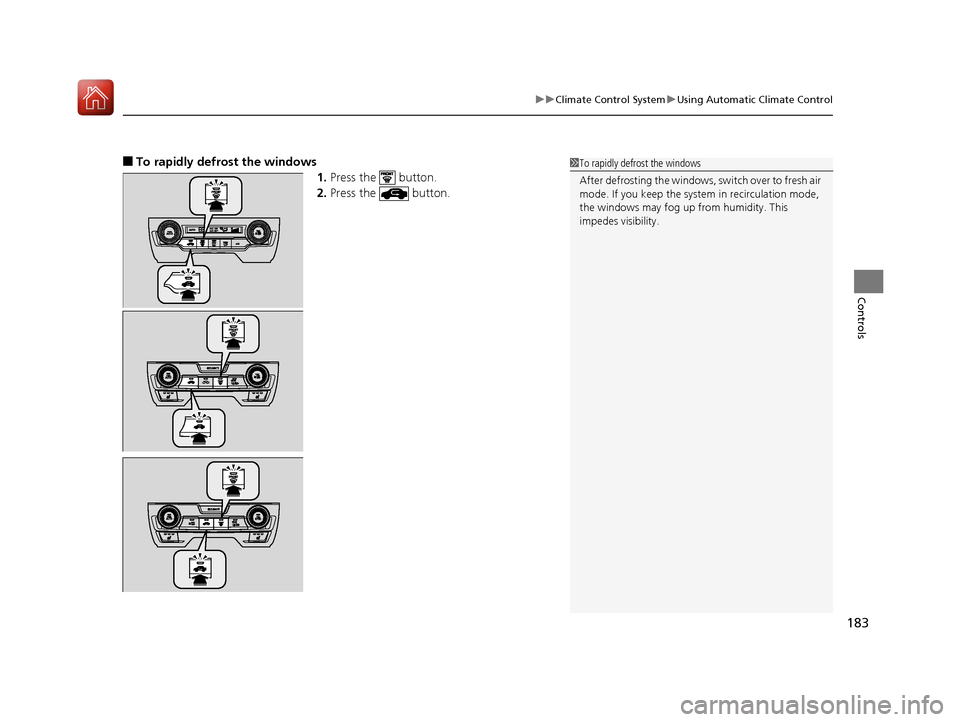

■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 183 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

184
uuClimate Control SystemuSynchronized Mode*
Controls
Synchronized Mode *
You can set the temperature synchronously fo r the driver’s side and the passenger’s
side in synchronized mode. 1. Press the SYNC button.
uThe system switches to synchronized mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button to return to dual mode.
1Synchronized Mode *
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Driver Side
Temperature
Control Dial
Passenger Side
Temperature
Control Dial
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 184 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

185
uuClimate Control SystemuAutomatic Climate Control Sensors
Controls

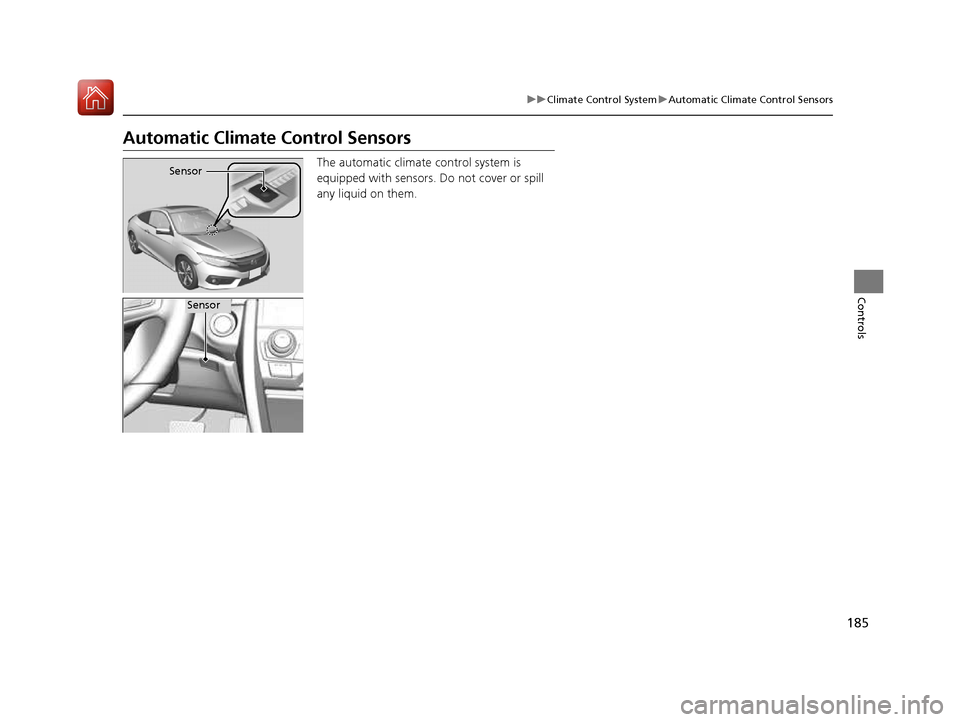

Automatic Climate Control SensorsThe automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Sensor
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 185 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

186
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 186 ページ >0>.>/６年>0月>/>0日　金曜日　午後４時>/６分

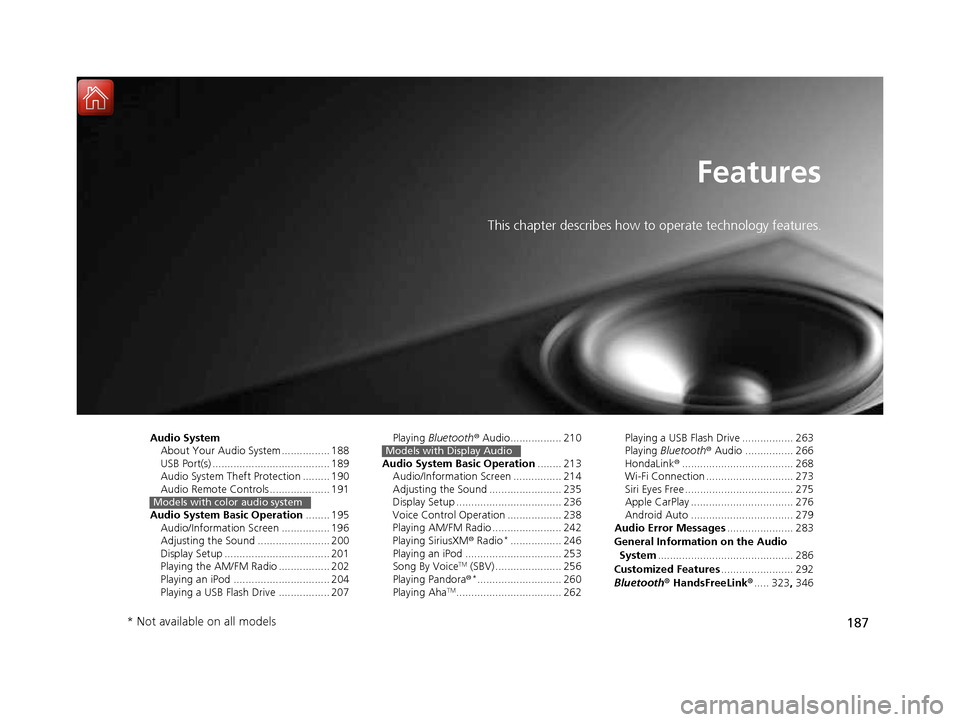

187
Features
This chapter describes how to operate technology features.
Audio System About Your Audio System ................ 188
USB Port(s) ....................................... 189
Audio System Theft Protection ......... 190
Audio Remote Controls .................... 191
Audio System Basic Operation ........ 195
Audio/Information Screen ................ 196
Adjusting the Sound ........................ 200
Display Setup ................................... 201
Playing the AM/FM Radio ................. 202
Playing an iPod ................................ 204
Playing a USB Flash Drive ................. 207
Models with color audio system
Playing Bluetooth ® Audio................. 210
Audio System Basic Operation ........ 213
Audio/Information Screen ................ 214
Adjusting the Sound ........................ 235
Display Setup ................................... 236
Voice Control Operation .................. 238
Playing AM/FM Radio ....................... 242
Playing SiriusXM ® Radio *
................. 246
Playing an iPod ................................ 253
Song By Voice TM
(SBV) ...................... 256
Playing Pandora ®*
............................ 260
Playing Aha TM
................................... 262Models with Display AudioPlaying a USB Flash Drive ................. 263
Playing Bluetooth ® Audio ................ 266
HondaLink ®..................................... 268
Wi-Fi Connection ............................. 273
Siri Eyes Free .................................... 275
Apple CarPlay .................................. 276
Android Auto .................................. 279
Audio Error Messages ...................... 283
General Information on the Audio System ............................................. 286
Customized Features ........................ 292
Bluetooth ® HandsFreeLink ®..... 323 , 346
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 187 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

188
Features
Audio System

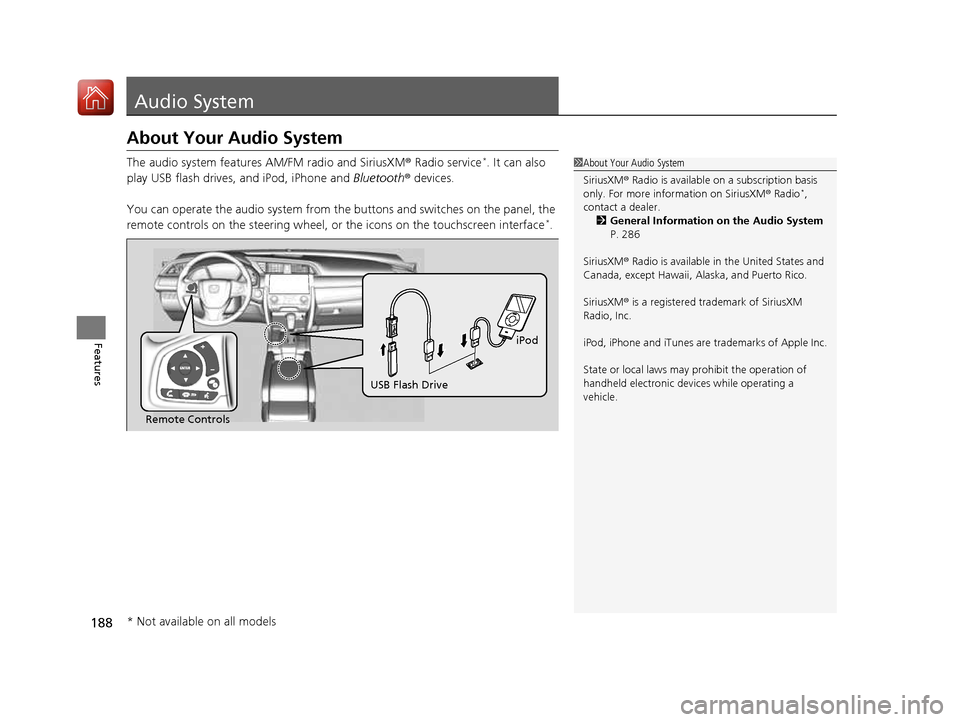

About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service *
. It can also
play USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface *
.
1About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio *
,
contact a dealer.
2 General Information on the Audio System
P. 286
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a
vehicle.
Remote Controls iPod
USB Flash Drive
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 188 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

189
uuAudio SystemuUSB Port(s)
Features

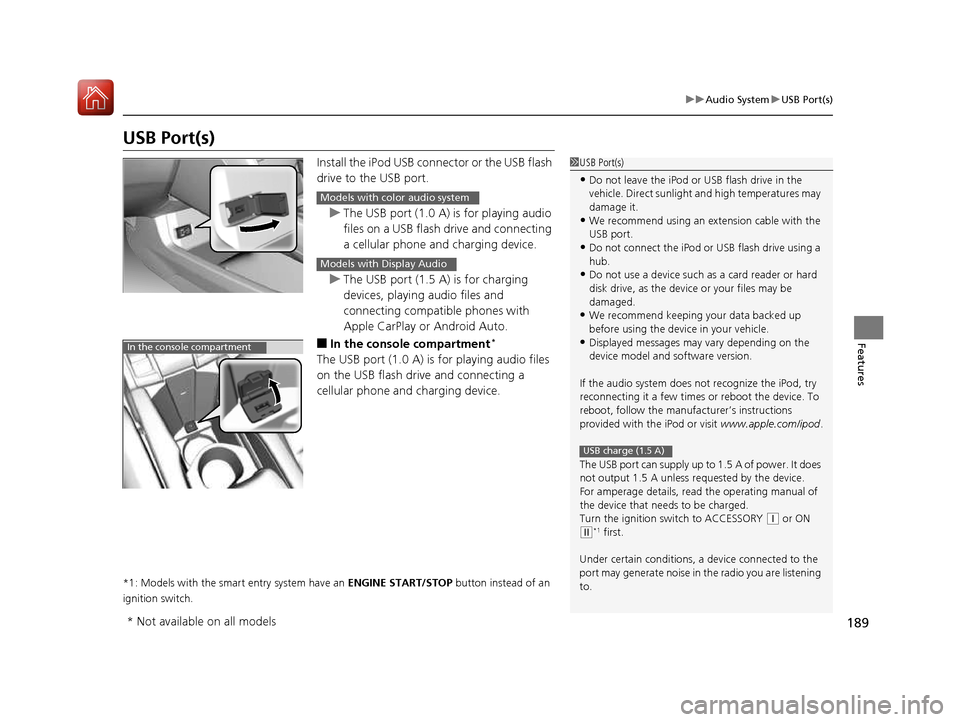

USB Port(s)Install the iPod USB connector or the USB flash
drive to the USB port.
uThe USB port (1.0 A) is for playing audio
files on a USB flash drive and connecting
a cellular phone and charging device.
uThe USB port (1.5 A) is for charging
devices, playing audio files and connecting compatible phones with
Apple CarPlay or Android Auto.
■ In the consol e compartment *
The USB port (1.0 A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1USB Port(s)
• Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may damage it.
• We recommend using an ex tension cable with the
USB port.
• Do not connect the iPod or USB flash drive using a
hub.
• Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
• We recommend k eeping your data backed up
before using the device in your vehicle.
• Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5 A of power. It does
not output 1.5 A unless re quested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Turn the ignition switch to ACCESSORY
(q or ON
(w *1
first.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge (1.5 A)
Models with color audio system
Models with Display Audio
In the console compartment
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 189 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
