HONDA CIVIC COUPE 2016 10.G Quick Guide
Manufacturer: HONDA, Model Year: 2016, Model line: CIVIC COUPE, Model: HONDA CIVIC COUPE 2016 10.GPages: 82, PDF Size: 5.2 MB
Page 61 of 82
114 || 115
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

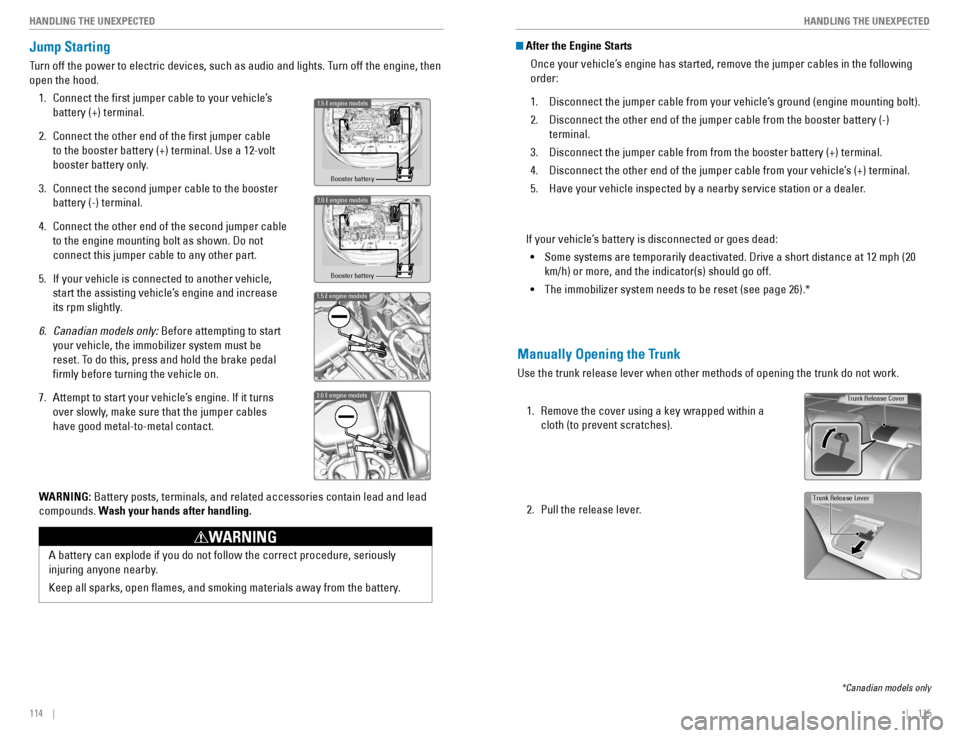

Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the hood.
1. Connect the rst jumper cable to your vehicle’s battery (+) terminal.
2. Connect the other end of the rst jumper cable to the booster battery (+) terminal. Use a 12-volt
booster battery only.
3. Connect the second jumper cable to the booster battery (-) terminal.
4. Connect the other end of the second jumper cable to the engine mounting bolt as shown. Do not connect this jumper cable to any other part.
5. If your vehicle is connected to another vehicle, start the assisting vehicle’s engine and increase
its rpm slightly.
6. Canadian models only: Before attempting to start
your vehicle, the immobilizer system must be
reset. To do this, press and hold the brake pedal rmly before turning the vehicle on.
7. Attempt to start your vehicle’s engine. If it turns over slowly, make sure that the jumper cables have good metal-to-metal contact.
Booster battery
1.5 ℓ engine models
2.0 ℓ engine models
Booster battery
1.5 ℓ engine models
2.0 ℓ engine models
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds. Wash your hands after handling.
A battery can explode if you do not follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open ames, and smoking materials away from the battery.
WARNING
After the Engine Starts
Once your vehicle’s engine has started, remove the jumper cables in the following order:
1. Disconnect the jumper cable from your vehicle’s ground (engine mounting bolt).
2. Disconnect the other end of the jumper cable from the booster battery (-) terminal.
3. Disconnect the jumper cable from from the booster battery (+) terminal.
4. Disconnect the other end of the jumper cable from your vehicle’s (+) terminal.
5. Have your vehicle inspected by a nearby service station or a dealer.
If your vehicle’s battery is disconnected or goes dead: • Some systems are temporarily deactivated. Drive a short distance at 12 mph (20
km/h) or more, and the indicator(s) should go off.
• The immobilizer system needs to be reset (see page 26).*
*Canadian models only
Manually Opening the Trunk
Use the trunk release lever when other methods of opening the trunk do not work.1. Remove the cover using a key wrapped within a cloth (to prevent scratches).
2. Pull the release lever.
Trunk Release Cover
Trunk Release Lever
Page 62 of 82
116 || 117
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

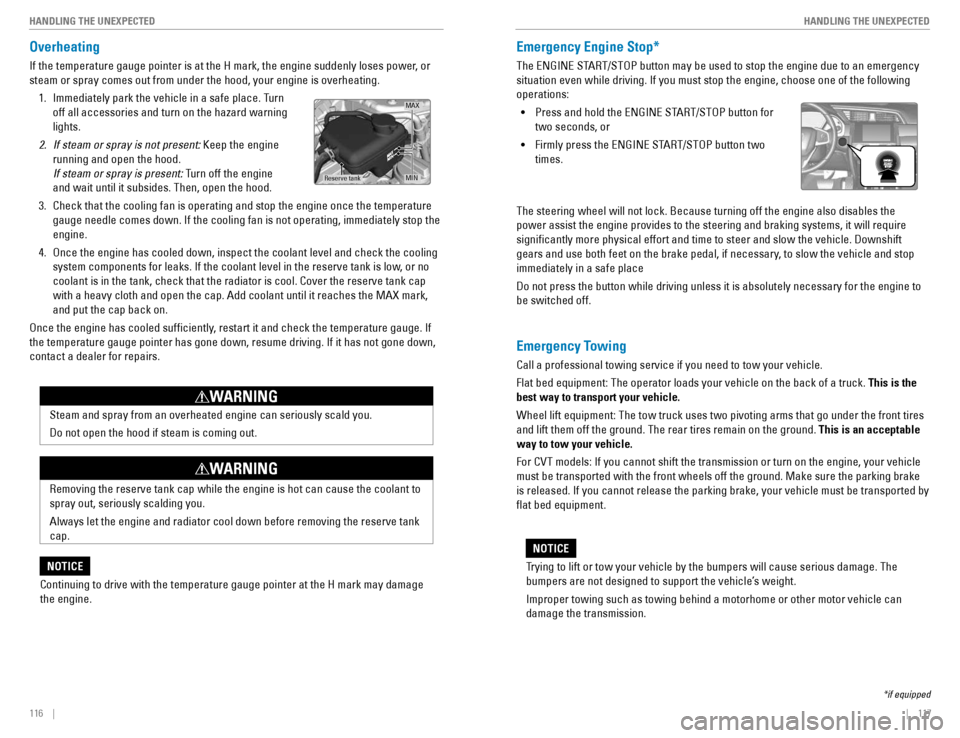

Overheating
If the temperature gauge pointer is at the H mark, the engine suddenly loses power, or steam or spray comes out from under the hood, your engine is overheating.
1. Immediately park the vehicle in a safe place. Turn off all accessories and turn on the hazard warning lights.
2. If steam or spray is not present: Keep the engine
running and open the hood. If steam or spray is present: Turn off the engine
and wait until it subsides. Then, open the hood.
3. Check that the cooling fan is operating and stop the engine once the temperature gauge needle comes down. If the cooling fan is not operating, immediately stop the engine.
4. Once the engine has cooled down, inspect the coolant level and check the cooling system components for leaks. If the coolant level in the reserve tank is low, or no
coolant is in the tank, check that the radiator is cool. Cover the reserve tank cap with a heavy cloth and open the cap. Add coolant until it reaches the MAX mark, and put the cap back on.
Once the engine has cooled suf ciently, restart it and check the temperature gauge. If the temperature gauge pointer has gone down, resume driving. If it has not gone down, contact a dealer for repairs.
MAX
Reserve tankMIN
Steam and spray from an overheated engine can seriously scald you. Do not open the hood if steam is coming out.
WARNING
Removing the reserve tank cap while the engine is hot can cause the coolant to spray out, seriously scalding you. Always let the engine and radiator cool down before removing the reserve tank cap.
WARNING
Continuing to drive with the temperature gauge pointer at the H mark may damage the engine.
NOTICE
Emergency Engine Stop*
The ENGINE START/STOP button may be used to stop the engine due to an emergency situation even while driving. If you must stop the engine, choose one of the following operations:
• Press and hold the ENGINE START/STOP button for
two seconds, or
• Firmly press the ENGINE START/STOP button two
times.
The steering wheel will not lock. Because turning off the engine also disables the
power assist the engine provides to the steering and braking systems, it will require
signi cantly more physical effort and time to steer and slow the vehicle. Downshift
gears and use both feet on the brake pedal, if necessary, to slow the vehicle and stop immediately in a safe place
Do not press the button while driving unless it is absolutely necessary for the engine to be switched off.
*if equipped
Emergency Towing
Call a professional towing service if you need to tow your vehicle. Flat bed equipment: The operator loads your vehicle on the back of a truck. This is the
best way to transport your vehicle.
Wheel lift equipment: The tow truck uses two pivoting arms that go under the front tires and lift them off the ground. The rear tires remain on the ground. This is an acceptable
way to tow your vehicle.
For CVT models: If you cannot shift the transmission or turn on the engine, your vehicle must be transported with the front wheels off the ground. Make sure the parking brake
is released. If you cannot release the parking brake, your vehicle must be transported by at bed equipment.
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The
bumpers are not designed to support the vehicle’s weight. Improper towing such as towing behind a motorhome or other motor vehicle can damage the transmission.
NOTICE
Page 63 of 82
118 || 119
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

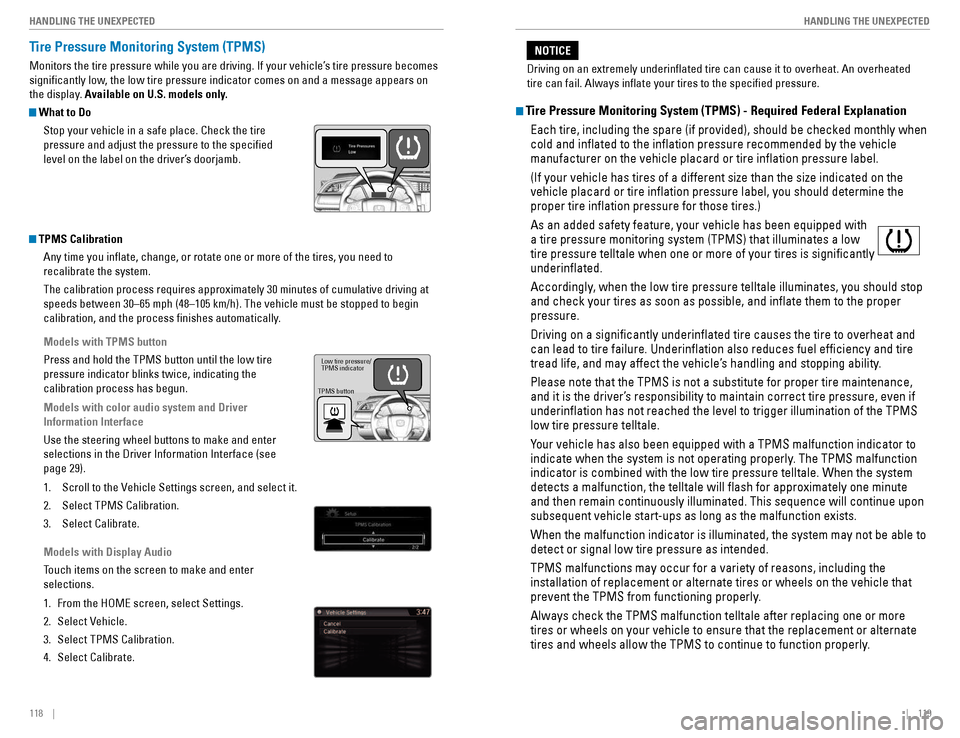

Tire Pressure Monitoring System (TPMS)
Monitors the tire pressure while you are driving. If your vehicle’s tire pressure becomes
signi cantly low, the low tire pressure indicator comes on and a message appears on
the display. Available on U.S. models only.
What to Do
Stop your vehicle in a safe place. Check the tire pressure and adjust the pressure to the speci ed
level on the label on the driver’s doorjamb.
TPMS Calibration
Any time you in ate, change, or rotate one or more of the tires, you need to recalibrate the system.
The calibration process requires approximately 30 minutes of cumulative driving at
speeds between 30–65 mph (48–105 km/h). The vehicle must be stopped to begin
calibration, and the process nishes automatically.
Models with TPMS button
Press and hold the TPMS button until the low tire pressure indicator blinks twice, indicating the calibration process has begun.
Models with color audio system and Driver Information Interface
Use the steering wheel buttons to make and enter selections in the Driver Information Interface (see page 29).
1. Scroll to the Vehicle Settings screen, and select it.
2. Select TPMS Calibration.
3. Select Calibrate.
Models with Display Audio
Touch items on the screen to make and enter selections.
1. From the HOME screen, select Settings.
2. Select Vehicle.
3. Select TPMS Calibration.
4. Select Calibrate.
TPMS button
Low tire pressure/ TPMS indicator
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation
Each tire, including the spare (if provided), should be checked monthly when cold and in ated to the in ation pressure recommended by the vehicle manufacturer on the vehicle placard or tire in ation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire in ation pressure label, you should determine the proper tire in ation pressure for those tires.) As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is signi cantly underin ated.
Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and in ate them to the proper pressure. Driving on a signi cantly underin ated tire causes the tire to overheat and can lead to tire failure. Underin ation also reduces fuel ef ciency and tire
tread life, and may affect the vehicle’s handling and stopping ability. Please note that the TPMS is not a substitute for proper tire maintenance,
and it is the driver’s responsibility to maintain correct tire pressure, even if underin ation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to
indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will ash for approximately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue to function properly.
Driving on an extremely underin ated tire can cause it to overheat. An overheated tire can fail. Always in ate your tires to the speci ed pressure.
NOTICE
Page 64 of 82
120 || 121
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

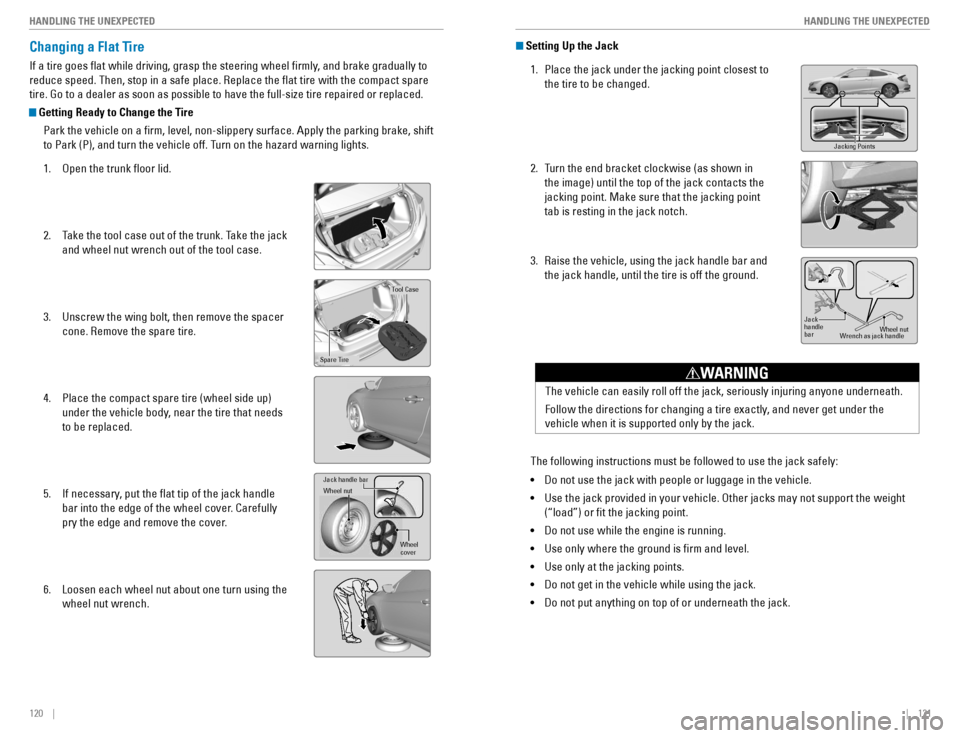

Changing a Flat Tire
If a tire goes at while driving, grasp the steering wheel rmly, and brake gradually to reduce speed. Then, stop in a safe place. Replace the at tire with the compact spare
tire. Go to a dealer as soon as possible to have the full-size tire repaired or replaced.
Getting Ready to Change the Tire
Park the vehicle on a rm, level, non-slippery surface. Apply the parking brake, shift
to Park (P), and turn the vehicle off. Turn on the hazard warning lights.
1. Open the trunk oor lid.
2. Take the tool case out of the trunk. Take the jack
and wheel nut wrench out of the tool case.
3. Unscrew the wing bolt, then remove the spacer cone. Remove the spare tire.
4. Place the compact spare tire (wheel side up) under the vehicle body, near the tire that needs to be replaced.
5. If necessary, put the at tip of the jack handle bar into the edge of the wheel cover. Carefully
pry the edge and remove the cover.
6. Loosen each wheel nut about one turn using the wheel nut wrench.
Spare Tire Tool Case
Jack handle ba
r
Wheel nu t
Wheel cover
Setting Up the Jack
1. Place the jack under the jacking point closest to
the tire to be changed.
2. Turn the end bracket clockwise (as shown in the image) until the top of the jack contacts the jacking point. Make sure that the jacking point tab is resting in the jack notch.
3. Raise the vehicle, using the jack handle bar and the jack handle, until the tire is off the ground.
Jacking Points
Jack handle bar Wheel nut
Wrench as jack handle
The vehicle can easily roll off the jack, seriously injuring anyone underneath.
Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.
WARNING
The following instructions must be followed to use the jack safely: • Do not use the jack with people or luggage in the vehicle.
• Use the jack provided in your vehicle. Other jacks may not support the weight
(“load”) or t the jacking point.
• Do not use while the engine is running.
• Use only where the ground is rm and level.
• Use only at the jacking points.
• Do not get in the vehicle while using the jack.
• Do not put anything on top of or underneath the jack.
Page 65 of 82
122 || 123
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

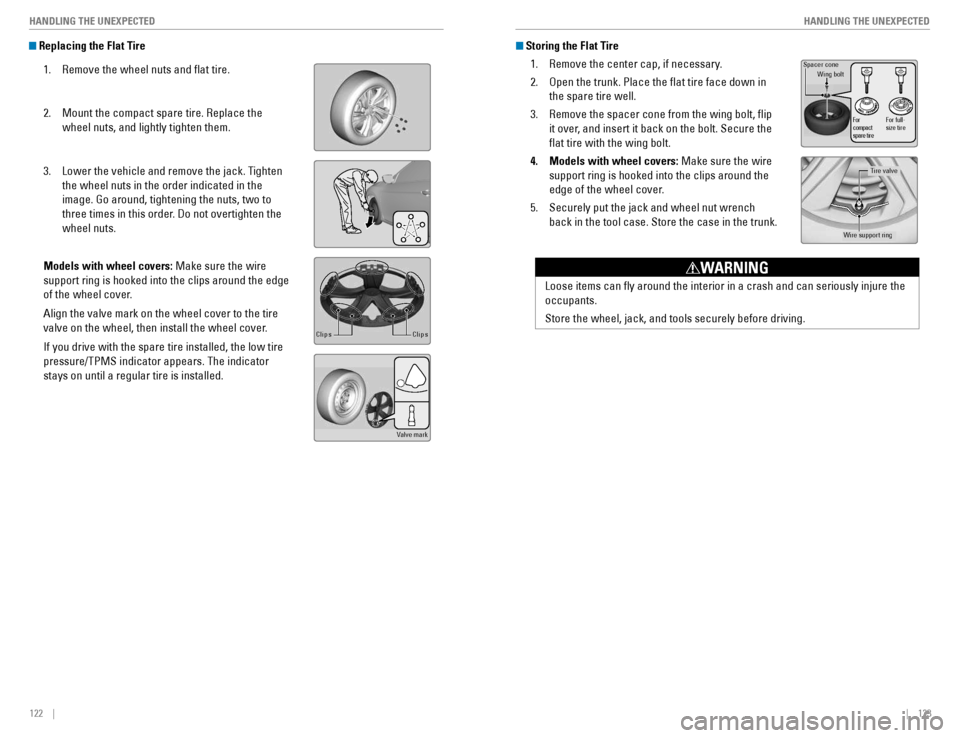

Replacing the Flat Tire
1. Remove the wheel nuts and at tire.
2. Mount the compact spare tire. Replace the
wheel nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten the wheel nuts in the order indicated in the image. Go around, tightening the nuts, two to
three times in this order. Do not overtighten the wheel nuts.
Models with wheel covers: Make sure the wire
support ring is hooked into the clips around the edge
of the wheel cover. Align the valve mark on the wheel cover to the tire
valve on the wheel, then install the wheel cover. If you drive with the spare tire installed, the low tire pressure/TPMS indicator appears. The indicator stays on until a regular tire is installed.
spilC
spilC
Valve mark
Storing the Flat Tire
1. Remove the center cap, if necessary.
2. Open the trunk. Place the at tire face down in
the spare tire well.
3. Remove the spacer cone from the wing bolt, ip it over, and insert it back on the bolt. Secure the at tire with the wing bolt.
4. Models with wheel covers: Make sure the wire
support ring is hooked into the clips around the
edge of the wheel cover.
5. Securely put the jack and wheel nut wrench back in the tool case. Store the case in the trunk.
Loose items can y around the interior in a crash and can seriously injure the occupants. Store the wheel, jack, and tools securely before driving.
WARNING
Spacer cone Wing bolt
For compact
spare tireFor full -
size tire
Tire valv e
Wire support rin g
Page 66 of 82
124 || 125
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the
fuse in question by the fuse number and box cover number.
Engine Compartment Fuse Box
Located under the hood near the battery. Push the tabs to open the box.
AmpsCircuit Protected
1 (6 0A )Cooling Fa n*2(30A )Cooling Fa n*3(50A )
IG Main*4
30
AHeadlight High Beam Main 30A
Battery12 5A
2EPS
IG Main 70
A
30 A*4
50A*5
Fuse Box Option*(40A )
Fuse Box60 A30A
Front Wiper Motor
3
Starter Motor*4
Headlight Low Beam Mai
n
Rear Defroster 40A
30 A
Fuse Box 40AABS/VSA Motor40A
ABS/VSA FSR40 ABlower Motor
4 40
A
30 A
*1:M odels with the smart entry system have
* * an
ENGINE START/STO P button
instead of an ignition switch .
2: 2.0L engine models
* 3:
1.5L engine models
** 4:
Models with smart entry system
5:Models without smart entry system
models
56:
Continuously variable transmissio n
Cooling Fan5A
6Wa sher 15A
7FI Main8 15
A15 A
S
FI ub
9Stop Lights 10A
10 Injector*3(15 A)
11LA F5A
12 FI ECU10A
13Parking Lights
14 10
A
Hazard15 A
15IG Coil16 15
A
Transmission*6(15 A)17 Daytime Running Lights 10A
18 Back Up10A
19
20 15
A(30 A)
2110 A
Circuit Protected
Audio
Audio AM P*
Interior Lights Amps22(15 A)
23Front Fog Lights*
A/C Compressor
24 (10 A)
Horn10 A25 Left Headlight Low Beam 10A
27VB ACT*326 Right Headlight Low Beam
(10 A)
10A
28 Left Headlight High Beam
30 31
29Right Headlight High Beam 10A
32 (15 A)(2
0A )
33
34 (20 A)
35
36
10
A
Interior Fuse Box
Located under the dashboard on the driver’s side.
Circuit Protected Amps110A
2 (5 A)
3
4(5 A)(10 A)
510 A610A
710 A
815 A
Accessory
Key Lock
*2
Front Sensor Camera*1
Transmission*2, *3
Optio n
SRS Indicator
Meter
Fuel Pump
Fuse label
* *1: Models with smart entry syste m
*2:Models without smart entry syste m
models
9AIRCON
3: Continuously variable transmission
10 A
10 11Engine Control 5A12Passenger Side Door Lock 10A13 (10 A)
14 (20 A)
15Front Passenger’s Side Power Window20A
16Door Loc k20A
17Transmissio n*1, *3(10
A)
(5 A)
Front Sensor Camera *2
18
19Moonroo f*20 (20
A) 21ACG10A10A
22 Daytime Running Light s
23 24Front Sensor Camera *(5 A)
25Driver’s Door Lock10 A
27 26Passen ger Side Door Unlock10A(20 A)28 Driver’s Power Window 20A
AmpsCircuit Protecte d
Page 67 of 82
126 || 127
MAINTENANCE
HANDLING THE UNEXPECTED

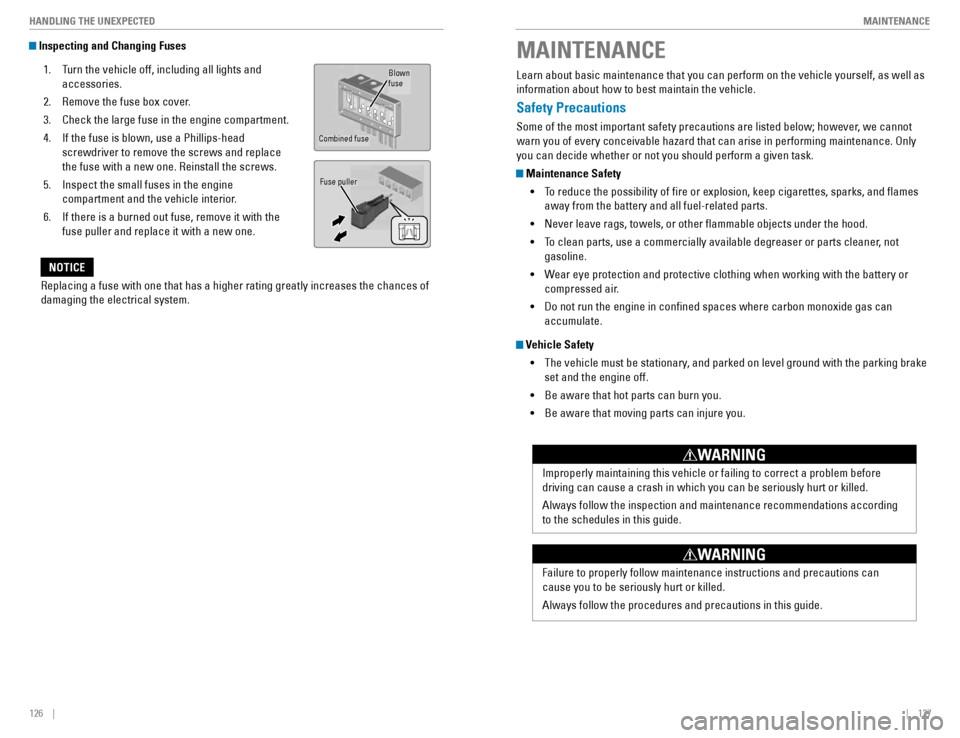

Inspecting and Changing Fuses
1. Turn the vehicle off, including all lights and
accessories.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
4. If the fuse is blown, use a Phillips-head screwdriver to remove the screws and replace the fuse with a new one. Reinstall the screws.
5. Inspect the small fuses in the engine compartment and the vehicle interior.
6. If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.Blown fuse
Combined fuse
Fuse puller
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
NOTICE
MAINTENANCE
Learn about basic maintenance that you can perform on the vehicle yourself, as well as information about how to best maintain the vehicle.
Safety Precautions
Some of the most important safety precautions are listed below; however, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.
Maintenance Safety
• To reduce the possibility of re or explosion, keep cigarettes, sparks, and ames
away from the battery and all fuel-related parts.
• Never leave rags, towels, or other ammable objects under the hood.
• To clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.
• Wear eye protection and protective clothing when working with the battery or
compressed air.
• Do not run the engine in con ned spaces where carbon monoxide gas can
accumulate.
Vehicle Safety
• The vehicle must be stationary, and parked on level ground with the parking brake
set and the engine off.
• Be aware that hot parts can burn you.
• Be aware that moving parts can injure you.
Improperly maintaining this vehicle or failing to correct a problem before driving can cause a crash in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations according to the schedules in this guide.
WARNING
Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed. Always follow the procedures and precautions in this guide.
WARNING
Page 68 of 82
128 || 129
MAINTENANCE
MAINTENANCE

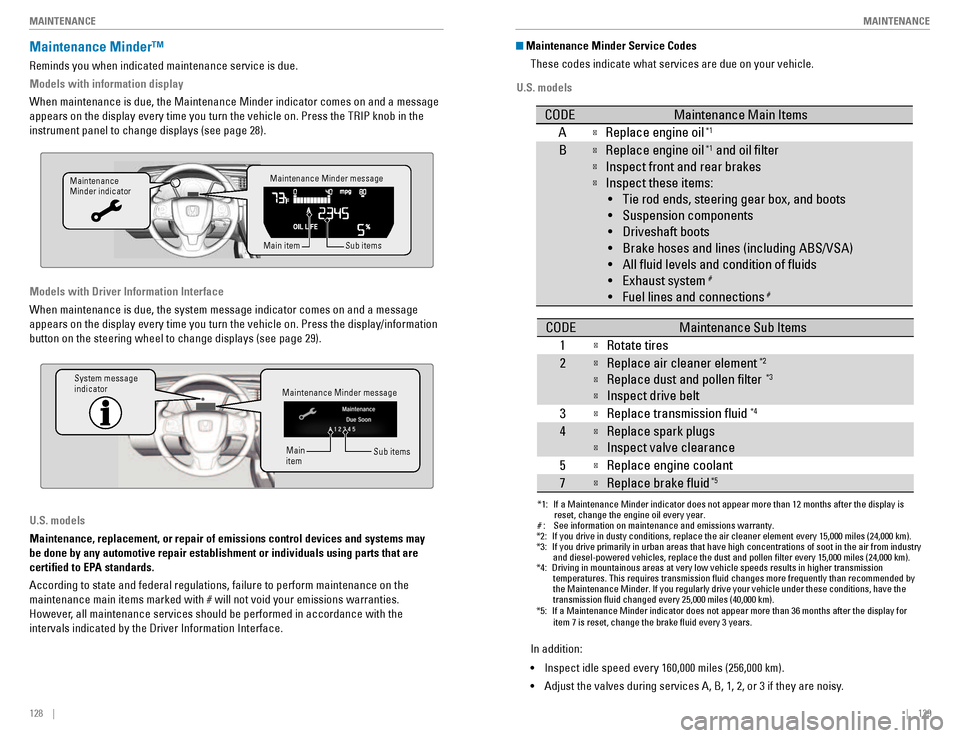

Maintenance Minder™
Reminds you when indicated maintenance service is due.
Models with information display
When maintenance is due, the Maintenance Minder indicator comes on and a message
appears on the display every time you turn the vehicle on. Press the TRIP knob in the instrument panel to change displays (see page 28).
Models with Driver Information Interface
When maintenance is due, the system message indicator comes on and a message
appears on the display every time you turn the vehicle on. Press the display/information button on the steering wheel to change displays (see page 29).
Maintenance Minder message
Maintenance
Minder indicator
Sub items
Main item
Maintenance Minder message
System message
indicator
Sub items
Main item
U.S. models
Maintenance, replacement, or repair of emissions control devices and systems may be done by any automotive repair establishment or individuals using parts that are
certi ed to EPA standards. According to state and federal regulations, failure to perform maintenance on the
maintenance main items marked with # will not void your emissions warranties.
However, all maintenance services should be performed in accordance with the intervals indicated by the Driver Information Interface.
Maintenance Minder Service Codes
These codes indicate what services are due on your vehicle.
U.S. models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is
reset, change the engine oil every year.
#: See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
Replace engine oi l*1
B
Replace engine oi l*1
and oil lter
Inspect front and rear brakes
Inspect these items:
• Tie rod ends, steering gear box, and boots
•S uspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All uid levels and condition of uids
• Exhaust system #
•F uel lines and connection s#
*2:If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).*3:If you drive primarily in urban areas that have high concentrations of soot in the air from industryand diesel-powered vehicles, replace the dust and pollen lter every 15,000 miles (24,000 km).*4:Driving in mountainous areas at very low vehicle speeds results in higher transmission
temperatures. This requires transmission uid changes more frequently than recommended by
the Maintenance Minder. If you regularly drive your vehicle under these conditions, have the
transmission uid changed every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1
Rotate tires
2
Replace air cleaner element *2
Replace dust and pollen lter *3
Inspect drive belt
3
Replace transmission uid *4
4
Replace spark plug s
Inspect valve clearance
5
Replace engine coolant
7 Replace brake uid*5
*5:If a Maintenance Minder indicator does not appear more than 36 months after the display for item 7 is reset, change the brake uid every 3 years.
In addition: • Inspect idle speed every 160,000 miles (256,000 km).
• Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
Page 69 of 82
130 || 131
MAINTENANCE
MAINTENANCE
*1: If a Maintenance Minder message does not appear more than 12 months after the display is
reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles). *3:
If you drive primarily in urban areas that have high concentrations of soot in the air from industryand diesel-powered vehicles, replace the dust and pollen lter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission
temperatures. This requires transmission uid changes more frequently than recommended by
the Maintenance Minder. If you regularly drive your vehicle under these conditions, have the
transmission uid changed every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for
item7 is reset, change the brake uid every 3 years.#:See information on maintenance and emissions warranty.

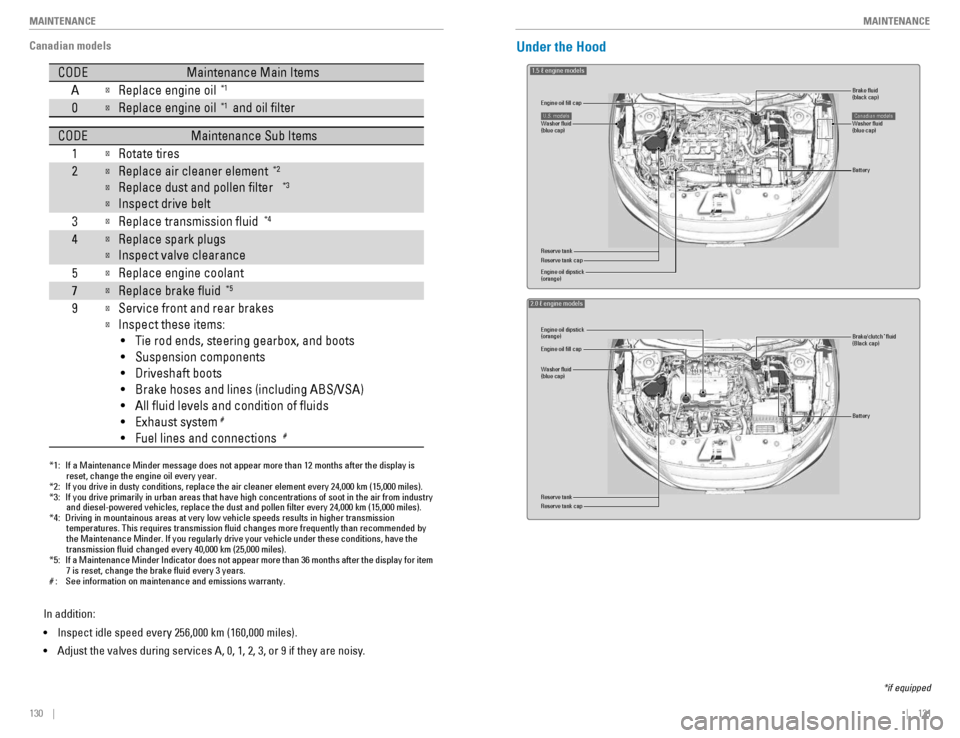

CODEMaintenance Main Items
A
Replace engine oi l*1
0
Replace engine oi l*1
and oil lte r
CODEMaintenance Sub Items
1
Rotate tires
2 Replace air cleaner element *2
Replace dust and pollen lte r*3
Inspect drive belt
3
Replace transmission uid *4
4
Replace spark plugs
Inspect valve clearance
5
Replace engine coolant
7
Replace brake uid *5
9
Service front and rear brakes
Inspect these items:
•T ie rod ends, steering gearbox, and boots
•S uspension components
•D riveshaft boots
•B rake hoses and lines (including ABS/VSA)
•A ll uid levels and condition of uid s
•E xhaust system #
•F uel lines and connections #
Canadian models
In addition: •
Inspect idle speed every 256,000 km (160,000 miles).
• Adjust the valves during services A, 0, 1, 2, 3, or 9 if they are noisy.
Under the Hood
1.5 ℓ engine models
Brake fluid (black cap)
Reserve tank
Washer fluid (blue cap) Engine oil dipstick (orange)
Engine oil fill cap
Battery
Reserve tank cap
U.S. odelsWasher fluid (blue cap)
Page 70 of 82
132 || 133
MAINTENANCE
MAINTENANCE

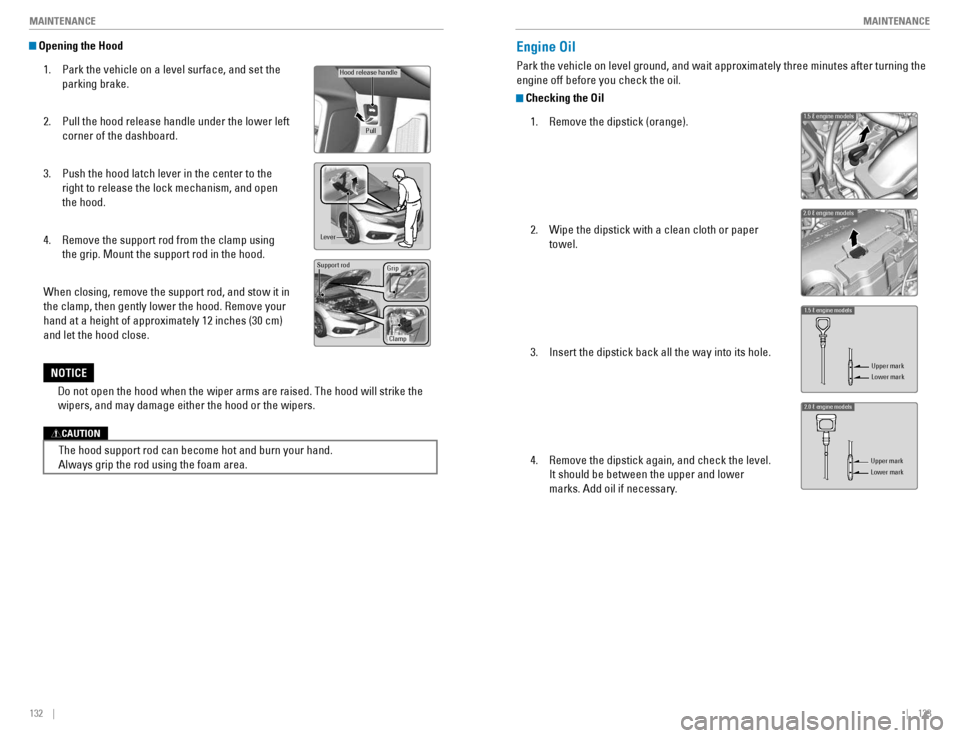

Opening the Hood
1. Park the vehicle on a level surface, and set the
parking brake.
2. Pull the hood release handle under the lower left corner of the dashboard.
3. Push the hood latch lever in the center to the right to release the lock mechanism, and open the hood.
4. Remove the support rod from the clamp using the grip. Mount the support rod in the hood.
When closing, remove the support rod, and stow it in the clamp, then gently lower the hood. Remove your hand at a height of approximately 12 inches (30 cm) and let the hood close.
Do not open the hood when the wiper arms are raised. The hood will strike the wipers, and may damage either the hood or the wipers.
NOTICE
Hood release handle
Pull
Lever
Support rodGrip
Clamp
Engine Oil
Park the vehicle on level ground, and wait approximately three minutes after turning the engine off before you check the oil.
Checking the Oil
1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or paper towel.
3. Insert the dipstick back all the way into its hole.
4. Remove the dipstick again, and check the level. It should be between the upper and lower
marks. Add oil if necessary. 1.5 ℓ engine models
Upper mark Lower mark
1.5 ℓ engine models
Upper mark Lower mark
2.0 ℓ engine models
2.0 ℓ engine models
CAUTION
The hood support rod can become hot and burn your hand. Always grip the rod using the foam area.
