Sub-shaft Bearings
Replacement
NOTE: Lubricate all parts with ATF before reassembly
'l . To remove the sub-shaft ball bearing trom the trans-
mission housing. expand the snap ring with snap ring
pliers, then push the bearing out using the special
tools and a Dress as shown.
ATTACHMENT, 62 x 68 mm07746-0010500
Remove the needle bearing stopper.
Remove the needle bearing from the transmisslon
housing using a drilt Punch.
DRIFT PUNCH
14-140
?A
SNAP RING
PRESS
Install the new needle bearing in the transmlsston
housing using the specialtools and a press as shown.
ATTACHMENT, 32 x 35 mm07746-0010100
Expand the snap ring with snap ring pliers, then in-
sert the ball bearing part way into the housing us-
ing the specialtools and a press as described in step
1. Installthe bearing with the groove facing outside
the housing.
Release the pliers, then push the bearing down into
the housing untilthe snap ring snaps in place around
rt.
After installing the ball bearing, verify the following:
a The snap ring is seated in the bearing and hous-
ing grooves.
a The snap ring ope.ates properly
a The ring end gap is correct.
5.
7.
END GAP: 0-7 mm

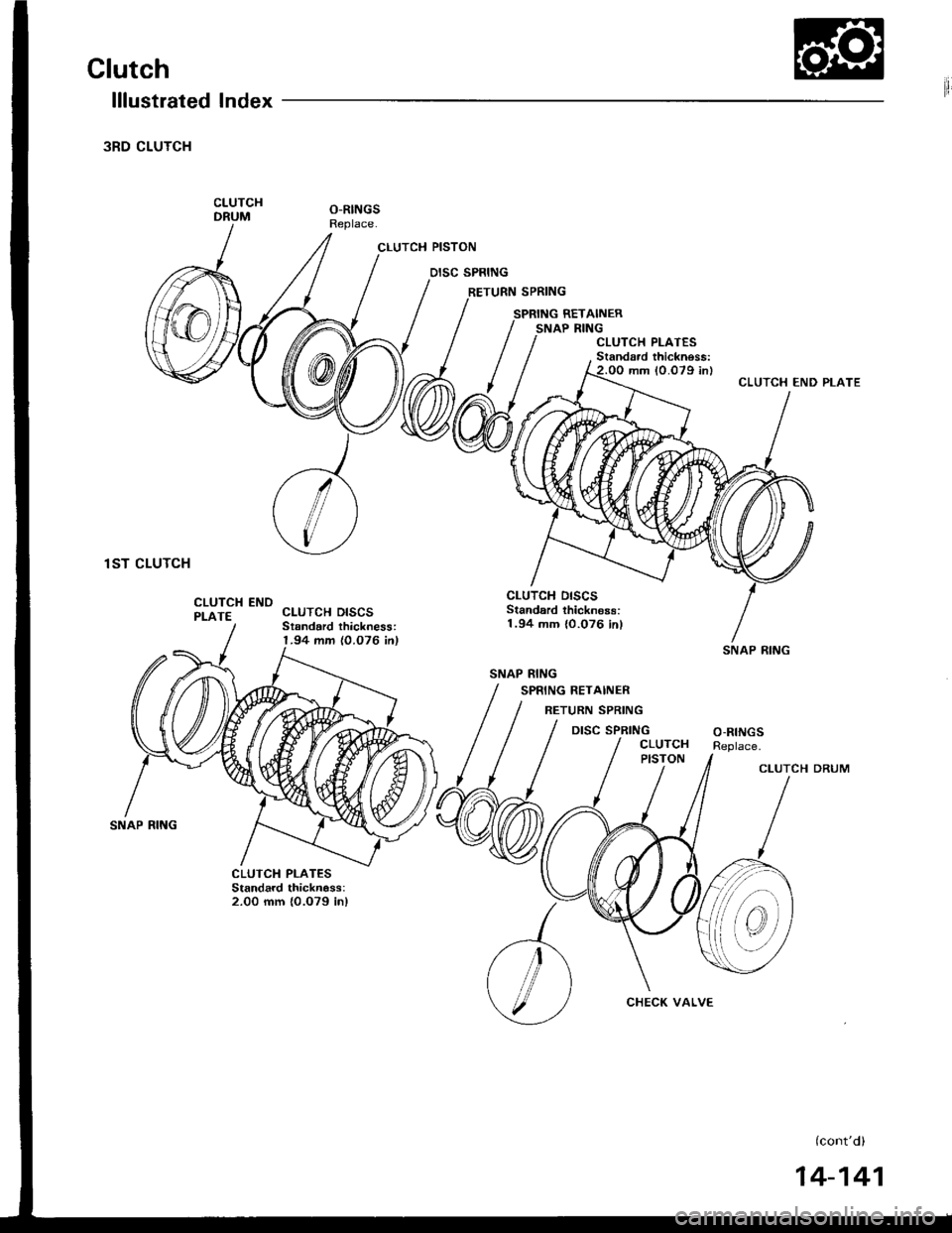

Clutch
lllustrated Index
3RD CLUTCH
CLUTCHDRUMO-RINGSReplace.
CLUTCH DISCSStsndard thickness:1.94 mm {0.076 in)
CLUTCH PISTON
DISC SPRING
RETURN SPRING
SPRING RETAINERSNAP RING
1ST CLUTCH
SNAP RING
CLUTCH ENDPLATE
O-RINGSReplace.
CLUTCH PLATESStandard thicknass:2.00 mm {0.079 in}
(cont'd)
SNAP RING
SNAP RING
CHECK VALVE
14-141

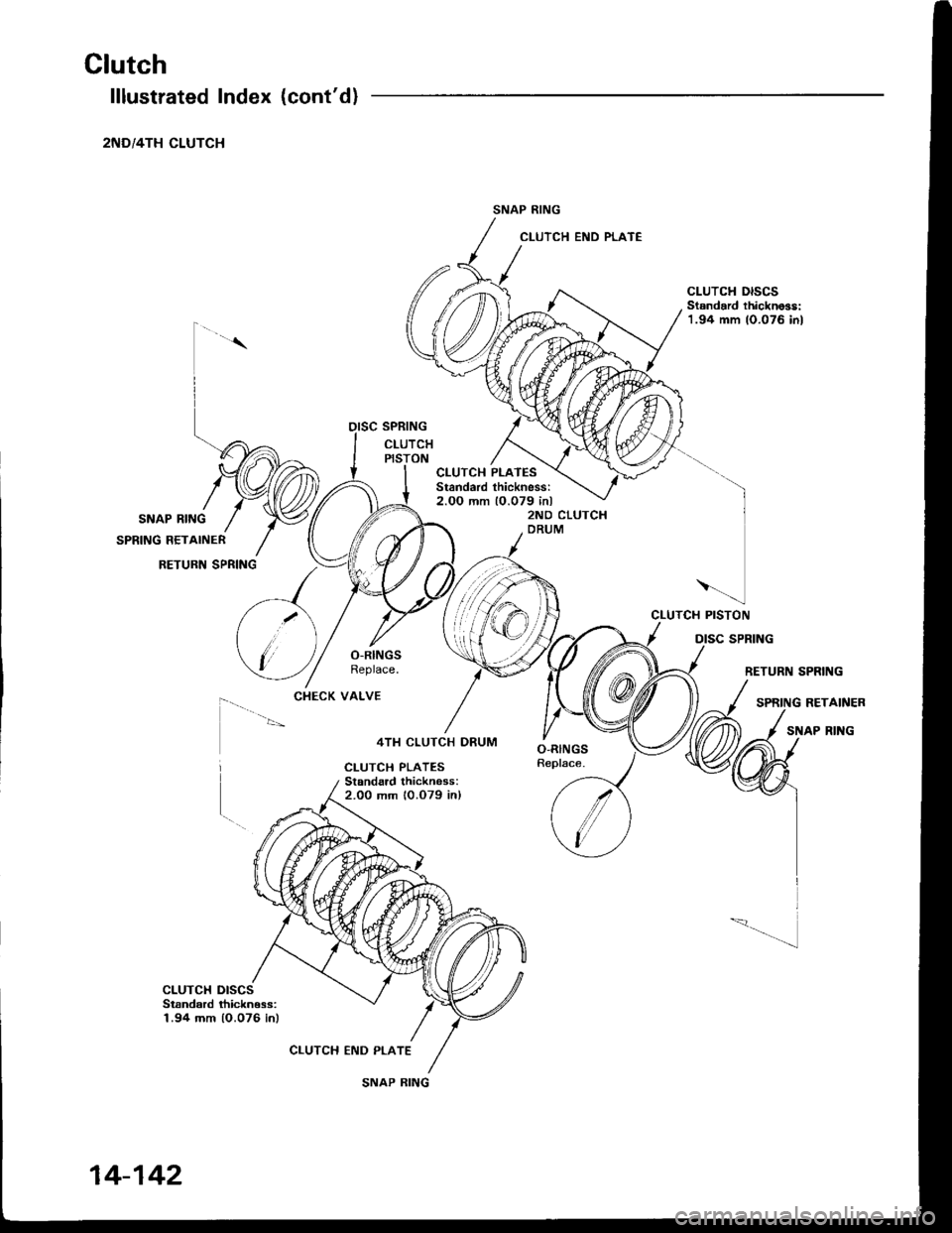

Clutch
lllustrated Index (cont'd)
2ND/4TH CLUTCH
SNAP RING
SPRING RETAINER
RETURN SPRING
CLUTCH END PLATE
4TH CLUTCH DRUM
CLUTCH PLATESStanda.d thickness:2.00 mm 10.079 in)
SNAP RING
CLUTCH DISCSStandard thickno3s:1.94 mm 10.076 in)
CLUTCH END PLATE
;;i;;; /
(/\
Y)
)
l
CLUTCH PISTON
CLUTCH PLATESStandard thickness:2.OO mm 10.079 inl
SPRING
RETURN SPRING
RETAINER
SNAP RING
CLUTCH DISCSStsndard ihickn€ss:1.94 mm 10.076 in)
CHECK VALVE
SNAP RING
14-142

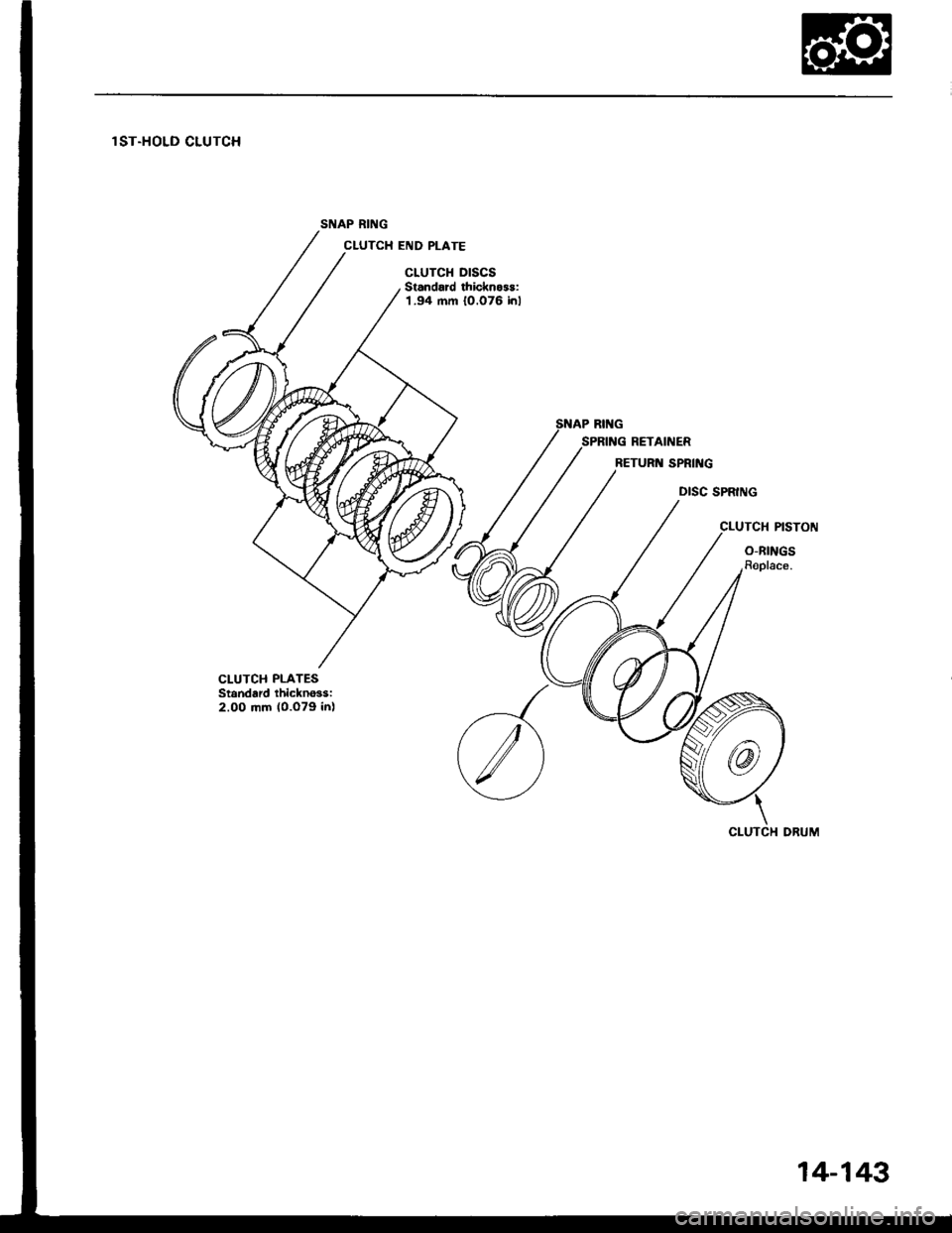

lST.HOLD CLUTCH
SNAP RING
CLUTCH END PLATE
CLUTCH DISCSStandard thicknoss:1.94 mm 10.076 inl
DISC SPRING
CLUTCH PISTON
O-RINGSRoplace.
CLUTCH PLATESStandard thickno3si2.00 mm (0.o79 in)
14-143

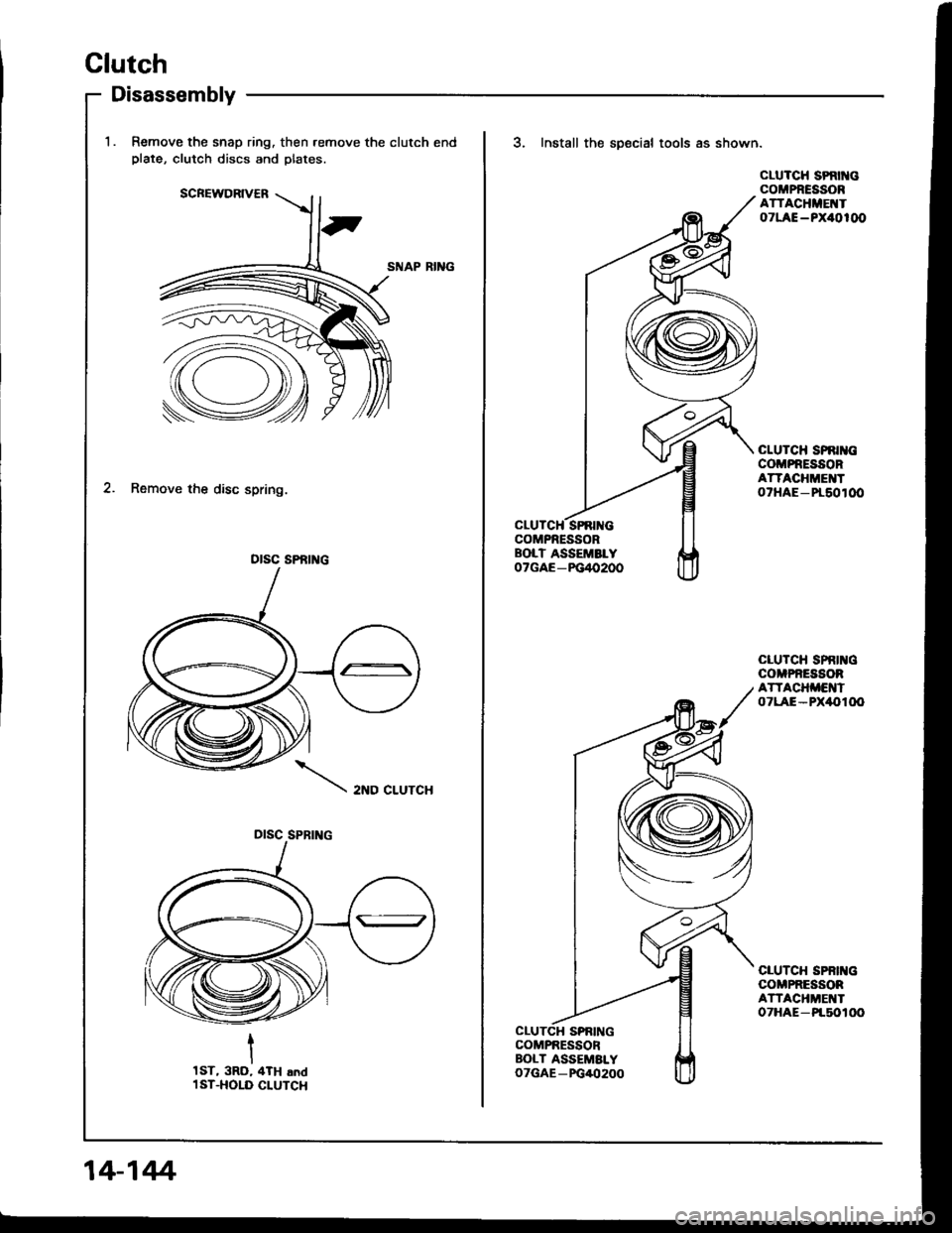

Disassembly
Clutch
Remove the snap ring. then.emove the clutch endplate, clutch discs and plates.
SNAP RII{G
2. Remove the disc spring.
2ND CLUTCH
otsc sPfit c
DISC SPBING
1ST, 3RD, 4TH .ndl ST.HOLD CLUTCH
14-144.
SPNING
3. Install the sDecial tools as shown.
CLUTCH SPRIT{GCOMPRESSORATTACHME ToTLAE-PX40100
cLuTcH spnr cCOMPNESSORATTACHME ToTHAE-Pr60tOO
CLUTCH SPRII{CCOMPNESSORATTACHi'ENTOTLAE-PX,l{,TOO
CLUTCH SPBII{GCOMPRESSORATTACHMEI{ToTHAE-Pt50100

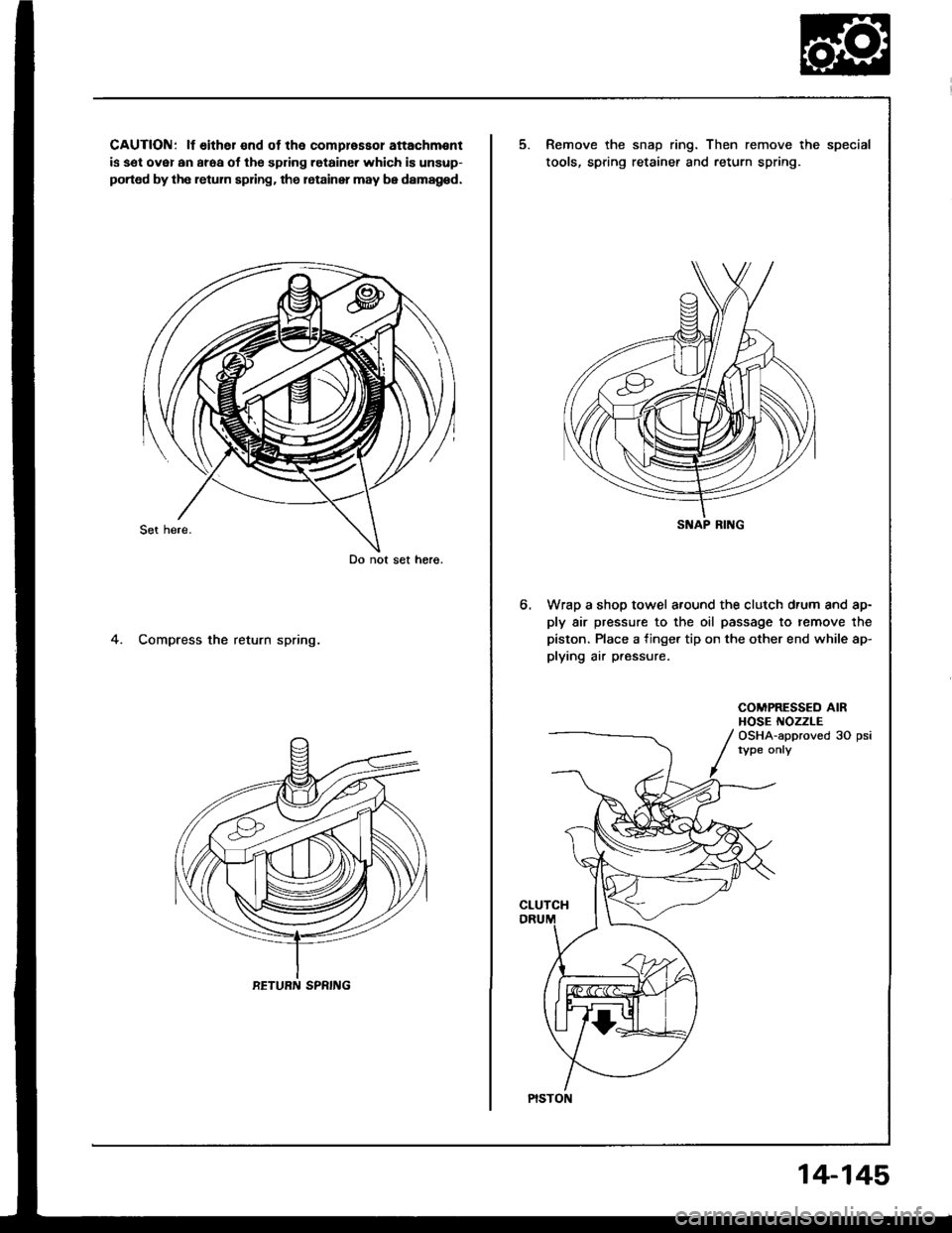

CAUTION: lf either end ot the comprassol attachm€nt
is sel ovsl an araa ol the spdng retaine. which is unsup-
ported by the retum spring. the letainer may be damag6d,
4. Compress the return spring.
Do not set horo.
RETURN SPRING
5.Remove the snap ring. Then remove the special
tools, spring retainer and return spring.
Wrap a shop towel around the clutch drum and ap-
ply air pressure to the oil passage to remove the
piston. Place a finger tip on the other end while ap-
plying air p.essure.
6.
COMPRESSED AIRHOSE NOZZLEOSHA-approved 30 psirype onry
CLUTCH
S AP RING
PISTON
14-145

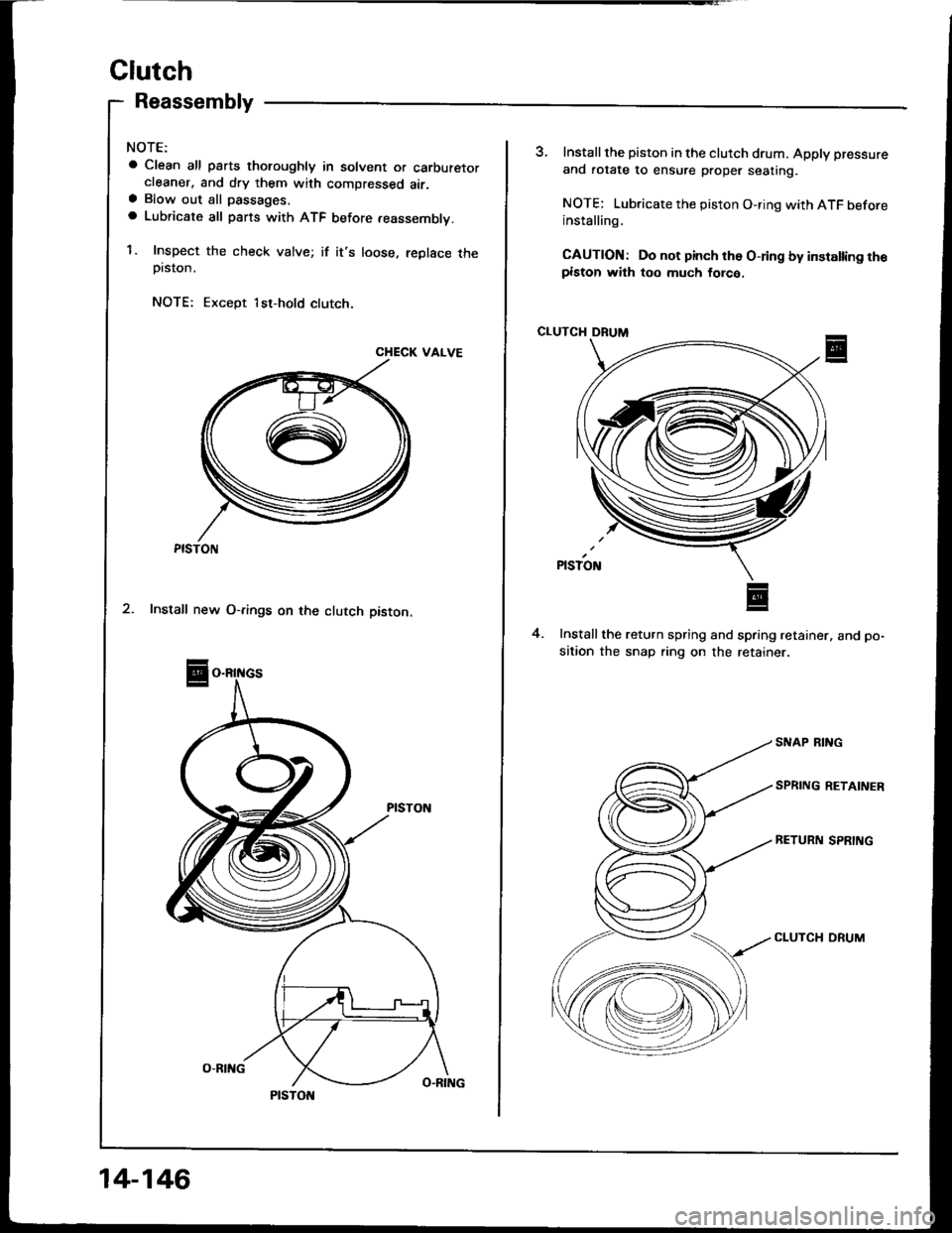

Clutch
Reassembly
NOTE:
a Clean all psrts thoroughly in solvent or carburetorcleaner. and dry them with compressed air.a Blow out all passages.
a Lubricate all pans with ATF before .eassembly.
1. Inspect the check valve; if it's loose, replace theprston,
NOTE: Except 1st-hold clutch.
CHECK VAIVE
PISTON
14-146
3, Installthe piston in the clutch drum. Apply pressure
and rotate to ensure proper seating.
NOTE: Lubricate the piston O-ring with ATF beforeinstalling,
CAUTION: Do not pinch rh6 O-ring by installing th€piston with too much lorco.
CLUTCH DRUM
Installthe return spring and spring retainer. and po-
sition the snap ring on the retainer
4.
SNAP RING
SPRING RETAINER
RETURN SPRING
CLUTCH ORUM

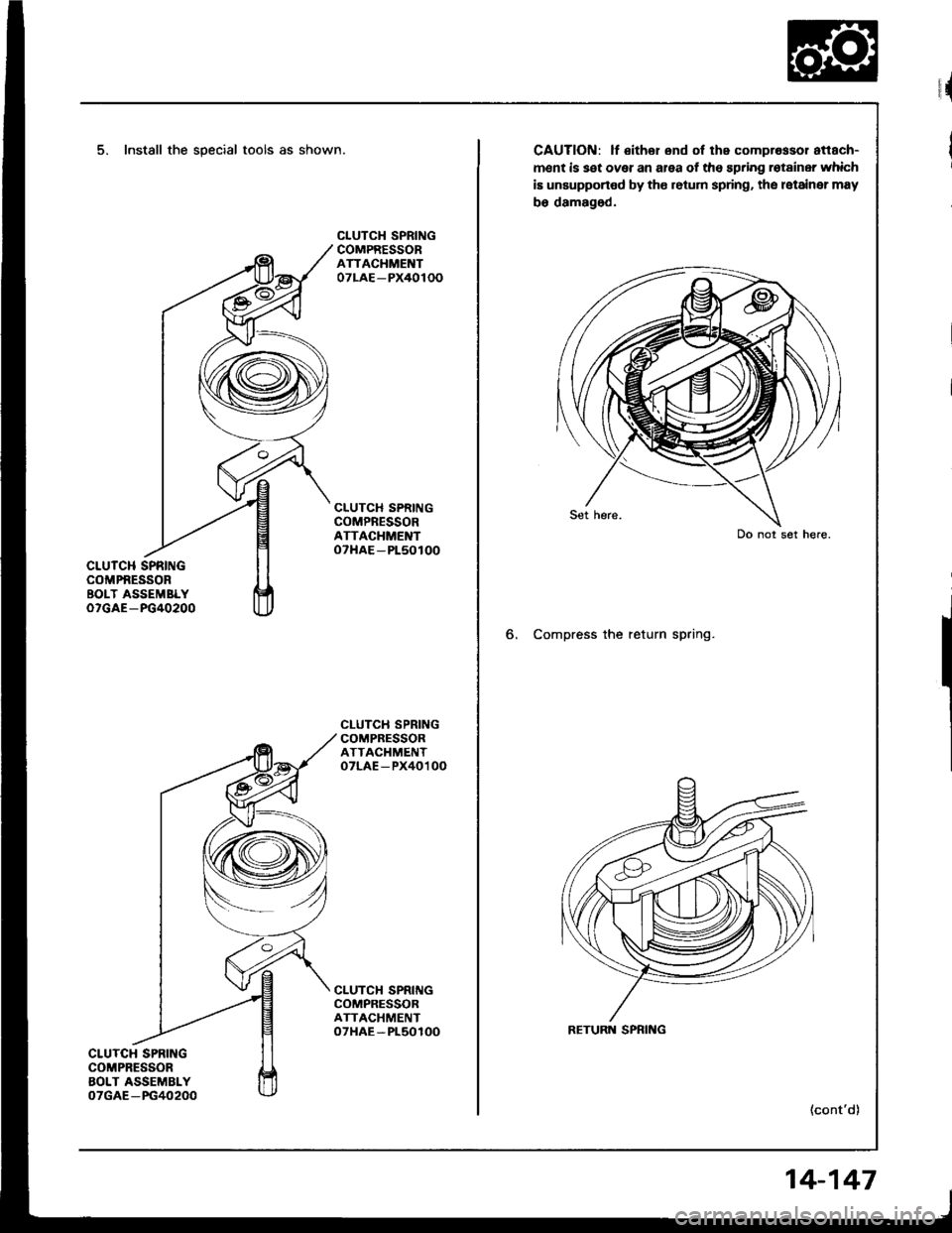

5, Install the special tools as shown.
CLUTCH SPRINGCOMPNESSORBOLT ASSEMBLYoTGAE-FG40200
CLUTCH SPRINGCOMPRESSORAOLT ASSEMBLY07GAE-PG40200
CLUTCH SPRINGCOMPRESSORATTACHMENT07LAE-PX40100
CLUTCH SPRINGCOMPRESSORATTACHMENToTHAE-Pl50100
CLUTCII SPRINGCOMPRESSORATTACHMENToTLAE-PX40100
CLUTCH SPRIIIGCOMPRESSORATTACHMENToTHAE-Pl50100
rr{
CAUTION: lf €ithor end of the comprossor attach-
ment is set over an area of the spring rotainer which
iE unsupported by tho retum spring, the latainer may
bo damaged.
6, Compress the return spring.
(cont'd)
Do not set here.
RETURN SPRING
14-147

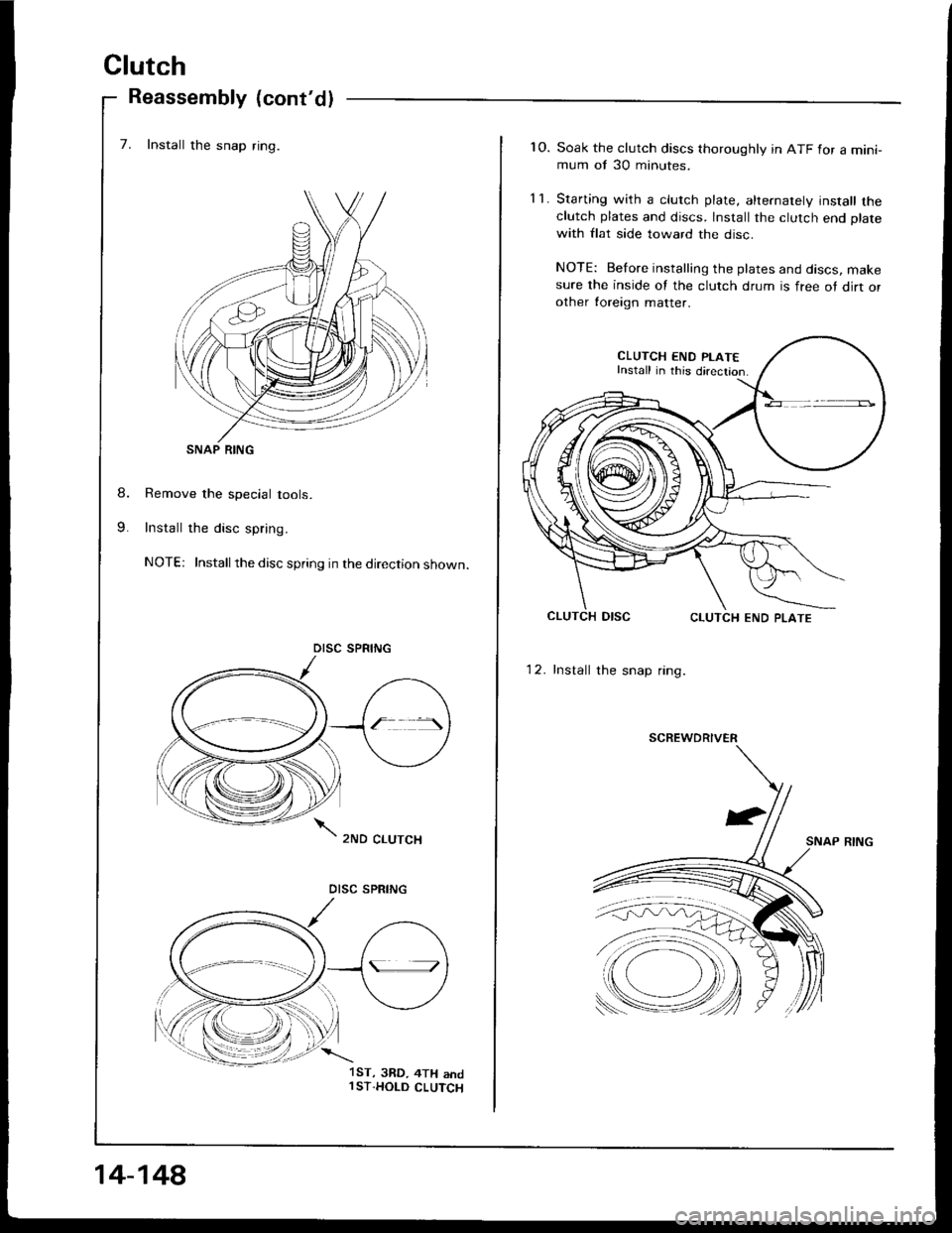

Clutch
Reassembly (cont'd)
7. Install the snap ring.
Remove the special tools.
Install the disc spring.
NOTE: Installthe disc spring in the direction shown.
SNAP RING
DISC SPRING
.\
):ll
14-148
1ST, 3RD, 4TH andl ST.HOLD CLUTCH
1O. Soak the clutch discs thoroughly in ATF for a mini-mum of 30 minutes.
11. Starting with a clutch plate, alrernately install theclutch plates and discs. Install the clutch end plate
with flat side toward the disc.
NOTE: Before insralling the plates and discs, makesure the inside of the clutch drum is free ot dirt orother toreign matter.
CLUTCH END PLAT€Install in this direction
12. Install the snap ring.
SNAP RING
SCREWDRIVER

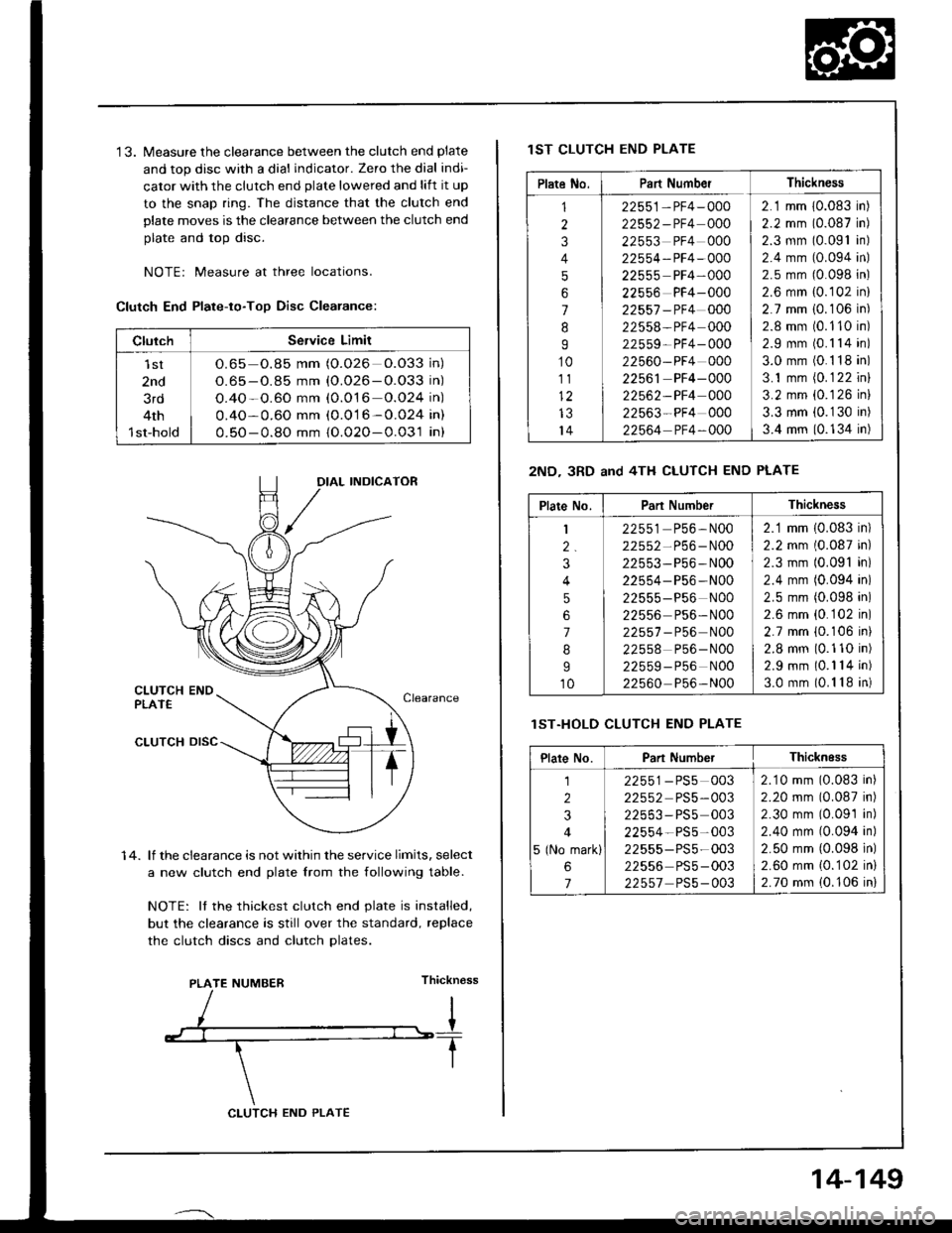

'13. Measure the clearance between the clutch end plate
and top disc with a dial indicator. Zero the dial indi-
cator with the clutch end plate lowered and lift it up
to the snap ring. The distance that the clutch end
plate moves is the clearance between the clutch end
plate and top disc.
NOTEr Measure at three locations.
Clutch End Plate-to-Too Disc Clearance:
1 4. lf the clearance is not within the service limits, select
a new clutch end plate lrom the following table.
NOTE: It the thickest clutch end plate is installed,
but the clearance is still over the standard, replace
the clutch discs and clutch Dlates.
Thickn€ss
ClulchService Limit
lst
2nd
3rd
4th
1st-hold
O.65 o.85 mm (O.026 O.O33 in)
O.65 - O.85 mm {O.026-O.O33 in)
O.4O-O.60 mm (0.O16 o.O24 in)
0.4O-0.60 mm (0.016-0.024 in)
0.50-0.8O mm {O.02O-0.031 in}
IAL INDICATOR
PLATE NUMBER
CLUTCH END PLATE
14-149
lST CLUTCH END PLATE
2ND- 3RD and 4TH CLUTCH END PLATE
lST.HOLD CLUTCH END PLATE
Plate No.Part NumberThickness
1
2
3
4
5
6
7
8
I
10
111)
IJ
14
22551-PF4-000
22552-PF4 000
22553 PF4 000
22554-PF4-OOO
22555 PF4-000
22556 PF4-000
22557 -PF4 000
22558-PF4 000
22559- PF4- 000
22560-PF4 000
22561 PF4-000
22562-PF4 000
22563-PF4 000
22564 PF4-OOO
2.1 mm 10.083 in)
2.2 mm (0.087 in)
2.3 mm (0.091 in)
2.4 mm (0.094 in)
2.5 mm (0.098 in)
2.6 mm {0.102 in}
2.7 mm i0.106 in)
2.8 mm (0.110 in)
2.9 mm (0.1 14 in)
3.0 mm (0.1 18 in)
3.1 mm (0.1 22 inl
3.2 mm {0.126 in}
3.3 mm (0.1 30 in)
3.4 mm (0.134 in)
Plate No.Part NumberThickness
1
2.
3
4
5
6
7
8
I
10
22551 P56,N00
22552-P56-N00
22553-P56-N00
22554- P56 -N00
22555-P56 N00
22556 Ps6- N00
22557 - P56 N00
22558 P56-N00
22559-P56 NOO
22560 P56-N00
2.1 mm (0.083 in)
2.2 mm (0.087 in)
2.3 mm (0.091 in)
2.4 mm (0.094 in)
2.5 mm (0.098 in)
2.6 mm {0.102 in)
2.7 mm {0.106 ini
2.8 mm (0.110 in)
2.9 mm (0.1 14 in)
3.0 mm (0.1 18 in)
Plare No.Part NumberThicknEss
1
2
3
4
5 (No mark)
6
7
22551-PS5 003
22552 PS5-003
22553-PS5 003
22554-PS5-003
22555-PS5-003
22556 PS5-003
22557 PS5-003
2.10 mm (0.083 in)
2.20 mm (0.087 in)
2.30 mm (0.09'1 in)
2.40 mm (0.094 in)
2.50 mm {0.098 in)
2.60 mm {0.102 in}
2.70 mm (0.106 in)
