Page 651 of 1413

HONDA INTEGRA 1994 4.G Workshop Manual Power Steering Pump
lnstallation
1.Connect the inlet and outlet hoses. Tighten the
pump fiftings securely.
Loosely install the pump in the pump bracket with
mounting bolts.
11N.m11.r kgf.m, 8lbf.ftlOU

Page 652 of 1413

HONDA INTEGRA 1994 4.G Workshop Manual Steering Gearbox
Removal
NOTE: Using solvent and a brush, wash any oil and dirt
off the valve body unit, its lines, and the end if the gear-
box. Blow dry with compressed air.
1. Drain the power steer

Page 653 of 1413

HONDA INTEGRA 1994 4.G Workshop Manual Steering Gearbox
Removal (contdl
Remove the return pipe clamp from the left side of
the rear beam. and move the return piDe above the
steering gearbox.
Remove the rear beam brace.
Remove the left tie

Page 654 of 1413

HONDA INTEGRA 1994 4.G Workshop Manual 11.
Pull the steering gearbox all the way down to clear
the pinion shaft from the bulkhead, and remove thepinion shaft grommet.
Move the steering gearbox to the right so the left
rack gnd clears the r

Page 655 of 1413

HONDA INTEGRA 1994 4.G Workshop Manual Steering Gearbox
Disassembly
Stssring Rack Disassembly
NOTE:
. Before disassembling the gearbox, wash it off with
solvent and a brush.
. Do not dip seals and O-rings in solvent.
1. Remove the steering

Page 656 of 1413

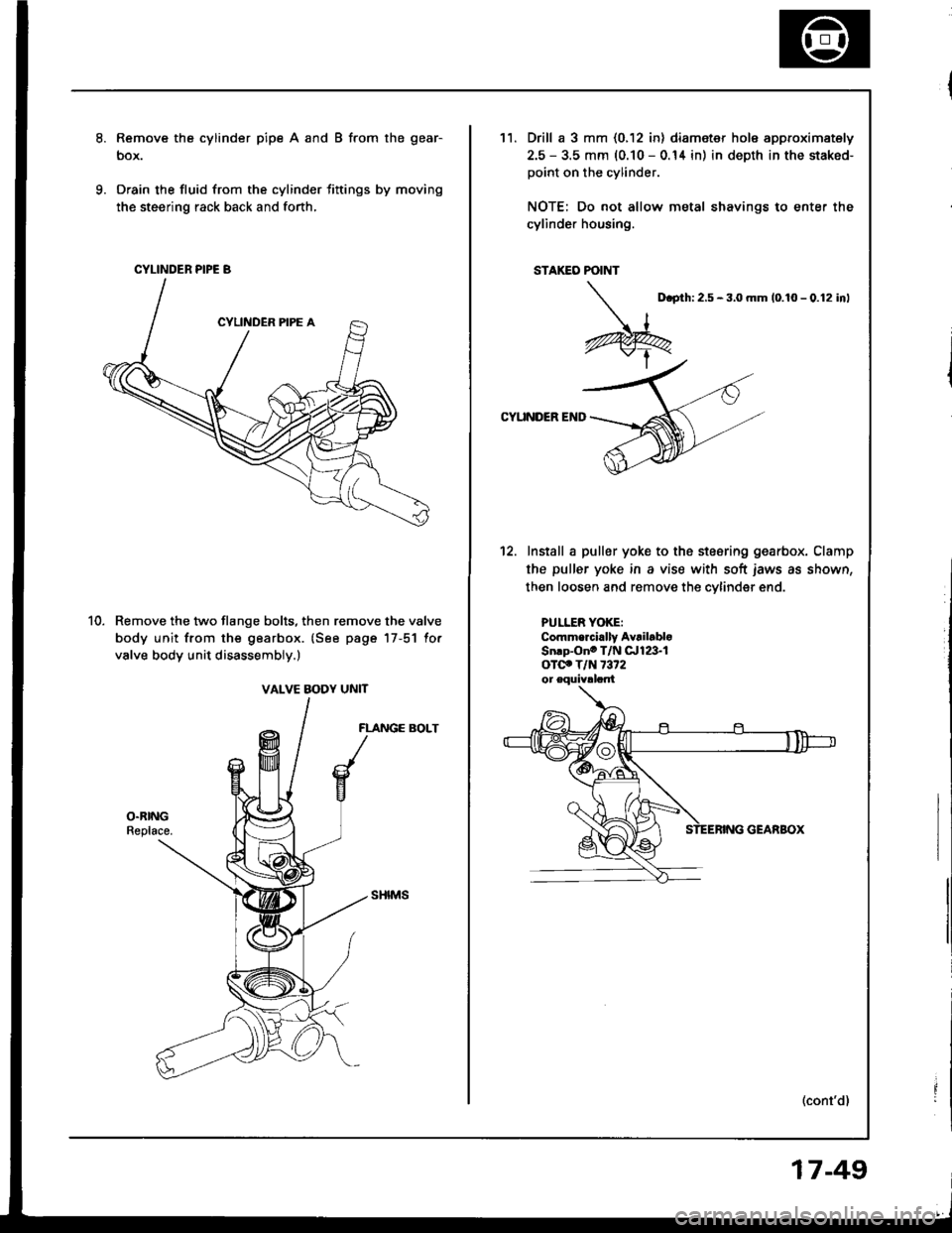

HONDA INTEGRA 1994 4.G Workshop Manual Remove the cylinder pipe A and B from the gear-
box.
Drain the fluid from the cylinder fittings by moving
the steering rack back and forth,
Remove the two flange bolts, then remove the valve
body unit

Page 657 of 1413

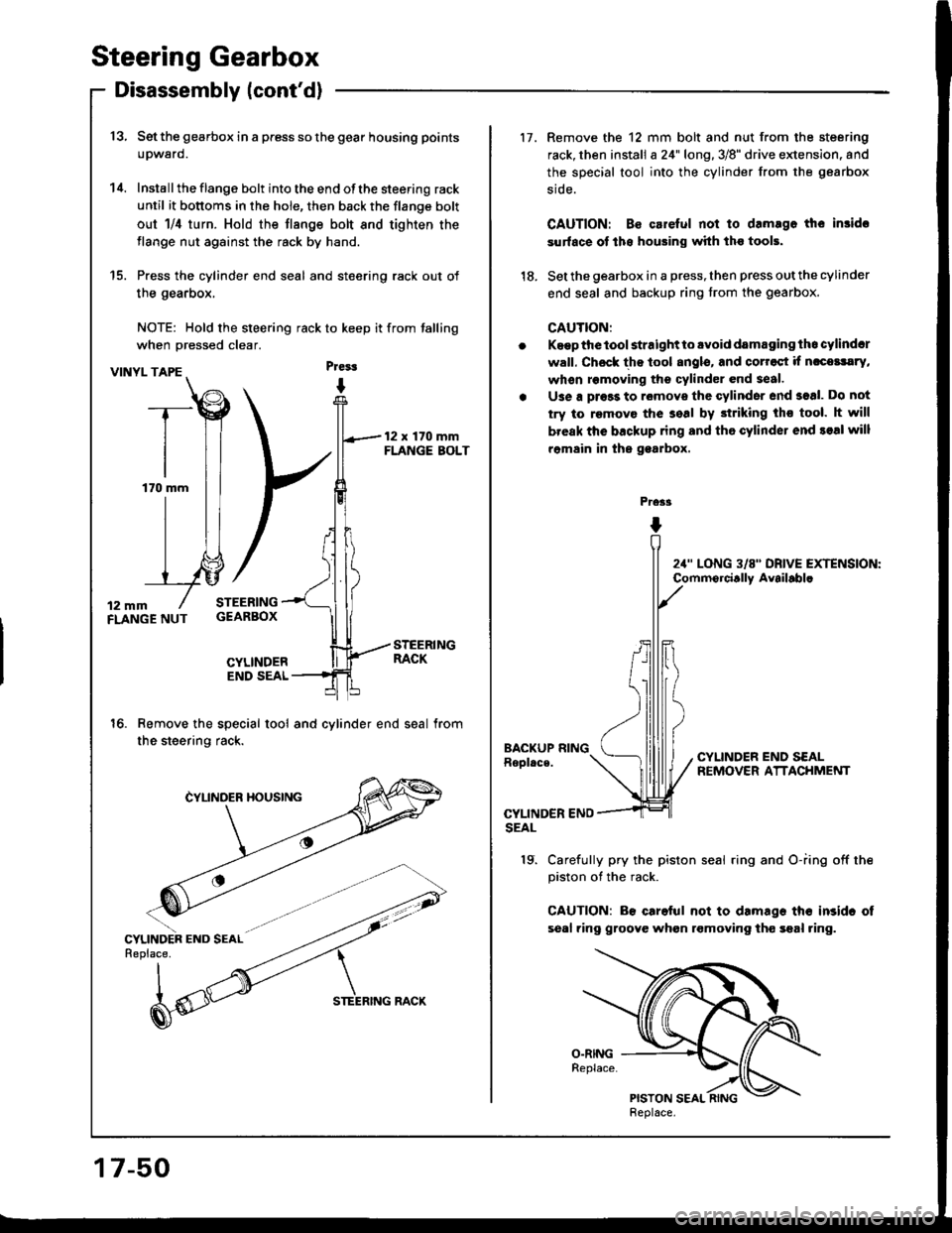

HONDA INTEGRA 1994 4.G Workshop Manual Steering Gearbox
Disassembly lcontd)
13, Set the gearbox in a press so the gear housing points
upward.
14. Installthe flange bolt into the end ofthe steering rack
until it bottoms in the hole, then b

Page 658 of 1413

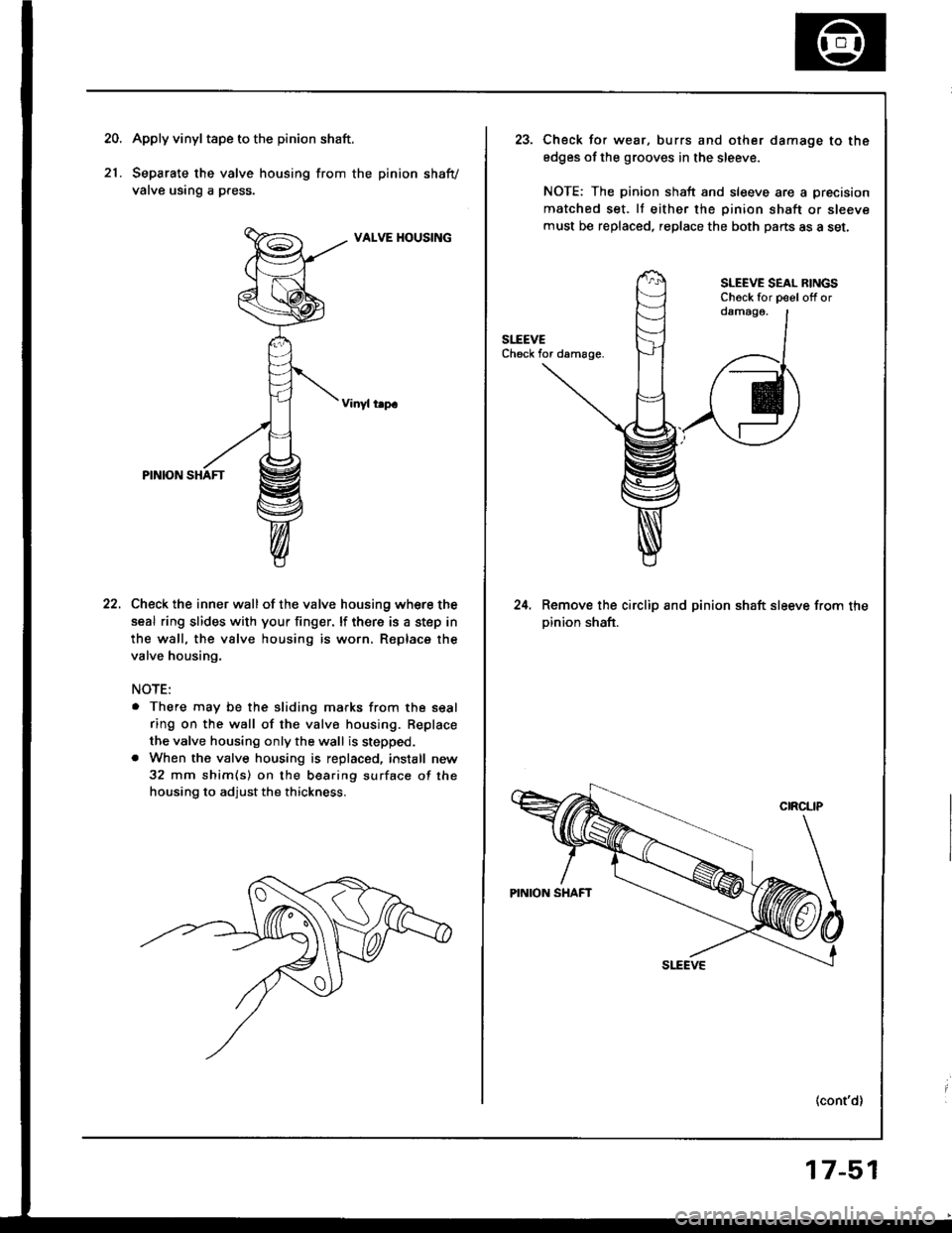

HONDA INTEGRA 1994 4.G Workshop Manual 20.Apply vinyl tape to the pinion shaft.
Separate the valve housing from the pinion shafv
valve using a press.
VALVE HOUSING
Vinyl t.p.
Check the inner wall of the valve housing where the
seal ring sl

Page 659 of 1413

HONDA INTEGRA 1994 4.G Workshop Manual Steering Gearbox
Disassembly (contdl
25. Using a cutter or an equivalent tool, cut and remove
the four seal rings from the sl6eve.
CAUTION: Bc clroful not to drmrg. ths .dgc. otthc alcava g1oov6 whan

Page 660 of 1413

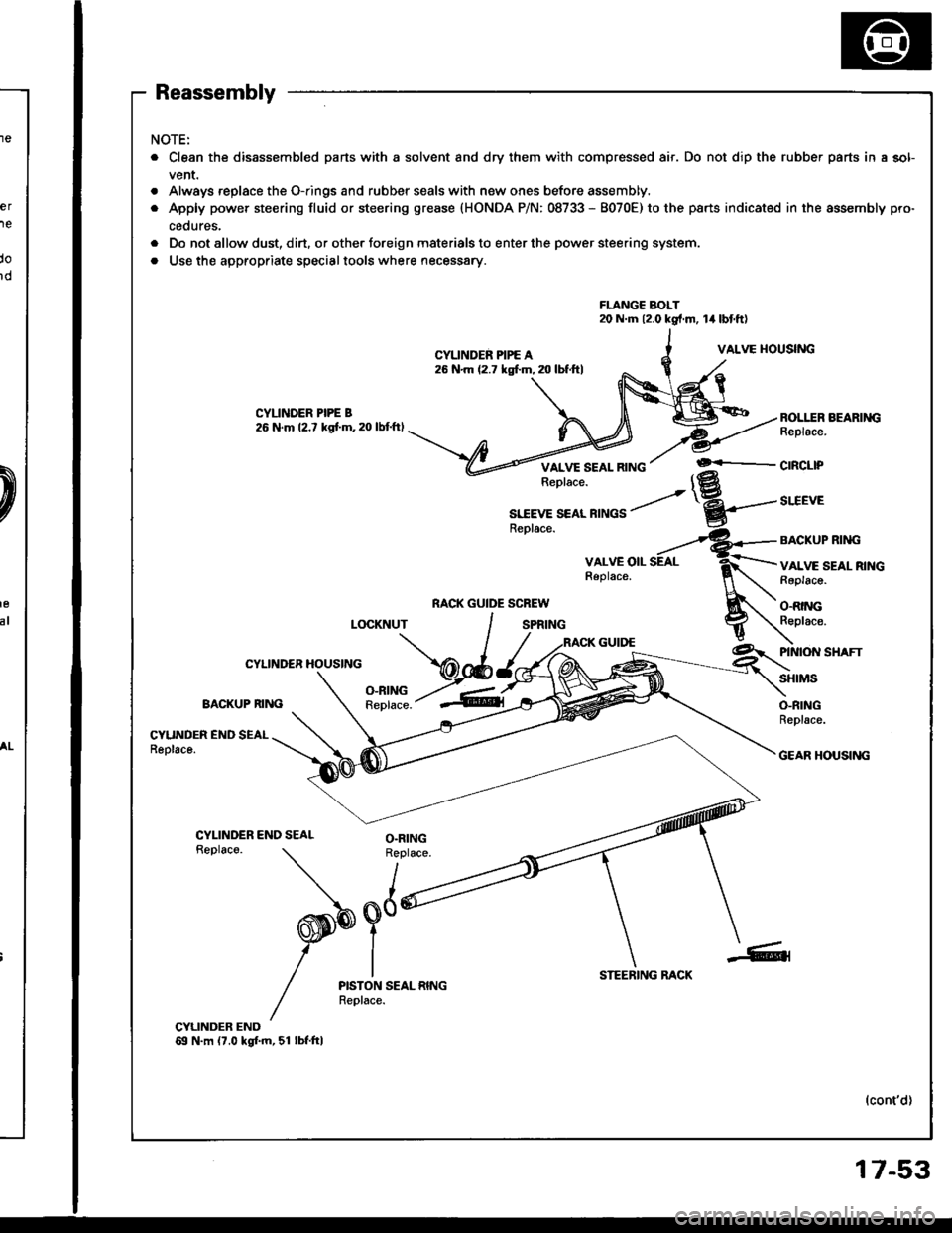

HONDA INTEGRA 1994 4.G Workshop Manual Reassembly
NOTE:
. Clean the disassembled parts with a solvent and dry them with compressed air. Do not dip the rubber parts in a sol-
vent.
. Always replace the O-rings and rubber seals with new ones
