HONDA ODYSSEY 1999 Owners Manual

Audio System

Operating the Radio
The ignition switch must be in ACCESSORY (I) or ON (II) to operate the audio system. Turn thesystem on by pushing the PWR/

VOL knob.
Adjust the volume by turning the PWR/VOLknob.
The band and frequency that the radio was last tuned to is displayed.
To change bands, press the AM/FM button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
You can use any of four methods to
find radio stations on the selectedband: TUNE, SEEK, SCAN or the
Preset buttons.
TUNE — Use the TUNE bar to tune the radio to a desired frequency. Press the upper part ( ) to tune
to a higher frequency, or the lower part ( ) to tune to a lower
frequency. The frequency numbers
will start to change rapidly. Release the bar when the display reaches the
desired frequency. To change the
frequency in small increments, press
and release the TUNE bar quickly. SEEK — The SEEK function
searches the band for a station with
a strong signal. To activate it, push
the SEEK switch up or down, then
release it. Depending on which way
you push the switch, the system scans upward or downward from the
current frequency. It stops when it
finds a station with a strong signal.
Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

SCAN — The SCAN function samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. The system will scan up the band for a station with astrong signal. SCN shows in the
display. When it finds a strong signal, it will stop and play that
station for approximately fiveseconds. If you do nothing, the
system will then scan for the next
strong station and play that for
five seconds. When it plays a station that you want to continue
listening to, press the SCAN button

again.
AM/FM

BUTTON SCN INDICATOR

PWR/VOL
KNOB
TUNE BAR

CONTINUED

Comfort and Convenience Features
SCAN BUTTON
SEEK SWITCHProCarManuals.comMain Menu Table of Contents s t

Audio System

Preset — You can store the fre-
quencies of your favorite radiostations in the six preset buttons.
Each button will store one frequency
on the AM band, and two on the FM

band.

To store a frequency: 1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset

button.

2. Use the TUNE or SEEK function to tune the radio to a desired

station.

3. Pick the Preset button you want for that station. Press the button
and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve
on FM.
AM/FM BUTTON

SEEK SWITCH
PRESET

BUTTONSTUNE BAR
Once a station's frequency is stored,
simply press and release the proper
Preset button to tune to it.
The preset frequencies will be lost if your vehicle's battery goes dead, isdisconnected, or the radio fuse is

removed.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

Adjusting the Sound Balance/Fader — These twocontrols adjust the strength of thesound coming from each speaker.
The Balance control adjusts the side- to-side strength, while the Fadercontrol adjusts the front-to-back

strength.

To adjust the fader, push on the BASS/FADER control knob to get it
to pop out. Pull it out slightly farther,
and adjust the front-to-back sound to
your liking. Push the knob back in
when you are done so you cannot change the setting by accidentally
bumping it.
To adjust the balance, push on the
TREBLE/BALANCE control knob to get it to pop out. Pull it out slightly
farther, and adjust the side-to-side sound to your liking. Push the knob
back in when you are done so you cannot change the setting by
accidentally bumping it.
BASS/FADER

CONTROL
TREBLE/BALANCE

CONTROL
Treble/Bass — Use these controls to adjust the tone to your liking.
To adjust the Treble level, push on the TREBLE/BALANCE control
knob to get it to pop out. Without
pulling it out farther, turn the knob
to adjust the treble level. Push the
knob back in when you are done so
you cannot change the setting by accidentally bumping it. To adjust the Bass level, push on the
BASS/FADER control knob to get it
to pop out. Without pulling it out farther, turn the knob to adjust the
bass level. Push the knob back in
when you are done so you cannot change the setting by accidentally
bumping it.

Radio Frequencies and Reception

For information, See page 167.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

Audio System LightingYou can use the instrument panelbrightness control knob to adjust theillumination of the audio system (see
page 67 ). The audio system
illuminates when the parking lightsare on, even if the radio is turned off.
Operating the Cassette Player
Turn the audio system ON. Make sure the tape opening on the cassette
is facing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of the way, and begin to play.
The tape direction indicator will light to show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play
the other side, press the PROG
button. Dolby B noise reduction turns on
when you insert a cassette. If the
tape was not recorded with Dolby B noise reduction, turn it off by pressing the button.
When the system reaches the end of the tape, it will automatically reversedirection and play the other side. If
you want to remove the cassette from the drive, press the EJECT
button.
Tape Search Functions With a cassette playing, you can usethe FF, REW, SKIP, or REPEAT
function to find a desired program.
FF/REW — Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To fast forward the tape, push the FF
button. You will see FF displayed.Press the PLAY button to take thesystem out of rewind or fast forward. If the system reaches the end of the
tape while in fast forward or rewind,
it automatically stops that function,
reverses direction, and begins to play.
SKIP — The Skip Function allows
you to find the beginning of a song or passage. To find the beginning of
the song or passage currently
playing, push the SKIP switch down.
You will see REW flashing in the display as the tape rewinds. To find
the beginning of the next song, push
the SKIP switch up. You will see FF
flashing in the display as the tape
fast forwards. When the system
finds the beginning of a song or passage, it goes back to PLAY mode.
Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

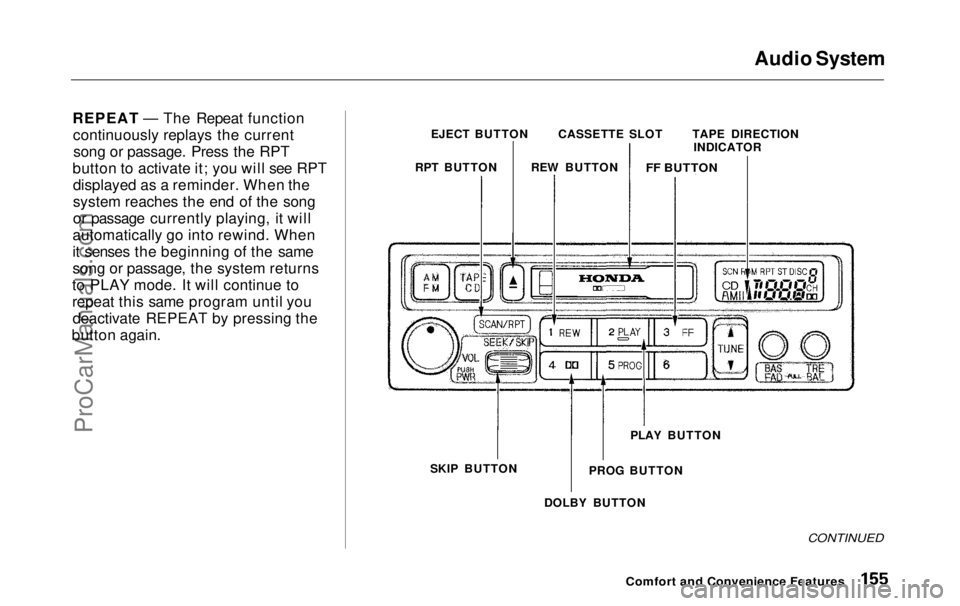

REPEAT — The Repeat function continuously replays the currentsong or passage. Press the RPT
button to activate it; you will see RPT displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you deactivate REPEAT by pressing the
button again. EJECT BUTTON
RPT BUTTON TAPE DIRECTION
INDICATOR
SKIP BUTTON PLAY BUTTON
DOLBY BUTTON
CONTINUED

Comfort and Convenience Features

PROG BUTTON
CASSETTE SLOT
REW BUTTON
FF BUTTONProCarManuals.comMain Menu Table of Contents s t

Audio System

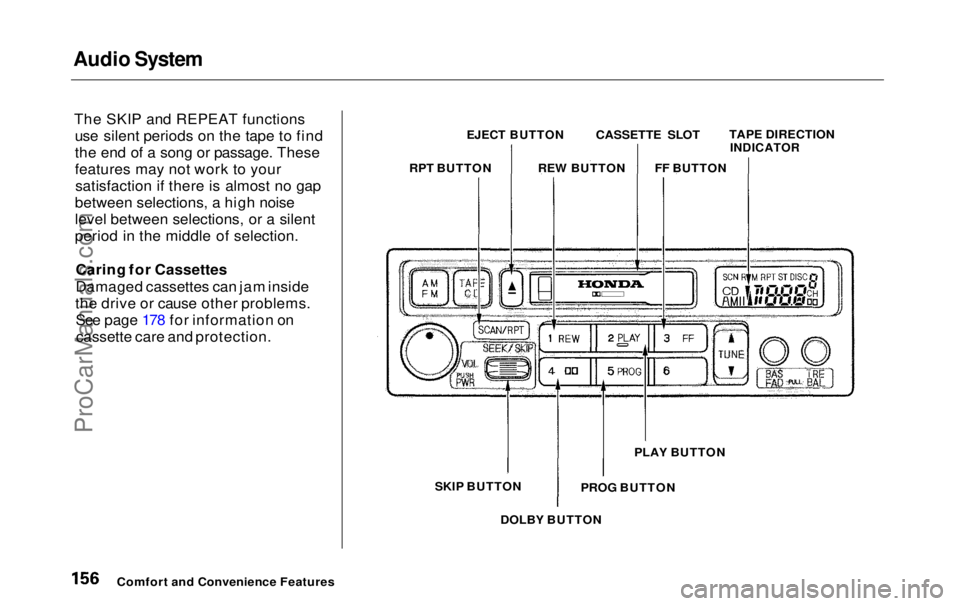

The SKIP and REPEAT functionsuse silent periods on the tape to find
the end of a song or passage. These
features may not work to yoursatisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of selection.
Caring for Cassettes
Damaged cassettes can jam inside
the drive or cause other problems. See page 178 for information oncassette care and protection.
EJECT BUTTON

CASSETTE SLOT TAPE DIRECTION

INDICATOR

RPT BUTTON
SKIP BUTTON PLAY BUTTON
DOLBY BUTTON
Comfort and Convenience Features PROG BUTTON
REW BUTTON
FF BUTTONProCarManuals.comMain Menu Table of Contents s t

Audio System

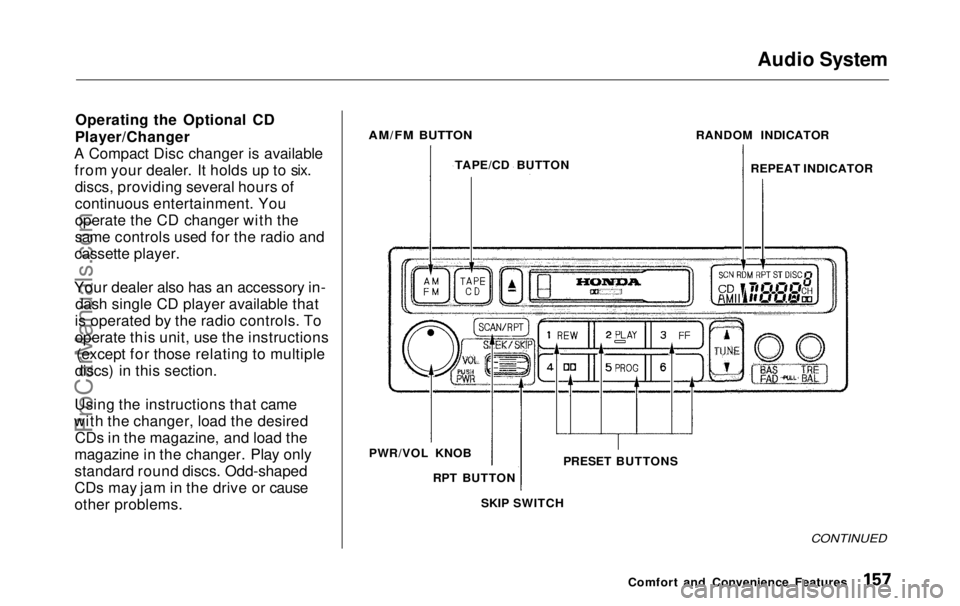

Operating the Optional CD
Player/Changer
A Compact Disc changer is available from your dealer. It holds up to six.discs, providing several hours of
continuous entertainment. You
operate the CD changer with the
same controls used for the radio and
cassette player.
Your dealer also has an accessory in- dash single CD player available that
is operated by the radio controls. To
operate this unit, use the instructions (except for those relating to multiple
discs) in this section.
Using the instructions that came
with the changer, load the desired CDs in the magazine, and load the
magazine in the changer. Play only
standard round discs. Odd-shaped
CDs may jam in the drive or cause
other problems. PRESET BUTTONS

CONTINUED

Comfort and Convenience Features

AM/FM BUTTON

TAPE/CD BUTTON RANDOM INDICATOR
REPEAT INDICATOR
PWR/VOL KNOB RPT BUTTON
SKIP SWITCHProCarManuals.comMain Menu Table of Contents s t

Audio System

To operate the CD changer or player,the ignition must be in ACCESSORY (I) or ON (II) and the audio system
must be on.
Press the CD button until "CD" appears in the display. The system
will start to play the first track of the first disc in the magazine. Play onlystandard round discs.
When that disc ends, the next disc in the magazine is loaded and played.
After the last disc finishes, the system returns to disc 1.
To select a different disc, press the appropriate preset button (1 — 6). If
you select an empty slot in the magazine, the changer will, after
finding that slot empty, try to load the CD in the next slot. Thiscontinues until it finds a CD to load
and play. You can use the SKIP switch to
select tracks within a disc. If you
push and release the SKIP switch, the system will move to the
beginning of a track. Push the switch up to move to the beginning of thenext track, and push the switch
down to move to the beginning of
the current track.
If you push and hold the SKIP switch,
you will hear a beep and the system
will continue to move across tracks. Release the switch when you think it
has reached the desired place on the
disc.
REPEAT — When you activate the
Repeat feature by pressing the RPT
button, the system continuously replays the current track. You willsee RPT in the display as a reminder.
Press the RPT button again to turn it

off.
RANDOM PLAY — This feature,
when activated, plays the tracks on a CD in random order, rather than in
the order they are recorded on the
CD. To activate Random Play, press
and hold the RPT button until yousee RDM in the display. The system
will then select and play tracks randomly on the current disc. When
all tracks on that disc have been
played, the next disc is loaded and
played randomly. This continues
until you deatctivate Random Play by
pressing RPT again.
Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

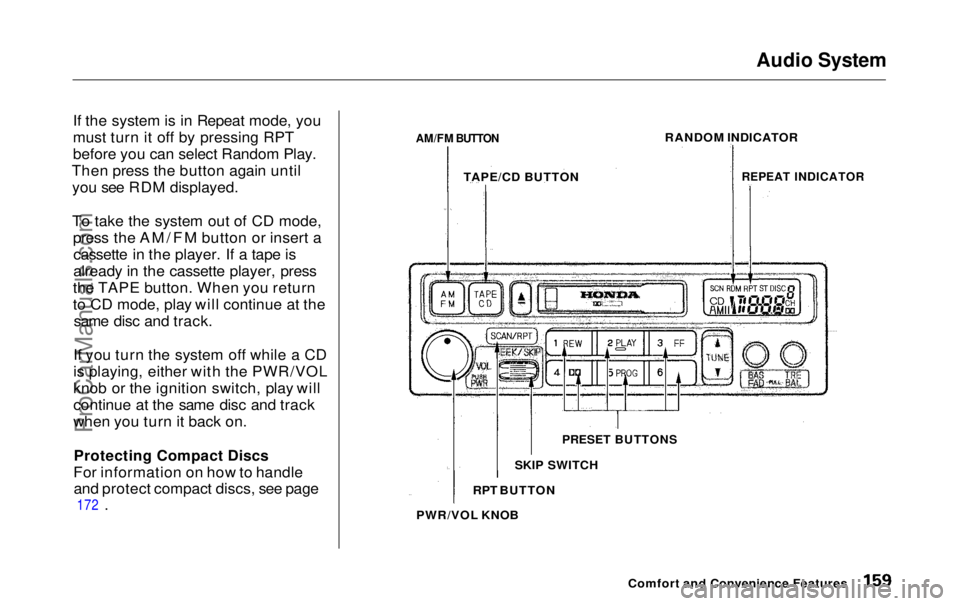

If the system is in Repeat mode, you
must turn it off by pressing RPT
before you can select Random Play.
Then press the button again until you see RDM displayed.
To take the system out of CD mode, press the AM/FM button or insert acassette in the player. If a tape is
already in the cassette player, press
the TAPE button. When you return
to CD mode, play will continue at the same disc and track.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same disc and track
when you turn it back on.

Protecting Compact Discs

For information on how to handle and protect compact discs, see page
172
.
AM/FM BUTTON


RANDOM INDICATOR

REPEAT INDICATOR

Comfort and Convenience Features

PRESET BUTTONS

SKIP SWITCH
RPT BUTTON
PWR/VOL KNOB TAPE/CD BUTTONProCarManuals.comMain Menu Table of Contents s t
