Driving

This section gives you tips on starting the engine under various
conditions, and how to operate the
5-speed manual and automatic
transmissions. It also includes important information on parking
your vehicle, the braking system, and facts you need if you are plan-
ning to tow a trailer. Preparing to Drive......................... 132
Starting the Engine........................ 133
Starting in Cold Weather at High Altitude ..................... 133
5-speed Manual Transmission..... 134 Recommended Shift Points...... 135
Maximum Allowable Speeds.... 135
Automatic Transmission............... 136
Shift Lever Position Indicator.. 136
Shift Lever Positions................. 137
Maximum Allowable Speeds.... 142
Shift Lock Release..................... 143
Parking............................................ 144
The Braking System...................... 145 Brake Wear Indicators.............. 145
Brake System Design................ 146
Anti-lock Brakes........................ 146 Important SafetyReminders.......................... 147
ABS Indicator......................... 148
Active Torque Transfer System ..149 Driving in Bad Weather................ 150
Towing a Trailer............................ 152

DrivingProCarManuals.comMain Menu s t

Preparing to Drive

You should do the following checks and adjustments every day before
you drive your vehicle.
1. Make sure all windows, mirrors, and outside lights are clean and
unobstructed. Remove frost, snow, or ice.
2. Check that the hood and trunk are fully closed.
3. Visually check the tires. If a tire looks low, use a gauge to check its
pressure.
4. Check that any items you may be carrying with you inside are stored
properly or fastened down securely. 5. Check the adjustment of the seat
(see page 75).
6. Check the adjustment of the inside and outside mirrors (see
page 83).
7. Check the adjustment of the steering wheel (see page 64).
8. Make sure the doors are securely closed and locked.
9. Fasten your seat belt. Check that your passengers have fastenedtheir seat belts (see page 14). 10. Turn the ignition switch ON (II).
Check the indicator lights in the
instrument panel.
11. Start the engine (see page 133).
12. Check the gauges and indicator lights in the instrument panel (see
page 51).

DrivingProCarManuals.comMain Menu Table of Contents s t

Starting the Engine

1. Apply the parking brake.
2. In cold weather, turn off all electrical accessories to reduce
the drain on the battery.

3. Manual Transmission:
Push the clutch pedal down all the
way. START (III) does not
function unless the clutch pedal is

depressed.

Automatic Transmission:

Make sure the shift lever is in
Park. Press on the brake pedal.
4. Without touching the accelerator pedal, turn the ignition key to the
START (III) position. If the engine
does not start right away, do not
hold the key in START (III) for
more than 15 seconds at a time.
Pause for at least 10 seconds
before trying again. 5. If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed half-way
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
6. If the engine still does not start, press the accelerator pedal all the
way down and hold it there while
starting in order to clear flooding.
As before, keep the ignition key in
the START (III) position for no
more than 15 seconds. Return to
step 5 if the engine does not start.
If it starts, lift your foot off the
accelerator pedal so the engine
does not race.

Starting in Cold Weather at High
Altitude (Above 8,000 feet/ 2,400 meters)

An engine is harder to start in cold
weather. The thinner air found at high altitude above 8,000 feet (2,400 meters) adds to the problem.
Use the following procedure:
1. Turn off all electrical accessories to reduce the drain on the battery.
2. Push the accelerator pedal half- way to the floor and hold it there
while starting the engine. Do nothold the ignition key in START (III) for more than 15 seconds.
When the engine starts, release the accelerator pedal gradually as
the engine speeds up and smooths out.
3. If the engine fails to start in step 2, push the accelerator pedal to the
floor and hold it there while you
try to start the engine for no morethan 15 seconds. If the enginedoes not start, return to step 2.

DrivingProCarManuals.comMain Menu Table of Contents s t

5-speed Manual Transmission

The manual transmission is syn-
chronized in all forward gears for
smooth operation. It has a lockout so
you cannot shift directly from Fifth
to Reverse. When shifting up or down, make sure you push the clutch
pedal down all the way, shift to the
next gear, and let the pedal up

gradually. When you are not shifting,
do not rest your foot on the clutch
pedal. This can cause your clutch to
wear out faster. Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the vehicle moving. Push down the clutch pedal, and
pause for a few seconds before shifting into Reverse, or shift into
one of the forward gears for a
moment. This stops the gears so
they won't "grind."
When slowing down, you can get extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure engine speed will not go
into the tachometer's red zone in the
lower gear. Refer to the Maximum
Allowable Speeds chart.
Driving
Rapid slowing or speeding-up

can cause loss of control on

slippery surfaces. If you crash,

you can be injured.

Use extra care when driving on

slippery surfaces.ProCarManuals.comMain Menu Table of Contents s t

5-speed Manual Transmission

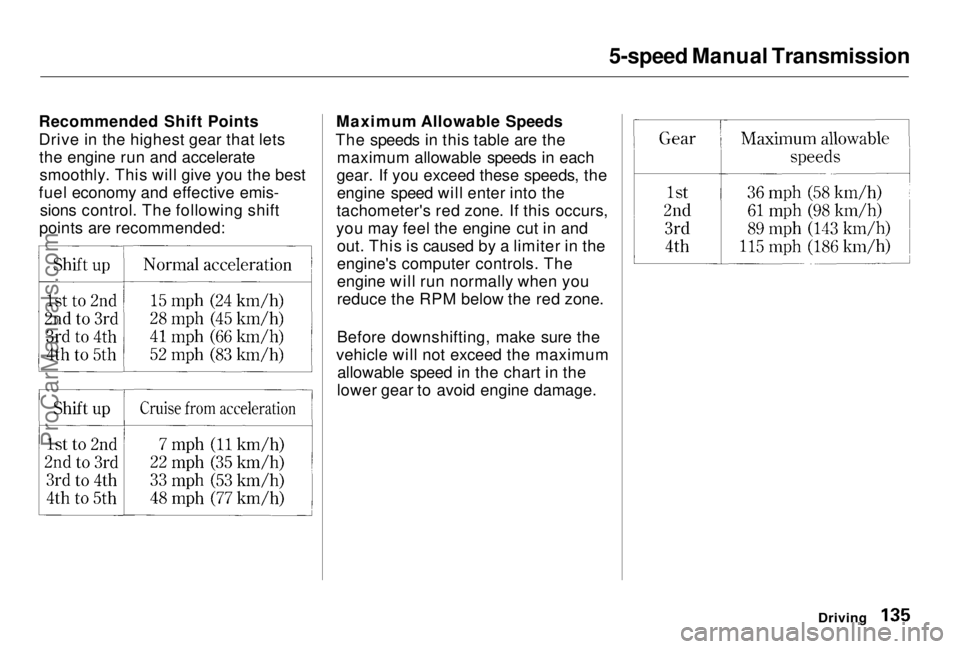

Recommended Shift Points
Drive in the highest gear that lets the engine run and acceleratesmoothly. This will give you the best
fuel economy and effective emis- sions control. The following shift
points are recommended: Maximum Allowable Speeds
The speeds in this table are the maximum allowable speeds in each
gear. If you exceed these speeds, the engine speed will enter into the
tachometer's red zone. If this occurs,
you may feel the engine cut in and out. This is caused by a limiter in the
engine's computer controls. The
engine will run normally when you
reduce the RPM below the red zone.
Before downshifting, make sure the
vehicle will not exceed the maximum allowable speed in the chart in the
lower gear to avoid engine damage.

DrivingProCarManuals.comMain Menu Table of Contents s t

Automatic Transmission

Your Honda's transmission has fourforward speeds, and is electronically
controlled for smoother shifting. It
also has a "lock-up" torque converter
for better fuel economy. You may
feel what seems like another shift
when the converter locks. Shift Lever Position Indicator
This indicator in the tachometer shows which position the shift lever
is in. The illuminated number next to
the "D4" indicator shows you the
gear you have selected in the Sequential SportShift mode. The "D4" indicator comes on for a
few seconds when you turn theignition switch ON (II). If it flashes
while driving (in any shift position), it indicates a possible problem in the
transmission. Avoid rapid acceler-ation and have the transmission
checked by an authorized Honda
dealer as soon as possible.

DrivingProCarManuals.comMain Menu Table of Contents s t

Automatic Transmission

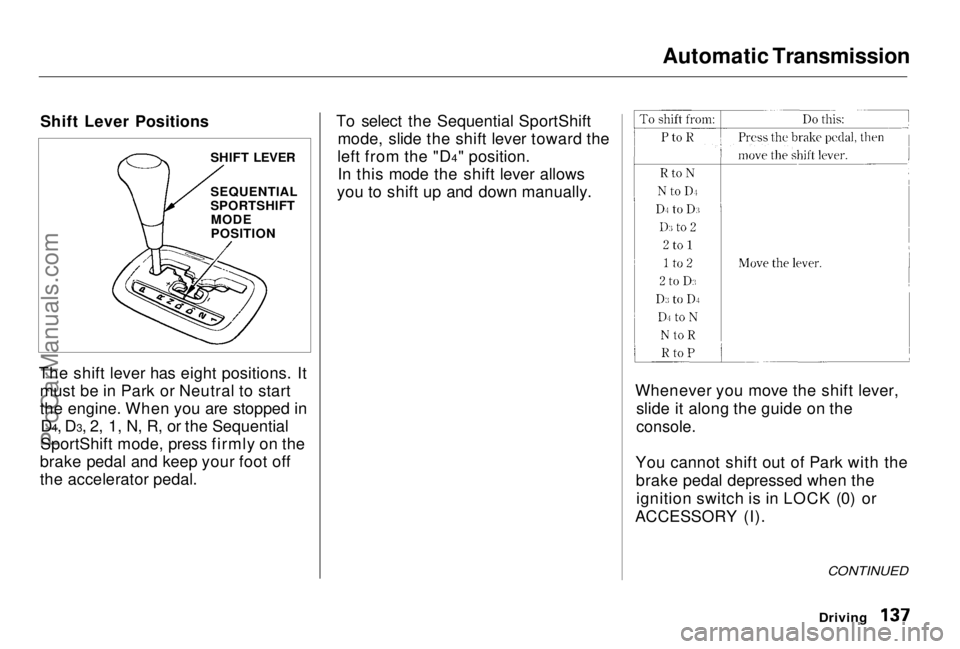

Shift Lever Positions
The shift lever has eight positions. It must be in Park or Neutral to start
the engine. When you are stopped inD4, D3, 2, 1, N, R, or the Sequential
SportShift mode, press firmly on the
brake pedal and keep your foot off
the accelerator pedal. To select the Sequential SportShift
mode, slide the shift lever toward the
left from the "D4" position. In this mode the shift lever allows
you to shift up and down manually.
Whenever you move the shift lever,slide it along the guide on the

console.

You cannot shift out of Park with the brake pedal depressed when theignition switch is in LOCK (0) or
ACCESSORY (I).

Driving

SHIFT LEVER

SEQUENTIAL
SPORTSHIFT

MODE

POSITION

CONTINUEDProCarManuals.comMain Menu Table of Contents s t

Automatic Transmission

Park (P) — This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Move the shift
lever to the right to shift out of the
Park position.
If you have done all of the above and still cannot move the lever out of
Park, see Shift Lock Release on page

143.
To avoid transmission damage, cometo a complete stop before shifting
into Park. The shift lever must be inPark before you can remove the key
from the ignition switch. Reverse (R) — To shift to Reverse
from Park, see the explanation under Park. To shift to Reverse from
Neutral, come to a complete stop and
then shift.
Your car has a reverse lockout so
you cannot accidentally shift to Reverse from Neutral or any other
driving position when the vehiclespeed exceeds 7 — 9 mph (12 — 14

km/h).

If you cannot shift to Reverse when
the car is stopped, press the brake pedal and slowly shift to Neutral
then to Reverse.
If there is a problem in the reverse
lockout system, or your vehicle's
battery is disconnected or goes dead,
you cannot shift to Reverse. In this
case, use the procedure of Shift Lock Release (see page 143).
DrivingProCarManuals.comMain Menu Table of Contents s t

Automatic Transmission

Neutral (N) — Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to Park posi-
tion if you need to leave the vehicle for any reason. Press on the brake pe-dal when you are moving the shift
lever from Neutral to another gear.
Drive (D4) — Use this position for
your normal driving. The transmis- sion automatically selects a suitable
gear for your speed and acceleration.
You may notice the transmission shifting up at higher speeds when
the engine is cold. This helps the
engine warm up faster. Sequential SportShift Mode With
the shift lever in "D4" position, you can select the Sequential SportShift
mode to shift gears; much like a
manual transmission, but without a clutch pedal.
To enter the Sequential SportShift mode, slide the shift lever further to
the left. To return to "D4", slide the shift lever to the right.

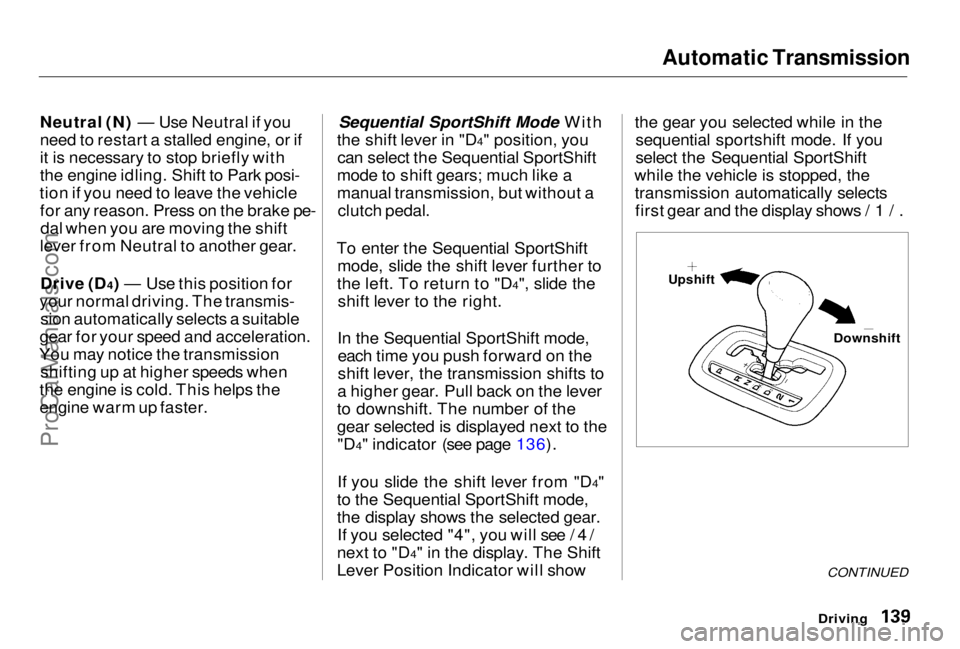

In the Sequential SportShift mode, each time you push forward on the
shift lever, the transmission shifts to
a higher gear. Pull back on the lever
to downshift. The number of the
gear selected is displayed next to the "D4" indicator (see page 136).
If you slide the shift lever from "D4"
to the Sequential SportShift mode,
the display shows the selected gear. If you selected "4", you will see /4/
next to "D4" in the display. The Shift
Lever Position Indicator will show the gear you selected while in the
sequential sportshift mode. If you
select the Sequential SportShift
while the vehicle is stopped, the transmission automatically selectsfirst gear and the display shows /1/.

Driving
CONTINUED
Downshift

UpshiftProCarManuals.comMain Menu Table of Contents s t

Automatic Transmission

When you accelerate away from a stop, the transmission will be in first
gear. The transmission will not automatically upshift. Watch the
tachometer and upshift manually
before the engine reaches redline.
The transmission remains in the
selected gear (4, 3, 2, or 1). There is
no automatic downshift when you
push the accelerator pedal to the
floor.
The transmission may automatically downshift from fourth gear to third
gear under the following conditions: The vehicle speeds drops below

20 mph (32km/h).
If you drive uphill between

20 — 31mph(32 — 50km/h).

If you press the brake pedal as you

drive downhill.
Downshifting gives you more power
when climbing or provides engine braking when going down a steep hill.
The transmission will also shift automatically as the vehicle comes to
a complete stop. It will downshift to
first gear when the vehicle speed is
under 6 mph (10 km/h).
If you try to manually downshift at aspeed that would cause the engine to
exceed the redline in a lower gear,
the transmission will not downshift.
If you try to downshift from fourth
gear to third gear, the gear indicator
will flash /3/ several times, then return to /4/; if you try to downshift
from third gear to second gear, the
gear indicator will flash /2/ several
times, then return to third gear.

DrivingProCarManuals.comMain Menu Table of Contents s t
