HONDA PRELUDE 1998 Owners Manual

Audio System

Protecting Compact Discs

Handle a CD by its edges; never
touch either surface. Contamination
from fingerprints, liquids, felt-tip
pens, and labels can cause the CD to
not play properly, or possibly jam in
the drive.
When a CD is not being played, store it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct sunlight and extreme heat.
To clean a disc, use a clean soft cloth.

Wipe across the disc from the center

to the outside edge.
A new CD may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re- cording surface of the disc, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

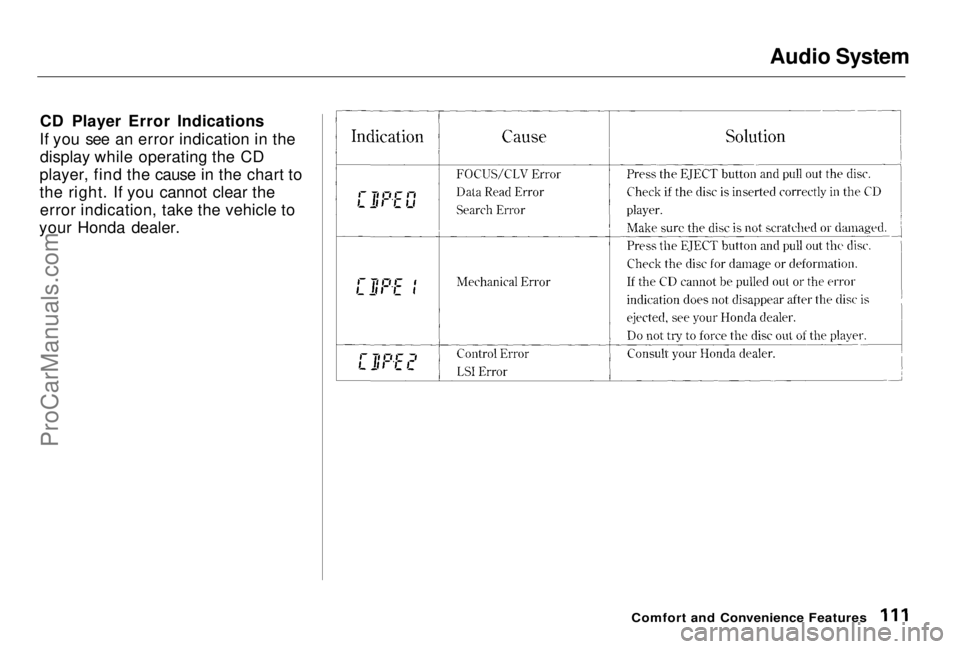

CD Player Error Indications
If you see an error indication in the display while operating the CD
player, find the cause in the chart to
the right. If you cannot clear the error indication, take the vehicle to
your Honda dealer.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

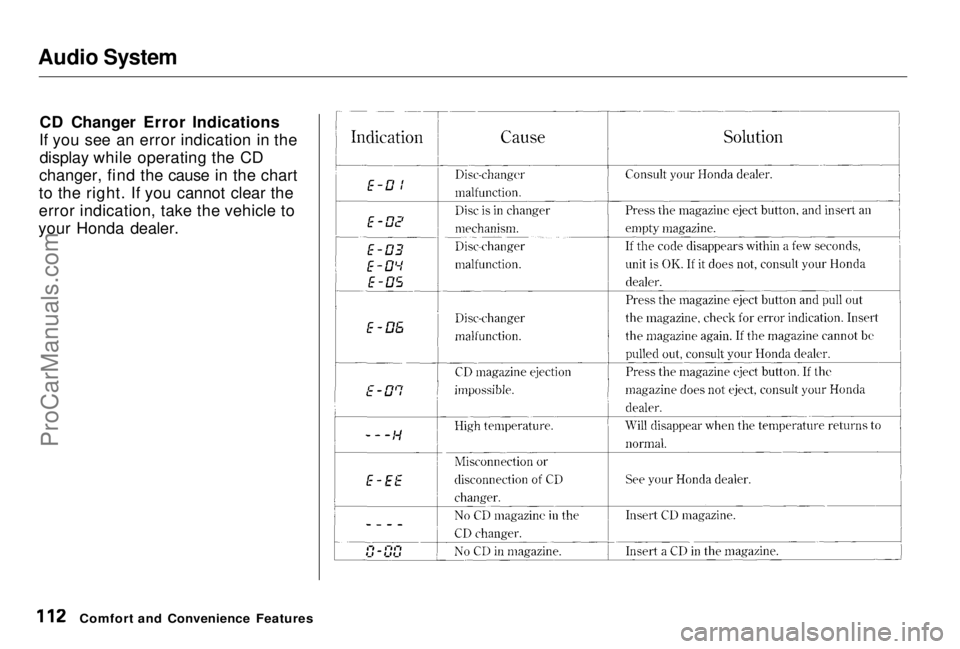

CD Changer Error Indications
If you see an error indication in the display while operating the CD
changer, find the cause in the chart
to the right. If you cannot clear the
error indication, take the vehicle to
your Honda dealer.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

Operating the Cassette Player (Optional)

The cassette system features Dolby B* noise reduction, automaticsensing of chromium-dioxide (CrO2)
tape, and autoreverse for continuous
play.

Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it in the rest of the way, and begin to

play.

* Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. "DOLBY" and the double-D symbol are track-marks of Dolby Laboratories
Licensing Corporation.

CONTINUED

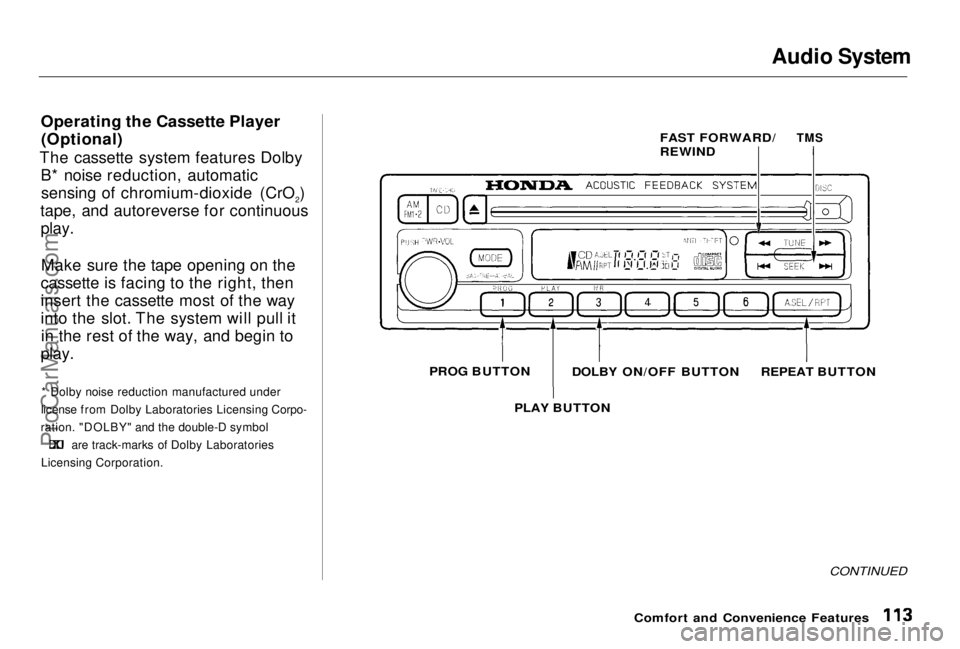

Comfort and Convenience Features FAST FORWARD/
REWIND

TMS

PROG BUTTON

DOLBY ON/OFF BUTTON

REPEAT BUTTON
PLAY BUTTONProCarManuals.comMain Menu Table of Contents s t

Audio System

The tape direction indicator will lightto show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play
the other side, press the PROG

button.

Dolby B noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby B
noise reduction, turn it off by
pressing the NR button.
When the system reaches the end of the tape, it will automatically reverse direction and play the other side. If
you want to remove the cassette from the drive, press the EJECT

button.
If you turn the system off while a
tape is playing, either with the PWR/
VOL knob or by turning off the ignition, the cassette will remain in
the drive. When you turn the system
back on, the tape will begin playing
where it left off.
To switch to the radio or CD player while a tape is playing, press the
AM/FM1-2 or CD button. To change back to the cassette player, push the CD button.
Tape Search Functions

With a cassette playing, you can use the FF, REW, TMS, or REPEAT
function to find a desired program.
FF/REW — Fast Forward and

Rewind move the tape rapidly. Press and release the side of the
TUNE bar to fast forward the tape, or the side to rewind. You will
see FF or REW flashing in the
display. To stop fast forward or
rewind, press the PLAY button. If
the system reaches the end of the
tape while in fast forward or rewind, it automatically stops that function,reverses direction, and begins to play.

Comfort and Convenience Features
ProCarManuals.comMain Menu Table of Contents s t

Audio System

TMS — The Tape Music Search function allows you to find thebeginning of a song or passage. Toactivate TMS, press the SEEK bar. Press the side to advance to the
beginning of the next song or passage, or the side to return to
the beginning of the current song or
passage. FF or REW will flash in the
display as the tape moves. When the
system reaches the beginning of the
next song or passage (FF), or the
beginning of the current one (REW), it goes back to PLAY mode.
REPEAT — The Repeat function continuously replays the currentsong or passage. Press the REPEAT
button to activate it; you will see RPT displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind.
When it senses the beginning of the same song or passage, the system
returns to PLAY mode. It will continue to repeat this same
program until you deactivate
REPEAT by pressing the button

again.
The TMS and REPEAT functions
use silent periods on the tape to find
the end of a song or passage. These
features may not work to your satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.

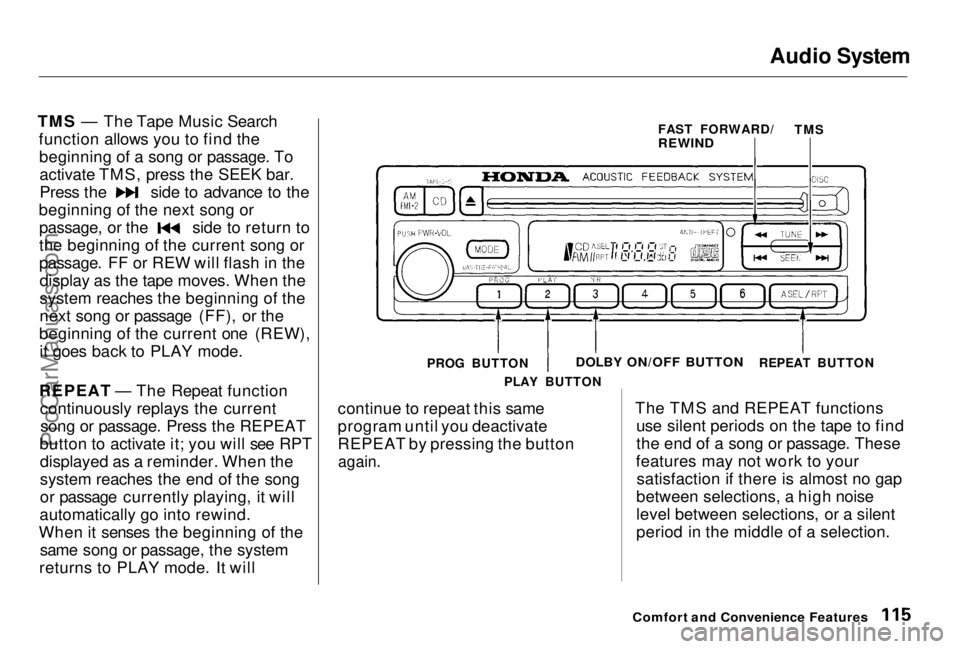

Comfort and Convenience Features
FAST FORWARD/

REWIND

TMS
PROG BUTTON

DOLBY ON/OFF BUTTON


REPEAT BUTTON
PLAY BUTTONProCarManuals.comMain Menu Table of Contents s t

Audio System

Caring for the Cassette Player
The cassette player picks up dirt and oxides from the tape. This contami-
nation builds up over time and
causes the sound quality to degrade.
To prevent this, you should clean the player after every 30 hours of use.
Your dealer has a cleaning kit
available.

If you do not clean the cassette
player regularly, it may eventually
become impossible to remove the
contamination with a normal
cleaning kit.
The player automatically ejects

cassettes that do not play properly. If

it ejects a cassette before it begins to

play, it is probably defective and
should not be inserted again. You

may have a cassette suddenly stop

playing, reverse directions once or

twice and then eject. This is normally

an indication the tape is wound

unevenly. It should play after the

tape is manually rewound.

Use 100-minute or shorter cassettes.

Cassettes longer than that use
thinner tape that may break or jam

the drive.

Look at the cassette before you

insert it. If the tape is loose, tighten

it by turning a hub with a pencil or

your finger.
If the label is peeling off, remove it
from the cassette or it could cause the cassette to jam in the player.
Never try to insert a warped or
damaged cassette in the player.
When they are not in use, store cassettes in their cases to protect
them from dust and moisture. Never
place cassettes where they will be
exposed to direct sunlight, high heat,or high humidity. If a cassette is
exposed to extreme heat or cold, let
it reach a moderate temperature
before inserting it in the player.
Never try to insert foreign objects
into the cassette player.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Audio System

Theft Protection
Your vehicle's audio system will disable itself if it is disconnected
from electrical power for any reason.
To make it work again, the user must enter a specific five-digit code
in the Preset buttons. Because thereare hundreds of number
combinations possible from five
digits, making the system work
without knowing the exact code is nearly impossible.
You should have received a card that lists your audio system's code
number and serial number. It is best
to store this card in a safe place athome. In addition, you should write
the audio system's serial number in
this Owner's Manual. If you should
happen to lose the card, you must obtain the code number from your
Honda dealer. To do this, you will
need the system's serial number. If your vehicle's battery is discon-
nected or goes dead, the audio system will disable itself. If this
happens, you will see "Code" in the
frequency display the next time you turn on the system. Use the Preset
buttons to enter the five-digit code. If it is entered correctly, the radio willstart playing.
If you make a mistake entering the code, do not start over or try to
correct your mistake. Complete the
five-digit sequence, then enter the correct code. You have three tries to
enter the correct code. If you are
unsuccessful in three attempts, youmust then leave the system on forone hour before trying again. You will have to store your favorite
stations in the Preset buttons after
the system begins working. Your original settings were lost when
power was disconnected.

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

Before Driving

Before you begin driving your Honda,
you should know what gasoline to use, and how to check the levels of
important fluids. You also need to
know how to properly store luggage or packages. The information in this
section will help you. If you plan to
add any accessories to your vehicle,
please read the information in this section first. Break-in Period.............................. 120
Gasoline.......................................... 120
Service Station Procedures .......... 121 Filling the Fuel Tank................. 121
Opening the Hood..................... 122 Oil Check................................ 123
Engine Coolant Check.......... 124
Fuel Economy................................ 125
Vehicle Condition...................... 125Driving Habits............................ 125
Accessories and Modifications.... 126 Accessories................................. 126
Modifications............................. 127
Additional Safety Precaution.... 127
Carrying Cargo.............................. 128 Load Limit.................................. 129Carrying Items in the Passenger Compartment......................... 129
Carrying Cargo in the Trunk or on a Roof Rack....................... 130

Before DrivingProCarManuals.comMain Menu s t

Break-in Period, Gasoline

Break-in Period

Help assure your vehicle's future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period: Avoid full-throttle starts and rapid

acceleration.

Avoid hard braking. New brakes need to be broken-in by moderate
use for the first 200 miles (300

km).

You should follow these same re- commendations with an overhauled
or exchanged engine, or when the
brakes are relined.
Gasoline

Your Honda is designed to operate on premium unleaded gasoline with a
pump octane number of 91 or higher.
If you are unable to find premium
unleaded gasoline, you may substi-
tute an unleaded regular gasoline.
The engine will compensate for the lower octane, but you may notice aslight decrease in power as a result.
We recommend gasolines containing detergent additives that help prevent
fuel system and engine deposits.
Using gasoline containing lead willdamage your vehicle's emission
controls. This contributes to air
pollution. In Canada, some gasolines contain
an octane-enhancing additive called
MMT. If you use such gasolines,
your emission control system performance may deteriorate and
the Malfunction Indicator Lamp on
your instrument panel may turn on. If this happens, contact your
authorized Honda dealer for service.

Before DrivingProCarManuals.comMain Menu Table of Contents s t
