Hyundai Coupe 2006 Owner's Manual

1CONTROLS AND EQUIPMENT
34

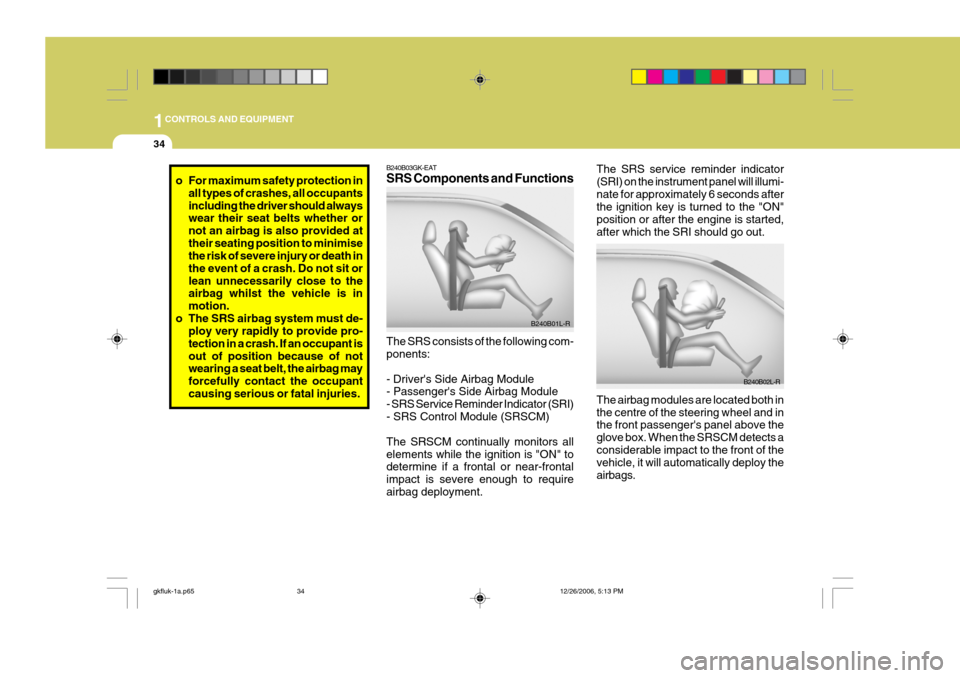

The SRS service reminder indicator (SRI) on the instrument panel will illumi-nate for approximately 6 seconds after the ignition key is turned to the "ON" position or after the engine is started,after which the SRI should go out. The airbag modules are located both in the centre of the steering wheel and in the front passenger's panel above the glove box. When the SRSCM detects aconsiderable impact to the front of the vehicle, it will automatically deploy the airbags. B240B02L-RB240B03GK-EAT SRS Components and Functions The SRS consists of the following com- ponents: - Driver's Side Airbag Module - Passenger's Side Airbag Module - SRS Service Reminder Indicator (SRI)- SRS Control Module (SRSCM) The SRSCM continually monitors all elements while the ignition is "ON" to determine if a frontal or near-frontal impact is severe enough to requireairbag deployment.B240B01L-R
o For maximum safety protection in
all types of crashes, all occupants including the driver should always wear their seat belts whether or not an airbag is also provided attheir seating position to minimise the risk of severe injury or death in the event of a crash. Do not sit orlean unnecessarily close to the airbag whilst the vehicle is in motion.
o The SRS airbag system must de- ploy very rapidly to provide pro-tection in a crash. If an occupant isout of position because of not wearing a seat belt, the airbag may forcefully contact the occupantcausing serious or fatal injuries.
gkfluk-1a.p65 12/26/2006, 5:13 PM
34

1
CONTROLS AND EQUIPMENT
35

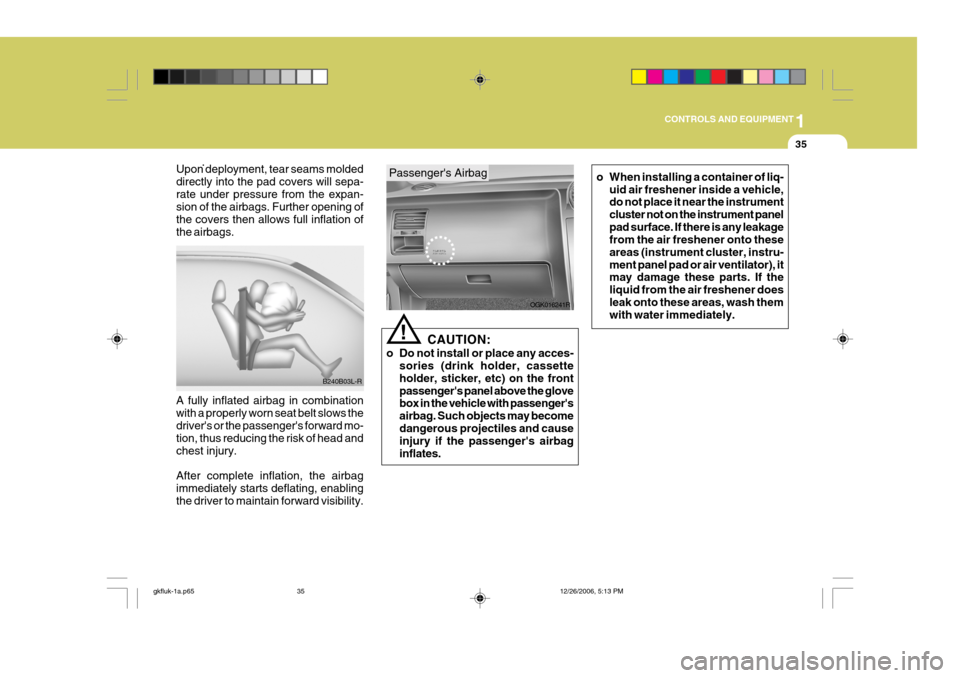

Passenger's Airbag
Upon deployment, tear seams molded directly into the pad covers will sepa-rate under pressure from the expan- sion of the airbags. Further opening of the covers then allows full inflation ofthe airbags. A fully inflated airbag in combination with a properly worn seat belt slows the driver's or the passenger's forward mo- tion, thus reducing the risk of head andchest injury. After complete inflation, the airbag immediately starts deflating, enabling the driver to maintain forward visibility. B240B03L-R
OGK016241R
!
CAUTION:
o Do not install or place any acces- sories (drink holder, cassette holder, sticker, etc) on the frontpassenger's panel above the glove box in the vehicle with passenger's airbag. Such objects may becomedangerous projectiles and cause injury if the passenger's airbag inflates.
o When installing a container of liq-
uid air freshener inside a vehicle, do not place it near the instrument cluster not on the instrument panelpad surface. If there is any leakage from the air freshener onto these areas (instrument cluster, instru-ment panel pad or air ventilator), it may damage these parts. If the liquid from the air freshener doesleak onto these areas, wash them with water immediately.
gkfluk-1a.p65 12/26/2006, 5:13 PM
35

1CONTROLS AND EQUIPMENT
36

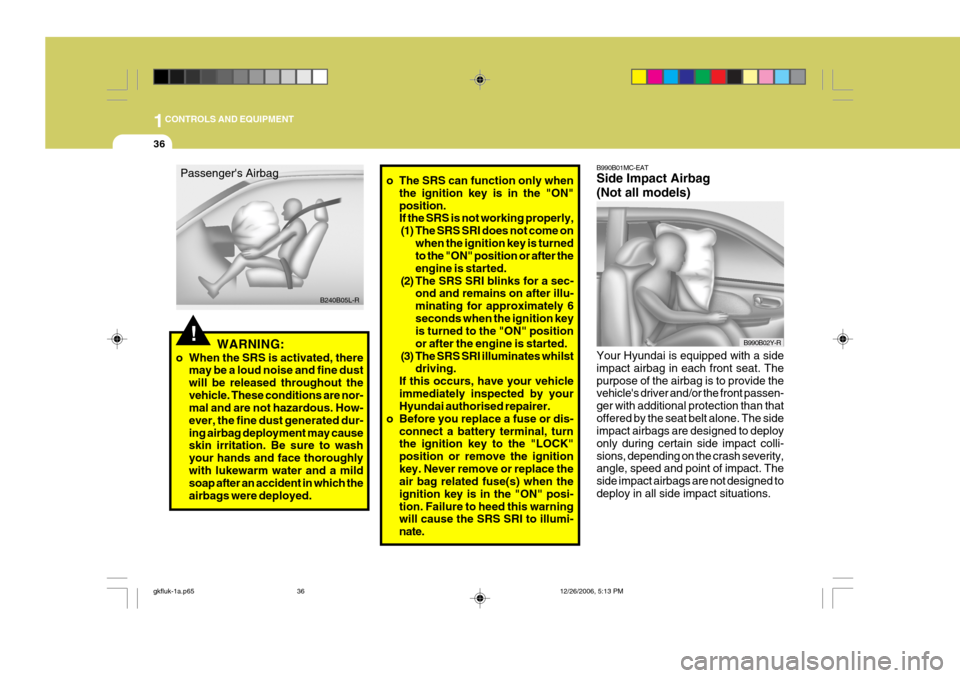

!WARNING:
o When the SRS is activated, there may be a loud noise and fine dust will be released throughout thevehicle. These conditions are nor- mal and are not hazardous. How- ever, the fine dust generated dur-ing airbag deployment may cause skin irritation. Be sure to wash your hands and face thoroughlywith lukewarm water and a mild soap after an accident in which the airbags were deployed. B240B05L-R
Passenger's Airbag
o The SRS can function only when
the ignition key is in the "ON"position. If the SRS is not working properly,(1) The SRS SRI does not come on when the ignition key is turnedto the "ON" position or after the engine is started.
(2) The SRS SRI blinks for a sec- ond and remains on after illu-minating for approximately 6seconds when the ignition key is turned to the "ON" position or after the engine is started.
(3) The SRS SRI illuminates whilst driving.
If this occurs, have your vehicleimmediately inspected by your Hyundai authorised repairer.
o Before you replace a fuse or dis-
connect a battery terminal, turnthe ignition key to the "LOCK" position or remove the ignitionkey. Never remove or replace the air bag related fuse(s) when the ignition key is in the "ON" posi-tion. Failure to heed this warning will cause the SRS SRI to illumi- nate.
B990B01MC-EAT Side Impact Airbag (Not all models) Your Hyundai is equipped with a side impact airbag in each front seat. Thepurpose of the airbag is to provide the vehicle's driver and/or the front passen- ger with additional protection than thatoffered by the seat belt alone. The side impact airbags are designed to deploy only during certain side impact colli-sions, depending on the crash severity, angle, speed and point of impact. The side impact airbags are not designed todeploy in all side impact situations.
B990B02Y-R
gkfluk-1a.p65 12/26/2006, 5:13 PM
36

1
CONTROLS AND EQUIPMENT
37

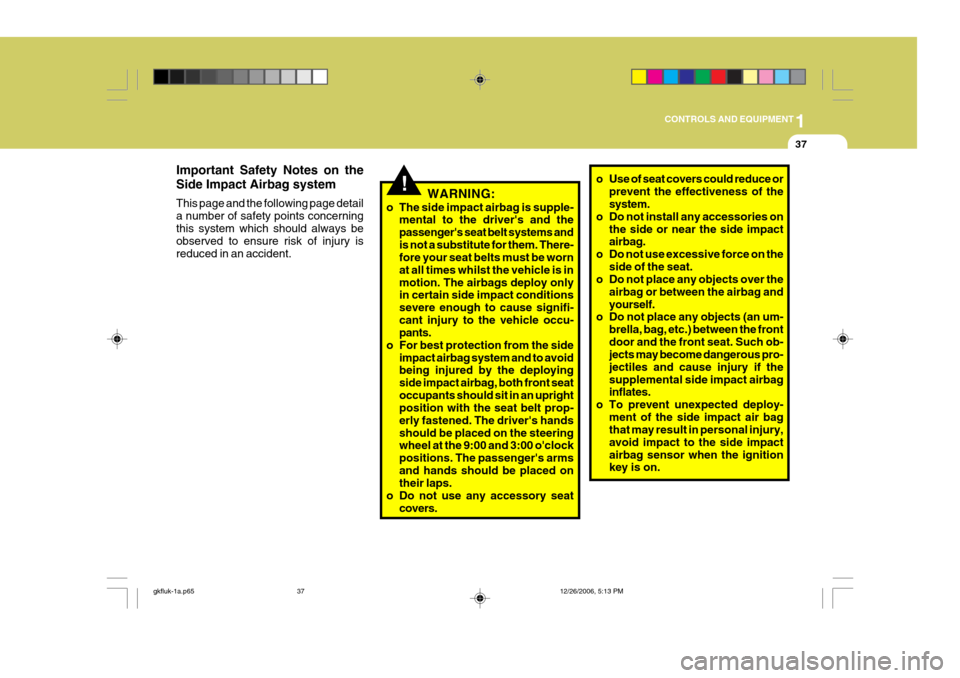

o Use of seat covers could reduce or
prevent the effectiveness of the system.
o Do not install any accessories on
the side or near the side impactairbag.
o Do not use excessive force on the
side of the seat.
o Do not place any objects over the
airbag or between the airbag and yourself.
o Do not place any objects (an um-
brella, bag, etc.) between the frontdoor and the front seat. Such ob- jects may become dangerous pro- jectiles and cause injury if thesupplemental side impact airbag inflates.
o To prevent unexpected deploy- ment of the side impact air bagthat may result in personal injury, avoid impact to the side impactairbag sensor when the ignition key is on.!
Important Safety Notes on the Side Impact Airbag system This page and the following page detail a number of safety points concerningthis system which should always be observed to ensure risk of injury is reduced in an accident. WARNING:
o The side impact airbag is supple- mental to the driver's and thepassenger's seat belt systems andis not a substitute for them. There- fore your seat belts must be worn at all times whilst the vehicle is inmotion. The airbags deploy only in certain side impact conditions severe enough to cause signifi-cant injury to the vehicle occu- pants.
o For best protection from the side impact airbag system and to avoidbeing injured by the deploying side impact airbag, both front seatoccupants should sit in an upright position with the seat belt prop- erly fastened. The driver's handsshould be placed on the steering wheel at the 9:00 and 3:00 o'clock positions. The passenger's armsand hands should be placed on their laps.
o Do not use any accessory seat covers.
gkfluk-1a.p65 12/26/2006, 5:13 PM
37

1CONTROLS AND EQUIPMENT
38

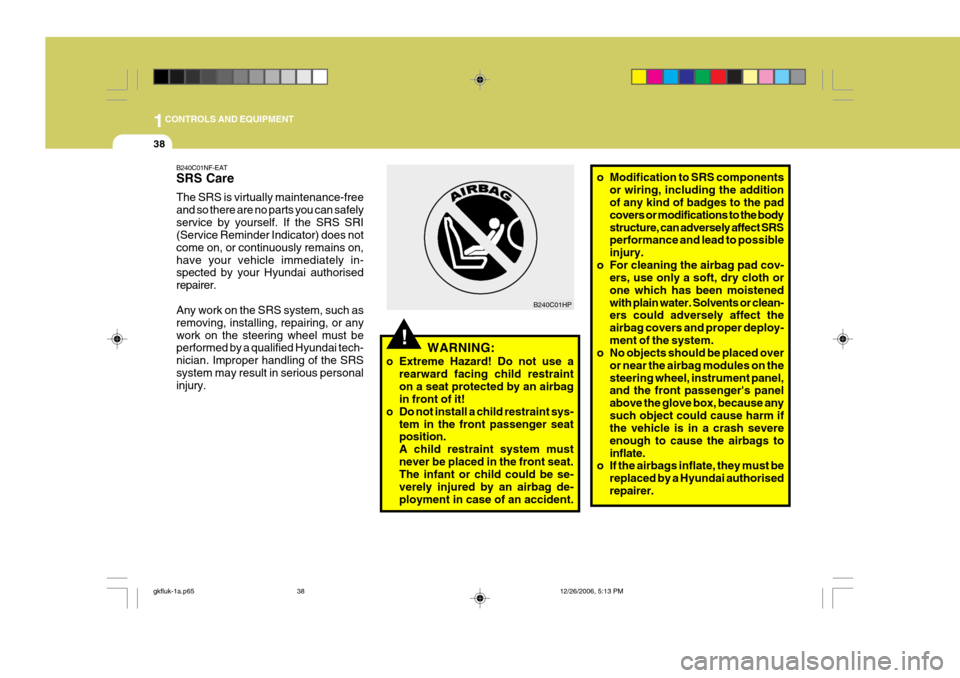

B240C01HP
!WARNING:
o Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an airbag in front of it!
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint system mustnever be placed in the front seat. The infant or child could be se- verely injured by an airbag de-ployment in case of an accident. o Modification to SRS components
or wiring, including the addition of any kind of badges to the pad covers or modifications to the bodystructure, can adversely affect SRS performance and lead to possible injury.
o For cleaning the airbag pad cov- ers, use only a soft, dry cloth orone which has been moistenedwith plain water. Solvents or clean- ers could adversely affect the airbag covers and proper deploy-ment of the system.
o No objects should be placed over
or near the airbag modules on thesteering wheel, instrument panel, and the front passenger's panel above the glove box, because anysuch object could cause harm if the vehicle is in a crash severe enough to cause the airbags toinflate.
o If the airbags inflate, they must be
replaced by a Hyundai authorisedrepairer.
B240C01NF-EAT SRS Care The SRS is virtually maintenance-free and so there are no parts you can safelyservice by yourself. If the SRS SRI (Service Reminder Indicator) does not come on, or continuously remains on,have your vehicle immediately in- spected by your Hyundai authorised repairer. Any work on the SRS system, such as removing, installing, repairing, or anywork on the steering wheel must be performed by a qualified Hyundai tech- nician. Improper handling of the SRSsystem may result in serious personal injury.
gkfluk-1a.p65
12/26/2006, 5:13 PM
38

1
CONTROLS AND EQUIPMENT
39

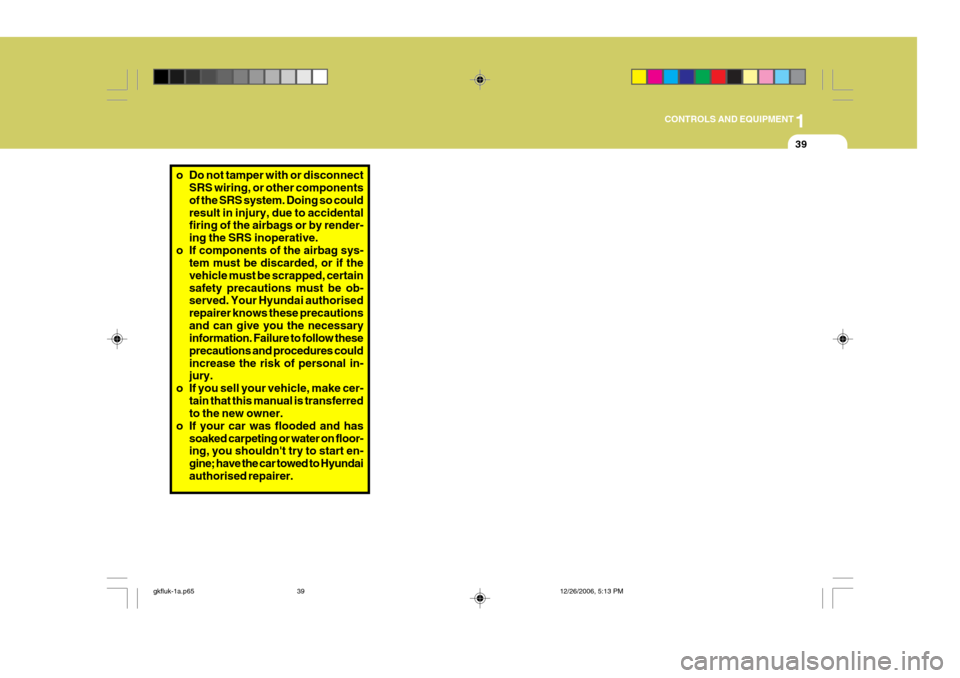

o Do not tamper with or disconnect
SRS wiring, or other components of the SRS system. Doing so couldresult in injury, due to accidental firing of the airbags or by render- ing the SRS inoperative.
o If components of the airbag sys- tem must be discarded, or if thevehicle must be scrapped, certainsafety precautions must be ob- served. Your Hyundai authorised repairer knows these precautionsand can give you the necessary information. Failure to follow these precautions and procedures couldincrease the risk of personal in- jury.
o If you sell your vehicle, make cer- tain that this manual is transferredto the new owner.
o If your car was flooded and has soaked carpeting or water on floor-ing, you shouldn't try to start en- gine; have the car towed to Hyundaiauthorised repairer.
gkfluk-1a.p65 12/26/2006, 5:13 PM
39

1CONTROLS AND EQUIPMENT

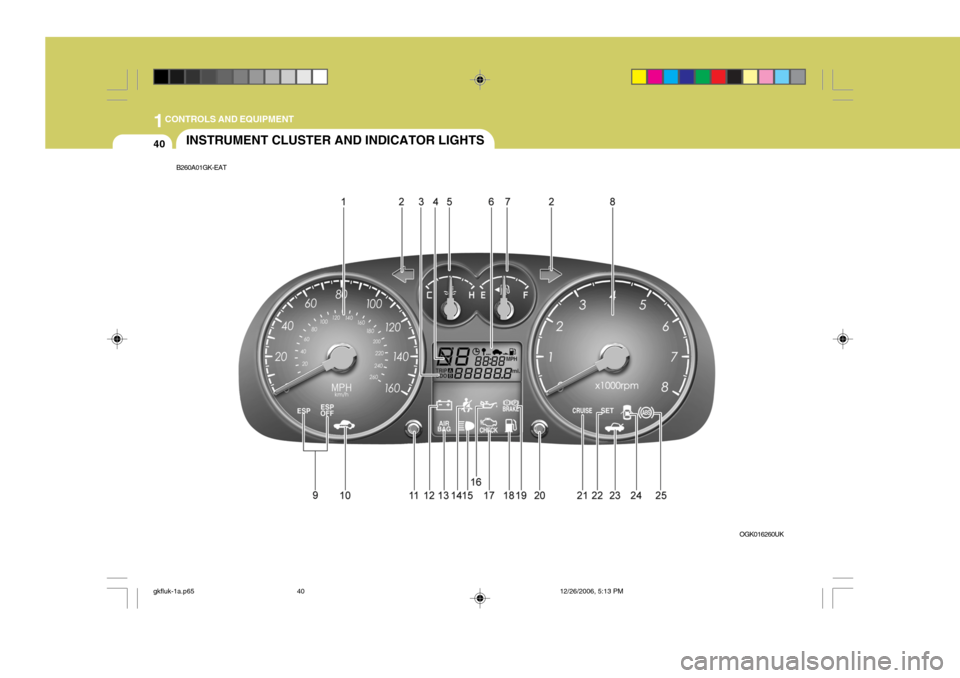

40INSTRUMENT CLUSTER AND INDICATOR LIGHTS
B260A01GK-EAT
OGK016260UK
gkfluk-1a.p6512/26/2006, 5:13 PM
40

1
CONTROLS AND EQUIPMENT
41
1. Speedometer
2. Turn Signal Indicator Light
3. Odometer/Trip Odometer
4. Automatic Transaxle Position Indicator Light (Not all models)
5. Coolant Temperature Gauge
6. Trip Computer (Not all models)
7. Fuel Gauge
8. Tachometer
9. Electronic Stability Program (ESP) Indicator Light (Not all models)
10. Immobiliser Warning Light
11. Trip Odometer Reset Knob 12. Charging System Warning Light
13. SRS (Airbag) Warning Light
14. Seat Belt Warning Light
15. High Beam Indicator Light
16. Oil Pressure Warning Light
17. Malfuction Indicator Light (MIL) (Not all models)
18. Low Fuel Warning Light
19. Parking Brake/Brake Fluide Level Warning Light
20. Trip Computer Reset Knob21.CRUISE Indicator Light (Not all models)
22. CRUISE SET Indicator Light (Not all models)
23. Hatchback Door Open Warning Light
24. Door Open (Ajar) Warning Light
25. ABS Service Reminder Indicator Light (Not all models)
gkfluk-1a.p65
12/26/2006, 5:13 PM
41

1CONTROLS AND EQUIPMENT
42WARNING AND INDICATOR LIGHTS
SB210G1-E Turn Signal Indicator Lights
Operation of a turn signal is indicated by the warning light located in the in-strument cluster. If the light fails to illuminate or does not flash, a malfunc- tion within the turn signal system isindicated.
B265C01NF-EAT Electronic Stability Program Indicator Lights(Not all models)
The electronic stability program indica- tors change operation according to theignition switch position and whether the system is in operation or not. They will illuminate when the ignitionkey is turned to the "ON" position, but should go out after three seconds. If the ESP or ESP-OFF indicator stays on,take your car to your Hyundai authorised repairer and have the system checked. See section 2 for more informationabout the ESP.
B260U01TB-EAT Immobiliser Warning Light
This warning light comes on for some seconds after the ignition key is turnedto the "ON" position. At this time, you can start the engine. The light goes out after the engine is running. In case thislight goes out before you start the en- gine, you must turn to the "LOCK" position and restart the engine. In casethis light blinks for five seconds when the ignition key is turned to "ON" posi- tion, this indicates that the immobilisersystem is out of order. At this time, consult to the Hyundai authorised re- pairer.SB210M1-E Charging System Warning Light
The charging system warning light should illuminate when the ignitionswitch is turned to the "ON" position and should be extinguished when the engine is started. If the light failsto illuminate when the ignition is turned "ON" or fails to extinguish after starting the engine, the nearestHyundai authorised repairer should be
contacted. If the light illuminates whilst
the vehicle is being driven, stop thevehicle as soon as it is safe to do so and check the condition of the alternator drive belt. If the belt is in place and thetension is satisfactory, the advice of a Hyundai authorised repairer should be sought.
CAUTION:
If the drive belt (generator belt) is loose, broken, or missing whilst thevehicle is driving, there may be a serious malfunction, the engine could also overheat because thisbelt also drives the water pump.!
gkfluk-1a.p65 12/26/2006, 5:13 PM
42

1
CONTROLS AND EQUIPMENT
43
B260B01JM-EAT SRS (Airbag) Service Reminder Indicator (SRI)(Not all models)
The SRS service reminder indicator (SRI) comes on for approximately 6 seconds after the ignition key is turnedto the "ON" position or after the engine is started, after which it will go out. This light also comes on when the SRS is not working properly. If the SRI does not come on, or continuously remainson after flashing for about 6 seconds when you turned the ignition key to the "ON" position or started the engine, orif it comes on whilst driving, have the SRS inspected by a Hyundai authorised repairer.
B260E01HP-GAT Seat Belt Warning Light
The seat belt warning light blinks for 6 about seconds when the ignition key isturned from the "OFF" position to "ON" or "START".
SB210J1-E High Beam Indicator Light
The high beam indicator light will illumi- nate whenever the headlights areswitched to high beam of flash position.
SB210K1-E Low Oil Pressure Warning Light
!CAUTION:
If the oil pressure warning light illu- minates when the engine is running, an insufficient oil pressure level for continued safe operation of the en-gine exists. Continued operation of the engine in this condition may result in serious engine damage. Under normal circumstances, the light will illuminate when the igni- tion is turned "on" and will be extin- guished when the engine is started.If the oil pressure warning light illu- minates whilst the engine is run- ning, stop the engine immediatelyand check the engine oil level.
gkfluk-1a.p65 12/26/2006, 5:13 PM
43
