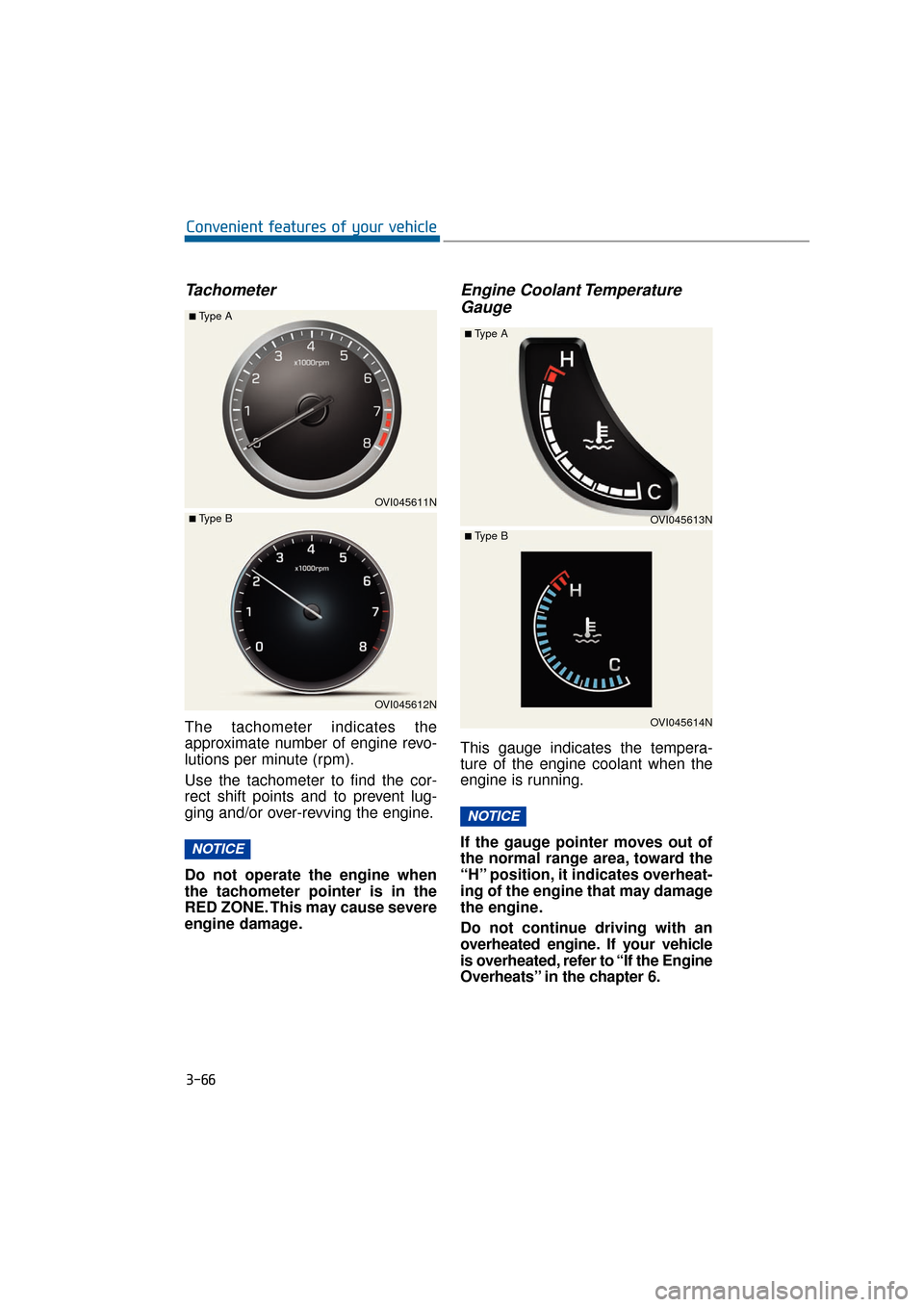

Tachometer
The tachometer indicates the
approximate number of engine revo-
lutions per minute (rpm).
Use the tachometer to find the cor-
rect shift points and to prevent lug-
ging and/or over-revving the engine.
Do not operate the engine when
the tachometer pointer is in the
RED ZONE. This may cause severe
engine damage.
Engine Coolant TemperatureGauge
This gauge indicates the tempera-
ture of the engine coolant when the
engine is running.
If the gauge pointer moves out of
the normal range area, toward the
“H” position, it indicates overheat-
ing of the engine that may damage
the engine.
Do not continue driving with an
overheated engine. If your vehicle
is overheated, refer to “If the Engine
Overheats” in the chapter 6.
NOTICE
NOTICE
3-66
Convenient features of your vehicle
OVI045611N
■Type A
OVI045612N
■ Type BOVI045613N
■Type A
OVI045614N
■ Type B

Fuel Gauge
This gauge indicates the approxi-
mate amount of fuel remaining in the
fuel tank.
Information
• The fuel tank capacity is indicatedin chapter 8.
• The fuel gauge is supplemented by a low fuel warning light, which will
illuminate when the fuel tank is
nearly empty.
• On slopes or curves, the fuel gauge pointer may fluctuate or the low fuel
warning light may come on earlier
than usual due to the fuel fluctua-
tion in the tank.
Avoid driving with the extremely
low amount of fuel. Running out of
fuel could cause the engine to
misfire, damaging the catalytic
converter.
NOTICE
i
3-67
Convenient features of your vehicle03
Never remove the radiator cap
when the engine is hot. The
engine coolant is under pres-
sure and could severely burn.
Wait until the engine cools
down before adding coolant to
the reservoir.
CAUTION
OVI045615N
■Type A
OVI045616N
■ Type B
- Fuel Gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop the vehicle and
obtain additional fuel as soon
as possible, after the warning
light comes on or when the
gauge indicator comes close to
the “E (Empty)” level.
CAUTION

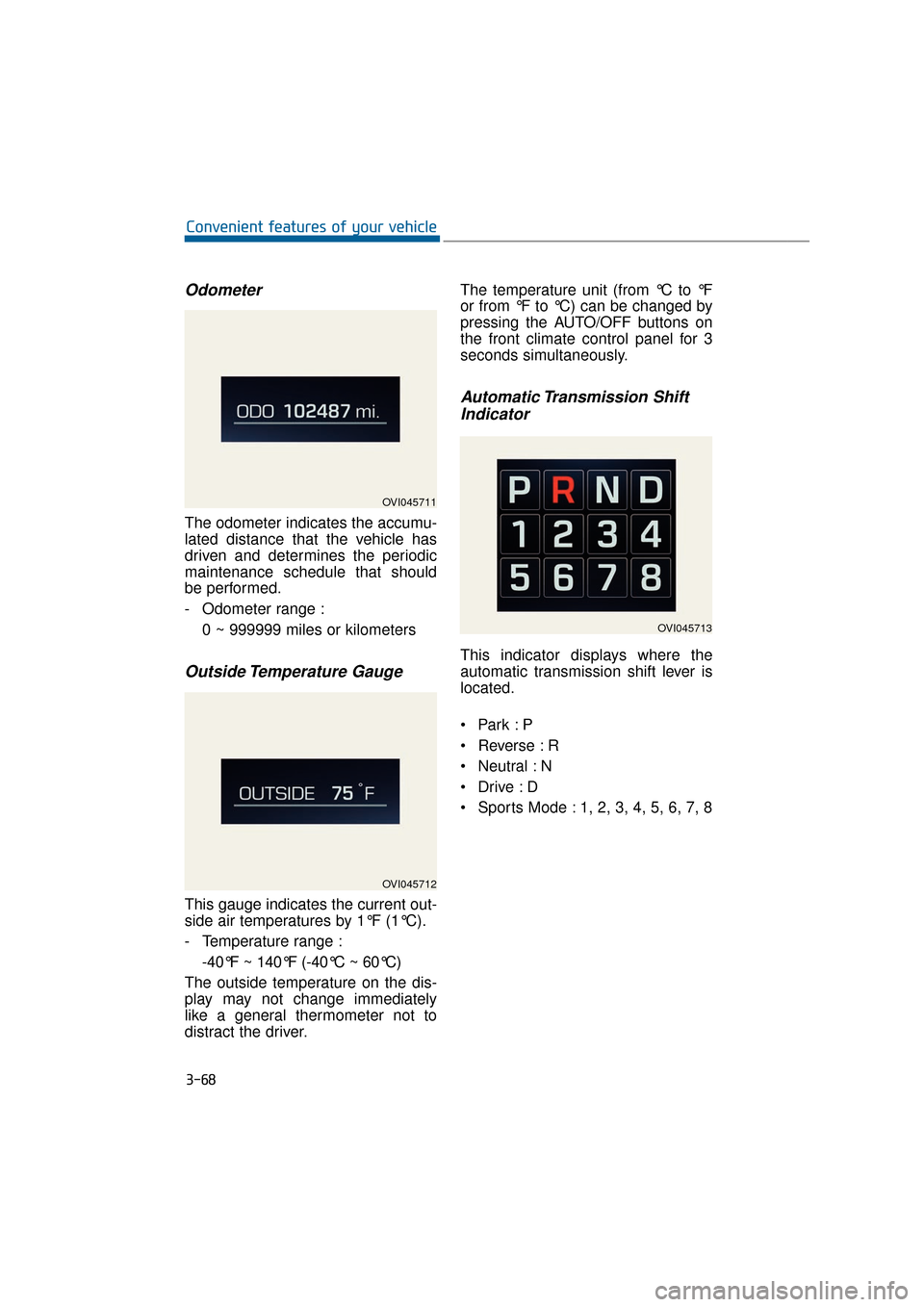

Odometer
The odometer indicates the accumu-
lated distance that the vehicle has
driven and determines the periodic
maintenance schedule that should
be performed.
- Odometer range :0 ~ 999999 miles or kilometers
Outside Temperature Gauge
This gauge indicates the current out-
side air temperatures by 1°F (1°C).
- Temperature range :-40°F ~ 140°F (-40°C ~ 60°C)
The outside temperature on the dis-
play may not change immediately
like a general thermometer not to
distract the driver. The temperature unit (from °C to °F
or from °F to °C) can be changed by
pressing the AUTO/OFF buttons on
the front climate control panel for 3
seconds simultaneously.
Automatic Transmission Shift
Indicator
This indicator displays where the
automatic transmission shift lever is
located.

Reverse : R
Neutral : N

Sports Mode : 1, 2, 3, 4, 5, 6, 7, 8
3-68
Convenient features of your vehicle
OVI045711
OVI045712
OVI045713

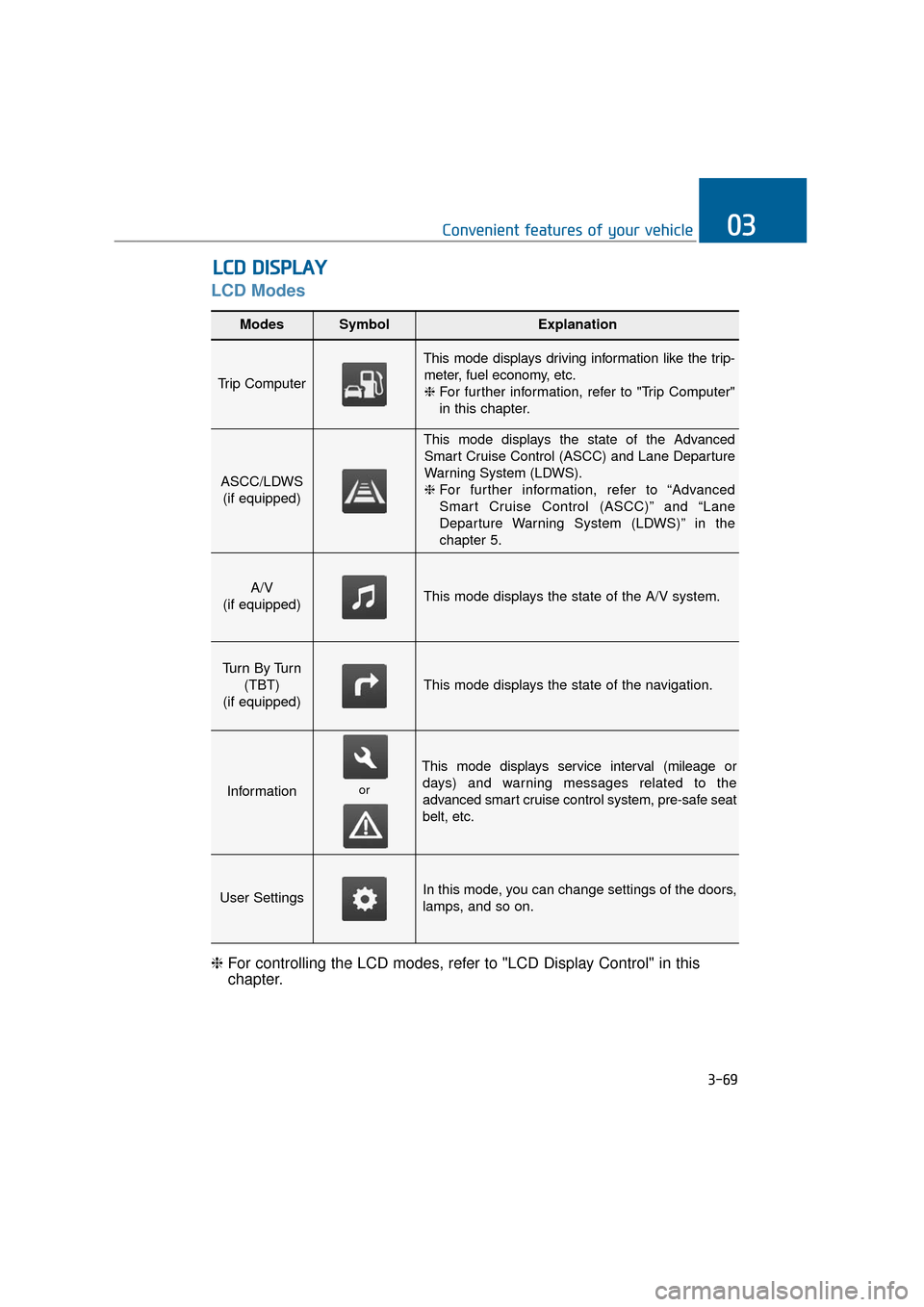

LCD Modes
L
LC
C D
D
D
D I
IS
S P
P L
LA
A Y
Y
3-69
Convenient features of your vehicle03
Modes SymbolExplanation
Trip Computer
This mode displays driving information like the trip-
meter, fuel economy, etc.❈ For further information, refer to "Trip Computer"
in this chapter.
ASCC/LDWS
(if equipped)
This mode displays the state of the AdvancedSmart Cruise Control (ASCC) and Lane Departure
Warning System (LDWS).
❈ For further information, refer to “Advanced
Smart Cruise Control (ASCC)” and “Lane
Departure Warning System (LDWS)” in the
chapter 5.
A/V
(if equipped)This mode displays the state of the A/V system.
Tu r n B y Tu r n (TBT)
(if equipped)
This mode displays the state of the navigation.
Information
This mode displays service interval (mileage or days) and warning messages related to the
advanced smart cruise control system, pre-safe seat
belt, etc.
User SettingsIn this mode, you can change settings of the doors,
lamps, and so on.
❈ For controlling the LCD modes, refer to "LCD Display Control" in this
chapter.
or

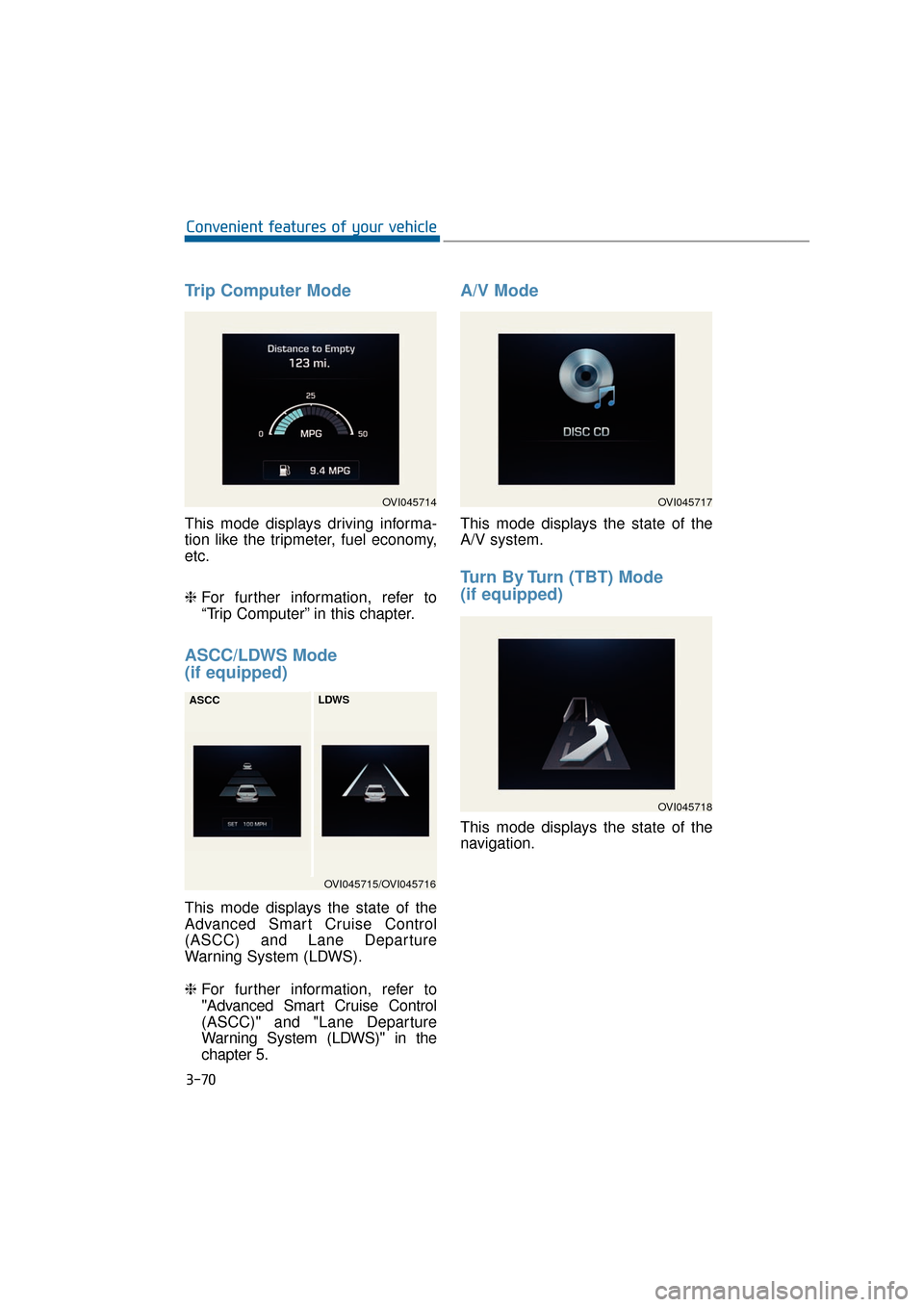

Trip Computer Mode
This mode displays driving informa-
tion like the tripmeter, fuel economy,
etc.
❈For further information, refer to
“Trip Computer” in this chapter.
ASCC/LDWS Mode
(if equipped)
This mode displays the state of the
Advanced Smart Cruise Control
(ASCC) and Lane Departure
Warning System (LDWS).
❈ For further information, refer to
"Advanced Smart Cruise Control
(ASCC)" and "Lane Departure
Warning System (LDWS)" in the
chapter 5.
A/V Mode
This mode displays the state of the
A/V system.
Turn By Turn (TBT) Mode
(if equipped)
This mode displays the state of the
navigation.
3-70
Convenient features of your vehicle
OVI045714
OVI045715/OVI045716
ASCC
LDWS
OVI045717
OVI045718

Information Mode

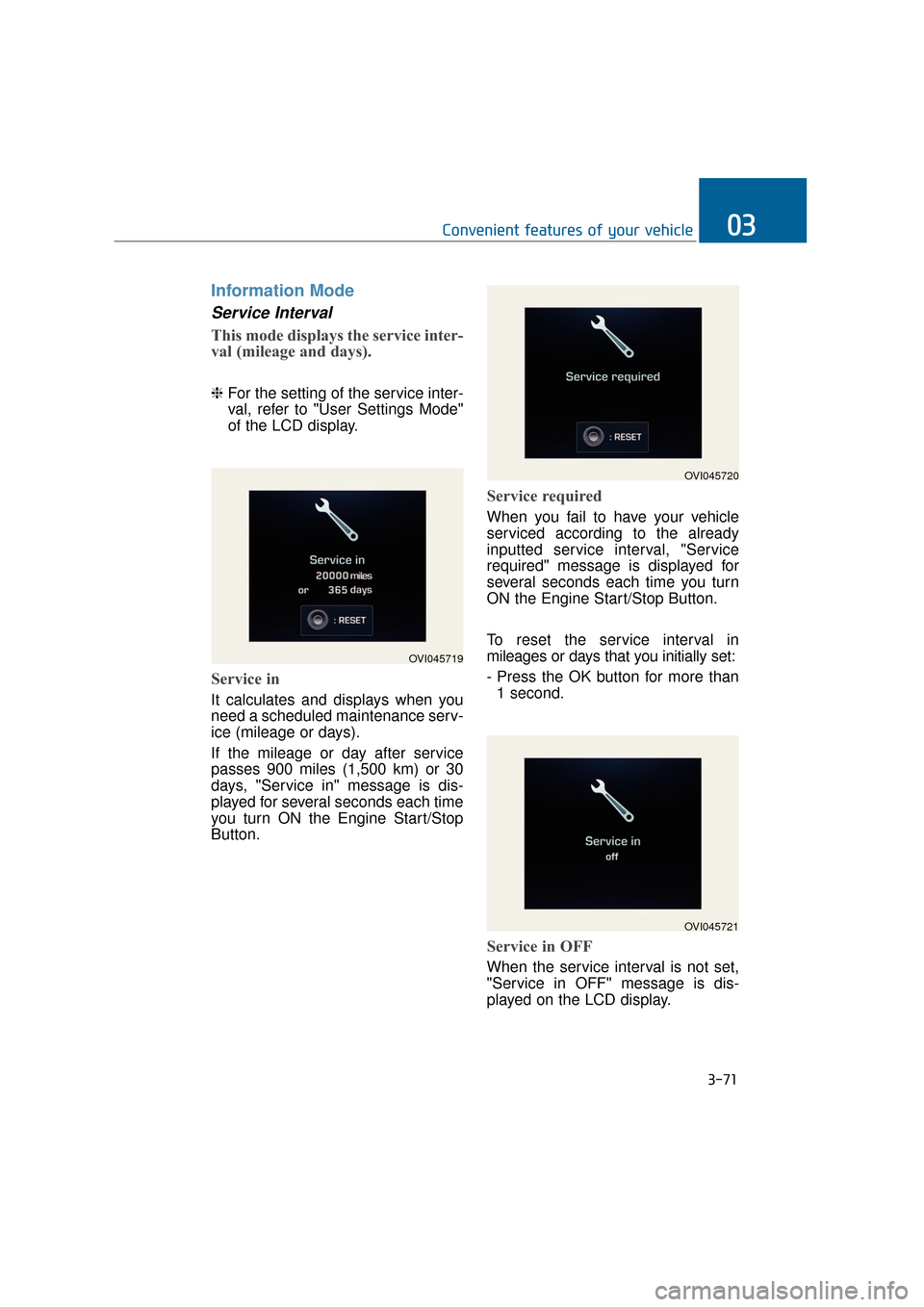

Service Interval
This mode displays the service inter-
val (mileage and days).
❈For the setting of the service inter-
val, refer to "User Settings Mode"
of the LCD display.
Service in
It calculates and displays when you
need a scheduled maintenance serv-
ice (mileage or days).
If the mileage or day after service
passes 900 miles (1,500 km) or 30
days, "Service in" message is dis-
played for several seconds each time
you turn ON the Engine Start/Stop
Button.
Service required
When you fail to have your vehicle
serviced according to the already
inputted service interval, "Service
required" message is displayed for
several seconds each time you turn
ON the Engine Start/Stop Button.
To reset the service interval in
mileages or days that you initially set:
- Press the OK button for more than
1 second.
Service in OFF
When the service interval is not set,
"Service in OFF" message is dis-
played on the LCD display.
3-71
Convenient features of your vehicle03
OVI045719
OVI045720
OVI045721

Information
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.

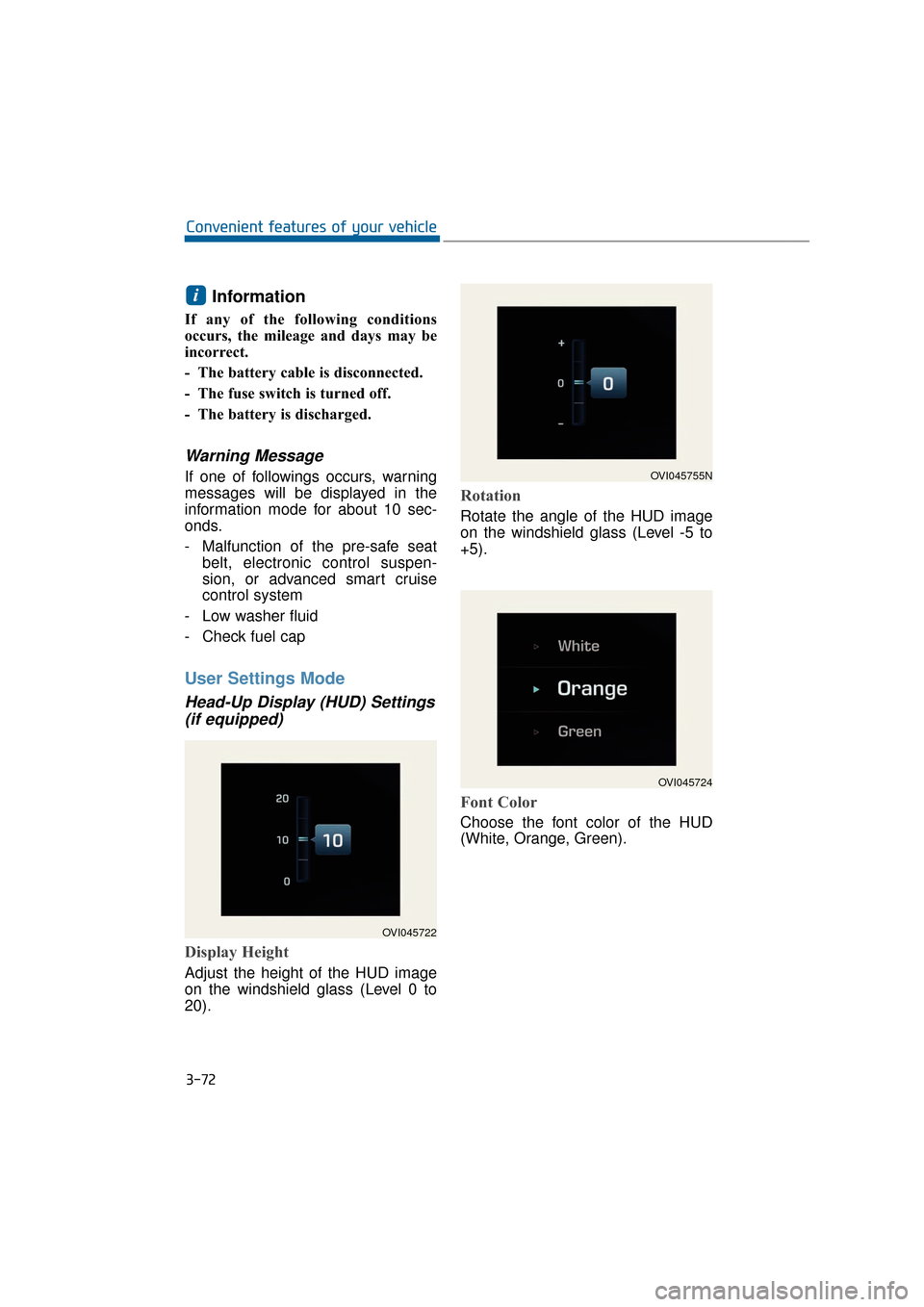

Warning Message
If one of followings occurs, warning
messages will be displayed in the
information mode for about 10 sec-
onds.
- Malfunction of the pre-safe seatbelt, electronic control suspen-
sion, or advanced smart cruise
control system
- Low washer fluid
- Check fuel cap
User Settings Mode
Head-Up Display (HUD) Settings (if equipped)
Display Height
Adjust the height of the HUD image
on the windshield glass (Level 0 to
20).
Rotation
Rotate the angle of the HUD image
on the windshield glass (Level -5 to
+5).
Font Color
Choose the font color of the HUD
(White, Orange, Green).
i
3-72
Convenient features of your vehicle
OVI045722
OVI045755N
OVI045724

Font Size
Choose the font size of the HUD
(Large, Medium, Small).
Illumination
Adjust the brightness of the HUD illu-
mination (Level 0 to 20).
Contents Setting (if equipped)
Activate or deactivate each HUD con-
tents (TBT, SCC, LDWS, BSD).
❈TBT : Turn By Turn
SCC : (Advanced) Smart Cruise Control
LDWS : Lane Departure Warning System
BSD : Blind Spot Detection
Information
If you select the Turn By Turn (TBT)
navigation information as HUD con-
tents, the Turn By Turn (TBT) naviga-
tion information will not be displayed
on the LCD.
i
3-73
Convenient features of your vehicle03
OVI045723
OVI045725OVI045726

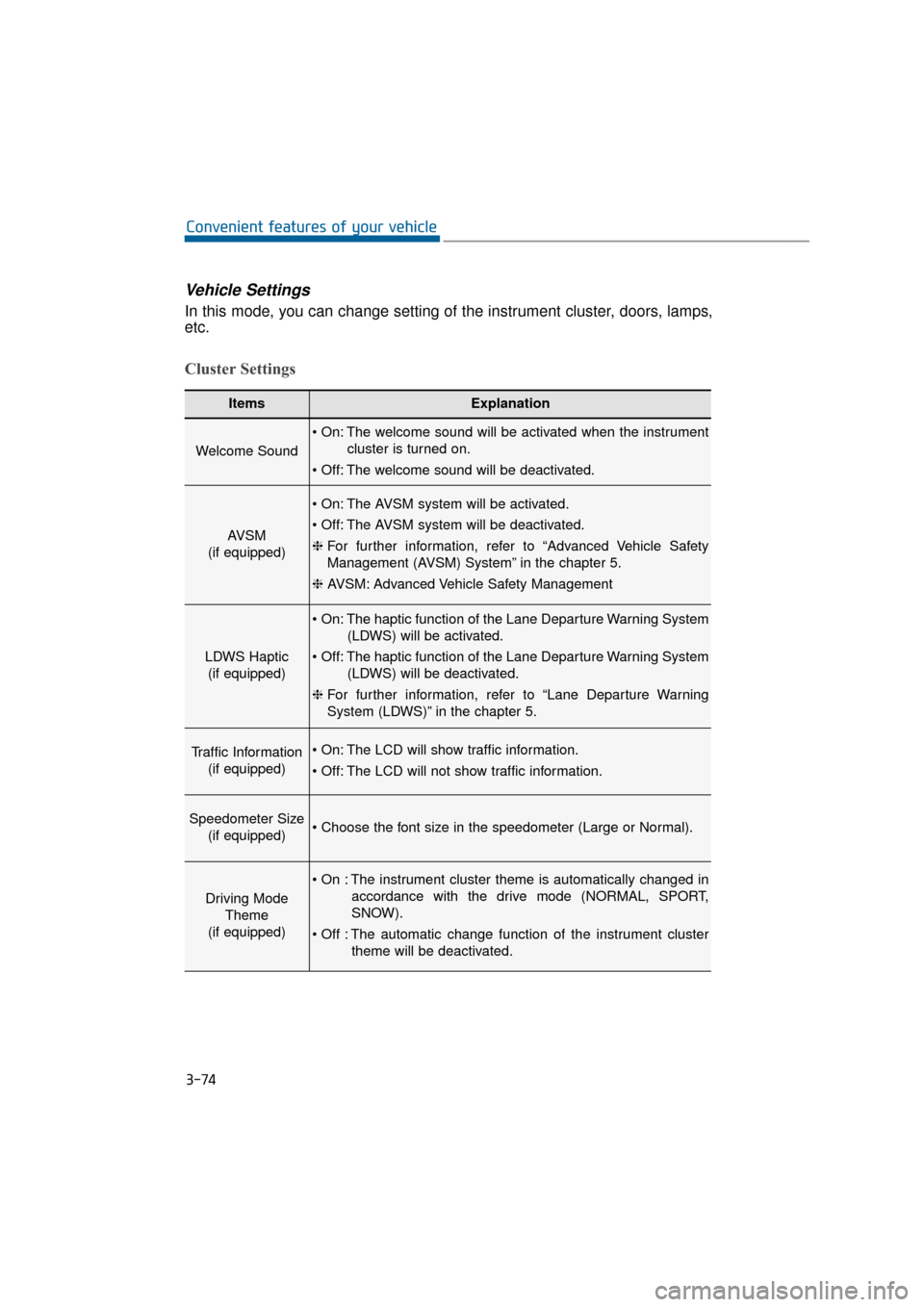

Vehicle Settings
In this mode, you can change setting of the instrument cluster, doors, lamps,
etc.
Cluster Settings
3-74
Convenient features of your vehicle
ItemsExplanation
Welcome Sound
The welcome sound will be activated when the instrumentcluster is turned on.
The welcome sound will be deactivated.
AVSM
(if equipped)
The AVSM system will be activated.
The AVSM system will be deactivated.
❈ For further information, refer to “Advanced Vehicle Safety
Management (AVSM) System” in the chapter 5.
❈ AVSM: Advanced Vehicle Safety Management
LDWS Haptic
(if equipped)
The haptic function of the Lane Departure Warning System (LDWS) will be activated.
The haptic function of the Lane Departure Warning System (LDWS) will be deactivated.
❈ For further information, refer to “Lane Departure Warning
System (LDWS)” in the chapter 5.
Traffic Information
(if equipped) The LCD will show traffic information.
The LCD will not show traffic information.
Speedometer Size (if equipped)
Driving Mode Theme
(if equipped)
The instrument cluster theme is automatically changed in accordance with the drive mode (NORMAL, SPORT,
SNOW).
The automatic change function of the instrument cluster theme will be deactivated.

3-75
Convenient features of your vehicle03
ItemsExplanation

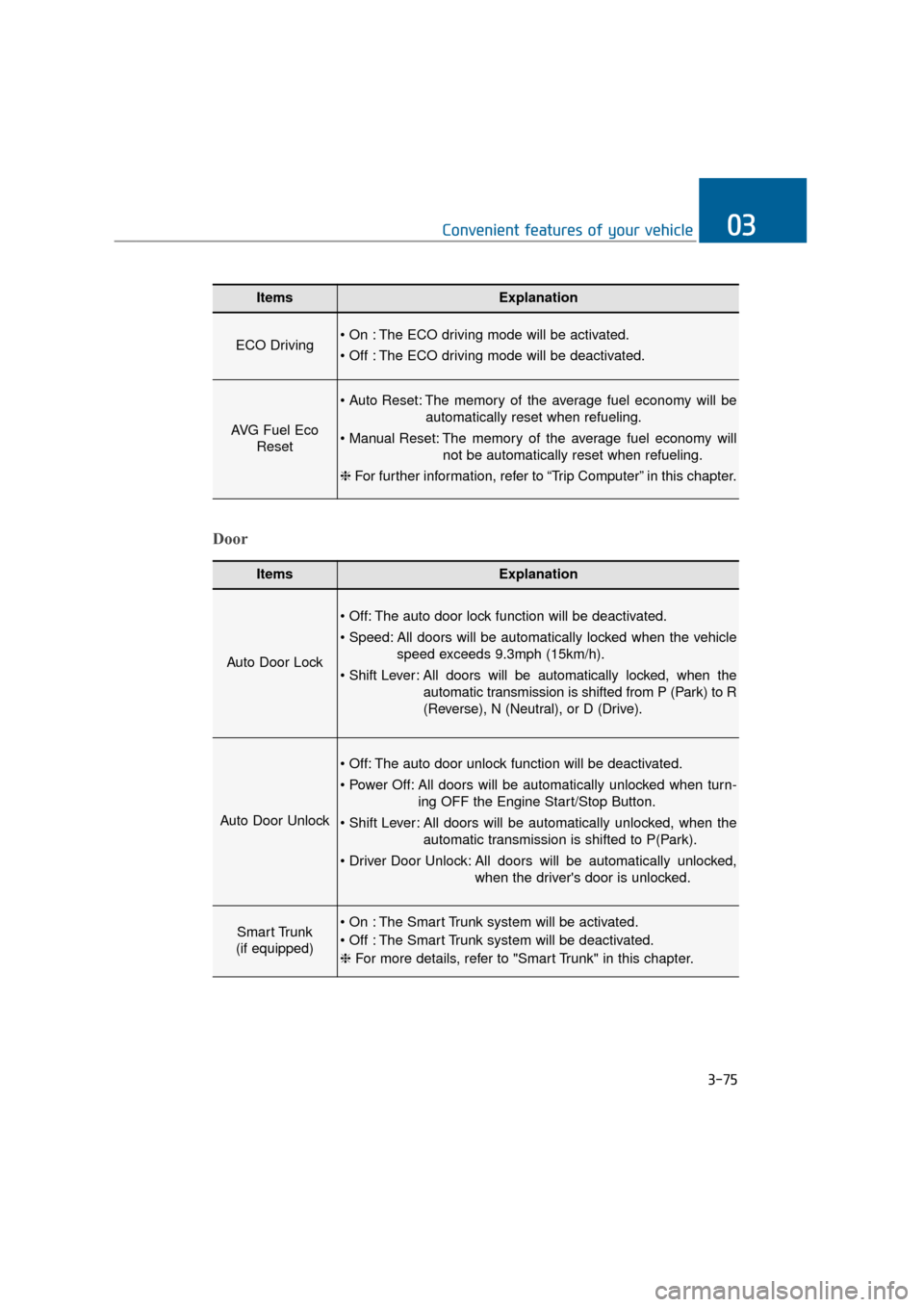

ECO Driving The ECO driving mode will be activated.
The ECO driving mode will be deactivated.
AVG Fuel EcoReset
The memory of the average fuel economy will be
automatically reset when refueling.
The memory of the average fuel economy will not be automatically reset when refueling.
❈ For further information, refer to “Trip Computer” in this chapter.
ItemsExplanation
Auto Door Lock
The auto door lock function will be deactivated.
All doors will be automatically locked when the vehicle
speed exceeds 9.3mph (15km/h).
All doors will be automatically locked, when the
automatic transmission is shifted from P (Park) to R
(Reverse), N (Neutral), or D (Drive).
Auto Door Unlock
The auto door unlock function will be deactivated.
All doors will be automatically unlocked when turn- ing OFF the Engine Start/Stop Button.
All doors will be automatically unlocked, when the automatic transmission is shifted to P(Park).
All doors will be automatically unlocked, when the driver's door is unlocked.
Smart Trunk
(if equipped) The Smart Trunk system will be activated.
The Smart Trunk system will be deactivated.
❈ For more details, refer to "Smart Trunk" in this chapter.
Door
