Hyundai Equus 2016 Owner's Manual
Manufacturer: HYUNDAI, Model Year: 2016, Model line: Equus, Model: Hyundai Equus 2016Pages: 477, PDF Size: 16.25 MB
Page 171 of 477

3-76
Convenient features of your vehicle

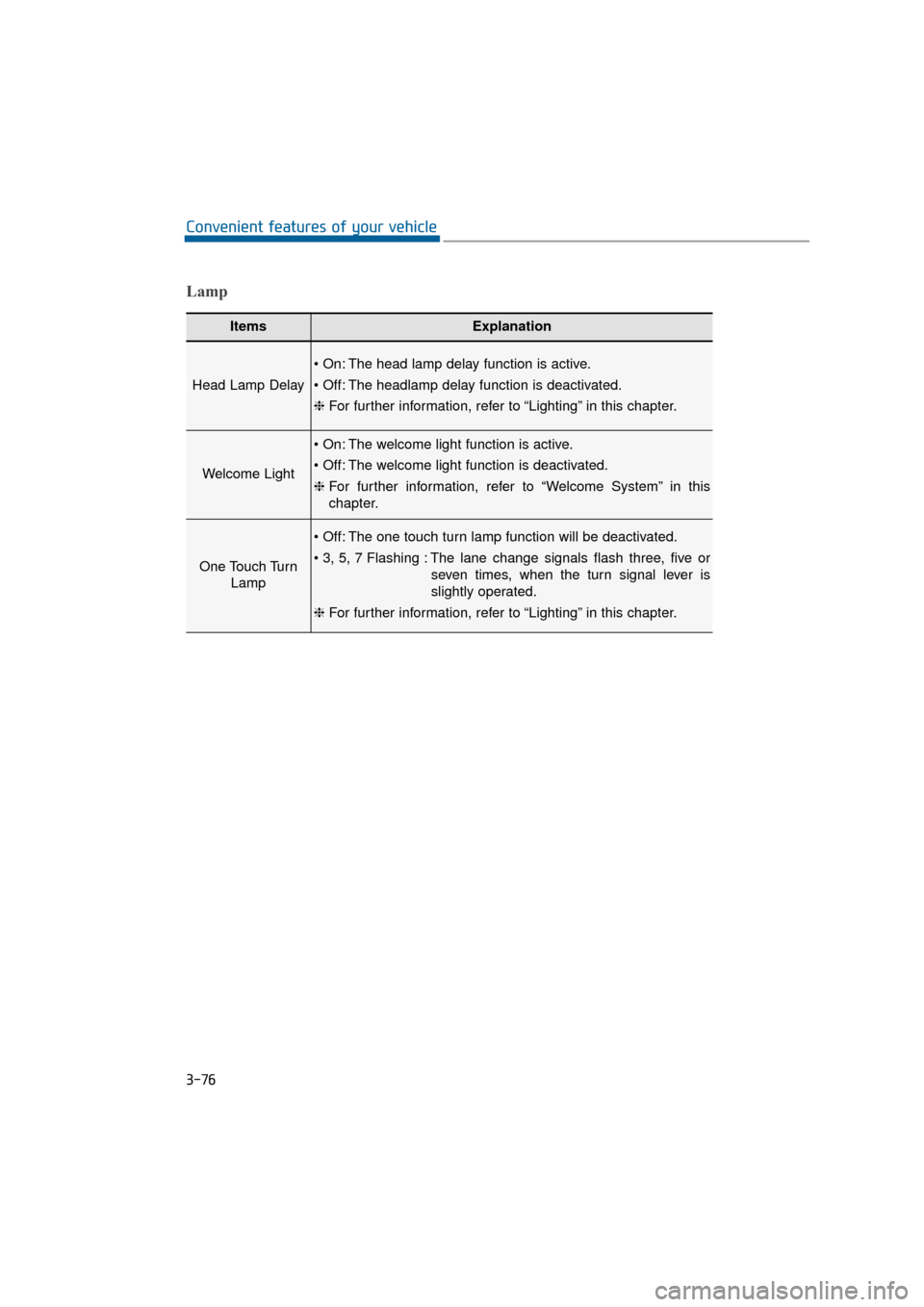

ItemsExplanation
Head Lamp Delay
The head lamp delay function is active.
The headlamp delay function is deactivated.
❈For further information, refer to “Lighting” in this chapter.
Welcome Light
The welcome light function is active.
The welcome light function is deactivated.
❈For further information, refer to “Welcome System” in this
chapter.
One Touch Turn
Lamp
The one touch turn lamp function will be deactivated.
The lane change signals flash three, five or
seven times, when the turn signal lever is
slightly operated.
❈ For further information, refer to “Lighting” in this chapter.
Lamp
Page 172 of 477

3-77
Convenient features of your vehicle03
ItemsExplanation
Seat Easy Access
The seat easy access function is deactivated.
- When you turn OFF the engine, the driver’s seat automati-cally moves backwards by 2 inch (Normal) or 3 inch
(Enhanced) for more comfortable entering or exiting.
- When the Engine Start/Stop Button is turned to the ACC, ON, or START position from the OFF position, the driver’s seat
resets to its default position.
❈ For further information, refer to “Driver Position Memory
System” in the chapter 3.
Steering Easy
Access
The steering wheel automatically moves forwards or back-
wards for the driver's comfortable entering or exiting.
The steering easy access function is deactivated.
❈ For further information, refer to “Driver Position Memory
System” in the chapter 3.
Driver Convenience
Haptic Steering System Switch (if equipped)
Adjust a tightening level of the haptic rotating switch on the steering wheel on
the LCD display (Strong, Normal, Mild).
❈ For further information about the haptic switch, refer to "LCD Display
Control" in this chapter.
Page 173 of 477

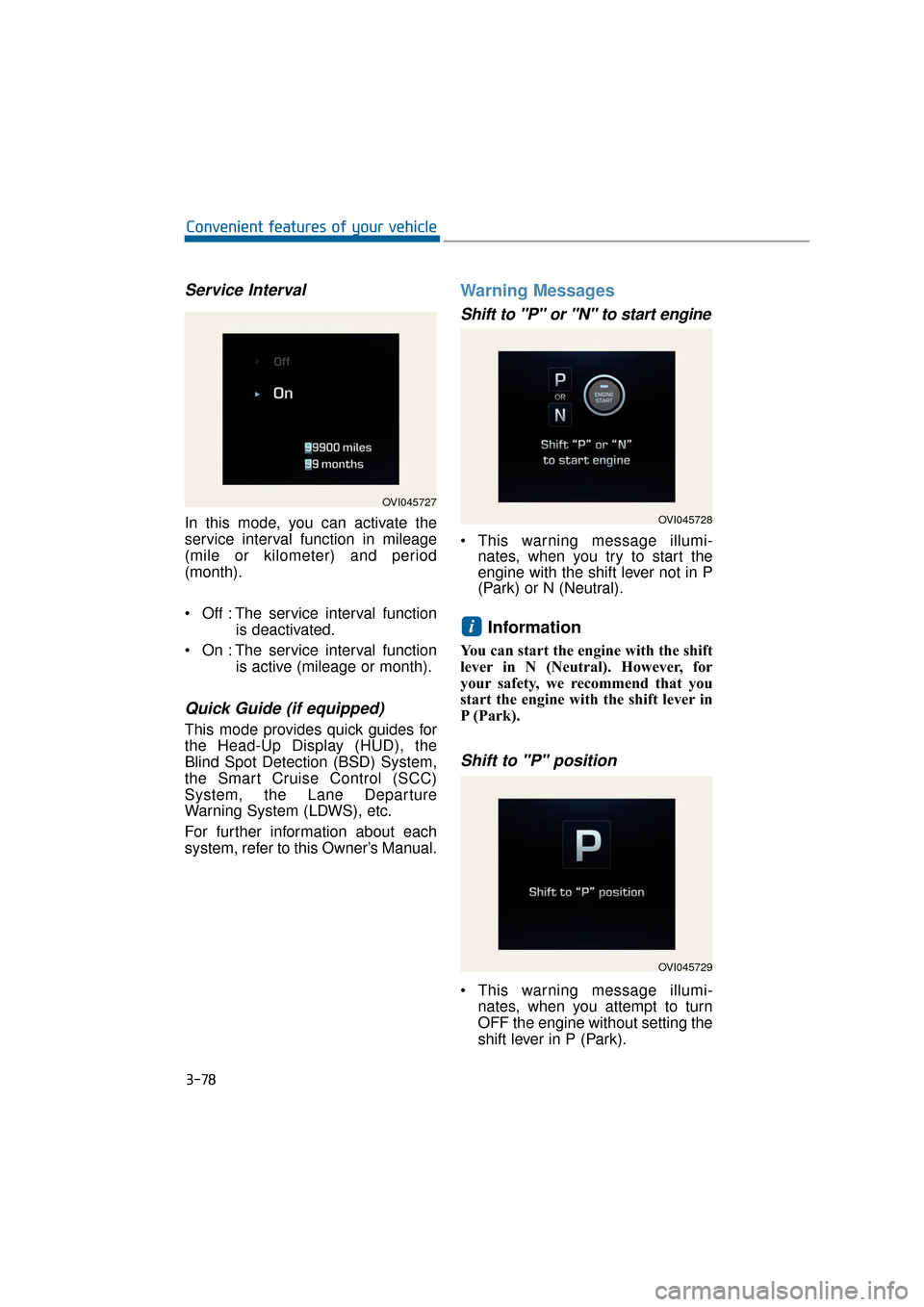

Service Interval
In this mode, you can activate the
service interval function in mileage
(mile or kilometer) and period
(month).
Off : The service interval functionis deactivated.
On : The service interval function is active (mileage or month).
Quick Guide (if equipped)
This mode provides quick guides for
the Head-Up Display (HUD), the
Blind Spot Detection (BSD) System,
the Smart Cruise Control (SCC)
System, the Lane Departure
Warning System (LDWS), etc.
For further information about each
system, refer to this Owner’s Manual.
Warning Messages
Shift to "P" or "N" to start engine
This warning message illumi-nates, when you try to start the
engine with the shift lever not in P
(Park) or N (Neutral).
Information
You can start the engine with the shift
lever in N (Neutral). However, for
your safety, we recommend that you
start the engine with the shift lever in
P (Park).
Shift to "P" position
This warning message illumi-
nates, when you attempt to turn
OFF the engine without setting the
shift lever in P (Park).
i
3-78
Convenient features of your vehicle
OVI045727
OVI045728
OVI045729
Page 174 of 477

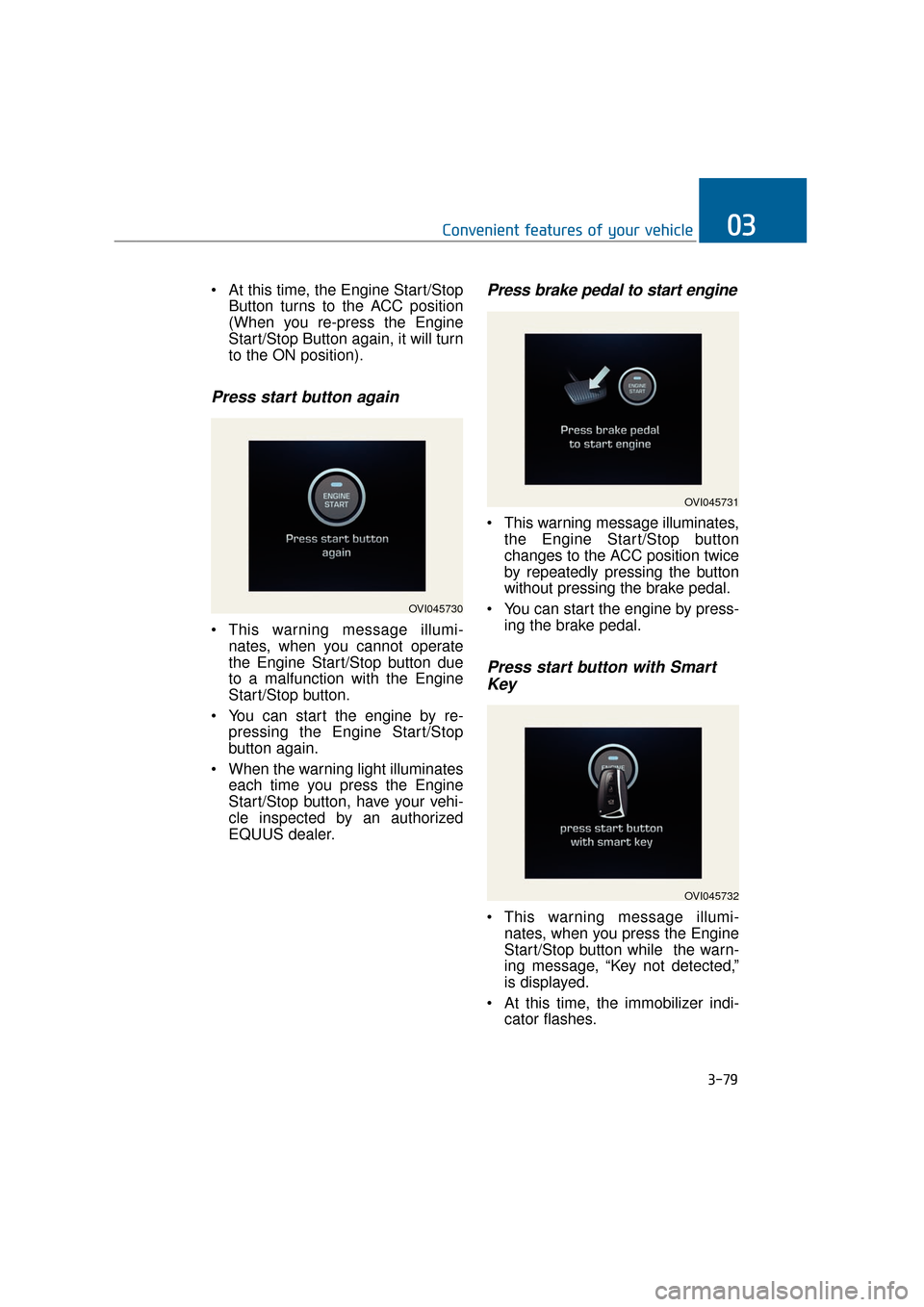

At this time, the Engine Start/StopButton turns to the ACC position
(When you re-press the Engine
Start/Stop Button again, it will turn
to the ON position).
Press start button again
This warning message illumi-nates, when you cannot operate
the Engine Start/Stop button due
to a malfunction with the Engine
Start/Stop button.
You can start the engine by re- pressing the Engine Start/Stop
button again.
When the warning light illuminates each time you press the Engine
Start/Stop button, have your vehi-
cle inspected by an authorized
EQUUS dealer.
Press brake pedal to start engine
This warning message illuminates,the Engine Start/Stop button
changes to the ACC position twice
by repeatedly pressing the button
without pressing the brake pedal.
You can start the engine by press- ing the brake pedal.
Press start button with SmartKey
This warning message illumi-
nates, when you press the Engine
Start/Stop button while the warn-
ing message, “Key not detected,”
is displayed.
At this time, the immobilizer indi- cator flashes.
3-79
Convenient features of your vehicle03
OVI045730
OVI045731
OVI045732
Page 175 of 477

Low Key Battery
This warning message illumi-nates, when the Smart-Key bat-
tery is discharged while turning
the Engine Start/Stop button to
the OFF position.
Key not detected
This warning message illumi-nates, when the Smart Key is not
detected while pressing the
Engine Start/Stop button.
Key not in vehicle
This warning message illumi-nates, when the Smart Key is out
of the vehicle while pressing the
Engine Start/Stop button.
You should always carry the Smart Key in your possession.
Press start button while turnsteering
This warning message illumi-
nates, when the steering wheel is
abnormally locked while pressing
the Engine Start/Stop button.
You should press the Engine Start/Stop button while turning the
steering wheel from side to side.
3-80
Convenient features of your vehicle
OVI045733
OVI045734
OVI045735
OVI045736
Page 176 of 477

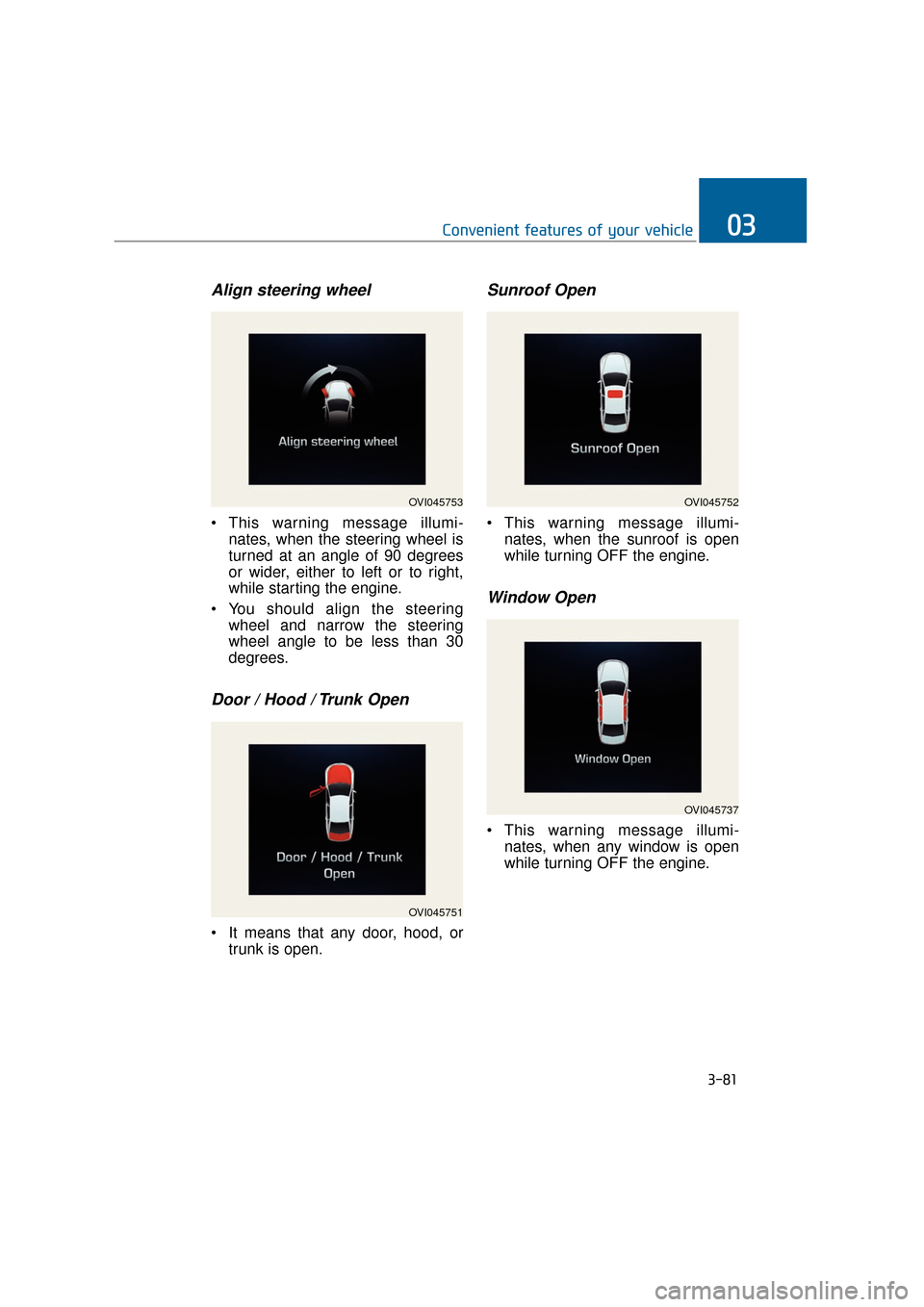

Align steering wheel
This warning message illumi-nates, when the steering wheel is
turned at an angle of 90 degrees
or wider, either to left or to right,
while starting the engine.
You should align the steering wheel and narrow the steering
wheel angle to be less than 30
degrees.
Door / Hood / Trunk Open
It means that any door, hood, ortrunk is open.
Sunroof Open
This warning message illumi-nates, when the sunroof is open
while turning OFF the engine.
Window Open
This warning message illumi-nates, when any window is open
while turning OFF the engine.
3-81
Convenient features of your vehicle03
OVI045753
OVI045751
OVI045752
OVI045737
Page 177 of 477

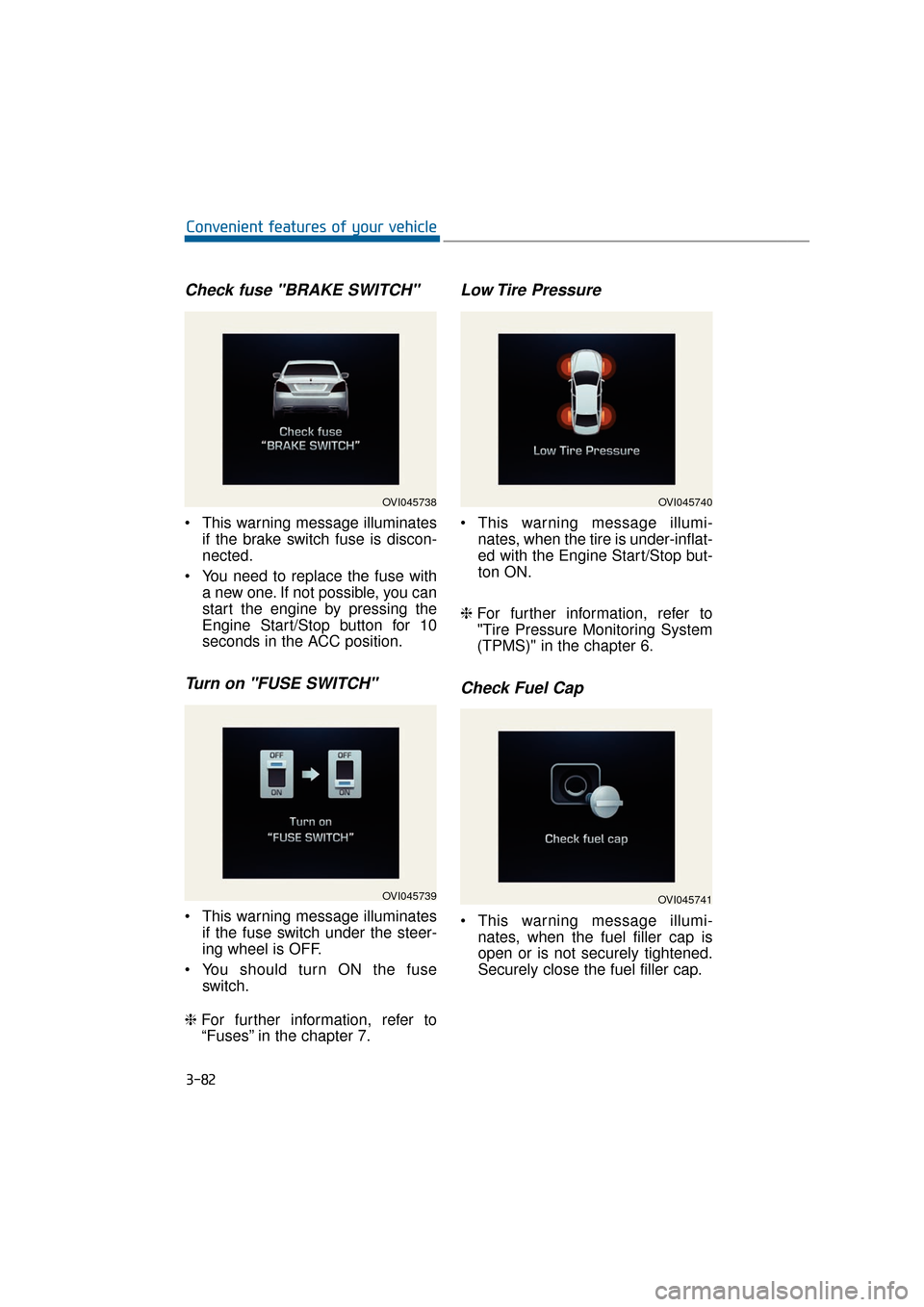

Check fuse "BRAKE SWITCH"
This warning message illuminatesif the brake switch fuse is discon-
nected.
You need to replace the fuse with a new one. If not possible, you can
start the engine by pressing the
Engine Start/Stop button for 10
seconds in the ACC position.
Turn on "FUSE SWITCH"
This warning message illuminatesif the fuse switch under the steer-
ing wheel is OFF.
You should turn ON the fuse switch.
❈ For further information, refer to
“Fuses” in the chapter 7.
Low Tire Pressure
This warning message illumi-
nates, when the tire is under-inflat-
ed with the Engine Start/Stop but-
ton ON.
❈ For further information, refer to
"Tire Pressure Monitoring System
(TPMS)" in the chapter 6.
Check Fuel Cap
This warning message illumi-
nates, when the fuel filler cap is
open or is not securely tightened.
Securely close the fuel filler cap.
3-82
Convenient features of your vehicle
OVI045738
OVI045739
OVI045740
OVI045741
Page 178 of 477

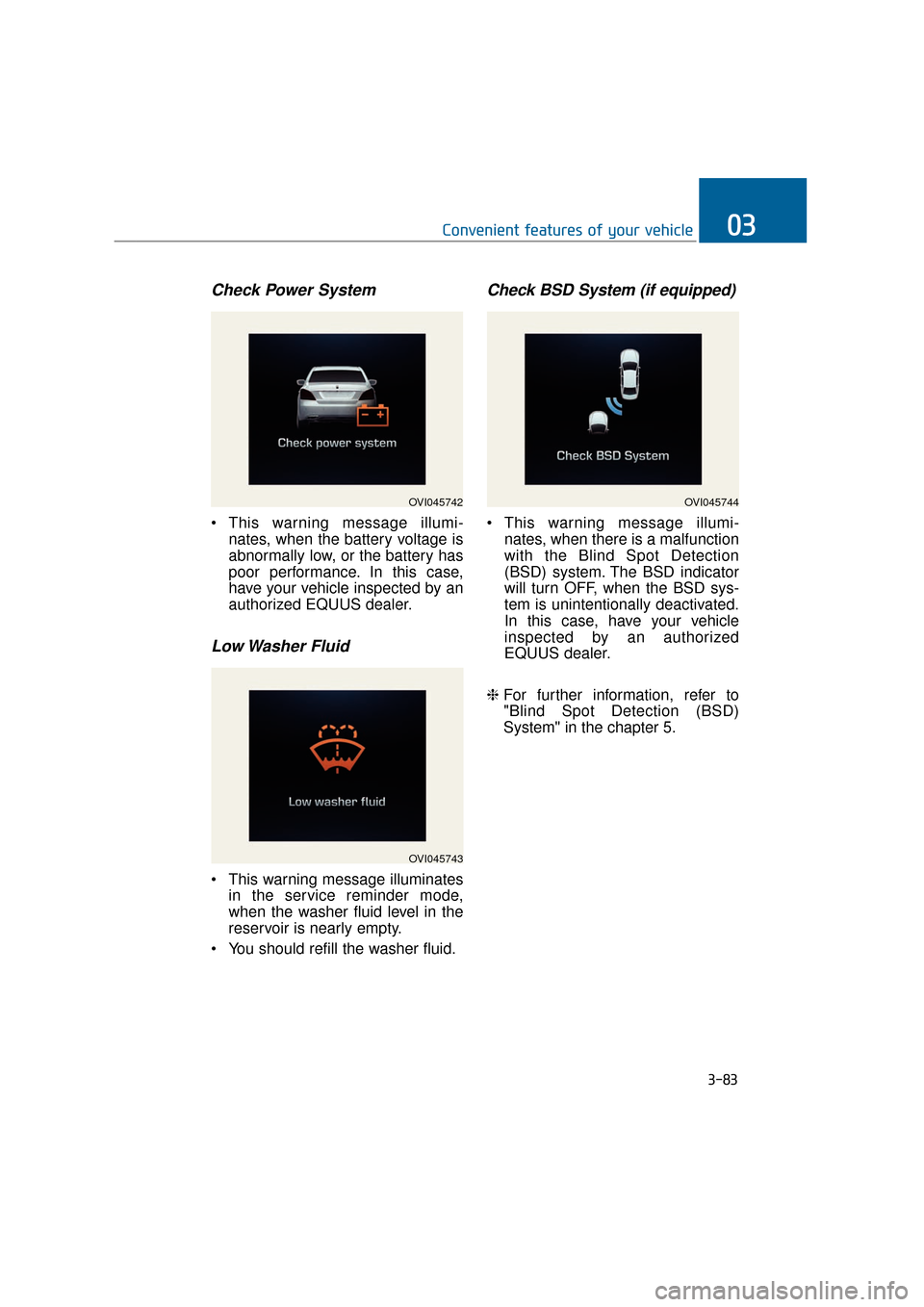

Check Power System
This warning message illumi-nates, when the battery voltage is
abnormally low, or the battery has
poor performance. In this case,
have your vehicle inspected by an
authorized EQUUS dealer.
Low Washer Fluid
This warning message illuminatesin the service reminder mode,
when the washer fluid level in the
reservoir is nearly empty.
You should refill the washer fluid.
Check BSD System (if equipped)
This warning message illumi- nates, when there is a malfunction
with the Blind Spot Detection
(BSD) system. The BSD indicator
will turn OFF, when the BSD sys-
tem is unintentionally deactivated.
In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
❈ For further information, refer to
"Blind Spot Detection (BSD)
System" in the chapter 5.
3-83
Convenient features of your vehicle03
OVI045743
OVI045744OVI045742
Page 179 of 477

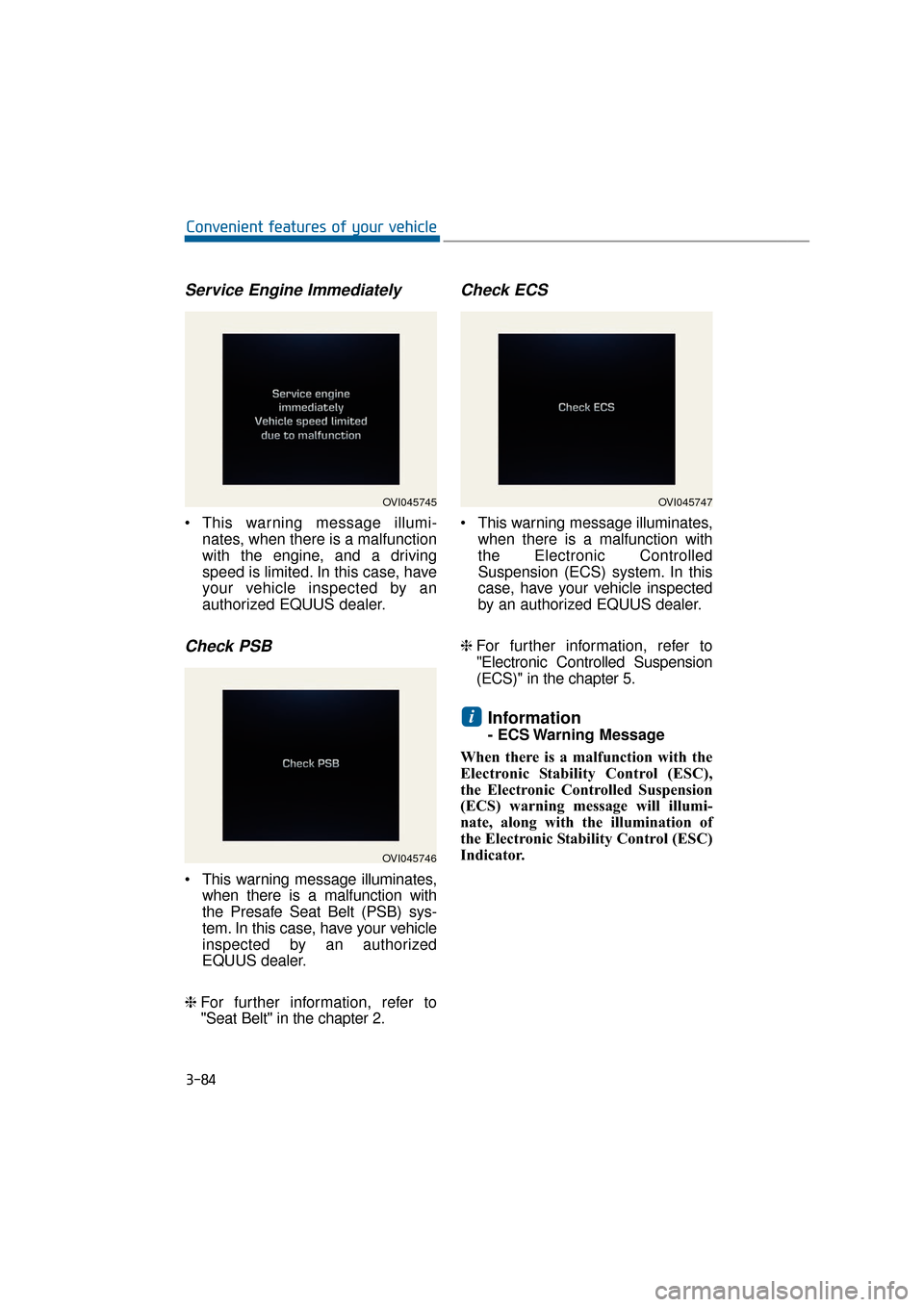

Service Engine Immediately
This warning message illumi-nates, when there is a malfunction
with the engine, and a driving
speed is limited. In this case, have
your vehicle inspected by an
authorized EQUUS dealer.
Check PSB
This warning message illuminates,when there is a malfunction with
the Presafe Seat Belt (PSB) sys-
tem. In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
❈ For further information, refer to
"Seat Belt" in the chapter 2.
Check ECS
This warning message illuminates,
when there is a malfunction with
the Electronic Controlled
Suspension (ECS) system. In this
case, have your vehicle inspected
by an authorized EQUUS dealer.
❈ For further information, refer to
"Electronic Controlled Suspension
(ECS)" in the chapter 5.
Information
- ECS Warning Message
When there is a malfunction with the
Electronic Stability Control (ESC),
the Electronic Controlled Suspension
(ECS) warning message will illumi-
nate, along with the illumination of
the Electronic Stability Control (ESC)
Indicator.
i
3-84
Convenient features of your vehicle
OVI045745
OVI045746
OVI045747
Page 180 of 477

- ECS Warning Message
When the Electronic ControlledSuspension (ECS) Warning
Message illuminates due to the
under-pressure inside the sus-
pension, the vehicle height will be
very low. In this case, do not drive
the vehicle in order to protect it
from a projection on a surface. In
this case, have your vehicle
inspected by an authorized
EQUUS dealer.
When towing the vehicle, you should follow the "Electronic
Controlled Suspension (ECS)"
instructions in the chapter 5.
Check SCC System
This warning message illuminates, when there is a malfunction with
the advanced smart cruise control
system. In this case, have your
vehicle inspected by an authorized
EQUUS dealer.
❈ For further information, refer to
"Advanced Smart Cruise Control
System" in the chapter 5.
Check SCC Radar
This warning message illumi-
nates, when the radar of the
advanced smart cruise control
system or its cover is stained.
Remove the stains with a soft
cloth.
❈ For further information, refer to
"Advanced Smart Cruise Control
System" in the chapter 5.
NOTICE
3-85
Convenient features of your vehicle03
OVI045748
OVI045749
