HYUNDAI PALISADE 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: PALISADE, Model: HYUNDAI PALISADE 2022Pages: 663, PDF Size: 15.74 MB

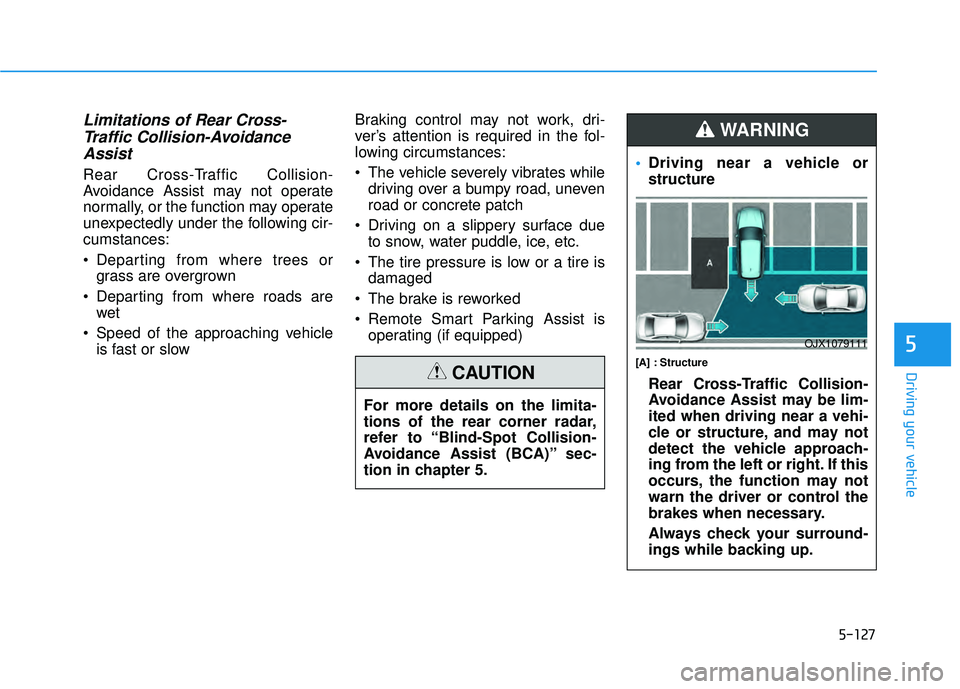

Page 461 of 663

5-127
Driving your vehicle
5
Limitations of Rear Cross-Traffic Collision-AvoidanceAssist
Rear Cross-Traffic Collision-
Avoidance Assist may not operate
normally, or the function may operate
unexpectedly under the following cir-
cumstances:
Departing from where trees or
grass are overgrown
Departing from where roads are wet
Speed of the approaching vehicle is fast or slow Braking control may not work, dri-
ver’s attention is required in the fol-
lowing circumstances:
The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch
Driving on a slippery surface due to snow, water puddle, ice, etc.
The tire pressure is low or a tire is damaged
The brake is reworked
Remote Smart Parking Assist is operating (if equipped)
For more details on the limita-
tions of the rear corner radar,
refer to “Blind-Spot Collision-
Avoidance Assist (BCA)” sec-
tion in chapter 5.
CAUTION
Driving near a vehicle or
structure
[A] : Structure
Rear Cross-Traffic Collision-
Avoidance Assist may be lim-
ited when driving near a vehi-
cle or structure, and may not
detect the vehicle approach-
ing from the left or right. If this
occurs, the function may not
warn the driver or control the
brakes when necessary.
Always check your surround-
ings while backing up.
WARNING
OJX1079111

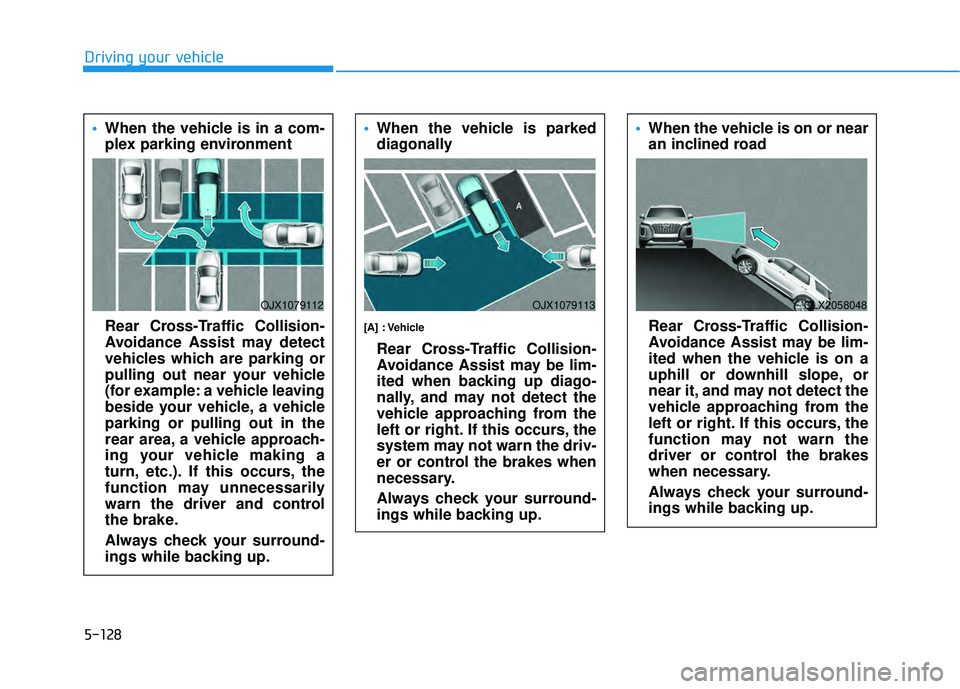

Page 462 of 663

5-128
Driving your vehicle When the vehicle is in a com-
plex parking environment
Rear Cross-Traffic Collision-
Avoidance Assist may detect
vehicles which are parking or
pulling out near your vehicle
(for example: a vehicle leaving
beside your vehicle, a vehicle
parking or pulling out in the
rear area, a vehicle approach-
ing your vehicle making a
turn, etc.). If this occurs, the
function may unnecessarily
warn the driver and control
the brake.
Always check your surround-
ings while backing up.
OJX1079112
When the vehicle is parked
diagonally
[A] : Vehicle
Rear Cross-Traffic Collision-
Avoidance Assist may be lim-
ited when backing up diago-
nally, and may not detect the
vehicle approaching from the
left or right. If this occurs, the
system may not warn the driv-
er or control the brakes when
necessary.
Always check your surround-
ings while backing up.
OJX1079113
When the vehicle is on or near
an inclined road
Rear Cross-Traffic Collision-
Avoidance Assist may be lim-
ited when the vehicle is on a
uphill or downhill slope, or
near it, and may not detect the
vehicle approaching from the
left or right. If this occurs, the
function may not warn the
driver or control the brakes
when necessary.
Always check your surround-
ings while backing up.
OLX2058048

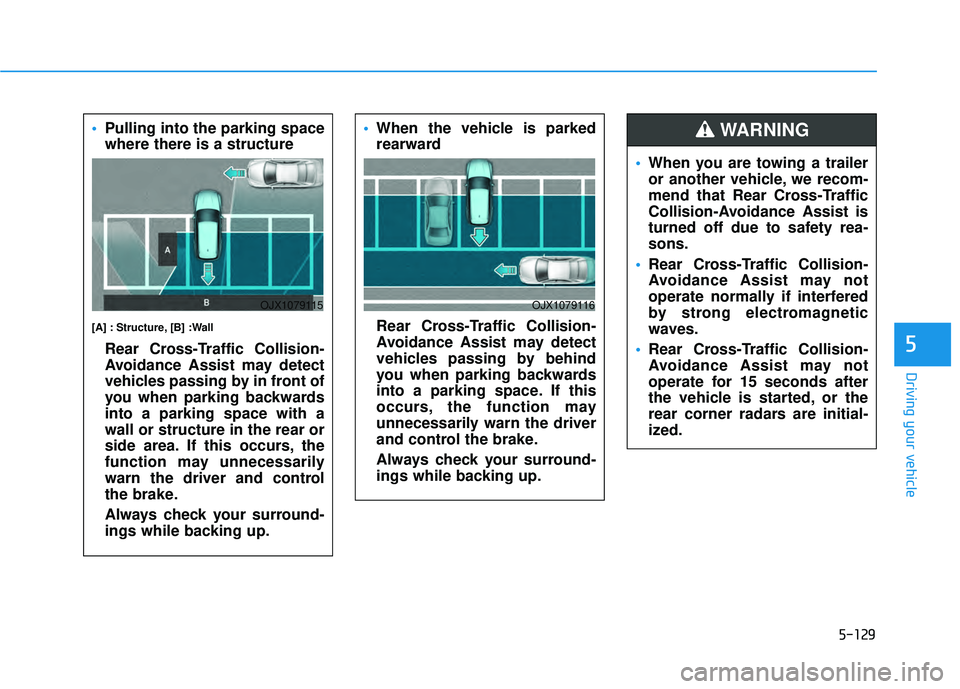

Page 463 of 663

5-129
Driving your vehicle
5
When you are towing a trailer
or another vehicle, we recom-
mend that Rear Cross-Traffic
Collision-Avoidance Assist is
turned off due to safety rea-
sons.
Rear Cross-Traffic Collision-
Avoidance Assist may not
operate normally if interfered
by strong electromagnetic
waves.
Rear Cross-Traffic Collision-
Avoidance Assist may not
operate for 15 seconds after
the vehicle is started, or the
rear corner radars are initial-
ized.
WARNING Pulling into the parking space
where there is a structure
[A] : Structure, [B] :Wall
Rear Cross-Traffic Collision-
Avoidance Assist may detect
vehicles passing by in front of
you when parking backwards
into a parking space with a
wall or structure in the rear or
side area. If this occurs, the
function may unnecessarily
warn the driver and control
the brake.
Always check your surround-
ings while backing up.
OJX1079115
When the vehicle is parked
rearward
Rear Cross-Traffic Collision-
Avoidance Assist may detect
vehicles passing by behind
you when parking backwards
into a parking space. If this
occurs, the function may
unnecessarily warn the driver
and control the brake.
Always check your surround-
ings while backing up.
OJX1079116

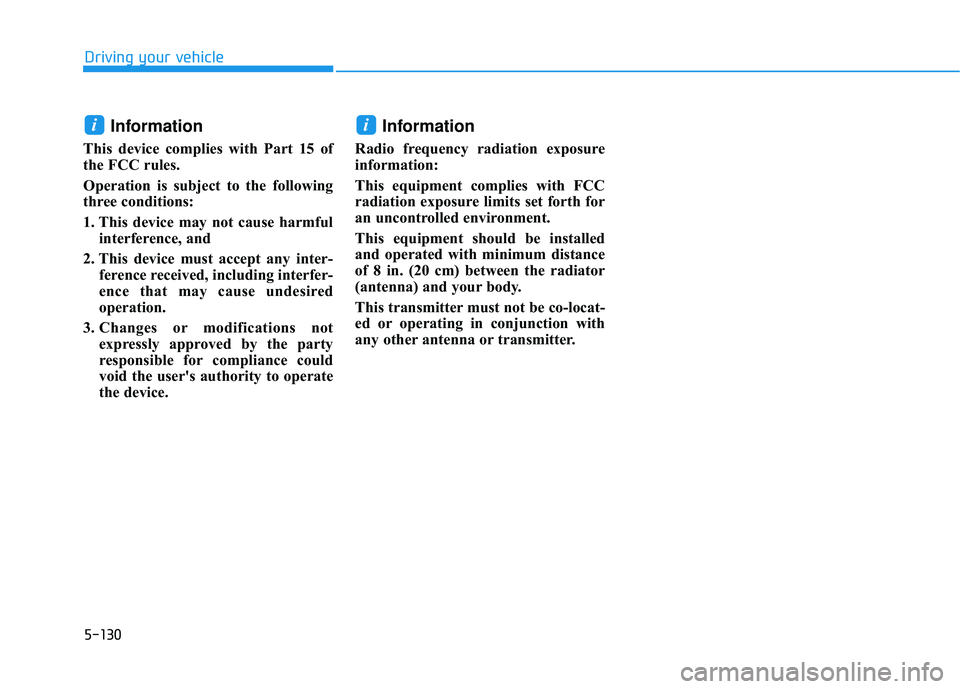

Page 464 of 663

5-130
Driving your vehicle
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmfulinterference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in. (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-locat-
ed or operating in conjunction with
any other antenna or transmitter.
ii

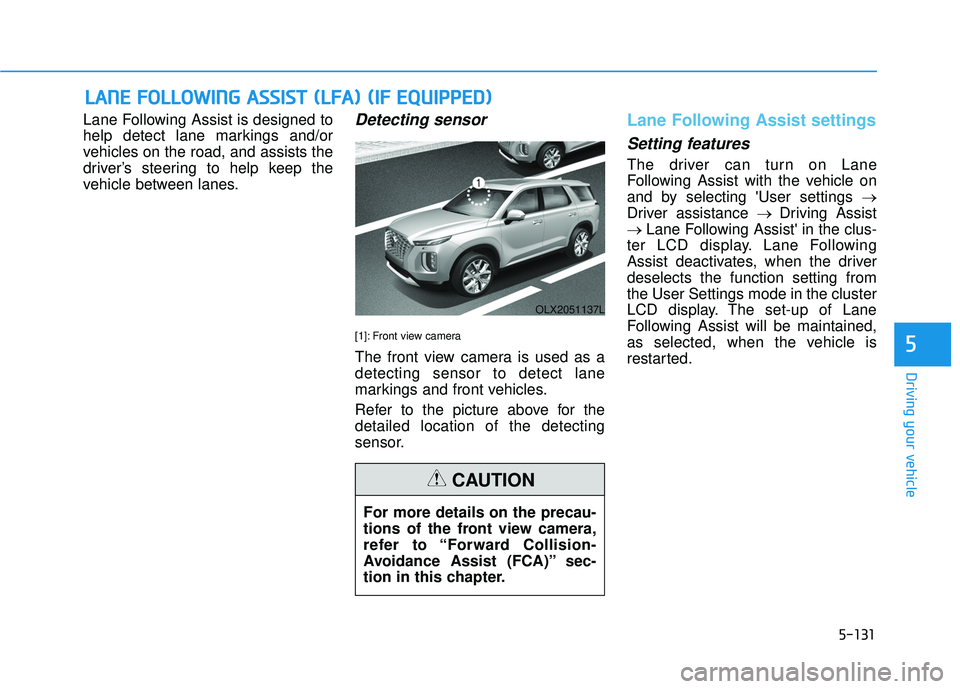

Page 465 of 663

5-131
Driving your vehicle
5
Lane Following Assist is designed to
help detect lane markings and/or
vehicles on the road, and assists the
driver’s steering to help keep the
vehicle between lanes.Detecting sensor
[1]: Front view camera
The front view camera is used as a
detecting sensor to detect lane
markings and front vehicles.
Refer to the picture above for the
detailed location of the detecting
sensor.
Lane Following Assist settings
Setting features
The driver can turn on Lane
Following Assist with the vehicle on
and by selecting 'User settings →
Driver assistance → Driving Assist
→ Lane Following Assist' in the clus-
ter LCD display. Lane Following
Assist deactivates, when the driver
deselects the function setting from
the User Settings mode in the cluster
LCD display. The set-up of Lane
Following Assist will be maintained,
as selected, when the vehicle is
restarted.
L L A A N N E E F F O O L LL LO O W W I IN N G G A A S SS SI IS S T T ( ( L L F F A A ) ) ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
OLX2051137L
For more details on the precau-
tions of the front view camera,
refer to “Forward Collision-
Avoidance Assist (FCA)” sec-
tion in this chapter.
CAUTION
5

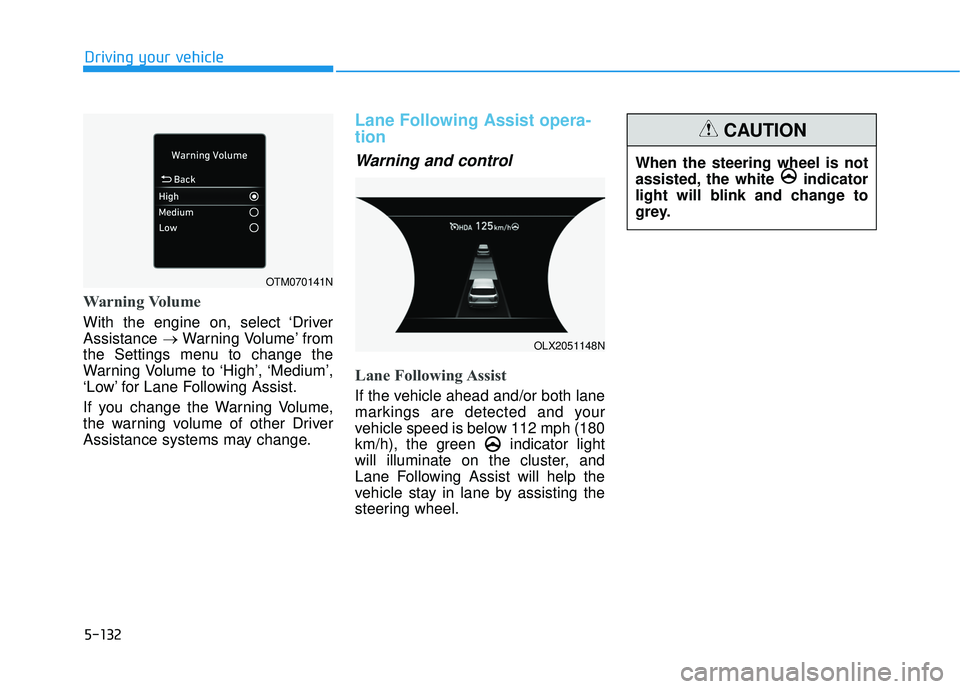

Page 466 of 663

5-132
Driving your vehicle
Warning Volume
With the engine on, select ‘Driver
Assistance →Warning Volume’ from
the Settings menu to change the
Warning Volume to ‘High’, ‘Medium’,
‘Low’ for Lane Following Assist.
If you change the Warning Volume,
the warning volume of other Driver
Assistance systems may change.
Lane Following Assist opera-
tion
Warning and control
Lane Following Assist
If the vehicle ahead and/or both lane
markings are detected and your
vehicle speed is below 112 mph (180
km/h), the green indicator light
will illuminate on the cluster, and
Lane Following Assist will help the
vehicle stay in lane by assisting the
steering wheel.
When the steering wheel is not
assisted, the white indicator
light will blink and change to
grey.
CAUTION
OTM070141N
OLX2051148N

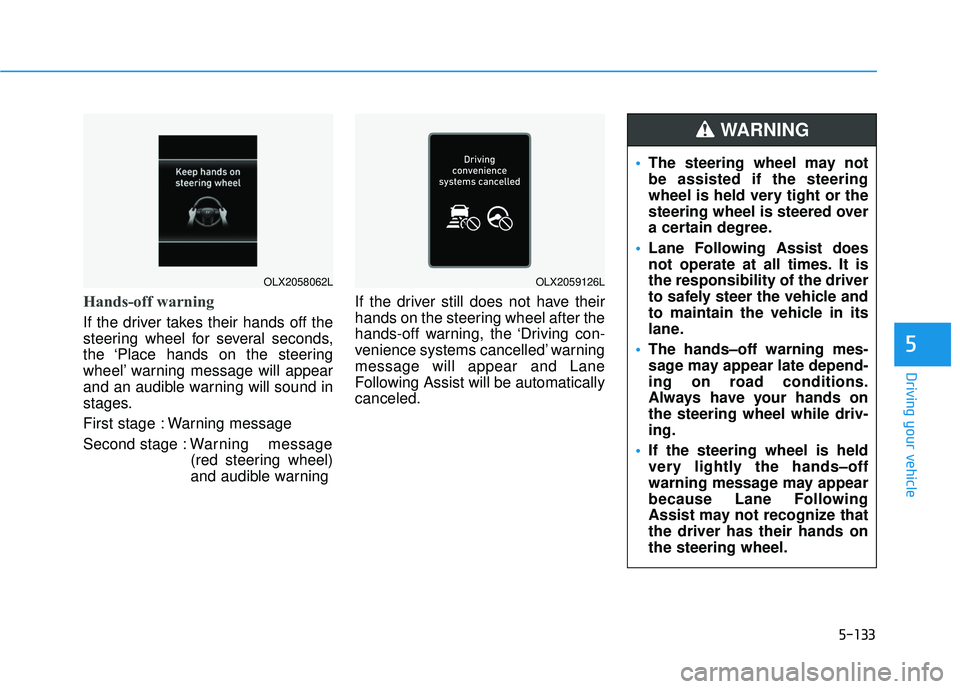

Page 467 of 663

5-133
Driving your vehicle
5
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
wheel’ warning message will appear
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message
(red steering wheel)
and audible warning If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Driving con-
venience systems cancelled’ warning
message will appear and Lane
Following Assist will be automatically
canceled.
OLX2058062LOLX2059126L
The steering wheel may not
be assisted if the steering
wheel is held very tight or the
steering wheel is steered over
a certain degree.
Lane Following Assist does
not operate at all times. It is
the responsibility of the driver
to safely steer the vehicle and
to maintain the vehicle in its
lane.
The hands–off warning mes-
sage may appear late depend-
ing on road conditions.
Always have your hands on
the steering wheel while driv-
ing.
If the steering wheel is held
very lightly the hands–off
warning message may appear
because Lane Following
Assist may not recognize that
the driver has their hands on
the steering wheel.
WARNING

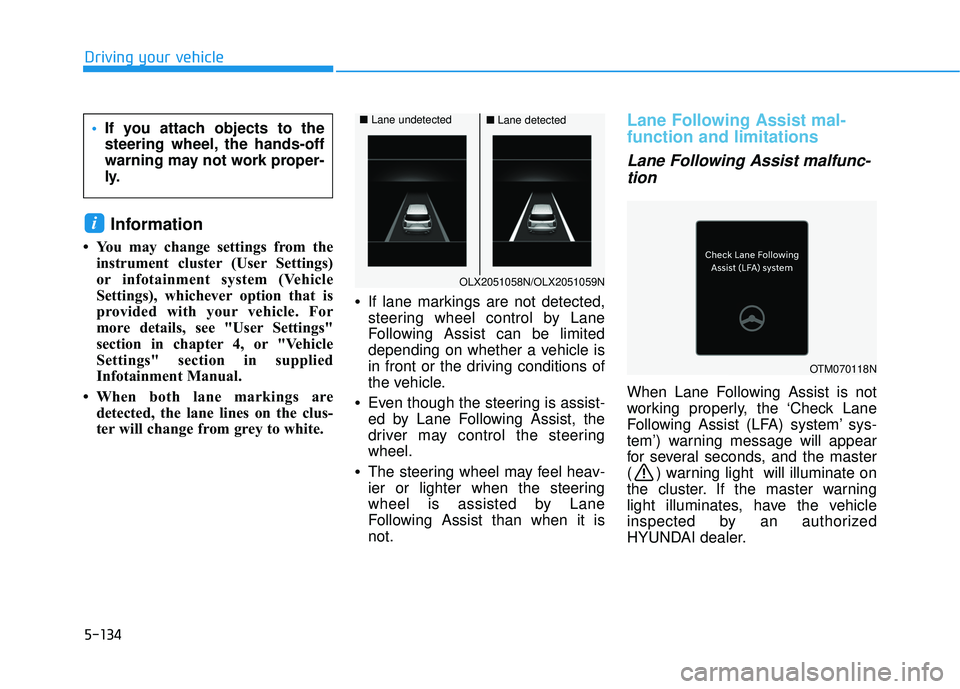

Page 468 of 663

5-134
Driving your vehicle
Information
• You may change settings from theinstrument cluster (User Settings)
or infotainment system (Vehicle
Settings), whichever option that is
provided with your vehicle. For
more details, see "User Settings"
section in chapter 4, or "Vehicle
Settings" section in supplied
Infotainment Manual.
• When both lane markings are detected, the lane lines on the clus-
ter will change from grey to white. •
If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is
in front or the driving conditions of
the vehicle.
• Even though the steering is assist-
ed by Lane Following Assist, the
driver may control the steering
wheel.
• The steering wheel may feel heav-
ier or lighter when the steering
wheel is assisted by Lane
Following Assist than when it is
not.
Lane Following Assist mal-
function and limitations
Lane Following Assist malfunc-
tion
When Lane Following Assist is not
working properly, the ‘Check Lane
Following Assist (LFA) system’ sys-
tem’) warning message will appear
for several seconds, and the master
( ) warning light will illuminate on
the cluster. If the master warning
light illuminates, have the vehicle
inspected by an authorized
HYUNDAI dealer.
i
If you attach objects to the
steering wheel, the hands-off
warning may not work proper-
ly.
OLX2051058N/OLX2051059N
■ Lane undetected■Lane detected
OTM070118N

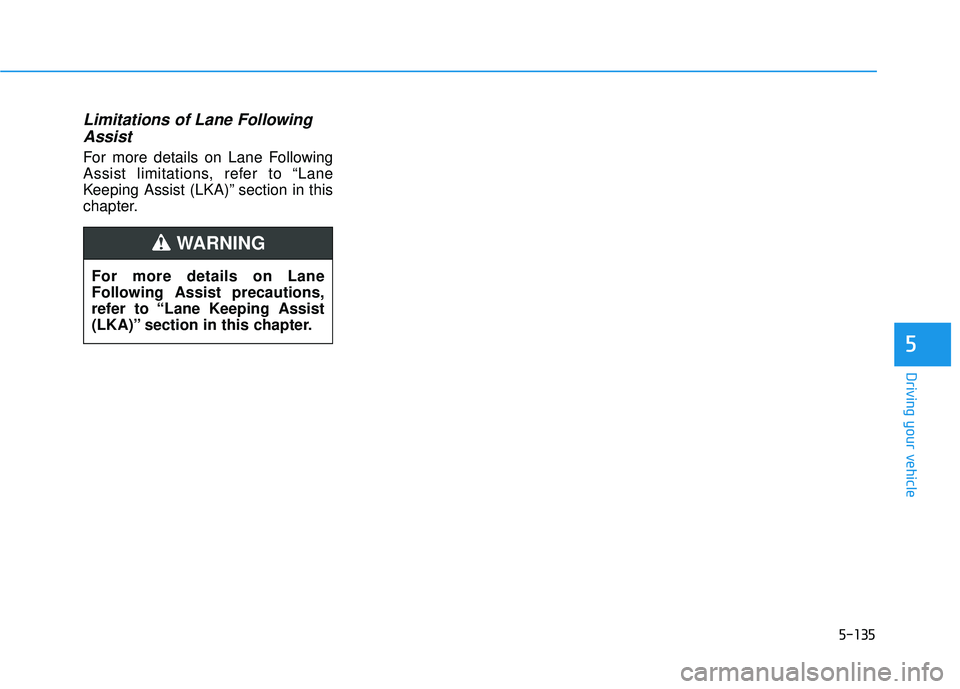

Page 469 of 663

5-135
Driving your vehicle
5
Limitations of Lane FollowingAssist
For more details on Lane Following
Assist limitations, refer to “Lane
Keeping Assist (LKA)” section in this
chapter.
For more details on Lane
Following Assist precautions,
refer to “Lane Keeping Assist
(LKA)” section in this chapter.
WARNING

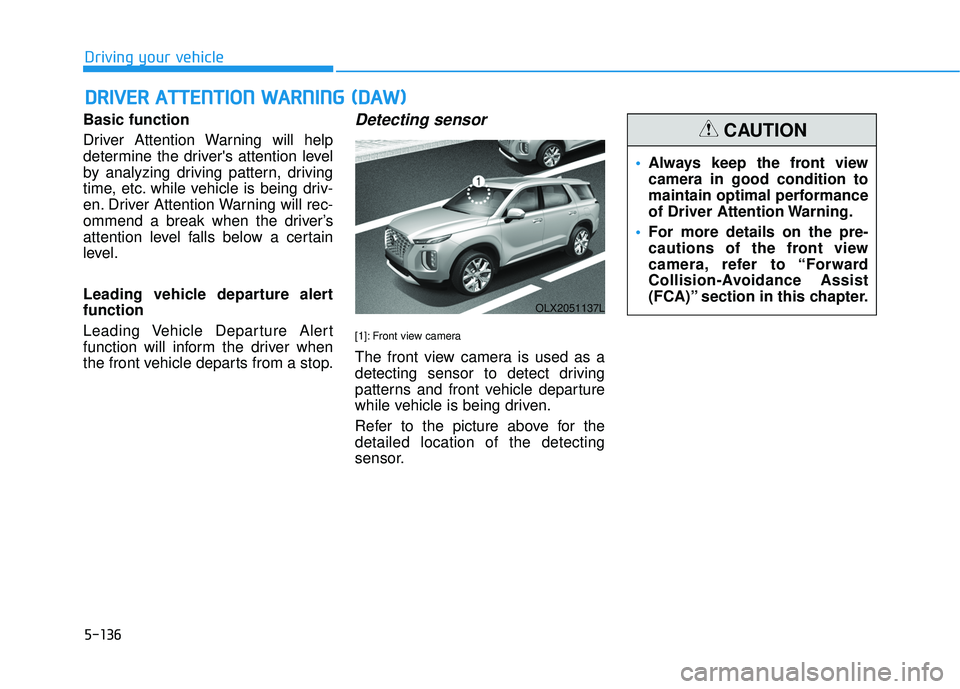

Page 470 of 663

5-136
Driving your vehicle
Basic function
Driver Attention Warning will help
determine the driver's attention level
by analyzing driving pattern, driving
time, etc. while vehicle is being driv-
en. Driver Attention Warning will rec-
ommend a break when the driver’s
attention level falls below a certain
level.
Leading vehicle departure alert
function
Leading Vehicle Departure Alert
function will inform the driver when
the front vehicle departs from a stop.
Detecting sensor
[1]: Front view camera
The front view camera is used as a
detecting sensor to detect driving
patterns and front vehicle departure
while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting
sensor.
D D R RI IV V E ER R A A T TT TE EN N T TI IO O N N W W A AR RN N I IN N G G ( ( D D A A W W ) )
OLX2051137L
Always keep the front view
camera in good condition to
maintain optimal performance
of Driver Attention Warning.
For more details on the pre-
cautions of the front view
camera, refer to “Forward
Collision-Avoidance Assist
(FCA)” section in this chapter.
CAUTION
