5-147
Driving your vehicle

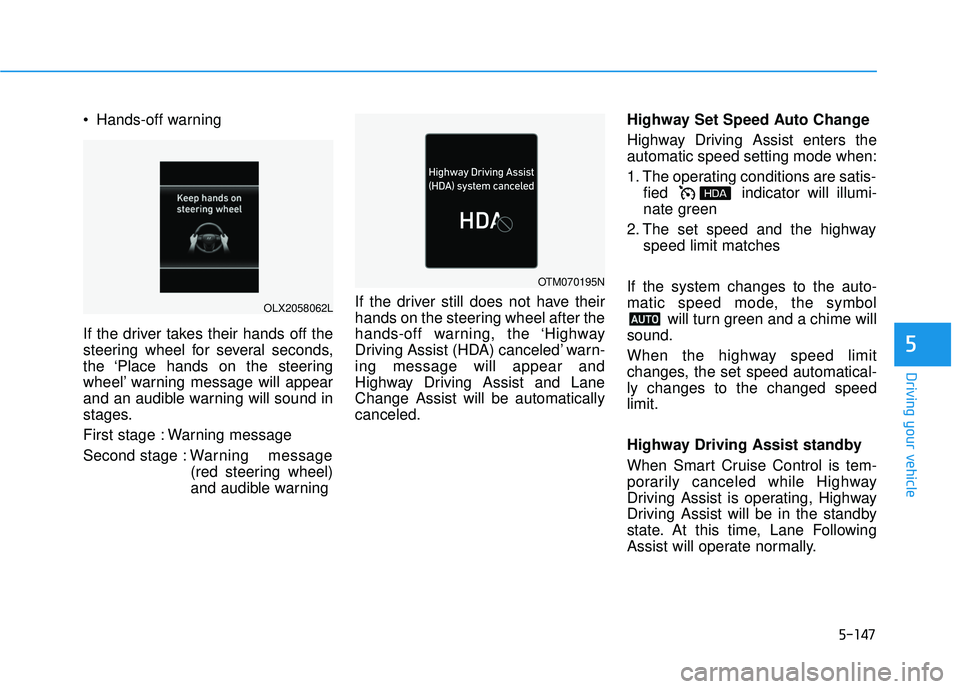

Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Place hands on the steering
wheel’ warning message will appear
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message
(red steering wheel)
and audible warning If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Highway
Driving Assist (HDA) canceled’ warn-
ing message will appear and
Highway Driving Assist and Lane
Change Assist will be automatically
canceled. Highway Set Speed Auto Change
Highway Driving Assist enters the
automatic speed setting mode when:
1. The operating conditions are satis-
fied indicator will illumi-
nate green
2. The set speed and the highway speed limit matches
If the system changes to the auto-
matic speed mode, the symbol will turn green and a chime will
sound.
When the highway speed limit
changes, the set speed automatical-
ly changes to the changed speed
limit.
Highway Driving Assist standby
When Smart Cruise Control is tem-
porarily canceled while Highway
Driving Assist is operating, Highway
Driving Assist will be in the standby
state. At this time, Lane Following
Assist will operate normally.
5
OLX2058062L
OTM070195N

5-148

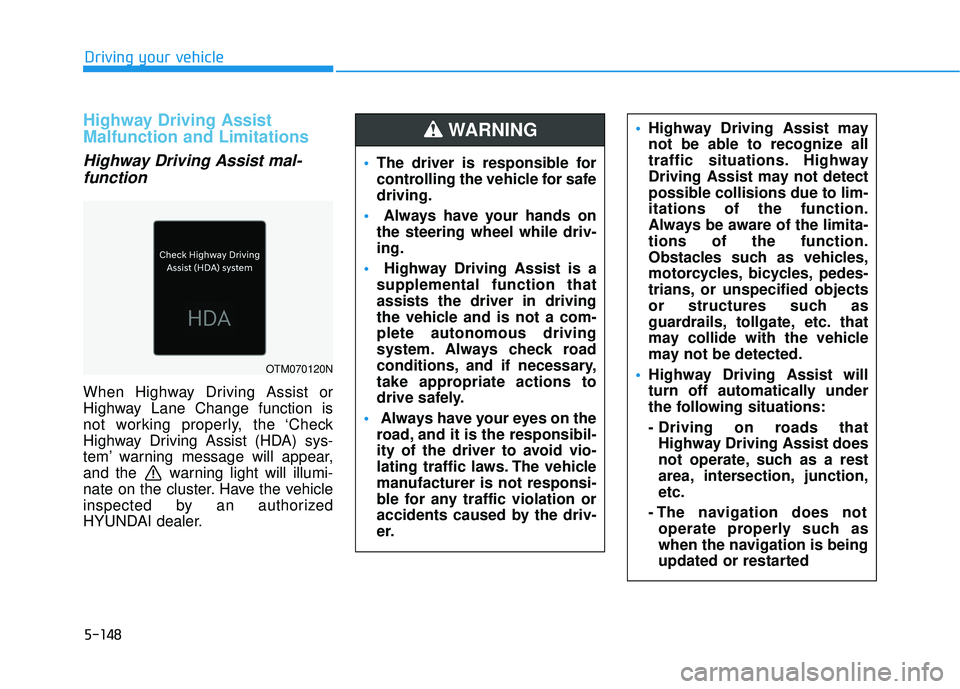

Highway Driving Assist
Malfunction and Limitations
Highway Driving Assist mal-function
When Highway Driving Assist or
Highway Lane Change function is
not working properly, the ‘Check
Highway Driving Assist (HDA) sys-
tem’ warning message will appear,
and the warning light will illumi-
nate on the cluster. Have the vehicle
inspected by an authorized
HYUNDAI dealer.
Driving your vehicle
OTM070120N
The driver is responsible for
controlling the vehicle for safe
driving.
Always have your hands on
the steering wheel while driv-
ing.
Highway Driving Assist is a
supplemental function that
assists the driver in driving
the vehicle and is not a com-
plete autonomous driving
system. Always check road
conditions, and if necessary,
take appropriate actions to
drive safely.
Always have your eyes on the
road, and it is the responsibil-
ity of the driver to avoid vio-
lating traffic laws. The vehicle
manufacturer is not responsi-
ble for any traffic violation or
accidents caused by the driv-
er.
Highway Driving Assist may
not be able to recognize all
traffic situations. Highway
Driving Assist may not detect
possible collisions due to lim-
itations of the function.
Always be aware of the limita-
tions of the function.
Obstacles such as vehicles,
motorcycles, bicycles, pedes-
trians, or unspecified objects
or structures such as
guardrails, tollgate, etc. that
may collide with the vehicle
may not be detected.
Highway Driving Assist will
turn off automatically under
the following situations:
- Driving on roads that
Highway Driving Assist does
not operate, such as a rest
area, intersection, junction,
etc.
- The navigation does not operate properly such as
when the navigation is being
updated or restarted WARNING

5-149
Driving your vehicle

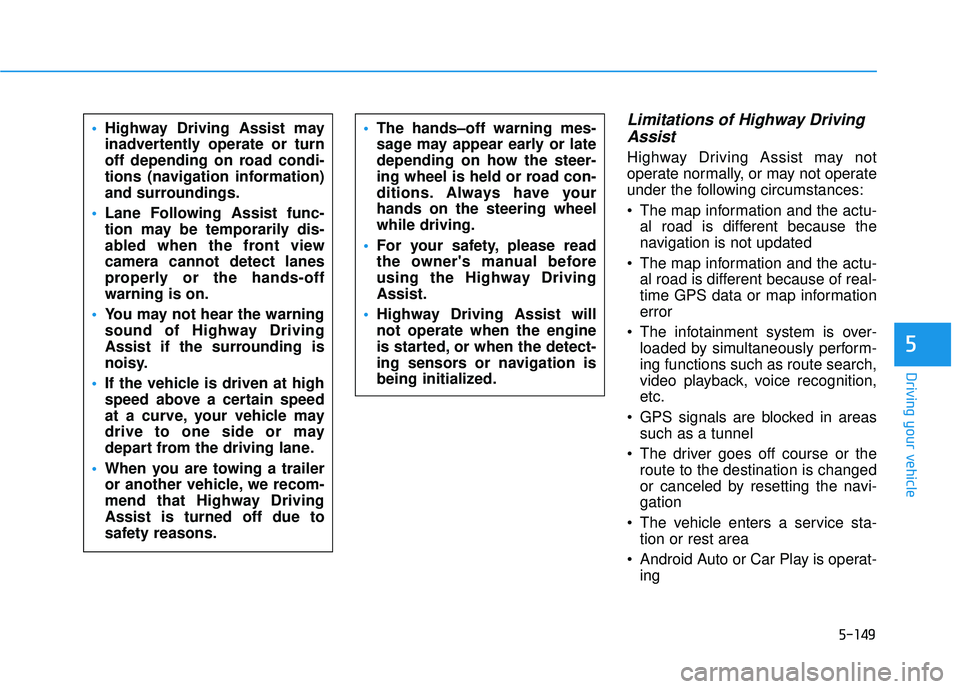

Limitations of Highway DrivingAssist
Highway Driving Assist may not
operate normally, or may not operate
under the following circumstances:
The map information and the actu-
al road is different because the
navigation is not updated
The map information and the actu- al road is different because of real-
time GPS data or map information
error
The infotainment system is over- loaded by simultaneously perform-
ing functions such as route search,
video playback, voice recognition,
etc.
GPS signals are blocked in areas such as a tunnel
The driver goes off course or the route to the destination is changed
or canceled by resetting the navi-
gation
The vehicle enters a service sta- tion or rest area
Android Auto or Car Play is operat- ing
5
Highway Driving Assist may
inadvertently operate or turn
off depending on road condi-
tions (navigation information)
and surroundings.
Lane Following Assist func-
tion may be temporarily dis-
abled when the front view
camera cannot detect lanes
properly or the hands-off
warning is on.
You may not hear the warning
sound of Highway Driving
Assist if the surrounding is
noisy.
If the vehicle is driven at high
speed above a certain speed
at a curve, your vehicle may
drive to one side or may
depart from the driving lane.
When you are towing a trailer
or another vehicle, we recom-
mend that Highway Driving
Assist is turned off due to
safety reasons.The hands–off warning mes-
sage may appear early or late
depending on how the steer-
ing wheel is held or road con-
ditions. Always have your
hands on the steering wheel
while driving.
For your safety, please read
the owner's manual before
using the Highway Driving
Assist.
Highway Driving Assist will
not operate when the engine
is started, or when the detect-
ing sensors or navigation is
being initialized.

5-150

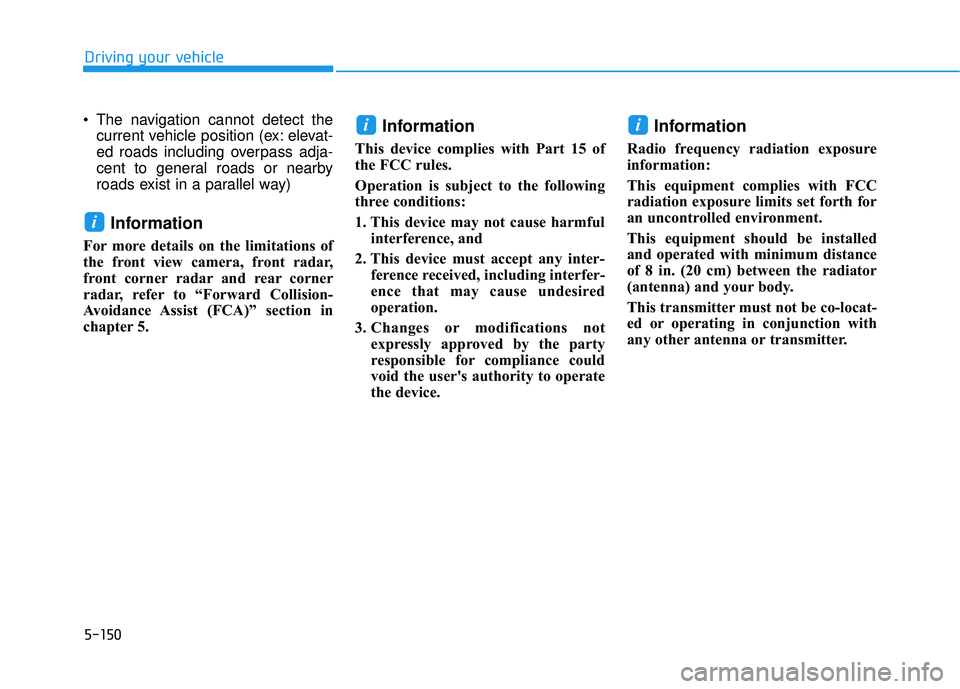

The navigation cannot detect thecurrent vehicle position (ex: elevat-
ed roads including overpass adja-
cent to general roads or nearby
roads exist in a parallel way)
Information
For more details on the limitations of
the front view camera, front radar,
front corner radar and rear corner
radar, refer to “Forward Collision-
Avoidance Assist (FCA)” section in
chapter 5.
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful interference, and
2. This device must accept any inter- ference received, including interfer-
ence that may cause undesired
operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in. (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-locat-
ed or operating in conjunction with
any other antenna or transmitter.
ii
i
Driving your vehicle

5-151
Driving your vehicle
5

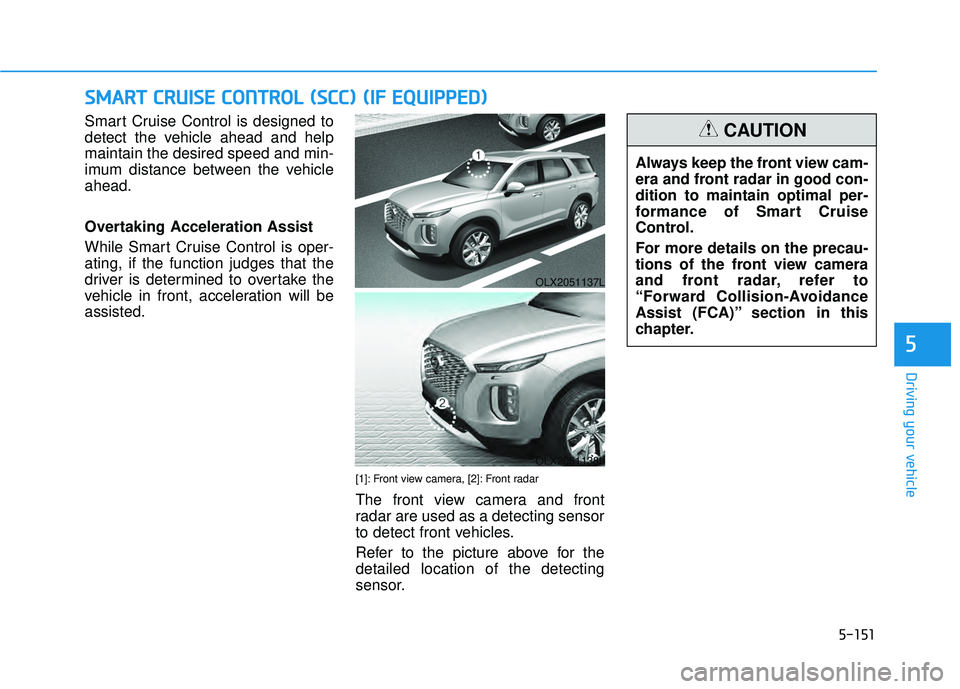

S SM M A AR RT T C C R R U U I IS S E E C C O O N NT TR R O O L L ( ( S S C C C C) ) ( ( I IF F E E Q Q U UI IP P P PE ED D ) )
Smart Cruise Control is designed to
detect the vehicle ahead and help
maintain the desired speed and min-
imum distance between the vehicle
ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is oper-
ating, if the function judges that the
driver is determined to overtake the
vehicle in front, acceleration will be
assisted.
[1]: Front view camera, [2]: Front radar
The front view camera and front
radar are used as a detecting sensor
to detect front vehicles.
Refer to the picture above for the
detailed location of the detecting
sensor.
OLX2051137L
OLX2051138L
Always keep the front view cam-
era and front radar in good con-
dition to maintain optimal per-
formance of Smart Cruise
Control.
For more details on the precau-
tions of the front view camera
and front radar, refer to
“Forward Collision-Avoidance
Assist (FCA)” section in this
chapter.
CAUTION

5-152
Driving your vehicle

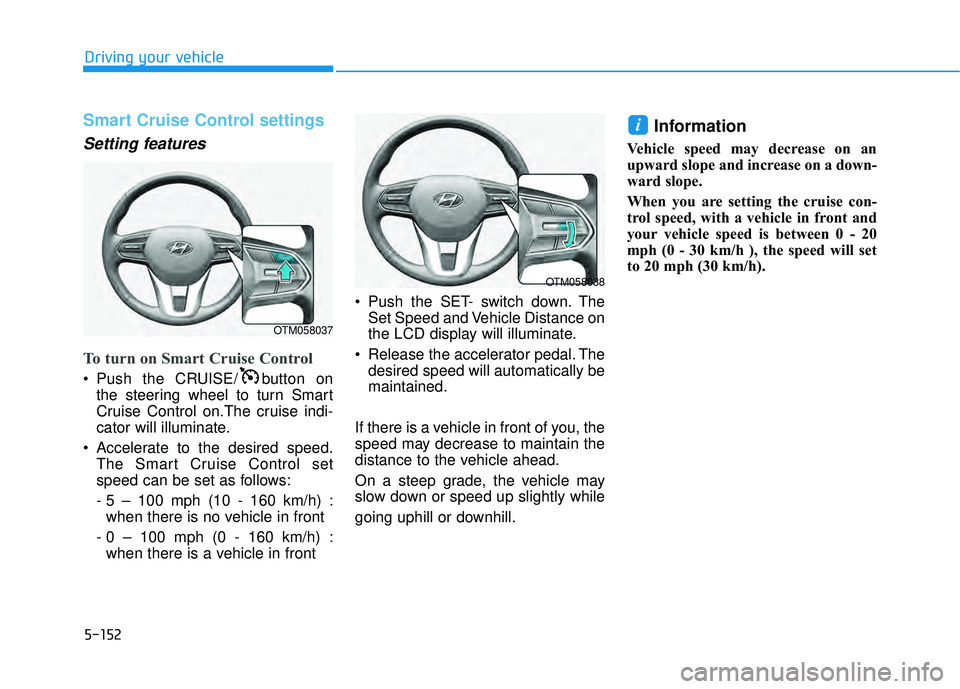

Smart Cruise Control settings
Setting features
To turn on Smart Cruise Control
Push the CRUISE/ button onthe steering wheel to turn Smart
Cruise Control on.The cruise indi-
cator will illuminate.
Accelerate to the desired speed. The Smart Cruise Control set
speed can be set as follows:
- 5 – 100 mph (10 - 160 km/h) :when there is no vehicle in front
- 0 – 100 mph (0 - 160 km/h) : when there is a vehicle in front Push the SET- switch down. The
Set Speed and Vehicle Distance on
the LCD display will illuminate.
Release the accelerator pedal. The desired speed will automatically be
maintained.
If there is a vehicle in front of you, the
speed may decrease to maintain the
distance to the vehicle ahead.
On a steep grade, the vehicle may
slow down or speed up slightly while
going uphill or downhill.
Information
Vehicle speed may decrease on an
upward slope and increase on a down-
ward slope.
When you are setting the cruise con-
trol speed, with a vehicle in front and
your vehicle speed is between 0 - 20
mph (0 - 30 km/h ), the speed will set
to 20 mph (30 km/h).
i
OTM058037
OTM058038

5-153
Driving your vehicle
5

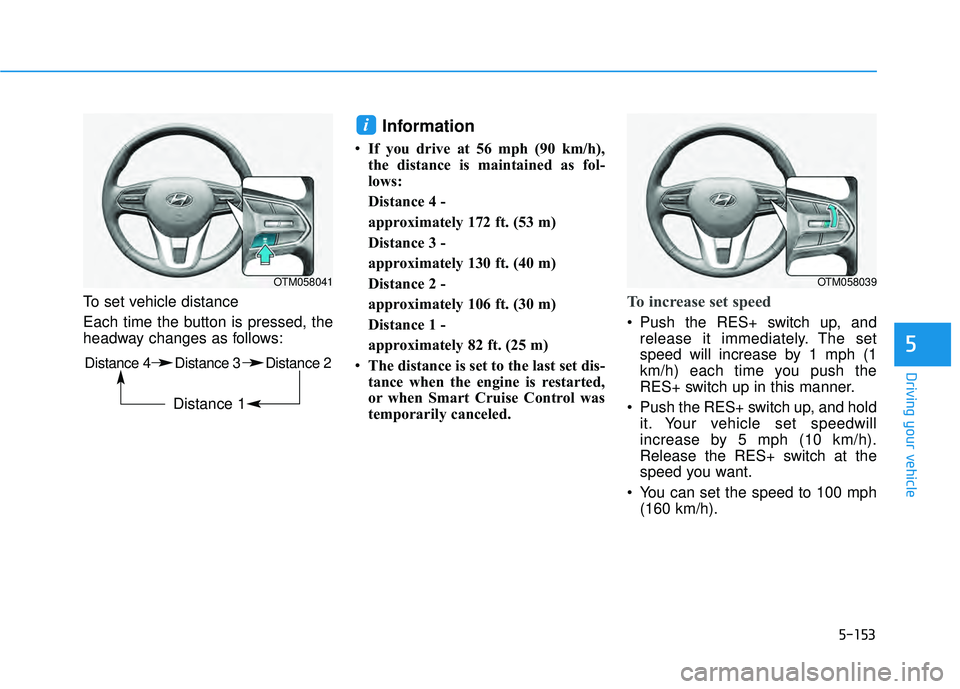

To set vehicle distance
Each time the button is pressed, the
headway changes as follows:
Information
If you drive at 56 mph (90 km/h),
the distance is maintained as fol-
lows:
Distance 4 -
approximately 172 ft. (53 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (30 m)
Distance 1 -
approximately 82 ft. (25 m)
The distance is set to the last set dis-
tance when the engine is restarted,
or when Smart Cruise Control was
temporarily canceled.
To increase set speed
Push the RES+ switch up, and
release it immediately. The set
speed will increase by 1 mph (1
km/h) each time you push the
RES+ switch up in this manner.
Push the RES+ switch up, and hold it. Your vehicle set speedwill
increase by 5 mph (10 km/h).
Release the RES+ switch at the
speed you want.
You can set the speed to 100 mph (160 km/h).
i
OTM058039OTM058041
Distance 4 Distance 3 Distance 2
Distance 1

5-154
Driving your vehicle

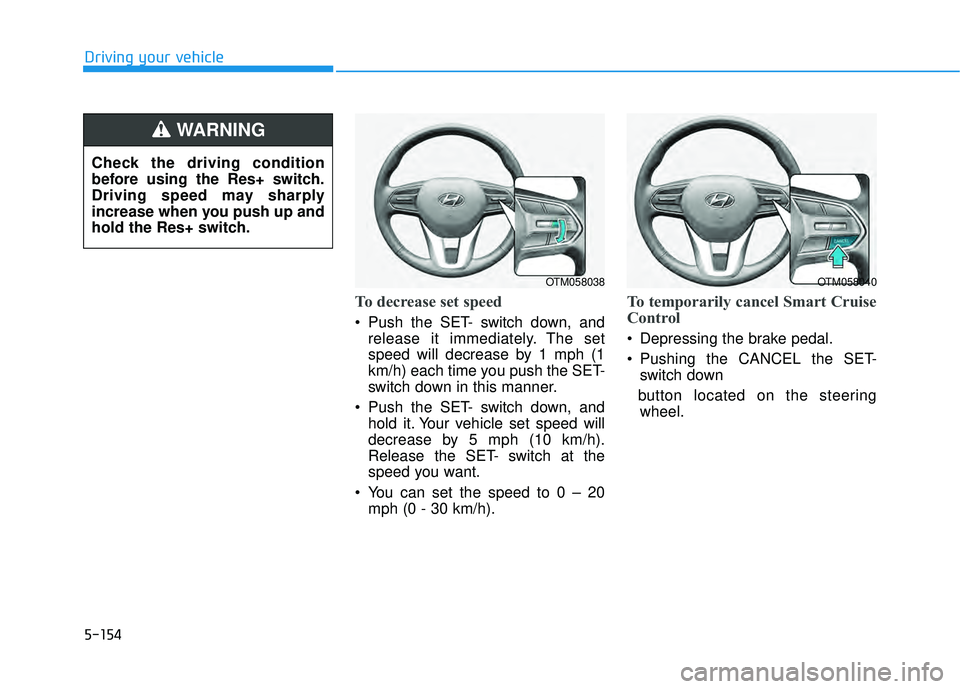

To decrease set speed
Push the SET- switch down, andrelease it immediately. The set
speed will decrease by 1 mph (1
km/h) each time you push the SET-
switch down in this manner.
Push the SET- switch down, and hold it. Your vehicle set speed will
decrease by 5 mph (10 km/h).
Release the SET- switch at the
speed you want.
You can set the speed to 0 – 20 mph (0 - 30 km/h).
To temporarily cancel Smart Cruise
Control
Depressing the brake pedal.
Pushing the CANCEL the SET-switch down
button located on the steering wheel.
OTM058038OTM058040
Check the driving condition
before using the Res+ switch.
Driving speed may sharply
increase when you push up and
hold the Res+ switch.
WARNING

5-155
Driving your vehicle
5

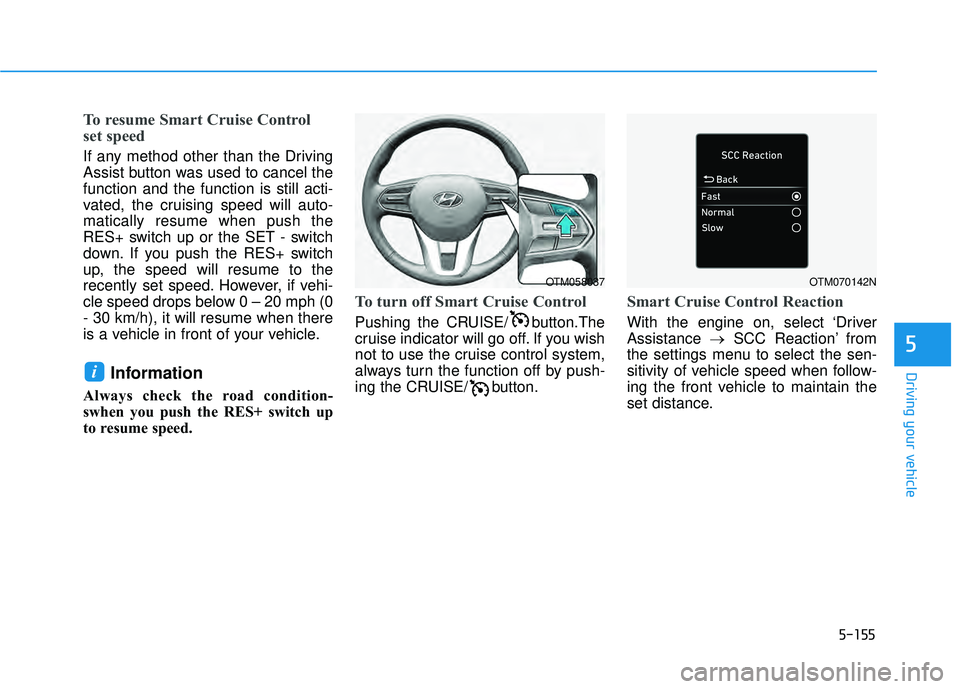

To resume Smart Cruise Control
set speed
If any method other than the Driving
Assist button was used to cancel the
function and the function is still acti-
vated, the cruising speed will auto-
matically resume when push the
RES+ switch up or the SET - switch
down. If you push the RES+ switch
up, the speed will resume to the
recently set speed. However, if vehi-
cle speed drops below 0 – 20 mph (0
- 30 km/h), it will resume when there
is a vehicle in front of your vehicle.
Information
Always check the road condition-
swhen you push the RES+ switch up
to resume speed.
To turn off Smart Cruise Control
Pushing the CRUISE/ button.The
cruise indicator will go off. If you wish
not to use the cruise control system,
always turn the function off by push-
ing the CRUISE/ button.
Smart Cruise Control Reaction
With the engine on, select ‘Driver
Assistance →SCC Reaction’ from
the settings menu to select the sen-
sitivity of vehicle speed when follow-
ing the front vehicle to maintain the
set distance.
i
OTM058037OTM070142N

5-156
Driving your vehicle
Warning Volume
With the engine on, select 'Driver
Assistance →
Warning Volume' from
the Settings menu to change the
Warning Volume to 'High', 'Medium',
'Low' or 'Off' for Smart Cruise
Control.
However, even if 'Off' is selected,
Smart Cruise Control's Warning
Volume will not turn off but the vol-
ume will sound as 'Low'.
If you change the warning volume,
the Warning Volume of other Driver
Assistance systems may change.
Information
If the engine is restarted, Warning
Volume will maintain the last setting.
Smart Cruise Control opera-
tion
Operating conditions
Smart Cruise Control will operate
when the following conditions are
satisfied.
Basic function
The gear is in D (Drive)
The driver’s door is closed
EPB (Electronic Parking Brake) is not applied
Your vehicle speed is within the operating speed range
- 6 - 105 mph (10 - 170 km/h):
when there is no vehicle in front
- 0 - 105 mph (0 - 170 km/h): whenthere is a vehicle in front
ESC (Electronic Stability Control) or ABS is on
ESC (Electronic Stability Control) or ABS is not controlling the vehi-
cle Engine RPM is not in the red zone
Forward Collision-Avoidance
Assist brake control is not operat-
ing
Remote Smart Parking Assist brake control is not operating (if
equipped)
ISG system is not operating
Hands-off warning for Lane Keeping Assist and Highway
Driving Assist is off
Information
At a stop, if there is no vehicle in front
of your vehicle, Smart Cruise Control
will turn on when the brake pedal is
depressed
i
i
ONX4E070090
