FEATURES OF YOUR HYUNDAI 1- 13
B090B01L-AAT Adjusting Seat Forward and Rearward
Pull the control knob forward or backward to move the seat forward or backward to the de-sired position. Release the knob and the seat willlock at that position.
1. Reclining Control Knob
2. Sliding and Height Adjusting Control KnobB085B01HP
1
2
B090A02Y-AAT POWER DRIVER'S SEAT (If installed)The driver's seat can be adjusted appropriately by using the control knob on the left side of theseat. Before driving, adjust the seat to the properposition so as to easily control the steeringwheel, pedals and switches on the instrumentpanel. CAUTION: Do not operate two knobs at the same time. WARNING:
o Never attempt to adjust the seat while the
vehicle is moving. This could result inloss of control or an accident causingdeath, serious injury, or property dam-age.
o Do not sit or lean unnecessarily close to the airbag. B090C01Y-AAT Seat Cushion Height Adjustment Move the front portion of the control knob up or down to raise or lower the front part of the seatcushion. Move the rear portion of the controlknob up or down to raise or lower the rear part ofthe seat cushion.
B085C01HP

FEATURES OF YOUR HYUNDAI
1- 14

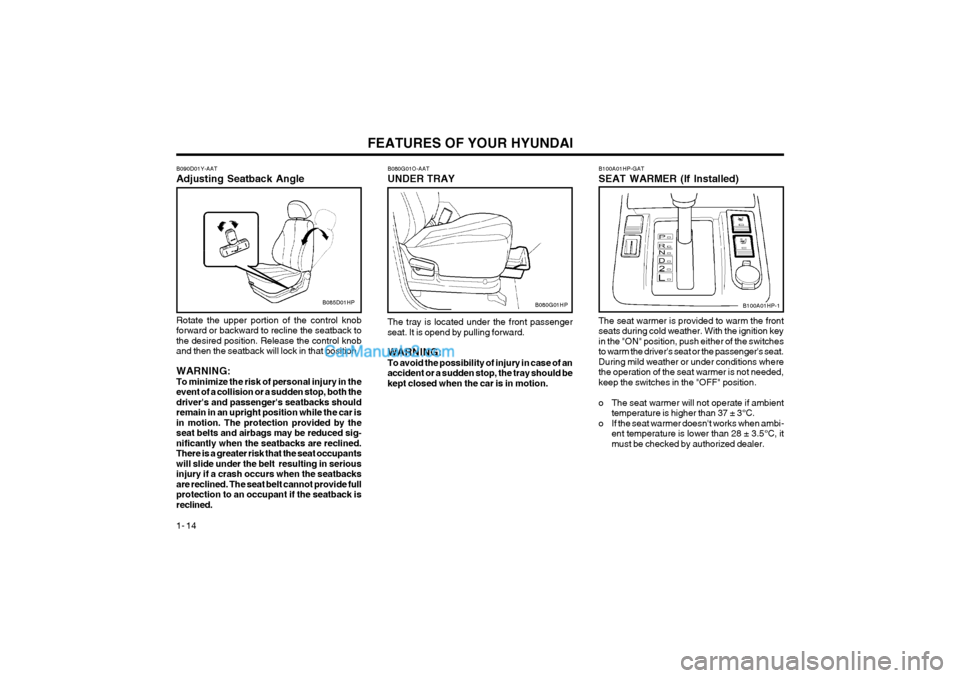

B100A01HP-GAT SEAT WARMER (If Installed) The seat warmer is provided to warm the front seats during cold weather. With the ignition keyin the "ON" position, push either of the switchesto warm the driver's seat or the passenger's seat.During mild weather or under conditions wherethe operation of the seat warmer is not needed,keep the switches in the "OFF" position.
o The seat warmer will not operate if ambient temperature is higher than 37 ± 3°C.
o If the seat warmer doesn't works when ambi- ent temperature is lower than 28 ± 3.5°C, it must be checked by authorized dealer.
B100A01HP-1
B080G01O-AAT UNDER TRAY
B080G01HP
The tray is located under the front passenger seat. It is opend by pulling forward. WARNING: To avoid the possibility of injury in case of anaccident or a sudden stop, the tray should bekept closed when the car is in motion.B085D01HP
B090D01Y-AAT Adjusting Seatback Angle Rotate the upper portion of the control knob forward or backward to recline the seatback tothe desired position. Release the control knoband then the seatback will lock in that position. WARNING: To minimize the risk of personal injury in theevent of a collision or a sudden stop, both thedriver's and passenger's seatbacks shouldremain in an upright position while the car isin motion. The protection provided by theseat belts and airbags may be reduced sig-nificantly when the seatbacks are reclined.There is a greater risk that the seat occupantswill slide under the belt resulting in seriousinjury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide fullprotection to an occupant if the seatback isreclined.

FEATURES OF YOUR HYUNDAI 1- 15
HHP231-2

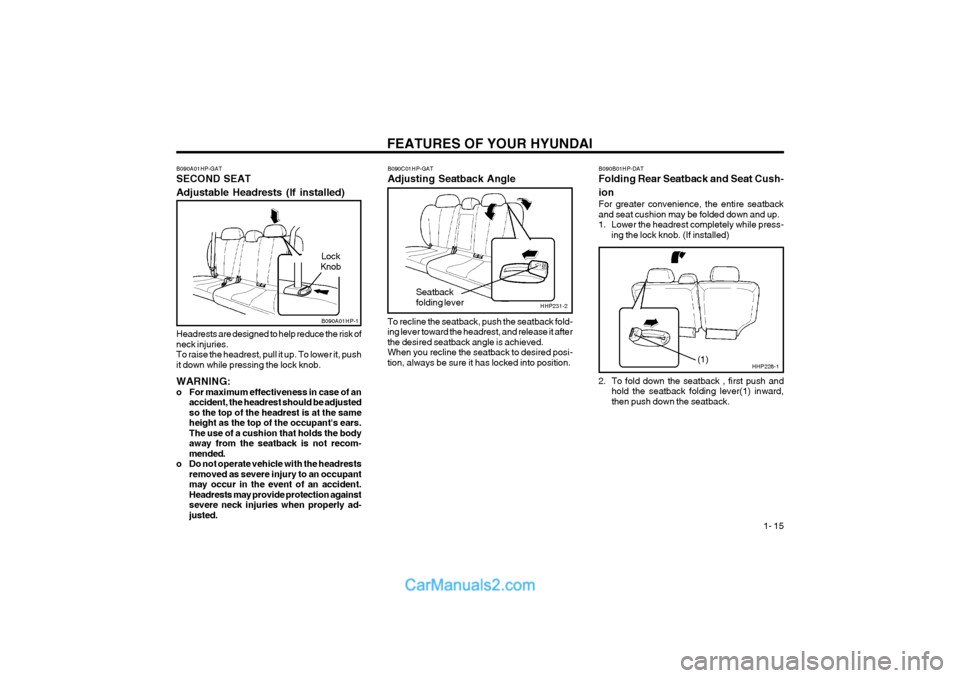

B090A01HP-GAT SECOND SEAT Adjustable Headrests (If installed) Headrests are designed to help reduce the risk of neck injuries.To raise the headrest, pull it up. To lower it, pushit down while pressing the lock knob. WARNING:
o For maximum effectiveness in case of anaccident, the headrest should be adjustedso the top of the headrest is at the sameheight as the top of the occupant's ears.The use of a cushion that holds the bodyaway from the seatback is not recom-mended.
o Do not operate vehicle with the headrests removed as severe injury to an occupantmay occur in the event of an accident.Headrests may provide protection againstsevere neck injuries when properly ad-justed. B090C01HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback fold- ing lever toward the headrest, and release it afterthe desired seatback angle is achieved.When you recline the seatback to desired posi-tion, always be sure it has locked into position.
Seatbackfolding lever
B090A01HP-1
Lock
Knob
B090B01HP-DAT Folding Rear Seatback and Seat Cush- ion For greater convenience, the entire seatback and seat cushion may be folded down and up.
1. Lower the headrest completely while press- ing the lock knob. (If installed)
2. To fold down the seatback , first push and hold the seatback folding lever(1) inward,
then push down the seatback.
HHP228-1(1)

FEATURES OF YOUR HYUNDAI

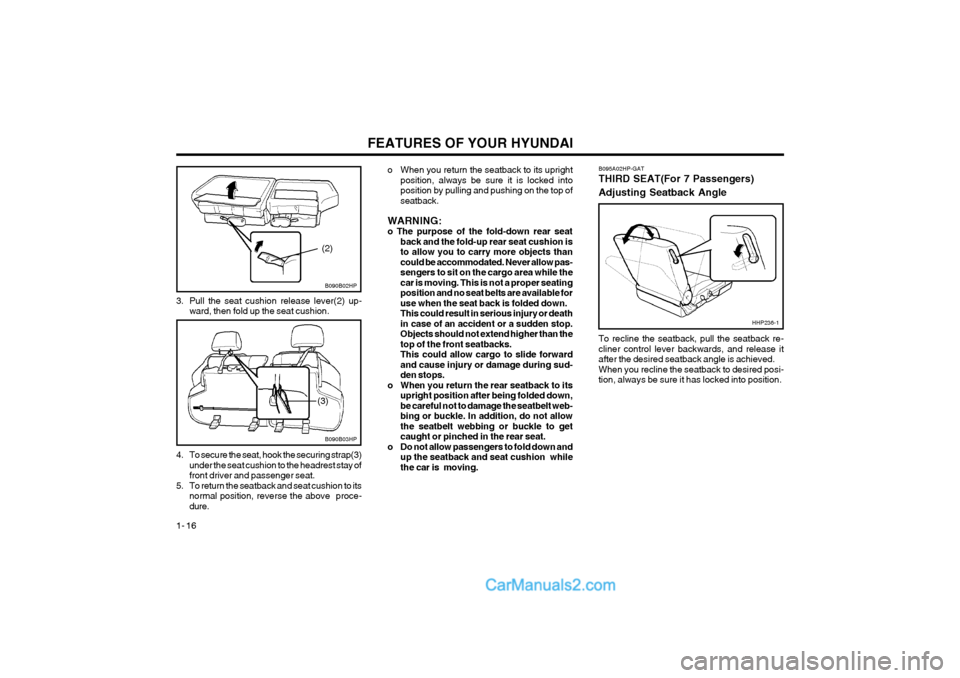

1- 16 o When you return the seatback to its upright
position, always be sure it is locked into position by pulling and pushing on the top ofseatback.
WARNING:o The purpose of the fold-down rear seat back and the fold-up rear seat cushion isto allow you to carry more objects thancould be accommodated. Never allow pas-sengers to sit on the cargo area while thecar is moving. This is not a proper seatingposition and no seat belts are available foruse when the seat back is folded down.This could result in serious injury or deathin case of an accident or a sudden stop.Objects should not extend higher than thetop of the front seatbacks.This could allow cargo to slide forwardand cause injury or damage during sud-den stops.
o When you return the rear seatback to its upright position after being folded down,be careful not to damage the seatbelt web-bing or buckle. In addition, do not allowthe seatbelt webbing or buckle to getcaught or pinched in the rear seat.
o Do not allow passengers to fold down and up the seatback and seat cushion whilethe car is moving.
3. Pull the seat cushion release lever(2) up-ward, then fold up the seat cushion.
B090B02HP
(2)
B090B03HP
(3)
4. To secure the seat, hook the securing strap(3) under the seat cushion to the headrest stay of front driver and passenger seat.
5. To return the seatback and seat cushion to its normal position, reverse the above proce-dure. B095A02HP-GAT THIRD SEAT(For 7 Passengers) Adjusting Seatback Angle To recline the seatback, pull the seatback re- cliner control lever backwards, and release itafter the desired seatback angle is achieved.When you recline the seatback to desired posi-tion, always be sure it has locked into position.
HHP236-1

FEATURES OF YOUR HYUNDAI 1- 17
B095B02HP-1
(2)
B095B01HP-1
(1)
2. To fold down the seatback, pull the seatback recliner control lever(1), then push down the seatback.

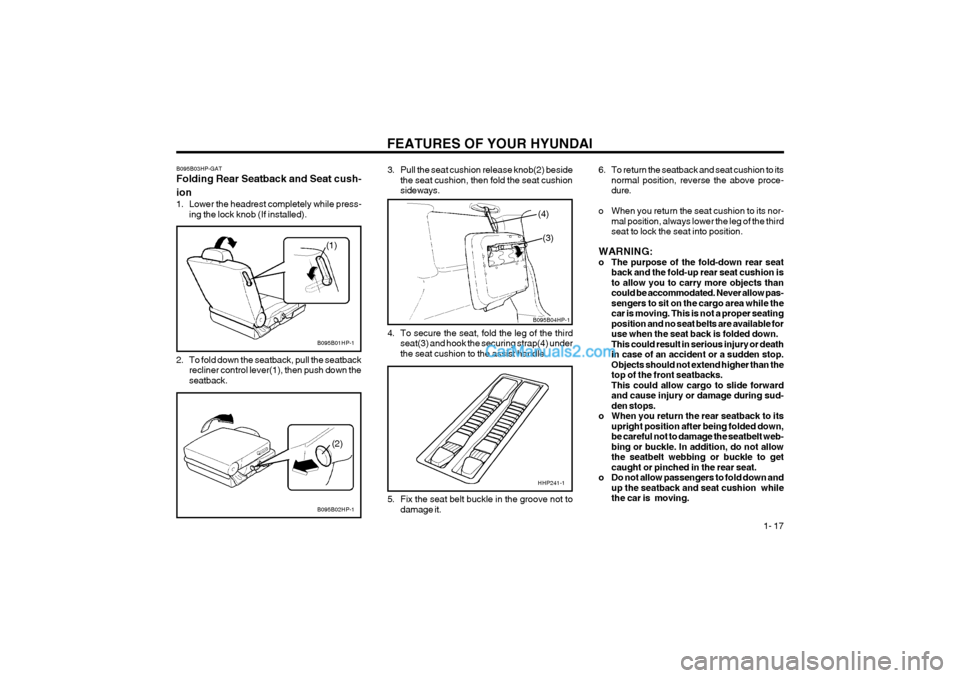

B095B03HP-GAT Folding Rear Seatback and Seat cush- ion
1. Lower the headrest completely while press-
ing the lock knob (If installed). 3. Pull the seat cushion release knob(2) beside
the seat cushion, then fold the seat cushion sideways.
4. To secure the seat, fold the leg of the third seat(3) and hook the securing strap(4) underthe seat cushion to the assist handle.
(4)
(3)
HHP241-1
B095B04HP-1
5. Fix the seat belt buckle in the groove not to damage it. 6. To return the seatback and seat cushion to its
normal position, reverse the above proce- dure.
o When you return the seat cushion to its nor- mal position, always lower the leg of the thirdseat to lock the seat into position.
WARNING:
o The purpose of the fold-down rear seat back and the fold-up rear seat cushion isto allow you to carry more objects thancould be accommodated. Never allow pas-sengers to sit on the cargo area while thecar is moving. This is not a proper seatingposition and no seat belts are available foruse when the seat back is folded down.This could result in serious injury or deathin case of an accident or a sudden stop.Objects should not extend higher than thetop of the front seatbacks.This could allow cargo to slide forwardand cause injury or damage during sud-den stops.
o When you return the rear seatback to its upright position after being folded down,be careful not to damage the seatbelt web-bing or buckle. In addition, do not allowthe seatbelt webbing or buckle to getcaught or pinched in the rear seat.
o Do not allow passengers to fold down and up the seatback and seat cushion whilethe car is moving.

FEATURES OF YOUR HYUNDAI
1- 18
B150A02A-GAT SEAT BELT PRECAUTIONSAll occupants of the vehicle should wear their
seat belts at all times. Indeed, your province'slaws may require that some or all occupants ofthe vehicle use seat belts.The possibility of injury or the severity of injury inan accident will be decreased if this elementarysafety precaution is observed. In addition, followthe other instructions provided in this section.
3. To get in the third seat, pull the handle for
folding the seat cushion (2) beside the seatcushion, then fold up the seat cushion.To get out of the third seat, pull the seatcushion release lever (3) upward and fold upthe seat cushion.
4. To secure the seat, hook the securing strap (4) under the seat cushion to the headreststay of front driver and passenger seat.
After doing above procedure, passengers canget in or get out of the third seat. WARNING: Do not allow passengers to fold down and upthe seatback and seat cushion while the caris moving.
B095C03HP
(4)
B140A01B-GAT REAR SEAT WARNING
B080P01HP
For the safety of all passengers, luggage or other cargo should not be piled higher than the top ofthe seatback.

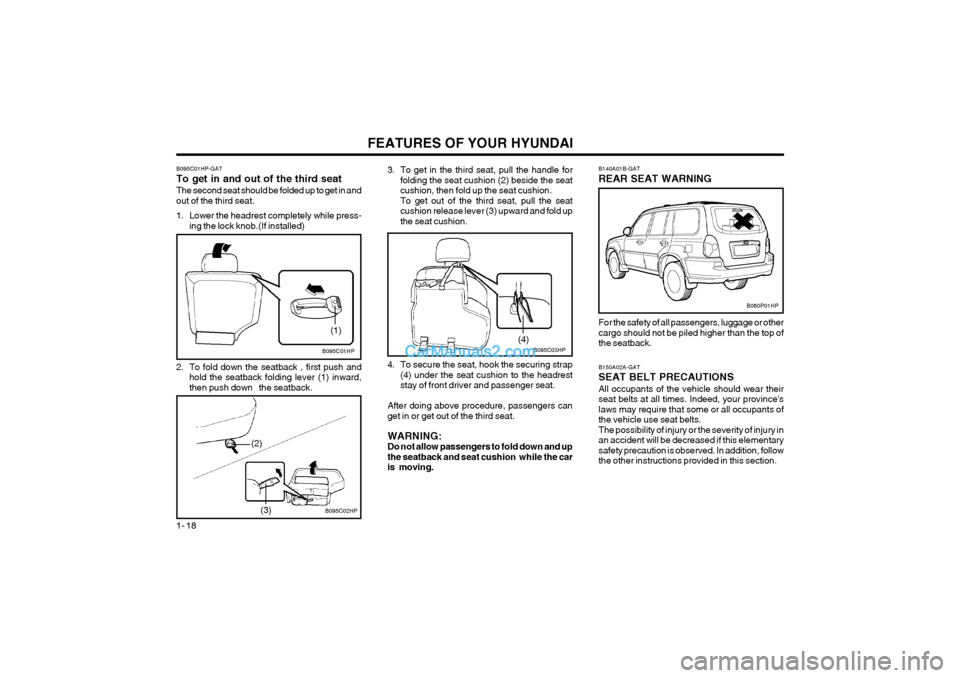

B095C01HP-GAT To get in and out of the third seatThe second seat should be folded up to get in and out of the third seat.
1. Lower the headrest completely while press- ing the lock knob.(If installed)
2. To fold down the seatback , first push and hold the seatback folding lever (1) inward, then push down the seatback.
B095C01HP
B095C02HP
(1)
(3)
(2)

FEATURES OF YOUR HYUNDAI 1- 19

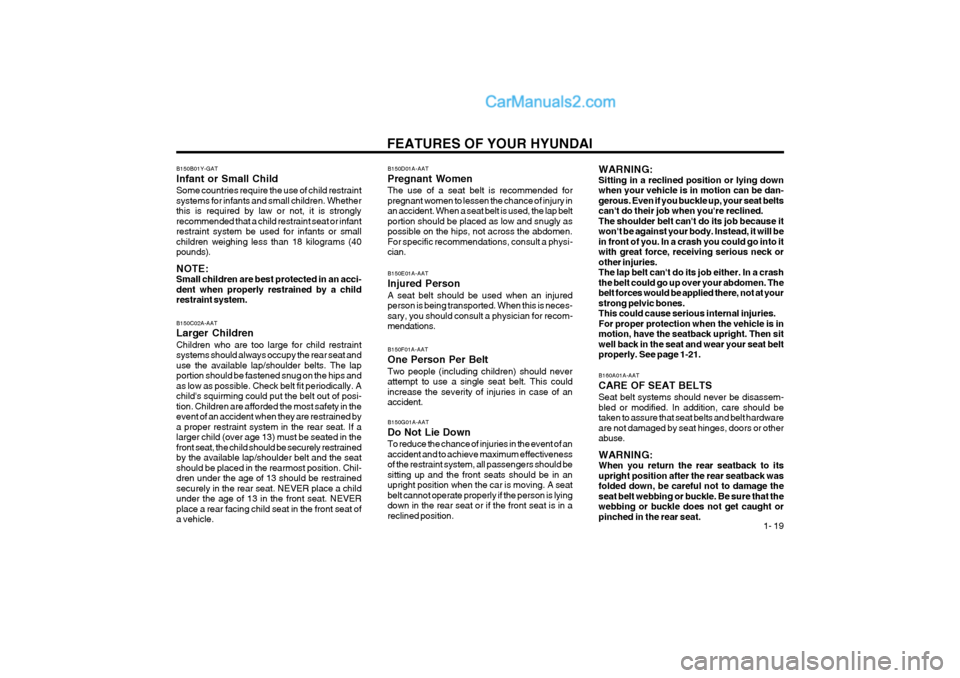

B150B01Y-GAT Infant or Small ChildSome countries require the use of child restraint
systems for infants and small children. Whetherthis is required by law or not, it is stronglyrecommended that a child restraint seat or infantrestraint system be used for infants or smallchildren weighing less than 18 kilograms (40pounds). NOTE: Small children are best protected in an acci-
dent when properly restrained by a childrestraint system. B150C02A-AAT Larger ChildrenChildren who are too large for child restraint systems should always occupy the rear seat anduse the available lap/shoulder belts. The lapportion should be fastened snug on the hips andas low as possible. Check belt fit periodically. Achild's squirming could put the belt out of posi-tion. Children are afforded the most safety in theevent of an accident when they are restrained bya proper restraint system in the rear seat. If alarger child (over age 13) must be seated in thefront seat, the child should be securely restrainedby the available lap/shoulder belt and the seatshould be placed in the rearmost position. Chil-dren under the age of 13 should be restrainedsecurely in the rear seat. NEVER place a childunder the age of 13 in the front seat. NEVERplace a rear facing child seat in the front seat ofa vehicle.
B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is neces-sary, you should consult a physician for recom-mendations. B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This couldincrease the severity of injuries in case of anaccident. B150G01A-AAT Do Not Lie DownTo reduce the chance of injuries in the event of an accident and to achieve maximum effectivenessof the restraint system, all passengers should besitting up and the front seats should be in anupright position when the car is moving. A seatbelt cannot operate properly if the person is lyingdown in the rear seat or if the front seat is in areclined position.
B150D01A-AAT Pregnant WomenThe use of a seat belt is recommended for pregnant women to lessen the chance of injury inan accident. When a seat belt is used, the lap beltportion should be placed as low and snugly aspossible on the hips, not across the abdomen.For specific recommendations, consult a physi-cian.
WARNING:Sitting in a reclined position or lying downwhen your vehicle is in motion can be dan-gerous. Even if you buckle up, your seat beltscan't do their job when you're reclined.The shoulder belt can't do its job because itwon't be against your body. Instead, it will bein front of you. In a crash you could go into itwith great force, receiving serious neck orother injuries.The lap belt can't do its job either. In a crashthe belt could go up over your abdomen. Thebelt forces would be applied there, not at yourstrong pelvic bones.This could cause serious internal injuries.For proper protection when the vehicle is inmotion, have the seatback upright. Then sitwell back in the seat and wear your seat beltproperly. See page 1-21. B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassem- bled or modified. In addition, care should betaken to assure that seat belts and belt hardwareare not damaged by seat hinges, doors or otherabuse. WARNING: When you return the rear seatback to itsupright position after the rear seatback wasfolded down, be careful not to damage theseat belt webbing or buckle. Be sure that thewebbing or buckle does not get caught orpinched in the rear seat.

FEATURES OF YOUR HYUNDAI
1- 20 To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There willbe an audible "click" when the tab locks into thebuckle.The seat belt automatically adjusts to the properlength only after the lap belt is adjusted manuallyso that it fits snugly around your hips. If you lean
B180A02A-GAT SEAT BELTS-Driver's and Passenger's 3-Point System withWebbing Clamp Locking Retractor(If installed)To Fasten Your Belt
B180A01L

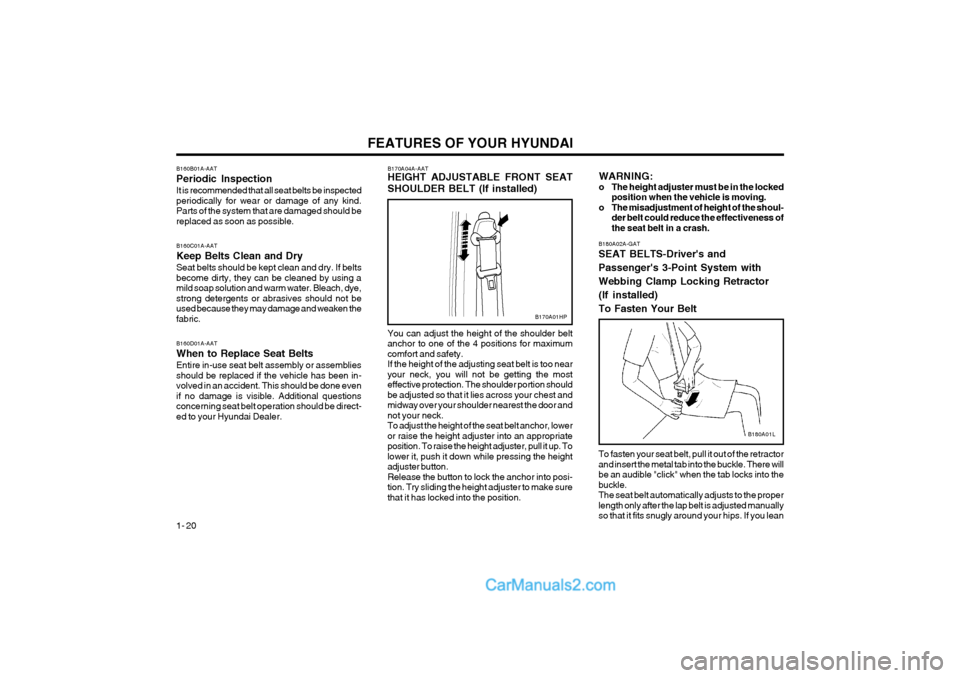

B170A04A-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT (If installed)
B170A01HP
You can adjust the height of the shoulder belt anchor to one of the 4 positions for maximumcomfort and safety.If the height of the adjusting seat belt is too nearyour neck, you will not be getting the mosteffective protection. The shoulder portion shouldbe adjusted so that it lies across your chest andmidway over your shoulder nearest the door andnot your neck.To adjust the height of the seat belt anchor, loweror raise the height adjuster into an appropriateposition. To raise the height adjuster, pull it up. Tolower it, push it down while pressing the heightadjuster button.Release the button to lock the anchor into posi-tion. Try sliding the height adjuster to make surethat it has locked into the position. WARNING:
o The height adjuster must be in the locked
position when the vehicle is moving.
o The misadjustment of height of the shoul- der belt could reduce the effectiveness ofthe seat belt in a crash.
B160B01A-AAT Periodic InspectionIt is recommended that all seat belts be inspected periodically for wear or damage of any kind.Parts of the system that are damaged should bereplaced as soon as possible. B160C01A-AAT Keep Belts Clean and DrySeat belts should be kept clean and dry. If belts become dirty, they can be cleaned by using amild soap solution and warm water. Bleach, dye,strong detergents or abrasives should not beused because they may damage and weaken thefabric. B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been in-volved in an accident. This should be done evenif no damage is visible. Additional questionsconcerning seat belt operation should be direct-ed to your Hyundai Dealer.

FEATURES OF YOUR HYUNDAI 1- 21
To fasten your seat belt, pull it out of the retractor
and insert the metal tab into the buckle. There willbe an audible "click" when the tab locks into thebuckle.The seat belt automatically adjusts to the properlength only after the lap belt is adjusted manuallyso that it fits snugly around your hips. If you leanforward in a slow, easy motion, the belt will
B180A01L

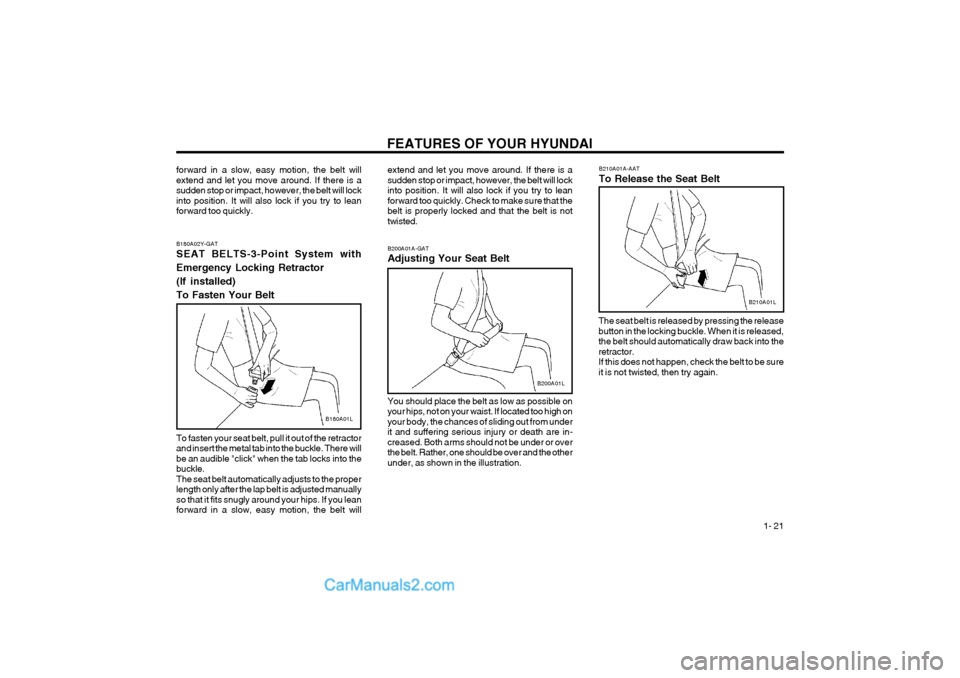

B180A02Y-GAT SEAT BELTS-3-Point System with
Emergency Locking Retractor(If installed)To Fasten Your Belt
forward in a slow, easy motion, the belt will extend and let you move around. If there is asudden stop or impact, however, the belt will lockinto position. It will also lock if you try to leanforward too quickly.
B200A01A-GAT Adjusting Your Seat Belt
B200A01L
You should place the belt as low as possible on your hips, not on your waist. If located too high onyour body, the chances of sliding out from underit and suffering serious injury or death are in-creased. Both arms should not be under or overthe belt. Rather, one should be over and the otherunder, as shown in the illustration.
extend and let you move around. If there is asudden stop or impact, however, the belt will lockinto position. It will also lock if you try to leanforward too quickly. Check to make sure that thebelt is properly locked and that the belt is nottwisted.
B210A01A-AAT To Release the Seat Belt
B210A01L
The seat belt is released by pressing the release button in the locking buckle. When it is released,the belt should automatically draw back into theretractor.If this does not happen, check the belt to be sureit is not twisted, then try again.

FEATURES OF YOUR HYUNDAI
1- 22
B220C01A-AAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle. WARNING: The center lap belt latching mechanism isdifferent from those for the rear seat shoul-der belts. When fastening the rear seat shoul-der belts or the center lap belt, make surethey are inserted into the correct buckles toobtain maximum protection from the seatbelt system and assure proper operation.
B220B01A-AAT Adjusting Your Seat Belt
HTB226
With a 2-point static type seat belt, the length must be adjusted manually so it fits snugly aroundyour body. Fasten the belt and pull on the looseend to tighten. The belt should be placed as lowas possible on your hips, not on your waist. If thebelt is too high, it could increase the possibility ofyour being injured in an accident. Correct
Shorten Too high
HTB225

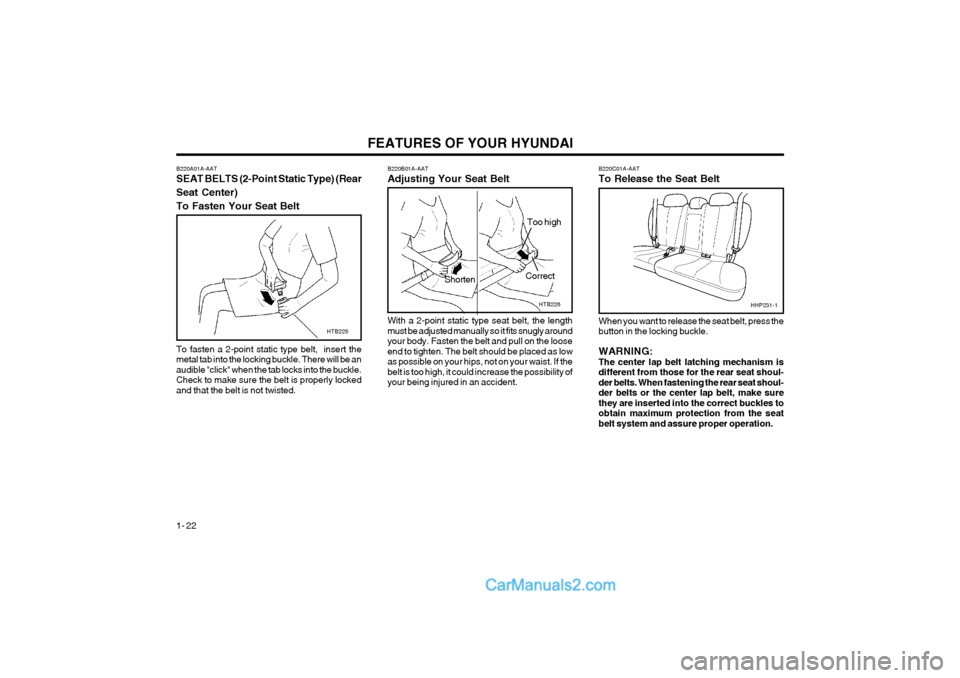

B220A01A-AAT SEAT BELTS (2-Point Static Type) (Rear Seat Center)To Fasten Your Seat Belt To fasten a 2-point static type belt, insert the metal tab into the locking buckle. There will be anaudible "click" when the tab locks into the buckle.Check to make sure the belt is properly lockedand that the belt is not twisted.
HHP231-1
