Page 31 of 361

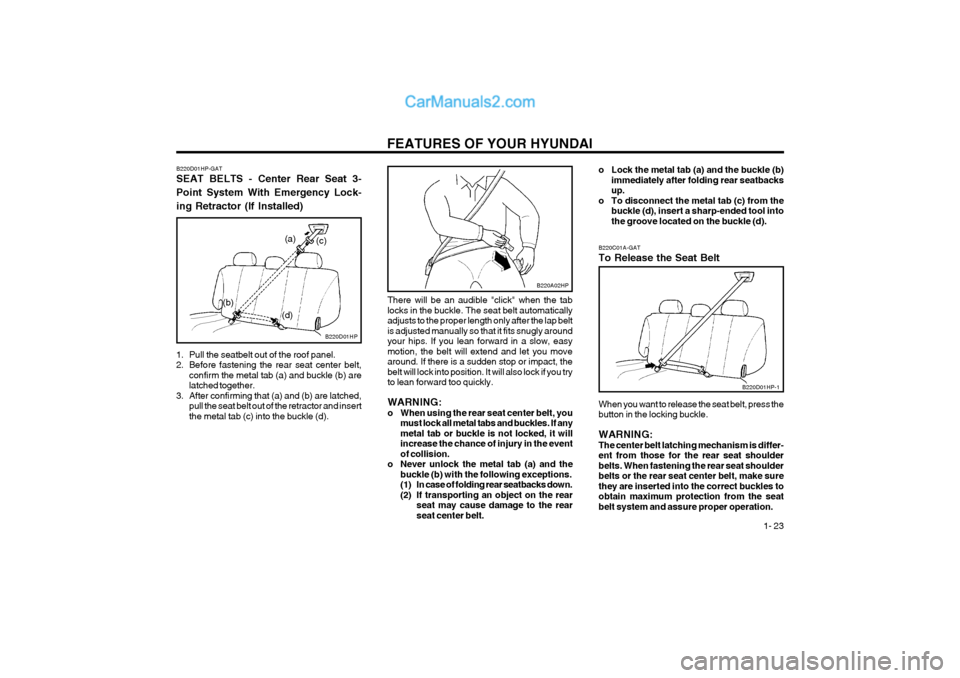

FEATURES OF YOUR HYUNDAI 1- 23
B220D01HP-GAT SEAT BELTS - Center Rear Seat 3- Point System With Emergency Lock-ing Retractor (If Installed)
1. Pull the seatbelt out of the roof panel.
2. Before fastening the rear seat center belt,
confirm the metal tab (a) and buckle (b) arelatched together.
3. After confirming that (a) and (b) are latched, pull the seat belt out of the retractor and insertthe metal tab (c) into the buckle (d).
B220D01HP There will be an audible "click" when the tab locks in the buckle. The seat belt automaticallyadjusts to the proper length only after the lap beltis adjusted manually so that it fits snugly aroundyour hips. If you lean forward in a slow, easymotion, the belt will extend and let you movearound. If there is a sudden stop or impact, thebelt will lock into position. It will also lock if you tryto lean forward too quickly. WARNING:
o When using the rear seat center belt, you
must lock all metal tabs and buckles. If anymetal tab or buckle is not locked, it willincrease the chance of injury in the eventof collision.
o Never unlock the metal tab (a) and the buckle (b) with the following exceptions.
(1) In case of folding rear seatbacks down.
(2) If transporting an object on the rear seat may cause damage to the rearseat center belt.
B220A02HP o Lock the metal tab (a) and the buckle (b)
immediately after folding rear seatbacks up.
o To disconnect the metal tab (c) from the buckle (d), insert a sharp-ended tool intothe groove located on the buckle (d).
B220C01A-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle. WARNING: The center belt latching mechanism is differ-ent from those for the rear seat shoulderbelts. When fastening the rear seat shoulderbelts or the rear seat center belt, make surethey are inserted into the correct buckles toobtain maximum protection from the seatbelt system and assure proper operation.
B220D01HP-1
(a)
(b) (c)
(d)

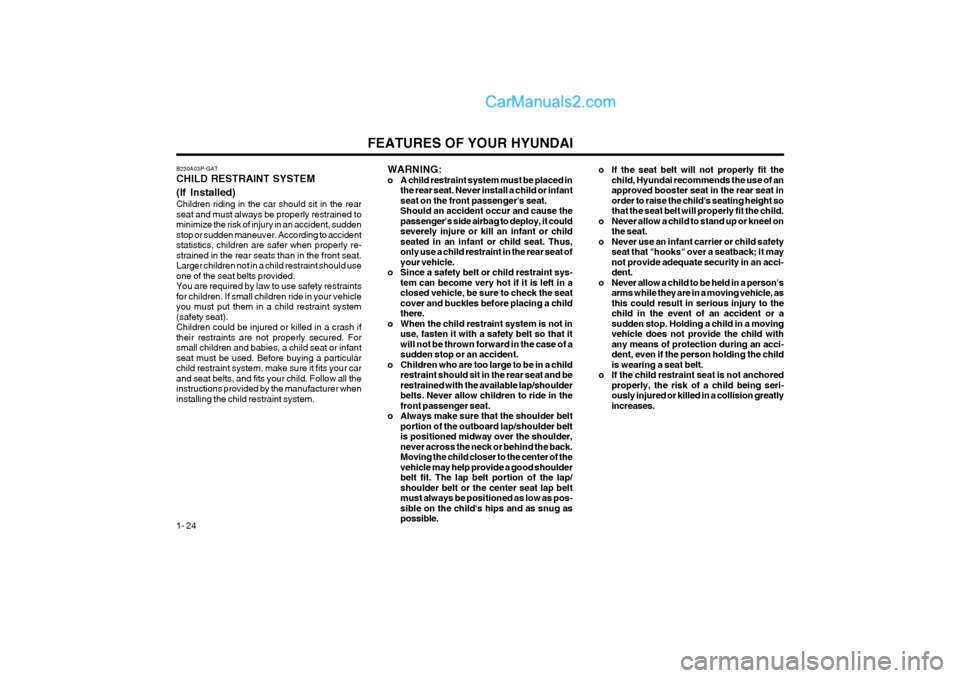

Page 32 of 361
FEATURES OF YOUR HYUNDAI
1- 24
B230A03P-GAT CHILD RESTRAINT SYSTEM (If Installed) Children riding in the car should sit in the rear seat and must always be properly restrained tominimize the risk of injury in an accident, suddenstop or sudden maneuver. According to accidentstatistics, children are safer when properly re-strained in the rear seats than in the front seat.Larger children not in a child restraint should useone of the seat belts provided.You are required by law to use safety restraintsfor children. If small children ride in your vehicleyou must put them in a child restraint system(safety seat).Children could be injured or killed in a crash iftheir restraints are not properly secured. Forsmall children and babies, a child seat or infantseat must be used. Before buying a particularchild restraint system, make sure it fits your carand seat belts, and fits your child. Follow all theinstructions provided by the manufacturer wheninstalling the child restraint system.
WARNING:
o A child restraint system must be placed in
the rear seat. Never install a child or infantseat on the front passenger's seat.Should an accident occur and cause the
passenger's side airbag to deploy, it couldseverely injure or kill an infant or childseated in an infant or child seat. Thus,only use a child restraint in the rear seat ofyour vehicle.
o Since a safety belt or child restraint sys- tem can become very hot if it is left in aclosed vehicle, be sure to check the seatcover and buckles before placing a childthere.
o When the child restraint system is not in use, fasten it with a safety belt so that itwill not be thrown forward in the case of asudden stop or an accident.
o Children who are too large to be in a child restraint should sit in the rear seat and berestrained with the available lap/shoulderbelts. Never allow children to ride in thefront passenger seat.
o Always make sure that the shoulder belt portion of the outboard lap/shoulder beltis positioned midway over the shoulder,never across the neck or behind the back.Moving the child closer to the center of thevehicle may help provide a good shoulderbelt fit. The lap belt portion of the lap/shoulder belt or the center seat lap beltmust always be positioned as low as pos-sible on the child's hips and as snug aspossible. o If the seat belt will not properly fit the
child, Hyundai recommends the use of anapproved booster seat in the rear seat inorder to raise the child's seating height sothat the seat belt will properly fit the child.
o Never allow a child to stand up or kneel on the seat.
o Never use an infant carrier or child safety seat that "hooks" over a seatback; it maynot provide adequate security in an acci-dent.
o Never allow a child to be held in a person's arms while they are in a moving vehicle, asthis could result in serious injury to thechild in the event of an accident or asudden stop. Holding a child in a movingvehicle does not provide the child withany means of protection during an acci-dent, even if the person holding the childis wearing a seat belt.
o If the child restraint seat is not anchored properly, the risk of a child being seri-ously injured or killed in a collision greatlyincreases.

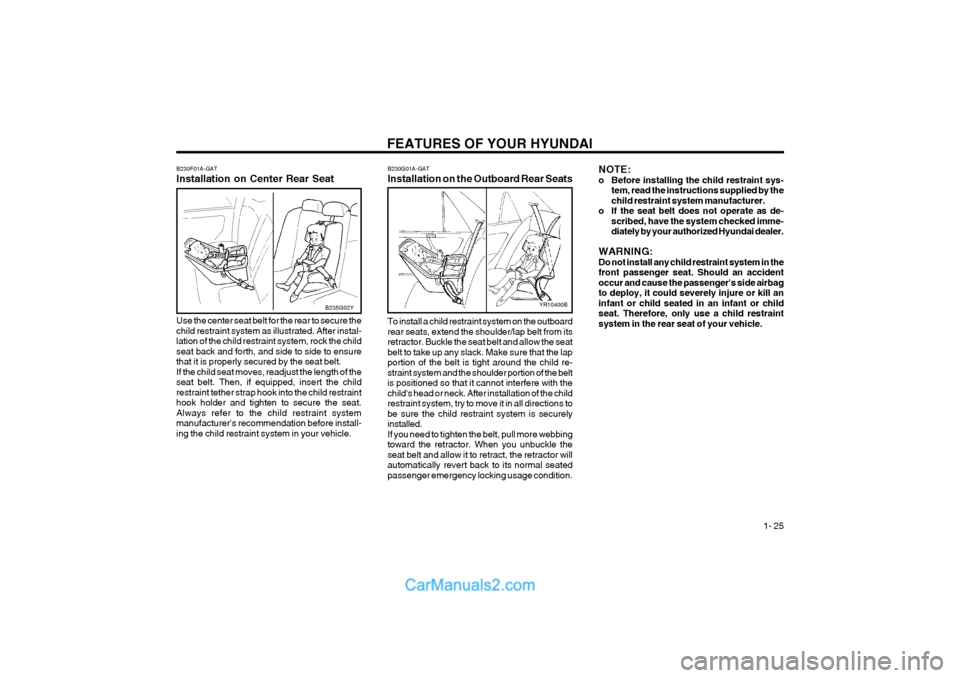

Page 33 of 361
FEATURES OF YOUR HYUNDAI 1- 25
B230F01A-GAT Installation on Center Rear Seat Use the center seat belt for the rear to secure the child restraint system as illustrated. After instal-lation of the child restraint system, rock the childseat back and forth, and side to side to ensurethat it is properly secured by the seat belt.If the child seat moves, readjust the length of theseat belt. Then, if equipped, insert the childrestraint tether strap hook into the child restrainthook holder and tighten to secure the seat.Always refer to the child restraint systemmanufacturer's recommendation before install-ing the child restraint system in your vehicle.
B230G01A-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend the shoulder/lap belt from itsretractor. Buckle the seat belt and allow the seatbelt to take up any slack. Make sure that the lapportion of the belt is tight around the child re-straint system and the shoulder portion of the beltis positioned so that it cannot interfere with thechild's head or neck. After installation of the childrestraint system, try to move it in all directions tobe sure the child restraint system is securelyinstalled.If you need to tighten the belt, pull more webbingtoward the retractor. When you unbuckle theseat belt and allow it to retract, the retractor willautomatically revert back to its normal seatedpassenger emergency locking usage condition.
B235G02YYR10400B
NOTE:
o Before installing the child restraint sys-
tem, read the instructions supplied by thechild restraint system manufacturer.
o If the seat belt does not operate as de- scribed, have the system checked imme-diately by your authorized Hyundai dealer.
WARNING:Do not install any child restraint system in thefront passenger seat. Should an accidentoccur and cause the passenger's side airbagto deploy, it could severely injure or kill aninfant or child seated in an infant or childseat. Therefore, only use a child restraintsystem in the rear seat of your vehicle.
Page 34 of 361

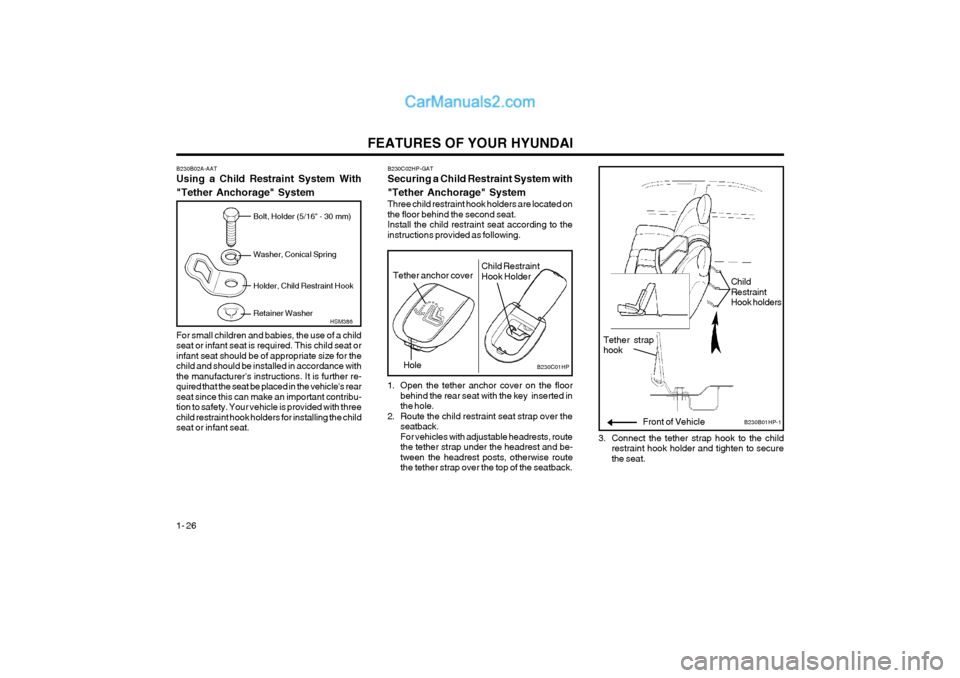

FEATURES OF YOUR HYUNDAI
1- 26 Bolt, Holder (5/16" - 30 mm) Washer, Conical Spring Holder, Child Restraint Hook Retainer Washer
HSM386
B230B02A-AAT Using a Child Restraint System With "Tether Anchorage" System For small children and babies, the use of a child seat or infant seat is required. This child seat orinfant seat should be of appropriate size for thechild and should be installed in accordance withthe manufacturer's instructions. It is further re-quired that the seat be placed in the vehicle's rearseat since this can make an important contribu-tion to safety. Your vehicle is provided with threechild restraint hook holders for installing the childseat or infant seat.
B230C01HP
Child RestraintHook holders
Front of Vehicle
Tether straphook
Child Restraint Hook Holder
Hole
B230B01HP-1
Tether anchor cover
B230C02HP-GAT Securing a Child Restraint System with "Tether Anchorage" System Three child restraint hook holders are located on the floor behind the second seat.Install the child restraint seat according to theinstructions provided as following.
1. Open the tether anchor cover on the floor
behind the rear seat with the key inserted in the hole.
2. Route the child restraint seat strap over the seatback.For vehicles with adjustable headrests, routethe tether strap under the headrest and be-tween the headrest posts, otherwise routethe tether strap over the top of the seatback. 3. Connect the tether strap hook to the child
restraint hook holder and tighten to securethe seat.
Page 35 of 361

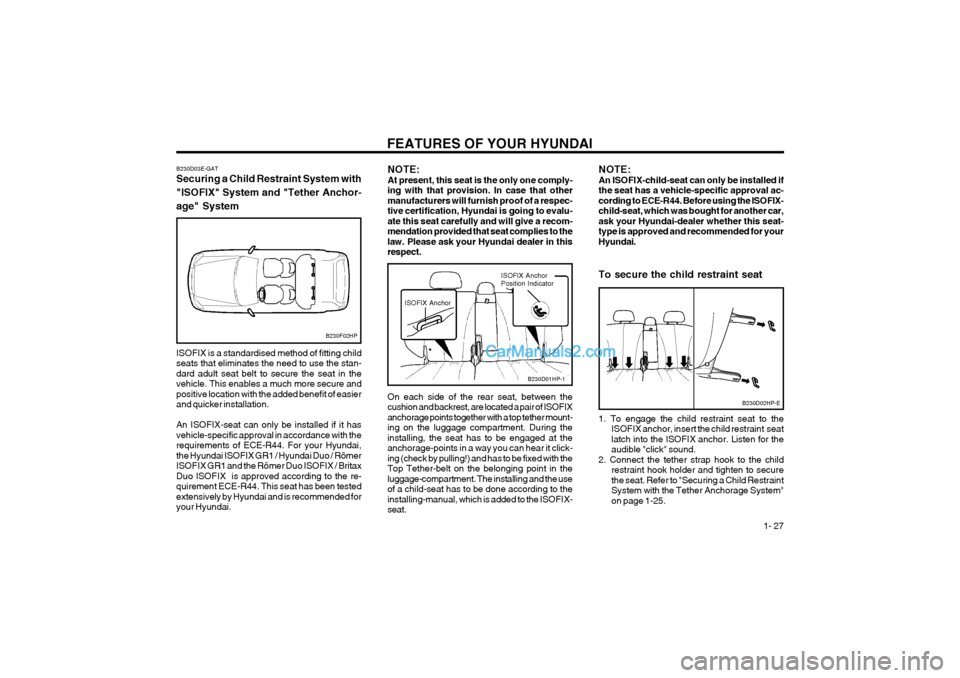

FEATURES OF YOUR HYUNDAI 1- 27
B230F02HP
B230D03E-GAT Securing a Child Restraint System with "ISOFIX" System and "Tether Anchor-age" System ISOFIX is a standardised method of fitting child seats that eliminates the need to use the stan-dard adult seat belt to secure the seat in thevehicle. This enables a much more secure andpositive location with the added benefit of easierand quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in accordance with therequirements of ECE-R44. For your Hyundai,the Hyundai ISOFIX GR1 / Hyundai Duo / RömerISOFIX GR1 and the Römer Duo ISOFIX / BritaxDuo ISOFIX is approved according to the re-quirement ECE-R44. This seat has been testedextensively by Hyundai and is recommended foryour Hyundai.NOTE:At present, this seat is the only one comply-ing with that provision. In case that othermanufacturers will furnish proof of a respec-tive certification, Hyundai is going to evalu-ate this seat carefully and will give a recom-mendation provided that seat complies to thelaw. Please ask your Hyundai dealer in thisrespect. On each side of the rear seat, between the cushion and backrest, are located a pair of ISOFIXanchorage points together with a top tether mount-ing on the luggage compartment. During theinstalling, the seat has to be engaged at theanchorage-points in a way you can hear it click-ing (check by pulling!) and has to be fixed with theTop Tether-belt on the belonging point in theluggage-compartment. The installing and the useof a child-seat has to be done according to theinstalling-manual, which is added to the ISOFIX-seat.
B230D02HP-E
NOTE: An ISOFIX-child-seat can only be installed ifthe seat has a vehicle-specific approval ac-cording to ECE-R44. Before using the ISOFIX-child-seat, which was bought for another car,ask your Hyundai-dealer whether this seat-type is approved and recommended for yourHyundai. To secure the child restraint seat 1. To engage the child restraint seat to the
ISOFIX anchor, insert the child restraint seat latch into the ISOFIX anchor. Listen for theaudible "click" sound.
2. Connect the tether strap hook to the child restraint hook holder and tighten to securethe seat. Refer to "Securing a Child Restraint
System with the Tether Anchorage System"on page 1-25.
B230D01HP-1
ISOFIX Anchor ISOFIX Anchor Position Indicator
Page 36 of 361

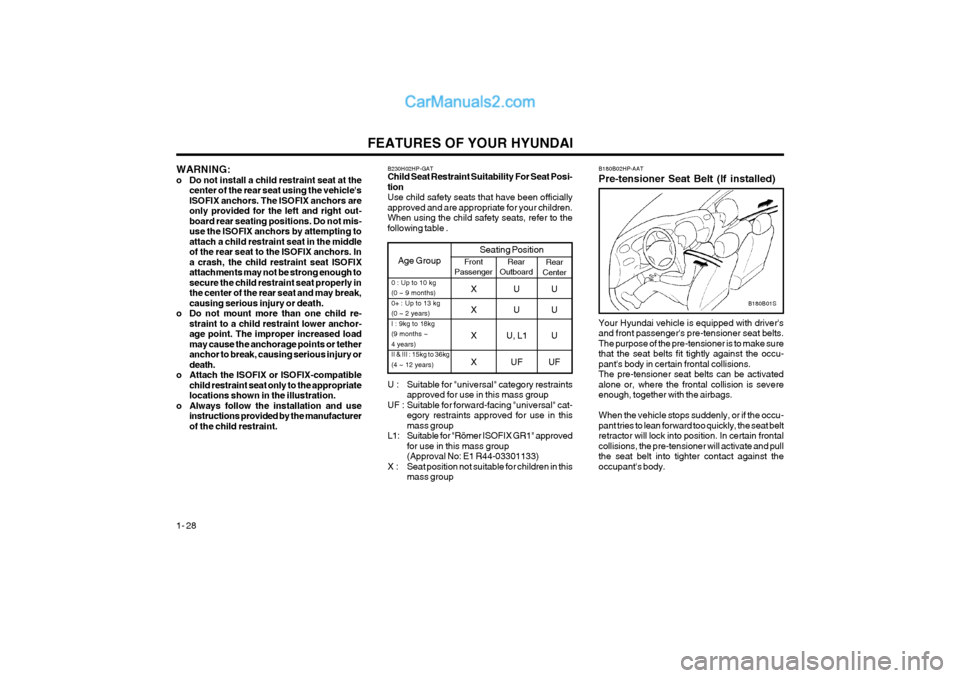

FEATURES OF YOUR HYUNDAI
1- 28
WARNING:
o Do not install a child restraint seat at the
center of the rear seat using the vehicle'sISOFIX anchors. The ISOFIX anchors areonly provided for the left and right out-board rear seating positions. Do not mis-use the ISOFIX anchors by attempting toattach a child restraint seat in the middleof the rear seat to the ISOFIX anchors. Ina crash, the child restraint seat ISOFIXattachments may not be strong enough tosecure the child restraint seat properly inthe center of the rear seat and may break,causing serious injury or death.
o Do not mount more than one child re- straint to a child restraint lower anchor-age point. The improper increased loadmay cause the anchorage points or tetheranchor to break, causing serious injury ordeath.
o Attach the ISOFIX or ISOFIX-compatible child restraint seat only to the appropriatelocations shown in the illustration.
o Always follow the installation and use instructions provided by the manufacturerof the child restraint.
Age Group Seating PositionFront
Passenger Rear
Outboard Rear
Center
0 : Up to 10 kg (0 ~ 9 months)0+ : Up to 13 kg(0 ~ 2 years)I : 9kg to 18kg(9 months ~4 years)II & III : 15kg to 36kg(4 ~ 12 years)XUU
XUU
X U, L1 U XU FUF
B230H02HP-GAT Child Seat Restraint Suitability For Seat Posi- tionUse child safety seats that have been officiallyapproved and are appropriate for your children.When using the child safety seats, refer to thefollowing table .
U : Suitable for "universal" category restraints approved for use in this mass group
UF : Suitable for forward-facing "universal" cat- egory restraints approved for use in thismass group
L1: Suitable for "Römer ISOFIX GR1" approved for use in this mass group(Approval No: E1 R44-03301133)
X : Seat position not suitable for children in this mass group Your Hyundai vehicle is equipped with driver'sand front passenger's pre-tensioner seat belts.The purpose of the pre-tensioner is to make surethat the seat belts fit tightly against the occu-pant's body in certain frontal collisions.The pre-tensioner seat belts can be activatedalone or, where the frontal collision is severeenough, together with the airbags. When the vehicle stops suddenly, or if the occu- pant tries to lean forward too quickly, the seat beltretractor will lock into position. In certain frontalcollisions, the pre-tensioner will activate and pullthe seat belt into tighter contact against theoccupant's body.
B180B02HP-AAT Pre-tensioner Seat Belt (If installed)
B180B01S
Page 37 of 361

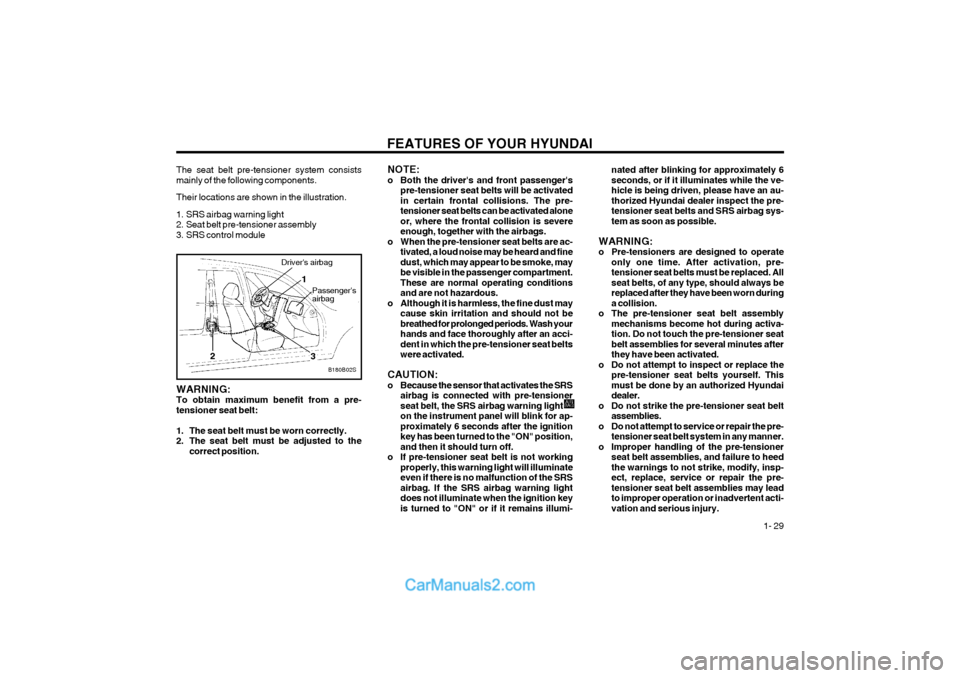

FEATURES OF YOUR HYUNDAI 1- 29
nated after blinking for approximately 6 seconds, or if it illuminates while the ve-hicle is being driven, please have an au-thorized Hyundai dealer inspect the pre-tensioner seat belts and SRS airbag sys-tem as soon as possible.
WARNING:
o Pre-tensioners are designed to operate only one time. After activation, pre-tensioner seat belts must be replaced. Allseat belts, of any type, should always bereplaced after they have been worn duringa collision.
o The pre-tensioner seat belt assembly mechanisms become hot during activa-tion. Do not touch the pre-tensioner seatbelt assemblies for several minutes afterthey have been activated.
o Do not attempt to inspect or replace the pre-tensioner seat belts yourself. Thismust be done by an authorized Hyundaidealer.
o Do not strike the pre-tensioner seat belt assemblies.
o Do not attempt to service or repair the pre- tensioner seat belt system in any manner.
o Improper handling of the pre-tensioner seat belt assemblies, and failure to heedthe warnings to not strike, modify, insp-ect, replace, service or repair the pre-tensioner seat belt assemblies may leadto improper operation or inadvertent acti-vation and serious injury.
The seat belt pre-tensioner system consistsmainly of the following components. Their locations are shown in the illustration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module
B180B02S
Driver's airbag
1
3
Passenger's airbag
WARNING: To obtain maximum benefit from a pre-tensioner seat belt:
1. The seat belt must be worn correctly.
2. The seat belt must be adjusted to the correct position. NOTE:
o Both the driver's and front passenger's
pre-tensioner seat belts will be activatedin certain frontal collisions. The pre-tensioner seat belts can be activated aloneor, where the frontal collision is severeenough, together with the airbags.
o When the pre-tensioner seat belts are ac- tivated, a loud noise may be heard and finedust, which may appear to be smoke, maybe visible in the passenger compartment.These are normal operating conditionsand are not hazardous.
o Although it is harmless, the fine dust may cause skin irritation and should not bebreathed for prolonged periods. Wash yourhands and face thoroughly after an acci-dent in which the pre-tensioner seat beltswere activated.
CAUTION:
o Because the sensor that activates the SRS airbag is connected with pre-tensionerseat belt, the SRS airbag warning lighton the instrument panel will blink for ap-proximately 6 seconds after the ignitionkey has been turned to the "ON" position,and then it should turn off.
o If pre-tensioner seat belt is not working properly, this warning light will illuminateeven if there is no malfunction of the SRSairbag. If the SRS airbag warning lightdoes not illuminate when the ignition keyis turned to "ON" or if it remains illumi-
AIR
BAG
2
Page 38 of 361

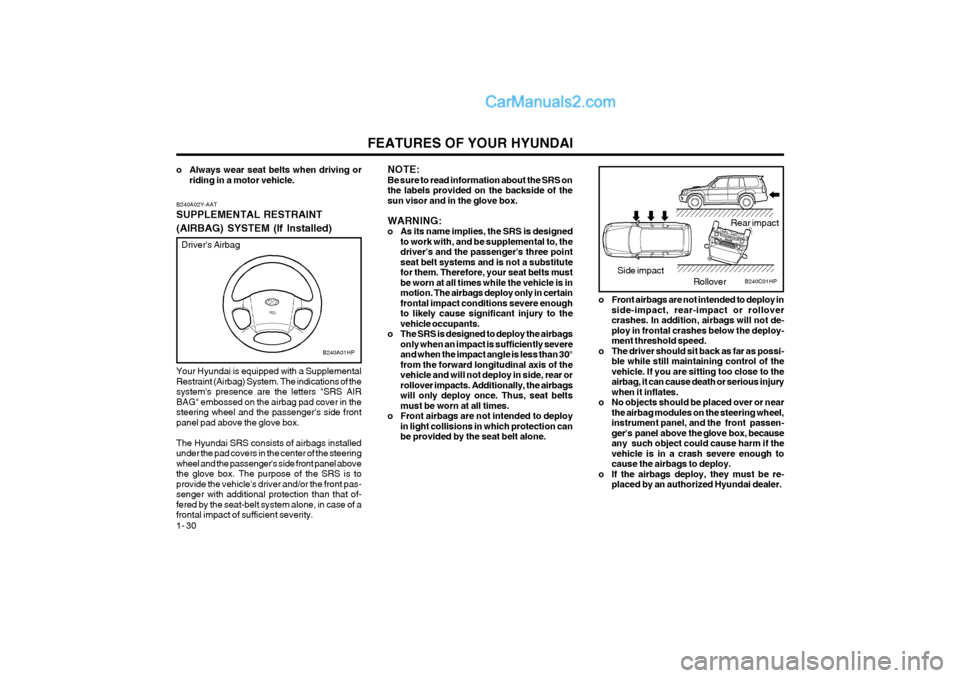

FEATURES OF YOUR HYUNDAI
1- 30 NOTE: Be sure to read information about the SRS onthe labels provided on the backside of thesun visor and in the glove box. WARNING:
o As its name implies, the SRS is designed
to work with, and be supplemental to, thedriver's and the passenger's three pointseat belt systems and is not a substitutefor them. Therefore, your seat belts mustbe worn at all times while the vehicle is inmotion. The airbags deploy only in certainfrontal impact conditions severe enoughto likely cause significant injury to thevehicle occupants.
o The SRS is designed to deploy the airbags only when an impact is sufficiently severeand when the impact angle is less than 30°from the forward longitudinal axis of thevehicle and will not deploy in side, rear orrollover impacts. Additionally, the airbagswill only deploy once. Thus, seat beltsmust be worn at all times.
o Front airbags are not intended to deploy in light collisions in which protection canbe provided by the seat belt alone.
o Always wear seat belts when driving or
riding in a motor vehicle.
B240A02Y-AAT SUPPLEMENTAL RESTRAINT (AIRBAG) SYSTEM (If Installed) Your Hyundai is equipped with a Supplemental
Restraint (Airbag) System. The indications of the
system's presence are the letters "SRS AIRBAG" embossed on the airbag pad cover in the
steering wheel and the passenger's side frontpanel pad above the glove box. The Hyundai SRS consists of airbags installed
under the pad covers in the center of the steeringwheel and the passenger's side front panel abovethe glove box. The purpose of the SRS is toprovide the vehicle's driver and/or the front pas-senger with additional protection than that of-fered by the seat-belt system alone, in case of afrontal impact of sufficient severity. Driver's Airbag
B240A01HP
B240C01HP
Rear impact
Side impact Rollover
o Front airbags are not intended to deploy in side-impact, rear-impact or rollover crashes. In addition, airbags will not de-ploy in frontal crashes below the deploy-ment threshold speed.
o The driver should sit back as far as possi- ble while still maintaining control of thevehicle. If you are sitting too close to theairbag, it can cause death or serious injurywhen it inflates.
o No objects should be placed over or near the airbag modules on the steering wheel,instrument panel, and the front passen-ger's panel above the glove box, becauseany such object could cause harm if thevehicle is in a crash severe enough tocause the airbags to deploy.
o If the airbags deploy, they must be re- placed by an authorized Hyundai dealer.
Page 39 of 361

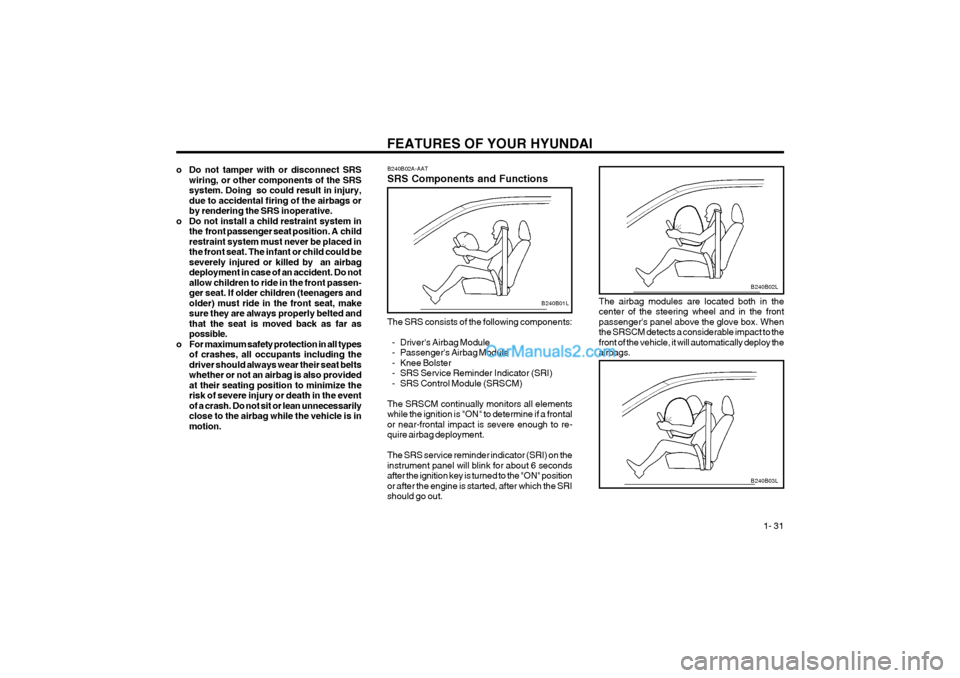

FEATURES OF YOUR HYUNDAI 1- 31
B240B02L
The airbag modules are located both in the center of the steering wheel and in the frontpassenger's panel above the glove box. Whenthe SRSCM detects a considerable impact to thefront of the vehicle, it will automatically deploy theairbags.
B240B03L
o Do not tamper with or disconnect SRS
wiring, or other components of the SRS system. Doing so could result in injury,due to accidental firing of the airbags orby rendering the SRS inoperative.
o Do not install a child restraint system in the front passenger seat position. A childrestraint system must never be placed inthe front seat. The infant or child could beseverely injured or killed by an airbagdeployment in case of an accident. Do notallow children to ride in the front passen-ger seat. If older children (teenagers andolder) must ride in the front seat, makesure they are always properly belted andthat the seat is moved back as far aspossible.
o For maximum safety protection in all types of crashes, all occupants including thedriver should always wear their seat beltswhether or not an airbag is also providedat their seating position to minimize therisk of severe injury or death in the eventof a crash. Do not sit or lean unnecessarilyclose to the airbag while the vehicle is inmotion. B240B02A-AAT SRS Components and Functions
B240B01L
The SRS consists of the following components:
- Driver's Airbag Module
- Passenger's Airbag Module
- Knee Bolster
- SRS Service Reminder Indicator (SRI)
- SRS Control Module (SRSCM)
The SRSCM continually monitors all elementswhile the ignition is "ON" to determine if a frontalor near-frontal impact is severe enough to re-quire airbag deployment. The SRS service reminder indicator (SRI) on the instrument panel will blink for about 6 secondsafter the ignition key is turned to the "ON" positionor after the engine is started, after which the SRIshould go out.
Page 40 of 361

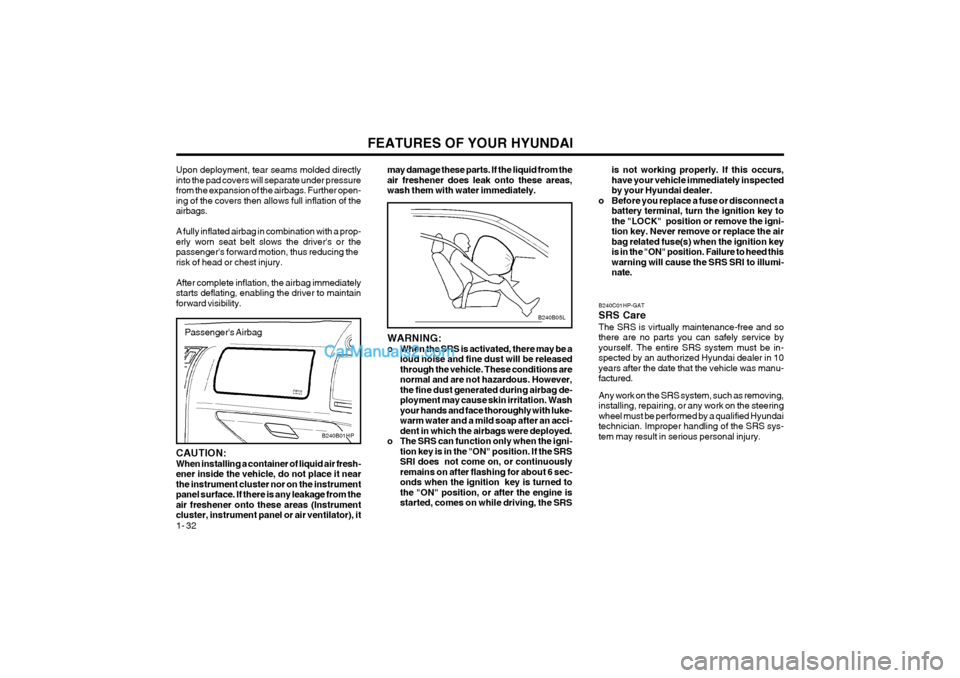

FEATURES OF YOUR HYUNDAI
1- 32
B240B05L
may damage these parts. If the liquid from the air freshener does leak onto these areas,wash them with water immediately. WARNING:
o When the SRS is activated, there may be a
loud noise and fine dust will be releasedthrough the vehicle. These conditions arenormal and are not hazardous. However,the fine dust generated during airbag de-ployment may cause skin irritation. Washyour hands and face thoroughly with luke-warm water and a mild soap after an acci-dent in which the airbags were deployed.
o The SRS can function only when the igni- tion key is in the "ON" position. If the SRSSRI does not come on, or continuouslyremains on after flashing for about 6 sec-onds when the ignition key is turned tothe "ON" position, or after the engine isstarted, comes on while driving, the SRS
Passenger's Airbag
Upon deployment, tear seams molded directly into the pad covers will separate under pressurefrom the expansion of the airbags. Further open-ing of the covers then allows full inflation of theairbags. A fully inflated airbag in combination with a prop- erly worn seat belt slows the driver's or thepassenger's forward motion, thus reducing therisk of head or chest injury. After complete inflation, the airbag immediately starts deflating, enabling the driver to maintainforward visibility.
B240B01HP
CAUTION: When installing a container of liquid air fresh-ener inside the vehicle, do not place it nearthe instrument cluster nor on the instrumentpanel surface. If there is any leakage from theair freshener onto these areas (Instrumentcluster, instrument panel or air ventilator), it B240C01HP-GAT SRS CareThe SRS is virtually maintenance-free and so there are no parts you can safely service byyourself. The entire SRS system must be in-spected by an authorized Hyundai dealer in 10years after the date that the vehicle was manu-factured. Any work on the SRS system, such as removing, installing, repairing, or any work on the steeringwheel must be performed by a qualified Hyundaitechnician. Improper handling of the SRS sys-tem may result in serious personal injury.is not working properly. If this occurs,have your vehicle immediately inspectedby your Hyundai dealer.
o Before you replace a fuse or disconnect a battery terminal, turn the ignition key tothe "LOCK" position or remove the igni-tion key. Never remove or replace the airbag related fuse(s) when the ignition keyis in the "ON" position. Failure to heed thiswarning will cause the SRS SRI to illumi-nate.
