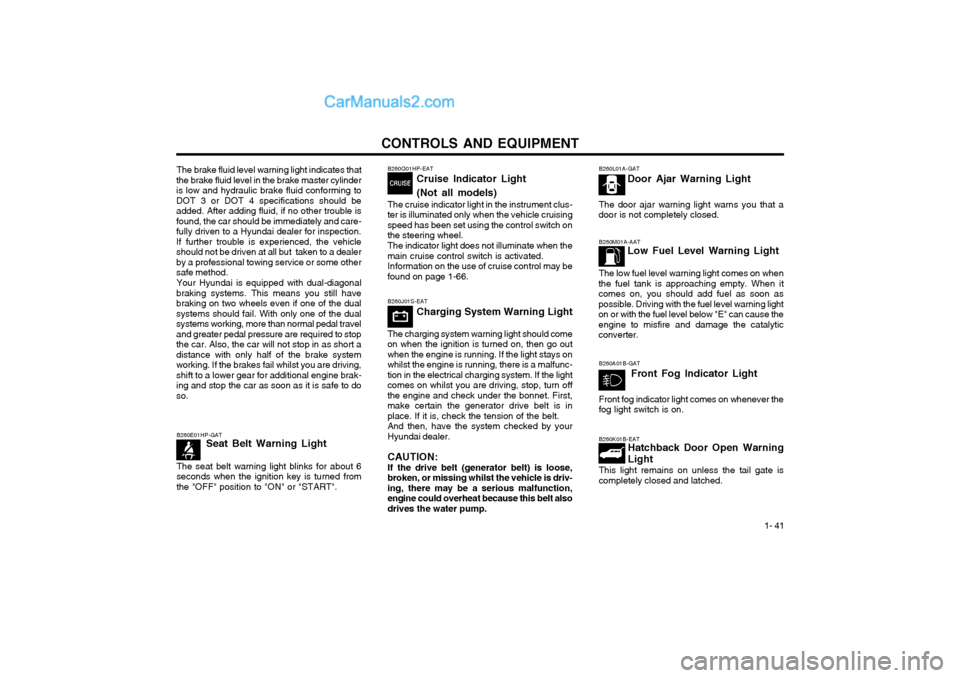

CONTROLS AND EQUIPMENT1- 41
B260M01A-AATLow Fuel Level Warning Light
The low fuel level warning light comes on when
the fuel tank is approaching empty. When it comes on, you should add fuel as soon aspossible. Driving with the fuel level warning lighton or with the fuel level below "E" can cause theengine to misfire and damage the catalyticconverter.
B260K01B-EAT Hatchback Door Open Warning Light
This light remains on unless the tail gate is completely closed and latched.
B260E01HP-GAT
Seat Belt Warning Light
The seat belt warning light blinks for about 6seconds when the ignition key is turned fromthe "OFF" position to "ON" or "START".
B260L01A-GAT Door Ajar Warning Light
The door ajar warning light warns you that a
door is not completely closed.
B260A01B-GAT
Front Fog Indicator Light
Front fog indicator light comes on whenever the fog light switch is on.
B260J01S-EAT Charging System Warning Light
The charging system warning light should come on when the ignition is turned on, then go outwhen the engine is running. If the light stays onwhilst the engine is running, there is a malfunc-tion in the electrical charging system. If the lightcomes on whilst you are driving, stop, turn offthe engine and check under the bonnet. First,make certain the generator drive belt is inplace. If it is, check the tension of the belt.And then, have the system checked by yourHyundai dealer. CAUTION: If the drive belt (generator belt) is loose, broken, or missing whilst the vehicle is driv-ing, there may be a serious malfunction,engine could overheat because this belt alsodrives the water pump.
B260Q01HP-EAT Cruise Indicator Light (Not all models)
The cruise indicator light in the instrument clus-
ter is illuminated only when the vehicle cruising speed has been set using the control switch onthe steering wheel.
The indicator light does not illuminate when the
main cruise control switch is activated. Information on the use of cruise control may be
found on page 1-66.
The brake fluid level warning light indicates that
the brake fluid level in the brake master cylinderis low and hydraulic brake fluid conforming toDOT 3 or DOT 4 specifications should beadded. After adding fluid, if no other trouble isfound, the car should be immediately and care-fully driven to a Hyundai dealer for inspection.If further trouble is experienced, the vehicleshould not be driven at all but taken to a dealerby a professional towing service or some othersafe method.
Your Hyundai is equipped with dual-diagonal
braking systems. This means you still havebraking on two wheels even if one of the dualsystems should fail. With only one of the dualsystems working, more than normal pedal traveland greater pedal pressure are required to stopthe car. Also, the car will not stop in as short adistance with only half of the brake systemworking. If the brakes fail whilst you are driving,shift to a lower gear for additional engine brak-ing and stop the car as soon as it is safe to doso.

CONTROLS AND EQUIPMENT

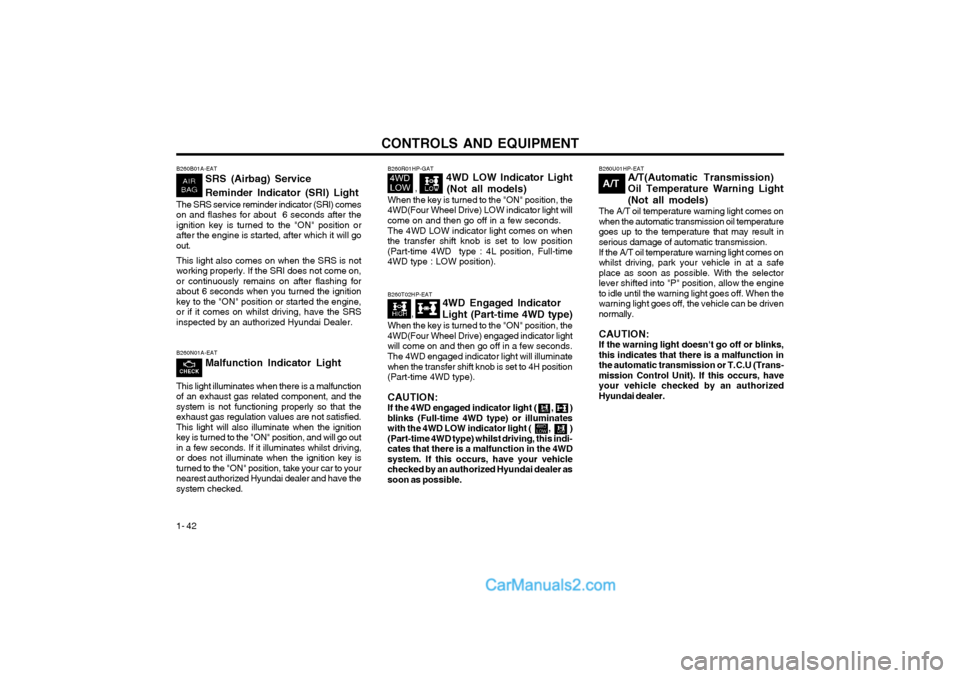

1- 42 B260T02HP-EAT
4WD Engaged Indicator
Light (Part-time 4WD type)
When the key is turned to the "ON" position, the
4WD(Four Wheel Drive) engaged indicator light will come on and then go off in a few seconds.
The 4WD engaged indicator light will illuminate
when the transfer shift knob is set to 4H position(Part-time 4WD type). CAUTION: If the 4WD engaged indicator light ( , )blinks (Full-time 4WD type) or illuminates
with the 4WD LOW indicator light ( , )(Part-time 4WD type) whilst driving, this indi-cates that there is a malfunction in the 4WDsystem. If this occurs, have your vehiclechecked by an authorized Hyundai dealer assoon as possible.
B260U01HP-EAT A/T(Automatic Transmission)
Oil Temperature Warning Light(Not all models)
The A/T oil temperature warning light comes on when the automatic transmission oil temperaturegoes up to the temperature that may result inserious damage of automatic transmission. If the A/T oil temperature warning light comes on
whilst driving, park your vehicle in at a safe
place as soon as possible. With the selectorlever shifted into "P" position, allow the engineto idle until the warning light goes off. When thewarning light goes off, the vehicle can be driven
normally. CAUTION: If the warning light doesn't go off or blinks,this indicates that there is a malfunction inthe automatic transmission or T.C.U (Trans-mission Control Unit). If this occurs, haveyour vehicle checked by an authorizedHyundai dealer.
A/T
B260N01A-EAT
Malfunction Indicator Light
This light illuminates when there is a malfunction of an exhaust gas related component, and thesystem is not functioning properly so that theexhaust gas regulation values are not satisfied.This light will also illuminate when the ignitionkey is turned to the "ON" position, and will go out
in a few seconds. If it illuminates whilst driving,or does not illuminate when the ignition key isturned to the "ON" position, take your car to yournearest authorized Hyundai dealer and have thesystem checked.
B260R01HP-GAT 4WD LOW Indicator Light (Not all models)
When the key is turned to the "ON" position, the
4WD(Four Wheel Drive) LOW indicator light will come on and then go off in a few seconds.
The 4WD LOW indicator light comes on when
the transfer shift knob is set to low position(Part-time 4WD type : 4L position, Full-time
4WD type : LOW position).B260B01A-EAT
SRS (Airbag) Service Reminder Indicator (SRI) Light
The SRS service reminder indicator (SRI) comes on and flashes for about 6 seconds after theignition key is turned to the "ON" position orafter the engine is started, after which it will goout. This light also comes on when the SRS is not working properly. If the SRI does not come on,or continuously remains on after flashing forabout 6 seconds when you turned the ignitionkey to the "ON" position or started the engine,or if it comes on whilst driving, have the SRSinspected by an authorized Hyundai Dealer.
,
,

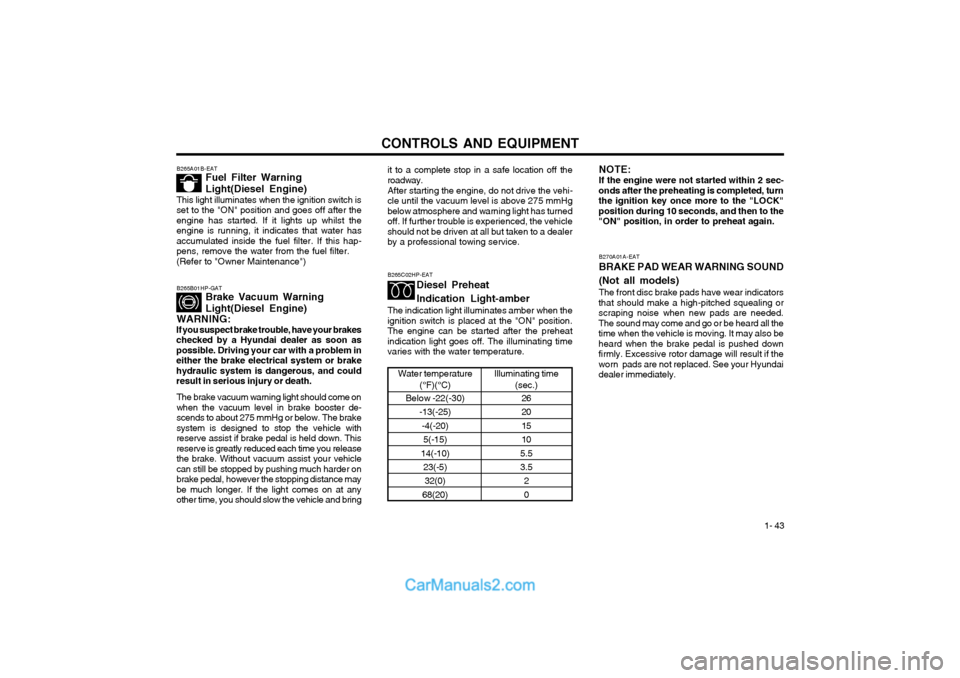

CONTROLS AND EQUIPMENT1- 43
B270A01A-EAT BRAKE PAD WEAR WARNING SOUND (Not all models) The front disc brake pads have wear indicators
that should make a high-pitched squealing or scraping noise when new pads are needed.The sound may come and go or be heard all thetime when the vehicle is moving. It may also beheard when the brake pedal is pushed downfirmly. Excessive rotor damage will result if theworn pads are not replaced. See your Hyundaidealer immediately. NOTE: If the engine were not started within 2 sec-
onds after the preheating is completed, turn the ignition key once more to the "LOCK"position during 10 seconds, and then to the"ON" position, in order to preheat again.
it to a complete stop in a safe location off theroadway.
After starting the engine, do not drive the vehi-
cle until the vacuum level is above 275 mmHgbelow atmosphere and warning light has turnedoff. If further trouble is experienced, the vehicleshould not be driven at all but taken to a dealerby a professional towing service. B265C02HP-EAT
Diesel Preheat Indication Light-amber
The indication light illuminates amber when the ignition switch is placed at the "ON" position.The engine can be started after the preheatindication light goes off. The illuminating timevaries with the water temperature.
B265A01B-EAT Fuel Filter Warning Light(Diesel Engine)
This light illuminates when the ignition switch is set to the "ON" position and goes off after theengine has started. If it lights up whilst theengine is running, it indicates that water hasaccumulated inside the fuel filter. If this hap-pens, remove the water from the fuel filter. (Refer to "Owner Maintenance") B265B01HP-GAT Brake Vacuum Warning Light(Diesel Engine)
WARNING:
If you suspect brake trouble, have your brakes checked by a Hyundai dealer as soon aspossible. Driving your car with a problem ineither the brake electrical system or brakehydraulic system is dangerous, and couldresult in serious injury or death.
The brake vacuum warning light should come onwhen the vacuum level in brake booster de-scends to about 275 mmHg or below. The brakesystem is designed to stop the vehicle withreserve assist if brake pedal is held down. Thisreserve is greatly reduced each time you releasethe brake. Without vacuum assist your vehiclecan still be stopped by pushing much harder onbrake pedal, however the stopping distance maybe much longer. If the light comes on at anyother time, you should slow the vehicle and bring
Water temperature (°F)(°C)
Below -22(-30)
-13(-25)-4(-20)
5(-15)
14(-10) 23(-5)32(0)
68(20) Illuminating time
(sec.)
26 201510
5.53.5 20

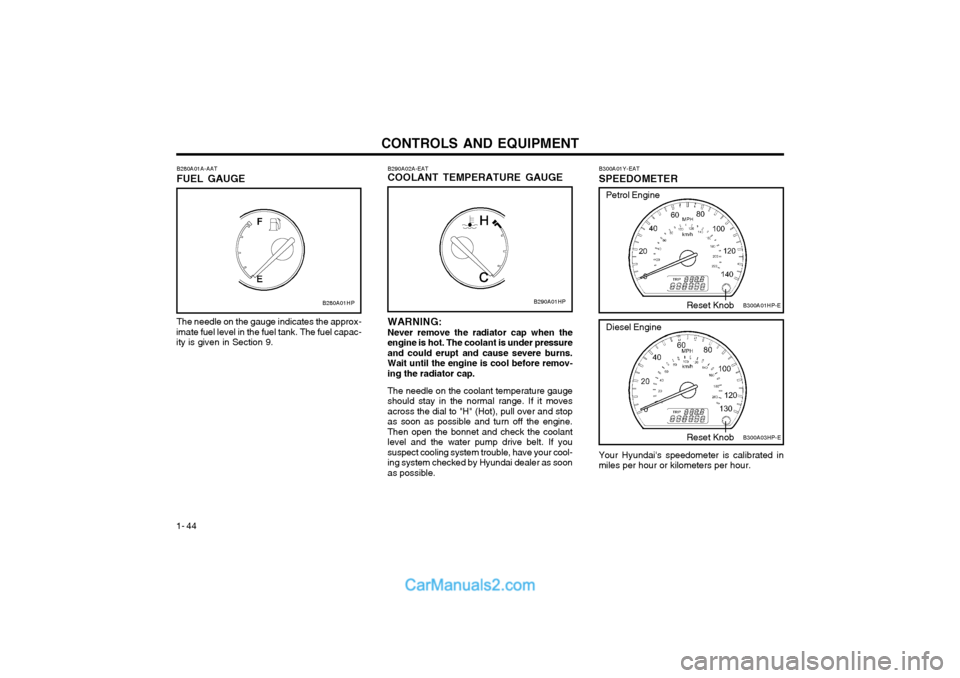

CONTROLS AND EQUIPMENT
1- 44
B300A01Y-EAT SPEEDOMETER Your Hyundai's speedometer is calibrated in miles per hour or kilometers per hour. B300A03HP-EB290A02A-EAT COOLANT TEMPERATURE GAUGE WARNING: Never remove the radiator cap when the engine is hot. The coolant is under pressureand could erupt and cause severe burns.Wait until the engine is cool before remov-ing the radiator cap. The needle on the coolant temperature gauge should stay in the normal range. If it movesacross the dial to "H" (Hot), pull over and stopas soon as possible and turn off the engine.Then open the bonnet and check the coolantlevel and the water pump drive belt. If yoususpect cooling system trouble, have your cool-ing system checked by Hyundai dealer as soonas possible.
B280A01A-AAT FUEL GAUGE The needle on the gauge indicates the approx-
imate fuel level in the fuel tank. The fuel capac- ity is given in Section 9.
B280A01HPB290A01HP
Petrol Engine
Reset Knob
B300A01HP-E
Diesel EngineReset Knob

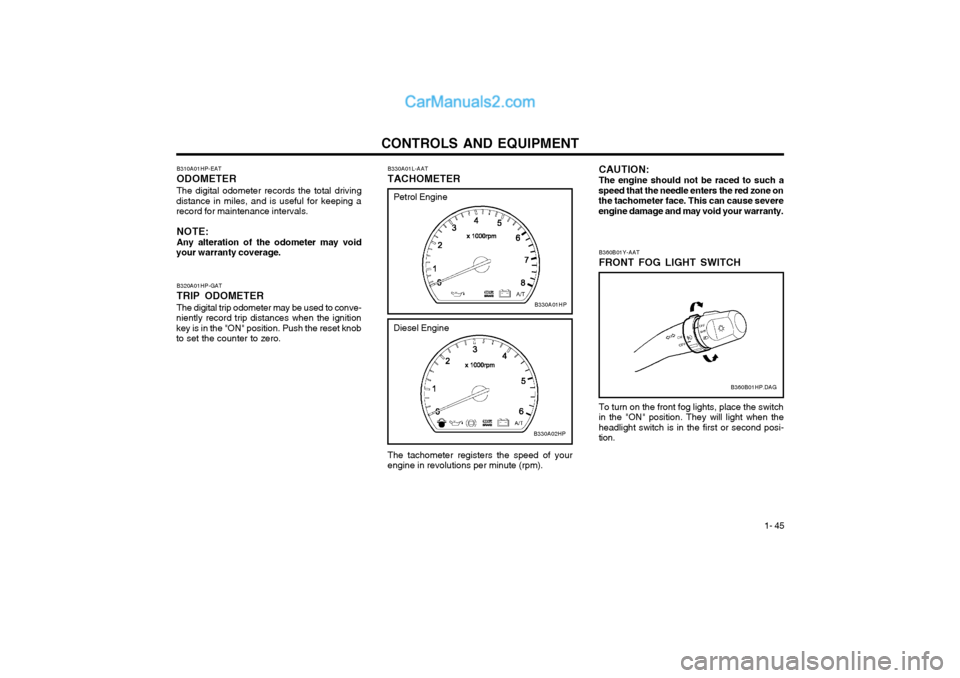

CONTROLS AND EQUIPMENT1- 45
CAUTION: The engine should not be raced to such a
speed that the needle enters the red zone on the tachometer face. This can cause severeengine damage and may void your warranty.
B330A01L-AAT TACHOMETER The tachometer registers the speed of your engine in revolutions per minute (rpm).
B310A01HP-EAT ODOMETERThe digital odometer records the total driving
distance in miles, and is useful for keeping a record for maintenance intervals.
NOTE: Any alteration of the odometer may void
your warranty coverage.
B320A01HP-GAT TRIP ODOMETERThe digital trip odometer may be used to conve-
niently record trip distances when the ignition key is in the "ON" position. Push the reset knobto set the counter to zero.
B330A01HP
Petrol Engine
Diesel Engine
B330A02HP
B360B01HP.DAG
B360B01Y-AAT FRONT FOG LIGHT SWITCH To turn on the front fog lights, place the switch in the "ON" position. They will light when theheadlight switch is in the first or second posi-tion.

CONTROLS AND EQUIPMENT

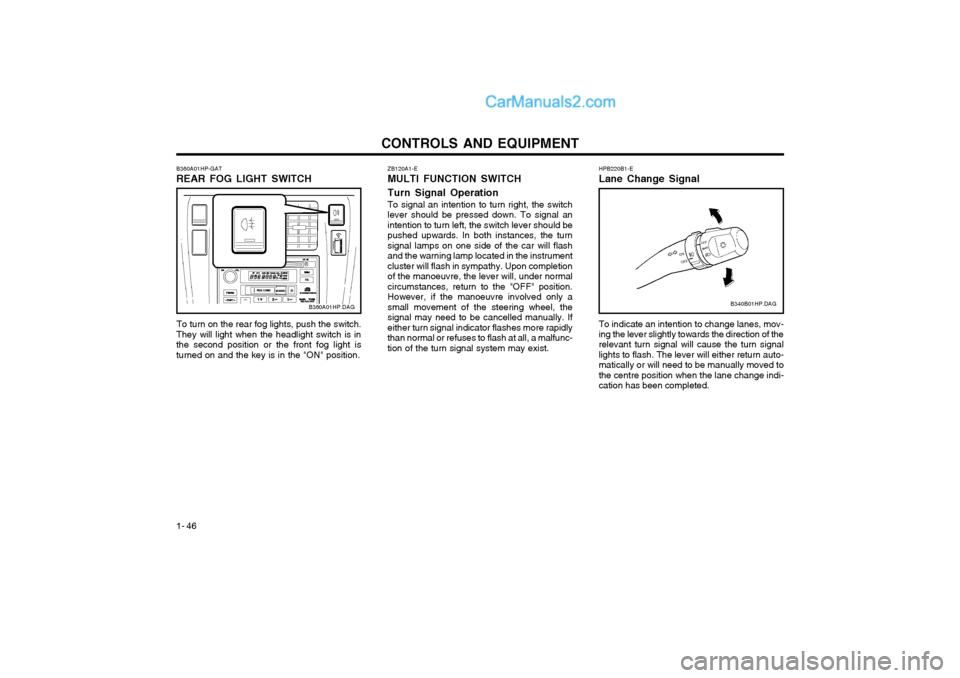

1- 46 ZB120A1-E MULTI FUNCTION SWITCH Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down. To signal anintention to turn left, the switch lever should bepushed upwards. In both instances, the turnsignal lamps on one side of the car will flashand the warning lamp located in the instrumentcluster will flash in sympathy. Upon completionof the manoeuvre, the lever will, under normalcircumstances, return to the "OFF" position.However, if the manoeuvre involved only asmall movement of the steering wheel, thesignal may need to be cancelled manually. Ifeither turn signal indicator flashes more rapidlythan normal or refuses to flash at all, a malfunc-tion of the turn signal system may exist.
B360A01HP-GAT REAR FOG LIGHT SWITCH
B360A01HP.DAG
To turn on the rear fog lights, push the switch.
They will light when the headlight switch is in the second position or the front fog light isturned on and the key is in the "ON" position.HPB220B1-E Lane Change Signal To indicate an intention to change lanes, mov- ing the lever slightly towards the direction of the relevant turn signal will cause the turn signal lights to flash. The lever will either return auto-matically or will need to be manually moved tothe centre position when the lane change indi-cation has been completed. B340B01HP.DAG

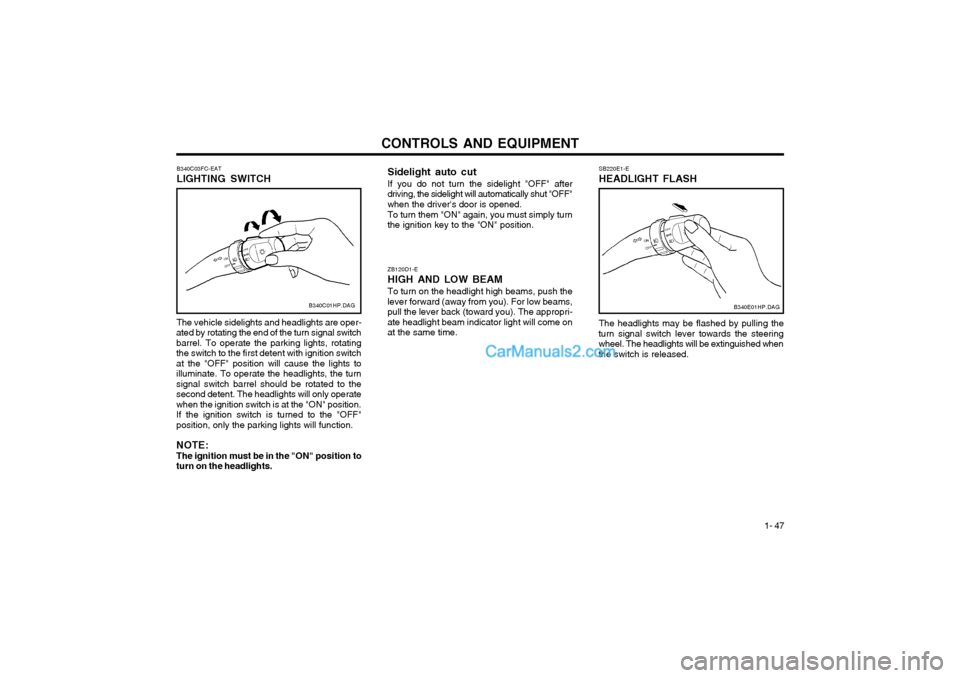

CONTROLS AND EQUIPMENT1- 47
ZB120D1-E HIGH AND LOW BEAMTo turn on the headlight high beams, push the
lever forward (away from you). For low beams, pull the lever back (toward you). The appropri-ate headlight beam indicator light will come onat the same time.
B340C03FC-EAT LIGHTING SWITCH The vehicle sidelights and headlights are oper-
ated by rotating the end of the turn signal switch barrel. To operate the parking lights, rotatingthe switch to the first detent with ignition switchat the "OFF" position will cause the lights toilluminate. To operate the headlights, the turnsignal switch barrel should be rotated to thesecond detent. The headlights will only operatewhen the ignition switch is at the "ON" position.If the ignition switch is turned to the "OFF"position, only the parking lights will function. NOTE: The ignition must be in the "ON" position toturn on the headlights. B340C01HP.DAG
Sidelight auto cut If you do not turn the sidelight "OFF" after driving, the sidelight will automatically shut "OFF"when the driver's door is opened. To turn them "ON" again, you must simply turn the ignition key to the "ON" position.
SB220E1-E HEADLIGHT FLASH The headlights may be flashed by pulling the
turn signal switch lever towards the steering wheel. The headlights will be extinguished whenthe switch is released. B340E01HP.DAG

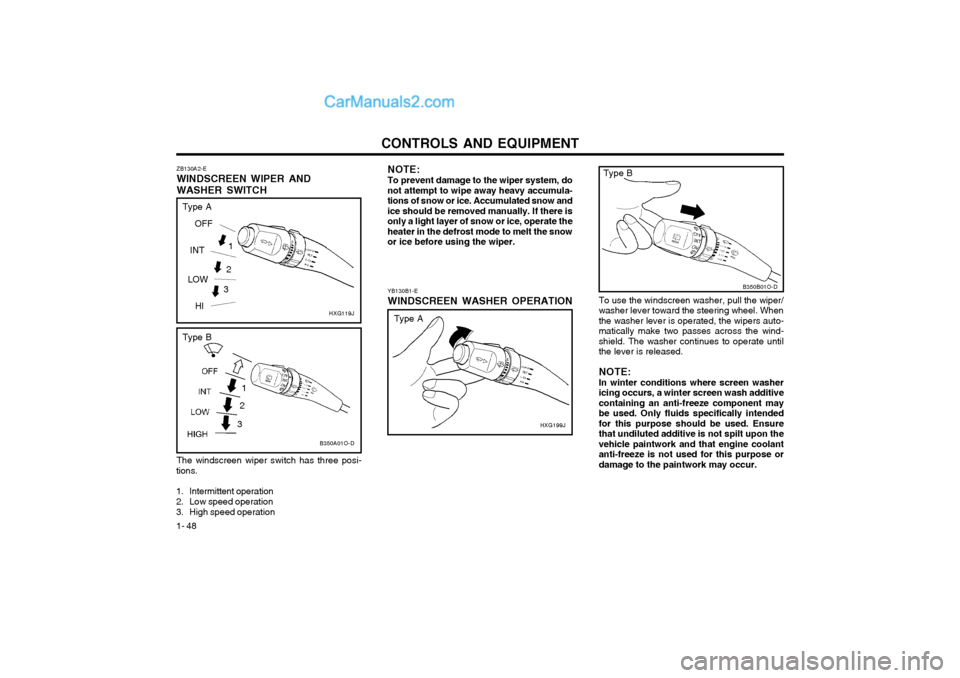

CONTROLS AND EQUIPMENT
1- 48
ZB130A2-E WINDSCREEN WIPER ANDWASHER SWITCH NOTE: To prevent damage to the wiper system, do
not attempt to wipe away heavy accumula- tions of snow or ice. Accumulated snow andice should be removed manually. If there isonly a light layer of snow or ice, operate theheater in the defrost mode to melt the snowor ice before using the wiper.
YB130B1-E WINDSCREEN WASHER OPERATION To use the windscreen washer, pull the wiper/ washer lever toward the steering wheel. Whenthe washer lever is operated, the wipers auto-matically make two passes across the wind-shield. The washer continues to operate untilthe lever is released. NOTE: In winter conditions where screen washer icing occurs, a winter screen wash additivecontaining an anti-freeze component maybe used. Only fluids specifically intendedfor this purpose should be used. Ensurethat undiluted additive is not spilt upon thevehicle paintwork and that engine coolantanti-freeze is not used for this purpose ordamage to the paintwork may occur.
HXG199J
3
2
HXG119J
1
OFF
INT
LOW HI
B350A01O-D
The windscreen wiper switch has three posi-
tions.
1. Intermittent operation
2. Low speed operation
3. High speed operation B350B01O-D
Type A Type B
Type AType B
3 2
1

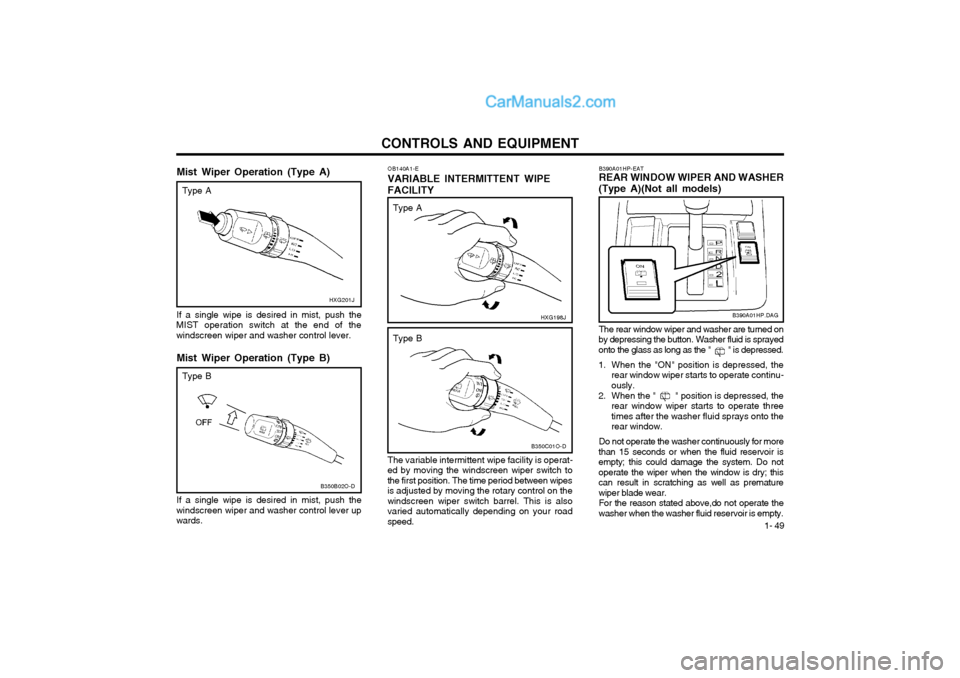

CONTROLS AND EQUIPMENT1- 49
Mist Wiper Operation (Type A) If a single wipe is desired in mist, push the
MIST operation switch at the end of the windscreen wiper and washer control lever.
Mist Wiper Operation (Type B) HXG201J
B350B02O-D
OB140A1-E VARIABLE INTERMITTENT WIPEFACILITY
HXG198J
The variable intermittent wipe facility is operat-
ed by moving the windscreen wiper switch to the first position. The time period between wipesis adjusted by moving the rotary control on thewindscreen wiper switch barrel. This is alsovaried automatically depending on your roadspeed. B350C01O-D
Type A Type B Type A Type B
If a single wipe is desired in mist, push the
windscreen wiper and washer control lever up wards. B390A01HP-EAT REAR WINDOW WIPER AND WASHER
(Type A)(Not all models)
B390A01HP.DAG
The rear window wiper and washer are turned on
by depressing the button. Washer fluid is sprayed onto the glass as long as the " " is depressed.
1. When the "ON" position is depressed, the rear window wiper starts to operate continu- ously.
2. When the " " position is depressed, the rear window wiper starts to operate threetimes after the washer fluid sprays onto therear window.
Do not operate the washer continuously for more
than 15 seconds or when the fluid reservoir isempty; this could damage the system. Do notoperate the wiper when the window is dry; thiscan result in scratching as well as prematurewiper blade wear. For the reason stated above,do not operate the
washer when the washer fluid reservoir is empty.

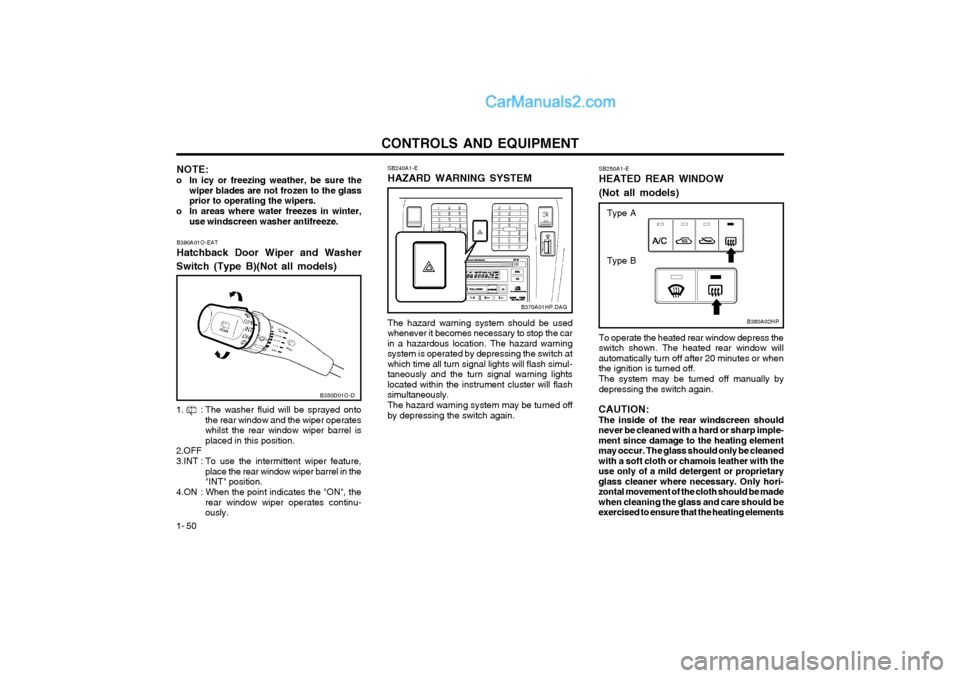

CONTROLS AND EQUIPMENT
1- 50 SB250A1-E HEATED REAR WINDOW (Not all models)
B380A02HP
To operate the heated rear window depress the switch shown. The heated rear window willautomatically turn off after 20 minutes or whenthe ignition is turned off. The system may be turned off manually by depressing the switch again.
CAUTION:The inside of the rear windscreen shouldnever be cleaned with a hard or sharp imple-ment since damage to the heating elementmay occur. The glass should only be cleanedwith a soft cloth or chamois leather with theuse only of a mild detergent or proprietaryglass cleaner where necessary. Only hori-zontal movement of the cloth should be madewhen cleaning the glass and care should beexercised to ensure that the heating elements Type A
Type B
NOTE:
o In icy or freezing weather, be sure the wiper blades are not frozen to the glass prior to operating the wipers.
o In areas where water freezes in winter, use windscreen washer antifreeze. SB240A1-E HAZARD WARNING SYSTEM
The hazard warning system should be used
whenever it becomes necessary to stop the car in a hazardous location. The hazard warningsystem is operated by depressing the switch atwhich time all turn signal lights will flash simul-taneously and the turn signal warning lightslocated within the instrument cluster will flashsimultaneously.
The hazard warning system may be turned off
by depressing the switch again. B370A01HP.DAG
B390A01O-EAT Hatchback Door Wiper and Washer
Switch (Type B)(Not all models)
1. : The washer fluid will be sprayed onto the rear window and the wiper operates whilst the rear window wiper barrel isplaced in this position.
2.OFF
3.INT : To use the intermittent wiper feature,
place the rear window wiper barrel in the "INT" position.
4.ON : When the point indicates the "ON", the
rear window wiper operates continu-ously. B350D01O-D
