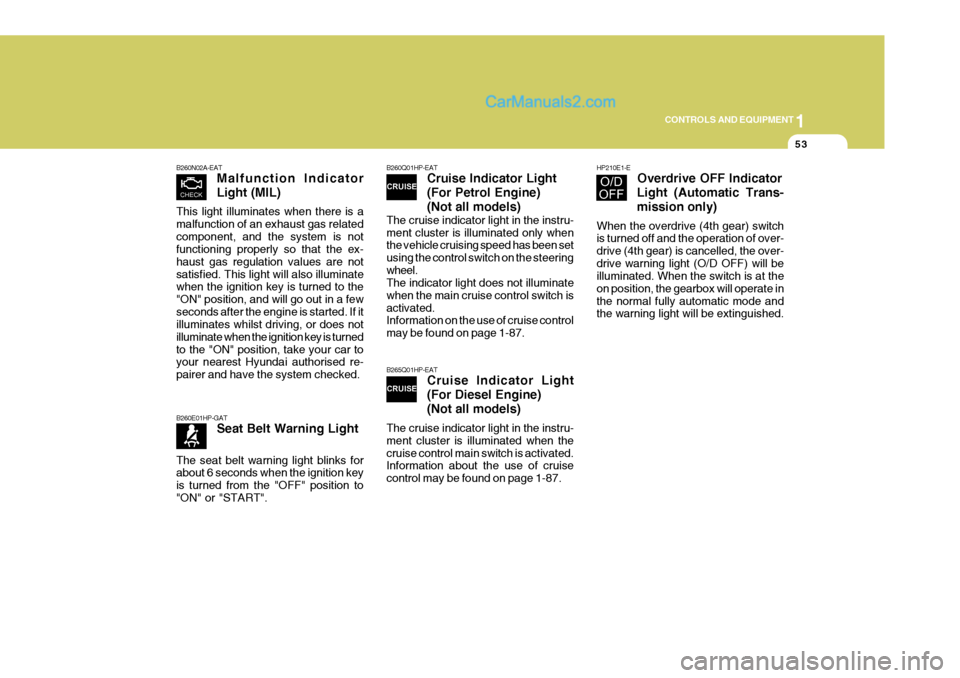

Page 361 of 539

Hyundai Terracan 2006  Owners Manual 1
CONTROLS AND EQUIPMENT
53
B260N02A-EAT Malfunction Indicator Light (MIL)
This light illuminates when there is a malfunction of an exhaust gas relatedcomponent, and the system is not functioning prop

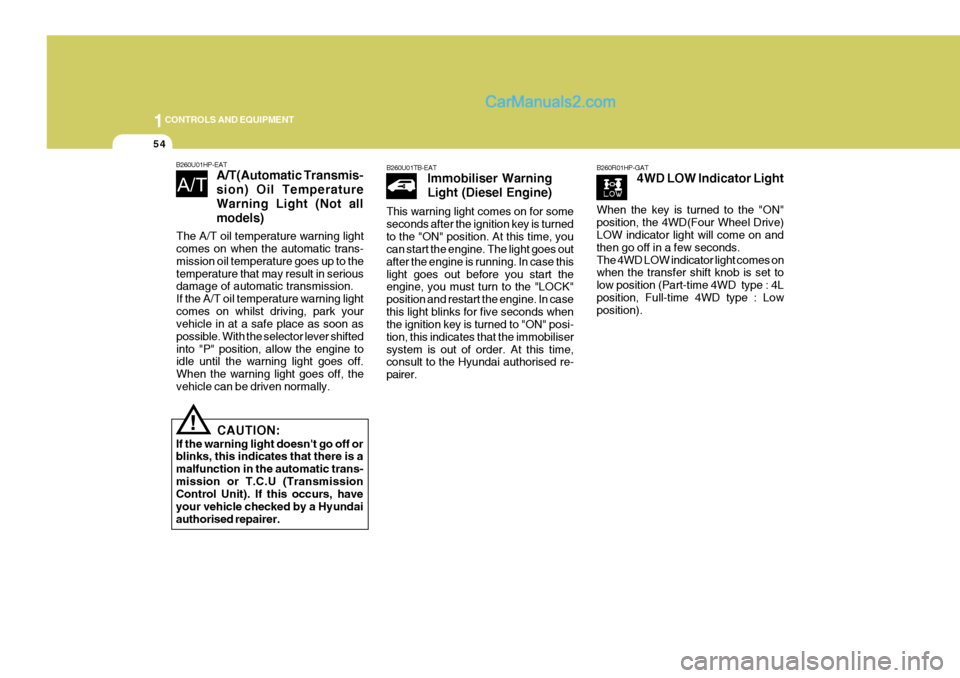

Page 362 of 539

Hyundai Terracan 2006  Owners Manual 1CONTROLS AND EQUIPMENT
54
!
B260U01HP-EAT
A/T(Automatic Transmis- sion) Oil TemperatureWarning Light (Not allmodels)
CAUTION:
If the warning light doesnt go off or blinks, this indicates that there

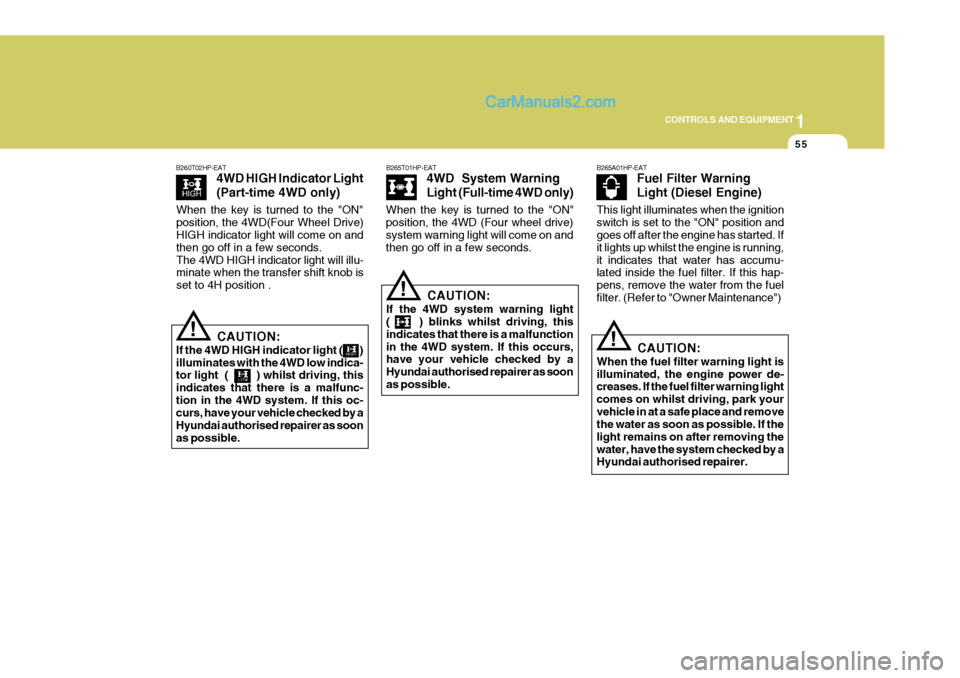

Page 363 of 539

Hyundai Terracan 2006  Owners Manual 1
CONTROLS AND EQUIPMENT
55
!
B265T01HP-EAT
4WD  System Warning
Light (Full-time 4WD only)
CAUTION:
If the 4WD system warning light (     ) blinks whilst driving, this indicates that there is a malfu

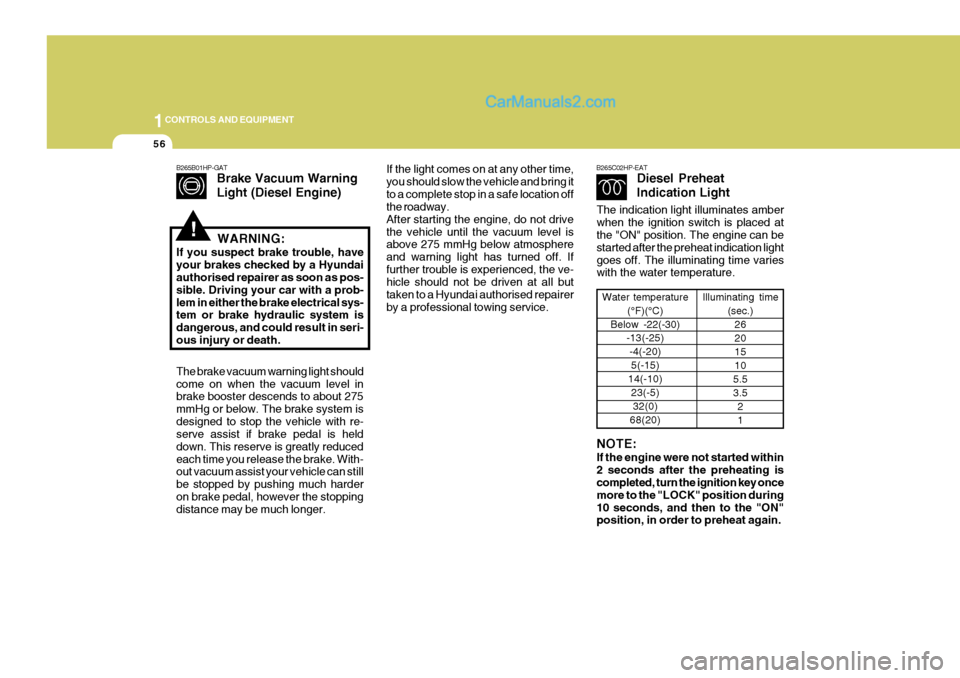

Page 364 of 539

Hyundai Terracan 2006  Owners Manual 1CONTROLS AND EQUIPMENT
56
!
B265B01HP-GAT
Brake Vacuum Warning Light (Diesel Engine)
The brake vacuum warning light should come on when the vacuum level in brake booster descends to about 275 mmHg or

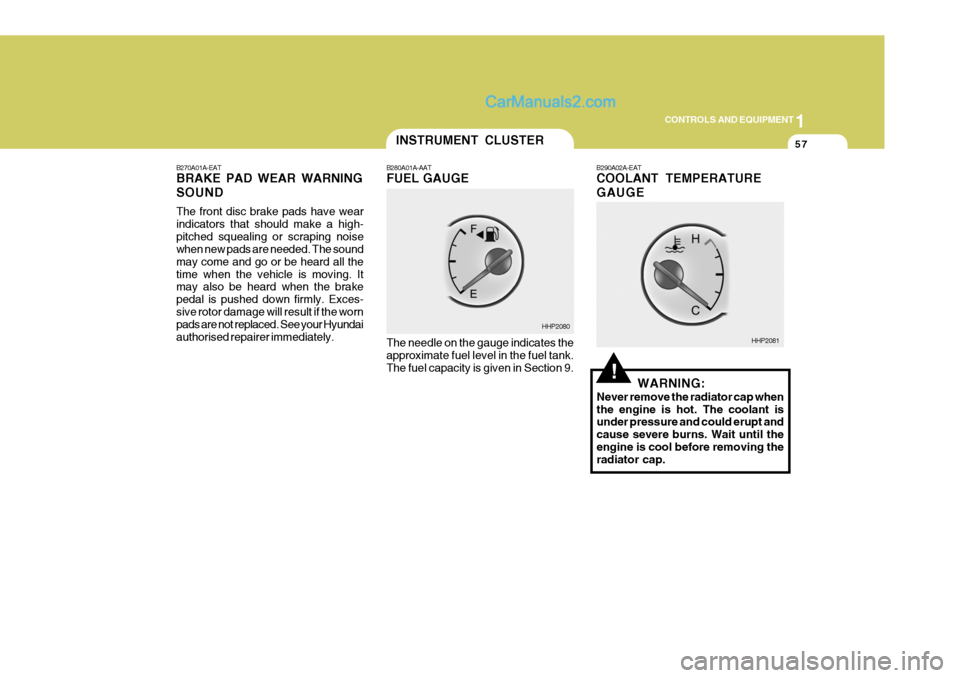

Page 365 of 539

Hyundai Terracan 2006  Owners Manual 1
CONTROLS AND EQUIPMENT
57
!
B270A01A-EAT BRAKE PAD WEAR WARNING SOUND The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noise when new pads are nee

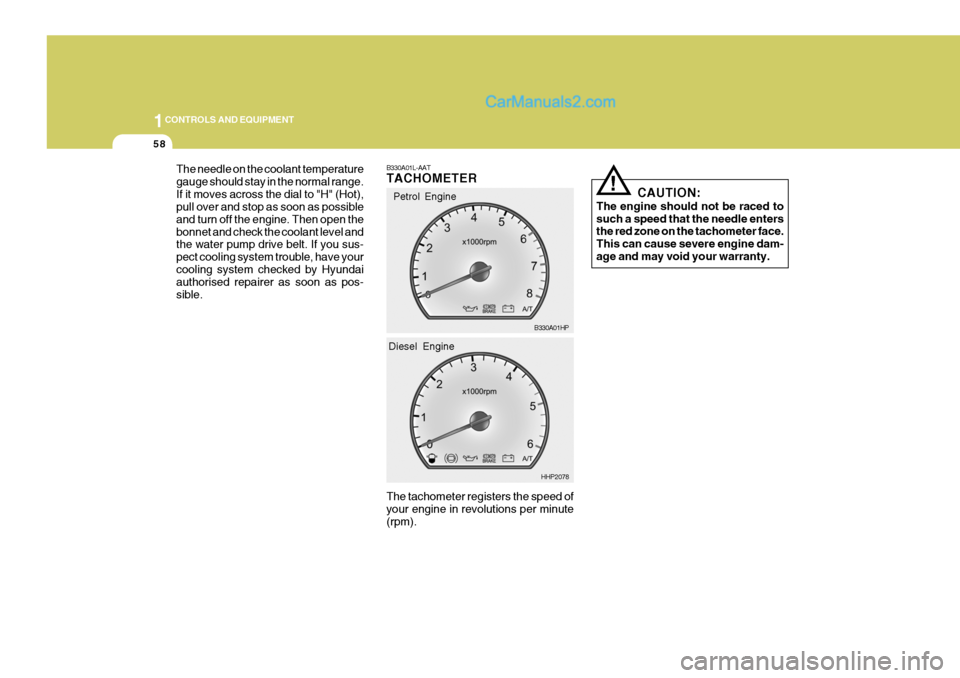

Page 366 of 539

Hyundai Terracan 2006  Owners Manual 1CONTROLS AND EQUIPMENT
58
The needle on the coolant temperature gauge should stay in the normal range.If it moves across the dial to "H" (Hot), pull over and stop as soon as possible and turn off the

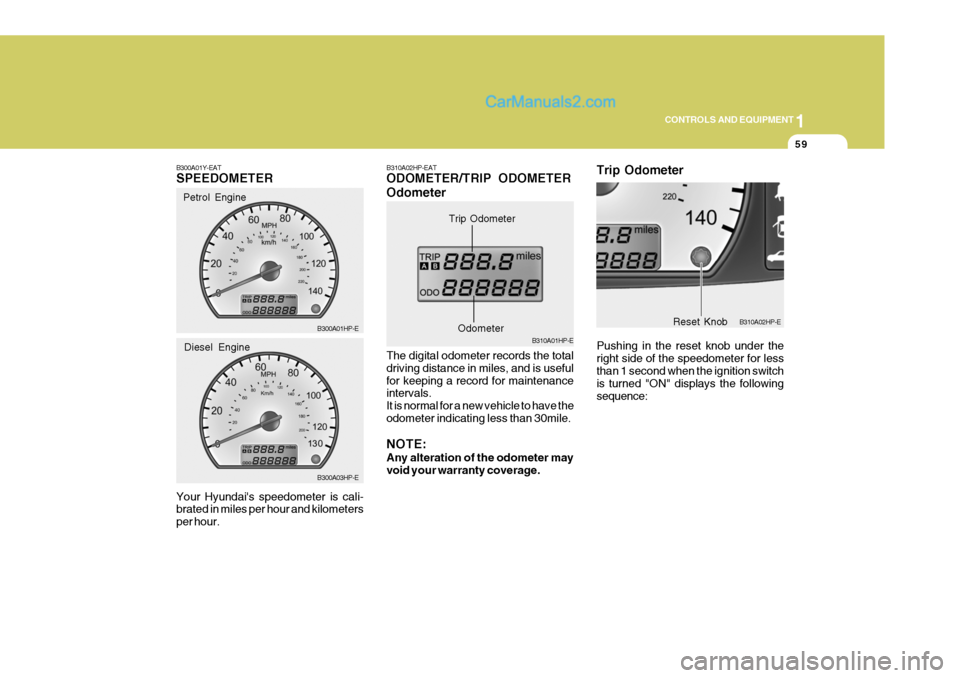

Page 367 of 539

Hyundai Terracan 2006  Owners Manual 1
CONTROLS AND EQUIPMENT
59
B300A01Y-EAT SPEEDOMETER Your Hyundais speedometer is cali- brated in miles per hour and kilometers per hour. Petrol Engine
B300A01HP-E B300A03HP-E
Diesel EngineB310A02HP-

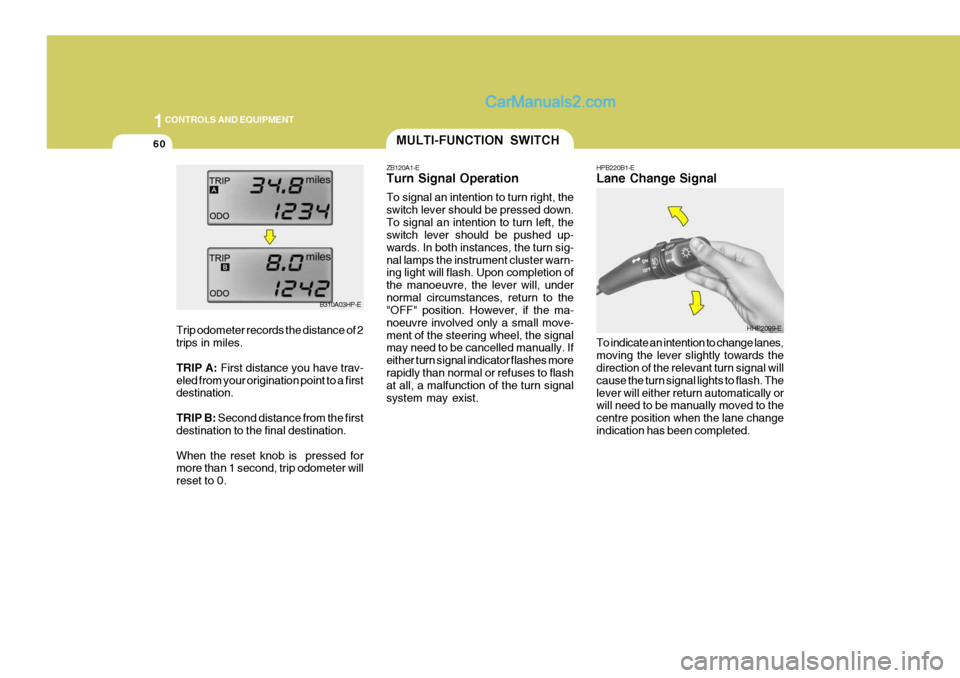

Page 368 of 539

Hyundai Terracan 2006  Owners Manual 1CONTROLS AND EQUIPMENT
60
HPB220B1-E Lane Change Signal To indicate an intention to change lanes, moving the lever slightly towards the direction of the relevant turn signal will cause the turn signa

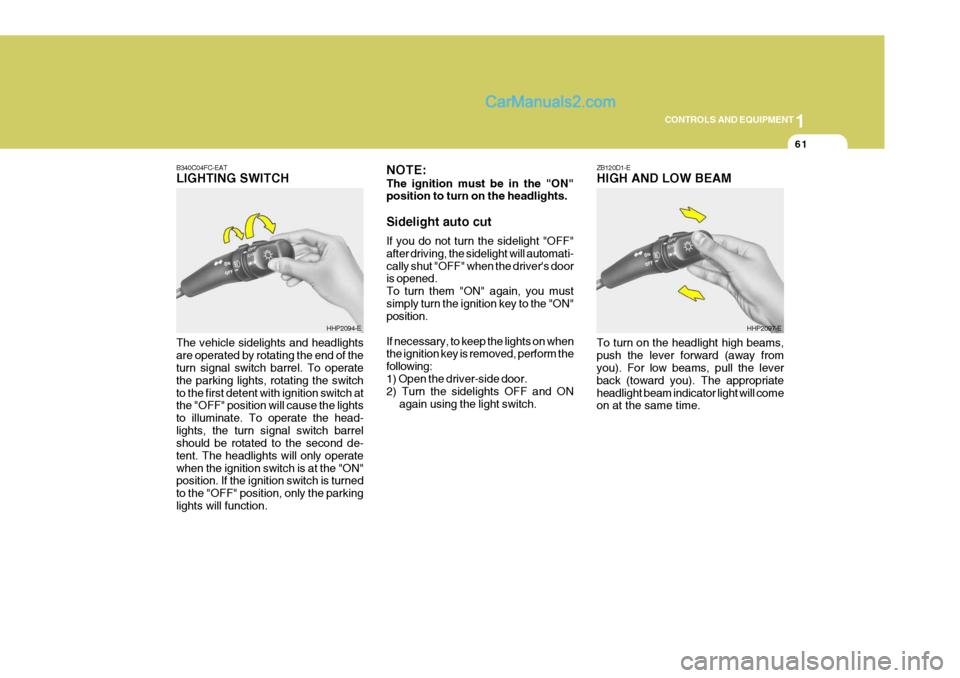

Page 369 of 539

Hyundai Terracan 2006  Owners Manual 1
CONTROLS AND EQUIPMENT
61
ZB120D1-E HIGH AND LOW BEAM
B340C04FC-EATLIGHTING SWITCH The vehicle sidelights and headlights are operated by rotating the end of the turn signal switch barrel. To operate

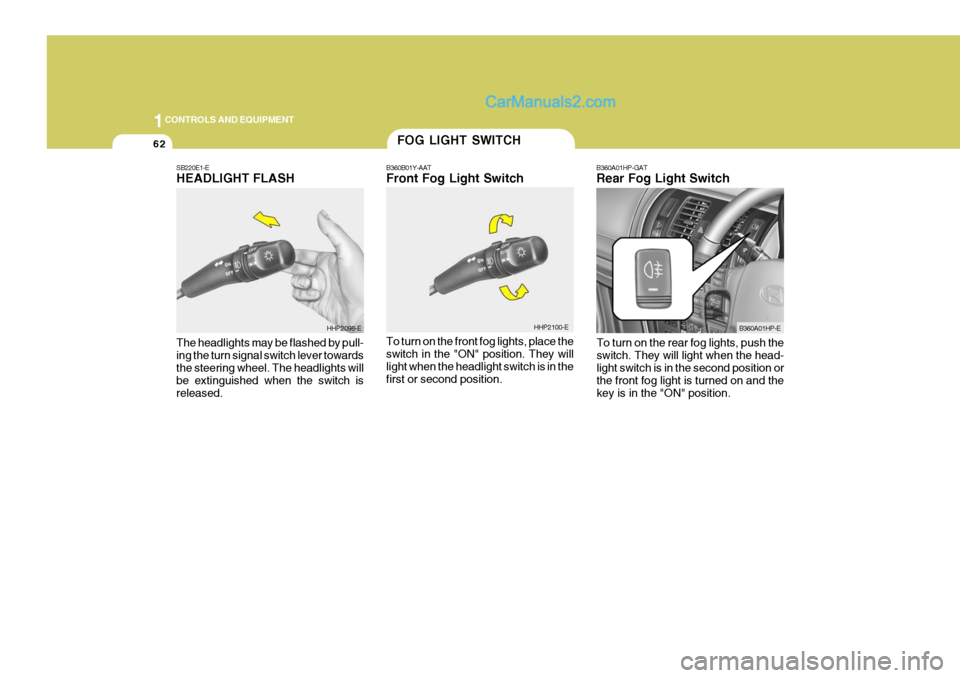

Page 370 of 539

Hyundai Terracan 2006  Owners Manual 1CONTROLS AND EQUIPMENT
62FOG LIGHT SWITCH
B360B01Y-AAT Front Fog Light Switch To turn on the front fog lights, place the switch in the "ON" position. They will light when the headlight switch is in t
